APDU1335T - Temperature Controller APC - Free user manual and instructions

Product Type	Digital Temperature Controller
Model	APDU1335T
Brand	APC
Input Voltage	24 VAC/VDC
Output Type	Relay (SPDT, 2A @ 30 VDC / 250 VAC)
Sensor Input	Thermocouple Type K or Pt100 RTD (selectable)
Display	Dual LED, 4-digit, red and green
Temperature Range	-200 to 1800 °C (depending on sensor)
Control Mode	ON/OFF or PID (selectable)
Setpoint Resolution	0.1 °C
Accuracy	±0.5% of full scale
Dimensions (W x H x D)	48 x 48 x 90 mm
Panel Cutout	45 x 45 mm
Weight	Approximately 150 g
Protection Rating	IP65 (front panel)
Operating Temperature	0 to 50 °C
Storage Temperature	-20 to 70 °C
Humidity	20% to 85% RH (non-condensing)
Key Functions	Setpoint adjustment, auto-tuning, alarm output
Maintenance	Wipe with dry cloth; avoid solvents
Safety Compliance	CE, RoHS
Spare Parts	Replacement sensor, mounting bracket, connector

Frequently Asked Questions - APDU1335T APC

How do I connect the temperature sensor?

The APDU1335T accepts thermocouple type K or Pt100 RTD. Connect the sensor to terminals 1 and 2 (plus/minus) for thermocouple, or 1, 2, and 3 for RTD. Refer to the wiring diagram in the manual.

What is the default control mode?

The default control mode is ON/OFF. You can change it to PID through the configuration menu (holding the SET key for 3 seconds).

How do I set the temperature setpoint?

Press the SET key once. The setpoint value will flash. Use the up/down arrows to adjust. Press SET again to confirm.

What does the alarm indicator mean?

The red LED and a beep indicate an alarm condition. This can be a sensor error, over-temperature, or under-temperature. Check the alarm threshold settings (AL1, AL2) in the configuration menu.

Can I use this controller for heating and cooling?

Yes, the controller can be configured for either heating (reverse action) or cooling (direct action) via parameter in the configuration menu.

How do I perform auto-tuning?

Hold the up arrow key for 5 seconds while in normal mode. The display will show 'AT' and the controller will perform a PID auto-tuning cycle. This may take several minutes.

What is the maximum load for the relay output?

The relay is rated for 2 A at 30 VDC or 2 A at 250 VAC resistive load. Do not exceed these values to avoid damage.

How do I reset the controller to factory defaults?

Press and hold the SET and down arrow keys simultaneously for 10 seconds. The display will show 'rE' and then return to normal. All parameters will be reset.

What type of power supply is required?

The controller requires a 24 VAC/VDC power supply with a current capacity of at least 100 mA. Connect to terminals 8 and 9.

Can I use an external relay for higher loads?

Yes, the internal relay can drive an external contactor or solid-state relay (SSR). Ensure the external device's coil voltage matches the load requirements.

USER MANUAL APDU1335T APC

NetShelter Rack PDU Advanced Temperature and Temperature and Humidity Sensors

APDU1335T, APDU1335TH, APDU1335T3H Installation

Schneider Electric

Inventory

IMPORTANT INFORMATION

The Temperature and Humidity sensors are designed to add comprehensive environmental monitoring to a NetShelter® Rack PDU Advanced. To provide greater data accuracy, the sensors contain an embedded microchip that converts analog signals before sending the data to the NetShelter Rack PDU Advanced. The design enables easy plug and play installation. An RJ45 quick disconnect coupler and a RS-485 extension cable are included in each kit to allow for convenient location of sensors.

NOTICE

HAZARD OF EQUIPMENT DAMAGE

The Temperature Sensor and Temperature/Relative Humidity Sensors are designed to connect only to a NetShelter Rack PDU Advanced. Connecting the sensors to another device may result in damage.

Failure to follow these instructions can result in equipment damage.

NOTICE

An APDU1300 Sensor Hub (not provided) can be used to connect the APDU1335T Temperature Sensor Assembly or the APDU1335TH Temperature/Humidity Sensor Assembly to the NetShelter Rack PDU Advanced. Connecting the APDU1335T3H Temperature/Humidity Sensor Assemble to an APDU1300 Sensor Hub is not recommended.

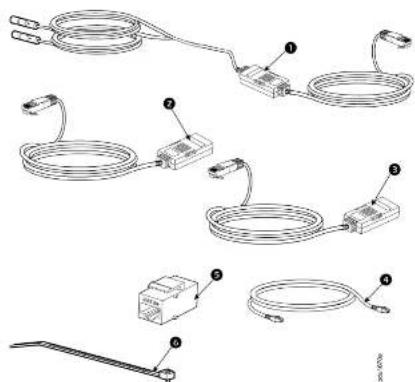

APDU1335T3H Temperature and Humidity Sensor Assembly. The assembly includes the temperature and humidity sensor, two (2) temperature probes, and the RS-485 cable (2m) with RJ45 connector.
② APDU1335TH Temperature and Humidity Sensor Assembly. The assembly includes the temperature and humidity sensor and RS-485 cable (2m) with RJ45 connector.
3 APDU1335T Temperature Sensor Assembly. The assembly includes the temperature sensor and the RS-485 cable (2m) with RJ45 connector.
RS-465 Extension Cable with RJ45 connector (Qty 1)
RJ45 Quick Disconnect Coupler (Qty 1)
6 Cable Ties (Qty 6)

4/2022

990-91601

© 2022 Schindler Electric. All rights reserved.

www.apc.com

Customer support and warranty information is available at

Worldwide Customer Support

Installation

APDU1335T and APDU1335TH

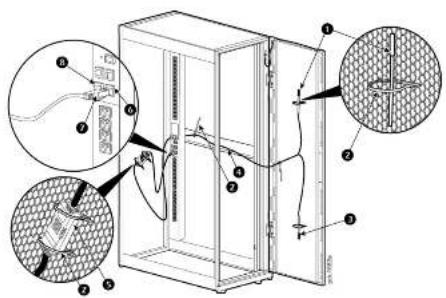

1. Secure the Sensor box ① to the perforated rack enclosure door with a Cable Tie ②. NOTE: The sensor box contains a magnet inside to help secure the sensor.

2. Plug the RJ45 Connector ⑥ on the Sensor Cable ① into Port 1 ⑦ or Port 2 ⑧ of the NetShelter Rack PDU Advanced.

3. Secure the Sensor Cable ① along the desired path to the NetSheller Rack PDU Advanced using the remaining Cable Ties ②.

NOTE: It may take from one (1) to three (3) minutes for the NetShelter Rack PDU. Advanced to recognize the sensor.

APDU1335T3H

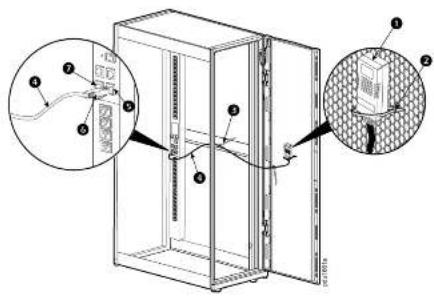

1. Secure the two (2) Temperature Probes ① and ② near the top and bottom of the perforated rack door using the provided Cable Ties ②.

2. Secure the Temperature/Humidity Sensor box Ⓠ to its desired location with the Cable Ties Ⓡ provided.

3. Secure the Sensor Cable ① to the interior of the rack with the provided Cable Ties ②.

4. Plug the RJ45 Connector ⑦ into Port 1 ⑧ or Port 2 ⑨ on the NetShelter Rack PDU Advanced.

NOTE: It may take from one (1) to three (3) minutes for the NetShelter Rack PDU. Advanced to recognize the sensor.

Installation Options

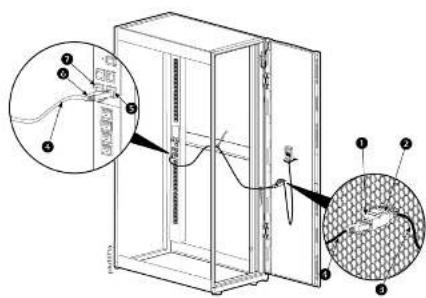

1. Use the RJ45 Quick Disconnect Coupler ① and the provided 1.8m RS-495 Extension Cable ② or to serve as an easy disconnect point if the rack door is removed.

NOTE: A longer RS-485 cable with RJ45 connectors (not provided) may be used if required instead of the 1.8m RS-485 Extension Cable included in the kit.

1. Plug the RJ45 Connector ⑥ on the RS-485 Extension Cable ④ into Port 1 ⑦ or Port 2 ⑧ on the NetSheller Rack PDU Advanced.

NOTE: It may take from one (1) to three (3) minutes for the NetShelter Rack PDU Advanced to recognize the sensor.
