FX210 - Fire Extinguisher KIDDE - Free user manual and instructions

Product Type	Fire Extinguisher
Brand	Kidde
Model	FX210
UL Rating	2-A:10-B:C
Fire Classes	A (ordinary combustibles), B (flammable liquids), C (energized electrical equipment)
Extinguishing Agent	Dry chemical (monoammonium phosphate)
Agent Weight	2.5 lb (1.13 kg)
Total Weight	Approximately 5.2 lb (2.36 kg)
Dimensions (Height x Diameter)	14.5 x 4.5 in (36.8 x 11.4 cm)
Operating Pressure	195 psi (13.4 bar)
Discharge Time	Approximately 13-15 seconds
Discharge Range	10-15 ft (3-4.6 m)
Power Source	None (manual operation)
Mounting	Wall bracket included
Temperature Range	40°F to 120°F (4°C to 49°C)
Maintenance	Monthly inspection; recharge after use; hydrostatic test every 12 years
Safety Features	Tamper seal, easy-to-read pressure gauge, trigger handle with lock
Spare Parts	Replacement recharge kit, wall bracket, pin/lock
Repairability	Rechargeable by professional service only
Certifications	UL listed, ANSI/NFPA 10 compliant

Frequently Asked Questions - FX210 KIDDE

What types of fires can the Kidde FX210 extinguish?

The Kidde FX210 is rated 2-A:10-B:C, meaning it can handle Class A (wood, paper, cloth), Class B (flammable liquids like gasoline), and Class C (electrical fires).

How do I know if the extinguisher is charged?

Check the pressure gauge on the handle. The needle should be in the green zone. If it's in the red, the extinguisher needs recharging or replacement.

How often should I inspect my Kidde FX210?

Perform a quick visual inspection monthly. Check the gauge, ensure the pin and tamper seal are intact, and that the nozzle is clear.

What is the proper way to use this extinguisher?

Remember PASS: Pull the pin, Aim at the base of the fire, Squeeze the handle, Sweep side to side.

Can the Kidde FX210 be recharged?

Yes, after use it can be recharged by a professional fire equipment service. Do not attempt to refill it yourself.

What is the range and discharge time?

This extinguisher has an effective range of 10-15 feet and discharges for about 13-15 seconds.

What does the 2-A:10-B:C rating mean?

The 2-A rating indicates it can extinguish a fire equivalent to 2.5 gallons of water. 10-B means it can extinguish 10 square feet of flammable liquid fire. C means it's safe for electrical fires.

How do I dispose of an old or used extinguisher?

Contact your local household hazardous waste facility or a fire equipment service. Do not throw it in the trash unless depressurized and empty.

Is this extinguisher suitable for kitchen grease fires?

While it can extinguish Class B fires including grease, a wet chemical extinguisher is preferred for kitchen use. However, the FX210 can be used as a backup.

Where should I mount my Kidde FX210?

Mount it in an easily accessible location, such as near an exit or in a kitchen. Keep it away from potential fire sources and at a height where it can be easily lifted.

USER MANUAL FX210 KIDDE

DISPOSABLE FIRE EXTINGUISHER

DRY CHEMICAL MODELS

(Manual PIN: 210281866)

Extinguishers should be selected and installed in accordance with the National Fire Protection Association's Standard for Portable Fire Extinguishers Pamphlet NFPA-10. (www.nfpa.org)

SELECTION

Symbols on the fire extinguisher nameplate help explain and indicate some of the acceptable types of situations, materials and fires that they can be used in address.

NFPA Fire Classification Symbols

CLASS A: Ordinary Combustibles

Paper, rich, good, quartzery, rubber, plastics.

□

CLASS B: Flammable Liquids and Gases

图

Paper, cloth, wood, upholstery, rubber, sketics.

一、登记

PLAES Co. Evocated Electrical Filtrations

G

Ex situations involving organized electrical

INSTALLATION & MOUNTING

Mount extinguisher in manufacturer's supplied hangar, retainer or bracket.

Select a protected area to mount fire extinguisher that is in plain

When and easily accessible in this event of a fire.

Locate extinguisher within an area meeting the recommend

Operating temperature limitations specified as: In descending.

For extinguishes weighing less than 40 lbs, the recommended maximum mounting height from top of the fire extinguisher to floor must be less than 5 feet. Allow a minimum 4 inch clearance from floor to help promote proper air circulation and avoid potential corrosion.

Ensure the fire extinguisher mounting hardware selected and used is of the type, quality and size to properly secure unit onto the surface. Mounting hardware should never be exposed where it can contact the cylinder surface and present any potential rubbing or wear issues.

Seek professional advice when addressing boat, vehicle or other mobile mounting applications. Proper USCG marine mounting bracket is listed on nameplate. Marine approvals are only valid when the designated marine bracket is utilized.

SUGGESTED GENERAL INSTALLATION GUIDELINES

- Walls where wood studs are located: Use quality A10 x 1-½ inch or longer wood screws.

Sheet rock and dry wall: Mount a 3 inch back board of a size extending 2 inches beyond the actual dimensors of the extinguisher as a back support. Use multiple 10'16" inch ingle bolts to properly secure the backboard support. The fire extinguisher hanger in basket can then be mounted onto the back hand using 4 x 1 inch long wand screws.

- Concrete block, cement and tile walls: Mount using a 14 inch

Toggle or masonry screw expansion anchor or suitable length. Secure using multiple ^10 expansion anchor screws. On the walls locate anchors within a joint if possible.

- Steel post or beams: Spedal tools and fasteners are required for proper mounting and should be performed by a professional fire extinguisher service company.

SUPPLIED HANGAR / BRACKET — MOUNTING

INSTRUCTIONS

a. Wall hangar

1. Faster hanger to wall with

two screws (not included)

as suggested in general

installation guidelines

1. Place extinguisher into hangar.

B. Plastic strap retainer with detachable straps: (models 306325)

(19)204736

1. Remove straps from retainer

with scissors.

1. Fasten retainer to wall with

two screws (not included) as

suggested in general

installation guidelines

1. Push rectangular ends of straps through rectangular slots on retainer. There are circles on the body of each strap - the circles must face outward.

2. Place extinguisher into

retainer. Buckle straps

together to lock in place.

C. Flack Strip Retainer with Roll-down Sroups (model: \22537) of steel extinguisher strip bracket (maul: \95698).

1. Farian bracket to suitable

surface, as suggested in general installation guidelines, using a screw (not included) in the upper bracket mounting hole.

1. If your extinguisher was shipped with a separate metal strap: use another screw (not included) to mount the metal strap in the lower bracket mounting hole. If a separate metal strap was not included: install a second screw in the lower bracket mounting hole and proceed

2. Place extinguisher into bracket. Buckle straps together to

lock in place.

If your extinguisher has a hose and was shipped with a hose strap. Slide the hose strap over the bottom of the cylinder, and assure the nozzle end of the hose into the hose strap before placing your extinguisher in service.

CAUTIONS & WARNINGS

- Never indinerate a fire extinguisher.

- Never attempts to modify, alter or recharge a disposable fire

extinguisher model.

- Never attempt to trade an extinguish by partially discharging it.

This will come into of premises, premature leakage and will prevent the fire extinguished from operating property.

- Many intentionally discharge a fire osteoquiches directly into a

The velocity of discharged agent may cause injuries.

- Nesu mi-an at allrey chirten to play with fire extinguishers.

■ Live cyclinguishness are reorganized mechanical design that

require periodic care and service to remain safe and operable.

• Under certain fire and heat conditions, the dry chemical powder

in ABC type extinguishers will cause damage or privacy extremely

difficult to remove from own surfaces, including self-cleaning

models. Do not use self-cusing feature to remove A&E policy

OPERATION AND USE

Read and familiarize yourself with the fire extinguisher nameplate operating instructions immediately after purchase. Additional instruction and training on the proper use of fire extinguishers is recommended and available from various sources.

To use a fire extinguisher, remember the phrase PASS:

1. Pull the pin

2. Aim at the base of the fire

3. Squeeze and hold the lever

4. Swgn from side to side

DETAILED USE INSTRUCTIONS

1. Call the fire department/sound the alarm

2. Get everyone out and have a place for sale returned.

3. Pull and remove ring pin, breaking the inspection/temperature wall.

4. Transport fire extinguisher to sale against position from fire, for

best visibility, and to avoid smoke and heat being produced.

1. Properly position yourself away from the fire, referencing the

proper minimum starting distance specifically identified on the

position yourself so that the fire blocks your escape route.

1. Remove hose from retainer band (if equipped).

2. Hold and keep the fire extinguisher in a vertical upright position

and aim the discharge nozzle at the base of the fire

1. Firmly squeeze the operating lever fully and with a side-to-side

sweeping motion, to avoid splashing or spreading of fire, apply

the extinguishing agent to the base of the names.

B. Attempt to work the fire from the front edge to the back edge

Avoid positioning any part of your body over, or stepping into a

that area during fire fighting or after extinguishment. Cause should be ramped after reinvestment, as some fire situations

A result be calculated after each 2019 estimate to match the selections may re flash.

AFTER USE

After any use or discharge, ensure your fire extinguisher is

prompty replaced. Even only a immantary abstract

After the following studies were conducted:

After the research results with such property mentioned, it is prompt clean up of any carbon fishing agent residue. Is

recommended.

MONTHLY VISUAL INSPECTION

Fire extinguisher Inspections should be performed upon initial

placement into services and at regular periodic interests not to

View Instruction Instructions

1. Ensure the fire extinguisher is viable and access to unobtrn vated

2. Ensure the fire extinguisher is properly mounted and secure.

3. Ensure the front nameplate operating instructions face outward

and are legible. Ileisolate relinquisher or clean nanoplate as

required

(Correct and resolve any discrepancies observed in steps 1, 2, and 3)

1. Ensure pull pin and/or original visual inspection tamper seal is

installed and still intact. (Replace extinguisher if broken or

2.

1. Ensure pressure gauge needle reads within green operable area. Replace excisevishes if discrepancy observed.

2、董事、监事、高级管理人员

1. Ensure the discharge nozzle and/or hose assembly is unchanged and proven retained. (Miles achieved

replace extinguisher

1. Closely examine all external extinguisher components for any

signs of damage, impact, wear, leakage or corrosion. %place

Figure 2.1: Any type of one quality objectives,

1. Heft or weigh fire extinguisher to ensure it is properly charged.

Toroal aged extinguishable weight (gross weight) is indicated on the product labelignment plate. See also antigen/other products

weight is outside tolerance)

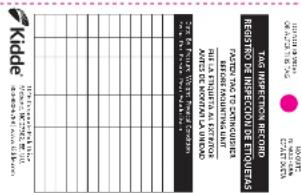

1. Date and initial fire extinguisher Inspection tag/record

NOTE: Anytime an equipment related discrepancy described In

steps 4 through 8 is observed during an inspection procedure, the

the extinguisher must be discarded and replaced.

NOTE: Annual maintenance requirements include verification of

the fire extinguisher weight at least annually and that the year of manufacture was carried on the bottom of the windings within the

manufacture is stamped on the version of the cylinder. It will be designated 12 war maximum shell life.

Some local jurisdictions require special rental maintenance tags.

ANNUAL MAINTENANCE

If you have purchased this fire extinguisher to comply with local

fire code occupancy requirements, the local fire prevention

authorities may require to maintain hierarchical examination that must be performed by properly trained and certified papers in

accordance with the National Fire Protection Association (NEPA)

and the manufacturer's recommendations. Contact your local fire

department or Fire Marshal's others if you are unsure of these

Reformances

SIX OR TWELVE-YEAR\* LIMITED WARRANTY

TERMS

For six (6) or twelve (12) years from date of purchase, Kide will

Repair of replace this product to the original owner tree of charge

If detective 1 material of non-drawn, Date or purchase is determined by proof of original purchase or by date stamp on

bottom of cylinder. This warranty does not apply to normal wear

of parts and damage resulting from accident, alteration, abuse, or

failure to follow instructions supplied. Kiddle, at its option, may refuse the number wise in line of endorsement or serial. ANY

AND ALL IMPLIED WARRANTIES, INCLUDING ANY WARRANTY

MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE

SHALL BE LIMITED TO A PERIOD OF SIX (6) OR TWELVE (12) YEARS

THE NATURE OF POURCHASE. XISEA, IN EARNINGS PER INCOME/ASML not be responsible or in any way liable for any special as

consequential damage for breach of any warrants or implied

warranty. This warranty gives you specific legal rights, and you

may also have other rights which vary from state to state or

jurisdiction.

*Twelve-year warranty applies only to these models: KOSW-SBC,

KCHS/A-5HC, EMA3, EMA2C, RAC11, MAB10C, RAC11 MAB110C, MAB210, MAB210C, MAB240 and MAB240C
