FX110E - Fire Extinguisher KIDDE - Free user manual and instructions

Product Type	Fire Extinguisher
Brand	Kidde
Model	FX110E
Fire Class Rating	Class A, B, C
Extinguishing Agent	Dry Chemical (ABC)
Capacity	2.5 lbs (1.1 kg)
Height	12.5 inches (31.8 cm)
Diameter	4.5 inches (11.4 cm)
Weight (full)	4.5 lbs (2.0 kg)
Operating Pressure	100-120 psi
Discharge Time	Approximately 10 seconds
Effective Range	5-10 feet (1.5-3 m)
Mounting Bracket Included	Yes, wall bracket
Safety Pin	With tamper seal
Pressure Gauge	Yes, analog
Maintenance	Monthly visual inspection; annual professional check
Cleaning	Wipe with damp cloth; do not submerge
Service Life	12 years from manufacture date
Operating Temperature	32°F to 120°F (0°C to 49°C)
Certifications	UL Listed, ANSI/UL 711

Frequently Asked Questions - FX110E KIDDE

What types of fires can the Kidde FX110E extinguisher put out?

The FX110E is rated for Class A (ordinary combustibles like wood, paper, cloth), Class B (flammable liquids like grease, gasoline), and Class C (energized electrical equipment).

How do I properly use the FX110E fire extinguisher?

Remember the P.A.S.S. technique: Pull the pin, Aim at the base of the fire, Squeeze the handle, Sweep from side to side.

Where should I mount the FX110E in my home?

Mount it on a wall bracket in an easily accessible location, such as near a kitchen exit or in the garage, away from potential fire sources. Keep it at least 4-5 feet off the floor.

How often should I inspect the extinguisher?

Perform a monthly visual inspection to ensure the pressure gauge is in the green zone, the pin is intact, and there is no visible damage. An annual professional inspection is also recommended.

Can I recharge the FX110E after use?

Yes, the FX110E is rechargeable by a qualified professional. Do not attempt to refill it yourself. After any use, even partial, it should be recharged immediately.

What is the expiration date of this extinguisher?

The FX110E has a 12-year service life from the date of manufacture. Check the label for the manufacture date and replace it before it expires.

How do I clean the extinguisher?

Wipe the exterior with a damp cloth and mild detergent. Do not submerge the extinguisher in water or use abrasive cleaners, as this could damage the gauge or valve.

What should I do if the pressure gauge is in the red zone?

If the needle is in the red area (overcharged or undercharged), the extinguisher may not work properly. Immediately replace or have it serviced by a professional.

Is the FX110E suitable for kitchen grease fires?

Yes, it is effective for Class B fires including grease and cooking oil. However, for kitchen fires, a wet chemical extinguisher is preferred, but the FX110E can be used as a backup.

Can I use the FX110E on electrical fires?

Yes, the Class C rating means it is safe for use on live electrical equipment up to 600 volts. However, always try to disconnect power if possible before using.

USER MANUAL FX110E KIDDE

DISPOSABLE FIRE EXTINGUISHER

DRY CHEMICAL MODELS

(Manual PIN: 210281866)

Extinguishers should be selected and installed in accordance with the National Fire Protection Association's Standard for Portable Fire Extinguishers Pamphlet NFPA-10. (www.nfpa.org)

SELECTION

Symbols on the fire extinguisher nameplate help explain and indicate some of the acceptable types of situations, materials and fires that they can be used to address.

NFPA Fire Classification Symbols

CLASS A: Ordinary Combustibles

Paper, rich, good, quartzery, rubber, plastics.

□

CLASS B: Flammable Liquids and Gases

图

Paper, cloth, wood, upholstery, rubber, sketics.

一、登记

PLA55 C: Electrical Filtricas

G

Ex situations involving organized clavvicity

INSTALLATION & MOUNTING

Mount extinguisher in manufacturer's supplied hangar, retainer or bracket.

Select a protected area to mount fire extinguisher that is in plain view and readily accessible in the event of a fire.

Locate extinguisher within an area meeting the recommended

operating temperature limitations specified on nameplate.

For extinguishers weighing less than 40 lbs, the recommended maximum mounting height from top of the fire extinguisher to floor must be less than 5 feet. Allow a minimum 4 inch clearance from floor to help promote proper air circulation and avoid potential corrosion.

Ensure the fire extinguisher mounting hardware selected and used is of the type, quality and size to properly secure unit onto the surface. Mounting hardware should never be exposed where it can contact the cylinder surface and present any potential rubbing or wear issues.

Seek professional advice when addressing boat, vehicle or other mobile mounting applications. Proper USCG marine mounting bracket is listed on nameplate. Marine approvals are only valid when the designated marine bracket is utilized.

SUGGESTED GENERAL INSTALLATION GUIDELINES

- Walls where wood studs are located: Use quality A10 x 1-½ inch or longer wood screws.

Sheet rock and dry wall: Mount a 3 inch back board of a size extending 2 inches beyond the actual dimensors of the extinguisher as a back support. Use multiple 10'16" inch ingle bolts to properly secure the backboard support. The fire extinguisher hanger in basket can then be mounted onto the back hand using 4 x 1 inch long wand screws.

- Concrete block, cement and tile walls: Mount using a 14 inch

Toggle of motiony screw, preparation anchor or suitable target. Secure using multiple t-10 expansion anchor screws. On the walls locate anchors within a joint if possible.

- Steel post or beams: Spedal tools and fasteners are required for proper mounting and should be performed by a professional fire extinguisher service company.

SUPPLIED HANGAR / BRACKET — MOUNTING

INSTRUCTIONS

a. Wall hangar

1. Fasten hanger to wall with

two screws (not included)

as suggested in general

instantian guidelines

1. Place extinguisher Into Hangar.

B. Plastic strap retailer with detachable straps: (model 306325 and 294706)

1. Remove straps from retainer

with scissors.

1. Fasten retainer to wall with

two screws (not included) as

suggested in general

installation guidelines

1. Push rectangular ends of straps through rectangular slots on retainer. There are circles on the body of each strap - the circles must face outward.

2. Place extinguisher into

retainer. Buckle straps

C. Plastic strap retainer with fold-down straps (modc) 222057 or

steel extinguisher strap bracket (model 895698):

1. Fasten bracket to suitable

surface, as suggested in

general installation guidelines wing a square inch

Included in the upper

bracket mounting hole.

1. If your extinguisher was

shipped with a separate metal strap: use another screw (not included) to mount the metal strap in the lower bracket mounting hole. If a separate metal strap was not included: install a second screw in the lower bracket mounting hole and proceed in steps 3.

1. Place extinguisher into bracket. Buckle straps together to

lock in place.

If your extinguisher has a hose and was shipped with a hose strap. Slide the hose strap over the bottom of the cylinder, and assure the nozzle end of the hose into the hose strap before placing your extinguisher in service.

CAUTIONS & WARNINGS

- Never indinerate a fire extinguisher.

- Never attempt to modify, alter or recharge a disposable fire

extinguisher model.

- Never attempt to trade an extinguish by partially discharging it.

This will come into of premises, premature leakage and will prevent the fire extinguishing from operating property.

prevent the fire extinguisher from operating property.

- Never intentionally discharge a fine extinguisher directly into a person's farm. The velocity of discharged agents may cause injuries

- Never misuse or allow children to play with fire extinguishers.

- Fire extinguishers are prewarized mechanical devices that

require periodic care and service to remain safe and operable.

- Under certain fire and heat conditions, the dry chemical powder

in ABC type extragalbumin will cause damage or venom extremity

term in to remove from the cell line, initiating ABC-3.5M125 model. Do not use self-sensing feature to remove ABC neural

OPERATION AND USE

Read and familiarize yourself with the fire extinguisher nameplate operating instructions immediately after purchase. Additional instruction and training on the proper use of fire extinguishers is recommended and available from various sources.

To use a fire extinguisher, remember the phrase PASS:

1. Pull the pin

2. Aim at the base of the fire

3. Squeeze and hold the lever

4. Sweep from side to side

DETAILED USE INSTRUCTIONS

1. Call the fire department/sound the alarm

2. Get everyone out and have a place for sale returned.

3. Pull and remove ring pin, breaking the inspection temperature wall.

4. Transport fire extinguisher to sale uprawn position from fire, for

Elev visitally, and to screen smoke and heat being prescribed.

1. Propely position yourself away from the fire, referencing the peace minimum mission surface correctly identified on the

proper minimum starting distance specifically has failed off the fine extinguisher namenlade operating instructions. Siever

position yourself so that the fire blocks your escape route.

1. Remove hose from retainer band (if equipped).

2. Hold and keep the fire extinguisher in a vertical upright position

and aim the discharge nozzle at the base of the fire

1. Firmly squeeze the operating lever fully and with a side-to-side sweeping motion, to avoid splashing or spreading of fire, apply the extinguishing agent to the base of the flames.

B. Attempt to work the fire from the front edge to the back edge

Avoid positioning any part of your body over, or stepping into a fuel area during fire fighting or after extinguishment. Caution should be exercised after extinguishment, as some fire situations may re-flash.

AFTER USE

After any use or discharge, ensure your fire extinguisher is promptly replaced. Even only a momentary discharge will cause leakage and the extinguisher to later not operate.

After fire hazard has cooled and been properly removed, the

prompt clean up

MONTHLY VISUAL INSPECTION

Fire extinguisher Inspections should be performed upon initial placement into service and at regular periodic intervals not to exceed 31 days.

Visual Inspection Instructions:

1. Ensure the fire extinguisher is visible and access is unobstructed.

2. Ensure the fire extinguisher is properly mounted and secure.

3. Ensure the front nameplate operating instructions face outward and are legible. Relocate extinguisher or clear nameplate as required.

(Correct and resolve any discrepancies observed in steps 1, 2, and 3)

1. Ensure pull pin and/or original visual inspection tamper seal is installed and still intact (Replace extinguisher if broken or missing)

2. Ensure pressure gauge needle reads within green operable area (Replace electrical or discrepancy observed).

3. Follow the disease, a positive side effects of an emotional

unobstructed and securely attached. (Wipe obstruction clear or replace extinguished)

1. Closely examine all external extinguisher components for any signs of damage, impact, wear, leakage or corrosion. (Replace extinguisher if any type of discrepancy is observed)

2. Heft or weigh fire extinguisher to ensure it is properly charged. Total charged extinguisher weight (gross weight) is indicated on the product label/nameplate. (Replace extinguisher if used or weight is outside tolerance)

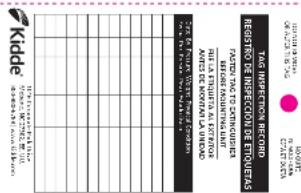

3. Date and initial fire extinguisher Inspection tag/record

NOTE: Anytime an equipment related discrepancy described in steps 4 through 8 is observed during an inspection procedure, the fire extinguisher must be discarded and replaced.

NOTE: Annual maintenance requirements include verification of the fire extinguisher weight at least annually and that the year of manufacture stamped on the bottom of the cylinder is within the designated 12 year maximum shelf life.

Some local jurisdictions require special arrival maintenance tags.

ANNUAL MAINTENANCE

If you have purchased this fire extinguisher to comply with local fire code occupancy requirements, the local fire prevention authorities may require annual maintenance examinations that must be performed by properly trained and certified persons in accordance with the National Fire Protection Association (NFPA) and the manufacturer's recommendations. Contact your local fire department or Fire Marshal's office if you are unsure of these requirements.

SIX OR TWELVE-YEAR\* LIMITED WARRANTY

TERMS

For six (6) or twelve (12) years from date of purchase, Kidie will repair or replace this product to the original series free of charge. If defective in material or ownership. Date of purchase is determined by proof of original purchase or by date stamp on labor and sale. This product is not suitable for use of parts and storage resulting from sediment, alteration, acute, or failure to follow instructions' supplied. Kidie, its option, may refund the purchase price in line of replacement or repair. ANY AND ALL IMPLIED WARRANTIES INCLUDING ANY WARRANTY OF THIS ORDER IS NOT TO BE USED. THIS ORDER SHALL BE LIMITED TO A PERIOD OF SIX (5) or TWelve (12) YEARS FROM DATE OF PURCHASE. Kidie, its claims and distributors shall not be responsible or in any way liable for any special or consequential damages for breach of any warranty or implied investments. This warranty gives you specific legal rights, and you may also be other rights which vary from state to date of acquisition.

*Twelve-year warranty applies only to these models: KDS7W-SBC, KCDS7W-SIC, MAR5, MAR5C, MAR10, MAR10C, MAR110, MAR110C, MAR210, MAR210C, MAR340 and MAR340C

Company Contact:

Kidela

1075 Corporate Bank Branch Makors, JG 37262

www.Kidde.com

Product Support: 809-880-6788

Kidde

。
