BC3901 WH - Refrigerator Becken - Free user manual and instructions

Product Type	Freestanding Refrigerator with Freezer
Color	White
Total Capacity	390 L
Refrigerator Capacity	280 L
Freezer Capacity	110 L
Energy Efficiency Class	A+
Annual Energy Consumption	250 kWh
Noise Level	42 dB
Climate Class	SN, N, ST
Defrost Type	No Frost (Frost Free)
Number of Shelves (Fridge)	4 glass shelves
Number of Drawers (Freezer)	3
Door Hinge	Right, reversible
Refrigerant	R600a
Dimensions (H x W x D)	1850 x 600 x 650 mm
Weight	70 kg
Power Supply	220-240 V, 50 Hz
Temperature Range (Fridge)	0°C to 8°C
Temperature Range (Freezer)	-18°C to -24°C
Cooling System	Static cooling with fan
Replacement Parts	Shelves, door gasket, thermostat, light bulb

Frequently Asked Questions - BC3901 WH Becken

How do I adjust the temperature?

Use the thermostat dial inside the fridge compartment. Turning it clockwise lowers the temperature. For freezer, refer to the markings on the dial.

How do I defrost the freezer?

This model features No Frost technology, so manual defrosting is not required. Ice buildup is minimized.

Can I reverse the door opening direction?

Yes, the door hinge is reversible. Refer to the user manual for step-by-step instructions.

What is the recommended temperature for the fridge?

Set the fridge between 2°C and 5°C for optimal food preservation.

Why is my fridge making unusual noises?

Normal sounds include gurgling (refrigerant flow), clicking (compressor), and humming (fan). If loud, check leveling.

How often should I clean the condenser?

Clean the condenser coils (usually at the back) every 6 months with a vacuum brush to maintain efficiency.

What do the climate class markings mean?

SN (subnormal): +10°C, N (normal): +16°C, ST (subtropical): +18°C. Your fridge works in ambient temps from 10°C to 38°C.

How to change the interior light bulb?

Unplug the fridge. Remove the light cover (usually snaps off). Replace with a compatible E14 15W bulb.

What should I do during a power outage?

Keep the door closed. Food stays safe up to 4 hours in the fridge and 48 hours in a full freezer.

Where can I find the model and serial number?

Check the rating plate inside the fridge compartment, usually on the left wall or behind the salad drawer.

USER MANUAL BC3901 WH Becken

MANUAL DE INSTRUÇÕES

Simple line drawing of a rectangular container with a small black lid and a small white base, no text or symbols present.

BC3901 WH

Dear client,

Thank you for purchasing this product.

The quality of this appliance has been certified by several laboratory tests. This instructions manual is provided to simplify the use of the appliance as well as to guarantee a safe use.

Please read carefully the instructions and safety measures described in this manual.

We sincerely hope you will be satisfied when using your new appliance.

INDEX

1. SAFETY INSTRUCTIONS 4

1.1. Power Supply 5

1.2. Power Cord and Other Cables 5

1.3. Humidity and Water 5

1.4. Cleaning 6

1.5. General Precautions 6

2. OPERATING INSTRUCTIONS 11

2.1. Product Description 11

2.2. Product Usage 12

2.3. Maintenance 24

2.4. Troubleshooting 28

3. POST-SALE SERVICE 30

4. ENVIRONMENTAL PROTECTION 31

1. SAFETY INSTRUCTIONS

	WARNING
	RISK OF ELECTRIC SHOCKDO NOT OPEN
Warning: to avoid the risk of electric shock, do not remove the cover. The interior does not contain any parts that can be repaired by the user. Ask for assistance from qualified personnel.

Important Warnings

Before using your appliance read this instructions manual carefully and keep it in a safe place as you may need to consult it in the future.

Before turning on your appliance, and to ensure a safe and correct operation, do not use if:

• It has fallen to the ground;
• You notice any evidence of damage;
• Any anomaly occurs during its operation.

To avoid hazards or deterioration of your appliance through incorrect use it is advisable to read these instructions thoroughly.

Your appliance may not be used for other purposes than the ones intended and solely for household use. Any damage resulting from using the appliance outside this scope, any incorrect use, as well as any manual modifications to the product will not be covered and automatically voids the warranty.

[you can trust]

Assistance

In case of malfunction, take your appliance to a qualified technician for assistance.

This appliance can be used by children from the age of 8 and by people with reduced physical, sensorial or mental capabilities and/or lack of experience and knowledge if they have been given instructions on using the appliance safely and if they understand the hazards involved. Children may not play with the appliance. Cleaning and maintenance must not be carried out by children without supervision.

These instructions are also available at www.suporteworten.pt

1.1. Power Supply

Make sure the main voltage is compatible with the appliance's. If this is not the case please consult the Customer Support Service.

1.2. Power Cord and Other Cables

Do not tangle the cord or pull it to disconnect the appliance. Also, keep the cord away from warm surfaces.

Never use the appliance if it has a damaged cable or socket.

Take it to the Technical Support Service for replacement.

1.3. Humidity and Water

Do not use your appliance in humid places. Do not allow the appliance to become wet under any circumstances as this may be dangerous. To avoid fire hazard or electric shock do not expose your appliance to humidity or water. Furthermore, do not place your appliance under water (e.g. for cleaning).

Before cleaning, be sure to switch off the appliance and remove the plug from the main power supply. Always allow the unit to cool down before cleaning.

To clean the exterior of the product use a dry soft cloth only.

1.5. General Precautions

In the interest of your safety and to ensure the correct use, before installing and first using the appliance, please read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it throughout its lifecycle will be properly informed on how to safely use the appliance.

For health safety purposes, please keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused due to omission.

• Please follow the instructions in the user manual which will help you to properly install and operate this product and enjoy its advanced features. Please keep the instructions for future reference.
• Read all instructions before using the product.
• Maintenance and service operations are only to be carried out by authorized professionals.
• Any damage caused by manual modifications to the product is not covered by the warranty.

[you can trust]

• If this product is used for other purposes than the ones originally intended, or if it is not correctly connected, the product may become damaged and the warranty will be voided.
• Keep all packaging materials away from children, since there is risk of suffocation.
• If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door so to avoid children from playing inside the fridge and suffer an electric shock or to lock themselves inside it.
• If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lack unusable before you discard the old appliance.

This will prevent it from becoming a death trap for a child.

WARNING!: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING!: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

RNING!: Do not damage the refrigerant circuit.

WARNING!: Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacturer.

WARNING!: Do not touch the light bulb if it has been on for a long period of time since it could be very hot. ^1

^1 If there is a light in the compartment.

- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

- This appliance's refrigerant circuit contains a refrigerant called isobutane (R600a), a natural gas with a high level of environmental compatibility, which is nevertheless flammable.

- When transporting or installing this appliance, please ensure that none of the components of the refrigerant circuit becomes damaged.

- avoid open flames and sources of ignition

– thoroughly ventilate the room in which the appliance is located

- It is dangerous to alter the specifications or modify this product in any way. Please keep in mind that any damage to the cord may cause a short circuit, fire and/or electric shock.

- This appliance is intended to be used in household and similar applications such as:

- staff kitchen areas in shops, offices and other working environments;

- farm houses and by clients in hotels, motels and other residential type environments;

- bed and breakfast type environments;

- catering and similar non-retail applications.

WARNING!: Any electrical components (plug, power cord, compressor, etc.) must be replaced by a certified service agent or qualified service personnel.

[you can trust]

WARNING!: The light bulb supplied with this appliance is a "special use lamp bulb" usable only with the appliance supplied. This "special use lamp" is not usable for domestic lighting. ^1

• Please be advised that the power cord must not be lengthened.
• Make sure that the power plug does not get pressed or damaged by the back of the appliance, since a pressed or damaged power plug may overheat and cause a fire.
• Make sure that the appliance's power plug is always accessible.
• Do not pull the power cable.
• If the mains socket is loose, do not insert the power plug, as there is a risk of electric shock or fire.
• This appliance must not be operated without the lamp.
• Please note that this appliance is heavy, therefore care should be taken when moving it.
• Do not remove nor touch items from the freezer compartment if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.
• Please avoid extended exposure of the appliance to direct sunlight.

Daily use

• Do not put hot food on the plastic parts inside the appliance.
• Do not place food products directly against the rear wall.
• Frozen food must not be re-frozen once it has been thawed out. ^2

^1 If there is a light in the compartment. ^2 If there is a freezer compartment.

- Please store pre-packed frozen food in accordance with the frozen food manufactures instructions. ^2

- Storage recommendation provided by appliance manufactures should be strictly followed. Please refer to relevant instructions.

- Do not place carbonated of fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance. ^2

- Ice lollies can cause frost burns if consumed straight from the appliance. ^2

^2 If there is a freezer compartment.

[you can trust]

2. OPERATING INSTRUCTIONS

2.1. Product Description

Overview

This illustration is only for reference, for details please check your appliance.

Cleaning the interior

Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand-new product, and then dry it thoroughly.

Important!: Do not use detergents or abrasive powders, as these will damage the finish.

Electrical connection

Before plugging your appliance to the mains, please ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply. Since the appliance must be earthed, the power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician.

The manufacturer declines all responsibility if the above safety precautions are not observed.

This appliance complies with the EEC Directives.

Reversing the door

Tool required: Philips screwdriver, Flat bladed screwdriver, Hexagonal spanner.

• Please ensure the unit is unplugged and empty.
• To take the door off, it is necessary to tilt the unit backwards. You should rest the unit on something solid so that it will not slip during the door reversing process.

[you can trust]

• All parts removed must be saved to do the door's reinstallation.
• Do not lay the unit flat as this may damage the coolant system.
• It is advisable that 2 people handle the unit during assembly.

1) Unscrew and remove the hinge cover.

Simple line drawing of a rectangular object with a small protrusion and a downward arrow, no text or symbols present.

2) Unscrew and remove the hinge.

Simple line drawing of a rectangular box with a screw and a small square base, no text or symbols present.

3) Unscrew the middle hinge. Then lift the lower door and place it on a soft pad to avoid any scratches.

Technical line drawing of a mechanical assembly with a magnified inset showing a component detail (no text or symbols)

4) Move the hinge hole covers from the left side to the right side.

Pure mechanical diagram showing two symmetrical components with circular features and directional arrows (no text or symbols)

5) Unscrew the bottom hinge. Then remove the adjustable feet from both sides.

Technical line drawing of a mechanical device with a magnified inset showing internal components (no text or symbols)

6) Unscrew and remove the bottom hinge pin, turn the bracket over and replace it.

[you can trust]

7) Refit the bracket fitting the bottom hinge pin. Replace both adjustable feet. Transfer the lower door to the proper position.

Technical line drawing of a mechanical assembly with a magnified inset showing a gear mechanism (no text or symbols)

8) Make the middle hinge reverse 180^ , then transfer it to the left proper position. Place the middle hinge pin in the upper hole of the lower door and then tight the bolts.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

9) Place the upper door back on. Ensure the door is horizontally and vertically aligned so that the seal closes on all sides before finally tightening the top hinge. Then place the hinge in position and screw it to the top of the unit.

Simple line drawing of a rectangular device with two side connectors and a horizontal bar (no text or symbols)

10) Unscrew the hinge pin and reverse the hinge, then reinstall the hinge pin.

Diagram showing two mechanical components with curved arrows indicating motion (no text or symbols)

Simple line drawing of a rectangular frame with a small object on top and a downward arrow, no text or symbols present.

12) Fix the hinge on the left.

Simple line drawing of a table with a tool and small components, no text or symbols present.

13) Fix the hinge cover on the left and the hinge hole cover on the right.

Simple line drawing of a laboratory setup with a test tube, beaker, and directional arrow (no text or symbols)

[you can trust]

Install door external handle (if an external handle is present)

Rear spacer

Screw the rear spacers on the back of the unit.

Space Requirements

• Keep enough space to open the door.
• Keep at least 50 mm gap from both sides.

To do this you need to adjust the two levelling feet at the front of the unit.

If the unit is not levelled, the doors and magnetic seal alignments will not be covered properly.

Positioning

Install this appliance at a location where the ambient temperature corresponds to the climate class specified on the appliance's rating plate:

Climate class Ambient temperature

SN +10°C to +32°C

N +16°C to +32°C

ST +16°C to +38°C

T +16°C to +43°C

Location

appliance should be installed away from sources of heat such as radiators, boilers, direct sunlight, etc. Please ensure that air can circulate freely around the back of the appliance. To ensure best performance, if the appliance is positioned below an overhanging wall unit, the minimum distance between the top of the appliance and the wall unit must be at least 100 mm. Ideally, however, the appliance should not be positioned below overhanging wall units. Accurate levelling is ensured by one or more adjustable feet at the base of the appliance.

WARNING!: It should be possible to disconnect the appliance from the mains power supply, and so the plug must be easily accessible after installation.

[you can trust]

Temperature Setting

- Plug your appliance to the mains.

The internal temperature is controlled by a thermostat. There are 7 settings, where as 1 is the warmest setting and 7 is the coldest setting.

- The appliance may not operate at the correct temperature if it is particularly hot or if you open the door often.

Freezing fresh food

- The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time.

- Place the fresh food to be frozen in the freezer compartment.

- The maximum amount of food that can be frozen in 24 hours is specified on the rating plate.

- The freezing process lasts 24 hours: during this period do not add other food to be frozen.

Storing frozen food

When first starting-up or after a period out of use, before putting the product in the compartment let the appliance run at least 2 hours on the higher settings.

Important!: In the event of accidental defrosting, for example the power has been off for longer than the value shown in the technical characteristics chart under “rising time”, the defrosted food must be quickly consumed or immediately cooked and then re-frozen (after being cooked).

Deep-frozen or frozen food, prior to be used, can be thawed in the fridge compartment or at room temperature, depending on the time available for this operation.

Small pieces may even be cooked while still frozen, directly from the freezer. In this case, the cooking process will take longer.

Ice-cube

This appliance may be equipped with one or more ice-cube accessories to produce ice.

Accessories

Movable shelves

The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired.

Line drawing of a hand holding a shelf with a tool, no text or symbols present

Positioning the door balconies

To permit storage of food packages of various sizes, the door balconies can be placed at different heights. To make these adjustments proceed as follows: gradually pull the balcony in the direction of the arrows until it comes free, then reposition as required.

Diagram of a container with two upward arrows indicating flow or movement (no text or symbols)

Before using the water dispenser for the first time, remove and clean the water tank located inside the refrigeration.

[you can trust]

1) Lift and remove the tank balcony.

Technical line drawing showing two views of a mechanical or architectural component with an arrow indicating direction (no text or symbols present)

2) Remove the water tank. Detach the top cover and then wash and clean both the tank and the cover.

Technical line drawing of a door panel and its internal components (no text or symbols)

3) After cleaning, reposition the water tank, cover and tank balcony as below:

Diagram showing a mechanical assembly process with five sequential steps (no text or symbols)

4) Clean the dispenser lever outside the refrigerator door.

Simple line drawing of a container with a central arrow indicating direction (no text or symbols)

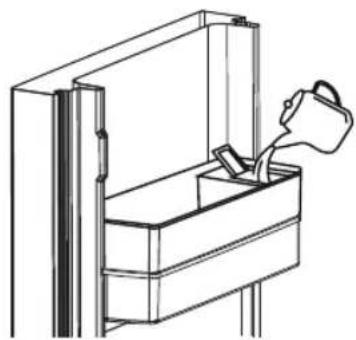

Filling the water tank

1) Open the small lid at the top of the tank balcony.
2) Fill the water tank with drinkable water up to the 2L line.
3) Close the lid and ensure it is firmly shut.

Dispensing water

Push the dispenser lever gently with a glass or container. To stop the flow, pull the glass away from the lever.

Line drawing of a door handle with a bucket and lever, no text or symbols present

Line drawing of a hand holding a cup of water in a container (no text or symbols)

Helpful hints and tips

To help you make the most of the freezing process, here are some important hints:

• The maximum quantity of food that can be frozen in 24 hrs. is shown on the rating plate;
• The freezing process takes 24 hours. No further food to be frozen should be added during this period;
• Only freeze top quality, fresh and thoroughly cleaned foodstuffs;
  • Prepare food in small portions so these can be rapidly and completely frozen and to allow to subsequently thaw only the quantity required;
• Wrap up the food in aluminium foil or polythene and make sure that the packages are airtight;
• Do not allow fresh, unfrozen food to touch food that is already frozen, thus avoiding a rise in temperature of the latter;

[you can trust]

• Lean foods store better and longer than fatty ones; also remember that salt reduces food's storage life;
• Ice cubes, if consumed immediately after removing them from the freezer compartment, can possibly cause the skin to be freeze burnt;
• It is advisable to show the freezing date on each individual pack to enable a fast removal from the freezer compartment;
• It is advisable to show the freezing date on each individual pack to enable you to keep tab of the storage time.

Hints for storing frozen food

To obtain the best performance from this appliance, you should:

• Make sure that the commercially frozen foodstuffs were adequately stored by the retailer;
• Be sure that frozen foodstuffs are transferred from the food store to the freezer in the shortest possible time;
• Not open the door frequently or leave it open longer than strictly necessary.
• Not re-frost food; once defrosted, food deteriorates rapidly and cannot be re-frozen;
• Not exceed the storage period specified by the food manufacturer.

Hints for fresh food refrigeration

To obtain the best performance:

• Do not store warm food or evaporating liquids in the refrigerator;
• Do cover or wrap the food, particularly if it has a strong flavour;

• Make/pre-prepared doughs (all types): wrap in polythene bags and place on the glass shelves above the vegetable drawer;
• For safety purposes, store like this only for one or two days at the most;
• Cooked foods, cold dishes, etc.: these should be covered and may be placed on any shelf;
• Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer(s) provided;
• Butter and cheese: these should be placed in special airtight containers or wrapped in aluminium foil or polythene bags to exclude as much air as possible;
• Milk bottle: these should have a cap and should be stored in the balconies on the door;
• Bananas, potatoes, onions and garlic, if not packed, must not be kept in the fridge.

2.3. Maintenance

Installation

Important!: For electrical connection, please carefully follow the instructions given in specific paragraphs.

• Unpack the appliance and check if there are any damages on it. Do not connect the appliance if it is damaged and report possible damages immediately to the place you bought it, retaining all packing materials;
• It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor;

[you can trust]

- Please allow proper air circulation around the appliance, otherwise there is a risk of overheating. To achieve sufficient ventilation, please follow the relevant instructions to installation;

- Wherever possible the spacers of the product should be against a wall to avoid touching or catching warm parts (compressor, condenser) to prevent possible burns;

- The appliance must not be located close to radiators or cookers;

- Please make sure that the power plug is accessible after installing the appliance.

Service

- Any electrical work required to repair or maintain the appliance should be carried out by a qualified electrician or competent person;

- This product should be serviced by an authorized Service Centre, and only genuine spare parts should be used.

Energy saving

- Do not put hot food inside the appliance;

- Do not pack food close together as this prevents air circulating;

- Make sure food does not touch the back of the compartment(s);

- If electricity goes off, do not open the door(s);

- Do not open the door(s) frequently;

- Do not keep the door(s) open for too long;

- Do not set the thermostat on exceeding cold temperatures;

BECKEN

- Some accessories, such as drawers, can be removed to get larger storage volume and lower energy consumption.

Care and cleaning

• Before performing any maintenance to your appliance, switch it off and disconnect the power plug from the mains socket;
• Do not clean the appliance with metal objects;
• Use a plastic scrape ^2 to remove frost from the appliance, instead of using any sharp objects;
• Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean the drain, because if it is blocked, water will collect at the bottom of the appliance. ^3

For hygienic reasons the appliance's interior, including interior accessories, should be regularly cleaned.

Caution!: The appliance may not be connected to the mains during cleaning, since there is a danger of electrical shock! Before cleaning, switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker or fuse. Never clean the appliance with a steam cleaner because moisture could accumulate in electrical components and pose a danger of electrical shock! Hot vapours can lead to the damage of plastic parts. Therefore, the appliance should be dried before it is placed back into service.

Important!: Ethereal oils and organic solvents can attack plastic parts, e.g. lemon juice or the juice from orange peel, butyric acid, any cleanser that contains acetic acid.

^2 If there is a freezer compartment. ^3 If there is a fresh-food storage compartment.

[you can trust]

Cleaning the drain hole

To avoid defrost water overflowing into the fridge, periodically clean the drain hole at the back of the fridge compartment. Use a cleaner tool to clean the hole as showed in the picture on the right.

Diagram showing a circular mechanism with arrows indicating rotational motion, no text or symbols present

1) If the condenser is at the back of the appliance

• Do not allow such substances to come into contact with the appliance's parts;
• Do not use any abrasive cleaners;
• Remove the food from the freezer. Store it in a cool place, well covered;
• Switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker of fuse;
• Clean the appliance and the interior accessories with a cloth and lukewarm water. After cleaning, wipe it with fresh water and rub dry it;
  • After everything is dry place the appliance back into service.

Defrosting the freezer

The freezer compartment, however, will become progressively covered with frost, which should be removed. Never use sharp metal tools to scrape off frost from the evaporator as you could damage it.

However, when the ice becomes very thick on the inner liner, complete defrosting should be carried out as follows:

• Unplug the appliance from the socket;
• Remove all stored food, wrap it in several layers of newspaper and put it in a cool place;

• Keep the door open, and place a basin underneath the appliance to collect all defrost water;
• When defrosting is complete, dry the interior thoroughly;
• Replace the plug back in the socket to run the appliance again.

Replace the lamp

The internal light is a LED type one.

To replace the lamp, please contact a qualified technician.

Simple line drawing of a rectangular container with a handle and curved base (no text or symbols)

2.4. Troubleshooting

Caution!: Before troubleshooting, disconnect the power supply. Only a qualified electrician of competent person should perform any troubleshooting that is not in this manual.

Important!: The appliance produces some sounds during normal use (compressor, refrigerant circulation), which is normal.

Problem Possible cause Solution
The appliance does not work	The temperature regulation knob is set at number “O”.	Set the knob at other number to switch on the appliance.
	The power plug is not plugged in or is loose	Insert the power plug.
	A fuse has blown or is defective	Check the fuse, and replace it if necessary.
	The socket is defective	Any mains malfunctions are to be corrected by an electrician.

[you can trust]

Problem Possible cause Solution
The food is too warm	The temperature is not properly adjusted.	Please refer to the initial Temperature Setting section.
	The door was open for an extended period.	Open the door only when needed.
	A large quantity of warm food was placed in the appliance within the last 24 hours.	Temporarily turn the temperature regulation to a colder setting.
	The appliance is near a heat source.	Please refer to the installation location section.
The appliance cools too much	The temperature is set too cold.	Temporarily turn the temperature regulation knob to a warmer setting.
Unusual noises	The appliance is not levelled. Re-adjust the feet.
	The appliance is touching the wall or other objects.	Slightly move the appliance.
	A component, e.g. a pipe, on the back of the appliance is touching another part of the appliance or the wall.	If necessary, carefully bend the component out of the way.
There is water on the floor	The water drain hole is blocked.	Refer to the Cleaning section.
The side panel is hot	The condenser is inside the panel.	This is normal.

If the malfunction shows again, please contact the Service Centre.

BECKEN has designed this appliance in order to guarantee maximum reliability. However, if a problem occurs do not attempt to open the appliance - there is a risk of electrical shock. If you are not able to solve the problem, please contact the Costumer Support Service of any Worten, Modelo or Continente store in order to be assisted. Worten Equipamentos para o Lar provides a 2-year warranty for manufacturing defects from the date of purchase of the appliance.

WARNING: Any attempt to repair the appliance without contacting the manufacturer or seller will void the warranty.

All users must be familiar with these instructions. Knowing what could go wrong can help prevent problems from occurring.

[you can trust]

4. ENVIRONMENTAL PROTECTION

In order to protect the environment we strive to reduce the volume of packaging used, limiting it to three easily sorted materials: cardboard, paper and plastic. The appliance is manufactured using recyclable materials after disassembled by a specialized company. Please comply with local regulations concerning the recycling of all materials.

Symbol of a trash bin crossed out by two diagonal lines, representing no waste or discharge (no text or numbers present)

Environment Protection

This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials, and it shall not be discarded together with urban refuse and rubbish, as the insulation foam contains flammable gases: the appliance shall be disposed according to the appliance regulations to obtain from your local authorities. Avoid damaging the cooling unit, especially the heat exchanger. The materials used on this appliance marked by the symbol are recyclable.

Disposal of the appliance

1) Disconnect the power plug from the mains socket.
2) Cut off the power cable and discard it.

Simple line drawing of a rectangular object with a small protrusion and a downward arrow, no text or symbols present.

Simple line drawing of a rectangular box with a small object inserted at the top (no text or symbols)

Simple line drawing of a ladder with a hand holding a spring scale, showing a circular diagram with three droplets (no text or symbols)

Pure mechanical diagram showing two symmetrical components with circular features and directional arrows (no text or symbols)

Technical line drawing of a mechanical device with a magnified inset showing internal components (no text or symbols)

Technical line drawing of a mechanical assembly with a magnified inset showing a gear mechanism (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Simple line drawing of a rectangular frame with a handle and two small protrusions (no text or symbols)

Diagram showing two mechanical components with curved arrows indicating motion (no text or symbols)

BECKEN

Simple line drawing of a rectangular frame with a small object on top and a downward arrow indicating force or movement (no text or symbols)

Simple line drawing of a table with a tool and small objects on top (no text or symbols)

Simple line drawing of a laboratory setup with a test tube, beaker, and directional arrow (no text or symbols)

[you can trust]

Espaciador trasero

Posicionamiento

Line drawing of a hand using a tool to clean or store shelves (no text or symbols)

Diagram of a container with two upward arrows indicating flow or movement (no text or symbols)

Technical line drawing showing two views of a mechanical or architectural component with an arrow indicating direction (no text or symbols present)

Technical line drawing of a door panel assembly with mounting holes and internal components (no text or symbols)

Diagram showing a multi-step assembly of a mechanical or architectural component, with no visible text or symbols.

Simple line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Line drawing of a door handle with a hand pouring liquid into a container (no text or symbols)

Line drawing of a hand holding a cup of water in a container (no text or symbols)

Consejos útiles

Diagram of scissors cutting through a circular hole with rotation arrows, no text or symbols present

Simple line drawing of a rectangular container with a handle and curved base (no text or symbols)

Symbol of a trash bin crossed with two diagonal lines, representing no waste or discharge (no text or numbers present)

Simple line drawing of a rectangular frame with a small object inserted into the top corner (no text or symbols)

2) Desaparafuse e remova a dobradiça.

Simple line drawing of a rectangular box with a small object inserted into the top corner (no text or symbols)

Line drawing of a mechanical device with a magnified inset showing a lever and two droplets (no text or symbols)

Pure mechanical diagram showing two symmetrical components with circular features and directional arrows (no text or symbols)

Technical line drawing of a mechanical device with a magnified inset showing internal components (no text or symbols)

Technical line drawing of a mechanical assembly with a magnified inset showing a gear mechanism (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Simple line drawing of a rectangular device with a horizontal bar and two small protrusions on top (no text or symbols)

Diagram showing two mechanical components with curved arrows indicating motion (no text or symbols)

BECKEN

Simple line drawing of a rectangular frame with a small object on top and a downward arrow indicating force or movement (no text or symbols)

Simple line drawing of a table with a tool and small components, no text or symbols present.

Simple line drawing of a laboratory setup with a test tube, beaker, and directional arrow (no text or symbols)

[you can trust]

Espaçador traseiro

Posicionamento

Instale este aparelho num local onde a temperatura ambiente corresponda à classe climática especificada na placa sinalética do aparelho:

Clase climática	Temperatura ambiente
SN +10°C to +32°C
N +16°C to +32°C
ST +16°C to +38°C
T +16°C to +43°C

Localização

Line drawing of a hand using a tool to clean or store shelves (no text or symbols)

Posicionamento das prateleiras das portas

Diagram of a container with two upward arrows indicating flow or movement (no text or symbols)

Technical line drawing showing two views of a mechanical or architectural component with an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical housing assembly with internal components (no text or symbols)

Sequence of mechanical assembly diagrams showing progressive assembly from door to bench (no text or labels)

Simple line drawing of a container with a central arrow indicating direction (no text or symbols)

Line drawing of a door handle assembly with a hand inserting a clip (no text or symbols)

Dispensar água

Illustration of a hand holding a cup of water in a clear container (no text or symbols)

Diagram showing a mechanical or electrical component with rotating arrows and labeled points (no readable text or symbols)

Simple line drawing of a rectangular container with a handle and curved base (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or anti-smoking (no text present)

Proteção ambiental

Imported, produced and distributed by:

Worten Equipamentos p/o Lar S.A.
