Brand	Eikon
Model	CM500
Product Type	Dynamic Microphone
Polar Pattern	Cardioid
Frequency Response	50 Hz – 15 kHz
Sensitivity	-54 dBV/Pa
Impedance	600 Ω
Connector	XLR (3-pin)
Power Requirement	None (passive)
Dimensions (with mount)	160 mm x 50 mm (length x diameter)
Weight	300 g
Cable Length	5 m (integrated)
Primary Use	Vocal recording, live performances, podcasting
Cleaning Instructions	Wipe with a soft dry cloth; avoid liquids
Safety Precautions	Keep away from moisture and extreme temperatures
Repairability	Replaceable cable and grille; no user-serviceable internal parts
Included Accessories	Microphone stand adapter, carrying pouch

Frequently Asked Questions - CM500 Eikon

What type of microphone is the Eikon CM500?

The Eikon CM500 is a dynamic microphone with a cardioid polar pattern, ideal for capturing sound from a single direction while rejecting background noise.

Does the CM500 require phantom power?

No, the CM500 is a passive dynamic microphone and does not need phantom power. It works with standard XLR inputs and mixer preamps.

What is the frequency response of the CM500?

The frequency response ranges from 50 Hz to 15 kHz, providing a clear and natural sound for vocals and speech.

Can I connect the CM500 directly to a computer?

You will need an audio interface or mixer with an XLR input to connect the CM500 to a computer, as it does not have a USB output.

How do I clean the Eikon CM500?

Clean the exterior with a soft dry cloth. For the grille, gently remove dust with a brush. Avoid using liquids or sprays.

Is the CM500 suitable for outdoor recordings?

Yes, its cardioid pattern helps reduce ambient noise, but use a windscreen or foam cover to minimize wind interference.

What accessories come with the CM500?

The package includes a stand adapter (5/8" to 3/8") and a carrying pouch for storage.

How durable is the CM500?

The microphone has a rugged metal body and is designed to withstand regular handling, making it suitable for live performances.

Can I replace the cable on the CM500?

Yes, the cable is replaceable. It connects via a mini XLR connector, allowing easy swapping if damaged.

What is the optimal distance for speaking into the CM500?

For best results, maintain a distance of 5-15 cm (2-6 inches) from the microphone grille to avoid proximity effect while ensuring clear audio.

USER MANUAL CM500 Eikon

Exterior view of a black EIKON microphone and its adjustable optical device (no text or symbols visible on the device itself)

ENGLISH

General

With it's 25 mm diameter single diaphragm the new CM500 offers the sound and performance of a large diaphragm studio condenser microphone, in a small and easy to position stick type format.

Designed for vocals and percussion instruments, it is also suitable for lectern and other applications requiring very high quality sound performance and wide frequency response.

The cardioid polar pattern captures the desired sound source while rejecting unwanted ambient noise and feedback.

Features

○ Condenser Professional Instrument Microphone
○ Cardioid Polar Pattern
○ 25 mm Condenser Capsule
- -10 dB attenuator switch
○ Hi-pass Filter switch
○ Rreplaceable Capsule
○ Frequency Response: 20Hz-20KHz
- Ideal for any acoustic instrument Live or Studio application
○ Shock Mount and Pop Filter holder included
○ Padded bag Included

Specifications

Model.....CM500

Element.... ∅ 25 mm condenser capsule

Polar Pattern.... Cardioid

Frequency Response.... 20Hz-20kHz

Sensitivity....-36dB 3dB (0dB=1V/Pa at 1kHz)

Output Impedance....100 ohms

Max Input SPL.... 132dB (at 1kHz 1% T.H.D)

S/N Ratio....78dB

Power Supply......Phantom 24-48V

Connector......Standard XLR

Accessories....Shockmount, Padded Bag, Pop Filter

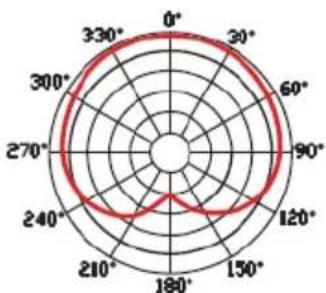

Figure 1: Polar pattern

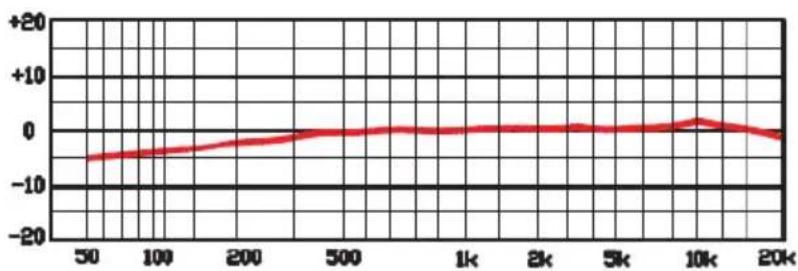

Figure 2: Frequency response
