Product Type	LED Spotlight
Brand	Qtx
Model	PAR10-RGBW
Power Supply	100-240V~, 50/60Hz
Power Consumption	10W
LED Type	RGBW (Red, Green, Blue, White)
LED Quantity	1
Beam Angle	5°
Effective Distance	Up to 6m
Modes	Solid color (RGBW), Gradual, Jump, Breathe
Remote Control Range	Approx. 4-5m (IR)
Remote Battery	CR2025 (included)
Cable Length	1m
Dimensions	165 x 68 x 68 mm
Weight	380g
Housing Material	Plastic
Mounting	Bracket for stand or truss (included)
Safety	Indoor use only; avoid moisture and dust
Included Accessories	Remote control, mounting bracket with thumbscrew, user guide
Disposal	Electronic waste; dispose per local guidelines

Frequently Asked Questions - PAR10-RGBW Qtx

How do I turn on the PAR10-RGBW?

Press the On button on the remote control. The unit will light up in the last used mode.

What is the effective range of the remote control?

The IR remote has a maximum range of approximately 4-5 meters when aimed at the front of the fixture.

How do I change colors?

Use the R, G, B, W buttons for solid colors, or Mode + and Mode - to cycle through RGBW manually.

What auto modes are available?

The unit offers Gradual, Jump, and Breathe modes. Press the corresponding buttons on the remote to activate.

Can I adjust the speed of auto modes?

Yes, use Speed + to increase speed or Speed - to decrease speed while in an auto mode.

How do I mount the fixture?

Use the included mounting bracket and thumbscrew to attach the unit to a lighting stand or truss.

What type of battery does the remote use?

The remote requires a CR2025 coin cell battery, which is included.

Is the PAR10-RGBW suitable for outdoor use?

No, it is designed for indoor use only. Avoid exposure to rain or damp environments to prevent fire or electric shock.

How do I clean the fixture?

Disconnect power and allow to dry naturally if spilled. For dust, use a dry cloth. Do not use liquids.

How should I dispose of the product at end of life?

This is electrical/electronic equipment. Do not dispose with household waste. Follow local council guidelines for recycling.

USER MANUAL PAR10-RGBW Qtx

10W LED RGBW Spotlight

Item ref: 151.675UK

User Manual

Please read through this manual thoroughly before use, any damage caused by misuse of product will not be covered by warranty.

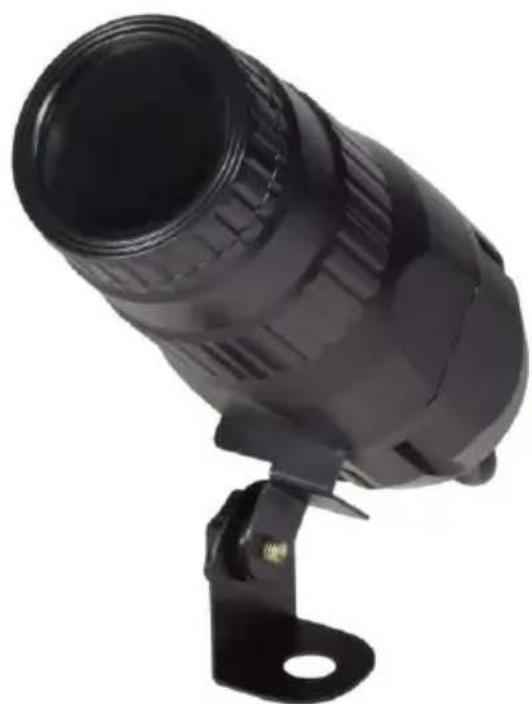

Black cylindrical device with attached metal bracket and mounting base (no visible text or symbols)

A compact single LED spotlight, ideal for performances and venues or to use with a mirror ball. Supplied with an easy-to-use remote control which enables you to switch between RGBW solid colours or various colour change options. Fitted with a bright 10W LED the lightweight plastic housing generates virtually no heat and comes fitted with a 1m power lead.

In the box:

Your PAR10-RGBW should arrive with you in a single carton in good condition. The carton should contain 1 x main unit with bracket and thumbscrew, 1x remote control and 1 x user guide.

Warning:

To prevent risk of fire or electric shock, do not expose the unit to rain or damp environments. In the event of a spillage, disconnect the charging lead and allow the unit to dry out naturally. Qualified personnel should then check the unit before continuing use.

Placement:

• Use the included mounting bracket to fix to a stand or lighting truss.
- Keep away from damp or dusty environments.

Remote control:

The PAR10-RGB is supplied with an I.R. remote control for quick access to all functions of the unit. This has a maximum range of approximately 4-5m and must be aimed towards the front of the housing. The Controls and functions are listed on the diagram below:

1. OFF = Lamp off

2. R = Red static

3. G = Green static

4. Gradual = Gradual colour change mode

5. Jump = Colour jump mode

6. Speed - = Decrease speed in auto modes

7. Mode - = Decrease value in manual colour switching (RGBW)

8. On = Lamp on

9. W = White static

10. B = Blue static

11. Breathe = Colour breathe mode

12. Speed + = Increase speed in auto modes

13. Mode + = Increase value in manual colour switching (RGBW)

Specifications:

Power	100 - 240Vac, 50/60Hz
Power consumption	10W
LED: spot	1pcs LED RGBW
Effective distance	Up to 6m
Beam angle: spot	5°
Modes	Solid colour (RGBW) and auto gradual/jump/breathe effects
Lead Length	1m
Remote battery	CR2025 (supplied)
Dimensions	165 x 68 x 68mm
Weight	380g

This product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines.

Errors and omissions excepted.
