| Product Type | Active Subwoofer |
| Brand | Pyle |
| Model | PSBS10 |
| Woofer Size | 10 inches |
| Power Output (RMS) | 200 Watts |
| Peak Power | 400 Watts |
| Frequency Response | 20 Hz - 200 Hz |
| Impedance | 4 Ohms |
| Enclosure Type | Ported |
| Dimensions (H x W x D) | 12 x 12 x 12 inches |
| Weight | 20 lbs |
| Input Sensitivity | 200 mV |
| Phase Control | 0° / 180° |
| Crossover Frequency | 40 Hz - 200 Hz adjustable |
| Power Supply | 110-120V AC, 60 Hz |
| Signal to Noise Ratio | > 85 dB |
| Total Harmonic Distortion | < 0.5% |
| Safety Features | Overload protection, short circuit protection |
| Maintenance | Keep dry, clean with soft cloth, avoid dust buildup |
| Spare Parts & Repair | Contact Pyle authorized service center for replacement parts |
| General Information | Designed for home theater and music systems |
Frequently Asked Questions - PSBS10 Pyle
How do I connect the PSBS10 subwoofer to my receiver?
Use a standard RCA subwoofer cable to connect the subwoofer's LFE input to the subwoofer pre-out of your receiver. Alternatively, use speaker wire if your receiver has a dedicated subwoofer output.
What is the recommended placement for the subwoofer?
Place the subwoofer in a corner or along a wall for optimal bass. Avoid placing it directly in the center of the room. Experiment with position to reduce standing waves.
How do I adjust the crossover frequency?
Use the crossover dial on the back of the subwoofer. Set it to match the lower limit of your main speakers (typically 80 Hz). Adjust to your preference for seamless integration.
Why is my subwoofer not producing sound?
Check power connections, ensure the subwoofer is turned on, verify the audio cable is connected securely, and confirm the receiver's subwoofer output is enabled. Also check the phase setting.
Can I use the PSBS10 with a soundbar?
Yes, if your soundbar has a subwoofer pre-out. Use an RCA cable to connect. Some soundbars may require a wireless adapter kit, but the PSBS10 is wired.
What is the difference between LFE and line-level inputs?
LFE input bypasses the subwoofer's internal crossover, used with a receiver's .1 channel. Line-level inputs pass through the crossover, allowing you to blend with speakers. Use LFE for home theater.
How do I clean the subwoofer?
Unplug the subwoofer during cleaning. Use a soft, dry cloth to wipe the exterior. Avoid using water or cleaners on the cone. Vacuum the grille if needed.
What is the warranty period for Pyle PSBS10?
Pyle products typically carry a 1-year limited warranty against defects in materials and workmanship. Check your purchase documentation for details.
Can I stack other electronics on top of the subwoofer?
It is not recommended to place other electronics on top of the subwoofer due to vibrations that could damage components or cause interference. Keep the top surface clear.
How do I reset the subwoofer if it stops working?
Unplug the subwoofer from power for 30 seconds, then plug it back in. Ensure all connections are secure. If issues persist, consult the manual or contact support.
User questions about PSBS10 Pyle
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Subwoofer in PDF format for free! Find your manual PSBS10 - Pyle and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PSBS10 by Pyle.
USER MANUAL PSBS10 Pyle
Power amplifier for schematic diagram.
Connect the power amplifier to the positive and negative terminals accordingly as shown.
Features:
- Rear Air Tight Seal Design
• High Powered 8-inch Woofers with a Non-Pressed Paper Cone
• Specially Treated Foam Surround - Smooth Carpet Finish
• 4 Layer Dual Voice Coil - Binding Post Connectors
• Perfect for Truck and Behind the Seat
• High-Quality Construction
What's in the Box:
- Subwoofer Box
Questions? Issues?
We are here to help!
Phone: (1) 718-535-1800
Email: support@pyleusa.com
PSBS8
8" 400 Watts Powered Slim Subwoofer Box System
Mount Car Truck Audio Subwoofer Enclosure
Technical Specs:
- Construction Materials: 15mm Particle Board + Multilayer Board
• Power Rating: 400 Watts Max Power - Voice Coil: 1.5"
- Impedance: 4 Ohms
- Magnet: 30 Oz
- Sensitivity: 89 dB
• Frequency Response: 40-300Hz - Product Dimensions (L x W x H): 16.5" x 5.5" x 10.6" -inches

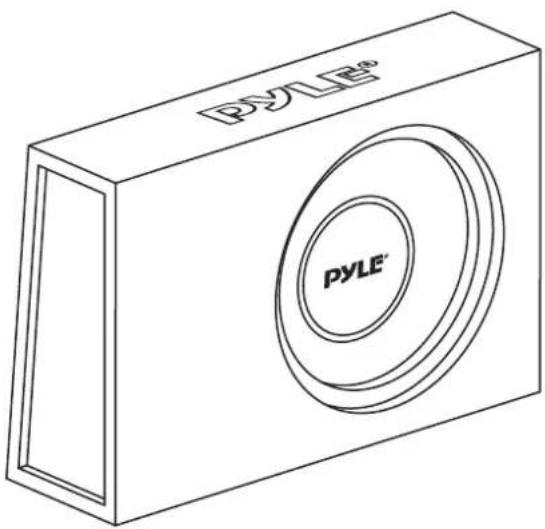

PSBS10
10" 500 Watts Powered Slim Subwoofer Box System
Mount Car Truck Audio Subwoofer Enclosure
Technical Specs:
- Construction Materials: 15mm Particle Board + Multilayer Board
• Power Rating: 500 Watts Max Power - Voice Coil: 2.0"
- Impedance: 4 Ohms
- Magnet: 40 Oz
- Sensitivity: 90 dB
• Frequency Response: 35-300Hz - Product Dimensions (L x W x H): 19.7" x 6.0" x 13.0" -inches
PSBS12
12" 600 Watts Powered Slim Subwoofer Box System
Mount Car Truck Audio Subwoofer Enclosure
Technical Specs:
- Construction Materials: 15mm Particle Board + Multilayer Board
• Power Rating: 600 Watts Max Power - Voice Coil: 2.5"
- Impedance: 4 Ohms
- Magnet: 50 Oz
- Sensitivity: 91 dB
• Frequency Response: 28-200Hz - Product Dimensions (L x W x H): 19.7" x 7.1" x 15.0" -inches
! WARNING:
This product contains Nickel carbonate which is known to the state of California to cause cancer birth defects and other reproductive harm. Do not ingest.
For more info go to: www.P65warnings.ca.gov
