USER MANUAL InfoSafe SATCASE35U2 StarTech.com

SATA Hard Drive Enclosure

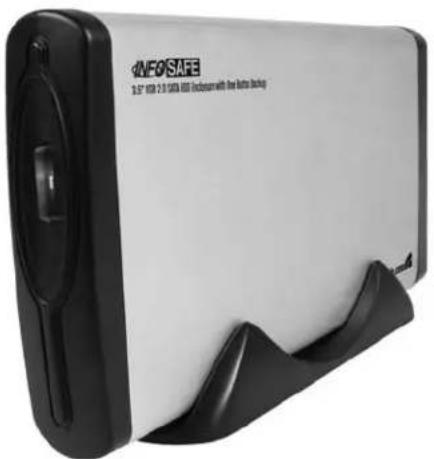

3.5" USB 2.0 SATA HDD Enclosure with One Button Backup

SAT3510U2B

Instruction Manual

Actual product may vary from photo

INFO SAFE

StarTech.com

Making hard-to-find easy!

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Instruction Manual

Table of Contents

Introduction 1

Features 1

System Requirements ....1

Package Contents ....1

Installation 2

Hard Drive Installation 2

Software Utility Installation 4

Driver Installation 6

Connecting SAT3510U2B to the host computer .....7

Using the Backup4all software 7

Disconnecting SAT3510U2B from the host computer ....8

Introduction

Thank you for purchasing a StarTech.com 3.5" USB 2.0 SATA HDD Enclosure with One Button Backup. The perfect solution for high-speed data backups, SAT3510U2B supports high capacity hard drives to maximize storage capability, while housing the drive in a lightweight enclosure, and features a built-in cooling fan to keep the drive running at optimal temperatures.

Features

• Supports almost any Universal fitting for 3.5" SATA I/II hard drives
• Lightweight, durable aluminum finish with built-in cooling fan
- Power and data transfer LEDs offer simple monitoring of drive activity
- Works with High Capacity HDD's - Supports 750 GB's

Before you begin

System requirements:

• 3.5" SATA hard drive
- Host computer with an available USB port. Operating system requirement: Windows 98SE/ME/2000/XP/VISTA/Mac OS 9x and up

Package contents:

This package should contain:

• 1 x Enclosure
• 1 x Power Adapter
  • 1 x Driver / Software utility CD
  • 1 x Instruction Manual
  • 1 x Backup4all User Guide
• 1 x Stand
• 1 x Screw kit
• 1 x USB Cable

Instruction Manual

Installation

WARNING: Hard drives require careful handling, especially when being transported. If you are not careful with your hard disk, lost data may result. Always handle your hard drive and storage device with caution.

WARNING: Hard drives, like all computer equipment can also be severely damaged by static electricity. Be sure that you are properly grounded before opening your computer case or touching any components. StarTech.com recommends that you wear an anti-static strap when installing any computer equipment. If an antistatic strap is unavailable, discharge yourself of any static electricity build-up by touching a large grounded metal surface (such as the computer case) for several seconds.

WARNING: Do not disconnect any cables or power sources while the hard drive is active. This can result in data loss and possible damage to the hard drive.

Hard Drive Installation

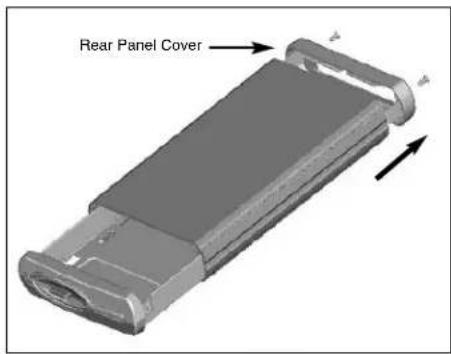

1. Unscrew the enclosure and remove the rear panel cover. Pull the tray out of the enclosure:

2. Place the 3.5" SATA drive in the tray, with the hard drive SATA connector facing the SATA connections provided by the drive tray:

3D mechanical component diagram showing internal structure with no visible text or symbols

Instruction Manual

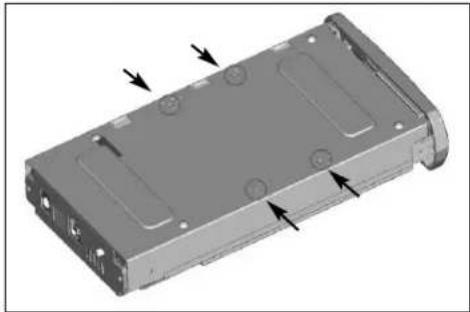

1. With the hard drive connected to the tray (using the SATA connection), turn the tray over and place it on a flat, stable surface, exposing the base of the tray. Attach the drive to the enclosure tray, using the screw kit provided:

3D rendering of a mechanical component with mounting holes and arrows indicating features (no text or symbols)

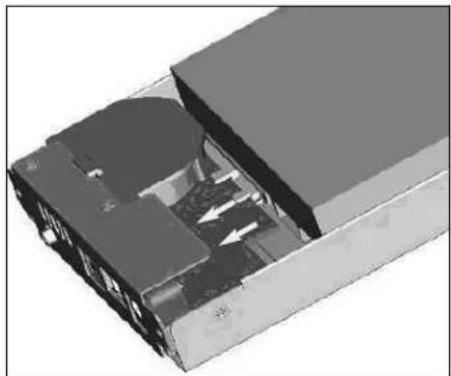

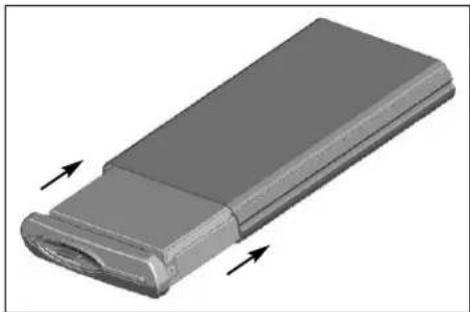

1. Once the drive has been secured to the drive tray, insert the tray (with drive) into the enclosure:

3D rendering of a gray rectangular electronic component with two directional arrows indicating movement or force (no text or symbols)

1. Secure the tray in the enclosure using the screws removed in step #1.

Close-up of a metallic electronic device showing a side panel with ports and connectors (no text or symbols visible)

The hard drive has now been installed in the enclosure. Please proceed to software installation, as detailed in the following section.

Instruction Manual

Software Utility Installation

To use the One Button Backup feature, the accompanying Backup4all software must be installed on the host computer:

1. Insert the Backup4All CD into the CD/DVD-ROM drive. Locate and double-click on the file titled Autorun.exe. (d:\Autorun.exe, where d:\ is the CD/DVD-ROM drive letter designation).

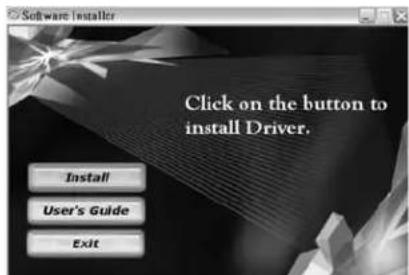

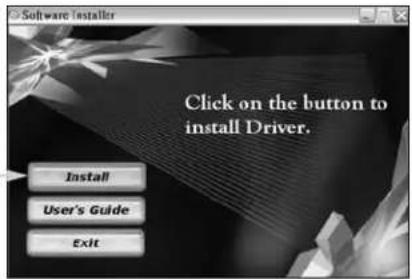

2. When the Software Installer window appears, click on Install:

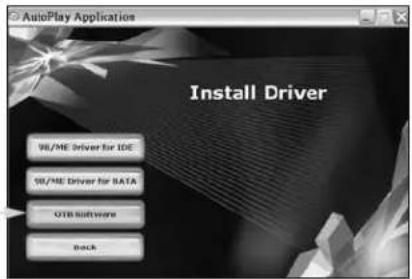

1. Select OTB Software:

1. Select the preferred language for installation and click OK.

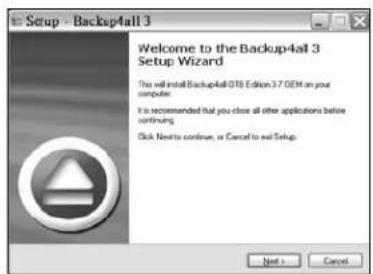

1. When the Welcome to Backup4all setup Wizard screen appears, please click Next.

Instruction Manual

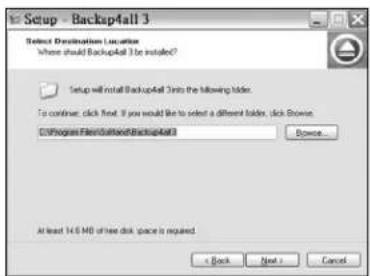

1. Click on Next if you wish to install the software in the default directory. If you wish to specify a destination other than the default location for the software, please click on browse, and specify an alternate installation path.

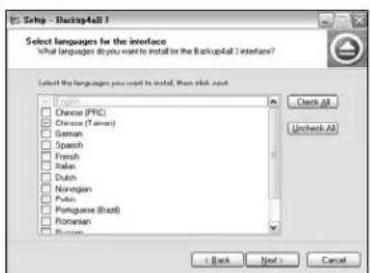

2. Select the languages you wish to use with the Backup4all interface and click Next.
3. Select the default language that will be used with the Backup4all interface, and click Next.

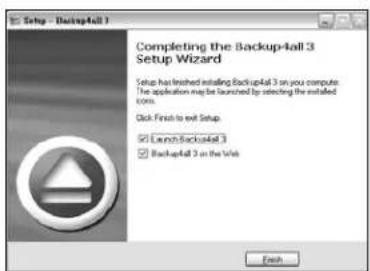

4. When you receive a message indicating that the Backup4all Setup Wizard has finished installation, select Launch Backup4all3 and click on Finish.
5. When the Backup4all utility is first launched, you will be asked to register the software. Enter the registration key in the text box provided, then click Close to conclude the software installation. The key can be found on the CD sleeve containing the Backup4all software (24 character alphanumeric code)

Instruction Manual

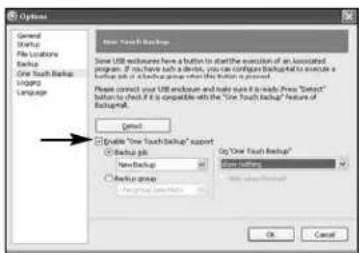

1. To access the Backup4all utility, click on the Backup4all icon, located on the desktop. In the window that appears, click on Tools, then Options. Select One Touch Backup in the left pane, and ensure that there is a checkmark next to Enable "One Touch Backup" support. This feature is now enabled.

Driver Installation

Please note that if you are using Windows 98/98SE, you are required to install the necessary drivers, prior to usage. If you are using Windows ME, 2000, XP or higher, no driver installation is required, as the operating system will automatically install the necessary files. As such, if you are using Windows ME or above, please advance to Connecting SAT3510U2B to the host computer.

Windows 98/98SE users:

1. Ensure the Backup4All CD is present in the CD/DVD-ROM drive. Locate and double-click on the file titled Autorun.exe (d:\Autorun.exe, where d:\ is the CD/DVD-ROM drive letter designation).

2. When the Software Installer window appears, click on Install:

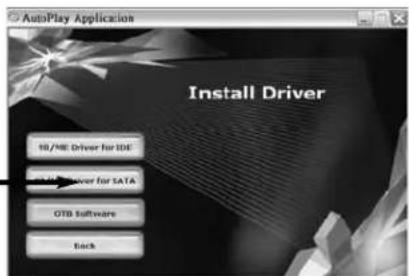

1. Select 98/ME Driver for SATA:

Instruction Manual

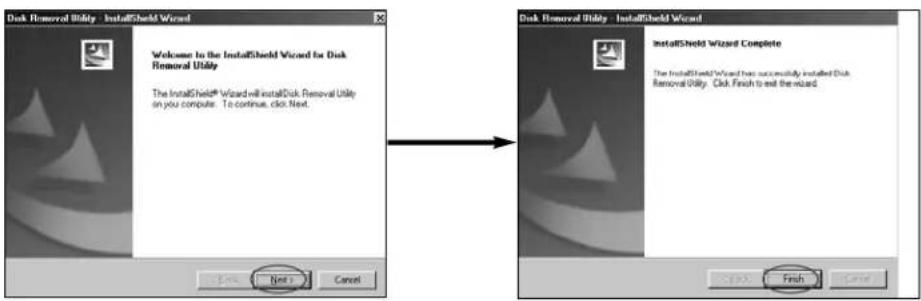

1. Click Next, then Finish to complete driver installation.

Once the drivers have been installed, the host computer is ready to use SAT3510U2B.

Connecting SAT3510U2B to the host computer

1. Connect the power adapter (included) to the drive enclosure, using the power port on the rear panel of the enclosure (marked DC12V). Connect the remaining end of the power adapter to an available power outlet.
2. Insert the type 'b' connector provided by the USB cable (included) into the port marked USB 2.0 on the rear panel of the drive enclosure. Insert the remaining (type 'a') connector into an available USB port on the host computer.
3. One the rear panel of the enclosure, move the Fan Switch to the ON position.
4. Power the drive enclosure by pressing the side of the remaining switch marked with a dot.

Please note: SAT3510U2B features an ON/OFF switch that controls the internal cooling fan. Please note that to ensure the best possible operating environment for the installed hard drive and reduce the risk of damage to the drive, the fan should be left in the ON position. This feature is intended for temporary use only, as necessary to quiet environments.

Using the Backup4all software

For explicit instructions on how to use the Backup4all software that was packaged with SAT3510U2B, please see the Backup4all User Guide.

Disconnecting SAT3510U2B from the host computer

WARNING: Do not disconnect any cables or power sources while the hard drive is active. This can result in data loss and possible damage to the hard drive.

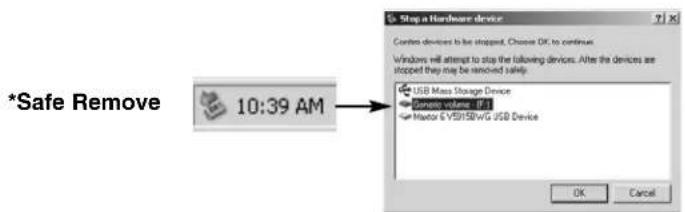

1. In Windows, click on the Safe Remove icon located in the taskbar, and select the connected enclosure from the menu provided, then click Stop. From the menu that appears next (pictured below), select the device to disconnect, and click OK.

1. Once the connected hard drive activity has terminated, it is safe to power down and remove the enclosure from the host computer, by disconnecting the USB cable from the host computer.

Instruction Manual

Specifications

Certifications	ROHS, FCC, CE, UL
Bus Type	USB2.0
Connectors	External:1 x USB B Female ConnectorInternal:1 x SATA data1 x SATA power
Power Adapter	12V 2A Power adaptor
Maximum Data Transfer Rate	USB2.0 at 480Mbps max (using USB 2.0 connection to host)
Chipset	Sunplus 215
OS Support	Windows 98SE/ME/2000/XP/VISTA/Mac OS 9x and up
