KPR2998 - Radio Kunft - Free user manual and instructions

Product Type	Portable Radio
Brand	Kunft
Model	KPR2998
Dimensions	Approx. 25 x 15 x 10 cm
Weight	Approx. 500 g (without batteries)
Power Supply	AC 220-240V or 4 x AA batteries
Frequency Bands	AM, FM
Speaker	Built-in, 3W output
Display	Analog dial with frequency indicator
Antenna	Telescopic FM antenna, built-in AM antenna
Controls	Volume, tuning, band selector
Additional Functions	Headphone jack, carry handle
Operating Temperature	0°C to 40°C
Cleaning Instructions	Wipe with dry cloth, do not use liquids
Safety Warnings	Do not expose to water, do not disassemble
Spare Parts Availability	Contact manufacturer or authorized service center
Repairability	Designed for repair by qualified technician

Frequently Asked Questions - KPR2998 Kunft

How do I turn on the radio?

Rotate the volume knob clockwise until you hear a click. The radio will power on.

How do I switch between AM and FM?

Use the band selector switch on the side of the radio to choose AM or FM.

Why is the sound weak or distorted?

Weak batteries, low signal, or volume set too high. Try fresh batteries, extend the antenna, or reduce volume.

Can I use headphones?

Yes, plug your headphones into the headphone jack located on the side. The built-in speaker will mute automatically.

How do I improve FM reception?

Fully extend the telescopic antenna and rotate it for best signal. Avoid metal obstructions.

Does the radio have a sleep timer?

No, this model does not include a sleep timer. You need to turn it off manually.

What batteries does it use?

It uses 4 x AA batteries (alkaline recommended) for portable use.

How do I clean the radio?

Wipe the exterior with a soft, dry cloth. Do not use water or cleaning agents to avoid damage.

Can I connect external speakers?

No, there is no line-out or external speaker output. Only a headphone jack is available.

Where can I find a replacement antenna?

Contact Kunft customer support or an authorized service center for spare parts.

USER MANUAL KPR2998 Kunft

We thank you for purchasing this product.

This appliance was submitted to several laboratorial tests, which certify its quality.

To simplify the use of this appliance, this instruction manual has been provided.

The instructions must ensure a quick and safe use.

Please read carefully the instructions and safety measures described in this manual.

We wish our clients great satisfaction in using their new appliance.

2

pocket radio

KPR2998 BK

EN

INDEX

1. SAFETY INSTRUCTIONS .....4

1.1. Power Supply ....5
1.2. Power Cord and Other Cables .....6
1.3. Humidity and Water ......6
1.4. Cleaning ......6
1.5. General Precautions ......6

1. OPERATING INSTRUCTIONS .....8

2.1. Product Description......8
2.2. Using the Product .....9

1. TECHNICAL SPECIFICATIONS .....9
2. POST-SALE SERVICE ....10
3. ENVIRONMENTAL PROTECTION .....10

1. SAFETY INSTRUCTIONS

	WARNING
	Risk of Electric ShockDo Not Open
Warning: to avoid the risk of electric shock, do not remove the cover.The interior does not contain any parts that can be repaired by the user. Ask for assistance by qualified personnel.

Important Warnings

Before using your appliance read this instructions manual carefully and keep it in a safe place as you may need to consult it in the future.

Before turning on your appliance, and to ensure a safe and correct operation, do not use if:

• It has fallen to the ground;
• You notice any evidence of damage;
• Any anomaly occurs during its operation.

To avoid hazards or deterioration of your appliance through incorrect use it is advisable to read these instructions thoroughly.

4

pocket radio

KPR2998 BK

EN

Your appliance may not be used for other purposes than the ones intended and solely for household use. Any damage resulting from using the appliance outside this scope, any incorrect use, as well as any manual modifications to the product will not be covered and automatically voids the warranty.

Assistance

In case of malfunction, take your appliance to a qualified technician for assistance.

This appliance can be used by children from the age of 8 and by people with reduced physical, sensorial or mental capabilities and/or lack of experience and knowledge if they have been given instructions on using the appliance safely and if they understand the hazards involved. Children may not play with the appliance. Cleaning and maintenance must not be carried out by children without supervision.

These instructions are also available at www.suporteworten.pt

1.1. Power Supply

Make sure the main voltage is compatible with the appliance's. If this is not the case please consult the Customer Support Service.

1.2. Power Cord and Other Cables

Do not tangle the cord or pull it to disconnect the appliance. Also, keep the cord away from warm surfaces.

Never use the appliance if it has a damaged cable or socket.

Take it to the Technical Support Service for replacement.

1.3. Humidity and Water

Do not use your appliance in humid places. Do not allow the appliance to become wet under any circumstances as this may be dangerous. To avoid fire hazard or electric shock do not expose your appliance to humidity or water. Furthermore, do not place your appliance under water (e.g. for cleaning).

pocket radio

KPR2998 BK

EN

1.4. Cleaning

Before cleaning, be sure to switch off the appliance and remove the plug from the main power supply. Always allow the unit to cool down before cleaning.

To clean the exterior of the product use a dry soft cloth only.

1.5. General Precautions

• Please follow the instructions in the user manual which help to properly install and operate this product and enjoy its advanced features. Please keep the instructions for future reference.
• Read all instructions before using the product.
• Maintenance and service operations are only to be carried out by authorized professionals.
• Any damage caused by manual modifications to the product is not covered by the warranty.
• If this product is used for other purposes than the ones originally intended, or if it is not correctly connected, the product may become damaged and the warranty will be voided.

2. oPEratING INStructloNS

PrEcautIoNS:

1. For battery operation, simply insert two "UM-3 / AA" batteries.
2. Do not leave the batteries in the unit for extended periods of time unless it is in operation. Remove the batteries to avoid leakage and damage.
3. Do not expose the unit to extreme temperature nor to high humidity in order to ensure normal functioning and a long lifetime.

For instance, never place the unit in bathing areas nor around stoves or radiators.

1. If you find the unit is not working properly, please take it to your nearest service centre. Do not attempt to repair it by yourself.

WarNING:

To prevent a fire or shock hazard, do not expose the unit to rain or moisture.

To avoid an electrical shock, do not attempt to repair the unit yourself. Any repairs should be carried out by a service agent or a qualified engineer only.

Color palette bar with grayscale gradient and a central crosshair symbol (no text or labels)

pocket radio

KPR2998 BK

EN

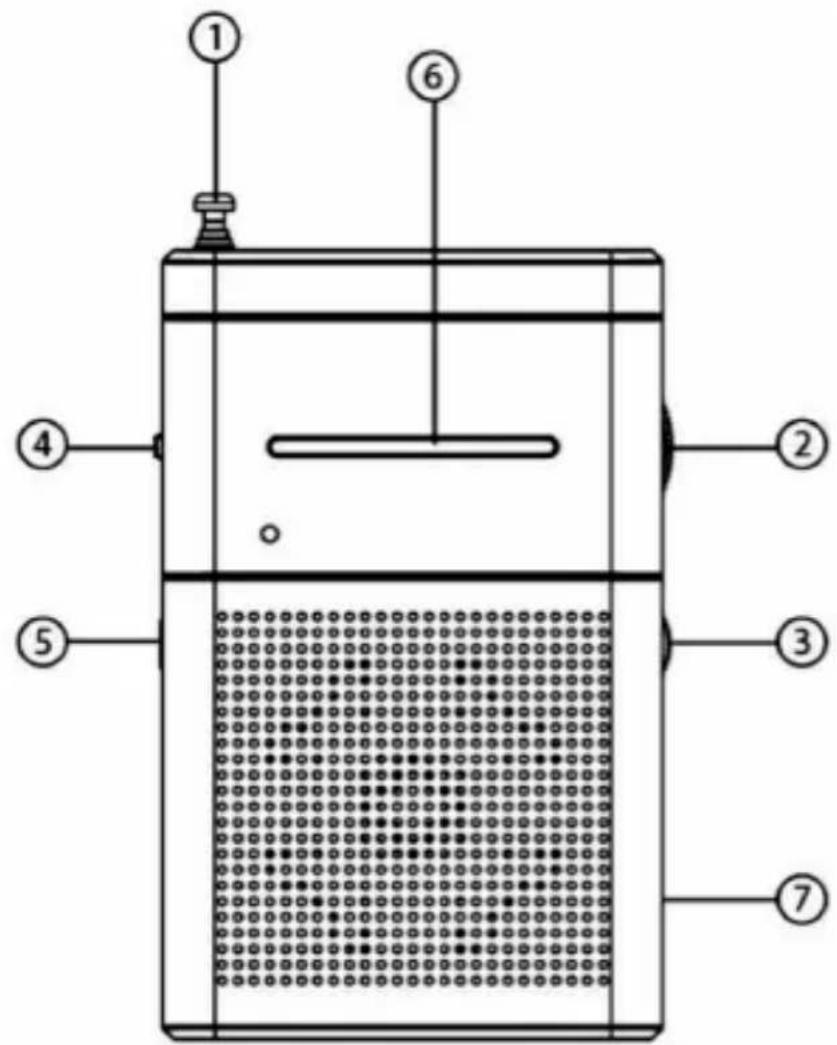

2.1. Product Description

CONTROL LOCATION

1. ROD ANTENNA
2. RADIO TUNING CONTROL
3. VOLUME CONTROL

9

1. POWER OFF/ BAND SELECTOR
2. HEADPHONE JACK
3. FREQUENCY SCALE
4. BATTERY COMPARTMENT COVER (on the back)

2.2. Using the Product

DC Battery Supply

Open the battery compartment and insert two type LR6, UM3 or AA batteries as indicated in the compartment.

Radio

1. Select the waveband using the RADIO BAND SELECTOR.
2. Adjust the sound with the VOLUME CONTROL.
3. You may connect 3.5mm stereo headphones with 3.5mm to the HEADPHONE JACK, which will then mute the loud-speakers.
4. Tune into a radio station using the RADIO TUNING CONTROL.

pocket radio

KPR2998 BK

EN

To improve reception:

• For FM, pull out the telescopic aerial. To improve FM Reception incline and turn the aerial, reduce its length if the FM-signal is too strong (very close to a transmitter).
• For AM, the set is provided with a built-in aerial, so there is no need to use the telescopic aerial. Turn the set to find the best position.

3. TECHNICAL SPECIFICATIONS

Speaker: 1.5 inches, 8 ohm dynamic speaker

Power Output: 0.3W RMS

Battery: DC 3V (2 x "UM-3 / AA")

4. PoSt-SaLE SErvIcE

KUNFT has designed this appliance in order to guarantee maximum reliability. However, if a problem occurs do not attempt to open the appliance - there is a risk of electrical shock. If you are not able to solve the problem, please contact the Costumer Support Service of any Worten, Modelo or Continente store in order to be assisted. Worten Equipamentos para o Lar provides a 2-year warranty for manufacturing defects from the date of purchase of the appliance.

WARNING: Any attempt to repair the appliance without contacting the manufacturer or seller will void the warranty.

All users must be familiar with these instructions. Knowing what could go wrong can help prevent problems from occurring.

Color palette bar with grayscale gradient and a central crosshair symbol (no text or labels)

pocket radio

KPR2998 BK

EN

5. ENVIRONMENTAL PROTECTION

In order to protect the environment we strive to reduce the volume of packaging used, limiting it to three easily sorted materials: cardboard, paper and plastic.

Symbol of a trash bin crossed with no text or labels, accompanied by a solid black rectangle below (no text or symbols present)

The appliance is manufactured using recyclable materials after disassembled by a specialized company. Please comply with local regulations concerning the recycling of all materials.

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Color palette bar with grayscale gradient and a central crosshair symbol (no text or labels)

radio de bolsillo

KPR2998 BK

Pt

Caro(a) cliente,

Color palette bar with grayscale gradient and a central crosshair symbol (no text or labels)

rádio de bolso

KPR2998 BK

PT

1. INSTRUÇÕES DE SEGURANÇA

Color palette bar with grayscale gradient and a central crosshair symbol (no text or labels)

rádio de bolso

KPR2998 BK

Pt

Color palette bar with grayscale gradient and a central target symbol (no text or labels)

rádio de bolso

KPR2998 BK

PT

35

Color palette bar with grayscale gradient and a central crosshair symbol (no text or labels)

rádio de bolso

KPR2998 BK

PT

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Imported, produced and distributed by:
