Product Type	Electric Fan Heater
Brand	Dimplex
Model	OSP003
Dimensions (H x W x D)	25 cm x 20 cm x 15 cm
Weight	1.5 kg
Power Supply	220-240 V, 50 Hz
Power Consumption	2000 W (max)
Heat Settings	2 (low and high)
Fan Mode	Yes, cool air only
Thermostat	Adjustable thermostat
Overheat Protection	Yes, auto shut-off
Tip-Over Switch	Yes, automatic shut-off
Housing Material	Plastic (flame retardant)
Control Type	Manual rotary dials
Cleaning	Wipe with a damp cloth; do not immerse
Safety Certification	CE, RoHS compliant
Spare Parts Availability	Contact Dimplex customer service
Noise Level	Approx. 45 dB
Warranty	2 years

Frequently Asked Questions - OSP003 DIMPLEX

What is the power consumption of the Dimplex OSP003?

The Dimplex OSP003 has a maximum power consumption of 2000 W on the high heat setting.

Does the heater have a fan-only mode?

Yes, it includes a fan-only mode for circulating cool air without heating.

How do I clean the OSP003 heater?

Unplug the heater and allow it to cool. Wipe the exterior with a damp cloth. Do not use water or cleaning agents directly on the unit.

Is the heater safe to leave unattended?

It is equipped with overheat protection and a tip-over switch, but do not leave it unattended for long periods.

What are the dimensions of the OSP003?

The approximate dimensions are 25 cm high, 20 cm wide, and 15 cm deep.

Does the heater have a thermostat?

Yes, it features an adjustable thermostat to maintain your desired room temperature.

What is the noise level of this fan heater?

The noise level is approximately 45 dB, similar to a quiet conversation.

Can I use the heater in a bathroom?

No, it is not rated for damp or wet locations. Use only in dry areas.

How do I obtain spare parts?

Contact Dimplex customer service or visit their website for authorized spare parts.

What is the warranty period?

The Dimplex OSP003 typically comes with a 2-year warranty against manufacturing defects.

USER MANUAL OSP003 DIMPLEX

This spacer is suitable for the following Optimyst Inset Fires; CRS20, & PNN20.

Installation

Offer the spacer up to the back of the fire. The front of the spacer sits inside the existing surround.

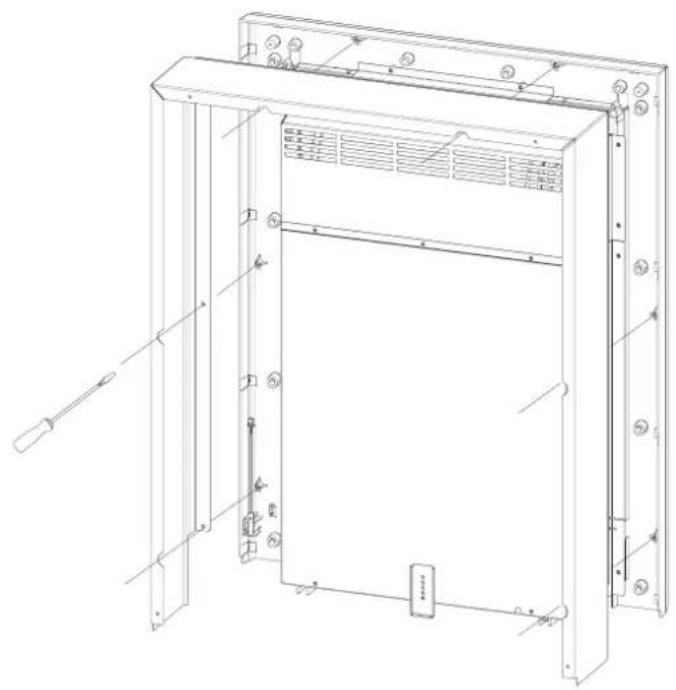

Using the 6 screws provided and a pozi-head screw driver, screw the spacer in place ensuring that the top and side edges of the spacer line up with the top and sides of the fire frame - see diagram

Technical line drawing of a cabinet or enclosure with internal components and mounting hardware (no text or symbols)

Cleaning

For general cleaning use a soft clean duster. Never use abrasive cleaners

8/54386/0 Issue 1
