Product Type	LED Television
Brand	Infiniton
Model	INTV-32MA401
Screen Size	32 inches (81 cm)
Display Resolution	1366 x 768 (HD Ready)
Backlight Type	LED
Aspect Ratio	16:9
Refresh Rate	60 Hz
Dimensions (without stand)	Approx. 730 x 430 x 80 mm
Dimensions (with stand)	Approx. 730 x 470 x 180 mm
Weight (without stand)	Approx. 4 kg
Weight (with stand)	Approx. 4.5 kg
Power Consumption (typical)	45 W
Power Consumption (standby)	< 0.5 W
Input Voltage	100-240 V, 50/60 Hz
HDMI Ports	2 x HDMI
USB Ports	1 x USB 2.0
Composite Input (AV)	1 x RCA (yellow)
Component Video Input	1 x YPbPr
Audio Output	1 x 3.5 mm headphone jack, 1 x Coaxial digital
Tuner	DVB-T/T2/C, DVB-S/S2
Smart TV	No
Remote Control	Infrared (IR)
VESA Mount	100 x 100 mm
Operating Temperature	0°C to 40°C
Safety Certifications	CE, RoHS

Frequently Asked Questions - INTV-32MA401 Infiniton

How do I connect my TV to an external device like a DVD player?

Use an HDMI cable to connect the HDMI port on your TV to the HDMI output on the external device. Alternatively, use composite AV cables (red/white/yellow) for older devices.

Why is there no sound from my TV?

Check that the volume is not muted and is set to an audible level. Ensure external speakers or headphones are not connected. Try a different audio source to isolate the issue.

How do I tune in digital channels?

Press the Menu button on the remote, go to Channel Setup, select Auto Tuning or Automatic Search, and choose the signal type (Digital). The TV will scan for available channels.

Can I wall mount this TV?

Yes, the TV supports VESA 100x100 mm wall mounts. Use a compatible wall bracket and follow the instructions in the manual. Ensure the wall can support the TV's weight.

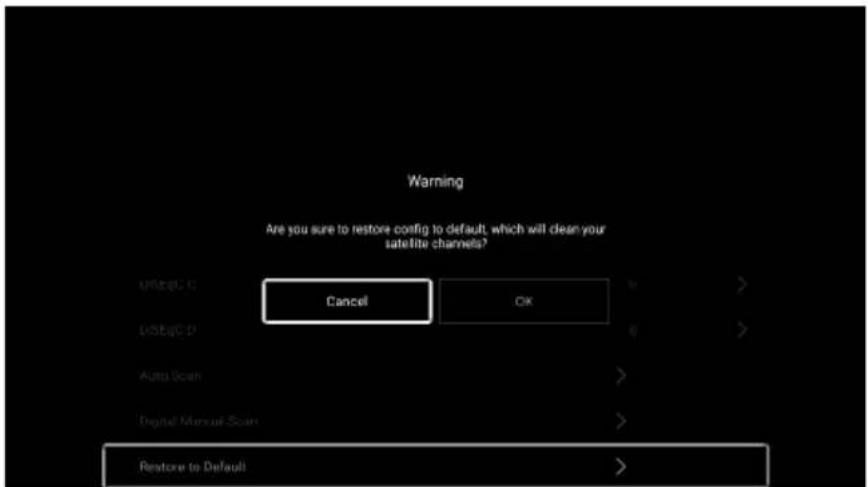

How do I reset the TV to factory settings?

Go to Menu > Settings > System > Factory Reset. Enter the PIN (default is 0000) and confirm. This will erase all personal settings and channels.

What type of USB devices can I use?

You can use USB flash drives up to 32 GB formatted in FAT32 or NTFS. The TV supports playback of video, audio, and photo files.

Why is the picture distorted or no signal?

Check the cable connections between your TV and source device. Ensure the correct input source is selected. Try a different cable or device to rule out hardware issues.

How do I clean the TV screen?

Turn off the TV and unplug it. Use a soft, dry microfiber cloth to gently wipe the screen. Do not use water, chemicals, or abrasive materials.

Does the TV have built-in Wi-Fi?

No, this model does not support Wi-Fi or smart features. It is a standard LED TV without internet connectivity.

What should I do if the remote control stops working?

Replace the batteries with fresh ones. Check if the IR sensor on the TV is unobstructed. Try using the buttons on the TV itself. If still not working, contact support.

USER MANUAL INTV-32MA401 Infiniton

Warning symbol of a lightning bolt inside a triangle (no text or numbers)

3

2
1

Pon tu TV

HOME

Fuente

Video

Pulse【◀】/【▶】para seleccionar vídeo

Modo de imagen

DLC

Pulse【▲】/【▼】para seleccionar DLC, y pulse【◀】/【▶】para seleccionar Oscuro/Normal/Brillante/Off

Sonido

Modo de sonido

Canal

Lista de canales

País

AutoScan

Escaneo manual digital

Lista de canales

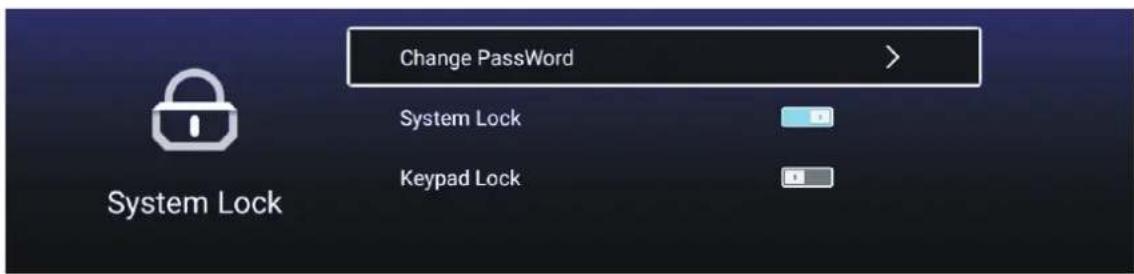

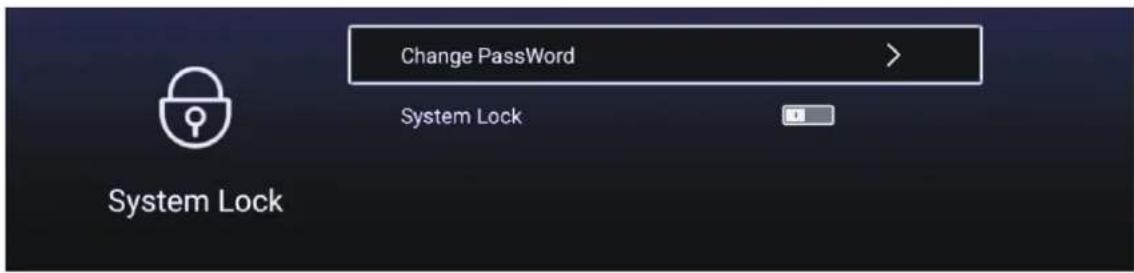

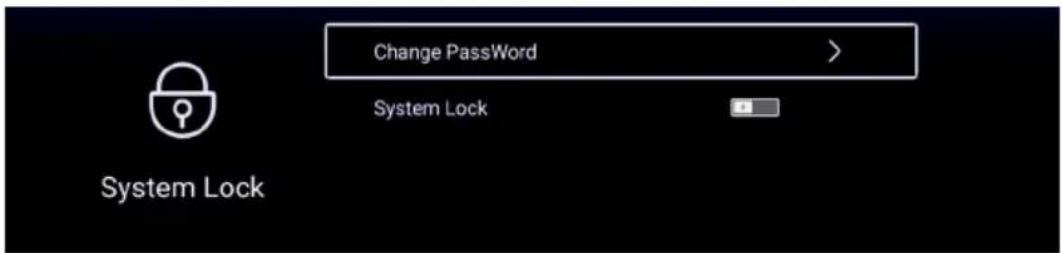

Bloqueo del Sistema

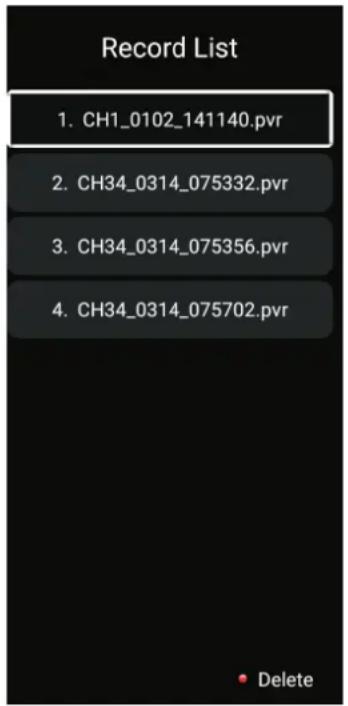

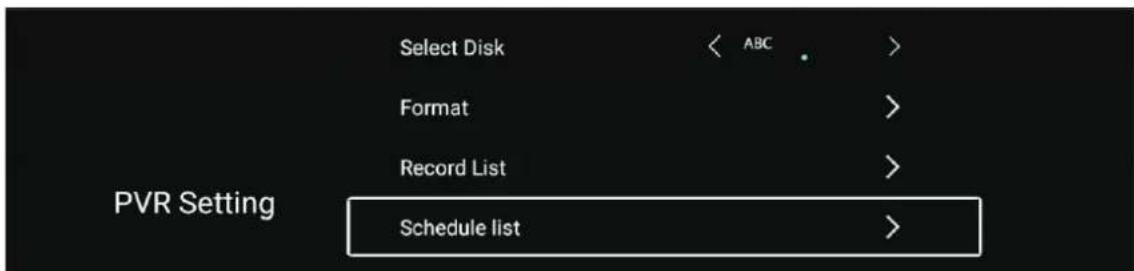

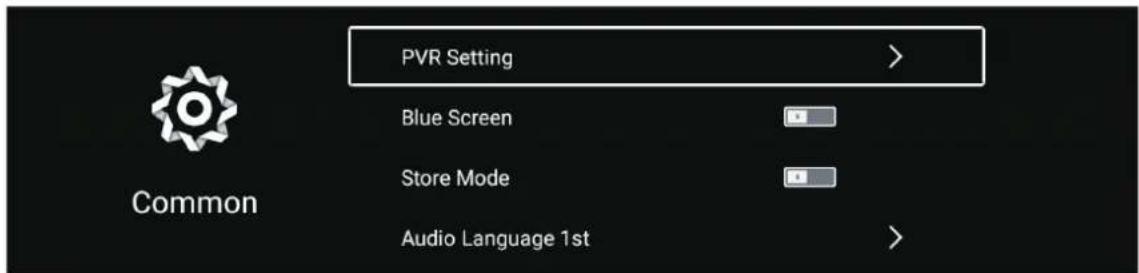

Ajuste de PVR

IMPORTANT

Please read this manual carefully before installing and operating the TV.

Keep this manual handy for further reference

Content

Safety Information 1

Important Safety Precautions 2

TV Buttons And Terminal Interface 3

External device connection diagram 4

Install And Connect TV 5

Setup Wizard 6

Home Pag 8

Main Menu....13

Help....28.

Specifications....29

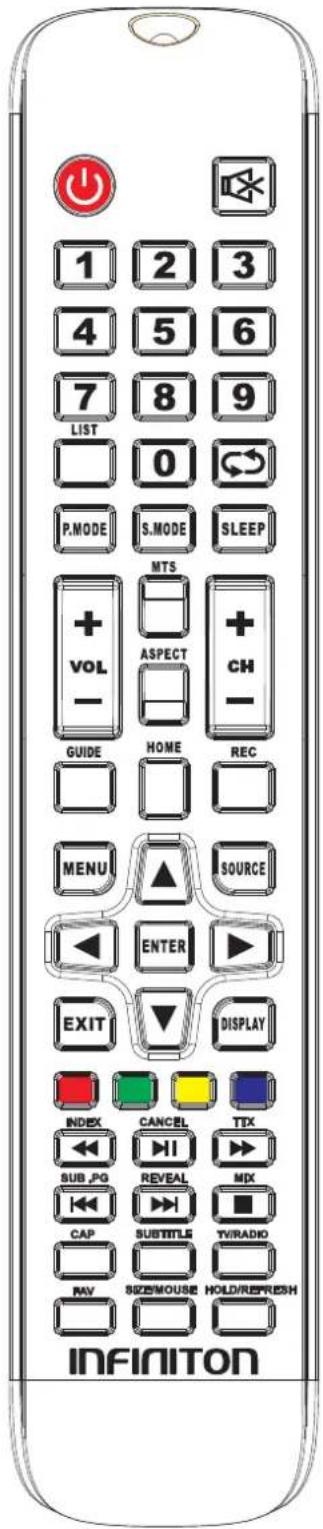

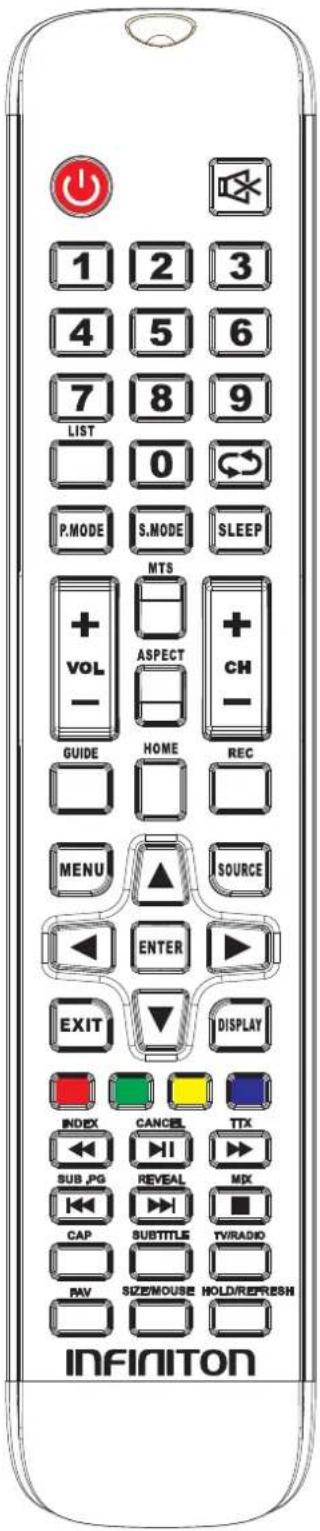

Remote Controller.... 30

Safety Information

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

High voltages are used in the operation of this product. to reduce the risk of electric shock, do not remove cover of the cabinet, refer servicing to qualified service personal

If the TV any changes or coarse adjustment, electric shocks to be hurt, do not attempt to open a machine-maintenance, customer contact centres needed overhaul.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating in the literature accompanying the appliance.

Warning symbol of a lightning bolt inside a triangle (no text or numbers)

Warning The lightning flash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

Important Safety Precautions

1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety, If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at Plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments /accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used caution when moving the cart/apparatus combination to avoid injury tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time. Caution:

14) To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

15) The mains plug is used as disconnect device, the disconnect device shall remain readily operable.

16) The socket-out shall be installed near the equipment and shall be easily accessible.

17) This product should never be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacture's instructions have been adhered to.

18) The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquid, such as vases, shall be placed on the apparatus.

19) Do not place any sources of danger on the apparatus (e.g. liquid filled objects, lighted candles).

20) Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer.

21)

Never place the TV, remote control or batteries near naked flames or other heat sources, including direct sunlight. To prevent the spread of fire, keep candles or other flames away from the TV, remote control and batteries at all times.

22) The USB terminal should be loaded with 0.5 A under normal operation.

These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operating instructions. unless you are qualified to do so.

23) The battery shall not be exposed to excessive heat such as sunshine, fire or the like.

24) This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth

25) The maximum using environment temperature is 45 degrees. The Maximum using altitude is 2000 meters

TV Buttons And Terminal Interface

TV Buttons

Note: The following is only functional schematic, And the actual position and arrangement of different models may be different.

VOL+

VOL-

CH+

CH-

MENU

SOURCE

(●):Turn ON/OFF Power.

SOURCE : External Signal Input Selection.

MENU: Display Main MENU And Confirm MENU Item Selection.

CH+/-:Selecting Channel.

VOL+/-:Adjusting Volume.

Terminal Interface

Note: The following are the various terminal interface, the actual position and arrangement, the number of different models may be different.

	AV inputExternal AV Signal Input		EARPHONE outputWhen earphones are plugged in,speakers are disabled
	HDMI inputDigital signal input from HDMI video connector.		USB inputConnect a USB device here to playits media files or to recordprogramsvia the PVR function.
	ANT 75Connect the antennal/cadle tv input(75/VHF/UHF)		COAXIALConnect the SPDIF receiver.
	VGA inputPC analog signal input		RJ45Connect the Internet.
	PC AUDIO INPUTVGA input and audio input when VGA input		CISLOTThe card reader input CI(common interface) this requires CAM(conditional access module)used for pay TV.

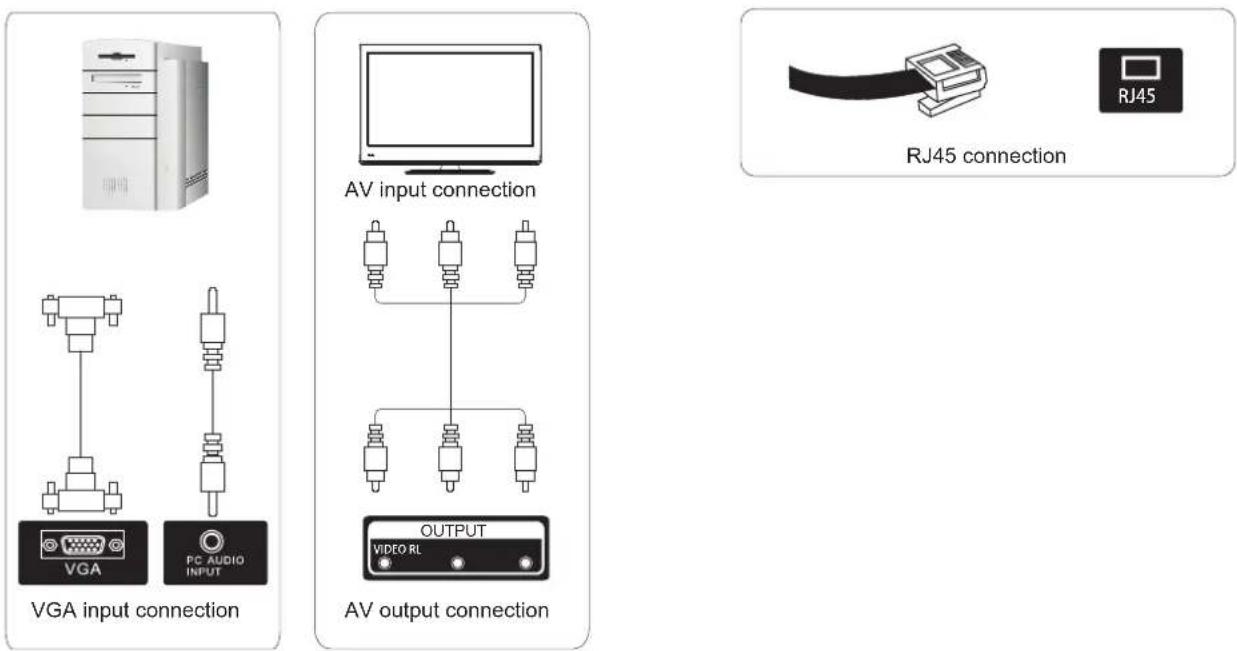

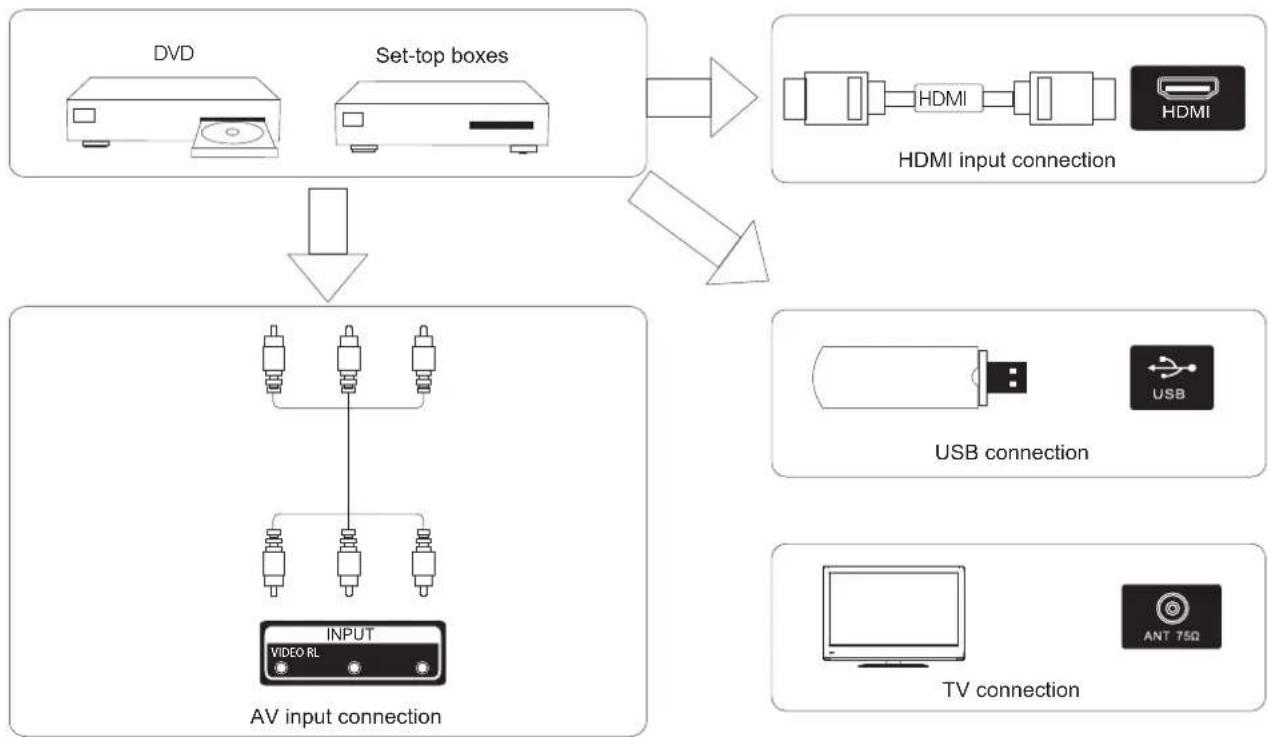

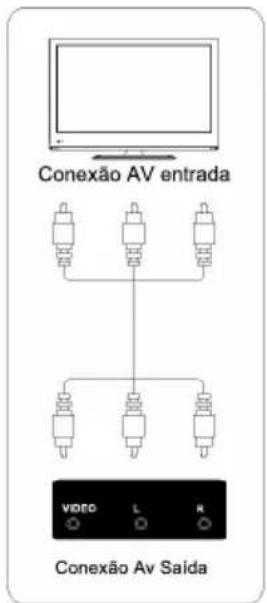

External device connection diagram

Install And Connect TV

3

2
1

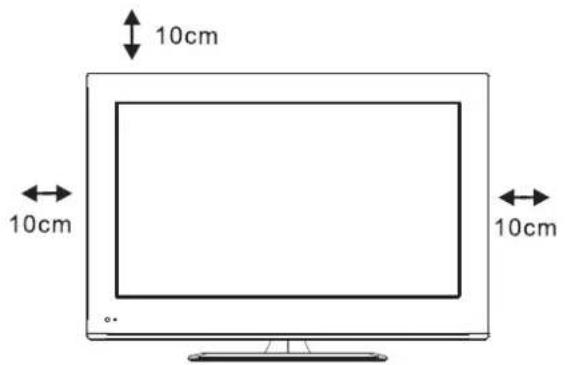

Set your TV

To put your TV in a firm place which can bear the weight of the TV.

To avoid danger, please don't expose the TV near water or heating place (such as light, candle, heating machine), do not block the ventilation at the back of TV.

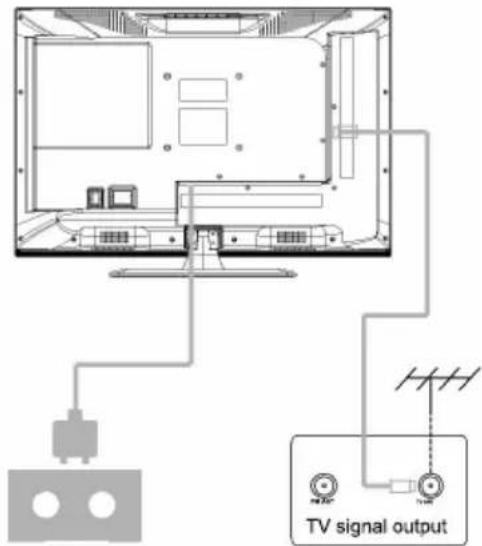

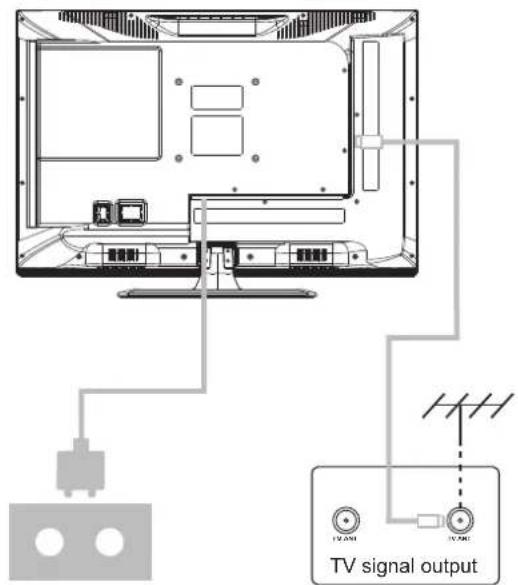

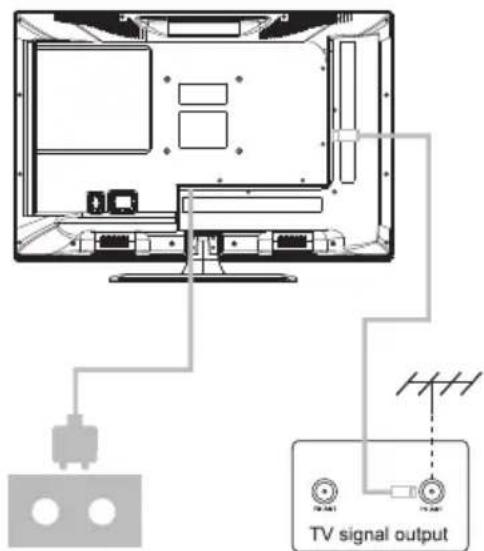

Connect antenna and power

1. Connect the antenna cable to the antenna socket on the back of the TV.
2. To plug the power cord of TV (AC 100-240V\~50/60Hz).

Turn on TV

1. Press the power button of the TV the indication light will turn to green. if it is on standby mode (the light is red), press the power button on the remote control to turn on the TV.

Note:

Picture for reference purposes only.

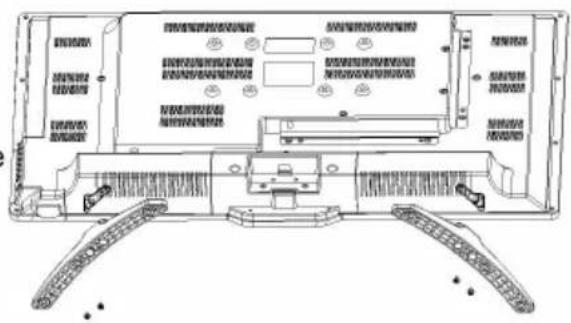

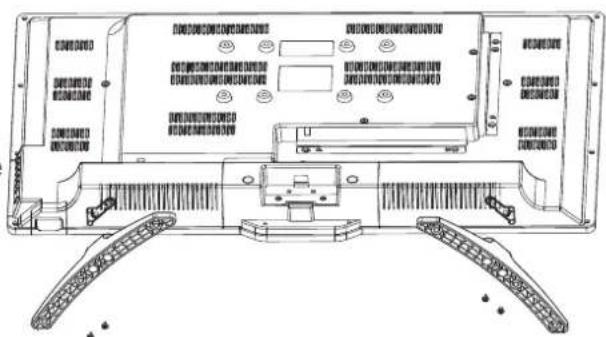

TV Stand Installation Instructions

1. Open the carton and remove the TV and scattered accessories and base (some models without base).

2. to avoid the injury of the TV, covered with a soft mattress, put it on the table, face down on a soft mattress, the base of the neck is fixed on the TV with screws.

3.screw the base and connected to the TV.

1. the installation is complete.

Note:

Picture for reference purposes only.

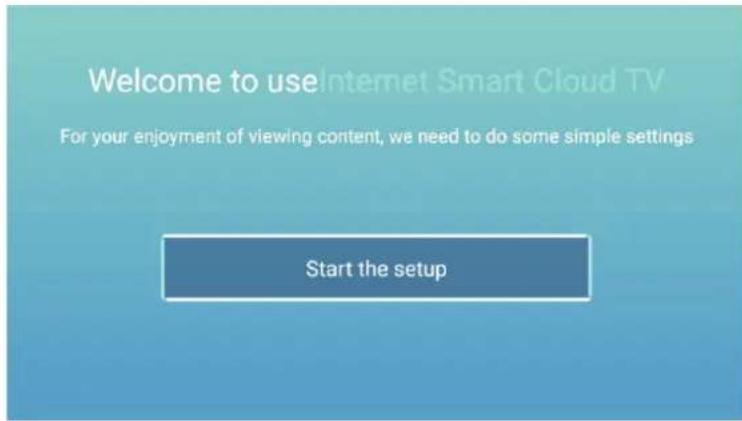

Setup Wizard

Connect an RF cable from the Tv's input called "RF-In" and to your TV Aerial socket Press ENTER button to select the Start the setup.

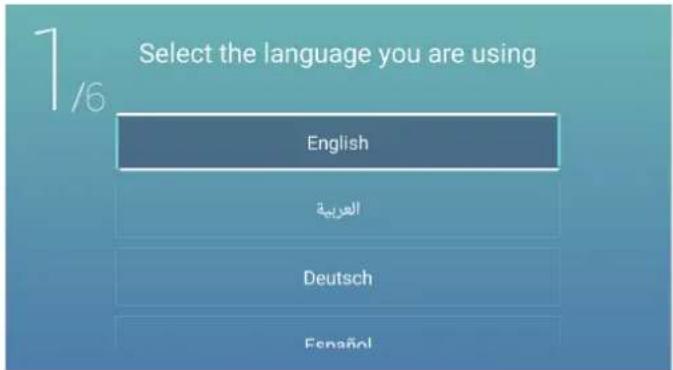

Press ▼[▲] /b[utton] to selected language.

Press ENTER button to sure, and press [▶] button to setup country.

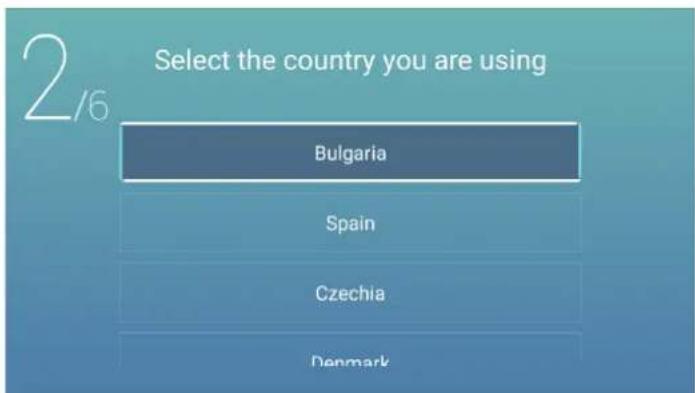

Press ▼/button to select country.

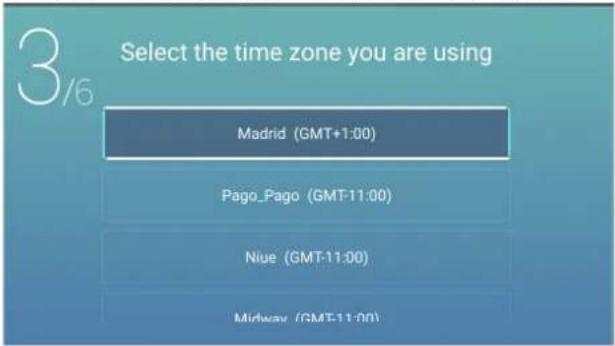

Press ENTER button to sure, and press [▶] button to the time zone.

Press ▼[▲]/button to skeleton zone.

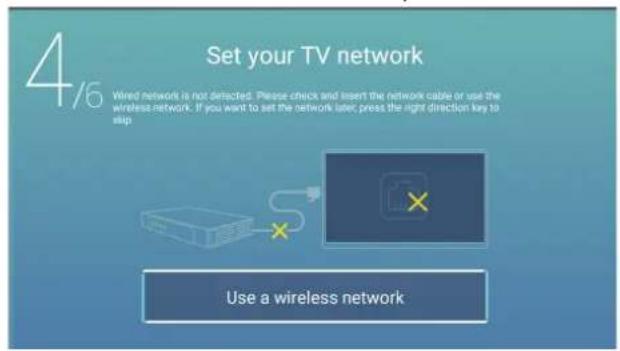

Press【】button to connect the WIFI/network.

Press ENTER button to connect the WIFI/network.

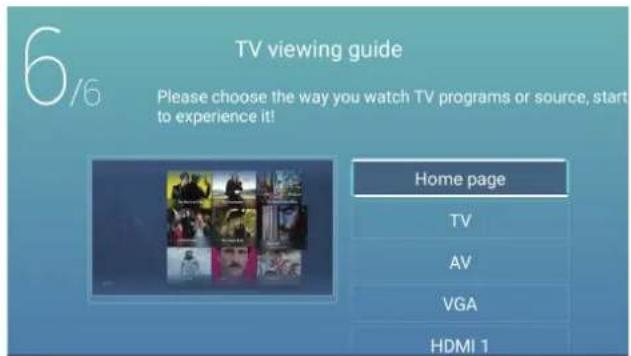

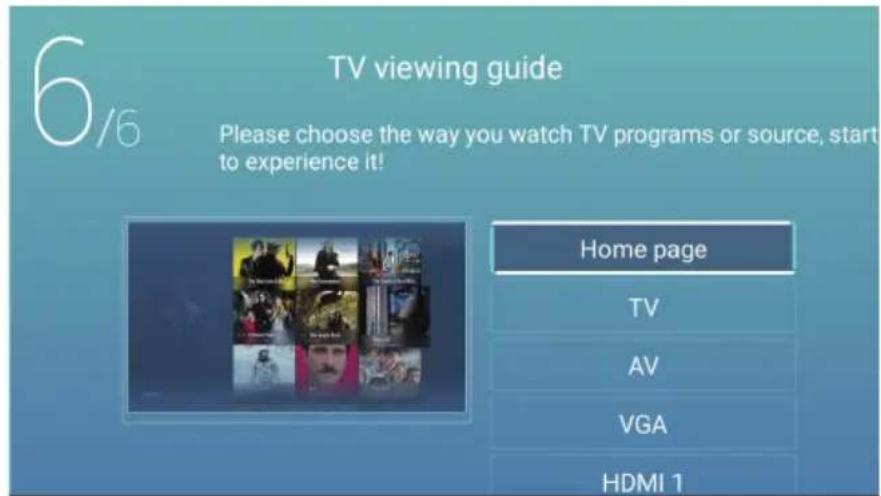

Press【】button to select the input source.

Press [▼] / [▲] button to select the input source.

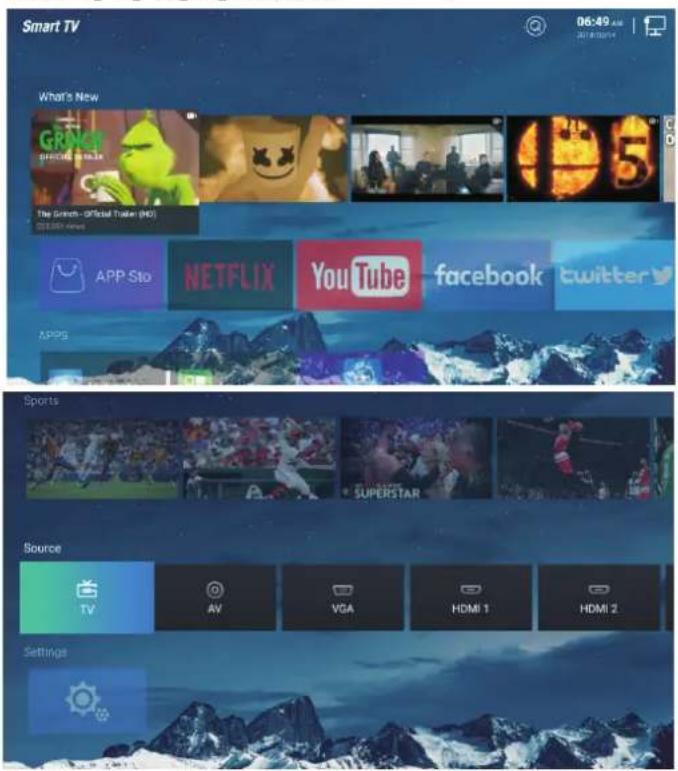

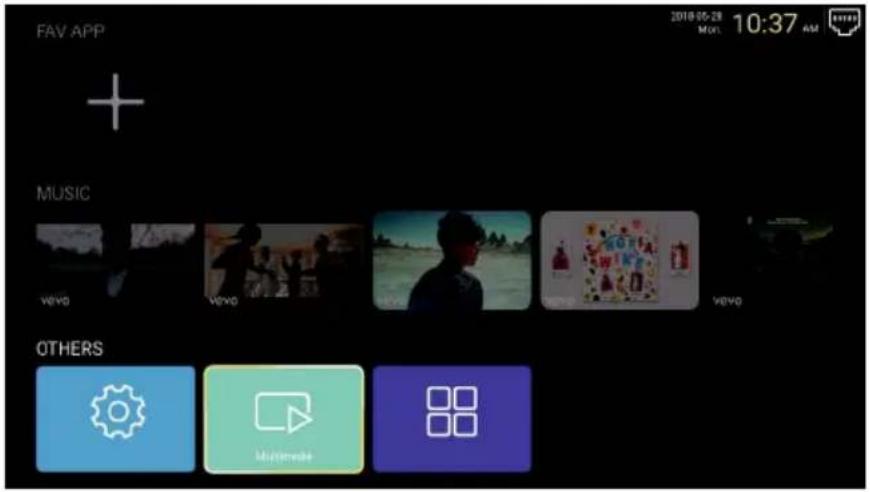

Home Page

Home

Press ME NU button to to enter main menu.

Press ▼ ▲ /button to select

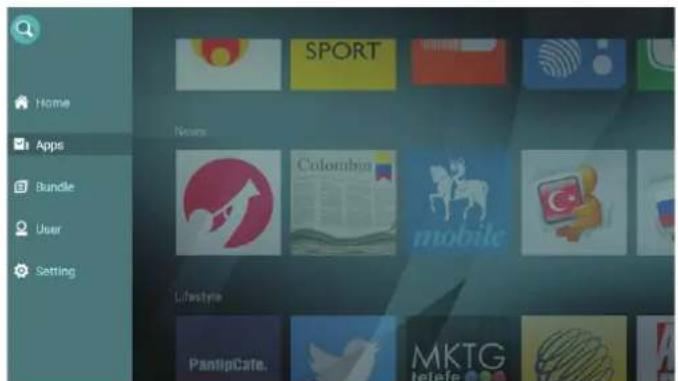

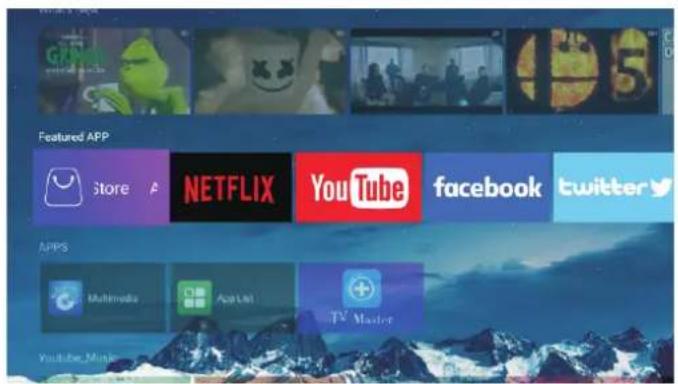

Featured APP

Press ▼ / button to AsReStorado app you like.

Press 【▼】/【/ ◀ ✕ 】/【 】 to select App to install.

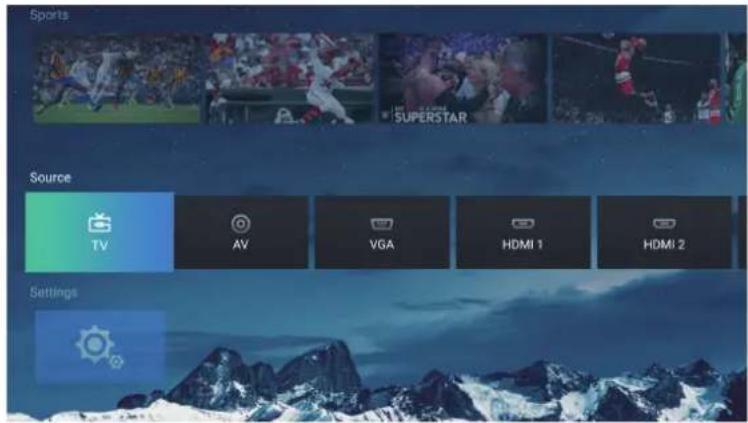

Source

Press MENU button to enter main menu.

Press【◀】/【▶】button to select Source menu. Press【▼】/【▲】/【◀】/【▶】button to select.

Media

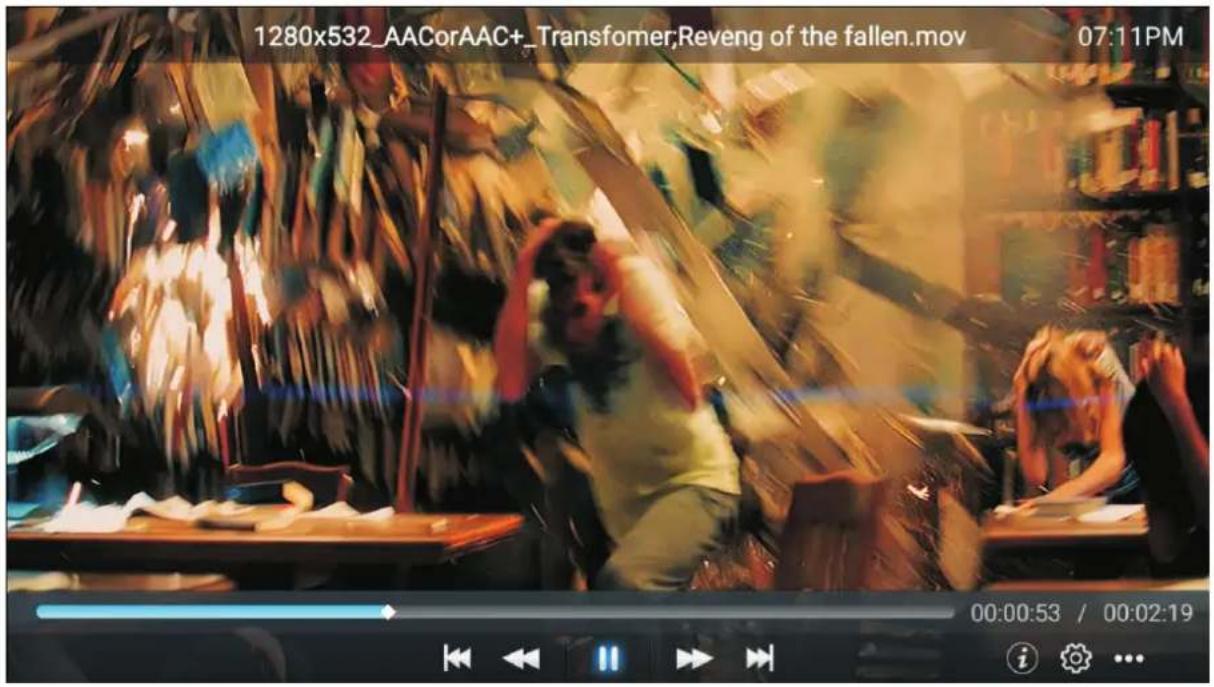

Video

Press ◀ / ▶ to select video.

Press to play previous movie.

Press to play fast backward.

Press to stop/play the movie.

Press to play fast forward.

Press to play next movie.

Press to view the information of the movie.(Resolution/Size/Deration/Bittrate)

Press to set the Audio Track/Select Subtitle/Region Language/Play Mode/Aspect Ratio.

Press to select the movie to play.

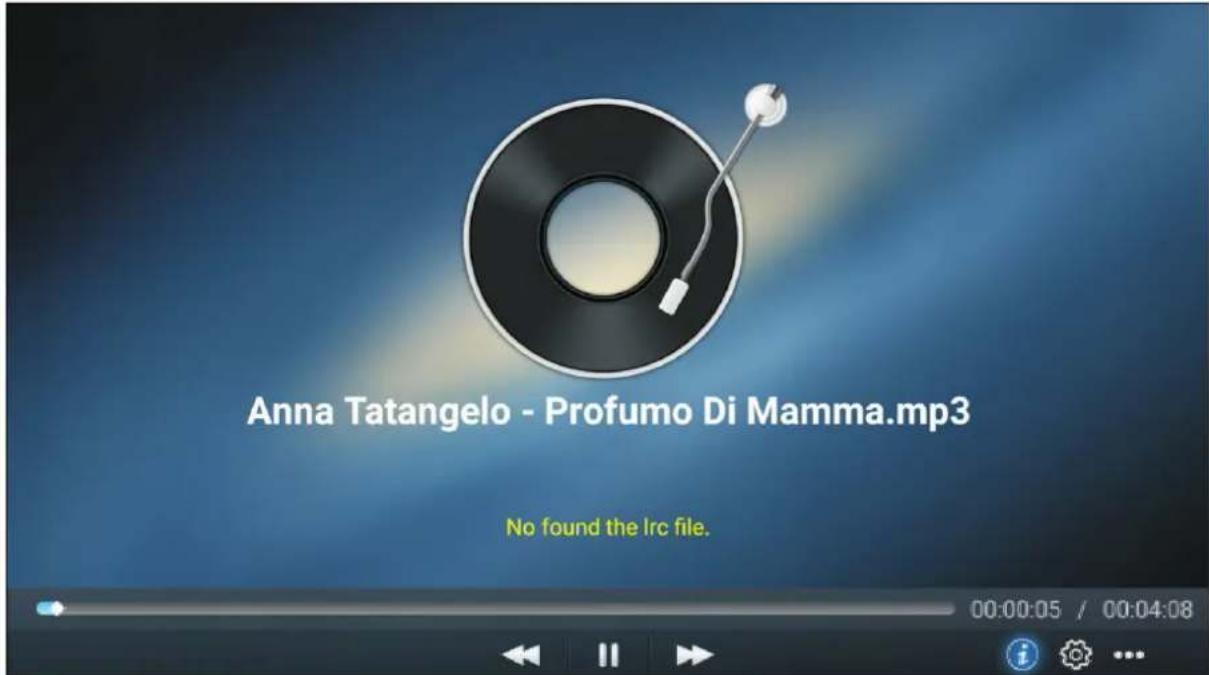

Music

Press ◀ / ▶ to select music.

Press to play fast backward.

Press to stop/play the music.

Press to play fast forward.

Press to view the information of the music.(Mine Type/Size/Bittrate)

Press to set the Play Mode(Repeat All/Repeat One/Random/None).

Press to select the music to play.

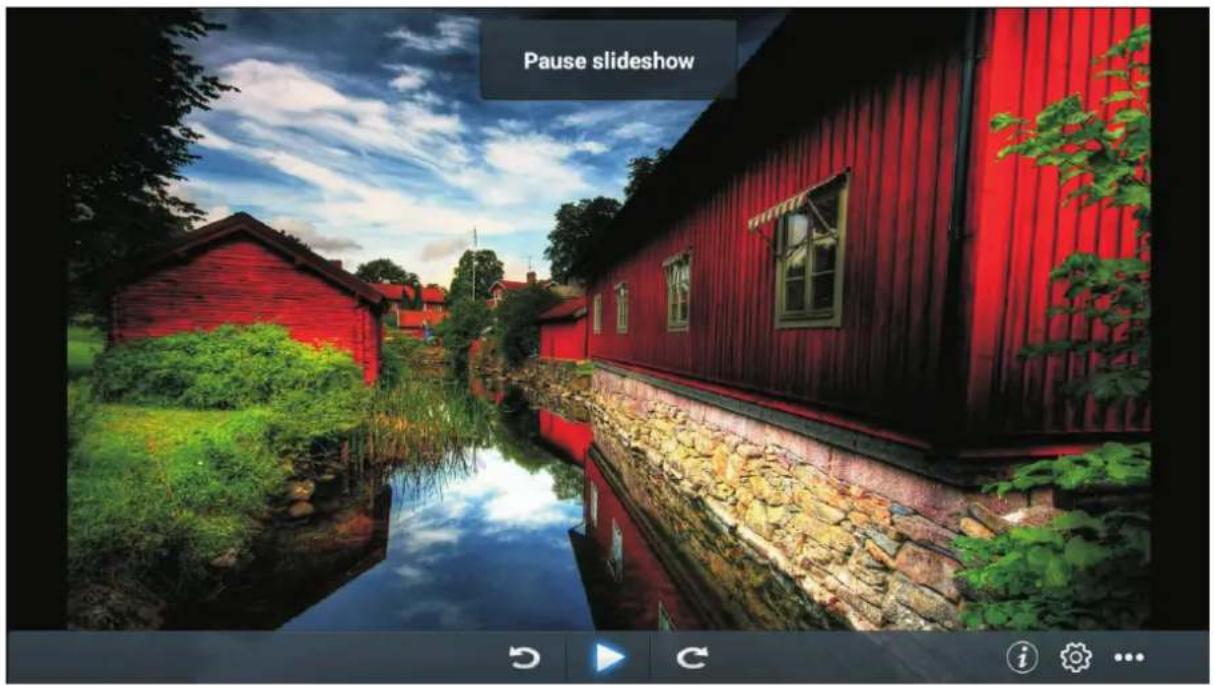

Press ◀ / ▶ to select photo.

Press to rotate anticlockwise . the picture

Press to stop/play the picture.

Press to rotate clockwise the picture.

Press to view the information of the picture.(Size/Resolution)

Press to set the Play Mode(Aspect Ratio/Playback duration).

Press to select the photo to play.

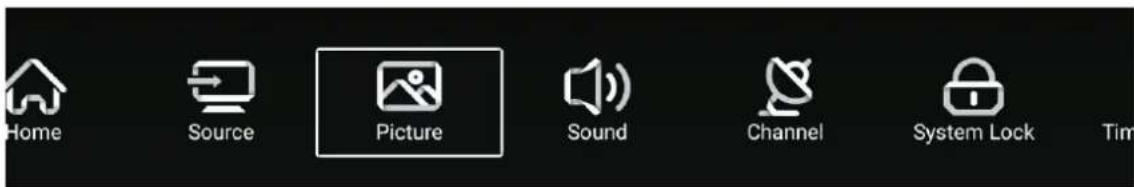

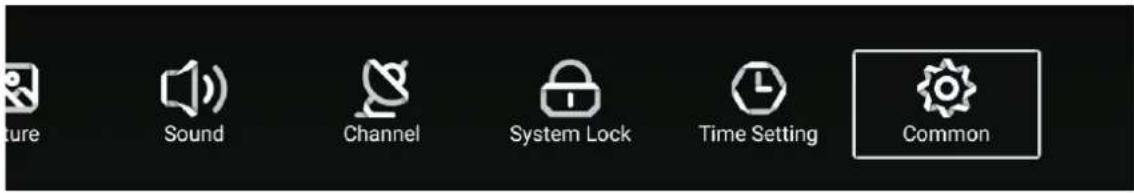

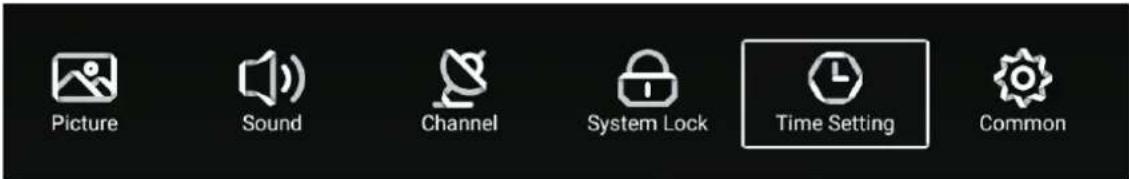

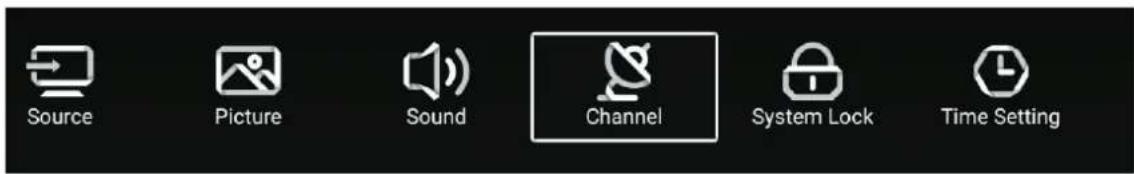

Main Menu


Press MENU button to to enter main menu.

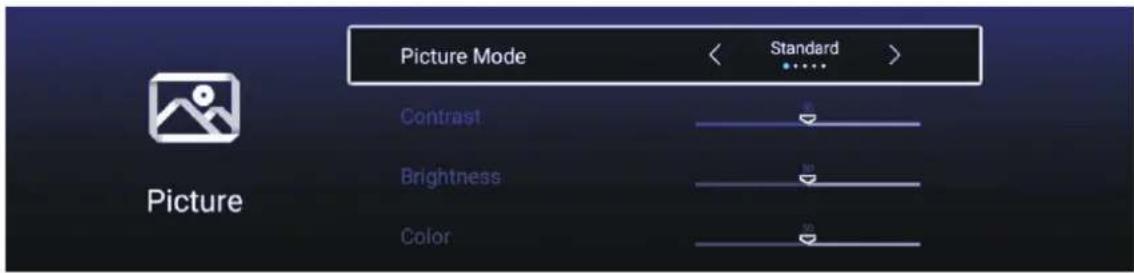

Press 【◀】/【▶】button to select Picture menu.Press【▼】/【▲】button to select.

1. Pres▲【:】/【】to select Picture Mode/Contrast/Brightness/Color/Sharpness/Backlight/Noise Reduction/Color Temp/More Settings
2. Press【】/【】 to adjust or select.

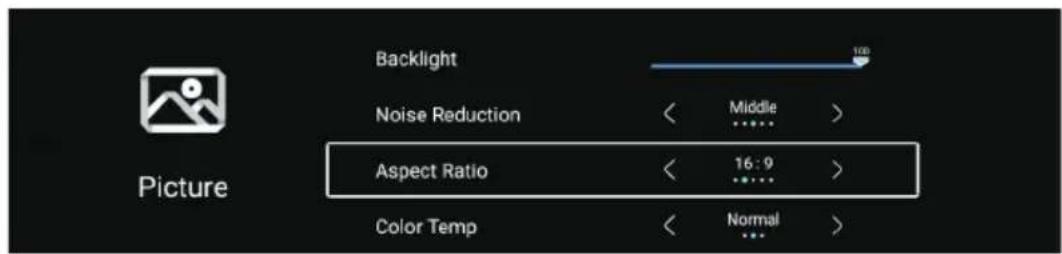

Picture Mode

Press 【▼】/【▲】button to select Picture Mode, then press【◀】/【▶】button to select. (Optional: Standard, Movie, Vivid, Energy Saving, User).

Standard The default mode, to make users experience high-quality images under normal light. Movie This mode is more suitable for watching movies. Vivid Image colors more beautiful, more vivid picture. Energy Saving Reduce screen brightness, improved contrast for energy saving. User User-defined picture settings.

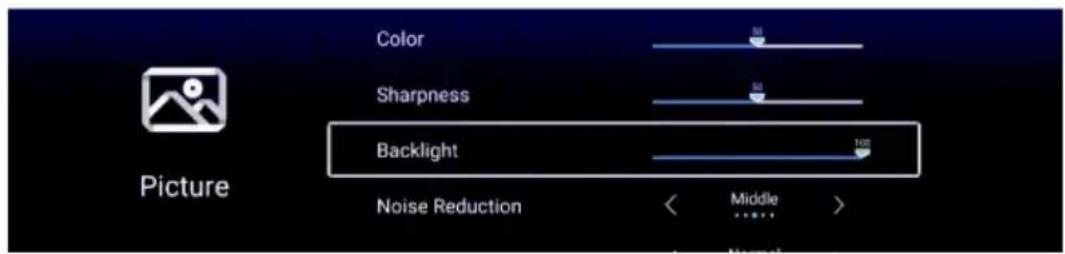

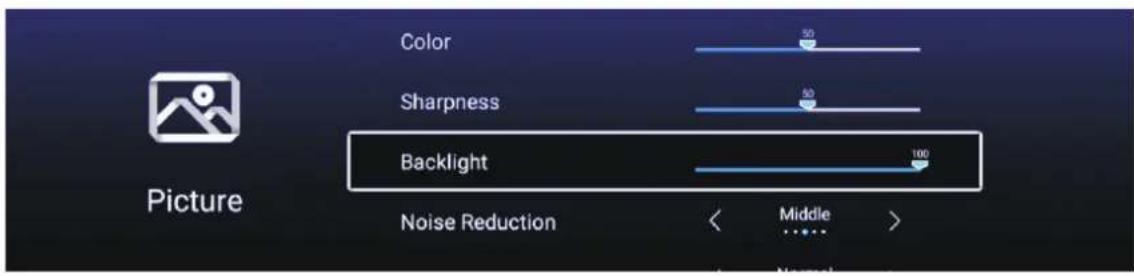

Contrast/Brightness/Colour/Sharpness/Backlight

Contrast	Adjust image contrast.
Brightness	Adjust image brightness.
Color	Adjust image color density.
Sharpness	Adjust the image edge sharpness.
Backlight	Adjust the screen backlight brightness.

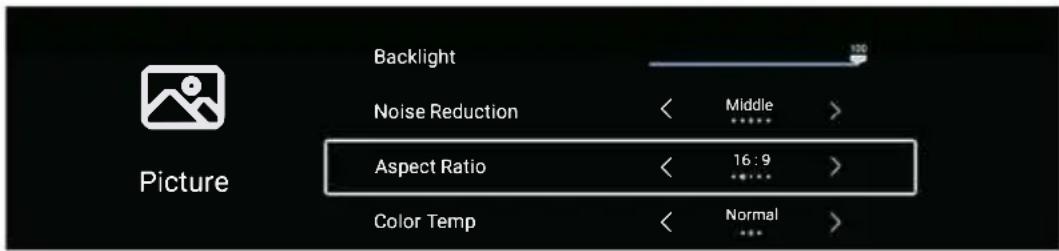

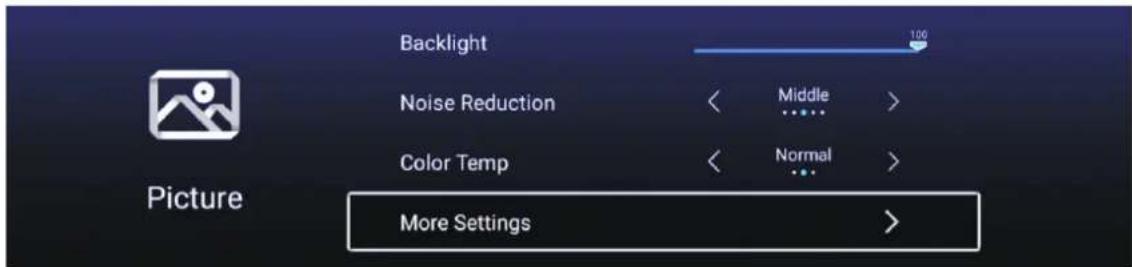

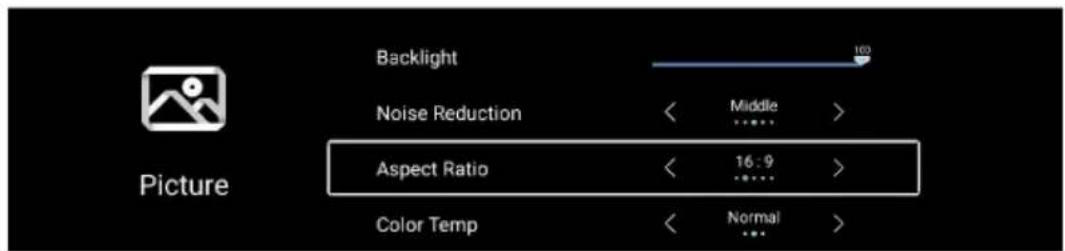

Noise Reduction

Setting the option to eliminate image noise intensity.

Press 【▼】/【▲】 to select Noise Reduction, and press 【◀】/【▶】 to select.

(Optional: Off, Low, Middle, High, Auto).

Color Temp

Adjust the overall color of the image.

Press 【▼】/【▲】 to select Colour Temperature. press 【◀】/【▶】 to select.

(OptionalNormal, Warm).

Cool Produces a gentle blue-hued image.

Normal Produces a vivid image.

Warm Produces a red-hued image.

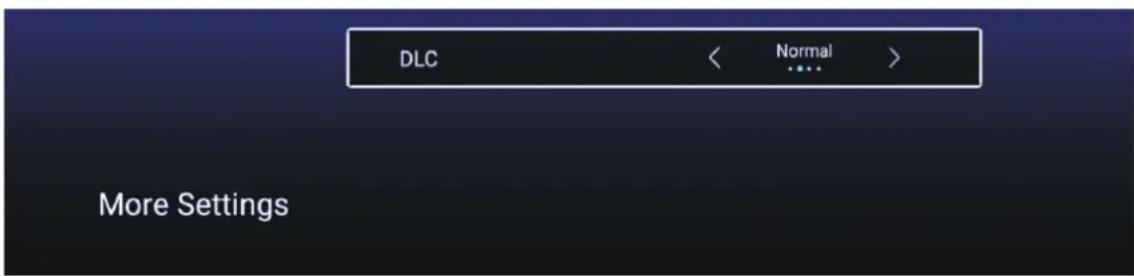

More Settings

Press 【▼】/【▲】 to select More Settings

DLC

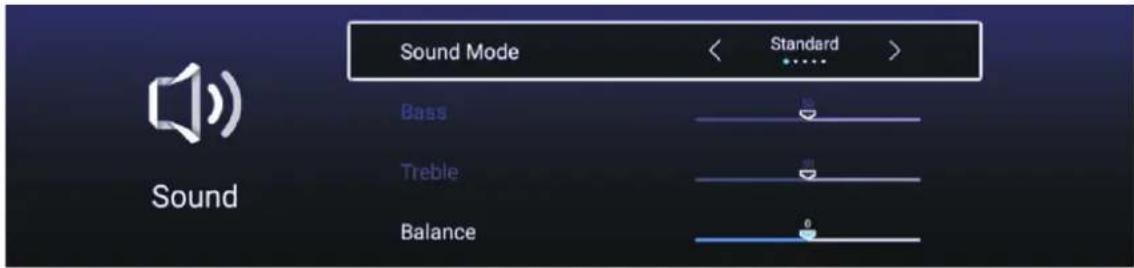

Press【▼/▲】to select: Sound Mode/Bass/Treble/Balance/AVC/More settings.

Press ENTER / ◀▶/ to select or adjust.

Sound Mode

Press 【▼ / 【】▲【button】o select Sound Mode, then press ◀ ▶ button to select.

(OptilMusicStamedated,News User).

Standard Produces a balanced sound in all environments.

Music Preserves the original sound. Good for musical programs.

Theater Enhances treble and bass for a rich sound experience.

News Enhanced voice.

User Select to customize picture settings.

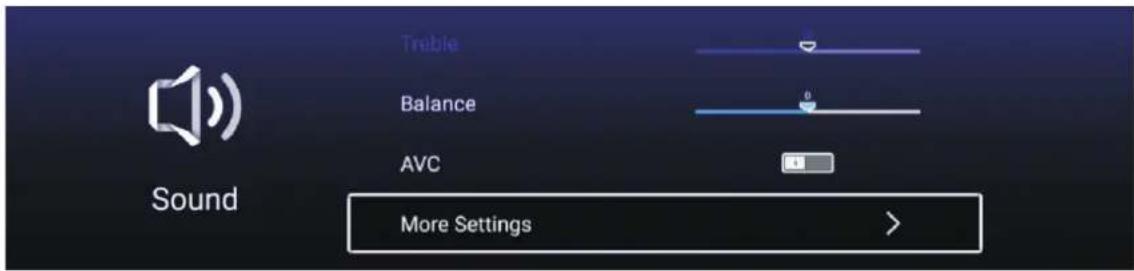

Bass Adjust the bass.

Treble Adjust the treble.

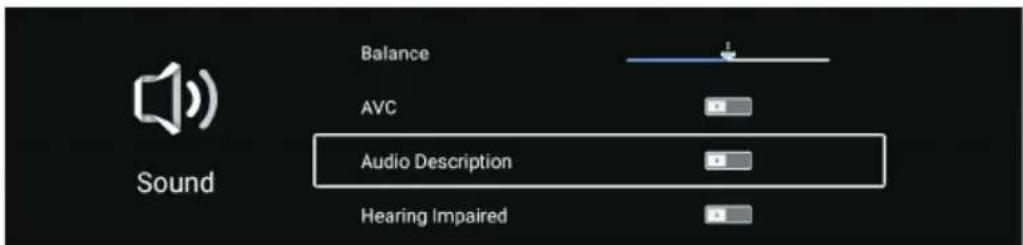

Balance Adjust the left and right channel output balance.

Press 【▼ / 【】▲ button to select Balance, then press】/◀ 】 ▶ button to adjust.

AVC

Press 【▼/【】▲ button to select AVC, then press】/◄【】▶ button to choose ON/OFF. After opening the AVC, Once the volume is set, regardless of any difference TV Version printed on each channel, it can make the speaker volume remained stable.

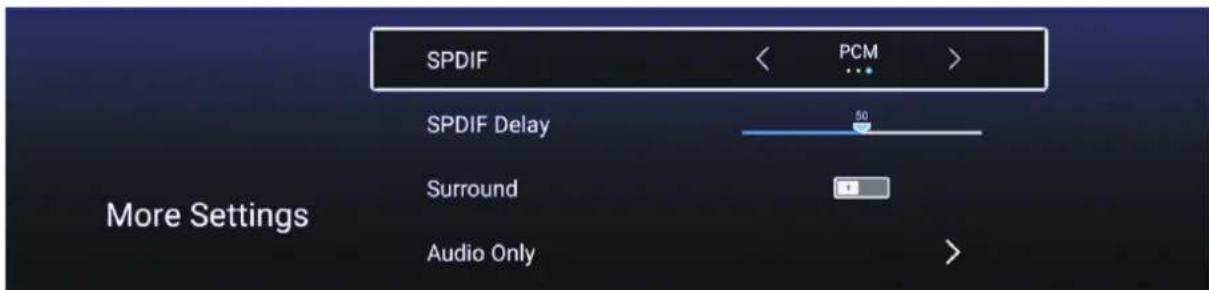

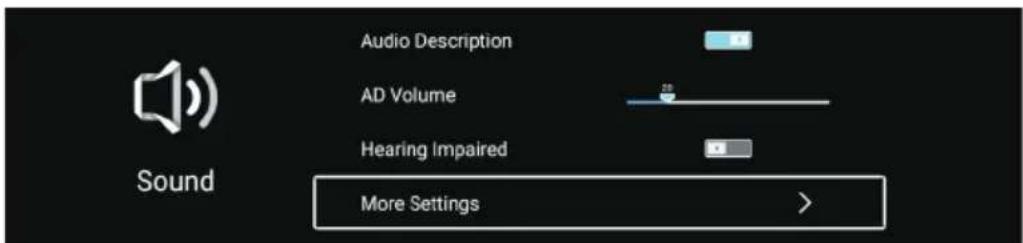

More Settings

SPDIF

Press 【▼ / 【】▲【button】o select SPDIF, then press ◀ button to choose OFF/RAW/PCM.

SPDIF Delay

Press ▼ ▲/ [button to select], then pressIFDelayutton to adjust.

Surround

Achieve better surround sound effect.

Press 【▼ / 【】▲【button】o select Surround, then press ◀ ▶ button to choose ON/OFF.

Audio Only

After the opening screen is not displayed only plays sound

Press 【▼ / 【】▲【button】o select Audio Only, then press ◀ ▶ button to choose ON/OFF.

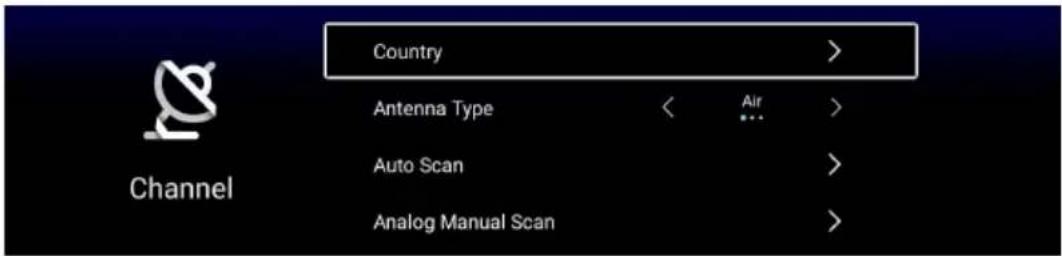

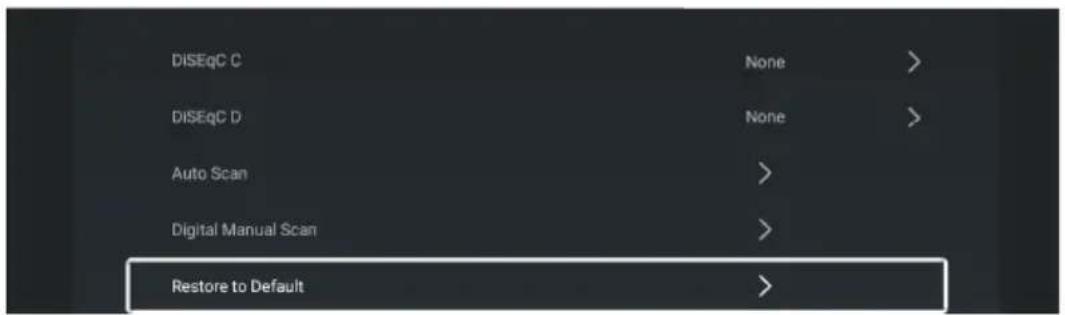

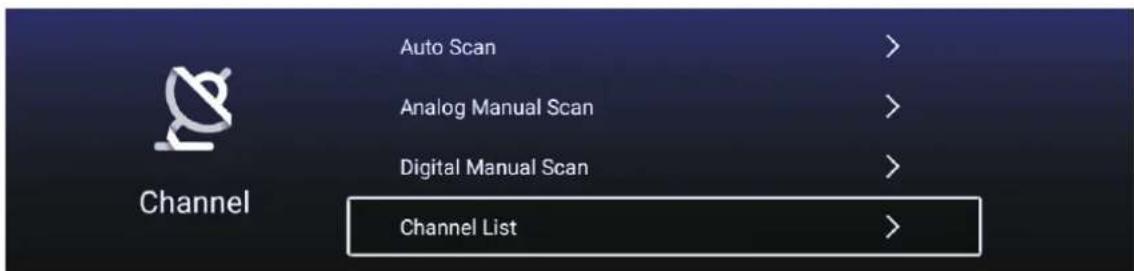

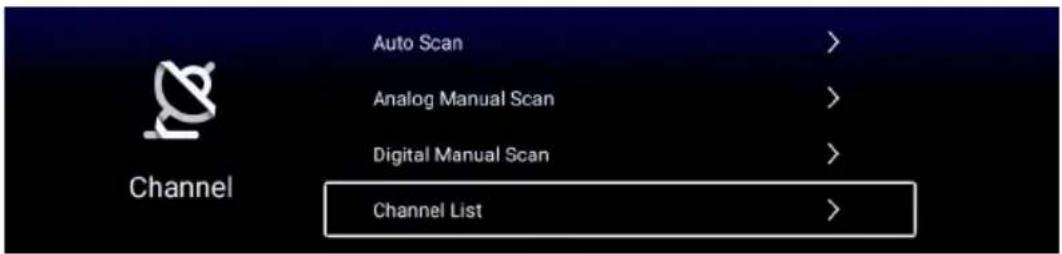

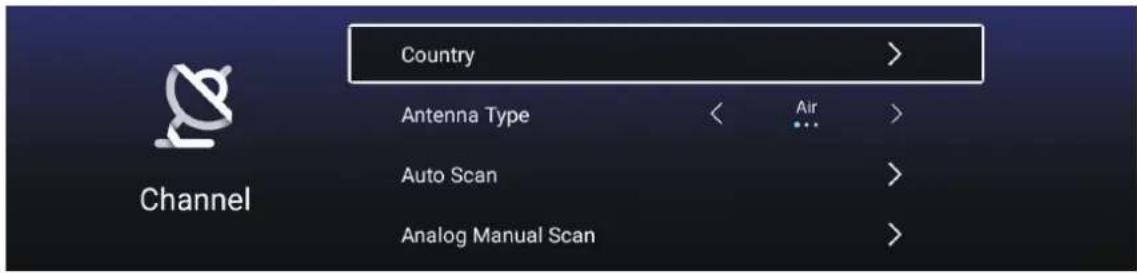

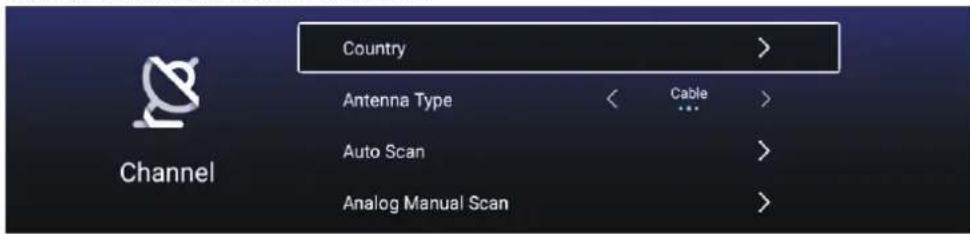

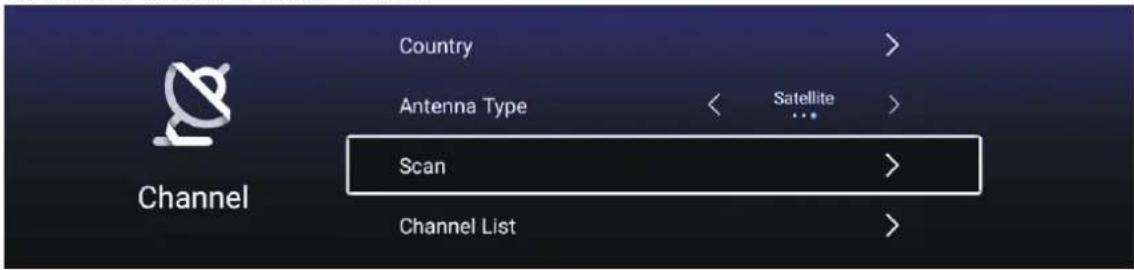

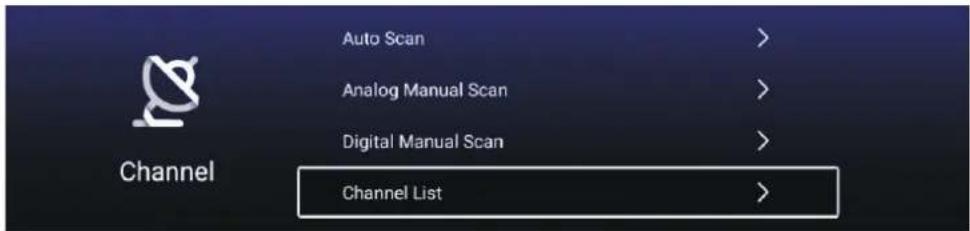

Channel

Press MENU button to display the main menu. Press [◀] / [▶] button to select Channel in the main menu.

Press 【▼】/【▲】button to select. Press ENTER/【◀】/【▶】to enter

Antenna Type-Air

Select the Air/Cable/Satellite to tune.

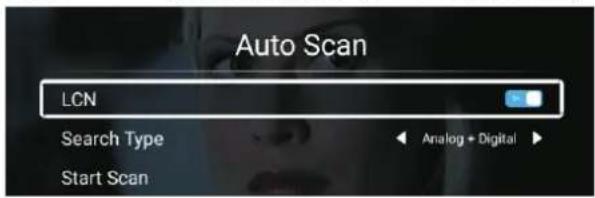

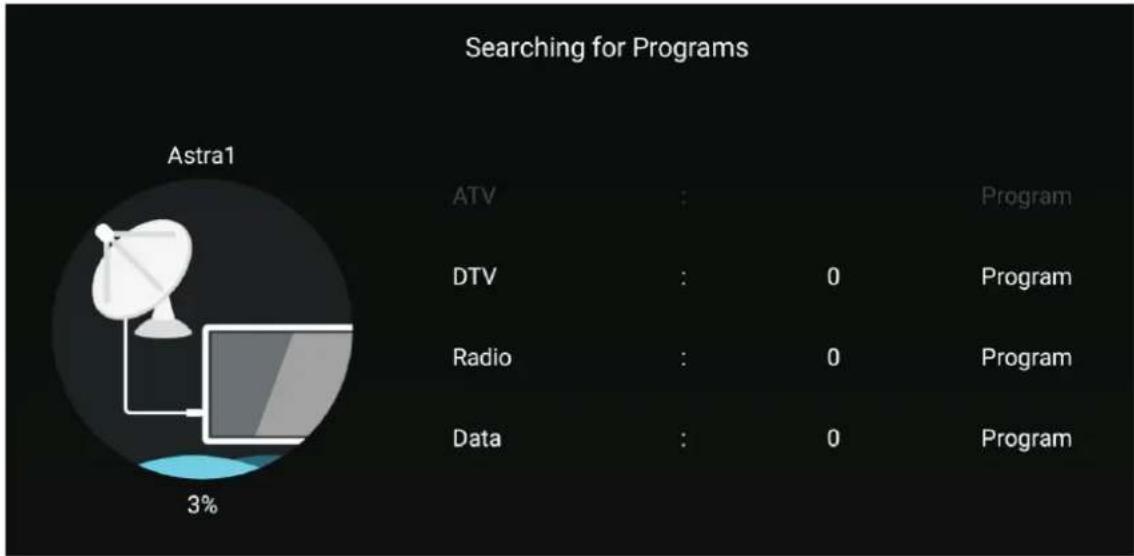

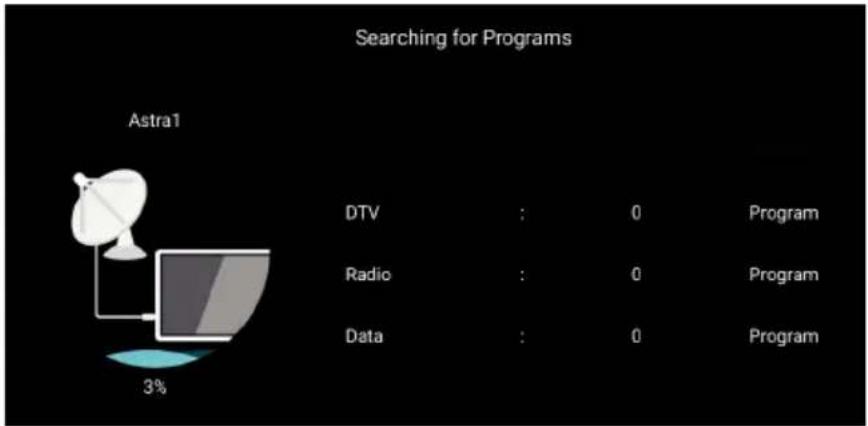

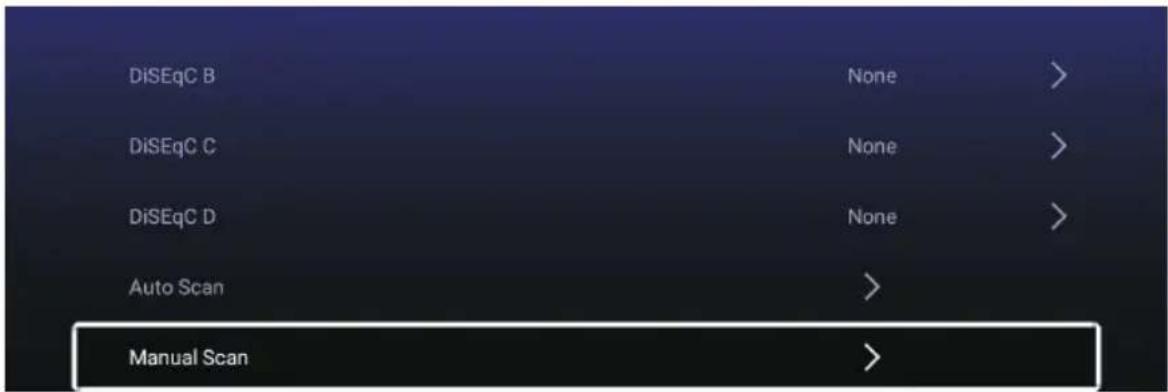

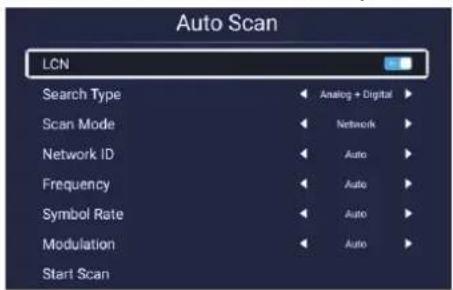

Auto Scan

Press ▼ ▼ [button to select p ENTERAuto Scan,essAuto Scarto start

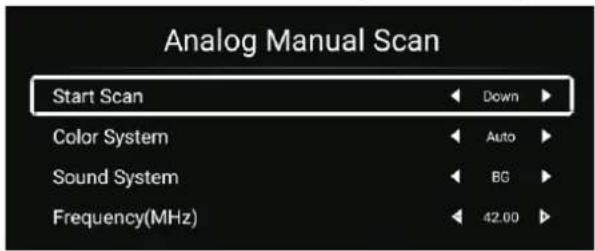

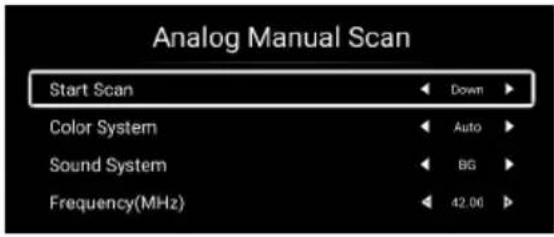

Analog Manual Scan

Press ▼ ▼/ [button to select p ENTERnalog Manual Scan,resScan. to start

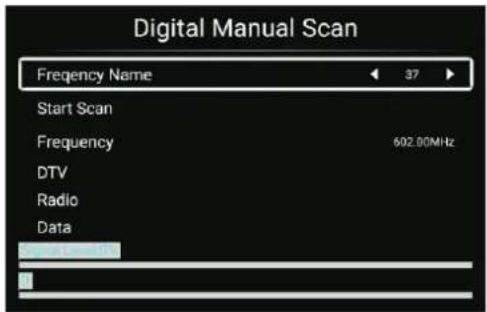

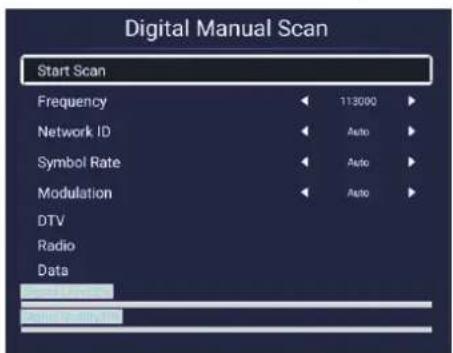

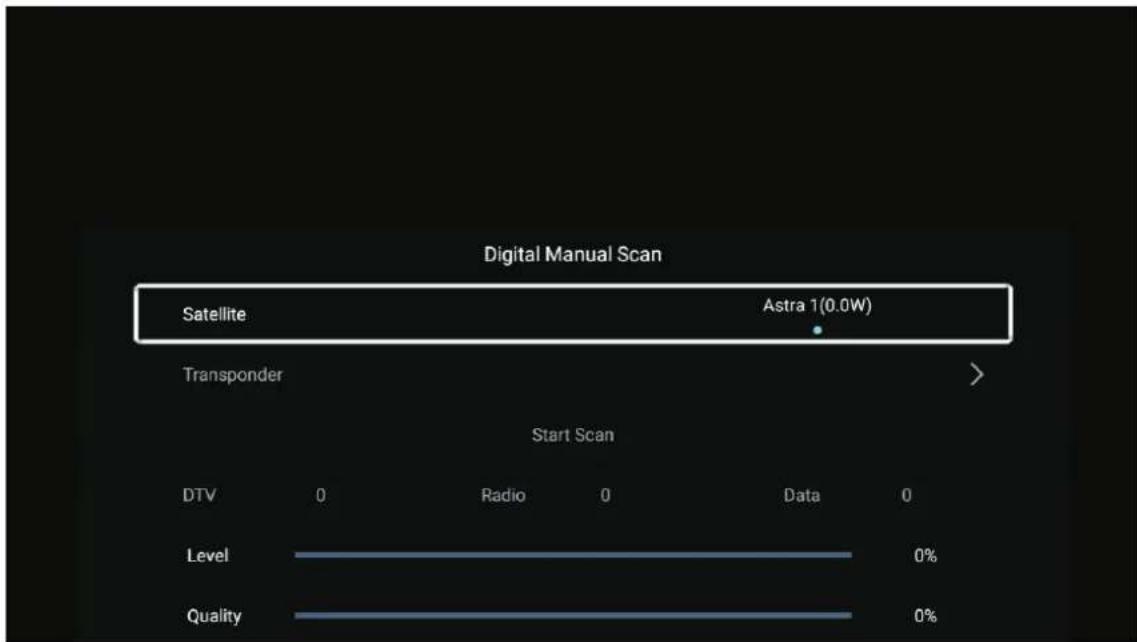

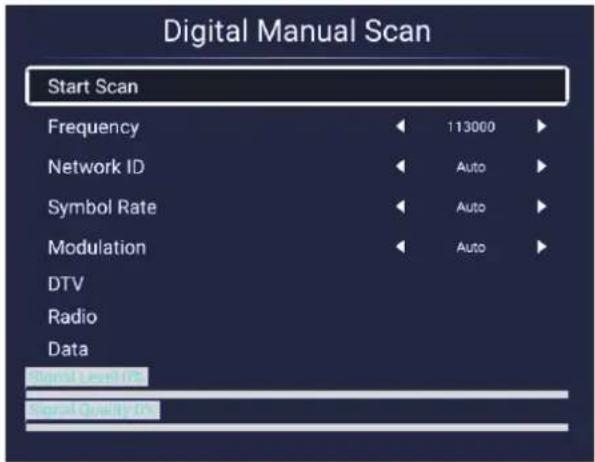

Digital Manual Scan

Press 【▼】/【▲】button to select Digital Manual Scan, press ENTER to start Scan.

Channel List

Press 【▼】/【▲】button to select Channel List to list, press MENU button edit the channel (Move/Skip /Delete /Fav).

Record Set the time and channel to record automatically.

Schedule View the schedule, which have been set to record.

Remind Set the time to remind you when It will record the program.

Press the button on your Remote control to record the program immediately.

Press the button on your Remote control to stop record the program immediately.

CI Information (Need to support the CI function)

Press ▼/ ▲button to select CI Information, then press the Enter button to display detail if you has inserted the CI card

Attention: Only with CI card in TV, will the item CI Information be shown in Menu.

Antenna Type-Cable

Select the Air/Cable/Satellite to tune.

Auto Scan

Press ▼ ▲/ [b]uttoasto telestart p ENTERuto Scan, Auto Scan.

Analog Manual Scan

Press ▼ ▲/ [b]uttosto selstart p ENTERnalog Manual Scan, Scan.

Digital Manual Scan

Press ▼ ▼ [button to select p ENTERdigital Manual Scan, Scan.

Channel List

Press ▼ ▲/ [button to select (Move/Skip /Delete /Fav). Channel List to list, press MENU button edit the channel

EPG

Press ▼ ▲/ [button to select EPG.

Digital Manual Scan

Press ▼ ▲/ [b]uttosto tekestart p ENTERDigital Manual Scan, Scan.

Channel List

Press ▼ ▲/ [button to select (Move/Skip /Delete /Fav).

Channel List to list, press MENU button edit the channel

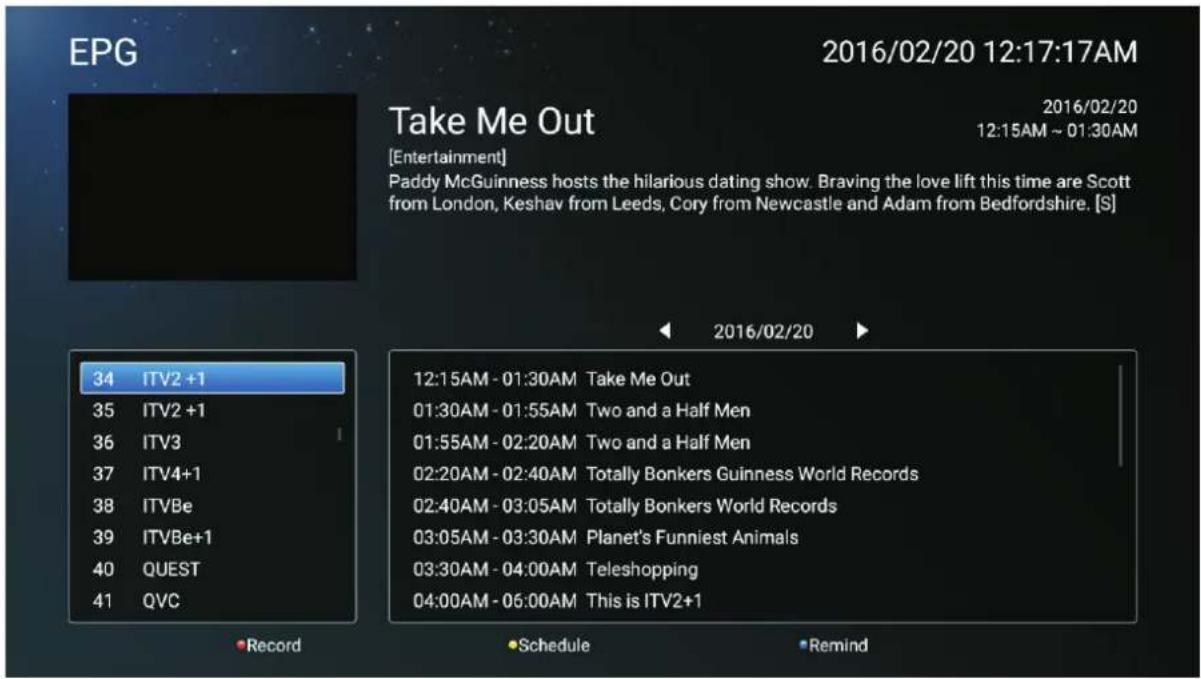

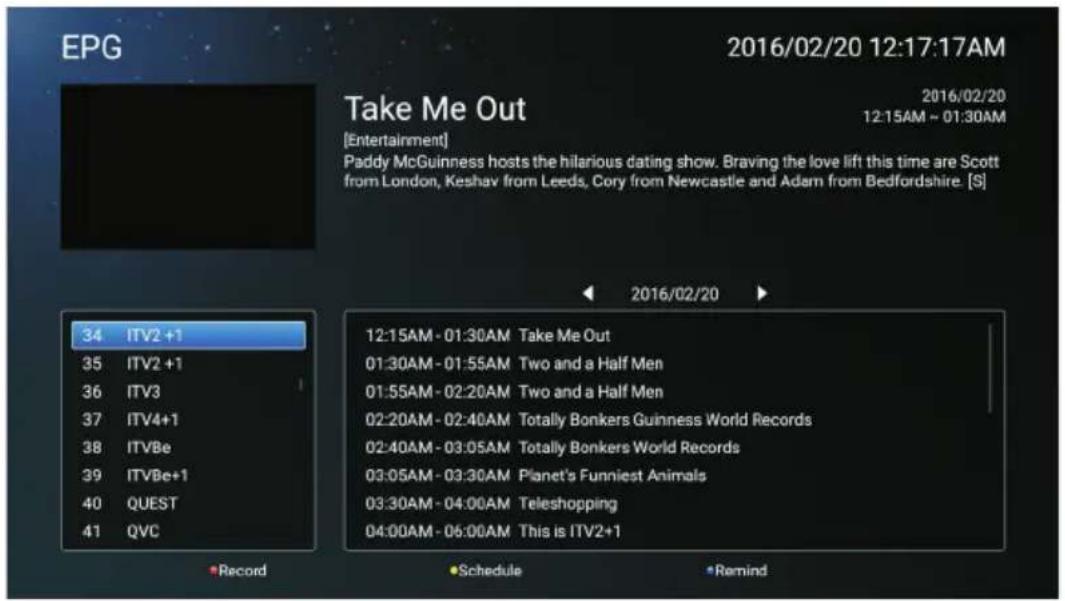

EPG

Press ▼ ▲/ [button to select EPG.

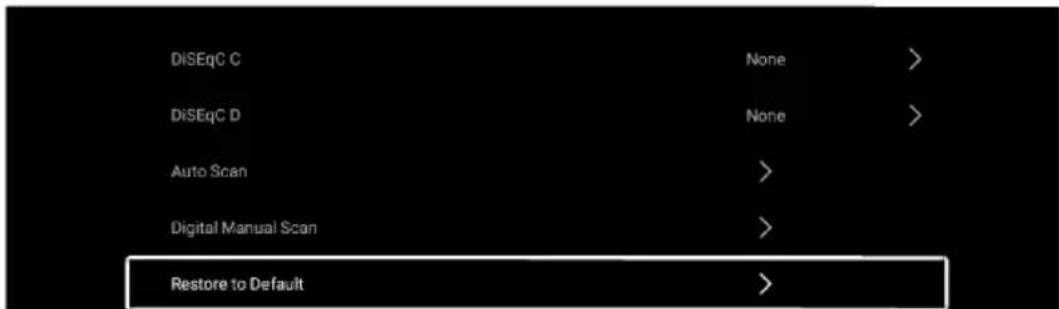

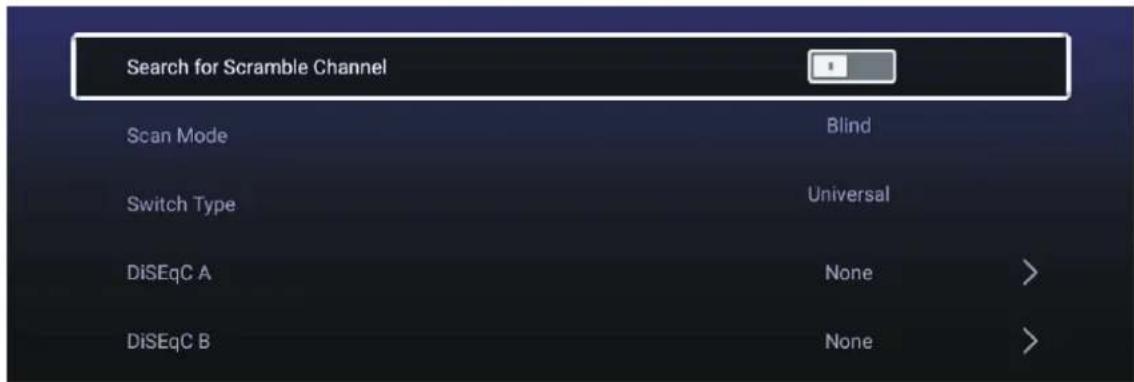

Antenna Type-Satellite(Need to support the DVB-S2 function)

Select the Air/Cable/Satellite to tune.

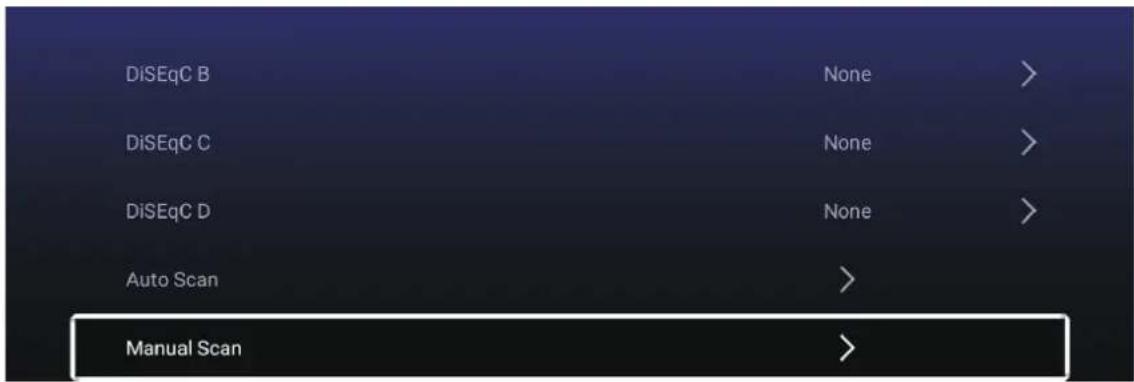

Scan

Scan.Press ▼ ▲ button to select 【】/【】

Auto Scan

Press 【▼】/【▲】button to select Auto Scan to search the program automatically.

Manual Scan

Press 【▼】/【▲】button to select Manual Scan to search the program you set.

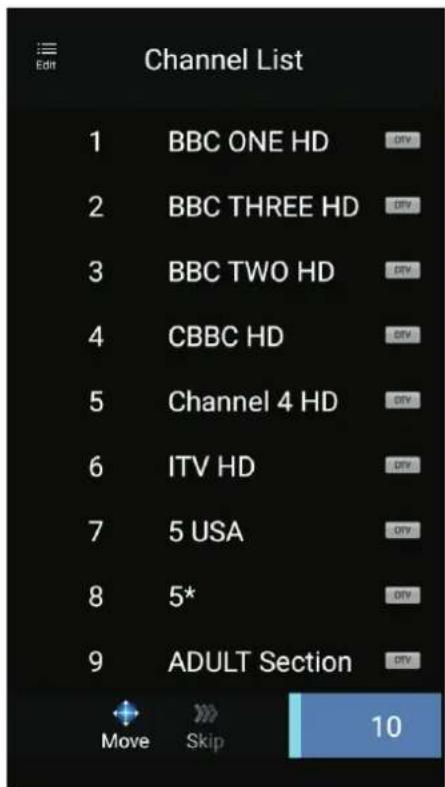

Channel List

Press ▼ ▲ button to select 【】/【Channel List to list, press MENU button edit the channel (M Step / Delete / Fav).

System Lock

Press MENU button to to enter main menu.

Press 【▼ / 【】▲【button】o select Change Password/System Lock.Press ENTER/ ▶ to enter.

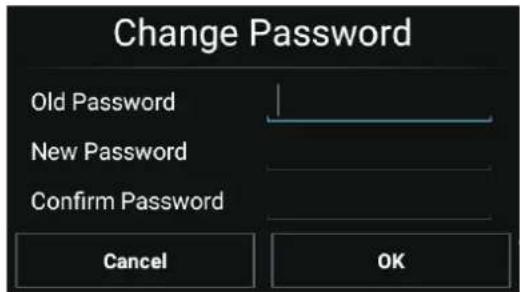

Change Password

Press ▼ ▲/ [button to select Change Password.

System Lock

Press ▼ ▲/ [button to select System Lock.

Keypad Lock

Press ▼ ▲/ [button to lock the keypad.

(NOTE: This fuction is available when the System Lock is on.)

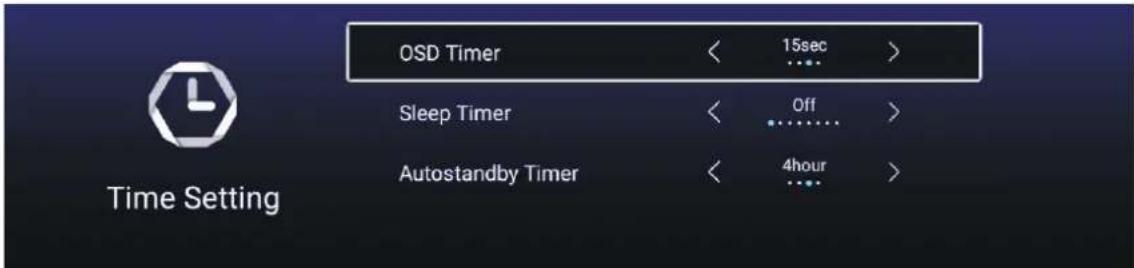

Time Setting

Press MENU button to display the main menu. Press [◀] / [▶] button to select Time Setting in the main menu,

Press ▼ ▲/ [b]utton to select

Press ENTER ◀▶lo/elter.

: OSD Timer/Sleep Timer/Autostandby Timer.

OSD Timer

Press [▼ / [ ] ▲[ Button] to select OSD Timer, Press ◀ to select.

(Optional off, , 5sec 15sec 30sec).

Sleep Timer

Press 【▼/【】▲ button to select Sleep Timer, Press/◀】▶ to select.

(Optional off, 3hour 4hour 5hour)

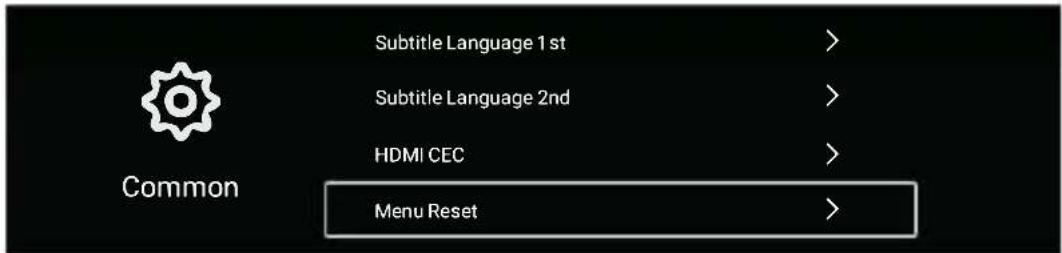

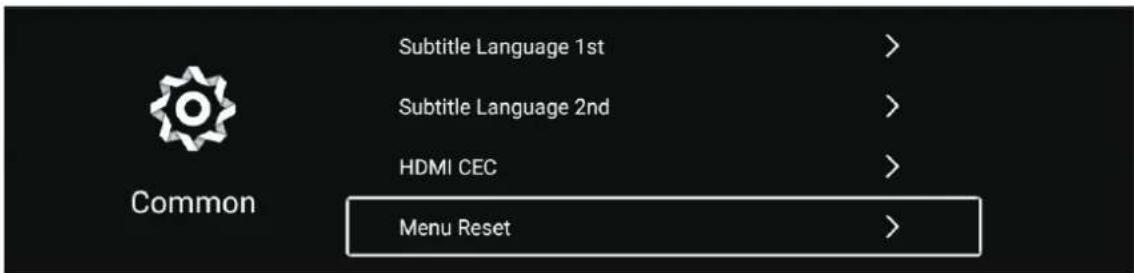

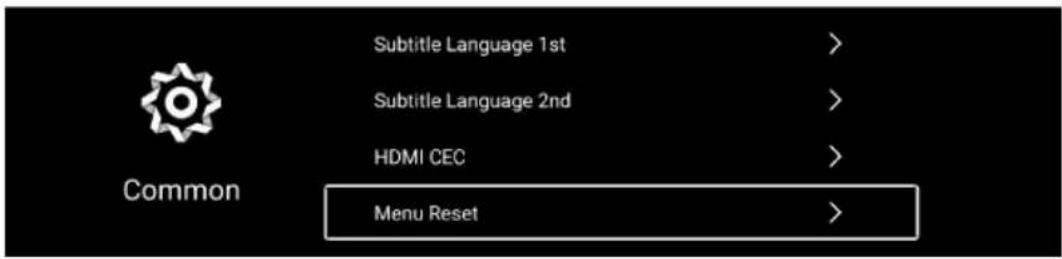

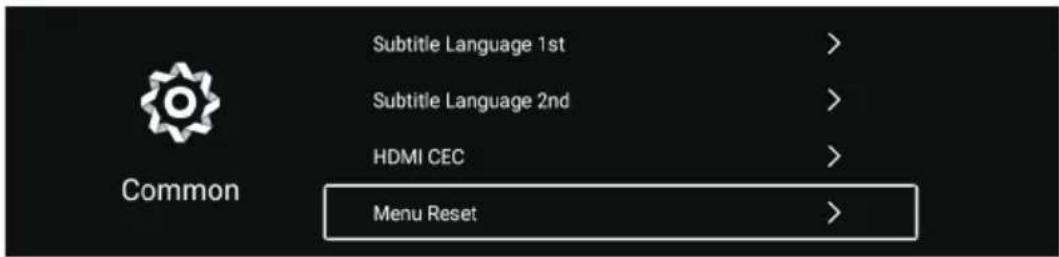

Common

Press MENU button to display the main menu. Press [◀] / [▶] button to select Common in the main menu,

Press [▼] / [▲] button to select: Blue Screen/Audio Language 1st/Audio Language 2nd/Subtitle Language 1st/Subtitle Language 2nd/HDMI CEC/Menu Reset Press ENTER/ [◀] / [▶] to enter.

PVR Setting

Press 【▼】/【▲】button to select PVR Setting. Press 【◀】/【▶】to select Disk/Format/Record List/Schedule List.

Record List

Press [▼] / [▲] button to select record list to view the record list.

Press to delete the record list.

Schedule List

Press [▼] / [▲] button to select record list to view the schedule list.

Press to delete the record list.

Blue Screen

Press [▼] / [▲] button to select Blue Screen,

Press [▼] / [▲] button to select SMode,

Press [▼] / [▲] button to select HDMI CEC.

Press 【◀】/【▶】 to select Cancel/ok to reset the previous setting.

Help

No power	·Check if the AC cord of TV is plugged in or not. If there's still no power, please disconnect the plug, and reconnect to the socket after 60 seconds. Turn the power back on.
Signal not received properly	·Double or phantom images may appear on your TV if there are high buildings or mountains close to where you are. You can adjust the image thru manual operation: consult instruction of vernier regulation, or adjust the direction of the external antenna.·If you use an indoor antenna, under certain circumstances signal reception may be more difficult. Adjust the direction of the antenna for optimum reception. If this does not improve reception, you may have to switch to an external antenna.
No picture	·Check if the antenna at the back of the TV is connected properly.·View other channels to see if the problem still occurs.
Video appears with no audio	·Try increasing the volume.·Check if the TV's sound is on mute or not.
Audio is present, but video does not appear or is discolored	·Try adjusting the contrast and brightness.
Static noise affects video and audio quality	·Check if the antenna at the back of the TV is connected properly.
Broken lines on screen	·Electrical appliances such as hair dryers or vacuums etc. may be interfering with your TV set. Switch these appliances off.
Remote doesn't work	·Make sure the plastic bag which came with the remote control is removed. Try using the remote in a shorter distance from the TV. Check if the placement of the batteries is correct, or try using new batteries with the remote control.·The TV will go into Standby mode if it receives no response in a few minutes.
No video (PC mode)	·Please check if the cable is connected to the VGA port correctly, or if the cable is bent in some places.
Vertical line blinking (PC Mode)	·Enter the main menu, and adjust the vertical placement to eliminate the vertical line.
Horizontal tearing (PC Mode)	·Adjust the horizontal placement of the screen to clear any horizontal lines.
Screen is too bright or dark (PC Mode)	·Adjust the brightness or contrast in the main menu.
No response from the PC	·Check if the PC's display resolution is set to a compatible resolution for the TV.
Lines appearing when a device is connected to the RCA port	·Make sure you are using a cable of good quality.
Problems are unresolved	·Unplug the power cable and wait for 30 seconds, then reconnect to the socket. If problems still persist, do not attempt to repair the TV by yourself. Kindly contact the service center.

Do not leave your TV displaying a static image, whether it is from a paused video, menu screen, etc. for an extended period of time, doing so will damage the display and may cause image burn-in.

Specifications

Screen Size	power Consumption	Main accessories
16"	24W	User's manual x1Remote controller x1Power cord x1AAA Batteries x2
19"	36W/48W
20"	30W/36W/48W
22"	36W/48W
24"	36W/48W
28"	36W
32"	56W/65W/100W
39"/40"	60W/70W/76W
42"	67W/70W/95W/100W
43"	65W/80W
50"	100W/108W/135W
55"	100W/135W/140W/160W
65"	159W/165W/195W

	Operation Frequency	Transmitting Power
WiFi	2400~2483.5	Less Than 100mW

LIFE TIME: 60,000 Hrs

Remote Controller

1. POWER: Turn on the TV or enter standby mode.
   2.MUTE: Turn off the sound and turn on when press again.
   3.0-9: Figures "0-9" are used to directly input channel number.
2. LIST: Press to open the channels list.
3. ☐ Press this button to toggle between the current and the previous programme you were you were viewing
   6.S.MODE: Select the different sound mode directly.
   7.SLEEP: Set the sleep time.
4. MTS: Press to select the MTS mode.(for example,Nicam, BTSC,MONO,STEREO .eg )
   9.P.MODE: Select the different picture mode directly.
   10.MENU: Start system menu and return to upper menu.
   11.SOURCE: Input source selection button.
5. ▲▼ ◀▶ Press ▼▲ button to select items.

Press ◀▶ button to adjust it.

1. ENTER: To confirm the choice with the highlighted menu item.

2. EXIT: Press to exit the OSD menu.

3. DISPLAY: Press to display the source and channel's display.

Battery Installation:

Remove the battery compartment lid on the rear of the remote control by sliding the lid down, then off. Put two AAA batteries inside the battery compartment with their + and - ends aligned as indicated. Do not mix old and new batteries or different types of batteries Refix the battery compartment lid. Slide the lid until you hear it click into place.

Using the Remote Control:

Unless stated otherwise, the remote control can operate all the features of the TV.

Always point the remote control directly at the remote sensor in the front of the TV.

CAUTION:

Batteries installed in the unit should not be exposed to excessive heat such as sunshine, fire and the like.

Remote Controller

Descriptions of television remote control

16.VOL+: Increase the volume.
17. REFRESH: Refresh page.

HOLD: HOLD On or Off for current page display.

18.VOL-: Decrease the volume.
19. CAP: A key to the current image is saved to the disk.
20.PLAY/PAUSE: Press to PLAY/PAUSE in the USB mode.

start play and PAUSE, in USB mode.

CANCEL: When a page is selected in the mode of text, it may take some time before it becomes available, pressing the CANCEL key will return to the TV mode. When the required page is found, the page number will appear at the top of the TV picture, press the CANCELkey to return to the mode of text for you to browse this page.

21.TV/RADIO: When watching channel, allows you to switch between TV and Radio modes.
22.STOP: Press to STOP in the USB mode.

MIX: TV and TXT pictures are mixed together (transparent background)

23.GREEN/RED/YELLOW/CYAN button
24.CH+: Increase the program.
25.HOME: A key back to the android home page.
26.CH-: Decrease the program.
27. ASPECT: Aspect function.
28. MOUSE: Mouse switch.

SIZE: Change the size of display in Teletext mode.

1. SUBTITLE: To display subtitle in USB mode.
2. REC: Record begin in PVR mode.
3. GUIDE: Launches the EPG (Electronic Program Guide)
4. FAV: Press to add or remove your favorite channels under tv menu.
5. FF: Press to fast forward in USB mode.

TXT: Switch the teletext on and off.

1. PREV: Press to skip backwards in USB mode

SUB. PG: Press to access sub page.

1. FR: Press to fast reverse in USB mode.

INDEX: Request the Index page in Teletext mode.

1. NEXT: Press to skip forward in USB mode.

REVEAL: Reveal or Hide the hidden words.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- Warning: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.

- Metallic objects such as knives, forks, spoons and lids should not be placed on the surface since they can get hot

- A steam cleaner is not to be used.

- Do not use a steam cleaner to clean your cooktop.

- The appliance is not intended to be operated by means of an external timer or separate remote-control system.

- WARNING: Danger of fire: do not store items on the cooking surfaces.

- The cooking process has to be supervised. A short term cooking process has to be supervised continuously.

- WARNING: Unattended cooking with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

INFINITON

TV LED

MANUEL D'INSTRUCTIONS

INTV-40LA583

EAN:8436546193913

Le contenu

HOME

Réglage de l'heure

Gestion des permis

Multimedia

Scenic view of a red wooden building beside a stone canal under a blue sky with clouds, no visible text or symbols.


Mode d'image

DLC

Son mode

Channel

Pays

Auto Scan

Liste des chaînes

Ajustement PVR

Écran bleu

AIDE

Warning symbol of a lightning bolt inside a triangle (no text or numbers)

1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety, If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at Plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments /accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used caution when moving the cart/apparatus combination to avoid injury tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

Caution:

14) To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
15) The mains plug is used as disconnect device, the disconnect device shall remain readily operable.
16) The socket-out shall be installed near the equipment and shall be easily accessible.
17) This product should never be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacture's instructions have been adhered to.
18) The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquid, such as vases, shall be placed on the apparatus.
19) Do not place any sources of danger on the apparatus (e.g. liquid filled objects, lighted candles).
20) Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer.

21)

Never place the TV, remote control or batteries near naked flames or other heat sources, including direct sunlight. To prevent the spread of fire, keep candles or other flames away from the TV, remote control and batteries at all times.

22) The USB terminal should be loaded with 0.5 A under normal operation.

These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operating instructions, unless you are qualified to do so.

23) The battery shall not be exposed to excessive heat such as sunshine, fire or the like.
24) This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth
25) The maximum using environment temperature is 45 degrees. The Maximum using altitude is 2000 meters

Instalar e Conectar TV

3

2
1

Instalar sua TV

1. Open the carton and remove the TV
   and scattered accessories and base (some models without base).
2. to avoid the injury of the TV, covered with a soft mattress, put it on the table, face down on a soft mattress, the base of the neck is fixed on the TV with screws.
   3.screw the base and connected to the TV.
3. the installation is complete.

Note:

Picture for reference purposes only.

FTI

Welcome to use Internet Smart Cloud TV

For your enjoyment of viewing content, we need to do some simple settings

Start the setup

Pressione o botão 【▼】 / 【▲】 para selecionar a entrada.

HOME

Multimídia

Pressione 【▼】 / 【▲】 / 【◀】 / 【▶】 para selecionar Multimedia na Página inicial e pressione o botão ENTER para entrar, para usar o menu multimídia.

Vídeo

Scenic view of a red wooden building beside a stone canal under a cloudy sky, with no visible text or symbols.

Imagem

Modo de Imagem

(Opções: Standard, Movie, Vivid, Energy Saving, User).

DLC

Prressione 【▼】 / 【▲】 para seleccionar DLC, e pressione 【◀】 / 【▶】 para seleccionar Escuro / Normal / Claro / Desligado.

HDR

Modo de som

(Opções: Standard, Music, Theater, News, User).

Canal

Antena nuvem

Seleccione o Air sintonizar na nuvem.

País

Pressione 【▶】 para definir o país para sintonizar.

Análise automática

Pressione o botão 【▼】 / 【▲】 para selecionar Auto Scan e pressione ENTER para iniciar a nálise automática.

Análise Manual

Pressione o botão 【▼】 / 【▲】 para selecionar Analog Manual Scan para procura manual analógica e pressione ENTER para iniciar a análise.

EPG

CI Information (Need to support the CI fuction)

Press ▼/▲button to select CI Information, then press the Enter button to display detail if you has inserted the CI card

Attention: Only with CI card in TV, will the item CI Information be shown in Menu.

Antena por Cabo

Lista de canais

País

Pressione 【▶】 para definir o país para sintonizar.

Análise

Análise automática

Pressione o botão 【▼】 / 【▲】 para selecionar Auto Scan e pressione ENTER para iniciar a nálise automática.

Restaurar padrões

Pressione 【▼】 / 【▲】 para selecionar Restore to Default para determinar se deseja limpar seus canais de satélite.

Lista de canais

Bloqueio do Sistema

Pressione o botão 【▼】 / 【▲】 para selecionar Change Password / System Lock. Pressione ENTER / 【◀】 / 【▶】 para entrar.

Trocar senha

Bloqueio do Sistema

This function only available when there is signal for TV.

Bloqueio do teclado

PVR Setting

Blue Screen

Pressione o botão 【▼】 / 【▲】 para selecionar a tela azul. Pressione 【◀】 / 【▶】 para selecionar ON / OFF(ligado/desligado).

Ajuda

No Power	Check the AC cord of TV is plus in or not. If still no power, please Pull out the plug and replug in after60 seconds. And open the TV again
Signal receive not properly	To cause double image or phantom if there has high building or high mountain round TV. You can adjust image effect by manually operation: consult instruction of vernier regulation or change the direction of external antenna.If you use the indoor antenna . under certain circumstance, receive will be more difficult . So you can change the direction of the antenna to adjust the image effect . If can't change image receiving effect either , you have to use external antenna.
No picture	Check the antenna at the back of TV is connected properly or not.Try to select other channels and check whether the TV problem itself or not
but,Video is ok without audio	Increase the volume.Check the TV is in mute mode or not , and please press the mute button to make sound resume.
but, Audio is ok color error or no picture.	Increase contrast and brightness.
snow statics picture and noise	Check the antenna at the back of TV is connected or not.
Level broken line	vacuum, such as hair drier, Maybe has electrical appliance interfere, please turn off these kinds of electrical appliance, cleaner and so on.
Image or-Dual "simulacrum" The TV no response with the Remote.	Perhaps the location for the antenna is not good. Use the tall beamed antenna can be improved quality of the display image.Operate the remote direct to the remote sensor on the TV. If still no response for the TV, please check if the plastic bag on the remote take or not. And check if the location for the battery is correct. Change the new battery.The TV will shift to the STAND BY if no response from the remote in the few minutes.
.NO Video In (PC Mode)	Please check if the display cable connect to the VGA correcte.Please check if there has the bend on the display cable.
Vertical twinkling (PC Mode)	Enter the main menu, Use the clock regulator for the Video display noise to eliminate the vertical line.
horizontal ripping (PC Mode)	Adjust the Audio sound horizontal in the main menu to clear the horizontal ripping line.
The screen is too bright or too dark (PC Mode)	Adjust the contrast ratio or brightness in the main menu.
PC Function no response	Check the computer setting in the state of compatible display resolution
Ripping line in RCA connecting	Please use good quality connecting cable.
Problem still exist	Unplug the power cable and wait for 30 seconds, then connect. If there is some problem with our TV, do not repair it by yourself, please contact with the customer service center.

There will be complete picture and the brightness will come down if the TV is in: Note So please do not keep the TV in a state of same, the static picture for too long time Menu or same picture that has much difference in brightness and contrast ratio for too long time.

Especificações

Tamanho da tela	Potência de consumo	Acessórios principais
16"	24W	Manual x1Controle remoto x1Cabo de alimentação x1Pilhas AAA x2
19"	36W/48W
22"	36W/48W
24"	36W/48W
28"	36W
32"	56W/65W/100W
39"/40"	60W/70W/76W
42"	67W/70W/95W/100W
43"	65W/80W
50"	100W/108W/135W
55"	100W/135W/140W/160W
65"	159W/165W/195W

Hereby, INFINITON declares that this device is in compliance with Directive 2014/53/EU. The full text of EU the declaration of conformity is available at the following internet address: www.infiniton.es.

Radio Information

• 2.4G Wi-Fi transmitter frequency range: 2412 - 2472MHz
• 2.4G Wi-Fi transmitter power: 16dBm (+/- 4dB)
• DVB-T/T2/C tuner frequency range: 42 - 1002MHz
• DVB-S/S2 tuner frequency range: 950 - 2150MHz

FR

Cher client,
