Brand	Auray
Model	M-LED18-DK-U
Product Type	LED Light Fixture
Dimensions (L x W x H)	600 x 600 x 30 mm
Weight	2.5 kg
Power Consumption	36 W
Input Voltage	100-240 V AC, 50/60 Hz
Light Source	LED, 18 pcs
Color Temperature	4000 K (Neutral White)
Luminous Flux	3200 lm
Beam Angle	120°
Color Rendering Index (CRI)	Ra > 80
Lifespan	50,000 hours
IP Rating	IP20 (Indoor use)
Material	Aluminum frame, PC diffuser
Mounting Type	Recessed or surface mount
Dimmable	Yes (compatible with trailing edge dimmer)
Operating Temperature	-20°C to +40°C
Certifications	CE, RoHS
Warranty	3 years

Frequently Asked Questions - M-LED18-DK-U Auray

What is the power consumption of the Auray M-LED18-DK-U?

The power consumption is 36 W, making it an energy-efficient lighting solution.

Can the M-LED18-DK-U be used in bathrooms or outdoors?

No, this model has an IP20 rating, designed for indoor use only. Avoid exposure to moisture or dust.

Is the light dimmable?

Yes, it is dimmable with a compatible trailing edge dimmer. Ensure the dimmer is rated for LED loads.

What are the dimensions of this LED panel?

The panel measures 600 x 600 x 30 mm, suitable for standard ceiling grids.

How do I install the M-LED18-DK-U?

It can be recessed into a ceiling grid or surface mounted using optional brackets. Ensure mains power is off before installation.

What color temperature does the light produce?

The color temperature is 4000 K (Neutral White), providing a balanced light suitable for offices and homes.

How long is the lifespan of the LED?

LED lifespan is rated at 50,000 hours, reducing maintenance and replacement costs.

Can I replace the LED module if it fails?

The LED module is integrated and not user-replaceable. Contact Auray support for service options.

What is the luminous flux of this panel?

It delivers 3200 lumens, bright enough for most room applications.

Does the product come with a warranty?

Yes, Auray provides a 3-year warranty against manufacturing defects.

USER MANUAL M-LED18-DK-U Auray

Attach the power cable to the light, and plug it into a wall outlet.

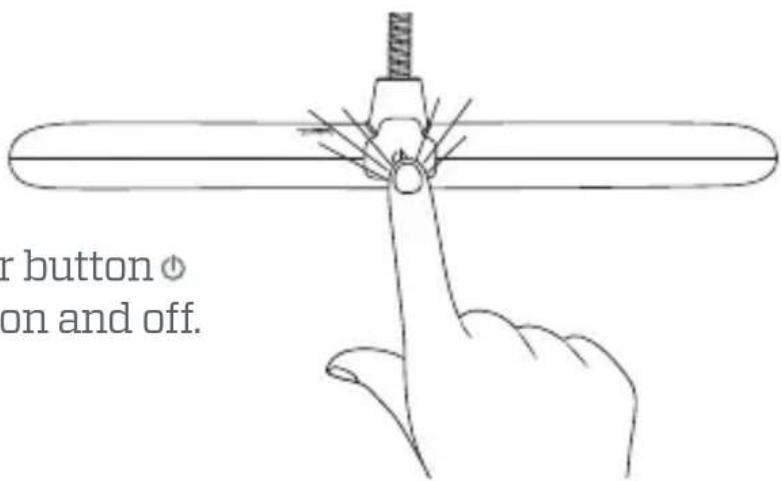

Touch the power button ⏻ to turn the light on and off.

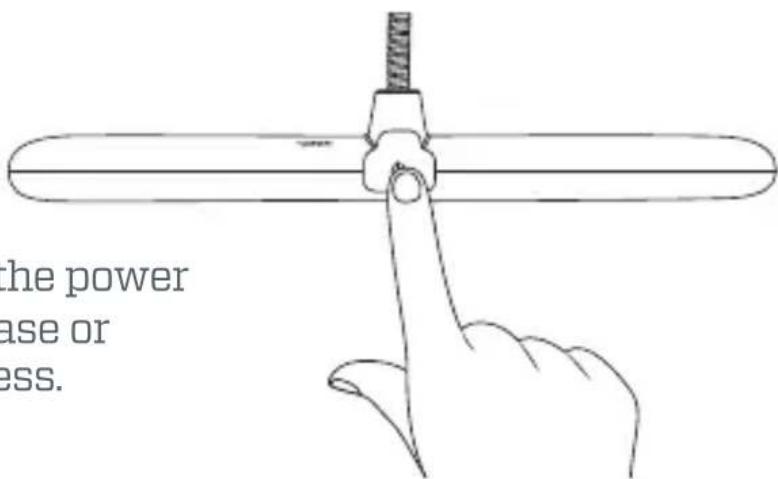

Touch and hold the power button ⓦ to increase or dim the brightness.

To recharge devices like a smartphone or tablet, use your device's charging cable to connect it to the USB port on the base.

One-Year Limited Warranty

This AURAY product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. The warranty provider's responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at the provider's discretion, of any product that fails during normal use of this product in its intended manner and in its intended environment. Inoperability of the product or part(s) shall be determined by the warranty provider. If the product has been discontinued, the warranty provider reserves the right to replace it with a model of equivalent quality and function.

This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration, abuse, improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, THE WARRANTY PROVIDER MAKES NEITHER ANY EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. This warranty provides you with specific legal rights, and you may also have additional rights that vary from state to state.

To obtain warranty coverage, contact the Auray Customer Service Department to obtain a return merchandise authorization (“RMA”) number, and return the defective product to Auray along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser’s own risk and expense.

For more information or to arrange service, visit www.aurayaudio.com or call Customer Service at 212-594-2353.

Product warranty provided by the Gradus Group.

www.gradusgroup.com

All images are for illustrative purposes only.

AURAY is a registered trademark of the Gradus Group.

© 2021 Gradus Group LLC.

All Rights Reserved.
