Product Type	Deep Fryer
Brand	Jocel
Model	JFRI011022
Dimensions (W x D x H)	Approx. 30 x 25 x 20 cm
Weight	Approx. 2.5 kg
Power Supply	220-240 V ~ 50/60 Hz
Power Consumption	1500 W
Oil Capacity	1.5 L
Food Capacity	Approx. 500 g
Temperature Control	Adjustable thermostat (150°C – 190°C)
Timer	60-minute timer with bell
Heating Element	Stainless steel, hidden
Frying Basket	Removable, with handle
Lid	With viewing window and cool-touch handle
Safety Features	Overheat protection, automatic shut-off, cool-touch handles
Non-Slip Feet	Yes
Cleaning	Removable oil tank, dishwasher-safe basket
Spare Parts Availability	Basket, oil tank, thermostat available from Jocel service centers
Repairability Index	7/10 (replaceable heating element and thermostat)
Warranty	2 years

Frequently Asked Questions - JFRI011022 Jocel

What type of oil should I use?

Use high-smoke-point oils like canola, peanut, or sunflower oil. Avoid olive oil or butter as they burn easily.

How much oil does the JFRI011022 require?

The maximum oil capacity is 1.5 L. Do not exceed the MAX fill line inside the tank.

Can I fry frozen foods directly?

Yes, but reduce the food quantity and increase frying time by a few minutes. Shake off excess ice before frying.

How do I clean the deep fryer?

Remove the oil tank and basket. Wash them with warm soapy water; the basket is dishwasher-safe. Wipe the exterior with a damp cloth. Ensure all parts are dry before reassembling.

Why does my fryer smoke?

Smoking usually occurs if the oil is too hot or has been used many times. Reduce temperature or change the oil. Also ensure the exterior is clean.

How often should I change the oil?

Change oil after 8-10 uses or when it becomes dark, smells rancid, or smokes excessively. For best results, filter used oil through a fine sieve.

Can I use the fryer without oil?

No, this is a traditional deep fryer and requires oil for operation. Never operate it empty.

What is the maximum frying temperature?

The adjustable thermostat ranges from 150°C to 190°C (300°F to 375°F). Refer to your recipe for optimal temperature.

The timer doesn't stop the fryer – is that normal?

Yes, the timer only rings a bell; it does not shut off the heating element. You must manually turn off the fryer when the timer rings.

Where can I buy spare parts for the JFRI011022?

Spare parts like the basket, oil tank, and thermostat are available through Jocel authorized service centers or online. Check the Jocel website for a list of resellers.

USER MANUAL JFRI011022 Jocel

Read the Instruction Manual carefully.

Telef. 00 351 252 910351

Fax: [phone]

E-mail: [e-mail]

http://www.jocel.pt

Before using this appliance for the first time, please read the instruction manual carefully and keep it for future reference.

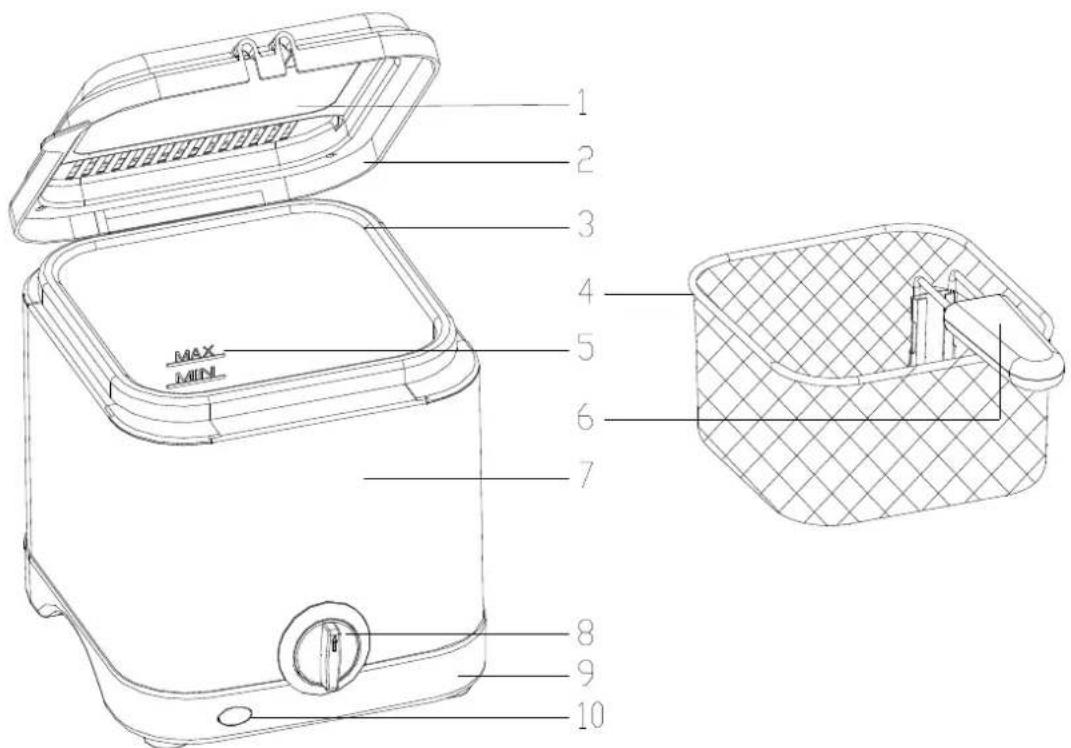

FRYER PARTS

1. Viewing Window
2. Lid
3. Fixed Oil Pot
4. Fry Basket
5. Maximum Oil Level
6. Basket Handle
7. Housing
8. Thermostat knob
9. Base
10. Light Indicator

Your fryer is equipped with a light indicator to ensure perfect results every time.

The lid, which is equipped with a built in filter, closes when vertical to ensure protection against splashing.

Your fryer is equipped with a thermostat and a cooking guide on the front panel to make cooking easier, without the need to look up a recipe.

The pot has an oil capacity of 1.2 litres.

1.2L Deep Fryer has a light indicator, to ensure perfect cooking every time.

The easy clean, coated cooking pot has a concealed element for added cooking capacity. The lid with built-in filter, clips into and upright position for a handy anti-splatter shield.

1.2L Deep Fryer has a rotary thermostat control with a cooking guide on the front panel to make deep frying easy, without having to refer to a recipe.

The deep fryer has a 1.2L oil capacity which is perfect for the smaller family. The adjustable basket height position ensures safe and convenient cooking.

IMPORTANT SAFE GUARDS

To reduce the risk of personal injury or property damage, when using electrical appliances, basic safety precautions should always be followed including the following:

1. Read all Instructions.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against electric shock do not immerse cord, plugs, or (state specific part or parts in question) in water or other liquid.
4. Close supervision is necessary when any appliance is used by or near children.
5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or adjustment.

7. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.

8. Do not use outdoors, for indoor use only.

9. Do not let cord hang over edge of table or counter, or touch hot surfaces

10. Do not place on or near a hot gas or electric burner, or in a heated oven.

11. Extreme caution must be used when moving an appliance containing hot oil or other liquids.

12. Plug cord into the wall outlet. To disconnect, turn any control to off "0", then remove plug from wall outlet.

13. Do not use appliance for other than intended use.

14. Be sure handles are properly assembled to basket and locked in place. See detailed assembly instructions.

15. No user-service able parts inside. Do not attempt to service this product

16. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

17. Children should be supervised to ensure that they do not play with the appliance.

18. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.

19. The appliance is not intended to be operated by means of an external timer or a separate remote-control system.

20. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. children shall not play with the appliance.

21. Cleaning and user maintenance shall not be made by children without supervision

22. For household use only.

23. Do not immerse the appliance into water

24.SAVE THESE INSTRUCTIONS.

Subject to technical changes without notice.

BEFORE USING FOR THE FIRST TIME

Unpack the fryer and read the instructions carefully

Clean the unit thoroughly before using for the first time.

Clean the basket in a dishwasher or with warm, soapy water, rinse and dry carefully.

OPERATING INSTRUCTIONS

Place the deep fryer on a stable flat surface.

Fill the frying bowl (oil pot) with fresh cooking oil. Butter, margarine, olive oil or animal fat is not recommended due to its lower smoking temperatures. Ensure the oil is above the Min mark and below the Max mark, seen on the inside of the bowl.

Plug the heater into the wall socket and switch on the wall socket.

Turn the rotary thermostat to the temperature setting required.

The 'Power on' light will glow.

Place the food in the frying basket, and slowly lower the basket into the oil. Place the lid onto the unit.

When the food finished cooking, lift the lid. Be careful when removing the lid, as hot steam may be emitted. Lift the basket out of the oil to drain, using the basket handle. Once the oil is drained, serve as desired.

Always unplug the deep fat fryer after use.

COOKING GUIDELINES:

Frozen food will lower the temperature of the oil, so do not put too much in at once. Frozen food will thus also take a little longer to cook.

It is advised to coat low-starch foods before cooking. This ensures tasty results and prevents the food from drying out during cooking.

The following is a time guide for common foods. This is a guide only.

Food	Temperature	Weight	Time
Fresh chips	190°C	350g	10-15min.
Frozen chips	190°C	350g	10-15min.
Fish fillet	150°C	250g	8-12min.
Haddock in batter	190°C	250g	10-15min.
Haddock in batter	170°C	250g	12-18min.
Frozen plaice	190°C	250g	12-18min.
Meat	150°C	300g	8-10min.
Frozen hamburgers	150°C	300g	8-15min.
Chicken portions in crumbs small/medium size	170°C	300g	12-15min.
Chicken portions in crumbs large size	170°C	300g	12-18min.
Fresh chicken drumsticks	170°C	300g	12-15min.

STORING THE APPLIANCE

Storing the Fryer

1. Ensure that the fryer has cooled completely before putting away.
2. Wrap de cable for storage.
3. Store the fryer in a dry place, out of reach of children.

CLEANING AND MAINTENANCE

Always remember to unplug the unit from the electrical outlet when not in use and before cleaning.

Leave the oil to cool completely. Oil or fat retains its temperature for a long time after use, so not attempt to move or carry the fryer while it is still hot.

Do not immerse the unit in water or any other liquid, or hold it under a running tap to clean.

The body of the appliance should be cleaned with a damp cloth. Do not use bleach or other abrasive substance or solvents

Wash the basket and cover and lid in a dishwasher or in hot soapy water. Rinse and dry before use.

When changing the oil, the fryer should be wiped out with absorbent paper then with damp cloth and a little detergent and finally cleaned with a dry cloth. To avoid damage to the interior of the oil pot, no abrasive products or powders should be used.

PROBLEM	POSSIBLE CAUSE	SOLUTION
Unpleasant Odors	The filter is blocked.The oil old.The oil is not suited to the fryer.	Replace the filterChange the oil every 20 uses.Use good quality vegetable oil,or another other suitable to the fryer.
There's condensation under the screen	The lid hasn't been closed properly	Check that the lid is closed securely
Oil is overflowing	The amount of oil exceeds the maximum level.There is too much food in the basket.The food is not dry.	Reduce the amount of oil.Check the quantities indicated in the COOKING GUIDE.Dry food before cooking.
Food is not crispy	The cooking temperature is too low.There is too much food in the basket.	Adjust the temperature accordingly.Check the quantities indicated in the COOKING GUIDE.
The chips are sticky.	The cut potato has not been washed thoroughly (with clean water).	Ensure that the potato chips have been washed before frying.

Recycling

This product bears the selective sorting symbol for waste electrical and electronic equipment (WEEE).

This means that this product must be handled pursuant to European Directive 2002/96/EC in order to be recycled or dismantled to minimize its impact on the environment.

For further information, please contact your local or regional authorities.

Electronic products not included in the selective sorting process are potentially dangerous for the environment and human heath due to the presence of hazardous substances.

WARNING:

1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
2. Children should be supervised to ensure that they do not play with the appliance.
3. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.
4. The appliance is not intended to be operated by means of an external timer or a separate remote-control system.

GENERAL WARRANTY TERMS

1. The warranty is valid only on presentation of invoice of purchase.
2. This WARRANTY is limited exclusively to parts substitution ineffective due to faulty manufacture, made in our workshops.
3. The elimination of several faults of the scope of the guarantee is made for repair or replacement of defective parts, according to the discretion of our technical services. Defective parts are our property.
4. Are not covered under warranty damage caused by transportation, neglect or poor use, improper assembly or installation, as well as external influences such as: lightning strikes or power, flooding, humidity, etc..
5. Lose warranty, all appliances that are not being used according to the instructions, or connected to FEEDING NETWORKS not guarantee a constant voltage of 220/240V.
6. The warranty does not cover damages for personal injury or damage caused directly or indirectly in any capacity whatsoever.
7. This warranty terminates when it is found to have been undergoing repairs, alterations or interventions by any person not authorized by Jocel.

THE WARRANTY EXPIRES

1. With the modification or disappearance of the nameplate of the appliance.
2. Exceeded the period of 2 years for home appliances and 06 months for industrial appliances, warranty expires and assistance will be made by charging the costs of manpower, according to current fees.

TECHNICAL ASSISTANCE

For technical assistance request, our services are available through the following contacts:

Telef. 00 351 252 910351

Fax: [phone]

E-mail: [e-mail]

http://www.jocel.pt

DECLARATION OF CONFORMITY

CE

We declare on our own responsibility that the machine indicated below

Product DEEP FRYER

Brand JOCEL

Model JFRI011022

Complies with the following European directives and standards implementation:

Low Voltage

2014/35/CE

EN 60335-1:2012+A11

EN 60335-2-13:2010+A11

EN 62233:2008

Electromagnetic Compatibility

2014/30/CE

EN 55014-1:2006+A1+A2

EN 55014-2:1997+A1+A2

EN 55014-2:2015

EN 61000-3-2:2014

EN 61000-3-3:2013

Food contact materials

Regulation

1935/2004
