Product Type	Split System Air Conditioner
Brand	ActronAir
Model	Classic CRA100S
Cooling Capacity	10.0 kW
Heating Capacity	11.0 kW (Reverse Cycle)
Power Supply	240V / 50Hz
Refrigerant Type	R410A
Indoor Unit Dimensions (W x H x D)	1150 x 325 x 215 mm
Outdoor Unit Dimensions (W x H x D)	950 x 700 x 300 mm
Indoor Unit Weight	15 kg
Outdoor Unit Weight	45 kg
Energy Efficiency Ratio (EER)	3.2 W/W
Noise Level (Indoor)	45 dB(A)
Noise Level (Outdoor)	55 dB(A)
Main Functions	Cooling, Heating, Dehumidification, Fan Only, Auto Mode
Remote Control	Included (Infrared)
Air Filter	Washable, Reusable
Maintenance	Clean filter every 2 weeks; annual professional service
Safety Features	Overload protection, auto restart, safety cut-off
Spare Parts Availability	Filters, remote control, fan motor, compressor (authorized service)
Repairability Index	6.5/10 (moderate)
Installation Type	Wall-mounted indoor, ground or wall-mounted outdoor

Frequently Asked Questions - Classic CRA100S ActronAir

How do I clean the air filters?

Turn off and unplug the unit. Open the front panel, remove the filters, and wash them with warm water and mild detergent. Allow to dry completely before reinstalling. Clean every 2 weeks for optimal performance.

What does the 'Error Code E1' mean?

Error E1 typically indicates a temperature sensor fault. Check if the filters are clogged or the outdoor unit is obstructed. If the error persists, contact a qualified technician.

Can I use the air conditioner for heating in winter?

Yes, the Classic CRA100S is a reverse cycle model, providing both cooling and heating. It operates efficiently down to -5°C outdoor temperature.

How do I reset the unit?

Press the Reset button on the remote control or use the main power switch. Alternatively, turn off the unit, disconnect power for 5 minutes, then reconnect.

What is the recommended room size for this unit?

With a 10.0 kW cooling capacity, it is suitable for rooms up to 100 m² (depending on insulation and climate). For precise sizing, consult an installer.

How do I use the timer function?

On the remote, press the Timer button to set the desired ON or OFF time. Use the +/- buttons to adjust hours. The unit will automatically start/stop at the set time.

Why is water leaking from the indoor unit?

Possible causes: clogged drain pipe, dirty filter, or improper installation. Check the drain line for blockages and clean the filter. If the issue continues, call a professional.

Is the remote control universal?

No, the remote is model-specific. If lost or damaged, order a replacement directly from ActronAir or an authorized dealer with model number CRA100S.

How often should I service the unit?

A professional maintenance check is recommended once a year before peak cooling or heating season. Regular filter cleaning extends the lifespan.

What refrigerant does this unit use?

The Classic CRA100S uses R410A refrigerant. Always use certified technicians for any refrigerant-related work.

USER MANUAL Classic CRA100S ActronAir

Classic Series 2 Split Ducted Unit

Installation and Commissioning Guide - Outdoor

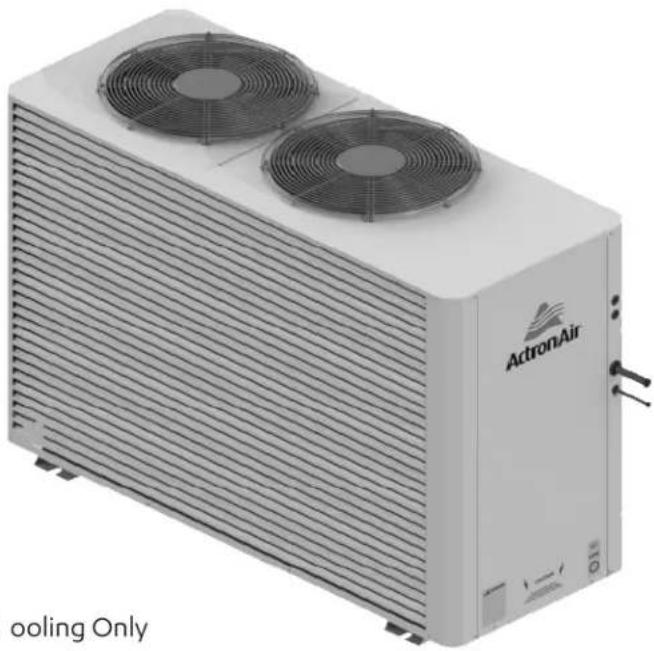

Exterior view of a white industrial air conditioning unit with two fans and 'ActronAir' branding, labeled 'ooling Only' (no other text or symbols visible)

Model Numbers

Classic Condenser Add On Cooling Only
CRA100S	CCA130S
CRA130S	CCA150S
CRA130T	CCA170S
CRA150S	CCA170T
CRA150T	CCA200T
CRA170S	CCA230T
CRA170T
CRA200T
CRA230T

IMPORTANT NOTE:

Please read this manual carefully before installing or operating your air conditioning unit.

That's better. That's Action.

Table of Contents

01. Inspection 4

01.01. Product Inspections 4
01.02. Codes, Regulations and Standards 4

02. General Information ....4

03. Safety Instructions .... 5

04. Installation Information 6

05. Operation Manual Access 8

05.01. Download from website 8
05.02. Near Filed Communication (NFC) Tag 8

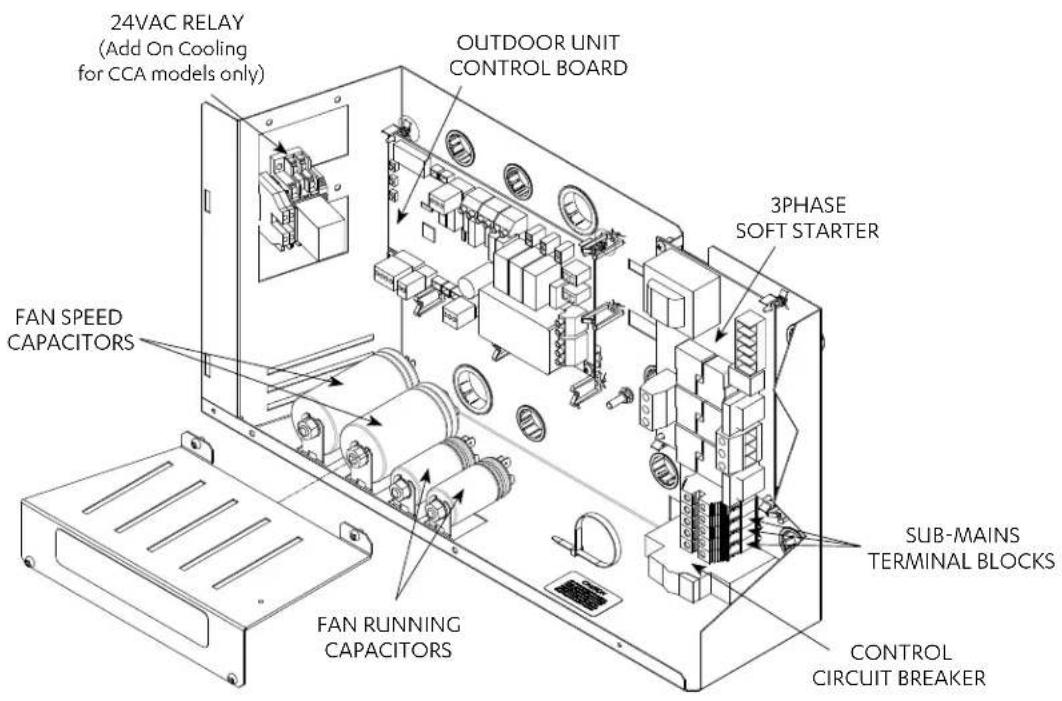

06. Components Overview ....10

07. Control Panel 11

07.01. Single Phase (10-17kW) 11
07.02. Three Phase (13-23 kW) 11
07.03. Three Phase - Soft Starter Option (13-23 kW) 12

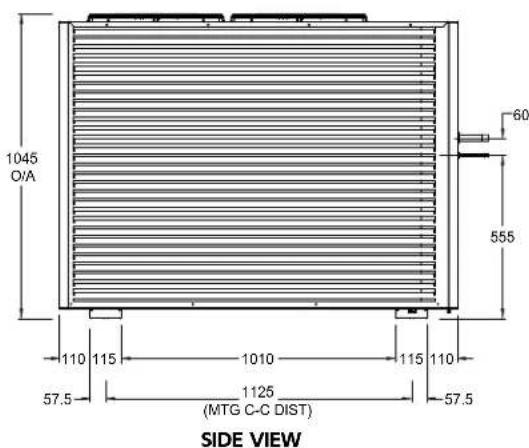

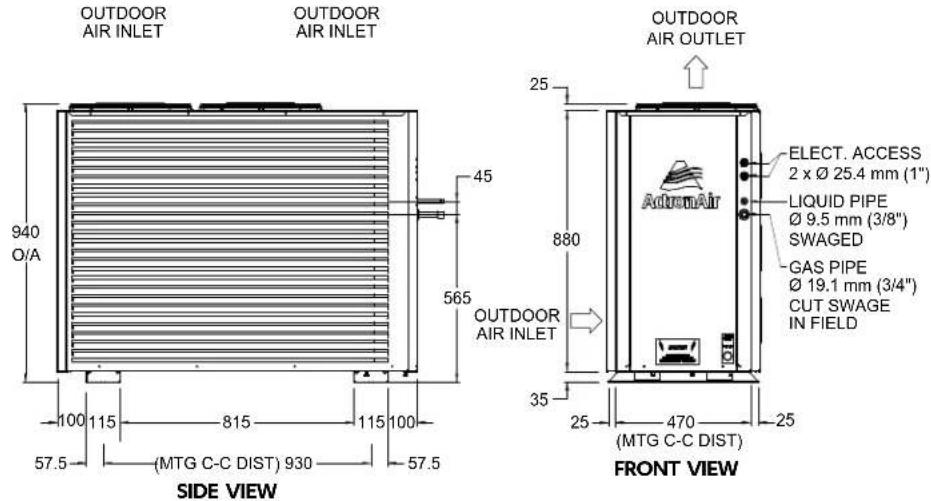

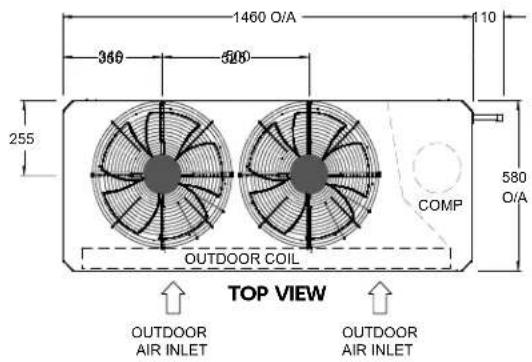

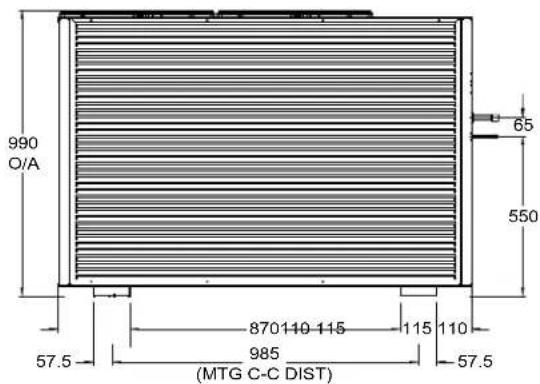

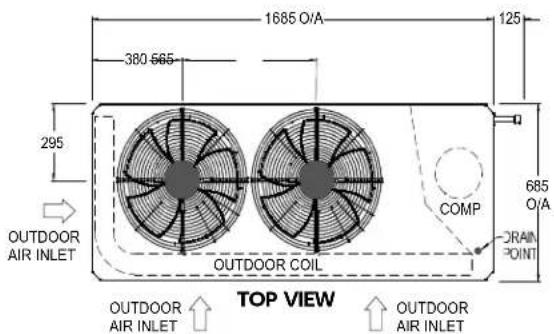

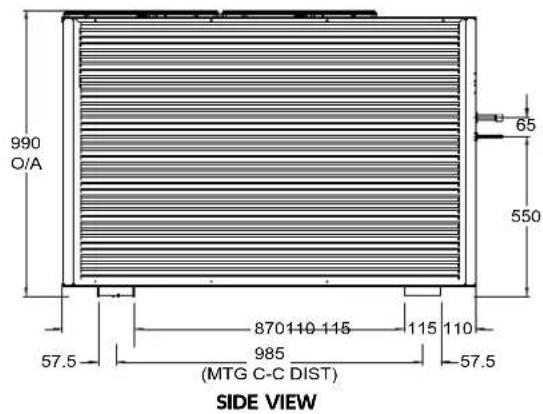

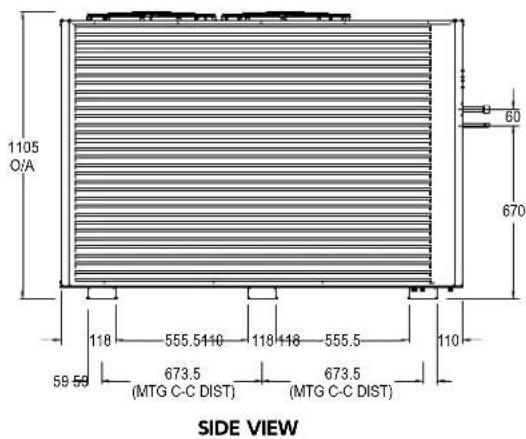

08. Unit Dimensions and Clearances ....13

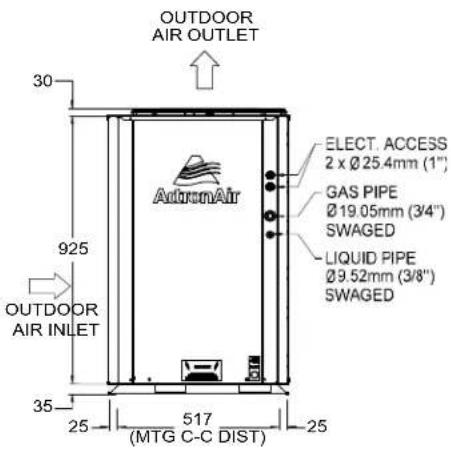

08.01. CRA100S 13
08.02. CRA130S / CRA130T / CCA130S 14
08.03. CRA150S / CRA150T / CCA150S 15
08.04. CRA170S / CRA170T CCA170S / CCA170T 16
08.05. CRA200T / CCA200T 17
08.06. CRA230T / CCA230T 18

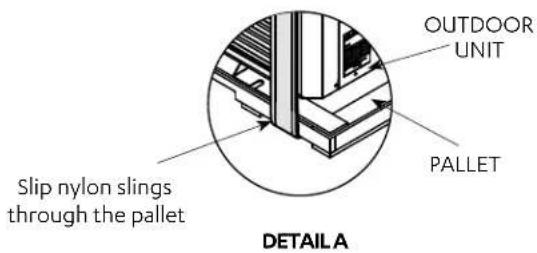

09. Unit Lifting Procedure 19

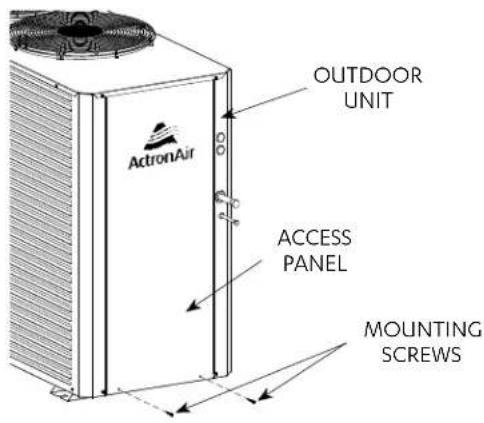

10. Outdoor Unit Preparation 21

11. Field Pipe Connection 22

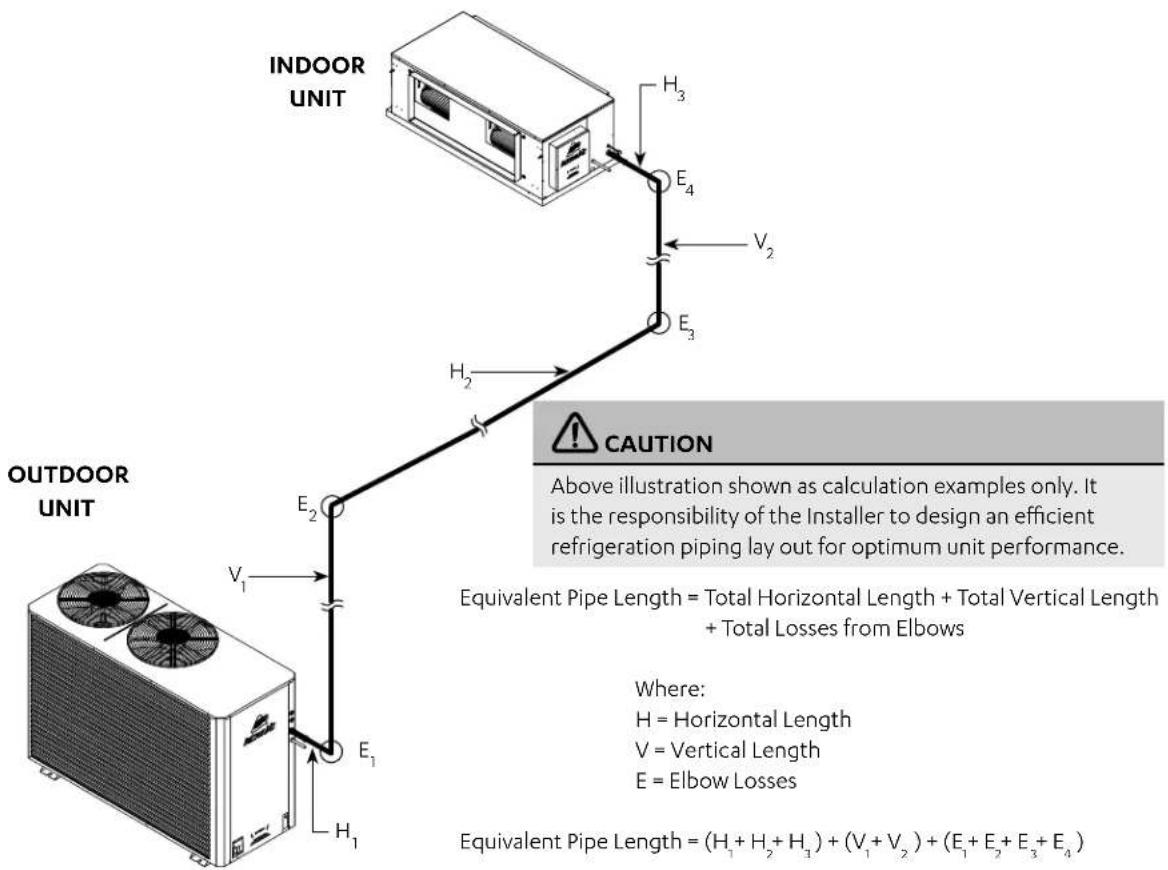

11.01. Piping and Brazing 22
11.02. Pressure Testing 26
11.03. Evacuation Procedure (Triple Evacuation) 26

12. Electrical Installation ......27

12.01. Split Unit Electrical Connection 28

13. Maximum Cable Lengths 30

13.01. Wiring Configuration : Recommended 30
13.02. Wiring Configuration : Alternate 31

14. Cable Length - Zoning 32

15. Wiring Connections ......33

15.01. LR7 Wall Control Wiring Connections 33
15.02. LM-RS-2 Optional Sensor Wiring Connections 33
15.03. AERSS Optional Duct Sensor Wiring Connections 33
15.04. Demand Response Management 34

16. Control Source Configuration (CtrS) 35

17. Third Party Control Input (InZone Board and/or Outdoor Board) 36

17.01. Third Party Control Input (Single Speed Fan Operation) 36

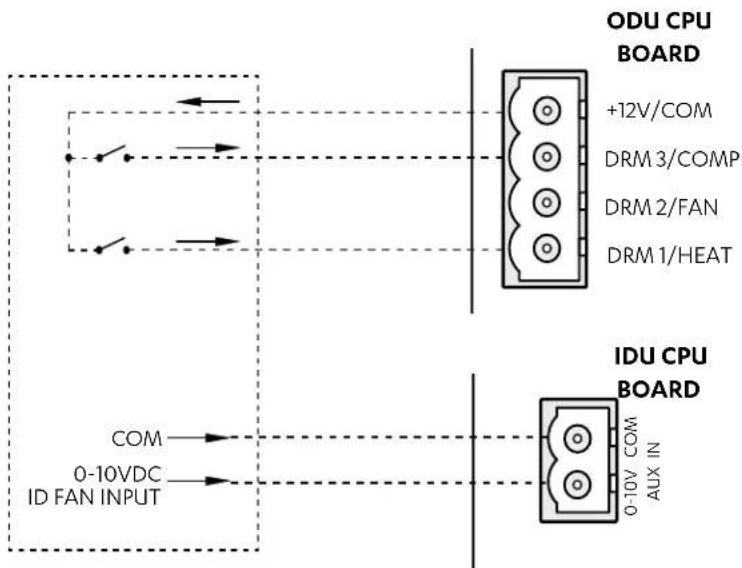

17.02. Third Party Control Input (Variable Speed Fan Operation) 36
17.03. Run and Fault Indication Output (Outdoor Board) 37
17.04. Remote On/Off 37

Installation and Commissioning Guide

Split Ducted Outdoor Units

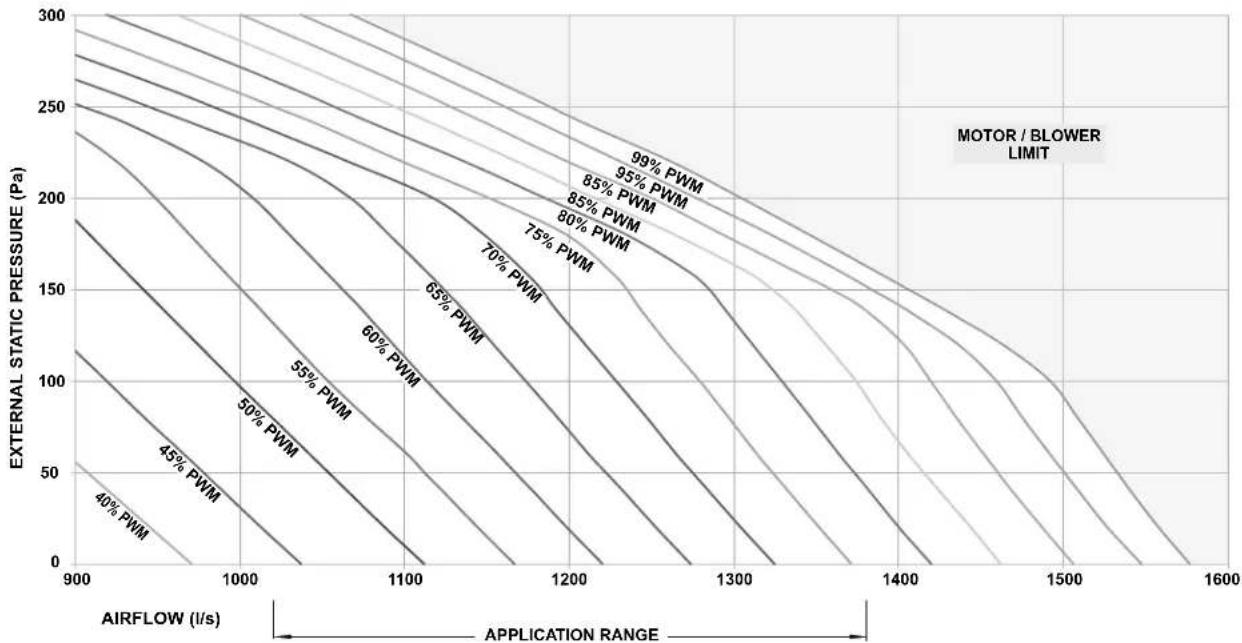

18. Indoor Fan Commissioning via Third Party Control ....38

18.01. EVA100S / EFA100S 38
18.02. EVA130S / EFA130S 39
18.03. EVA150S/EFA150S 40
18.04. EVA170S / EFA170S 41
18.05. EVA200S / EFA200S 42
18.06. EVA230S / EFA230S 43

19. Refrigerant Charging 44

19.01. Charging Method: Sub-cooling and Superheat 44

20. Maintenance 48

21. Maintenance Frequency Checklist 50

22. Fault And Status Codes .... 54

23. Key Parts List ....55

24. Start Up and Commissioning Report 56

01. Inspection

01.01. Product Inspections

Check your air conditioning unit and all items against the invoice upon receiving your shipment. Inspect the unit, components and accessories for any sign of damage. If there is any damage to the unit, contact ActronAir Customer Care Department immediately on: 1300 522 722 to obtain a Goods Return Number.

Check the unit nameplate to verify the model, serial number, electrical rated specifications are correct.

01.02. Codes, Regulations and Standards

The installer and/or contractor assumes responsibility to ensure that unit installation complies with the relevant council, state / federal codes, regulations and building code standards. All electrical wiring must be in accordance with current electrical authority regulations and all wiring connections to be as per electrical diagram provided with the unit.

02. General Information

The ActronAir Ducted air conditioning units are designed for applications where superior performance, high efficiency, reliability, supply air quality and quiet operation are the prime priorities. The units are built with the latest technology, digital compressor, EC indoor fans, low-noise outdoor fans and an intelligent electronic control.

For optimum efficiency, your air conditioning unit will deliver just the right amount of cooling or heating capacity you demand. Even in extreme conditions, the unit will still supply the required demand at peak performance.

Energy Efficient Refrigeration Circuits

The ActronAir system is designed with a split ducted refrigeration circuit that delivers only the amount of cooling or heating actually required to maintain your desired comfort at the most optimum efficiency.

Each refrigeration circuit consists of:

• High efficiency scroll compressor.
- Blue epoxy coat coil protected condenser designed for optimum performance and efficiency with corrugated fins and riffled tubing.
- Blue epoxy coat coil protected evaporator coil designed for optimum performance and efficiency with lanced fins and riffled tubing

Evaporator Section

The Classic series evaporator section has EC fans which deliver the nominated airflow. The fans provide superior performance for your comfort at optimum efficiency:

• Highly efficient EC motor that uses less energy than the traditional AC motor

- Low noise operation

Condenser Section

Uses two (2) axial fans and a state of the art scroll compressor, with the following features:

• Efficient axial fans with direct drive AC motor

- Low noise operation

Electrical Section

The electrical section is composed of a separate panel for controls, protecting the components from the elements.

Durable Design and Construction

ActronAir is an Australian manufacturer with proven high quality air conditioning products. Known for their durability and reliable performance, these products are designed and built to withstand the extreme weather conditions.

The heavy gauge zinc and galvanized steel cabinet, with powder coated epoxy enamel finish, resists the toughest conditions. The louvered outdoor coil guard protects the condenser coil from any potential damage brought by hail, stones and other solid objects that may be projected to the unit.

Blue Epoxy Coat Coil Protection heat exchangers ensures an enhanced heat transfer with increased performance efficiency.

System Flexibility

The ActronAir air conditioning units are the first choice for residential, office, schools and other air conditioning facilities applications, both for new construction or retrofitting projects.

Refrigerant Handling and Accountability

ActronAir strongly urges that all service technicians make every effort to eliminate and/or vigorously reduce the emission of refrigerants to the atmosphere. Everyone must act in a responsible manner to conserve refrigerants.

Sustainability and Environmentally Friendly

The air conditioning system is supplied with zero ozone depleting R-410A refrigerant, which has no phase out or replacement concern.

With cooling and heating performance capacity that are among the best in the market, the ActronAir air conditioning units provide the solution for the reduction of energy consumption, CO2 emission, high fuel dependency and high network grid demand.

03. Safety Instructions

• Only licensed HVAC technicians* should install and service this air conditioning equipment. Improper service or alteration by an unqualified technician could result in significant and major damage to the product or property which may render your warranty null and void. Such unqualified service could also lead to severe physical injury or death. Follow all safety instructions in this literature and all warning labels that are attached to the equipment.
• Prevailing WH&S regulations must be observed and will take precedence to the safety instructions contained on this manual. Safe work practices and environment must be the paramount importance in the performance of all the service procedures.
• Ensure that unit installation complies with relevant council regulations and building code standards.
• All electrical wiring must be in accordance with current electrical authority regulations and all wiring connections to be as per electrical diagram provided.
• Secure the fans against accidental contact. Beware of pinch point and sharp edges which can cause cutting injury.
  • Always wear appropriate PPE, remove any dangling jewellery and protect long hair by wearing a cap.
  • Make sure that safety guards and panel covers are always firmly secured and not damaged.
• This appliance is not intended for use by young children or infirm persons unless they have been adequately supervised by a responsible person to ensure that they can use the appliance safely. Young children should be supervised to ensure that they do not play with the appliance.
  • Installer must incorporate a means of electrical disconnection (isolator) in the sub mains fixed wiring in accordance with AS/NZS 3000:2018 (also known as Australian Wiring Rules).
• Secure the power cords and control cables that goes in/out the unit. Use the cable ties provided in the control box.
  *Qualifications required will be appropriate Electrical, Refrigeration and Refrigerant Handling License & Training dependent on local State/Territory regulations.

Installation and Commissioning Guide

Split Ducted Outdoor Units

DANGER

Hazardous Voltage - Risk of Electrocution.

Turn Off the power from main isolator before proceeding with any service work of the unit. Observe proper LOCK-OUT/TAG-OUT (LOTO) procedures for electrical appliances in order to prevent accidental switching-on of the power supply. Extreme care and caution must be observed should there be a need to work on live circuit.

WARNING

EC Motors are fitted with high power capacitors and can have dangerous residual voltages at motor terminals after power has been isolated. Wait at least 5 minutes after power isolation and test for any residual voltage before beginning service work.

CAUTION

Beware of Rotating Fans!

Ensure that indoor and outdoor fans are isolated and have come to a complete stand still before servicing the equipment. Beware of pinch point and sharp edges which can cause cutting injury. Secure the fans against accidental contact. Always wear appropriate PPE and remove any dangling jewellery and protect long hair by wearing a cap. Ensure that no loose clothing can be caught / entangled in moving parts.

VISUAL INSPECTION AND WORK ASSESSMENT

Work areas and conditions must first be assessed and evaluated for any potential hazardous conditions. It is also important to be familiar with the unit parts and components before proceeding with any service task.

04. Installation Information

All service technicians handling refrigerant must be licensed to handle refrigerant gases.

Recover and Recycle Refrigerants

Never release refrigerant to the atmosphere! It is an offence in Australia to do so. Always recover, recycle and reuse refrigerants. When removing from the system, properly contain and identify refrigerants in its dedicated container for proper disposal and/or storage. Always consider the recycle or reclaim requirements of the refrigerant before beginning the recovery procedures. Obtain a chemical analysis of the refrigerant if necessary. For the recovered refrigerant and acceptable refrigerant quality refer to the existing standards and regulations.

Refrigerant Handling and Safety

Consult the refrigerant manufacturer's safety data sheet (SDS) for information on proper handling and to fully understand health, safety, storage and disposal requirements. Use the approved containment vessels and refer to appropriate safety standards. Comply with all applicable transportation standards when shipping refrigerant containers.

Service Equipment and Recovery Procedures

Always use refrigerant reclaiming equipment in order to minimise refrigerant emissions. Use equipment and methods which will pull the lowest possible system vacuum while recovering and condensing refrigerant. Equipment capable of pulling a vacuum of less than 500 microns is required.

Do not open the system to the atmosphere for service work until refrigerant is fully removed and/or recovered. Perform refrigeration system evacuation, prior to charging, in accordance with AIRAH / IRHACE Refrigerant handling code of practice.

Let the unit stand for 1 hour and with the vacuum not rising above 500 microns. A rise above 500 microns indicates a leak from the system and a leak test is required to locate and repair any leak.

CAUTION

A leak test is always required on any repaired section of the refrigeration system.

Charge refrigerant into the system only after the equipment does not leak or contain moisture. Ensure that R-410A is only charged in liquid form. Take into consideration the correct amount of refrigerant charge specified for the system to ensure efficient unit operations. When charging is complete, reclaim refrigerant from charging lines into an approved refrigerant container. Seal all used refrigerant containers with approved closure devices to prevent unused refrigerant from escaping to the atmosphere. Take extra care to maintain all service equipment directly supporting refrigerant service work such as gauges, hoses, vacuum pumps and recycling equipment.

INSTALLATION PREPARATION (Pre-Installation considerations)

The following items must be considered before beginning the unit installation:

• Verify the unit capacities and ratings with the unit nameplate
• Make certain the floor or foundation is level, solid and has sufficient structural strength to support the unit and accessories weight.
• Install anti-vibration rubber (installer to supply) under all of the unit's feet to help reduce noise and minimize vibration transfer through the foundation. Ensure that all anti-vibration rubbers are rated to provide stable support without impairing the unit's structural integrity.
• Diameter or width of anti-vibration rubber's must be at least equal to the width of the actual feet to prevent deformation overtime.
• Preferably use anti-vibration rubber pads on residential units (up to 23kW split ducted).

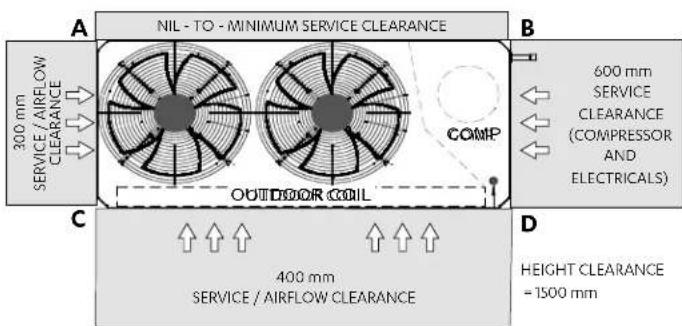

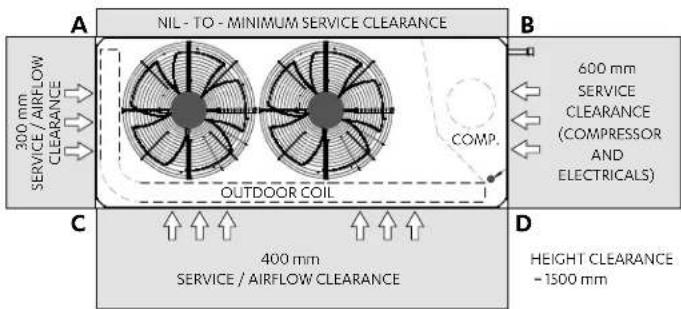

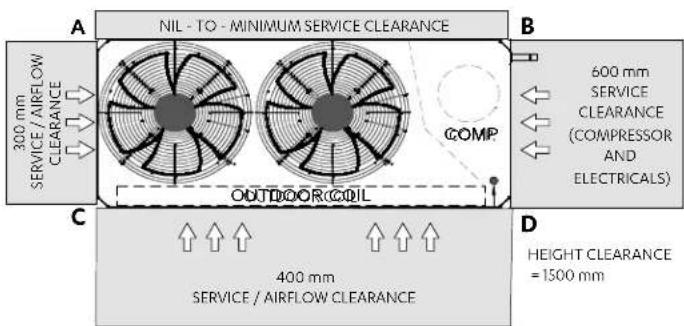

• Allow minimum recommended clearances for periodic maintenance and service access.
• Allow sufficient space above the unit for the outdoor air discharge. Condenser air inlet, located on the coil side of the unit, requires sufficient airflow clearance for the optimum unit performance.
  • Note the conditioned supply air and return air location. Ensure sufficient spaces are allocated for these purposes.
• For the connection and location of condensate drain in the unit, refer to the drawings and dimensions section of this manual.
• Wiring connections must be in accordance with the wiring diagram provided with the unit.
  • Make sure all wirings are in accordance with local electricity authority regulations and standards.
• Do not install the unit close to an area where there is a danger of fire due to volatile, explosive, flammable and/or hazardous materials.
• Ensure that spaces around the unit are free from any obstructions for optimum unit performance.
• Installer to ensure correct size/type that main circuit breaker and cable is installed in unit sub-mains to protect the sub-mains and unit wiring.
• Installer to ensure correctly rated residual current device (RCD) is installed as per AS/NZS 3000:2018 (also known as Australian Wiring Rules).
• Secure the power cords and control cables that goes in/out the unit. Use the cable ties provided in the control box.

IMPORTANT

This outdoor unit is designed to match only with ActronAir indoor unit as specified in the Technical Selection Catalogue. This unit is designed for use with R-410A refrigerant only.

The unit is supplied with factory charged R-410A refrigerant. Be aware of all the relevant regulations concerning the handling of refrigerant.

05. Operation Manual Access

05.01. Download from website

Operation manuals can be downloaded through our website shown below.

https://www.actronair.com.au/brochures-manuals/#operating-manuals

05.02. Near Filed Communication (NFC) Tag

LC7-2 is NFC capable that allows the users to view and download the operation manual. There are a wide variety of NFC reader Apps, below is an example of one App that can be used.

05.02.01. iOS Users

NOTE

Images may vary from those shown below.

1. Go to App Store and download NFC Reader for iPhone.

NFC Reader for iPhone

Scan NFC NDEF Tags

GET

1. Open NFC App. Read through NFC App Information and Click on Let's get started.

1. Place the mobile device close to NFC Tag on the controller. Follow the instructions on App.

1. Once the tag has successfully scanned the image below will appear.

1. A pop-up window will appear to redirect you to https://www.actronair.com.au/nfc

1. List of Controller Models will appear on the screen of your mobile device. Select the model number of your controller to view the operation manual.

NOTE

The Model number of your controller can be found underneath the Power On/Off button of the controller.

05.02.02. Android Users

NOTE

Images may vary from those shown below.

1. Go to Settings and look for NFC and payment. Tap ON to activate NFC.

1. Tap Android Beam

1. Follow the on-screen instructions.

1. Once successfully scanned, a pop-up window will appear to redirect you to external website. https://www.actronair.com.au/nfc

2. List of Controller Models will appear on the screen of your mobile device. Select the model number of your controller to view the operation manual.

NOTE

The Model number of your controller can be found underneath the Power On/Off button of the controller.

06. Components Overview

07. Control Panel

07.01. Single Phase (10-17kW)

07.02. Three Phase (13-23 kW)

07.03. Three Phase - Soft Starter Option (13-23 kW)

08. Unit Dimensions and Clearances

08.01. CRA100S

OVERALL NOMINAL DIMENSION (H X W X L) = 940 X 1245 X 535

PLEASE NOTE THAT UNDER ALL CIRCUMSTANCES, CONDENSER AIR MUST NOT RECIRCULATE BACK ONTO CONDENSER COIL. KEEP ALL CLEARANCES FREE OF ANY OBSTRUCTIONS

UNIT MODEL NUMBER	UNIT WEIGHT (kg)	CORNER WEIGHTS (kg)
		A	B C D
CRA100S 119		8.0 39.0	27.0 45.0

MINIMUM SERVICE ACCESS AREAS AND AIRFLOW CLEARANCES

NOTES:

1. Do not scale drawing. All dimensions are in mm unless specified. Refer to corresponding unit dimensional drawing for mounting hole details.
2. Service Access Areas and Spaces for Airflow Clearances given above are suggested minimum based on the condition that the spaces around the units are free from any obstructions and a walkway passage of 1000mm between the units or between the unit and the outside perimeter is available.
3. Minimum service access areas and spaces for airflow clearances are responsibilities of the installer, ActronAir will not be held liable for any extra charges incurred due to lack of access and space for airflow.
4. Under all circumstances, condenser air must not recirculate back onto condenser coil. Keep all clearance free of any obstructions.
5. Maximum External Static of Outdoor Fans is 5 Pa.
6. STACKING OF UNITS: Ensure that minimum airflow and clearances are met.
7. Refer to pipe Connection Details on Specifications Sheet.
8. MTG C-C DIST = Mounting Centre to Centre Distance.
9. Use M12 bolt for feet mounting.

08.02. CRA130S / CRA130T / CCA130S

OVERALL NOMINAL DIMENSION

(HXWXL)

= 990 × 1320 × 580

PLEASE NOTE THAT UNDER ALL CIRCUMSTANCES, CONDENSER AIR MUST NOT RECIRCULATE BACK ONTO CONDENSER COIL. KEEP ALL CLEARANCES FREE OF ANY OBSTRUCTIONS

FRONT VIEW

UNIT MODEL NUMBER	UNIT WEIGHT (kg)	CORNER WEIGHTS (kg)
		A	B C D
CRA130S / CCA130S 135		9.9 44.3	28.6 52.2
CRA130T 133		9.9 43.8	28.1 51.2

MINIMUM SERVICE ACCESS AREAS AND AIRFLOW CLEARANCES

NOTES:

1. Do not scale drawing. All dimensions are in mm unless specified. Refer to corresponding unit dimensional drawing for mounting hole details.
2. Service Access Areas and Spaces for Airflow Clearances given above are suggested minimum based on the condition that the spaces around the units are free from any obstructions and a walkway passage of 1000mm between the units or between the unit and the outside perimeter is available.
3. Minimum service access areas and spaces for airflow clearances are responsibilities of the installer, ActronAir will not be held liable for any extra charges incurred due to lack of access and space for airflow.
4. Under all circumstances, condenser air must not recirculate back onto condenser coil. Keep all clearance free of any obstructions.
5. Maximum External Static of Outdoor Fans is 5 Pa.
6. STACKING OF UNITS: Ensure that minimum airflow and clearances are met.
7. Refer to pipe Connection Details on Specifications Sheet.
8. MTG C-C DIST = Mounting Centre to Centre Distance.
9. Use M12 bolt for feet mounting.

08.03. CRA150S / CRA150T / CCA150S

OVERALL NOMINAL DIMENSION (HXWXL)

=990×1320×580

PLEASE NOTE THAT UNDER ALL CIRCUMSTANCES, CONDENSER AIR MUST NOT RECIRCULATE BACK ONTO CONDENSER COIL. KEEP ALL CLEARANCES FREE OF ANY OBSTRUCTIONS

FRONT VIEW

UNIT MODEL NUMBER	UNIT WEIGHT (kg)	CORNER WEIGHTS (kg)
		A B C	D
CRA150S / CCA150S 136		9.9 44.7	28.8 52.6
CRA150T 135		10.0 44.5	28.5 52.0

MINIMUM SERVICE ACCESS AREAS AND AIRFLOW CLEARANCES

NOTES:

1. Do not scale drawing. All dimensions are in mm unless specified. Refer to corresponding unit dimensional drawing for mounting hole details.
2. Service Access Areas and Spaces for Airflow Clearances given above are suggested minimum based on the condition that the spaces around the units are free from any obstructions and a walkway passage of 1000mm between the units or between the unit and the outside perimeter is available.
3. Minimum service access areas and spaces for airflow clearances are responsibilities of the installer, ActronAir will not be held liable for any extra charges incurred due to lack of access and space for airflow.
4. Under all circumstances, condenser air must not recirculate back onto condenser coil. Keep all clearance free of any obstructions.
5. Maximum External Static of Outdoor Fans is 5 Pa.
6. STACKING OF UNITS: Ensure that minimum airflow and clearances are met.
7. Refer to pipe Connection Details on Specifications Sheet.
8. MTG C-C DIST = Mounting Centre to Centre Distance.
9. Use M12 bolt for feet mounting.

08.04. CRA170S / CRA170T CCA170S / CCA170T

OVERALL NOMINAL DIMENSION (HXWXL)

=1045×1460×580

PLEASE NOTE THAT UNDER ALL CIRCUMSTANCES, CONDENSER AIR MUST NOT RECIRCULATE BACK ONTO CONDENSER COIL. KEEP ALL CLEARANCES FREE OF ANY OBSTRUCTIONS

FRONT VIEW

UNIT MODEL NUMBER	UNIT WEIGHT (kg)	CORNER WEIGHTS (kg)
		A B C D
CRA170S / CCA170S	176	11.1	71.4	34.7	58.8
CRA170T / CCA170T	174	10.9	70.6	34.3	58.2

MINIMUM SERVICE ACCESS AREAS AND AIRFLOW CLEARANCES

NOTES:

1. Do not scale drawing. All dimensions are in mm unless specified. Refer to corresponding unit dimensional drawing for mounting hole details.
2. Service Access Areas and Spaces for Airflow Clearances given above are suggested minimum based on the condition that the spaces around the units are free from any obstructions and a walkway passage of 1000mm between the units or between the unit and the outside perimeter is available.
3. Minimum service access areas and spaces for airflow clearances are responsibilities of the installer, ActronAir will not be held liable for any extra charges incurred due to lack of access and space for airflow.
4. Under all circumstances, condenser air must not recirculate back onto condenser coil. Keep all clearance free of any obstructions.
5. Maximum External Static of Outdoor Fans is 5 Pa.
6. STACKING OF UNITS: Ensure that minimum airflow and clearances are met.
7. Refer to pipe Connection Details on Specifications Sheet.
8. MTG C-C DIST = Mounting Centre to Centre Distance.
9. Use M12 bolt for feet mounting.

Installation and Commissioning Guide

Split Ducted Outdoor Units

08.05. CRA200T / CCA200T

OVERALL NOMINAL DIMENSION (H X W X L)

=1045×1460×580

PLEASE NOTE THAT UNDER ALL CIRCUMSTANCES, CONDENSER AIR MUST NOT RECIRCULATE BACK ONTO CONDENSER COIL. KEEP ALL CLEARANCES FREE OF ANY OBSTRUCTIONS

FRONT VIEW

UNIT MODEL NUMBER	UNIT WEIGHT (kg)	CORNER WEIGHTS (kg)
		A B C D
CRA200T / CCA200T	185	11.5	75.0	36.5	62.0

MINIMUM SERVICE ACCESS AREAS AND AIRFLOW CLEARANCES

NOTES:

1. Do not scale drawing. All dimensions are in mm unless specified. Refer to corresponding unit dimensional drawing for mounting hole details.
2. Service Access Areas and Spaces for Airflow Clearances given above are suggested minimum based on the condition that the spaces around the units are free from any obstructions and a walkway passage of 1000mm between the units or between the unit and the outside perimeter is available.
3. Minimum service access areas and spaces for airflow clearances are responsibilities of the installer, ActronAir will not be held liable for any extra charges incurred due to lack of access and space for airflow.
4. Under all circumstances, condenser air must not recirculate back onto condenser coil. Keep all clearance free of any obstructions.
5. Maximum External Static of Outdoor Fans is 5 Pa.
6. STACKING OF UNITS: Ensure that minimum airflow and clearances are met.
7. Refer to pipe Connection Details on Specifications Sheet.
8. MTG C-C DIST = Mounting Centre to Centre Distance.
9. Use M12 bolt for feet mounting.

08.06. CRA230T / CCA230T

OVERALL NOMINAL DIMENSION (H X W X L)

=1105×1685×685

PLEASE NOTE THAT UNDER ALL CIRCUMSTANCES, CONDENSER AIR MUST NOT RECIRCULATE BACK ONTO CONDENSER COIL. KEEP ALL CLEARANCES FREE OF ANY OBSTRUCTIONS

FRONT VIEW

UNIT MODEL NUMBER	UNIT WEIGHT (kg)	WEIGHT DISTRIBUTION (kg)
		A B C	D LM RM
CRA230T / CCA230T	200	17.9	63.4	26.8	73.2	7.1	11.6

MINIMUM SERVICE ACCESS AREAS AND AIRFLOW CLEARANCES

NOTES:

1. Do not scale drawing. All dimensions are in mm unless specified. Refer to corresponding unit dimensional drawing for mounting hole details.
2. Service Access Areas and Spaces for Airflow Clearances given above are suggested minimum based on the condition that the spaces around the units are free from any obstructions and a walkway passage of 1000mm between the units or between the unit and the outside perimeter is available.
3. Minimum service access areas and spaces for airflow clearances are responsibilities of the installer, ActronAir will not be held liable for any extra charges incurred due to lack of access and space for airflow.
4. Under all circumstances, condenser air must not recirculate back onto condenser coil. Keep all clearance free of any obstructions.
5. Maximum External Static of Outdoor Fans is 5 Pa.
6. STACKING OF UNITS: Ensure that minimum airflow and clearances are met.
7. Refer to pipe Connection Details on Specifications Sheet.
8. MTG C-C DIST = Mounting Centre to Centre Distance.
9. Use M12 bolt for feet mounting.

09. Unit Lifting Procedure

WARNING

WH&S regulations must be observed and will take precedence during lifting process.

Crane Lifting Method

Crane lifting method is recommended for high rise lifting.

Fig. 1

Equipment Required For Crane Lifting:

• 1 Shackle
• 2 x Nylon Slings
• Spreader bars

Refer to catalogue for unit weight before selecting shackles and slings.

NOTE

Refer to Unit Dimensions and Clearances section for unit weight before selecting shackle and slings.

Procedure:

1. Slip nylon slings through the pallet as shown in Fig. 1.
2. Use a Bow or Dee shackle to connect the slings.
3. Ensure slings are protected by rubber pads or similar if slings are draped across unit edges, corners, or air grilles. This will prevent the unit from being damaged during lifting.
4. SPREADER BARS must be used when lifting the unit.
5. Test lift the unit to determine exact unit balance and stability before hoisting it to the installation location.

Fork Lift Method

DANGER

Make sure rigging equipment, accessories and plant are sufficiently and safely capable to lift the unit in order to prevent potential damage to property, severe personal injury or death. Please check unit weight and weight distribution points as shown in the unit drawing dimensions section.

Procedure:

1. To move the unit around with a forklift, insert the fork tines through the pallet, as shown in Fig. 2.
2. Only fork the unit through compressor end or side of the unit. (See illustration for location of compressor end)

FIG.2
* Side pallet tine openings may not be available on some models

CAUTION

Length of fork lift tines must pass the unit middle section, in order to safely carry the unit.

10. Outdoor Unit Preparation

1. Remove mounting screws, as shown below:


2. Remove Access Panel.

• Remove Access Panel-Electrical as illustrated below:


3. Install Interconnecting Field Pipes

• Braze refrigeration piping. Refer to Section 10 for details of field pipe sizes and piping installation procedure.


Technical line drawing of an industrial cooling unit with fan and internal components (no text or labels)

WARNING

• There is an earth cable attached to the access panel. This must be disconnected first to fully remove the access panel.
• You must re-connect the earth cable when re-assembling the access panel.

11. Field Pipe Connection

11.01. Piping and Brazing

CAUTION

The units described in this guide use R-410A refrigerant

R-410A operates at a pressure approximately 1.6 times higher than similar systems using R22. When installing equipment using R-410A refrigerant, there are number of standards that must be met:

• The system of this unit operates with Polyolester (POE) oil that rapidly absorbs moisture.
• The maximum time any system can be opened to atmosphere is 15 minutes.
• It is important to work with absolute cleanliness.
• Brazing must be done with the use of Nitrogen to avoid carbon deposits into the pipes.
• The system must be evacuated thoroughly to 500 microns (see evacuation procedure).
• The system must always be charged with R-410A refrigerant in liquid state.
• Never allow R-410A refrigerant to vent into the atmosphere. It is an offence to release refrigerant in Australia.
  • Always reclaim refrigerant using equipment and container dedicated for R-410A system use only.
• Only qualified technicians are allowed to perform any work described in this guide.
• All work must be carried out in accordance with Australia and New Zealand refrigerant handling code of practice.

Maximum allowable total equivalent field pipe length is 60 metres, see diagram below. This includes all the equivalent pipe fitting loses and vertical height difference. Vertical height difference must not exceed 20 metres. Table 1 below shows the equivalent straight pipe length of elbow fittings.

TABLE 1: EQUIVALENT STRAIGHT PIPE LENGTH OF ELBOW FITTINGS (METRES)
Pipe size Nominal Diameter	90° Long Radius Elbow	90° Short Radius Elbow	45° Long Radius Elbow	45° Short Radius Elbow
9.52 (3/8")	0.24 0.36 0.09	0.14
15.88 (5/8")	0.30 0.45 0.15	0.23
19.05 (3/4")	0.40 0.60 0.18	0.27
22.22 (7/8")	0.46 0.69 0.21	0.32
25.4 (1")	0.52 0.78 0.24	0.36
28.58 (1-1/8")	0.55 0.83 0.27	0.41

Selected field pipe sizes must match the recommended sizes in table above. If the installation requires different field pipe diameter due to different application condition other than recommended, contact ActronAir for advice.

Most of unit pipe connections are factory swaged to easily fit to the recommended field pipe diameter.

When it is required to install other refrigeration devices, such as refrigerant drier, solenoid valve and the like, include the equivalent straight pipe length of the device in the calculation of total equivalent field pipe length.

Both pipes are required to be insulated.

Example of Total Equivalent Field Pipe Length Calculations

TABLE 2: REFRIGERATION PIPING - SINGLE PHASE
Reverse Cycle (Outdoor / Indoor)		CRA100S / EVA100S	CRA130S / EVA130S	CRA150S / EVA150S	CRA170S / EVA170S
Add On Cooling (Outdoor / Indoor) -			CCA130S / EAA130S	CCA150S / EAA150S	CCA170S / EAA170S
Max. Equivalent Pipe Length Range metres 0 - 60 0 - 60 0 - 60 0 - 60
Max. Vertical Height Differential ^(1)	metres 20 20 20 20 20
Field Pipe Size
Liquid Line mm (inch) 3/8 (9.52) 3/8 (9.52) 3/8 (9.52) 3/8 (9.52) 3/8 (9.52) 3/8 (9.52)
Gas Line	mm (inch)	5/8 (15.88)	3/4 (19.05)	3/4 (19.05)	3/4 (19.05)
Outdoor Pipe Size
Liquid Line mm (inch)		3/8 (9.52) swaged	3/8 (9.52) swaged	3/8 (9.52) swaged	3/8 (9.52) swaged
Gas Line mm (inch)		3/4 (19.05) swaged ^(2)	3/4 (19.05) swaged	3/4 (19.05) swaged	3/4 (19.05) swaged
Indoor Pipe Size
Liquid Line	mm (inch)	3/8 (9.52) swaged	3/8 (9.52) swaged	3/8 (9.52) swaged	3/8 (9.52) swaged
Gas Line	mm (inch)	5/8 (15.88) swaged	3/4 (19.05) swaged	3/4 (19.05) swaged	3/4 (19.05) swaged

NOTES

(1) Included in maximum field pipe length.

(2) Cut Swaged End in the field to fit field pipe.

TABLE 3: REFRIGERATION PIPING - THREE PHASE
Reverse Cycle (Outdoor / Indoor)		CRA130T / EVA130S	CRA150T / EVA150S	CRA170T / EVA170S	CRA200T / EVA200S	CRA230T / EVA230S
Add On Cooling (Outdoor / Indoor)		-	-	CCA170T / EAA170S	CCA200T / EAA200S	CCA230T / EAA230S
Max. Equivalent Pipe Length Range	metres	0 - 60	0 - 60	0 - 60	0 - 60	0 - 60
Max. Vertical Height Differential (1)	metres	20	20	20	20	20
Field Pipe Size
Liquid Line	mm (inch)	3/8 (9.52)	3/8 (9.52)	3/8 (9.52)	1/2 (12.7) (2)	1/2 (12.7)
Gas Line	mm (inch)	3/4 (19.05)	3/4 (19.05)	3/4 (19.05)	7/8 (22.22)	1 (25.4)
Outdoor Pipe Size
Liquid Line	mm (inch)	3/8 (9.52) swaged	3/8 (9.52) swaged	3/8 (9.52) swaged	3/8 (9.52) swaged (3)	1/2 (12.7) swaged
Gas Line	mm (inch)	3/4 (19.05) swaged	3/4 (19.05) swaged	3/4 (19.05) swaged	7/8 (22.22) swaged	1-1/8 (28.6) ID to fit field pipe
Indoor Pipe Size
Liquid Line	mm (inch)	3/8 (9.52) swaged	3/8 (9.52) swaged	3/8 (9.52) swaged	3/8 (9.52) swaged (3)	1/2 (12.7) swaged
Gas Line	mm (inch)	3/4 (19.52) swaged	3/4 (19.05) swaged	3/4 (19.05) swaged	7/8 (22.22) swaged	1 (25.4) swaged in field to fit 1 (25.4)

NOTES

(1) Included in maximum field pipe length.

(2) For pipe runs 0-20m 3/8" must be used.

(3) Cut Swaged End in the field to fit field pipe.

CAUTION

Brazed joints should only be made while purging Nitrogen through the system.

Failure to do so will cause carbon deposit to be left on the internal pipe surface, that in turn can cause system failure and void of warranty.

Installing interconnecting pipe work to indoor, nitrogen bleed procedure (First fit or rough in stage only)

1. Run interconnecting pipe work from condenser location to evaporator.
2. Release pressure in evaporator and remove caps.
3. Fit copper tube into tail, set nitro bottle and regulator up at condenser end of pipe work.
4. Fit nitrogen line into liquid line with rubber bung to seal the connection. The seal will prevent air being sucked into pipe work.
5. Leave suction line open, set nitro regulator for nitrogen to flow through pipe work at 2 l/s flow rate @20kPa.
6. Braze required joints as quick as possible. See Diagram Above.

Installing interconnecting pipe work to outdoor, nitrogen bleed procedure (First fit or rough in stage only)

1. Starting with circuit 1 system, remove piping caps from the condenser and fit pipe work into tails.
2. Fit nitro hose onto suction ball valve and fit open hose onto liquid line post valve.
3. Set nitrogen regulator to 2 l/s flow rate through pipe work and evaporator.
4. Braze remaining joints as quick as possible.
5. Allow the brazed joints to cool and conduct leak test in the connections.

11.02. Pressure Testing

Pressurize the system to 2500kPa in stages. A recommended pressure test is to be performed for no less than 1 hour at 2500kPa.

IMPORTANT

Importance of Evacuation:

• Any non-condensable product left in the system can cause the pressure in the high side of the system to increase and in turn, the compression temperature to rise.
• Moisture will result in adverse reaction in the refrigerant circuit.
• The POE oil used in the R-410A compressor is hygroscopic, which means that it absorbs moisture from the air. To prevent chemical reactions in the system, any moisture must be removed at all costs.
• Oxygen (air) reacts with the compressor oil and can lead to faults such as compressor failure.

See Diagram Below:

11.03. Evacuation Procedure (Triple Evacuation)

1. Fit service gauges to the ball valves (liquid line service valve and suction line service valve).
2. Evacuate the system to 1000 microns.
3. Check vacuum with vacu stat. Break the vacuum with dry Nitrogen to 100kPa
4. Release Nitrogen pressure. Evacuate to 500 microns.
5. Check vacuum with vacu stat. Break the vacuum with dry Nitrogen to 100kPa
6. Release Nitrogen pressure. Evacuate to 500 microns.
7. Check vacuum with vacu stat.
8. Open valve.

Installation and Commissioning Guide

Split Ducted Outdoor Units

12. Electrical Installation

All electrical work must be carried out by a qualified technician. Make sure all wiring is in accordance with local wiring rules. Wiring connections should be made in accordance with the wiring diagram provided.

DANGER

Live Electrical Supply!

During installation of your air conditioning unit, it may be necessary to work in close proximity to live electricity. Only qualified technicians are allowed to perform these tasks.

Follow all electrical safety precautions when exposed to live electrical components.

Wiring Diagram

The wiring diagrams specific for your air conditioning system are located on the inside panel of the control access door. Always refer all wiring installation, servicing and troubleshooting of this equipment to this diagram to ensure correct electrical connections are satisfied.

Supply and Power Requirements Procedure

It is the installer's responsibility to provide power supply wiring to the mains supply terminal strip of the outdoor unit. Make sure all wiring are in accordance with local wiring rules. Wiring should conform to the current electrical authority regulations and all wiring connections to be as per electrical diagram provided with the unit.

• Confirm that the power supply available is compatible with the unit nameplate ratings. The supply power must be 230V/400VAC(+/- 6%)/50Hz.
• Protect electrical service from over current and short circuit conditions in accordance with AS/NZS 3000 "Australian / New Zealand Wiring Rules". Size protection devices according to the electrical data of the unit.
  • Installer to connect an appropriate load break (AC3) isolator in sub mains wiring.
• Secure any power and control cables that enters in/exits out of the unit. Use the cable ties provided in the main electrical panel.

Provide proper unit earth in accordance with local and national codes.

Compressor Voltage Balance Requirement

Check the voltage at the compressor terminals to determine if it is balanced. Voltage imbalance on three phase systems can cause motor overheating and premature failure. The maximum allowable imbalance is +2.0% should voltage imbalance exceed this value, check unit wiring connections to locate and rectify faults or contact local supply authority.

12.01. Split Unit Electrical Connection

IMPORTANT

To minimise noise interference, Data and Power cable clearance should be maintained as much as possible.

DETAILED WIRING DIAGRAM IS PROVIDED WITH THE UNIT.

Outdoor Unit: Located at the back of electrical/compressor access panel. Indoor Unit: Located at the back of electrical box cover.

① MAINS WIRING (230VAC)
(Single Phase + Neutral + Earth) 50Hz
(Three Phase + Neutral + Earth) 50Hz
—② CONTROL WIRING (230VAC)
(Single Phase + Neutral + Earth) 50Hz
③ DATA CABLE TO WALL CONTROLLER
(Cat5e UTP (AWG 24) Data Cable)
----④ EXTRA LOW VOLTAGE DATA CONTROL WIRING
(2 Core Shielded Twisted Pair 7/0.30 (0.5mm²) Data Cable)

Circuit Breaker Size and Cable Size Requirement
Model	Circuit Breaker Size	Cable Size * (mm2)
	Amps MAIN O.D. to I.D.
CRA100S / EVA100S	25.0 4.0 1.0
CRA130S / EVA130S / EFA130SCCA130S / EVA130S / EFA130S	32.0 6.0 1.0
CRA150S / EVA150S / EFA150SCCA150S / EVA150S / EFA150S	32.0 6.0 1.0
CRA170S / EVA170S / EFA170SCCA170S / EVA170S / EFA170S	40.0 10.0 1.0
CRA130T / EVA130S / EFA130S	16.0 2.5 1.0
CRA150T / EVA150S / EFA150S	20.0 2.5 1.0
CRA170T/ EVA170S / EFA170SCCA170T / EVA170S / EFA170S	20.0 2.5 1.0
CRA200T / EVA200S / EFA200SCCA200T / EVA200S / EFA200S	20.0 2.5 1.0
CRA230T / EVA230S / EFA230SCCA230T / EVA230S / EFA230S	25.0 4.0 1.0

* Suggested Minimum Cable Size should be used as a guide only, refer to AS/NZS 3000 “Australian / New Zealand Wiring Rules” for more details.

13. Maximum Cable Lengths

13.01. Wiring Configuration : Recommended

NOTES

• Diagram shown above is a general representation only. Refer to individual unit wiring diagram for complete wiring connection details.
• Long runs beside Mains cables or TV antenna cables should be avoided where possible.

Item Description Maximum Cable Length
1 to 4 Outdoor PCB to Indoor PCB 100 m
4 to 2a, 4 to 2b, 4 to 2c Indoor PCB to Wall Controller 100 m (per controller)
4 to 3 Indoor PCB to Remote Sensor 100 m

Description	Cable Type
LR7 Field Control Wiring	Cat5e UTP (AWG 24) Data Cable
Indoor to Remote Sensor	Cat5e UTP (AWG 24) Data Cable
Indoor to Outdoor Data Cable	RS485/2 Core (1 Pair) Twisted Pair, 7/0.30 (0.5mm ^2 ) Shielded Data Cable

13.02. Wiring Configuration : Alternate

NOTES

• Diagram shown below is a general representation only. Refer to individual unit wiring diagram for complete wiring connection details.
• Long runs beside Mains cables or TV antenna cables should be avoided where possible.

Item Description	Maximum Cable Length
1 to 4 Outdoor	PCB to Indoor PCB 100 m
4 to 2a Indoor	PCB to Wall Controller 1 100 m
4 to 2c Indoor	PCB to Wall Controller 3 (last controller) 75m total (Daisy Chain)**
4 to 3 Indoor	PCB to Remote Sensor 100 m

** Maximum Daisy Chain connection is up to 2 wall Controllers.

Description	Cable Type
LR7 Field Control Wiring	Cat5e UTP (AWG 24) Data Cable
Indoor to Remote Sensor	Cat5e UTP (AWG 24) Data Cable
Indoor to Outdoor Data Cable	RS485/2 Core (1 Pair) Twisted Pair, 7/0.30 (0.5mm2) Shielded Data Cable

14. Cable Length - Zoning

NOTES

• Diagram shown is a general presentation only.
• Refer to individual unit wiring diagram for complete wiring connection details.

Item Description Maximum Cable Length * ^
1 to 2 Indoor PCB to Zone Barrels 100m
1 to 4 Maximum Cumulative Cable Length** (per zone - 8 zone) 100m
3 to 4 Zone Barrel 6 to Zone Barrel 7*** (Piggy Back) 95m

\* Suggested Maximum Cable Length

Long runs beside Mains cables or TV antenna cables should be avoided where possible.

** Maximum Cumulative Cable Length per individual zone must not exceed 100 m per zone.
1 to 4 (Optional 4 Zones Piggy-Back Configuration), if 1 to 3 is 75m, then 3 to 4 must be 25m to make a total of 100m.

*** Recommended maximum cable length, providing total of preceding cable connections are only 5m.

^ Total Cumulative length of all the aggregate cable must not exceed 500 meters. Consult ActronAir for longer cable length requirement.

^^ 10 Zone Barrels are allowed and a maximum of 4 Zone Barrels are allowed per individual zone.

15. Wiring Connections

15.01. LR7 Wall Control Wiring Connections

15.02. LM-RS-2 Optional Sensor Wiring Connections

15.03. AERSS Optional Duct Sensor Wiring Connections

Installation and Commissioning Guide

15.04. Demand Response Management

These products are compliant to AS/NZS 4755.3.1

	ODU CPU BOARD
DRM Control Inputs	+12V/COM	DEMAND RESPONSE MANAGEMENT
	DRM 3/COMP
	DRM 2/FAN
	DRM 1/HEAT

1. Thread & Route DRM input cables into the Unit (as per previous wiring installation procedure)
2. Connect cables into terminals (as shown above and as per wiring diagram provided with the unit).

Demand Management Mode	Description Of Mode Allowable Range (%)	Operating Mode
DRM1 Compressor Off Mode		Compressor ONLY will cycle Off & remain Off for the entire Demand Response event. All other functions will operate as normal (i.e. Indoor Fan)
DRM2	Maximum 50% power use mode with 0 to <50% allowable power use range	Compressor 0 to <50% operation range for the total Demand Response event.
DRM3	Maximum 75% power use mode with 0 to <75% allowable power use range	Compressor 0 to <75% operation range for the total Demand Response event.
DRED VOLTAGE FREE CONTACTS	ODU CPU BOARD
	+12V/COM
	DRM 3/COMP	NOTE
	DRM 2/FAN	Demand Response Management is not applicable when using third party control
	DRM 1/HEAT
DEMAND RESPONSE ENABLING DEVICE (DRED)	DEMAND RESPONSE
AS4755 COMPLIANT DEVICE (OPTIONAL)	MANAGEMENT

DEMAND RESPONSE ENABLING DEVICE CIRCUIT DIAGRAM

16. Control Source Configuration (CtrS)

dis(Display)	Display system's status and settings
SEr(Service)	Service use only
SEt(Settings)	CoPS	Compressor Type and Capacity:F = Fixed Speed - (kW capacity) (default)d = Digital - (kW capacity)I = Inverter - (kW capacity)
	CtrS	Control Source:0 = 3rd Party1 = Wall Controller (default)2 = Basic BMS3 = Wall Controller + Basic BMS4 = Advanced BMS5 = Add-on Cooling
	bAud	IDU-ODU Baud Rate:4800 = AMIB9600 = InZone/CMIB (default)

MENU

Scroll through the items at the same menu level.

Increment the value being set.

ENTER

Go into the selected menu.

Lock in selected value.

BACK

Go back to the parent menu.

Press and hold to go back to main

menu

Configurable settings are as follows:

3rd Party Control

The unit can be controlled by non-ActronAir wall controller. To do this, CtrS on the Outdoor Board must be set to 0. For connection details, see the wiring diagram supplied with the outdoor unit.

Wall Controller

ActronAir offers LR7, a wall controller that can control the available features and maximise the function and operation of the ActronAir airconditioner. To do this, CtrS on the Outdoor Board has to be set to 1.

Basic BMS

The unit can be connected to a network through a BMS card (ICUNO-MOD). This allows the unit to be operated in the same way the as the LR7 does. To do this, CtrS on the Outdoor Board has to be set to 2.

Wall Controller + Basic BMS

The unit can be connected to a network (Basic BMS) and at the same time be controlled using the LR7 controller. Priority will be given to the most recent command. To do this, CtrS on the Outdoor Board has to be set to 3.

Advanced BMS

The unit can be connected for system that requires customised functions not included in the existing software or logic in the Outdoor Board Controller but still retaining the safety logic. To do this, CtrS on the Outdoor Board has to be set to 4.

Add On Cooling

ActronAir offers Add On Cooling models. This control source allows connection to an additional third-party heating system. To do this, CtrS on the Outdoor Board has to be set to 5.

17. Third Party Control Input (InZone Board and/or Outdoor Board)

This option allows Fan, Compressor and Reversing Valve to be controlled by a 3rd Party Controller. There are two ways on how the Indoor Fan may be controlled, using 0-10V Analogue Input (InZone) or Fixed Indoor Fan Speed (UNOJR).

NOTE

Demand Response Management is not applicable when using third party control.

17.01. Third Party Control Input (Single Speed Fan Operation)

1. Wire third party inputs as per below diagram

1. On the Outdoor Board, set Control Source to 3rd Party. Using the MENU and the ENTER Buttons, navigate to SET (Settings)→CtrS (Control Source).
2. Use the MENU Button to navigate to 0 to select third Party Control as the control source. Press the ENTER Button to save the setting.
3. If single speed fan setting (medium speed setting) requires changing, using the MENU and the ENTER Buttons, navigate to SET (Settings) → iduS (Indoor Settings) → FP2

17.02. Third Party Control Input (Variable Speed Fan Operation)

1. Wire third party inputs as per below diagram
    subgraph_ODU_CPU_BOARD["ODU CPU BOARD"]
        A["+12V/COM"] --> B["DRM 3/COMP"]
        C["DRM 2/FAN"] --> D["DRM 1/HEAT"]
    end
    subgraph_IDU_CPU_BOARD["IDU CPU BOARD"]
        E["0-10VDC"] --> F["COM"]
        G["ID FAN INPUT"] --> H["0-10VDC"]
        I["AUX IN"] --> J["0-10V COM"]
    end

1. On the Outdoor Board, set Control Source to 3rd Party. Using the MENU and the ENTER Buttons, navigate to SET (Settings)→CtrS (Control Source).

2. Use the MENU Button to navigate to 0 to select third Party Control as the control source. Press the ENTER Button to save the setting.

NOTES

• 0-10V Fan Operation will operate between LOW, PWM and HIGH PWM.
• If Compressor operation is requested and no fan operation request is detected, Indoor Fan operation will default to MED PWM (Single Speed Fan Operation).

17.03. Run and Fault Indication Output (Outdoor Board)

To activate, the unit must be wired as illustrated below. If required, a fault output connection terminal is also available to show any error/fault with the a/c system. RUN/FAULT relay outputs (230VAC/5A MAX) connection

Run Output is configurable to indicate that the unit is running. There are two configurations in which this can be set:

• Either the compressor or the Indoor Fan only is running
• Only Compressor is running.

By default, this is set to no, where indicator will turn on when either on ID Fan Only Operation mode or Compressor is running. To set up to compressor run indication only, in OD Board Menu follow below steps.

1. Using the MENU and the ENTER Buttons, navigate to SEt (Settings) →run (Unit Operation Indicator Settings).
2. If required, press MENU to navigate to YES.

17.04. Remote On/Off

Turning the system On and Off by remote method
Turning the system On	Status 1: The system is Off and the remote switch/relay has been left in the open position.1. Close remote switch/relay.2. System will start in approximately 1 minute.
	Status 2: The system is Off and the remote switch/relay has been left in the closed position.1. Open remote switch/relay for a minimum of 5 seconds.2. Close remote switch/relay.3. System will start in approximately 30 seconds.
Turning the system Off	Status 3: The system is On and the remote switch/relay has been left in the closed position.1. Open remote switch/relay.2. System will turn Off in approximately 1 minute.
	Status 4: The system is On and the remote switch/relay has been left in the open position.1. Close remote switch/relay for a minimum of 5 seconds.2. Open remote switch/relay.3. System will turn Off in approximately 30 seconds.

18. Indoor Fan Commissioning via Third Party Control

NOTES:
W = Indoor Fan Power, Watts
PWM = Pulse Width Modulation Setting, % PWM
Default PWM Setting = 43% PWM (Medium Speed)

18.02. EVA130S / EFA130S

AIRFLOW (l/s)	EXTERNAL STATIC PRESSURE (Pa)
	50 75 100 % PWM W % PWM	125 150 175 200 W % PWM W % P	WM W % PWM W	% PWM W			% PWM W
520 50 233 53 265 56 299 61 337				53 254 57 288	61 324 64 358
525 51 231 54 267 57 302 62 344
550 MOTOR / BLOWER LIMIT			50 222
575 53 239 56 272 60 306 63 342 68 380
600		52 225	56 258 59 294	63 330 67 365 71	404
625	51 207	55 242 59 278	62 314 66 351 70	388 74 421
650	54 227 58 262	62 300 66 335 70	375 74 423 79 454
675	57 244 61 282	65 321 69 360 73	400 78 442 83 491
700	60 267 65 305	69 343 73 385 77	428			82 472 87 522
725	64 290 68 328	72 370 77 415 81	454 86 500				92 563
750	68 316 72 354	76 398 81 443 85	488 90 534
775	71 337 75 382	81 429 85 476 90	525 94 572				MOTOR / BLOWER LIMIT
780	72 346 77 390	82 438 86 483 91	532 95 576

NOTES:
W = Indoor Fan Power, Watts
PWM = Pulse Width Modulation Setting, % PWM
Default PWM Setting = 60% PWM (Medium Speed)

NOTES:
W = Indoor Fan Power, Watts
PWM = Pulse Width Modulation Setting, % PWM
Default PWM Setting = 75% PWM (Medium Speed)

W = Indoor Fan Power, Watts

PWM = Pulse Width Modulation Setting, % PWM

Default PWM Setting = 90% PWM (Medium Speed)

NOTES:
W = Indoor Fan Power, Watts
PWM = Pulse Width Modulation Setting, % PWM
Default PWM Setting = 67% PWM (Medium Speed)

NOTES:
W = Indoor Fan Power, Watts
PWM = Pulse Width Modulation Setting, % PWM
Default PWM Setting = 77% PWM (Medium Speed)

19. Refrigerant Charging

• The units detailed on this guide are pre-charged with R-410A refrigerant. Should there be a need to add or remove some refrigerant, it is recommended to follow the charging method explained below.
• Never allow R-410A refrigerant to vent into the atmosphere. It is an offence to release refrigerant in Australia. Always reclaim refrigerant using equipment and container dedicated for R-410A system use only.
• All work must be carried out in accordance with Australia and New Zealand refrigerant handling code of practice.
• Only qualified personnel are allowed to perform any work described in this guide and specifically work related to addition or removal of refrigerant.
• R-410A refrigerant must always be charged in liquid state.
• Only during the compressor running condition the system can be charged through the suction service port on the compressor suction line.
  • Changes in refrigerant charge must be noted to a label that is fixed to the unit for future reference.

CAUTION

R-410A refrigerant has POE oil that rapidly absorbs moisture. The maximum time any system can be opened to atmosphere is 15 minutes.

Refrigerant Charge Details (R-410A)
Model CRA100S		CRA130S CCA130S	CRA130T	CRA150S CCA150S	CRA150T	CRA170S CCA170T	CRA170T CCA170T	CRA200T CCA200T	CRA230T CCA230T
Refrigerant Type R-410A	R-410A R-	410A R-410A	R-410A R-	410A R-410A	R-410A R-	410A
Factory Charge (gms)	4175	5450	5250	4650	4650	6650	7350	7450	7600
Pre- charged Length (m)	10	15	15	15	15	15	15	15	10
Additional Refrigerant per charge (g/m)	50	50	50	50	50	50	50	50(1)/100	100

NOTE

(1) 50grams per meter is only applicable if 3/8'' liquid field pipe is used (for field pipe length between 0-20m).

19.01. Charging Method: Sub-cooling and Superheat

LLT = Liquid Line Temperature

SLT = Suction Line Temperature

SCT = Saturated Condensing Temperature

SST = Saturated Suction Temperature

19.01.02. Cooling and Heating Operation:

Adjust the refrigerant charge to obtain the correct super heat and sub-cool for optimal performance as follows:

1. Ensure that air filters are fitted and total system airflows are achieved. (Air filters are not supplied with the unit, it is the responsibility of the installing contractor to provide and fit adequate return air and fresh air filters).
2. Connect service gauges to the schrader valves.
3. Start the unit in cool mode ensuring that the compressor is in operation before taking service gauges reading. Allow the system to stabilise for next 15 - 30 minutes before recording.
4. Record the discharge pressure, suction pressure, liquid line temperature and suction line temperature for all the refrigeration circuits.

Discharge Pressure = ____ kPa Suction Pressure = ____ kPa

Liquid Line Temperature (LLT) = ____°C Suction Line Temperature (SLT) = ____°C

NOTES

• Accurate pressure and temperature measuring tools should be used to achieve satisfactory results.
• The sensors of thermocouple must be in good contact with the area being measured and must be insulated in order to obtain correct reading.

See Diagram Below:

19.01.03. Checking For Sub-cooling

1. From the R-410A Pressure / Temperature Chart record the corresponding Saturated Condensing Temperature (SCT) at the given discharge pressure.
2. Calculate the system sub-cooling using the formula below:

Sub-cooling = SCT - LLT

1. If sub-cooling is within the range (see charging table below), there is no need to add/remove refrigerant.
2. If sub-cooling is lower than minimum, the system is undercharged, it is necessary to add refrigerant.
3. If sub-cooling is higher than maximum, the system is overcharged, it is necessary to remove refrigerant.

Allow the systems to stabilise (15 - 30 mins) and repeat the steps 1-3 until sub-cooling falls within the range specified in the table below.

19.01.04. Checking for Superheat:

Maintaining the correct superheat is important for ensuring the evaporator is achieving maximum capacity and avoiding excessive liquid refrigerant returning to the compressor.

1. From the R-410A Pressure/Temperature Chart record the corresponding Saturated Suction Temperature (SST) at the given suction pressure.
2. Calculate the system super heat using the formula below:

Superheat = SLT -SST

1. If superheat is within the range (see charging table below), there is no need to add/remove refrigerant.

2. If superheat is lower than minimum, it means that liquid refrigerant may be returning to compressor. It is necessary to remove refrigerant or check EEV settings.

3. If superheat is higher than maximum, it means that refrigeration capability of evaporator is not fully maximised. It is necessary to add refrigerant charge or check EEV settings.

Allow the systems to stabilise (15 - 30 mins) and repeat the steps 1-3 until superheat falls within the range specified in the table below.

Cooling Heating
Sub-Cool Superheat Sub-Cool Superheat
4 - 8 2 - 8 10	14 2 - 8

NOTES

The above sub-cool and superheat recommendations are based on the following rated conditions:
• Cooling: 35 °C DB outdoor, air entering indoor at 27°C DB / 19°C WB.
- Heating: 7 °C DB / 6°C WB outdoor, air entering indoor at 20°C DB Nominal indoor airflow.

Installation and Commissioning Guide

Split Ducted Outdoor Units

R-410A PRESSURE / TEMPERATURE CHART

Temp°C	PressureKPa	Temp°C	PressureKPa	Temp°C	PressureKPa	Temp°C	PressureKPa
-60	-34.4	-28	194.9	4	805.9	36	2090.7
-59 - 30.7	-27 206.9 5 834.1	37 2145.5
-58	-26.8	-26	219.2	6	862.9	38	2201.3
-57	-22.8	-25	231.9	7	892.6	39	2258.2
-56	-18.6	-24	245.1	8	922.8	40	2316.1
-55	-14.2	-23	258.7	9	953.8	41	2375.1
-54	-9.6	-22	272.6	10	985.4	42	2435.1
-53	-4.8	-21	286.9	11	1017.8	43	2496.2
-52	0.8	-20	301.7	12	1050.9	44	2558.5
-51	5.3	-19	316.9	13	1084.7	45	2621.8
-50	10.7	-18	332.6	14	1119.2	46	2686.2
-49	16.3	-17	348.7	15	1154.6	47	2751.8
-48	22.2	-16	365.2	16	1190.7	48	2818.5
-47 28.2 - 15	382.3			17	1227.5	49 2886.4
-46	34.0	-14	399.7	18	1265.2	50	2955.5
-45	40.9	-13	417.7	19	1303.6	51	3025.7
-44	47.8	-12	436.2	20	1342.9	52	3097.2
-43	54.8	-11	455.1	21	1382.9	53	3169.9
-42	62.1	-10	474.6	22	1423.9	54	3243.7
-41	69.6	-9	494.6	23	1465.7	55	3318.9
-40	77.4	-8	515.1	24	1508.3	56	3395.2
-39	85.5	-7	536.2	25	1551.8	57	3472.9
-38	93.9	-6	557.8	26	1596.2	58	3551.8
-37	102.5	-5	579.9	27	1641.4	59	3631.9
-36	111.5	-4	602.6	28	1687.6	60	3713.5
-35	120.8	-3	625.9	29	1734.6	61	3796.3
-34	130.4	-2	649.8	30	1782.6	62	3880.5
-33	140.3	-1	674.3	31	1831.6	63	3965.9
-32	150.5	0	699.4	32	1881.5	64	4052.8
-31	161.1	1	724.9	33	1932.3	65	4140.9
-30	171.9	2	751.3	34	1984.1	66	4230.6
-29	183.3	3	778.3	35	2036.9	67	4321.5

20. Maintenance

Maintenance Procedures

This section describes the procedures that must be performed as a part of normal maintenance program. Regular servicing of equipment by licensed technician is highly recommended. Regular servicing of your unit helps in maintaining its optimum performance and reliability. The checklist and service periods provided on this manual are guides only, as some sites may require more frequent servicing. Always disconnect electrical power to the unit before performing these procedures. It is always a safe practice to observe all safety warnings and cautions when conducting maintenance tasks.

DANGER

Live Electrical Connections!

It may be necessary to work with live electrical components on certain maintenance tasks. Only licensed electricians and qualified technicians are allowed to perform these tasks.

Beware of Rotating Fan Blades!

Always make sure that all power supply, to the Outdoor Fans are turn Off and isolated.

Observe WH&S safety procedures, do not wear loose clothing and any jewellery when working near the fans. Wear PPE whenever performing any maintenance procedures.

Observe all necessary procedures when working on a confined space.

WARNING

Hazardous Voltage!

Always make sure that all power supply, including remote controls, are disconnected before performing maintenance. Observe proper LOCK-OUT/TAG-OUT procedures to ensure that power cannot be inadvertently energised. Failure to disconnect power before maintenance procedures can result in serious injury and/or death. EC Motors are fitted with high power capacitors and can have dangerous residual voltages at motor terminals after power has been isolated. Wait at least 5 minutes after power isolation and test for any residual voltage before beginning service work.

Annual Maintenance Checklists

• Perform general maintenance inspections.
  • Perform scheduled start-up checks.
• Leak test refrigerant circuits.
• Inspect contacts of all contactors and relays. Replace all worn contacts as required.
• Inspect, clean and tighten all electrical connections.
• Inspect the air filters, clean or replace as required.
• Clean and repaint any corroded panel section.
• Ensure no blockage of airflow through variable speed drive.

- Check fans for balanced operation. Make sure that there are no loose screws / bolts, no fan blades interference and no damage to the fans and guards.

Cleaning the Condenser Coils

Clean the coils at least once a year or more frequently if unit is located in a dusty and dirty environment, in order to maintain your system's proper operating performance. High discharge pressures are good indication that the coils need cleaning. When using detergent or solvents to clean the coils, follow the manufacturer's instructions to avoid potential damage to the coils and to the unit.

To clean the refrigerant coils, use a soft brush and water spray, such as garden hose or pressure washer with low pressure nozzle.

WARNING

Do Not Use High Alkaline Detergent!

When using detergent for coil cleaning, ensure that the alkaline level is no higher than 8.5, which can cause corrosion damage to the coils.

No Water into the Electrical Compartments!

Ensure consideration is given to the possibility of water entering the electrical compartments during cleaning of the condenser coil.

Coil Cleaning Procedures

• Disconnect power to the unit.
• Remove the louvered panels from the unit to gain access to the air inlet side of the coils.
• Use a soft brush to remove loose dirt and debris from both sides of the coils.
• Straighten bent coil fins with fin comb.
• Prepare the detergent solutions according to the manufacturer's instructions.
• Spray solution at a 90^ angle to the coils, keeping a minimum nozzle spray angle of 15^ , with at least a 1800mm distance from the coils and 600 psi pressure.
• Spray leaving air side of the coils first then the air inlet side. Allow the solution to stand on the coils for five minutes.
• Rinse both sides of the coils with cool clean water.
• Inspect the coils, if they are still dirty, repeat the cleaning procedure.
• Clean and wipe dry the outer and inner sides of the unit, the refrigerating parts and other components.
• Ensure that the condensate drain lines are not blocked.
• Reinstall all unit panels, covers and guards.
• Restore electrical power to the unit.

21. Maintenance Frequency Checklist

Regular servicing of equipment by a qualified technician is recommended every 12 months for residential applications and every quarter for commercial applications. Regular servicing of your unit helps in maintaining its optimum performance and reliability. The following checklist and service periods are provided as a guide only, as some sites may require more frequent servicing.

ELECTRICAL
Parts	Service Period								Detail of Service Check Service Methods
	1 Mth	3 Mth	6 Mth	1 Yr	2 Yrs	3 Yrs	4 Yrs	5 Yrs
Printed Circuit Boards				√					Visual Inspection	Tighten Terminals as necessary on printed circuit boards
Electrical Connections				√					Check all electrical terminals, mains, communications, etc Re-tighten if loose.

INDOOR UNIT
Parts	Service Period								Detail of Service Check Service Methods
	1 Mth	3 Mth	6 Mth	1 Yr	2 Yrs	3 Yrs	4 Yrs	5 Yrs
Casing / Panels and Frames				√					Visual check for damage, rust and dust accumulation.	For highly corrosive environment, wash panels quarterly with water and neutral detergent solution. Wax panels. Repair / re-paint where required.
Insulation				√					Visual check for insulation conditions.	Repair / replace insulation material.
Fan				√					Visual check for run out of balance and dust attached	Clean off dust as necessary to negate possibility of fan running out of balance
Motor				√Ω					Visual check on wiring. Insulation resistance check to be carried out annually	Measure insulation resistance. Should be more than 1MΩ
Heat Exchanger				√					Check for clogging by dust. Check for leaks / damage.	Clean air inlet side as necessary. Straighten any bent fins using fins comb.
Drain Pan/Condensation line				√					Check for obstructions and free flow of water	Clean to eliminate obstructions/ sludge and check condition of pan. Pour water to ensure free flow.
Filter*		√							Check for clogging by dust. Clean Filter
Temperature Readings				√					Measure air on and air off	Place temperature probe in return and supply air of unit.
Zone Motors				√					Visual inspection of motors open/housing. Ensure no obstructions	Drive motors opened and closed. Ensure correct operation.
Duct Works				√					Inspect duct works for air gaps.	Re-tape any loose ducts.

* Service period for filter cleaning may vary depending on operating time and surrounding environment.

Installation and Commissioning Guide

Split Ducted Outdoor Units

OUTDOOR UNIT
Parts	Service Period								Detail of Service Check Service Methods
	1 Mth	3 Mth	6 Mth	1 Yr	2 Yrs	3 Yrs	4 Yrs	5 Yrs
Casing / Panels and Frames				√					Visual check for damage, rust and dust accumulation.	For highly corrosive environment, wash panels quarterly with water and neutral detergent solution. Wax panels. Repair / re-paint where required.
Insulation				√					Visual check for insulation conditions.	Repair / replace insulation material.
Fan				√					Visual check for run out of balance and dust attached	Clean off dust as necessary to negate possibility of fan running out of balance
Motor				√Ω					Visual check on wiring. Insulation resistance check to be carried out annually	Measure insulation resistance. Should be more than 1MΩ
Heat Exchanger				√					Check for clogging by dust. Check for leaks / damage.	Clean air inlet side as necessary. Straighten any bent fins using fins comb.
Condensate Drain Line (if available)				√					Check for obstructions and free flow of water	Clean to eliminate obstructions/ sludge and check condition of drain line. Pour water to ensure free flow.
Compressor				√Ω					Check for high / low pressure. Measure insulation resistance. Check compressor for abnormal noise/vibrations	Measure insulation resistance. Should be more than 1MΩ.
Refrigeration Operational Readings				√					Make note of operational reading in test cool/heat	Check operating pressures, record super heat and sub-cool values
Safety Devices				√					Check calibration of safety devices such as HP and LP controls, sensors, etc	Check resistance of sensors, pressure cut in / cut out of pressure controls
Faults				√					Check for any previous fault history on unit.	Investigate any causes for previous faults, reset fault history.

Troubleshooting Guide

Fault Possible	Causes Remedies
The system does not start.	Built-in safety timers have been activated Ensure that 5 minutes has passed from turn on time.
	A breaker has turned Off or a fuse has blown. Check breakers and fuses.
	The master wall control setpoint is incorrect. Check master wall control settings are correct. Check the thermostat setpoint is set low enough for cooling or high enough for heating.
	The master wall controller timer setting is incorrect.	Check the master wall controller timer settings. See Operation Manual section.
Air does not flow (Indoor unit)	Zones might be switched off. Check zones are switched on..
	During heating operation, the hot start function may have been activated.	During heating operation the indoor fan is delayed for 46 seconds or until the indoor coil reaches 24°C (whichever occurs first). This is to prevent cold drafts. Wait 46 seconds and the air will start flowing.
	During defrost of the outdoor coil in heating operation; the indoor fan will not operate for several minutes. (HEAT LED flashes on master wall control).	This is normal operation during the defrost cycle to prevent cold air being blown into rooms.
Cooling/Heating is not sufficient.	The cooling/heating function may not work effectively when the return air filter is clogged with dust and dirt.	Clean the return air filter.
	The cooling/heating function may not work effectively if the air inlet and air outlet on the outdoor unit are blocked.	Make sure the air inlet and air outlet on the outdoor unit is not blocked. Check that the area around the outdoor unit is free from obstructions that may cause the airflow to recirculate.
	The airflow across the indoor coil may not be enough and the anti-freeze protection or over heat prevention systems can lower the cycle capacity for the unit.	Reduce the total static pressure on the indoor fan to increase airflow. For example increase duct sizes, reduce tight duct work bends or increase return air grille size.
	The cool/heat load is too great for the air conditioner.	Perform a heat load analysis on the conditioned space. You may need to consider upgrading your air conditioner with a larger system.
	Open windows or doors will cause inefficient operation.	Close windows and doors in conditioned areas.
	Appropriate zones not turned on. Turn on appropriate zones (if applicable)
	The outside temperature is beyond the air conditioner design conditions.	If you know a extreme day is coming turn the air conditioner on a few hours before ambient temperatures reach extreme. This should help on those few extreme days.
Steam emitted from outdoor unit.	This is caused by the defrosting operation of the outdoor units heat exchanger in heating operation in cold ambient conditions.	This is normal during the defrost operation in cold ambient conditions.
Water emitted from outdoor unit.	Condensation of water on the outdoor coil during heating operation.	This is normal during heating operation. You can purchase drip trays to contain then drain this excess water.

Installation and Commissioning Guide

Split Ducted Outdoor Units

Fault Possible	Causes Remedies
Set temperature cannot be adjusted.	The master control set temperature limits are reached.	Check the upper and lower temperature limits are set correctly. See operation manual for details on setting upper and lower temperature limits.
Occasional wishing noise can be heard on heating cycle.	This is the sound of the gas changing directions as de-ice cycle begins.	This is a normal function of an air conditioner. The unit is removing any ice on the outdoor unit.
The compressor is running but the system is not cooling.	You are in heating mode. Check the temperature settings.
	The reversing valve has jammed between heating and cooling.	Replace reversing valve.
The outdoor coil keeps freezing over.	Outdoor coil sensor might be faulty. See sensor (temperature/resistance) table and check resistance value.	Replace faulty sensor.
	May have obstruction in outdoor coil. Remove obstructions.
There is only one condenser fan working.	The fan is faulty. Test the fan motor for correct voltage, check the motor winding resistance, open circuit, check capacitor, etc.	Replace faulty fan. If the fan motor needs to be replaced and there isn't one available immediately, then just disconnect the fan electrically and cover the faulty motors fan guard. This way the unit can still operate at reduced capacity using 1 fan until you get a replacement fan motor.
The indoor unit gives out odour.	This happens when smell of the room, furniture, or cigarettes are absorbed into the unit and discharged with the airflow.	If this happens, we recommend you to run the air conditioner on cooling for a period of time with the doors and windows open or have the indoor unit washed by a technician. Consult the installer from whom you bought the air conditioner.
	Check the drain is not piped into the sewerage drain line.	Re-pipe drain with a P-Trap and connect into household drainage or storm water drain.

1. Fault And Status Codes

Fault / Function Codes
Outdoor CPU	LR7 Wall Controller(Part # LR7-1W / LR7 - 1G)	Category Function / Fault
oFF - Status Off or Unit Turning Off (flashing)
CooL	- Status Cooling Mode or Start Cooling (flashing)
	COOL & LOW blink 30s Error Anti-Freeze Protection Mode
HEAt - Status Heating Mode or Start Heating (flashing)
- HEAT & HIGH blink 30s Error Overheat Protection Mode
dEF - Status Defrost Mode
dEF3 - Status 3 min to Defrost
dEF2 - Status 2 min to Defrost
dEF1 - Status 1 min to Defrost
dr-1 - Status Demand Response Management 1
dr-2 - Status Demand Response Management 2
dr-3	- Status Demand Response Management 2
E3 E3	Error Room Temperature Error
-	E4	Error Indoor Coil Sensor Error
E7 E7	Error	Outdoor Coil Sensor Error
E9	E9	Error LP Switch Tripped
E11 E11	Error HP Switch Tripped
E51 E51	Error IDU - ODU Communication Error
E52	E52	Error IDU - Wall Controller Communication Error
E55	E55	Error BMS - ODU Communication Error
E56	E56	Error No Master Wall Controller Detected

NOTE

Faults may not be displayed on the wall control until the fault occurs several times.

23. Key Parts List

SPLIT DUCTED OUTDOOR UNIT

ITEM	DESCRIPTION	PART NUMBER	CRA100S	CRA130S CCA130S	CRA130T	CRA150S CCA150S	CRA150T	CRA170S CCA170S	CRA170T CCA170T	CRA200T CCA200T	CRA230T CCA230T
1 Compressor		1560-4451	--- --- ---	--- --- ---	---
		1560-455	1 --- ---	--- --- ---	---
		1560-446	--- 1 ---	--- --- ---	---
		1560-453	--- --- 1	--- --- ---	---
		1560-440	--- --- ---	1 --- --- ---	---
		1560-452	--- --- ---	--- 1 --- ---	---
		1560-463	--- --- ---	--- --- 1 ---	---
		1560-462	--- --- ---	--- --- --- 1	---
		1560-471	--- --- ---	--- --- --- 1	---
2 Outdoor Fan		2505-110 2	--- --- ---	--- --- ---	---
		2505-130	--- --- ---	--- --- --- 2	---
		2505-141	---	2	2	2	2	2	2	2	---
3	Outdoor Coil	1020-082	1 ---	--- ---	--- ---
		1020-134	1	1	1	1 --- ---	---
		1020-092	--- --- ---	--- 1	1 --- ---
		1020-091	--- --- ---	--- --- --- 1	---
		1020-075	--- ---	--- --- ---	--- --- 1
4	Outdoor Control Board	2020-168	1	1	1	1	1	1	1	1	1
5	Crankcase Heater	2025-005	1	1	1	1	1	1	1	1	1
6	Metering Device - (0.550") Piston	4540-055	1	---	---	---	---	---	---	---	---
	Metering Device - (0.591") Piston	4540-059	---	1	1	---	---	---	---	---	---
	Metering Device - (0.689") Piston	4540-068	---	---	---	1	1	---	---	---	---
	Metering Device - (0.748") Piston	4540-074	---	---	---	---	---	1	1	---	---
	Metering Device - (0.760") Piston	4540-076	--- ---	--- --- ---	--- 1 ---
	Metering Device - (0.610") Piston	4540-061	--- --- ---	--- --- --- 2	---

24. Start Up and Commissioning Report

INSTALLATION INFORMATION
CUSTOMER	Name: Tel. Number:
	Address:
INSTALLER	Name: Tel. Number:
	Address:
Site Address: Date Installed:
Model: Serial Number:

CIRCUIT TEMPERATURE SETTINGS
Supply Air Temperature		°C
Return Air Temperature		°C
Suction Temperature		°C
Discharge Temperature		°C
Condenser Coil Temperature		°C
Ambient Temperature		°C

INDOOR FAN SETTINGS OUTDOOR FAN SETTINGS
Indoor Fan Current Amps		Outdoor Fan Current Amps
Indoor Fan Airflow I / s
Indoor Fan PWM %
Set Static Pa

Check No Active Error Codes on the Unit Checked:

Date Checked:

THIS PAGE WAS INTENTIONALLY LEFT BLANK

THIS PAGE WAS INTENTIONALLY LEFT BLANK

THIS PAGE WAS INTENTIONALLY LEFT BLANK

ActronAir

That's better. That's Action.

actronair.com.au

1300 522 722
