TSR18MW - Heating Creda - Free user manual and instructions

Product Type	Fan Heater
Brand	Creda
Model	TSR18MW
Dimensions (W x H x D)	25 x 30 x 15 cm
Weight	2.5 kg
Power Supply	220-240 V ~ 50/60 Hz
Heating Power	2000 W
Number of Heat Settings	2 (low/high)
Thermostat	Adjustable thermostat
Oscillation	Yes
Overheat Protection	Yes, automatic shut-off
Tip-Over Switch	Yes, safety cut-off
Remote Control	No
Noise Level	Approx. 45 dB
Coverage Area	Up to 20 m²
Material	Plastic housing
Color	White
Safety Certification	CE, UKCA
Cleaning	Wipe with soft damp cloth, disconnect before cleaning
Spare Parts Availability	Contact Creda customer service
Reparability Score	Not applicable (small appliance)
Warranty	1 year (subject to terms)

Frequently Asked Questions - TSR18MW Creda

How do I clean my Creda TSR18MW heater?

Unplug the heater and let it cool down. Use a soft damp cloth to wipe the exterior. Do not use abrasive cleaners or immerse in water.

Can I use the heater in a bathroom?

No, this heater is not designed for bathroom use unless installed by a competent person in accordance with safety regulations. Keep away from water.

Does the heater have a timer?

No, the Creda TSR18MW does not include a timer function. It features an adjustable thermostat and manual on/off switch.

What is the recommended room size for this heater?

The heater is suitable for rooms up to 20 m² (approximately 200 sq ft). For larger areas, a higher wattage unit may be required.

How do I reset the overheat protection?

If the heater shuts off due to overheating, unplug it, wait for 15 minutes, and then plug it back in. Ensure the air intake is not blocked.

Can I use an extension cord with the heater?

It is not recommended. Plug the heater directly into a wall outlet. If an extension cord is necessary, use a heavy-duty cord rated for 13A or higher.

Does the heater produce a lot of noise?

The fan produces a moderate noise level of around 45 dB, similar to a quiet conversation. It is not completely silent.

Is the heater safe to leave unattended?

The heater has safety features like tip-over switch and overheat protection, but it is advisable not to leave it unattended for long periods, especially around pets or children.

What does the 'TSR18MW' model number mean?

The model number is an internal code. 'TSR' likely stands for 'Turbo Space Radiator' or similar, and '18' may indicate 1800W or 2000W heating capacity. 'MW' could denote a specific series.

Where can I find spare parts for the Creda TSR18MW?

Spare parts are not widely available as it is a small appliance. Contact Creda customer service or an authorized service center for assistance.

USER MANUAL TSR18MW Creda

A Quick Guide to Storage Heating

This guide is designed to help you set up your storage heaters, maximising your comfort whilst minimising your heating bills. This guide covers 'Automatic' and 'Manual' heaters, and it is important to know which type you have in order to use them properly. Further details are available in the 'Operation Instructions' provided with the product, on our website at www.credaheating.co.uk or by calling 0844 879 3588.

• Do not cover the heater.
  • Ensure that the supply switch next to the heater is turned on at all times during the heating season.
  • Nothing may be within 10" of the top of the heater or 3" of the sides or front of the heater at any time.
  • The outer case of the heater will be hot and care should be taken to avoid contact with the heater, especially the grille.

Manual or Automatic?

First you need to know if your heater is a manual or an automatic model.

Manual

Manual models must be adjusted each day with the weather to give a comfortable room temperature the following day.

These models are:

TSR12MW, TSR18MW, TSR24MW

Automatic

Automatic models will automatically adjust for the next day's requirements once a comfortable temperature is set.

These models are:

TSR12AW, TSR18AW, TSR24AW

1

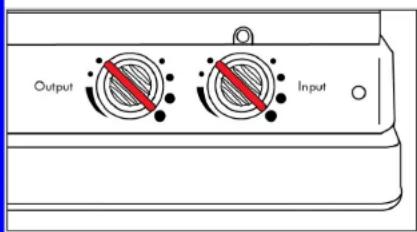

Your Controls

2

Output

This control should be left at the lowest setting, and increased when extra heat is required. It should be returned to the lowest setting at the end of each day.

Input

The position of this control dictates how much heat is stored in the product ready for use the next day. Initially this should be set at the mid-point. If it is too warm the next day then the control should be lowered slightly, if it is too cold it should be raised slightly.

Staying Comfortable

3

Manual

If you have a 'Manual' heater, you should continue to adjust the 'Input' through the heating season as the weather changes. Turn it up slightly if the room is too cold or down if the room is too warm. This will make the room slightly cooler or warmer, but not until the next day.

Automatic

Continue to adjust the control up or down for a few days until you have found a comfortable room temperature. The heater will now automatically adjust the amount of heat stored to give you the same temperature every day, so the 'Input' can be left alone without need for adjustment.

Saving Energy with Storage Heating

This part of the guide is designed to help you minimise your electricity bills.

Further advice on reducing your energy bills can be found at:

www.energysavingtrust.org.uk

Which Tariff Do I Have?

To save money with an off-peak tariff you need to know when the 'cheap' rate electricity is available. Typically if you have storage heaters you will have an E7 (Economy7) tariff and energy will be cheaper between midnight and 7am each day. Check your electricity bill or call your utility company to check if you are unsure which tariff you are on.

On this tariff, the best way to minimise your bills is to time as much of your electrical requirements as possible to occur during this seven hour 'off-peak' period. Energy will be around half the price of that used during the day (or 'peak period'), so it is running electrical items at these times wherever possible.

How Do I Reduce My Energy Use?

• Where it is safe to do so, use timers to bring on heavy-use appliances during the off-peak period.
• Dishwashers, tumble dryers and washing machines could be set to run at these times, providing substantial savings.
- Avoid tumble drying clothes wherever possible, as this is an expensive electrical appliances to run, and the alternative is free!
- Ensure you heat all of your hot water during the off-peak period, and avoid using any 'boost' functions to top up during the day.
- Minimise the use of extra heaters in the evening; turning up your storage heaters to take a slightly larger charge will be cheaper.
• Use the microwave rather than the oven for foods that can be cooked using either appliance, as microwaves are more efficient.
• Insulate your home well, and avoid opening windows and doors unnecessarily.
- Change your light bulbs to low-consumption, energy efficient replacements.
- Only fill the kettle with the amount of water you need.
- Do not leave products in 'stand-by' mode.
