Product Type	Vacuum Cleaner
Brand	Zanussi
Model	ZAN3002EL
Type	Cylinder (Canister)
Color	White and Grey
Dust Capacity	1.5 L (dust bag)
Filtration System	HEPA 13 filter
Power Consumption	1800 W
Voltage	220-240 V, 50/60 Hz
Cord Length	8 m
Noise Level	78 dB(A)
Weight	5.2 kg
Dimensions (L x W x H)	45 x 28 x 35 cm
Accessories Included	Crevisse tool, dusting brush, upholstery nozzle, floor brush
Bag or Bagless	Bagged
Energy Efficiency Class	A+
Warranty	2 years
Manufacturer	Zanussi (Electrolux Group)
Country of Origin	China
Special Features	Adjustable suction power, automatic cord rewind

Frequently Asked Questions - ZAN3002EL ZANUSSI

How often should I change the dust bag?

Change the dust bag when the indicator on the handle turns red, or every 1-2 months depending on usage. Using a full bag reduces suction power.

How do I clean the HEPA filter?

Tap the filter gently over a bin to remove loose dust. If heavily soiled, rinse under cold water and let dry completely for 24 hours before reinstalling. Do not use a washing machine.

What is the cord length?

The power cord is 8 meters long, providing a generous cleaning radius.

Is the vacuum suitable for pet hair?

Yes, the included upholstery nozzle and turbo brush (optional) effectively remove pet hair from carpets and furniture.

How do I use the adjustable suction control?

Slide the control on the handle or body (depending on model) to reduce suction for delicate surfaces like curtains or increase for deep carpet cleaning.

What does the red indicator on the handle mean?

The red indicator shows that the dust bag is full or airflow is obstructed. Replace the bag or check for blockages in the hose.

Can I use this vacuum without a bag?

No, this model is bagged. Use only original Zanussi dust bags to maintain performance and filtration.

How do I rewind the power cord?

Simply step on the cord rewind pedal (located on the back of the vacuum) and guide the cord to retract smoothly.

What accessories are included?

The package includes a crevice tool, dusting brush (2-in-1), upholstery nozzle, and a combination floor brush for hard floors and carpets.

How do I replace the dust bag?

Open the front cover, remove the full bag by pulling the cardboard tab, insert a new bag, and close the cover until it clicks. Always use the correct type.

USER MANUAL ZAN3002EL ZANUSSI

Illustration of green trees with no text or symbols

ZANUSSI

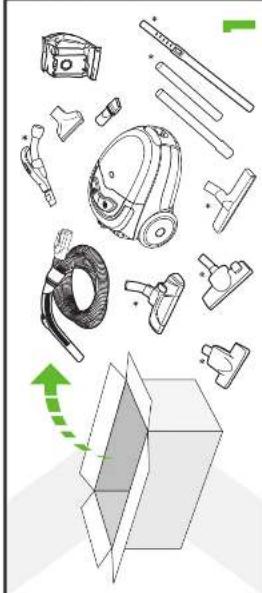

Illustration of various cleaning and repair tools including a box, hoses, vacuum cleaner, and mechanical components (no text or labels)

Line drawing of a robotic vacuum cleaner with green arrows indicating motion, no text or symbols present

www.zanussi.com

SAVE THESE INSTRUCTIONS

First check the voltage shown on the data plate (see rear view) to make sure that the cleaner is of the correct voltage for your electricity supply. If it is not, do not use the cleaner but refer back to your dealer.

CONNECTING TO YOUR ELECTRICITY SUPPLY

Permanently connected to the cleaner is a mains supply (2-core) cable fitted with a non-rewrable plug incorporating a 13A fuse.

In the event the fuse requires replacement, the fuse cover should be removed using a small screwdriver. The old fuse MUST be replaced by a 13A ASTA approved BS1362 fuse or a BSI approved fuse. The cover must be replaced before the plug is used again. In the event of loss of the fuse cover, replacements can be obtained from your Electrolux Retailers and must be of the same colour as indicated by the coloured insert on the base of the plug.

If difficulty is experienced in obtaining areplacement, contact ZANUSSI on [phone]. Calls to this number will be charged at 5p per minute at all times from a BT Landline.

Under no circumstances should the plug be used without a correct fuse cover fitted.

If the plug that is filled to your appliance is not suitable for your socket outlet, it must be cut off and the appropriate plug filled.

Remove the fuse from the cut off plug.

The cut off plug should then be disposed of to prevent the hazard of shocks in case it should be plugged into a 13 amp socket in another part of your home.

The wires in the mains cable of this appliance are coloured in accordance with the following code: Blue: Neutral. Brown: Live.

As the colours of the wires in the mains cable of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire that is coloured blue must be connected to the terminal that is marked with the letter N or coloured black.

The wire that is coloured brown must be connected to the terminal that is marked with the letter L or coloured red.

If using a three-pin plug, do not make any connection to the terminal marked with the letter E or by the earth symbol, or coloured green or green-and-yellow. This cleaner is double insulated and no earth connection is necessary.

It is in your interest to ensure that the plug is correctly attached to the mains cable. In case of doubt, have it done by a qualified electrician, as ZANUSSI cannot regard the repair of faults on the plug connection as a service that can be given free of charge under the terms of the guarantee.

Thank you for purchasing your new vacuum cleaner. If in the unlikely event you experience any problems with this product,

RATHER THAN TAKING IT BACK TO THE SHOP

Please telephone the Customer Helpline

[phone]

Calls to the number will be charged at 10 per minute at all times from a RT hotline. Lines are open Monday to Friday 5:30am or 5pm and Saturday morning 8am until 12:30pm (R.O.T. 0618-543007) (post 3): "Calls cost up to 9 points per minute from a standard Fine Corn hotline. 'Mobile and other providers' charges may vary

Should any faults occur with your cleaner during the first 12 months, please telephone the Customer Helpline on the number above

√ Something missing or broken? √ Need more help? √ Don't understand the instructions? Please Telephone the Customer Helpline on the number above

(This does not affect your statutory rights)

GB

Safety requirement and warning

This appliance can be used by children aged from 8 years and above and persons with reduced

physical, sensory or mental capabilities or lack of experience and knowledge if the have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

WARNING: Turbo nozzles* have a rotating brush in which parts may become entrapped. Please use them with caution and only on intended surfaces. Please turn the vacuum cleaner off before removing entrapped parts or cleaning the brush.

Children should be supervised to ensure that they do not play with the appliance.

Cleaning and maintenance shall not be made by children without supervision.

Always disconnect the plug from the mains before cleaning or maintaining the appliance.

Never use the vacuum cleaner without its filters.

Caution

This appliance contains electrical connections:

- Never vacuum any liquid

- Do not immerse in any liquid for cleaning

• The hose should be checked regularly and must not be used if damaged.

The above can cause serious damage to the motor, which is not covered by the warranty.

This vacuum cleaner is for domestic use only.

Never use vacuum cleaner

- Close to flammable gases, etc.

- On sharp objects

- On hot or cold cinders, lit cigarette butts, etc.

- On fine dust, for instance plaster, concrete, flour.

Power cord precautions

- Regularly check that the plug and cord are not damaged. Never use the vacuum cleaner if the cord is damaged.

- If the cord is damaged, it must be replaced only by an authorized Zanussi service centre in order to avoid

a hazard. Damage to the vacuum cleaner's cord is not covered by the warranty.

- Never pull or lift the vacuum cleaner by the cord.

All servicing and repairs must be performed by an authorized Zanussi service centre. Store the vacuum cleaner in a dry place.

Consumer information and sustainability policy

Zanussi declines all responsibility for all damages arising from any improper use of the appliance or in cases of tampering with the appliance. For more details of warranty and consumers' contacts see the Warranty Booklet in the packaging

If you have any comments on the cleaner or the Operating Instructions manual please e-mail us at [e-mail].

Sustainability policy

This product is designed with the environment in mind. All plastic parts are marked for recycling purposes.

For details see our website: www.zanussi.com

The packaging material is chosen to be environmentally friendly and can be recycled.

Recycle the materials with the symbol △. Put the packaging in applicable containers to recycle it.

Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with the symbol ✗ with the household waste. Return the product to your local recycling facility or contact your municipal office.

^ Certain models only.
