Product Type	Deep Fryer
Brand	Swan
Model	SD75210BLKN
Colour	Black
Capacity	2.5 L
Oil Capacity	2.0 L
Power Rating	1800 W
Voltage	220-240 V ~ 50/60 Hz
Temperature Range	150°C – 190°C
Timer	Up to 60 minutes
Adjustable Thermostat	Yes
Frying Basket	Yes, with cool-touch handle
Lid	Yes, with viewing window
Non-Stick Coating	Yes
Overheat Protection	Yes
Automatic Shut-off	Yes
Indicator Lights	Power and ready
Dimensions (approx.)	35.5 × 20.0 × 25.0 cm
Weight (approx.)	3.5 kg
Cord Length	0.9 m
Material	Stainless steel and plastic
Dishwasher Safe Parts	Basket and lid
Cleaning	Wipe with damp cloth; non-abrasive sponges
Spare Parts Available	Basket, lid, inner pot
Warranty	2 years

Frequently Asked Questions - SD75210BLKN SWAN

How do I use the deep fryer for the first time?

Wash the basket and lid with warm soapy water, rinse and dry. Fill the fryer with oil to the minimum/maximum lines. Plug in, set the desired temperature, and wait for the ready indicator to light. Then add food to the basket and lower it into the oil.

What type of oil should I use?

Use high-smoke-point oils like vegetable, canola, peanut, or sunflower oil. Avoid olive oil or butter as they burn easily.

How do I clean the deep fryer?

Unplug and let oil cool completely. Remove the basket and lid – they are dishwasher safe. Wipe the interior and exterior with a damp cloth and mild detergent. Never immerse the main body in water.

Can I fry frozen foods?

Yes, but shake off excess ice to prevent oil splatter. Lower the basket slowly and increase cooking time by a few minutes.

What does the adjustable thermostat do?

It lets you set the perfect temperature for different foods: e.g., 150°C for chips, 170°C for chicken, 190°C for batter-fried items. The ready indicator lights when the set temperature is reached.

Is there an automatic shut-off feature?

Yes, the deep fryer has overheat protection and automatic shut-off if the temperature exceeds safe limits or if the timer ends.

How much oil do I need?

Fill with oil to the marked level, typically 1.5 to 2.0 liters. Do not exceed the MAX line to avoid overflow when food is added.

Can I remove the lid during frying?

Yes, you can lift the lid using the cool-touch handle to check food, but beware of hot steam. Always use oven mitts.

How do I store the deep fryer?

Ensure it is clean and completely dry. Store in a cool, dry place. You can leave the oil in the fryer if you plan to reuse it within a few days.

What should I do if the fryer stops working?

Check the power cord and outlet. If the reset button (if any) has tripped, press it. If it still doesn't work, contact Swan support. Do not attempt to repair yourself.

USER MANUAL SD75210BLKN SWAN

1. Air inlet (do not cover)
2. Air outlet (at the back)
3. Timer dial
4. Temperature control
5. Indicator light
6. Cord storage (at the back)
7. Fryer basket
8. Fryer drawer
9. Safety cover
10. Lock button
11. Basket handle

TECHNICAL DATA

Description: 3.2 Litre Air Fryer

Model: SD75210BLKN

Voltage: 220-240V \~ 50/60Hz

Power consumption: 1500 Watts

When using any electrical appliance, basic safety precautions should always be followed including the following:

1. This appliance is for household use only. Do not use outdoors.

2. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

3. Children should be supervised to ensure that they do not play with the appliance.

4. This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments, farmhouses, by clients in hotels, motels and residential type environments, in bed and breakfast type environments.

5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

6. Please turn off the appliance, unplug and allow to cool before cleaning, moving, maintaining or storing.

7. The surfaces are liable to get hot during use.

8. Do not immerse any part of the appliance in water or other liquid.

9. Never immerse the housing, which contains electrical components and the heating elements, in water nor rinse under the tap.

10. Do not let any water or other liquid enter the appliance to prevent electric shock.

11. Do not fill the pan with oil as this may cause a fire hazard.

12. Never touch the inside of the appliance while it is operating.

READ BEFORE FIRST USE AND RETAIN FOR FUTURE REFERENCE

1. Keep the mains cord away from hot surfaces.
2. Never connect this appliance to an external timer switch or separate remote-control system in order to avoid a hazardous situation.
3. During hot air frying, hot steam is released through the air outlet openings. Keep your hands and face at a safe distance from the steam and from the air outlet openings. Also be careful of hot steam and air when you remove the basket from the appliance.
4. Immediately unplug the appliance if you see dark smoke coming out of the appliance. Wait for the smoke emission to stop before you remove the pan from the appliance.

In the unlikely event the appliance develops a fault, stop using it immediately and seek advice from the Customer Support Team: www.swan-brand.co.uk/support.

CAUTION: SURFACES BECOME HOT DURING USE. PLEASE ENSURE YOUR WORK TOP IS ABLE TO WITHSTAND A TEMPERATURE OF AT LEAST 60 DEGREES CENTIGRADE FOR EXTENDED PERIODS. IF IN DOUBT, MOUNT THE AIR FRYER ON A SUITABLE WOODEN PLINTH.

BEFORE FIRST USE

1. Remove your appliance from the packaging.
2. Check that there is no damage to the cord or any visible damage to the body.
3. Dispose of the packaging in a responsible manner.
4. Remove any stickers or labels from the appliance.
5. Assemble the basket to the drawer and insert to the main appliance without any added food or oil. Select 180°C and 10 minutes. Plug in and switch the fryer on at the wall socket. There may be some odour from any residue from the manufacturing process, this is normal and harmless. We strongly recommend you ventilate the room very well. Switch off at the wall socket and allow the fryer to cool before moving to point 6.
6. Wash the basket and drawer in hot water with washing-up liquid and dry fully.
7. DO NOT add any oil or fat to the drawer or basket. This fryer is oil free and uses only hot air.

HOW TO USE

Prepare for use.

1. The product should be placed on a stable, heat resistant work surface so that the power cord has a sufficient length to be plugged into the socket, and the air around the product should be kept in circulation, and should not be close to flammable items.

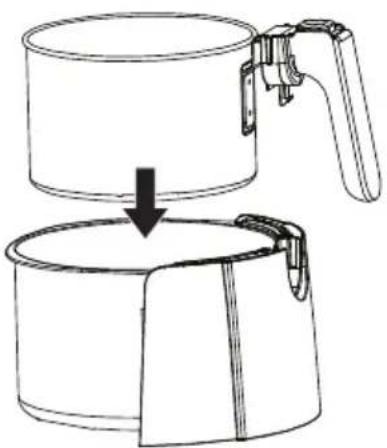

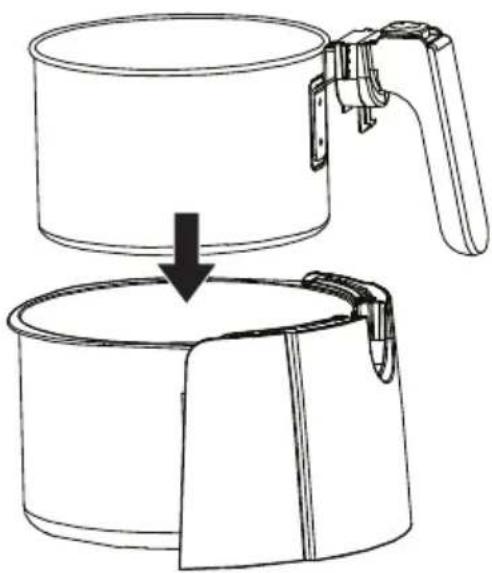

2. Insert the basket to the drawer until the locking button clicks. Insert the assembly into the fryer.
3. Before adding ingredients, preheat the machine for 3-5 minutes to improve the final results.

How to use.

1. Always put the ingredients to be fried in the basket, to prevent it from coming into contact with the heating elements.

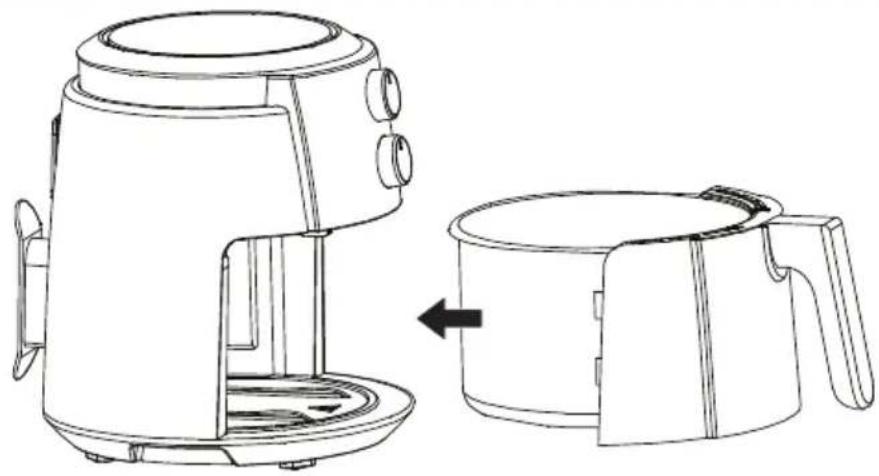

2. Insert the drawer/ basket assembly to the fryer.
3. After the machine is powered on, adjust the temperature knob to the 200°C position and the time knob to 3-5 minutes to complete the warm-up operation of the machine.
4. After the preheating is completed, pull the basket out by holding the handle of the drawer. The basket assembly will be very hot and must be placed on a stable, heat resistant surface.
5. Place the ingredients in the basket. It is acceptable to use up to one desert spoon (10ml) of cooking oil to coat the food. DO NOT ADD OIL or FAT to the basket or drawer.
6. Push the fryer into the machine, select the corresponding cooking temperature and time, and cook and heat the ingredients.

Note: When the drawer is not fully closed the safety switch will not be activated and no heating or fan will operate. Simply push the drawer fully in to remedy this. Do not cover the air inlet and the air outlet openings while the appliance is operating.

1. After the timer "ding", the heating is completed. When the food is ready, unplug it. Remove the drawer and basket and place it on a stable, heat resistant surface. Either remove the food using suitable implements or slide the locking button guard forward, press down the locking button and lift the basket away from the drawer.

NOTE: the fryer basket will be hot and must be placed on a heat and oil resistant surface.

Tips For Timer

When setting the timer for any period less than 10 minutes, the dial should first be moved to around 20 minutes and then moved back to your desired time.

Handle with care when removing hot food. It is recommended to use tongs or other suitable utensils.

Settings

The table below helps you to select the basic settings for the ingredients you want to prepare.

Menu	Temperature (°C) Time (min)	Time (min)
Defrost	80 5-10	5-10
Frozen fries	180 15-17	15-17
Chicken wings	180 15-19	15-19
Chicken legs	180 20-24	20-24
Meat	200 10-14	10-14
Shrimp	180 8-12	8-12
Fish	180 13-17	13-17
Cake	180 8-10	8-10

Note: These are suggested times and temperatures. As ingredients differ in origin, size, shape as well as brand, we cannot guarantee the best setting for your ingredients.

Hand wash only. No part is dishwasher suitable.

• After using, unplug the power plug and allow the air fryer to cool completely before moving, cleaning or storing.
- Wash the drawer and basket after each use to prevent the build-up of burnt food which will cause strong smells and poor hygiene.
- Do not use strong abrasive cleaners to prevent damage to the machine and your health.
- Use a cloth, dampened with soapy water, to wipe the exterior surfaces of the fryer. Please do not use an over-wet cloth to clean the air fryer, to prevent water from entering the air fryer, which may cause short circuit and fire.
- Use hot water and washing-up liquid to clean the basket and drawer. Drain well and dry thoroughly.
- Please do not use hard and sharp items (such as wire balls, blades etc).

SPARES

The following spare part is available to purchase from the Swan website:

www.swan-brand.co.uk

SD75210BLKN001 - Fryer Basket & Drawer

Problem Possible Cause	Solution Cause	Solution
The air fryer does not work.	The appliance is not plugged in.	Plug the appliance into an earthed wall socket.
	The appliance is not turned on.	Turn the timer dial and the temperature control to desired values and check the drawer is fully closed.
Fried snacks are not crispy when they come out of the air fryer.	Wrong type of snacks used.	Use oven snacks or lightly brush some oil onto the snacks for a crispier result.
	The fryer contains grease from previous use.	White smoke is caused by grease heating up inside the fryer. Make sure you clean the fryer properly after each use.
The fried food is not done.	Too much food has been added to the air fryer.	Put smaller batches of food in the air fryer. Smaller batches are fried more evenly.
	The set temperature is too low.	Set the temperature to the required temperature setting. (refer to the 'Settings Table).
	The food hasn't been cooked for long enough.	Set unit to the required cooking time (refer to the 'Settings Table).
Fresh fries are fried unevenly in the air fryer.	Wrong type of potatoes used.	Use fresh potatoes and make sure they stay firm during frying.
	The potato sticks were not rinsed adequately before frying.	Rinse the potato sticks properly to remove starch from the outside.
Fresh fries are not crispy when they come out of the air fryer.	The crispiness of the fries depends on the amount of oil brushed onto fries before frying.	Make sure you dry the potato sticks properly before you apply oil to them.
		Cut the potato sticks smaller for a crispier result.
		Add slightly more oil to fries for a crispier result (before frying).

WARRANTY

This product is guaranteed for 2 years from the date of original purchase. If any defect arises due to faulty materials of workmanship the faulty products must be returned to the place of purchase. Refunds or replacement is at the discretion of the store.

The following conditions apply:

• The product must be returned to the retailer with proof of purchase.
- The product must be installed and used in accordance with the instructions contained in this instruction guide.
- It must be used only for domestic purposes.
- It does not cover wear and tear, damage, misuse or consumable parts.
- Swan Products Ltd has limited liability for incidental or consequential loss or damage.
• This guarantee is valid in the UK and Eire Only.

Helpline number: 0333 220 6050

Find advice online: www.swan-brand.co.uk/support

BS PLUG

WARNING: This appliance must be used in a socket which has an effective earth connection.

Appliances bearing the symbol shown here may not be disposed of in domestic rubbish. You are required to dispose of old electrical and electronic appliances like this separately.

Please visit www.recycle-more.co.uk or www.recyclenow.co.uk for access to information about the recycling of electrical items. Please visit www.weeeireland.ie for access to information about the recycling of electrical items purchased in Ireland. The WEEE

directive, introduced in August 2006, states that all electrical items must be recycled, rather than taken to landfill. Please arrange to take this appliance to your local Civic Amenity site for recycling, once it has reached the end of its life.
