Product Type	Deep Fryer
Brand	Swan
Model	SD90020N
Dimensions (approx.)	30 x 25 x 20 cm
Weight (approx.)	2.5 kg
Power Supply	220-240 V ~ 50 Hz, 1500 W
Oil Capacity	1.5 litres
Food Capacity (approx.)	0.6 kg of fries
Adjustable Thermostat	Yes, up to 190°C
Frying Basket	Removable with cool-touch handle
Indicator Lights	Power and ready lights
Safety Features	Auto shut-off, overheat protection, cool-touch exterior
Housing Material	Stainless steel and plastic
Bowl Material	Non-stick coated
Cleaning	Removable bowl and basket, dishwasher safe parts
Spare Parts Available	Basket, lid, bowl
Repairability Index	High - common parts easily replaceable
Warranty	1 year (standard)
Included Accessories	Frying basket, lid, instruction manual

Frequently Asked Questions - SD90020N SWAN

What type of oil should I use in the Swan SD90020N deep fryer?

Use high smoke point oils like canola, sunflower, or peanut oil. Avoid olive oil or butter as they burn easily.

What is the maximum temperature of the deep fryer?

The adjustable thermostat goes up to 190°C (375°F), ideal for most frying needs.

How do I clean the deep fryer?

Unplug and let it cool. Remove the oil, then wash the removable bowl and basket with warm soapy water or in the dishwasher. Wipe the exterior with a damp cloth.

How much oil does the SD90020N hold?

The oil capacity is 1.5 litres. Do not overfill beyond the max line.

Can I fry frozen foods directly?

Yes, but shake off excess ice and lower carefully to avoid oil splatter. Small batches are recommended.

Does the deep fryer have an automatic shut-off?

Yes, it features auto shut-off when the set temperature is reached or if overheating occurs.

What is the wattage of the Swan SD90020N?

It operates at 1500 watts for efficient heating.

Is the frying basket dishwasher safe?

Yes, the basket and bowl are dishwasher safe for easy cleaning. The lid should be hand washed.

How long does it take to heat up the oil?

It typically takes 5-8 minutes to reach the desired temperature, depending on oil volume.

Can I use the deep fryer without oil for air frying?

No, this is a traditional deep fryer that requires oil. It is not an air fryer.

USER MANUAL SD90020N SWAN

Digital Air Fryer

Model: SD90020N

Help line: 01733 404703

v1.1

IMPORTANT INFORMATION - RETAIN FOR FUTURE USE

When using any electrical appliance, basic safety precautions should always be followed including the following:

• Always ensure that the voltage on the rating label corresponds to the mains voltage in your home
- Incorrect operation and improper use can damage the appliance and cause injury to the user.
- This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years. Check the power cord and plug regularly for any damage. If the cord or the plug is damaged, it must be replaced by the manufacturer or qualified person in order to avoid an electrical hazard.
- Do not use the appliance if it has been dropped or damaged in any way. In case of damage, take the unit in for examination and/or repair by an authorised service agent.
- Never immerse the unit in water or any other liquid for cleaning purposes.
- Remove the plug from the socket by gripping the plug. Do not pull on the cord to disconnect the appliance from

IMPORTANT INFORMATION - RETAIN FOR FUTURE USE

the mains. Always unplug the unit when not in use, before cleaning or when adding or removing parts.

• The use of accessory attachments that are not recommended or supplied by the manufacturer may result in injuries, fire or electric shock.
• Do not let the cord hang over the edge of a table or counter. Ensure that the cord is not in a position where it can be pulled on inadvertently.
• Do not allow the cord to touch hot surfaces and do not place on or near a hot gas or electric burner or in a heated oven.
• Do not use the appliance on a gas or electric cooking top or over or near an open flame.
• Use of an extension cord with this appliance is not recommended. However, if it is necessary to use an extension lead, ensure that the lead is suited to the power consumption of the appliance to avoid overheating of extension cord, appliance or plug point. Do not place the extension cord in a position where it can be pulled on by children or animals or tripped over.
• This appliance is not suitable for outdoor use. Do not use the appliance for anything other than its intended use.
• Do not carry the appliance by the power cord.
• Do not leave the appliance unattended during use. Always unplug the unit when not in use or before cleaning.
  • Always operate the appliance on a smooth, even, stable surface. Do not place the unit on a hot surface.
• Ensure that the unit is switched off after use.

IMPORTANT INFORMATION - RETAIN FOR FUTURE USE

- The manufacturer does not accept responsibility for any damage or injury caused by improper or incorrect use, or for repairs carried out by unauthorised personnel.

- In case of technical problems, switch off the product and do not attempt to repair it yourself. Return the appliance to an authorised service facility for examination, adjustment or repair. Always insist on the use of original spare parts. Failure to comply with the above mentioned precautions and instructions, could affect the safe operation of this product.

- Your appliance must never be switched on through an external timer or any kind of separate remote control system

CAUTION: SURFACES BECOME HOT DURING USE. ALWAYS USE TONGS WHENEVER POSSIBLE

CAUTION: PLEASE ENSURE YOUR WORK TOP IS ABLE TO WITHSTAND A TEMPERATURE OF AT LEAST 60 DEGREES CENTIGRADE FOR EXTENDED PERIODS. IF IN DOUBT, MOUNT THE PRODUCT ON A SUITABLE WOODEN PLINTH.

TECHNICAL DATA

Description: Air Fryer

Model: SD90020N

Input Voltage: 220-240V

Frequency: 50/60Hz

Power consumption: 1350 Watts

Swan

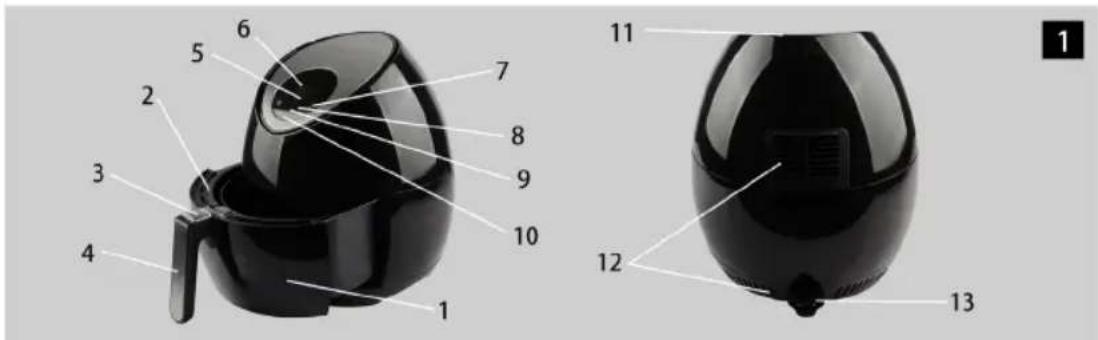

PARTS

Before first use, carefully remove all packaging and familiarise yourself with the various parts of your product

1. Basket
2. Pan - caution, it gets hot!
3. Basket release button
4. Basket handle
5. Power on/pause

6. LCD touch screen

7. Cancel (on LCD display)

8. Timer control
9. Temperature control
10. Menu for presets
11. Air inlet (don't block)
12. Air outlet [don't block]
13. Power cord

wan

DISPLAY & FUNCTIONS

Feel free to connect the appliance to the mains supply and try the various functions to become more familiar with them.

AUTO OPERATION

Presets: Pressing the M button will cycle through the various presets. These set a pre-determined time and temperature. The unit will start automatically a few seconds after the preset is selected.

To cancel the programme, press the ON/OFF button in the centre. Note: after cancelling or at the end of the preset programme, the fan will still operate for a time. This is to prevent condensation gathering on the food, thereby helping it to stay nice and crisp. Presets are a guide only! Much depends on the size of the item(s) being cooked. Always ensure food is piping hot throughout.

MANUAL OPERATION

Simply select the temperature then select the time using the +/- buttons. You can cancel at any time by pressing the ON/OFF button in the centre of the display. Note: after cancelling or at the end of the preset programme, the fan will still operate for a time. This is to prevent condensation gathering on the food, thereby helping it to stay nice and crisp.

HOW TO USE

This product uses air flow in conjunction with a high power element to cook food quickly and efficiently. Some of the many benefits are:

• Reduced cooking times
• Little or no pre-heating needed
• Even cooking with little or no fat required
- Compact, space-saving design

Please ensure all food is piping hot throughout before consuming.

• Before using for the first time, remove the basket and wash in warm. soapy water. Rinse and dry thoroughly before putting back into the Air Fryer.
• Ensure the Air Fryer is on a stable, even surface.
  • DO NOT put any oil into the basket or pan
• Do not use the Air Fryer without the pan and basket fitted

HOT AIR FRYING

1. Connect the mains plug into an earthed wall socket.
2. Carefully pull the pan out of the Air Fryer (fig.4)
3. Place the ingredients in the basket. Note: Do not exceed the MAX indication [see section 'settings'], as it may effect the quality of the food.
4. Slide the pan back into the Air Fryer (fig.5). Never use the pan without the basket in it. Caution: Do not touch the pan during or shortly after use, as it gets very hot. Only hold the pan by the handle.
5. Select either manual time and temperature or select one of the presets. Refer to "Settings" section to determine typical cooking times.
6. TIP: Preheat time is usually not required but if used in a cold room, pre-heating for 2 minutes might give better results. Set temp at 200. Set time to 2 mins and allow to run.
   • The timer starts counting down the set cooking time.
7. During the hot air frying process, the fan indicator will change colour and return to blue once the process is complete
8. Excess oil and fat from the food is collected on the bottom of the pan. It's better there than on your waistline!
9. Some foods may require shaking halfway during the preparation time (see section 'Settings' in this chapter). To do this, pull the pan out of the appliance by the handle and shake it. Then slide the pan back into the Air Fryer
10. Caution: Do not press the button of the handle during shaking.

HOW TO USE

When you hear the beeps, the set cooking time has elapsed. Pull the pan out of the appliance and place it on a heat-resistant surface.

Check if the food is ready.

If the ingredients are not ready yet, simply slide the pan back into the appliance and set the timer/temperature to a few extra minutes. Always ensure food is piping hot throughout before consuming

To remove small ingredients (e.g. fries), press the basket release button and lift the basket out of the pan. You will notice that excess fat from the food has collected in the bottom of the pan.

The pan and the ingredients are hot after hot air frying. Depending on the type of the ingredients in the in fryer, steam may escape from the pan. Take care with hot temperatures

Empty the basket into a bowl or onto a plate.

Tip: To remove large or fragile ingredients, lift the ingredients out of the basket using a pair of tongs.

When a batch of food is ready, the Air Fryer can be used again immediately

SETTINGS

This table below will help you to select the basic settings for the ingredients.

Note: Keep in mind that these settings are indications. As ingredients differ in origin, size, shape and brand, we cannot guarantee the best setting for your ingredients.

Because the Rapid Air technology reheats the air inside the appliance instantly, pulling the pan briefly out of the appliance during hot air frying (to check progress) barely disturbs the cooking process.

Tips

• Smaller ingredients usually require a slightly shorter preparation time than larger ingredients.
• A larger volume of ingredients only requires a slightly longer preparation time, a smaller volume of ingredients only requires a slightly shorter preparation time.
• Shaking smaller ingredients halfway during the preparation time optimises the end result and can help prevent unevenly fried ingredients - just as it does in a regular fryer
• Spray some oil on to fresh potatoes for a crispy result. Fry your ingredients in the air fryer within a few minutes after adding the oil.
• You can also use the AIR FRYER to reheat ingredients. To reheat ingredients, set the temperature to 150C for up to 10 minutes.

Temp (C) Food Amount Time (mins)
200 Frozen chips th	in 100-400g 9
200 Frozen chips th	ick 100-400g 11-18
180 Fresh chips/	wedges	100-400 15-22 (spray with oil first)
180 Pork chop up to	500g 10-15
180 Burger uo to	500g 7-14
180 Chicken breast	up to 500g 10-15
200 Chicken nuggets	Up tp 400g	6-10
180 Sausage frozen	Up to 400g	20
180 Sausage fresh	Up to 400g	15
180 Pasties/pastry	top	Up to 500g	8-12 mins

9

CLEANING & MAINTENANCE

1. Remove the mains plug from the wall socket and allow the appliance to cool downNote: Remove the pan to let the AIR FRYER cool down more quickly.
2. Wipe the outside of the appliance with a moist cloth & dry with kitchen towel.
3. Clean the pan and basket AFTER EVERY USE with hot water, some washing-up liquid and a non-abrasive sponge.

Note: The pan and basket are dishwasher-proof.

Tips: If dirt is stuck to the basket or the bottom of the pan, fill the pan with hot water with some washing-up liquid. Put the basket in the pan and let the pan and the basket soak for about 10 minutes. Clean the inside of the appliance with hot water and non-abrasive sponge.

Do not use abrasive cleaners (eg metal scouring pads), or strong chemical cleaners

NEVER immerse the main unit is water or run it under the tap.

WARRANTY

This product is guaranteed for 2 years from the date of original purchase. If any defect arises due to faulty materials of workmanship the faulty products must be returned to the place of purchase. Refunds or replacement is at the discretion of the store.

The following conditions apply:

• The product must be returned to the retailer with proof of purchase.
- The product must be installed and used in accordance with the instructions contained in this instruction guide.
• It must be used only for domestic purposes.
- It does not cover wear and tear, damage, misuse or consumable parts.
• Swan Products Ltd has limited liability for incidental or consequential loss or damage.
• This guarantee is valid in the UK and Eire Only.

BS PLUG

The wires in the mains lead are coloured in accordance with the following code:

BLUE NEUTRAL

BROWN LIVE

GREEN/YELLOW EARTH

As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings identifying the terminals on your plug, proceed as follows:

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red. The wire which is coloured GREEN/YELLOW must be connected to the terminal which is marked with the letter E or (earth symbol) and is coloured GREEN or GREEN/YELLOW.

WARNING: THIS APPLIANCE MUST BE EARTHED

DISPOSAL OF UNIT

Appliances bearing the symbol shown here may not be disposed of in domestic rubbish. You are required to dispose of old electrical and electronic appliances like this separately. Please visit www.recycle-more.co.uk or www.recyclenow.co.uk for access to information about the recycling of electrical items. Please visit www.weeeireland.ie for access to information about the recycling of electrical items purchased in Ireland. The WEEE directive, introduced in

August 2006, states that all electrical items must be recycled, rather than taken to landfill. Please arrange to take this appliance to your local Civic Amenity site for recycling, once it has reached the end of its life.

11
