Product Type	LED Moving Head Spot
Model	MHS-100G
Light Source	100W White LED
Beam Angle	15°
DMX Channels	12/14/16 selectable
Pan Range	540°
Tilt Range	240°
Color Wheel	7 colors + open
Gobo Wheel	7 gobos + open, rotating
Strobe	1-20 Hz
Dimmer	0-100% linear
Control Modes	DMX512, Master/Slave, Sound-Active, Auto
Display	LCD with 4 buttons
Power Supply	AC 100-240V, 50/60Hz
Power Consumption	150W
Dimensions (L x W x H)	315 x 215 x 245 mm
Weight	5.2 kg
Cooling	Temperature-controlled fan
Housing	Metal, black
Mounting	Omega bracket, floor or truss
IP Rating	IP20 (indoor use only)
Safety Features	Safety cable loop, auto-locking clamps
Maintenance	Clean lens with soft cloth, ensure ventilation
Spare Parts	LED module, gobo set, fan, power supply, mainboard

Frequently Asked Questions - MHS-100G Qtx

How do I connect the MHS-100G via DMX?

Use a 3-pin XLR cable to daisy-chain the fixture. Set the DMX address via the LCD menu. Each fixture occupies 12, 14, or 16 channels depending on mode.

What is the lamp life of the LED?

The 100W LED has a rated lifespan of approximately 50,000 hours. No lamp replacement is needed under normal use.

How do I reset the fixture?

In the main menu, select 'Reset' to reset pan, tilt, and effects to home positions.

Can I use this fixture outdoors?

No, the MHS-100G is rated IP20 for indoor use only. Keep it away from moisture, rain, and direct sunlight.

How do I clean the lens?

Use a dry, soft cloth to gently wipe the lens. For stubborn dirt, use a mild glass cleaner. Do not use abrasive materials.

What is the maximum ambient temperature for operation?

The fixture can operate safely in ambient temperatures from 0°C to 40°C (32°F to 104°F). Ensure adequate ventilation.

How many channels does the fixture use in its default mode?

The default DMX mode uses 12 channels. You can change to 14 or 16 channels via the menu for more control options.

Does the fixture have sound activation?

Yes, select 'Sound Active' mode in the menu. The built-in microphone triggers color and gobo changes to music.

What should I do if the fixture stops responding?

Check DMX cable connections, power supply, and ensure the DMX address is correct. Try a power cycle: unplug for 10 seconds then reconnect.

How do I replace the gobos?

Remove the gobo wheel access panel on the head. Unscrew the gobo holder, replace the gobo, and reassemble. Take care not to touch the glass.

USER MANUAL MHS-100G Qtx

100W Spot-Wash LED Moving Head with GOBOs

Item ref: 150.457UK

User Manual

Please read through this manual thoroughly before use, any damage caused by misuse of product will not be covered by warranty.

A small and lightweight mini moving head that combines 1x 30W white LED with 6x 8W RGBW LED's for the very best in effects and colour mixing. Featuring colourful washes, spots and GOBOs and auto or sound-to-light modes, this 14 channel DMX light effect can be free standing or mounted to trussing using the supplied brackets. Ideal for small stages, bars, nightclubs and mobile DJs the QTX MH-100 provides dazzling performance in a compact, portable unit.

Black industrial lighting fixture with circular mirrors and control panel (no visible text or symbols)

In the box:

Your MHS-100G should arrive with you in a single carton in good condition. The carton should contain 1 x main unit with bracket, 1 x UK IEC mains lead and 1 x manual.

Warning:

To prevent risk of fire or electric shock, do not expose the unit to rain or damp environments. In the event of a spillage, disconnect the mains and allow the unit to dry out naturally. Qualified personnel should then check the unit before continuing use.

Please do not open cover, contains high voltage. This product is not serviceable or repairable by the end user. Please refer to qualified personnel for service and repair.

Placement:

• Use the included mounting bracket to fix to a stand or lighting truss.
• Use secondary safety fixings if mounting overhead.
- Keep away from damp or dusty environments.
- Ensure adequate airflow around the fixture housings.
- Ensure adequate access to controls and connections.
- Do not aim LED output directly into line of sight, as this can result in eye injury.

Cleaning:

• Use a soft cloth with a neutral detergent to clean the casing as required.
• Use a vacuum cleaner to clear ventilation grilles of any dust or debris build-ups.
- Do not use strong solvents for cleaning the unit.

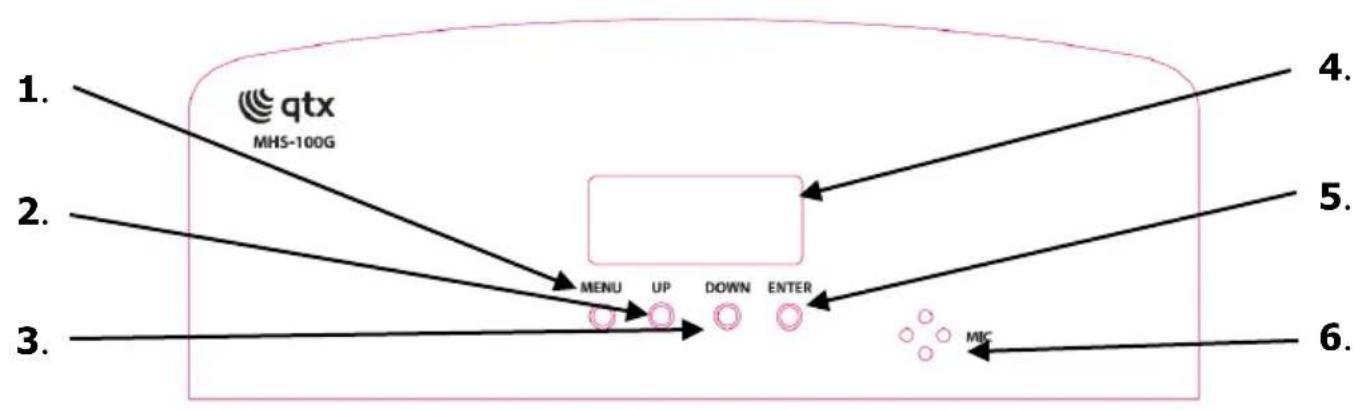

Rear panel and control

1. Menu button
2. Up button
3. Down button
4. LED display

5. Enter button

6. Microphone

7. DMX input
8. DMX output
9. IEC input (110-240 Vac, 50/60 Hz)

Manual control menu:

Press the "MENU" button to enter the settings menu.

Press "UP" and "DOWN" buttons to navigate through various setting functions.

Press "ENTER" button to confirm the desired setting.

Menu	Function	Description
Addr	A001 - A512	DMX address settings
rPan	Yes/NO	Pan reverse
rtil	Yes/NO	Tilt reverse
Autx	Aut0 – Aut4	Auto effects (Aut4 is 180° forward lock function)
	SP00 - SP99	Auto effect speed - slow to fast
SoUn	SoU1 – SoU4	Sound active modes (SoU4 is 180° forward lock function)
	SU1 - SU99	Sound active mode sensitivity – low to high
rset	RESET	Reset unit to factory settings

DMX mode:

The MHS-100G can be controlled by DMX signal, simply connect the DMX signal source to the DMX input on the unit via a balanced XLR lead. Extra fixtures can be controlled by the same DMX signal by looping through the DMX out on the unit. To enter DMX mode, select A001 from the menu and confirm the correct start address by using the "UP" and "DOWN" buttons and "ENTER". The A on the LED display will begin to flash once it's received the DMX signal from the controller. This unit has 14 DMX channels as indicated in the table below:

Channel	Function	DMX value and description
1	PAN	0-255 PAN adjust 0-540°
2	Tilt	0-255 Tilt adjust 0-270°
3	Pan/Tilt fine	0-255 Pan/Tilt fine adjust
4	RGBW dimmer	0-255 (0-100%)
5	40W White dimmer	0-255 (0.100%)
6	40W White strobe	0-255 (slow to fast)
7	Colour	0-015 White, 016-023 Colour 1, 024-031 Colour 2, 032-039 Colour 3 continued until 120-127 Colour 14, 128-189 Forward rotate (slow to fast), 190-193 Stop, 194-255 Reverse rotate (slow to fast)
8	GOBOs	0-015 White, 016-031 Gobo1, 032-047 Gobo2 continued until 112-127 Gobo7, 128-189 Forward rotate (slow to fast), 190-193 Stop, 194-255 Reverse rotate (slow to fast)
9	Red wash	0-255 (0-100%)
10	Green wash	0-255 (0-100%)
11	Blue wash	0-255 (0-100%)
12	White wash	0-255 (0-100%)
13	Wash strobe	000 No strobe, 001-255 slow to fast
14	Special	0-199 No function, 200-209 Reset, 210-239 No function, 240-255 Sound active mode

Specifications:

Power supply	110-240Vac, 50/60Hz (IEC)
Power consumption	100W
Fuse rating	F5A
LED power	1x 30W White, 6x 8W RGBW
Modes	Auto, sound, master/slave, DMX512
DMX channels	14CH
PAN range	540°
Tilt range	270°
Effects	RGBW spot, wash, 7x gobos, strobe effect
Dimensions	150 x 160 x 240mm
Weight	2.126kg

Troubleshooting:

No power (mains)	Check mains voltage is correct and outlet is switched on
	Check IEC lead and fuse (if fuse continually blows, refer to your dealer)
No light output	Check control panel mode settings
	Check DMX settings from controller (dimmer levels, blackout etc.)
Unresponsive to DMX	Check that unit is in DMX mode and ensure the A on the DMX address flashes to confirm it's receiving a DMX signal
	Check DMX controller is not set to black out
	Check DMX controller is on correct fixture/page
	Check master dimmer value
	Check correct DMX address is set
	Check DMX connection and leads
Overheating/cutting out	Ensure adequate ventilation and unit is not too close to a heat source

This product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines.

Errors and omissions excepted.
