Product Type	Professional Electric Oven
Model	688020
Dimensions (WxDxH)	600 x 600 x 400 mm
Weight	30 kg
Power Supply	230V / 50Hz, 3 kW
Capacity	3 shelf levels
Temperature Range	50°C - 300°C
Functions	Convection, fan-assisted, grill
Interior Material	Stainless steel
Door Type	Double-glazed, reinforced hinge
Interior Light	LED
Thermostat	Electronic, precise
Timer	Up to 120 minutes
Cooling System	Cooling fan
Cleaning	Enamel-coated walls for easy cleaning
Safety Features	Door lock at high temperature, auto shut-off
Certifications	CE, UL
Warranty	2 years
Country of Origin	China
Included Accessories	2 wire shelves, 1 drip tray
Repairability	Spare parts available via customer service

Frequently Asked Questions - 688020 CaterChef

What is the maximum temperature this oven can reach?

The CaterChef 688020 can be set from 50°C to 300°C, allowing for a wide range of cooking applications.

Does the oven have a safety lock?

Yes, the oven is equipped with a door lock that activates at high temperatures and an auto shut-off feature for enhanced safety.

What is the power consumption?

The oven operates at 230V / 50Hz with a power rating of 3 kW.

How many shelf levels does the oven have?

The CaterChef 688020 includes 3 shelf levels, accommodating multiple dishes at once.

What cooking functions are available?

This oven offers convection, fan-assisted, and grill functions for versatile cooking.

Is the oven easy to clean?

Yes, the interior features enamel-coated walls that make cleaning simple and efficient.

What accessories come with the oven?

The oven includes 2 wire shelves and 1 drip tray as standard accessories.

What are the dimensions and weight?

The dimensions are 600 x 600 x 400 mm (WxDxH) and it weighs approximately 30 kg.

Does the oven have interior lighting?

Yes, it is equipped with an LED interior light for monitoring cooking progress.

Where can I find spare parts?

Spare parts are available through CaterChef customer service or authorized dealers.

USER MANUAL 688020 CaterChef

TOSTI APPARAAT SANDWICH TOASTER GEBRUIKSAANWIJZING/MANUAL (\*688.020/\*688.022)

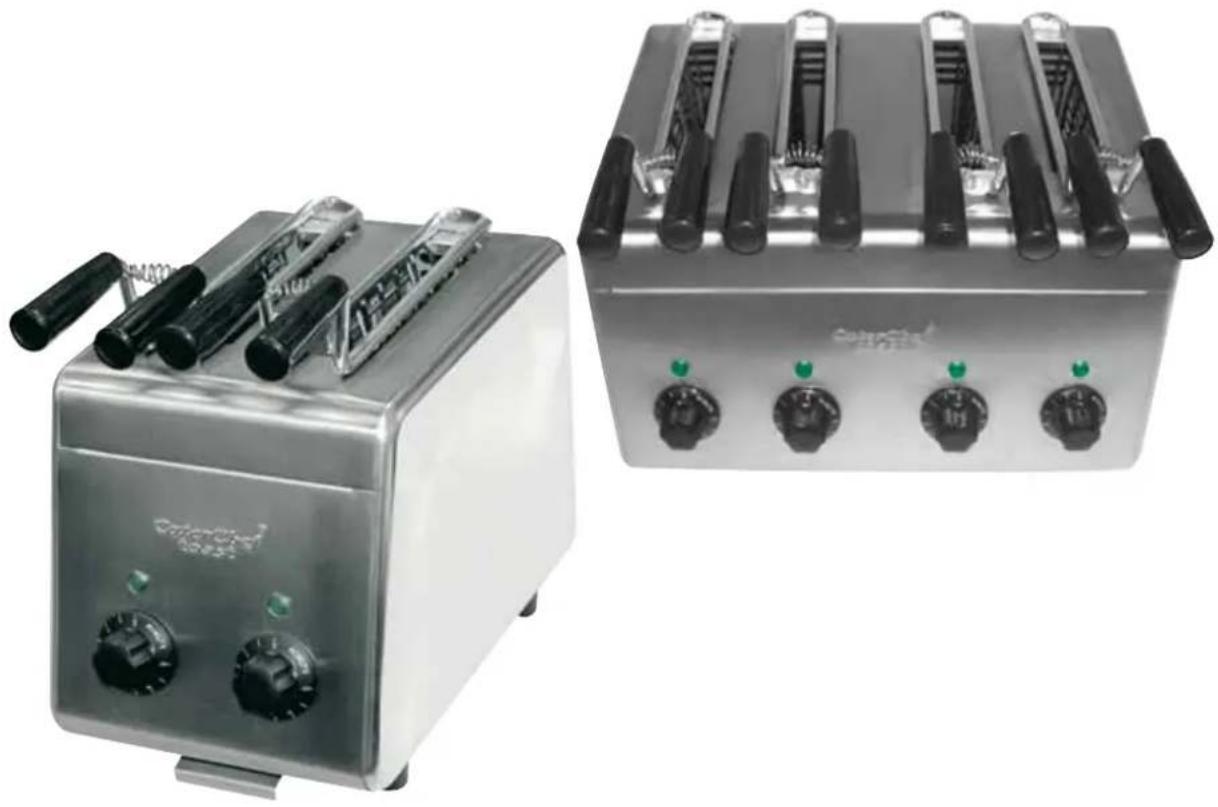

Two stainless steel electric stoveters with black handles and control knobs, one emitting smoke from a grating (no visible text or symbols)

Please refer to these instructions before using this machine

1. SPECIFICATIES

Model.No : *688.020 *688.022

Voltage : 230V / 50 Hz 230V / 50 Hz

Watt: 1400W 2800W

Dimensies : 29(H) × 20 × 31 cm

Capaciteit : 2 stk

Gewicht : 5,3 Kg

Rated Duration : 0 - 5 minutes

29(H) × 38 × 31 cm

4 stk

7,5 Kg

0 - 5 minuten

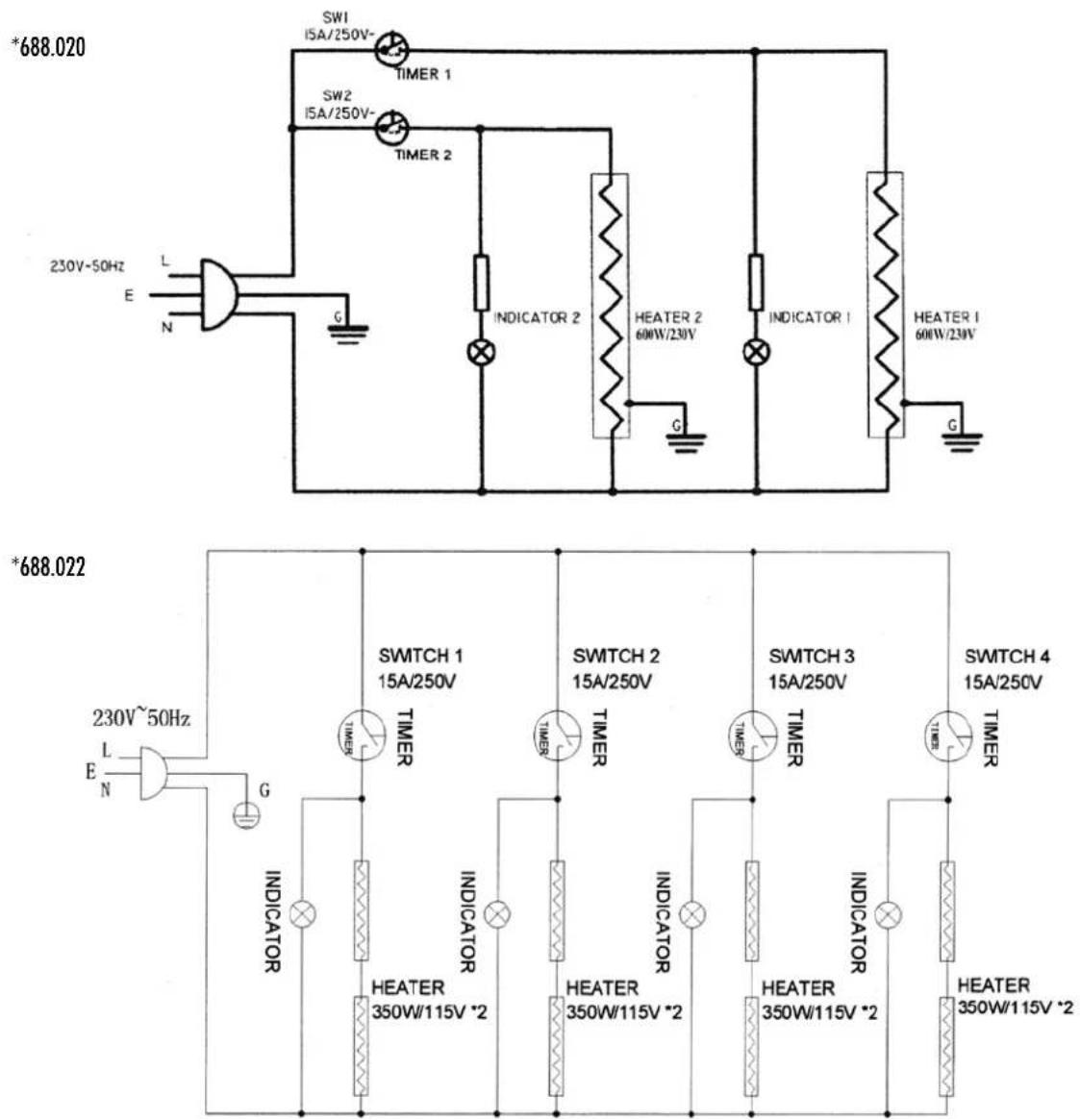

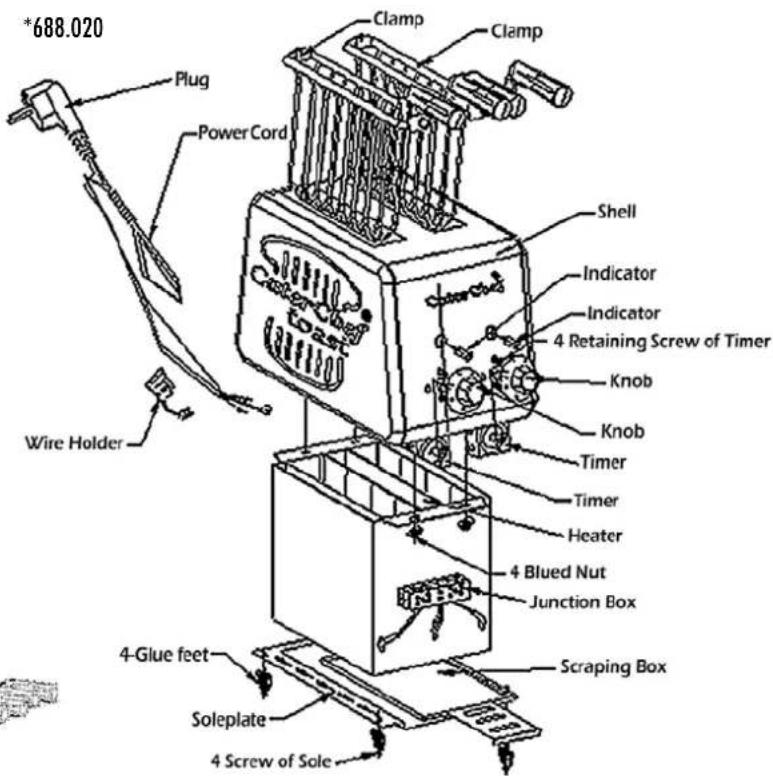

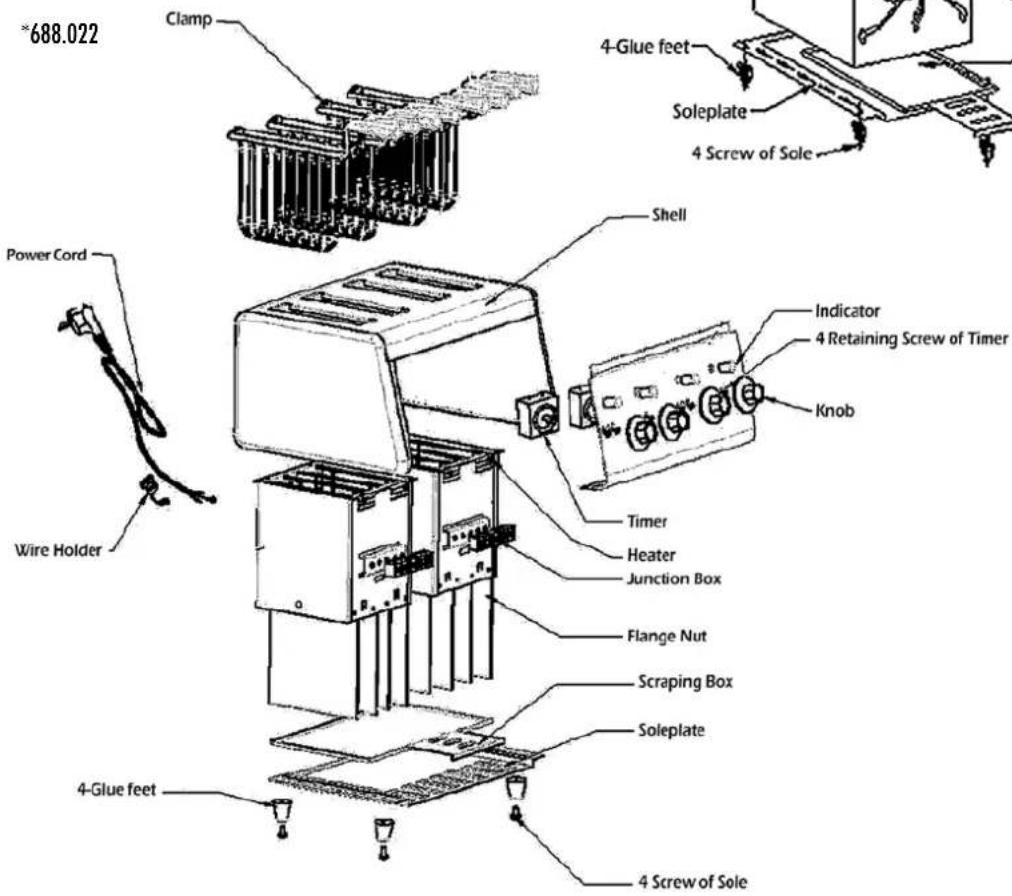

2. ILLUSTRATIE DIAGRAM

2. ILLUSTRATION DIAGRAM

3. INSTRUCTION

• Clean the tong, toaster before using.
• Serve breads in plates.
• Make sandwich and wrap ingredients such as cheese, ham, turkey, lettuce etc.
• Put the sandwich in the tong
• Insert the tongs into the slots. Place them in th center of the slots so that they an be heated evenly
• Set the timer in accordance with your favorite. The sandwiches start heating
• When the time's up, you will hear a jingle, and the toaster stops heating
  • Take the tong out, tighten the handle, take out the sandwich, and serve the sandwich
• In case of overheating the sandwich, take out the tong, set timer to '0' so the toaster will stop heating. If the sandwich is still underdone reset timer

4. WARNING

• Please read the instructions before using the machine.
• The power supply must be identical with the wattage of machine and connected to ground wire.
• Place the machine on a flat, stable surface.
• During the first time the machine may cause smoke. Eventually the smoke will diminish
• To protect the machine and prevent injuries – do not rinse it and soak the toaster. You may clean it with cotton cloth with detergents and water, and wipe it over with clean towel.
• To prolong the longevity of the machine - not to use the product continuously for a long time.
• Do not use damaged power cord and it should be repaired by manufacturer, or technician.
• This appliance is ideal for both commercial & household use, and is for indoor use only.
• Only the complementary tong can be used on this machine. Do not use unsuitable tongs or other tools this may cause damage and is dangerous.
• Keep children away, and do not touch the toaster when it is running.
• Unplug the machine after using it each time.
• Clean the machine. Allow it to cool down before repacking it.
