SC-KS57B10 - Kitchen scale Scarlett - Free user manual and instructions

Product Type	Digital Kitchen Scale
Brand	Scarlett
Model	SC-KS57B10
Weight Capacity	5 kg / 11 lbs
Precision (Graduation)	1 g / 0.1 oz
Units of Measurement	g, kg, lb, oz, ml (water), fl.oz (water)
Display Type	LCD, backlit
Tare Function	Yes, subtracts container weight
Auto-Off	After 2 minutes of inactivity
Overload Indication	Yes, "O-Ld" display
Power Source	2 x AAA batteries (1.5V each, included)
Material	Stainless steel platform, ABS plastic body
Dimensions (Approx.)	20 x 15 x 2 cm (7.9 x 5.9 x 0.8 in)
Net Weight (Scale)	300 g (0.66 lbs)
Cleaning	Wipe with damp cloth; do not immerse in water
Safety Features	Non-slip feet, automatic shut-off, low battery indicator
Spare Parts Availability	Standard AAA batteries; no user-replaceable parts other than batteries
Warranty	1 year (see manufacturer's terms)

Frequently Asked Questions - SC-KS57B10 Scarlett

What batteries does the Scarlett SC-KS57B10 use?

The scale requires 2 AAA batteries (1.5V each). They are included in the package.

How do I change the unit from grams to ounces?

Press the MODE or UNIT button repeatedly until the desired unit (g, kg, lb, oz, ml, fl.oz) appears on the display.

Why does my scale show 'O-Ld' or 'Err'?

'O-Ld' means overload. Remove some weight. 'Err' indicates an error; try replacing batteries or ensuring scale is on a flat surface.

Can I weigh liquids directly on the platform?

Yes, but only if using a container. Use the tare function to zero out the container weight. Avoid spilling liquid on the scale.

How do I clean the kitchen scale?

Wipe the platform and body with a damp cloth. Do not immerse in water or use abrasive cleaners. Dry thoroughly after cleaning.

Does the scale have an automatic shut-off?

Yes, it turns off automatically after 2 minutes of inactivity to conserve battery.

What is the maximum weight I can measure?

The maximum capacity is 5 kg (11 lb). Exceeding this may damage the scale.

How accurate is the Scarlett SC-KS57B10?

It has a precision of 1 g or 0.1 oz, suitable for most kitchen tasks.

The display is faint or blinking. What should I do?

This usually indicates low batteries. Replace with fresh AAA batteries and check polarity.

Can I store the scale vertically?

Yes, it is slim enough to store upright. Keep it in a dry place away from heat and moisture.

USER MANUAL SC-KS57B10 Scarlett

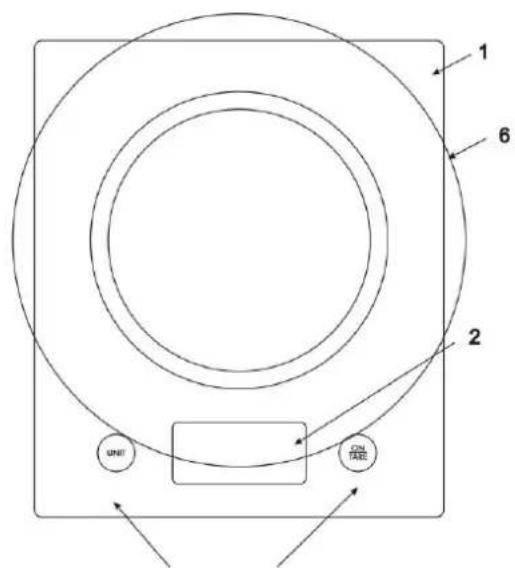

White SCARLETT digital kitchen scale with digital display and control buttons (no text or symbols on the appliance itself)

www.scarlett.ru

GB DESCRIPTION

1. Body
2. Display
3. Control buttons
4. Batteries compartment
5. 2 Batteries 1.5V AAA (included)
6. Bowl

UA опис

Pure geometric diagram with circles and a rectangle, no text or symbols present

3

GB INSTRUCTION MANUAL IMPORTANT SAFEGUARDS

• Please read all instruction manuals before use and save it for future references.
• For home use only. Do not use for industrial or commercial purposes.
• Oiling of inner mechanism is not needed.
• Do not shock the scale with sudden loading or striking.
• Do not overload the scale.
• Do not attempt to repair, adjust or replace parts in the appliance. Repair the malfunctioning appliance in the nearest service center.
• If the product has been exposed to temperatures below 0°C for some time it should be kept at room temperature for at least 2 hours before turning it on.
• The manufacturer reserves the right to introduce minor changes into the product design without prior notice, unless such changes influence significantly the product safety, performance, and functions.
• Manufacturing date is indicated on the unit and/or on packing as well as in accompanying documents in the following format XX.XXXX where first two figures XX is the month of production, and following four figures XXXX is the year of production.

OPERATING INSTRUCTIONS

START TO USE

• Plug 2 1.5V AAA batteries (included) into the battery case on the bottom, respecting the polarity.
• Place the scale on a hard and flat surface instead of the soft carpets.
• Press the ON/TARE button.
• Wait a few seconds until the display will show "0".

«TARE» FUNCTION

• Place the bowl on the scale, the weight of the container will be displayed on the screen.
• Press ON/OTARE button, the screen will show "0".
• Place the product in a bowl. After the product is stabilized, the weight of the product is displayed.
• Default scale is set to the units grams (g). To change the pound, press the «UNIT» the right amount of time.

AUTOMATIC SWITCHING OFF

- If the display shows "0" or the same weight reading for 2 minutes, the scale will automatically turn off.

OVERLOAD INDICATOR

- When the scale is overloaded, the display shows "0-Ld".

BATTERY REPLACING

- Replace the battery when the display shows «Lo».

MAINTENANCE AND CARE

• Wipe the scale with a soft cloth and cleaner, and then dry it.
• Do not use any organic solvents, aggressive chemicals and abrasives.

STORAGE

• Complete all requirements of chapter MAINTENANCE AND CARE.
• Do not put anything on bathroom scale when not in use.
• Keep the scale in a dry cool place.

BATTERRIES USAGE RULES

• Battery contains harmful substances for human body. Keep the wrapping materials out of reach of children (choking hazard). The person, who swallowed a battery, should immediately consult a doctor.
• Change the batteries regularly. Change all batteries at once using the elements of the same type.
• It is forbidden to recharge or restore batteries in other manner, disassemble them, or throw into fire or hot-wire.
• The battery must be inserted in the correct polarity.
• Discharged battery can be a reason of scale breakdown. Remove the batteries compartment in case of long out-of-action time.
• Do not throw the batteries into fire! Highly explosive!
• Do not short-circuit the power clamps.

The symbol on the unit, packing materials and/or documentations means used electrical and electronic units and battery's should not be toss in the garbage with ordinary household garbage. These units should be pass to special receiving point.

For additional information about actual system of the garbage collection address to the local authority.

Valid utilization will help to save valuable resources and avoid negative work on the public health and environment which happens with incorrect using garbage.
