SW-123G - Grille-pain sandwich Izzy - Free user manual and instructions

Product Type	Sandwich Toaster
Brand	Izzy
Model	SW-123G
Dimensions (W x D x H)	23.5 x 7.8 x 8.5 cm
Weight	1.2 kg
Power Supply	220-240V, 50-60Hz, 750W
Housing Material	Stainless steel and heat-resistant plastic
Non-Stick Plates	Yes, two non-stick coated sandwich plates
Indicator Light	Power on/off indicator
Locking Handle	Cool-touch locking handle for even toasting
Automatic Shut-Off	Not specified (typical model may have manual shut-off)
Ready Light	Light turns off when toast is ready
Toast Capacity	2 sandwiches at a time
Cord Length	Approx. 80 cm
Cleaning	Wipe with damp cloth; plates are non-stick for easy cleaning
Safety Features	Cool-touch handle, non-slip feet, overheat protection
Spare Parts Available	Replacement plates and cord (contact support)
Repairability	Limited user-serviceable parts; consult authorized service center
Warranty	1 year manufacturer warranty

Frequently Asked Questions - SW-123G Izzy

How do I use the Izzy SW-123G sandwich toaster?

Plug in the toaster and wait for the indicator light to turn on. Place a sandwich on the bottom plate, close the lid, and lock the handle. The sandwich will toast until ready (light turns off). Unplug after use.

Can I toast other foods besides sandwiches?

Yes, you can toast small items like paninis, but it is primarily designed for sandwiches. Ensure not to overload.

How do I clean the sandwich toaster?

Unplug and let cool. Wipe the plates with a damp cloth. Do not immerse in water. A soft brush can remove stuck bits.

Why is the indicator light not turning on?

Check if the power cord is properly plugged in and the outlet is working. The light may be faulty; contact support.

What should I do if the sandwich sticks?

Ensure the plates were preheated before use. Lightly butter the bread or use non-stick spray. Cleaning after each use helps.

Is the handle cool to touch during operation?

Yes, the handle is designed to stay cool, but always use caution and avoid touching other parts.

Can I repair the toaster myself?

Only qualified personnel should open the device. For power cord replacement or internal issues, contact Izzy support.

Where can I buy spare parts?

Spare parts like plates are available through Izzy customer service. Check their website or contact support.

Does the toaster have automatic shut-off?

This model does not have automatic shut-off. You must unplug after each use. The indicator light turns off when ready.

How many sandwiches can I make at once?

The SW-123G can toast two standard sandwiches simultaneously.

USER MANUAL SW-123G Izzy

We thank you for having chosen an appliance from the IZZY range.

Safety interlocks

Read carefully read the instructions before using the appliance for the first time and keep them for future reference. IZZY is not responsible for non-compliance of the instructions.

- Before connecting the appliance, check if the voltage indicated on the appliance, corresponds with the mains voltage in your home.

• Always plug your device into an outlet that is earthed. Failure to comply with this requirement may result in electric shock and possible serious injury.

- Never leave the appliance unattended when in operation.

- Close supervision is necessary when your appliance is being used near children. Ensure that they do not play with the appliance.

- This appliance is not intended for use by people with reduced physical, sensory or mental capabilities, children or those with lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Disconnect the power cord from the supply mains:

- Immediately after use

- When you do not use the appliance

- Before cleaning and maintenance operations

- Make sure that the appliance and the grill plates have cooled down completely before cleaning.

- Do not touch the hot surfaces of the appliance. Always use hot pads or oven mittens.

- Never use the appliance for any other use than indicated.

- The device is intended for indoor use. Do not use the device outdoors.

- The device is intended only for domestic use. Any other use will cancel the warranty.

- Do not use an extension power cord.

- Check the power cord periodically for possible damages. If the power cord or the plug of the appliance has been damaged, do not use the appliance and contact an authorized BENRUBI Service Center.

• Make sure that the power cord does not come into contact with the hot parts of the appliance.

• Always use the appliance on a dry, flat surface, resistant to high temperatures. Particular attention is required on surfaces where the temperature can cause problems. In these cases, it is recommended to use additional heat-resistant surface.

- Do not operate or place the device or parts in places of high humidity or where it may get wet. Do not immerse the appliance in water or any other liquid.

- Do not place the appliance near heat sources, on or next gas or electric hobs or over hot oven.

- Never use metal objects to remove food from the plates, as this may damage the nonstick surface. Use only wooden or plastic utensils.

- Do not let the power cord of the appliance hang over the edge of a table or bench top or where a child could grab it. Do not let the power cord to touch any hot surface.

- Never leave the power cable wrapped during use. Unwind it completely.

- Do not touch anything except your food on the grill plates during operation. Do not use the appliance without food.

- Never use highly corrosive or abstractive cleaning agents. Never use metal scouring pads for cleaning.

- Do not move the appliance when it is in operation.

- Do not touch the appliance with wet or damp hands.

- If the appliance does get wet, immediately remove the power cord from the wall outlet and contact one of the authorized BENRUBI service centers.

- In case of a possible damage, do not attempt to repair the appliance by yourself. Please contact one of the authorized BENRUBI service centers. Any repair made by a non-unauthorized BENRUBI Service Center CANCELS THE GUARANTEE.

- Any misuse of the device cancels the warranty.

- The appliance conforms to EU directive 2014/30/EU on Electromagnetic Compatibility, the 2014/35/EU Low Voltage Directive, the 2011/65/EU RoHS Directive, the directive 2009/125/ EC for eco-design and the EC regulation no. 1935/2004 on materials intended to contact with food.

SAVE THESE INSTRUCTIONS

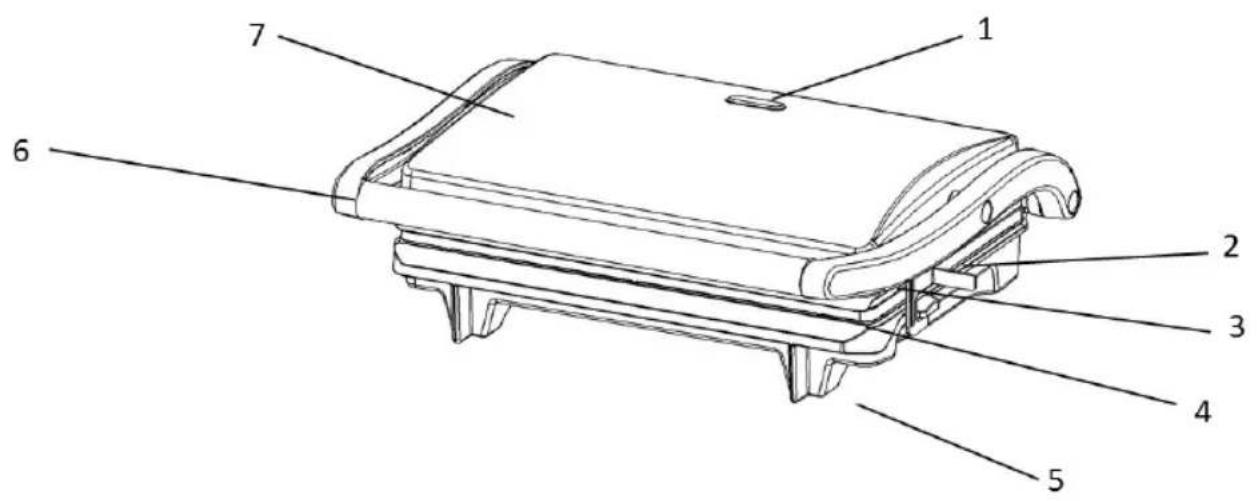

Parts of the Appliance

1. Power/temperature indicator
2. Lock switch & upper plate height adjustment
3. Upper nonstick plate
4. Bottom nonstick plate
5. Non-slip feet
6. Heat resistant handle
7. Stainless steel surface

Before the First Use

NOTE: Smoke and odor may occur during first use.

1. Clean the external surface of the appliance and non-stick plates with a wet cloth or kitchen towel.
2. Place the mains plug into socket.
3. Preheat the sandwich maker for about 5 minutes with the plates opened.
4. Unplug the device from the mains.

This procedure is required for the first use only.

Use of Panini Sandwich Maker

1. Plug in your device.
2. The power/temperature indicator light (1) will turn white.
3. Once the device has been preheated, the power/temperature indicator light (1) will turn off.

NOTE: During the warm-up always have the plates closed.

1. Once the indicator light turns off, open the plates and place the sandwich on the grill plate.
2. Close the plates with the heat resistant handle latch (6).
3. Let the sandwich to be cooked, depending on the bread type, the filing, and your personal preference.
4. When finished cooking, remove food and unplug from the outlet.

- Some filings, such as cheese, might melt and stick on the double non-stick coating. To clean the plates from any food residue, use a plastic or wooden spatula. Never use metal components, as they may scratch the nonstick surface of the plates.

CAUTION: Never touch the surfaces of the device while it is in operation. Use the handle latch to open the top cover. Be extra careful when removing hot food from the grill plates.

Note:

The height of the upper plate adjust to the point that you want. This function helps to avoid press foods such as fish, burger buns etc. For best results, the thickness of the food must be so, that it touches on both plates.

Grilling Tips

• Leave much frozen food to thaw before baking.
• Do not use the same utensils for raw and cooked foods.
• For best results, the food should have a thickness of a maximum of 2.5 cm.
• We recommend that you marinate foods before cooking. If you marinate foods, remove the excess marinade with a paper towel before placing on the cooking plates. Some marinades contain high sugar levels which can be burned on the plates.
• Do not salt meat before cooking because salt absorbs fluids and meat can harden.
• Chicken and turkey should be well cooked but not dry. The beef fillet can be somewhat red inside, so the meat remains juicy and tender. Pork should always be well cooked. Test the meat by marking it with a knife.
• Before putting sausages on grill plates carve with a knife or pierce with a fork.

Care and Cleaning

• Before cleaning the appliance, make sure that it is disconnected from the outlet and let the body and the plates to cool down completely.
• NEVER immerse the appliance and the electric cord into water or any other liquid.
• NEVER use chemicals and abrasive detergents.
• NEVER use metal brushes or other objects that may scratch the surfaces.
• You can wipe and dry the external surface of your appliance as well as the plates with a

damp cloth or kitchen towel.

• To clean over oil or leftovers use firstly paper towel, then wood or plastic spatula.
• Make sure the parts of the device that you clean both are completely dry before reuse or before storage.

Storage

• Make sure the appliance has cooled down completely and cleaned before storage.
• Lock the plates by pushing the safety lock (2).
• Store the appliance in a dry place without moisture.
• Never leave the appliance outdoors and exposed to rain.

Technical Characteristics

Model: Panini sandwich maker SW-123G

Rated Voltage/Frequency: 220-240V AC 50/60 Hz

Power: max 800W

Safe Appliance Disposal

At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service. Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources.

As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled dustbin.

Guarantee & Customer Service

• BENRUBI Company guarantees its products for any manufacturing defect or defective materials for a period of two (2) years from the date of purchase or delivery by presenting purchase receipt. If your product malfunctions or you find any defects, please revert to the retail location you have purchased it from or contact an authorized BENRUBI Service Centre. To find the nearest authorized BENRUBI Service Centre, visit our website www.benrubi.gr. It is in the discretion of BENRUBI Company to replace or repair the defective product.
• The warranty does not cover damages resulting from normal wear, breakage, scaling, improper installation or maintenance of the product, mishandling, abnormal working conditions, failure to implement the instructions, conversion or repair of the product by an unauthorized technician who does not belong to the BENRUBI Service Centers.

Also, the warranty does not cover the following indicative factors:

• Stains, discoloration or scratches.
- Burns due to exposure to heat or flame.
- Damage from thermal shock (sudden temperature change or change of voltage).

FOR MORE INFORMATION CONTACT:

H. BENRUBI & FILS SA

27 Aghiou Thoma str, GR15124

Maroussi – Athens

Tel.: [phone], Fax: [phone]

e-mail: [e-mail]
