Product Type	Satellite Multiswitch
Brand	Televes
Model	NevoSwitch 714509
Inputs	4 x Satellite IF (950-2150 MHz)
Outputs	8 x Terrestrial + Satellite (5-2150 MHz)
Dimensions	200 x 150 x 40 mm
Weight	450 g
Power Supply	12 V DC, 500 mA (via external adapter or LNB power)
Power Consumption	6 W max
Frequency Range	Satellite: 950-2150 MHz; Terrestrial: 5-862 MHz
Insertion Loss	Satellite: 2 dB; Terrestrial: 1 dB
Isolation	Output to Output: >25 dB
Return Loss	Satellite: >10 dB; Terrestrial: >14 dB
Operating Temperature	-5°C to +45°C
Connectors	F-type female (IEC 60169-24)
Compliance	CE, RoHS
Mounting	Wall mountable with included brackets
Main Functions	Distributes satellite IF and terrestrial TV signals to multiple outlets; supports DiSEqC 1.0/2.0
Maintenance & Cleaning	Wipe with a dry cloth; do not use liquid cleaners. Ensure ventilation slots are free of dust.
Safety	Use only supplied power adapter. Do not expose to rain or moisture. Disconnect during thunderstorms.
Spare Parts & Repairability	Contact Televes support for replacement parts. Device not user-serviceable; disassembly voids warranty.
General Information	Professional-grade multiswitch for single or multi-satellite installations. Compatible with HD and 4K signals.

Frequently Asked Questions - NevoSwitch 714509 TELEVES

What does the NevoSwitch 714509 do?

The NevoSwitch 714509 is a satellite multiswitch that distributes satellite IF and terrestrial TV signals from multiple antennas to up to 8 outlets.

How many inputs and outputs does it have?

It has 4 satellite inputs (950-2150 MHz) and 8 combined outputs (terrestrial + satellite, 5-2150 MHz).

What power supply is required?

It requires 12 V DC, 500 mA. Power can be supplied via an external adapter or from the LNB if supported.

Does it support DiSEqC?

Yes, it supports DiSEqC 1.0 and 2.0 for controlling satellite position and switching.

Can I use it for terrestrial TV only?

Yes, it passes terrestrial TV signals (5-862 MHz) and can be used for terrestrial-only distribution, but the satellite inputs may be unused.

What type of connectors does it use?

All connectors are F-type female (IEC 60169-24) for coaxial cables.

Is it compatible with 4K signals?

Yes, it supports frequencies up to 2150 MHz, which is sufficient for 4K satellite TV.

How do I mount the device?

The device can be wall-mounted using the included brackets. Ensure it is fixed securely and ventilation is not obstructed.

Does it require any configuration?

No special configuration is required for basic operation. However, DiSEqC settings may need to be adjusted in your receiver if using multiple satellites.

What safety precautions should I take?

Use only the supplied power adapter. Do not expose to rain or moisture. Disconnect all cables during electrical storms to prevent damage.

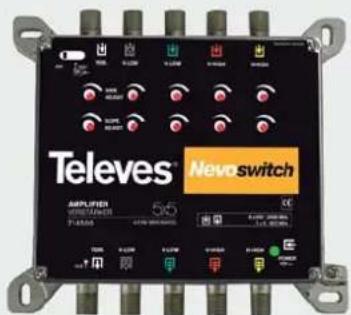

USER MANUAL NevoSwitch 714509 TELEVES

New range of input/multiple output switches, (from 4 to 32, according to reference). It can be used as a cascade element since it has 5 outputs to connect to other switches and increase the number of users.

It has the following powering options:
- Through the Power DC Jack (12 Vdc)
- Through the V-Low input (12 Vdc).
- Through the TERR input or output.
- Applying 12/18V at any user output.

12V DC passes through the Terr and V-LOW input/output to power pre-amplifiers, BOSS antennas, LNB or other elements (cascade).

The switch can generate the required voltage or voltage + tone (QUAD references) so it's compatible with any QUAD LNB.

The user can select the direction of the current/voltage through the TERR input/output using the Switch No. 1.

This range of products has been designed with the ECO system: as the number of users decreases, the power consumption of the system will decrease as well. When no users are connected and there's no local mains, the consumption will go down to 0A. In this case scenario, to see the DTT signal at least one user must be connected to the system to power it.

Any signal must be balanced to 75 ohms (Switch No. 2) in the last element of the chain for the proper operation of the system.

This range allow to control the output signal level of every user individually. (Not available for the QUAD range).

MSW 5x Splitter

MSW 5x Tap MSW 5x Amplifi er

ES

This range of products has been designed as a complement to the former MSW range, so any facility can be easily extended to more users, optimizing every output signal.

The voltage/current can be activated/deactivated in the MSW amplifiers to power pre-amplifiers, BOSS antennas, etc.

Nota / Note:

Switch 1

Switch 2

NEVOswitch 5x

Especif. técnicas	Technical specifications				714501MS54C	714502MS56C	714503MS58C	714504MS512C	714505MS516C
Tipo	Type				5x5x4 5x5x6	5x5x8 5x5x12	5x5x16
Margen frec.	Frequency range MHz		SAT 950-2400
			TER 47-862
Nivel de salida	Max output level dBμV		SAT	EN50083-3 IM35dBc	109
			TER	DIN 45004-B	105
Ganancia máxima	Max gain	dB	SAT		-
			TER		-
Ecualizador Equaliser			SAT		-
			TER		-
Pérdidas de paso Through losses			SAT		-4 ± 2 - 5 ± 5 - 8 ± 2
			TER - 3 ± 1	-5 ± 2
Pérdidas deriv.	Tap losses (adjustable -12dB)		SAT	Max	-5 ± 5 *			-5 ± 5 *
				Min	-8 ± 5 *			-10 ± 5 *
			TER	Max	-3 ± 5 *			-3 ± 5 *
Aislamiento IN-OUT	Isolation IN-OUT		SAT		>30
Paso corriente	LNB control signals	mA	LNB/TER	/ Input max.	250
		A		Total	1
Alimentación	Powering	Vdc			12
Paso DC	DC pass				In-Out / Out-In **
Consumo máx.	Max. consumption	mA	Power Supply 12Vdc (PWR)		65 ± 5			105 ± 10	130 ± 10
			Receiver (12/18V)		33 ***
Rango de temperatura	Temperatura Range	°C			-5...+45 °C
Indice de protección	Protection level	IP			IP20
Peso	Weight	g			365	400		765	800
Dimensiones	Dimensions	mm			140x120x30			140x255x30

Televes

714506MS524C	714507MS532C	714402MS56NCQ	714403MS58NCQ	714404MS512NCQ	714405MS516NCQ	714901AZ512G	714902AZ515G	714903AZ520G	714904AZ525G	714905SAV525G	714509MS530VGQ
5x5x24 5x5x32 5x5x6 QUAD 5x5x8 QUAD 5x5x12 QUAD 5x5x16 QUAD 5x5x5 5x5x5 5x5x5 5x5x5 5x5x5
950-2400
47-862
109 -											115
105 --
-						-					25 ± 4
-						-					27 ± 2
-						-					7
-						-					6
-10 ± 5 - 12 ± 5 - 4 ± 2 - 5 ± 5 - 8 ± 4 - 1,5 ± 0,5 - 4 ± 1											11
-7 ± 3	-10 ± 3	-3 ± 1	-5 ± 2			-1,5 ± 0,5				-4 ± 1	17
-5 ± 5 *	-5 ± 5 *	-5 ± 5	-5 ± 5			-15 ± 3	-17 ± 3 - 21 ± 3 - 26 ± 3		-		-
-9 ± 5 *	-12 ± 3 *	-8 ± 5	-10 ± 5
-5 ± 5 *	-8 ± 5 *	-3 ± 5	-3 ± 5			-12 ± 1	-15 ± 1	-20 ± 1	-25 ± 1	-	-
>30						>25					>25
250						500				250	250
1						-					1
12						-					12
In-Out / Out-In **		In-Out / Out-In				In-Out / Out-In**				-	In-Out / Out-In
200 ± 15	235 ± 25	65 ± 5	105 ± 10	130 ± 10		-					-
33 ***						-					-
-5....+45 °C
IP20
1200	1600	400	765	800		400					330
140x383x30	140x510x30	140x120x30	140x255x30			140x120x30					140x120x30

NEVOswitch 5x

Important safety instructions

General installation conditions:

• Before handling or connecting the equipment, please read this manual.
- In order to reduce the risk of fire or electric shock, do not expose the equipment to rain or moisture.
- Please allow air circulation around the equipment.
- The equipment must not come into contact with water or even be splashed by liquids. Do not place containers with water on or near the equipment if it is not adequately protected.
- Do not place the equipment near sources of heat or in excessively moisture conditions.

• Do not place the equipment where it may be affected by strong vibrations or knocks.
• The powering voltage for this product is provided by the PSUs ref.7321 and 7328 (230V \~ / 12V).
• If any liquid or object falls inside the equipment, please contact a specialized technician.
• To disconnect the equipment from the mains, pull from the connector, and never pull from the cable.
• Do not connect the equipment to the mains until all the other connections have been made.

How to use the equipment safely:

Description of the electrical safety symbols

k of fire or electric

shock, do not open the equipment.

This symbol indi

equipment complies with the safety requirements for class II equipment.

mbol indicates that the

equipment complies with the safety requirements for equipment of marked CE.
