Product Type	Solar Security Light with Motion Sensor
Brand	LYYT
Model	20LED-SSL
Dimensions	122 x 95 x 48 mm
Weight	143 g
IP Rating	IP44 (Weatherproof)
Power Supply	Solar Panel 4.5V 3W
Battery Capacity	1200 mAh
LED Type & Quantity	SMD 2835, 20 LEDs
Luminous Flux (100%)	150 lumens
Luminous Flux (50%)	75 lumens
Color Temperature	6500K (Cool White)
Average Lifetime	50,000 hours
Charge Time	Approx. 8 hours (full sun)
Operating Time (100%)	5 hours
Operating Time (50%)	10 hours
Sensor Distance	3.5 - 5 meters
Sensor Angle	120°
Mounting Height	Up to 2 meters
Material	ABS
Operating Modes	100% on motion, 50% until motion, constant light at night
Controls	Front button for manual on/off and mode selection
Installation	Wall mount with included screw, no wiring required
Included Accessories	Solar LED light, fixing screws, user manual
Safety Features	Do not replace LEDs, avoid looking directly at light, keep away from children
Disposal	Dispose according to local electrical/electronic waste regulations

Frequently Asked Questions - 20LED-SSL LYYT

How long does it take to fully charge the battery?

The solar panel requires approximately 8 hours of direct sunlight for a full charge.

How long does the light stay on after a full charge?

On 100% brightness mode, it operates for about 5 hours. On 50% brightness mode, it can last up to 10 hours.

What is the detection range of the motion sensor?

The motion sensor detects movement at a distance of 3.5 to 5 meters with a 120° detection angle.

Is this light suitable for indoor use?

The light is designed for outdoor use with an IP44 weatherproof rating. It is not recommended for indoor use unless placed in a very damp area.

Can I replace the LED bulbs?

No, the LED bulbs are not replaceable. Attempting to replace them may damage the product and void the warranty.

How do I choose between the different modes?

Press the front button repeatedly to cycle through: Mode 1 (100% on motion), Mode 2 (50% until motion), Mode 3 (constant light at night), and manual on/off.

What should I do if the light does not turn on?

Ensure the solar panel receives adequate sunlight for charging. Check that the front switch is set to the correct mode. Also verify that the sensor is not blocked by obstructions.

How high should I mount the light?

For best performance, mount the light at a height of up to 2 meters, ensuring the solar panel faces south for maximum sun exposure.

What is the light's color temperature?

The light emits cool white light with a color temperature of 6500K.

Can the light be used in rainy weather?

Yes, the light is IP44 rated, meaning it is protected against splashing water and is suitable for outdoor use in rain.

USER MANUAL 20LED-SSL LYYT

20 LED Solar Security Light with Motion Sensor

A compact, solar powered LED light that is simple to install and requires no wiring or mains power. The intelligent motion sensor triggers a bright LED light in the hours of darkness when motion is detected, providing a reliable and energy efficient solution for outdoor illumination and security lighting.

Features:

• Solar powered
• Compact robust design
• Ideal for homes, gardens and driveways
• Suitable for outdoor use; IP44 rated (Weatherproof)
• Easy to install, uses 1 fixing screw (supplied)
• Front switch controls manual on/off and 3 motion sensor modes

Technical Specifications:

Weight	143g
Dimension	122 x 95 x 48mm
IP rating	IP44
Power supply	Solar panel 4.5V 3W
Luminous flux	100% light: 150 lumens, 50% light: 75 lumens
Operating time	100% light: 5 hours, 50% light: 10 hours
Colour temperature	6500K
Average lifetime	50,000 hours
Charge time	Approx. 8 hours
LED type	SMD 2835
LED quantity	20 LED's
Sensor distance	3.5-5m
Sensor angle	120°
Installation	Up to 2m height
Battery	1200mAh
Material	ABS

lyyt

Getting started:

• Unpack the light and remove all packaging materials.
• Fix to the wall in a suitable position making sure it provides your property with the maximum coverage angle and is away from any obstructions that could block the sensor path. Ideally set it facing South to get the maximum coverage from the sun.
• Once in position the light will take on charge through the daylight hours and can provide up to 12 hours of continuous lighting from a single day's charge.

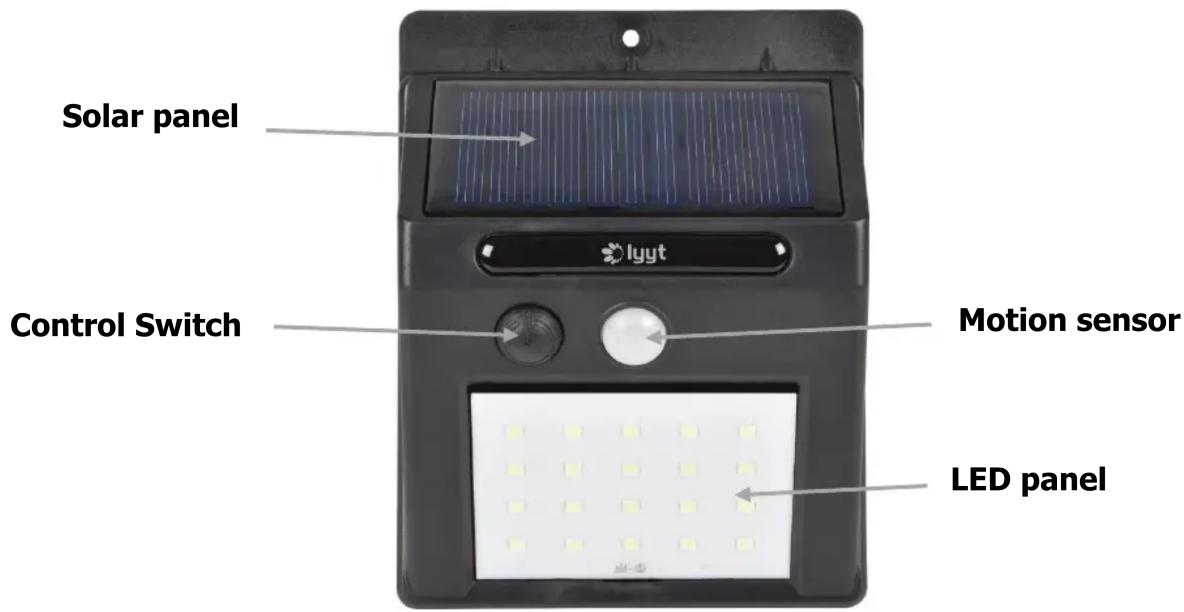

• The front button next to the motion sensor, controls the light's different modes. Press repeatedly to switch between manual on/off and the 3 motion sensor modes as below:

Mode 1: Operates at 100% brightness when triggered by movement.

Mode 2: Operates at 50% brightness until triggered by movement.

Mode 3: Constant light in the hours of darkness.

- Please note turning the light on and off at any time will not affect the solar charging operation.

In the Box:

Solar LED light

Fixing screws

User manual

Safety Disclaimer:

• Check the unit for any signs of damage before using for the first time.
• Do not attempt to replace the LED bulbs or service this product yourself as opening or removing covers may result in fire, electric shock or equipment damage and invalidate the warranty.
• Do not expose this product to extreme temperatures or a naked flame.
• Do not look directly into the LED panel or shine in the eyes of others in case of personal injury.
• The LED panel can get hot if on for an extended period, so please do not touch.
• Keep out of the reach of children.

CE IP44

This product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines.

Errors and omissions excepted.

Copyright© 2019. AVSL Group Ltd
