CFR-249 H - Freezer Vivax - Free user manual and instructions

Brand	Vivax
Model	CFR-249 H
Product Type	Chest Freezer
Total Capacity	249 Liters
Dimensions (W x D x H)	95 x 60 x 85 cm
Net Weight	42 kg
Voltage / Frequency	220-240 V / 50 Hz
Energy Consumption (Annual)	~250 kWh/year
Energy Efficiency Class	E (typical for this class)
Freezing Capacity	~12 kg/24h
Temperature Range	-18°C to -24°C
Defrost Type	Manual
Control Type	Mechanical Thermostat
Noise Level	~42 dB
Inner Light	No
Lockable Lid	Yes
Adjustable Feet	Yes
Refrigerant Type	R600a
Climate Class	SN-T
Included Accessories	Ice scraper, baskets (2)

Frequently Asked Questions - CFR-249 H Vivax

How do I adjust the temperature on my Vivax CFR-249 H freezer?

The temperature is controlled via a mechanical thermostat inside the freezer. Turn the dial to a higher number for colder temperatures. The optimal setting is typically between -18°C and -24°C.

How often should I defrost the freezer?

Manual defrost is required when frost buildup exceeds 5 mm. This usually occurs every 6 to 12 months depending on usage and humidity.

What is the recommended temperature for storing frozen food?

The ideal temperature for frozen food storage is -18°C or lower. Your Vivax CFR-249 H can maintain this temperature effectively.

How do I clean the freezer?

Unplug the freezer, remove all food, and let it defrost. Then clean the interior with a mild detergent and warm water. Dry thoroughly before plugging back in.

What should I do if the freezer is not cooling properly?

Check that the thermostat is set correctly, the lid is sealing properly, and the condenser coils (if accessible) are clean. Also ensure the freezer is not overloaded.

Can I install the freezer in an unheated garage?

Yes, the climate class SN-T allows operation in ambient temperatures from 10°C to 43°C. However, extreme cold may affect performance.

How do I replace the interior light bulb?

This model does not have an interior light, so no replacement is necessary.

Where can I find spare parts for my Vivax CFR-249 H?

Spare parts are available from authorized Vivax service centers. Contact Vivax support or visit their website for a list of parts.

How much electricity does this freezer consume?

The annual energy consumption is approximately 250 kWh, which corresponds to energy efficiency class E.

What is the warranty period for the Vivax CFR-249 H?

Standard warranty is 2 years. Registration may extend the warranty. Check the manual or contact Vivax for details.

USER MANUAL CFR-249 H Vivax

• Proizvođač opreme nije odgovoran za pogreške nastale oko uzemljenja ili zbog uporabe uređaja koja nije u skladu sa ovom uputom.

- Osigurajte položaj uređaja na način da utikač i utičnica nakon priključenja ostanu lako dostupni.

- Stavite utikač u utičnicu koja ima uzemljenje. Ukoliko utičnica nema uzemljenje ili je neispravan utikač, predlažemo da pozovete ovlaštenog električara za pomoć.

- Ne izlažite uređaj direktnoj sunčevoj svjetlosti i toplini.

- Nemojte koristiti tvrde četke, metalne četke, žicu za čišćenje, abrazivna sredstva, kao što su paste za zube, organska otapala (kao što su alkohol, aceton, ulje, itd), kipuću vodu, kiseline ili lužine prilikom čišćenja zamrzivača, jer to može oštetiti površinu zamrzivača i unutrašnjost.

- Nemojte isprati vodom kako ne bi utjecali na električne izolacije. Molimo koristite suhu krpu pri čišćenju gumba za kontrolu temperature i električnih komponenti.

Odmrzavanje

• Ne pokrivajte zamrzivač ili gornji deo zamrzivača prekrivačima, platnenim ukrasima i sl.
• Dodatni pribor zamrzivača mora da bude fiksiran unutar zamrzivača, u slučaju transporta zamrzivača.

- Pre nego što priključite uređaj na napajanje, budite sigurni da napon u vašem domaćinstvu odgovara onom naznačenom na nalepnici uređaja smeštenoj na unutrašnjoj strani zamrzivača, pored fioka za voće i povrće

- Proizvođač nije odgovoran za štetu nastalu zbog neadekvatniog uzemljenja.

- Pre upotrebe zamrzivača, uklonite originalno pakovanje uređaja, uključujući stiropor i trake unutar zamrzivača. Uklonite zaštitnu foliju sa vrata i kućišta zamrzivača.

- Zamrzivač treba smestiti u prostoriju koja se lako provetrava. Treba da stoji čvrsto, u ravni sa podom.

- Iznad uređaja treba da bude prostor veći od 70 cm, a udaljenosti od obe strane i sa stražne strane uređaja mora da bude veća od 20 cm kako bi se olakšalo otvaranje i zatvaranje i kao i odvođenje toplote.

- Uređaj čistite i iznutra i spolja vlažnom krpom (dodajte malu količinu deterdženta u toplu vodu) a zatim obrišite čistom vodom i osušite suvom krpom.

- Kad smestite zamrzivač, sačekajte pola sata pre uključivanja na električnu mrežu.

- Zamrzivač treba da radi dva do tri sata pre skladištenja sveže ili smrznute hrane; leti to treba da bude i četiri sata jer mora da se uzme u obzir da je temperatura okoline visoka.

Čišćenje

Prašina iza zamrzivača i na podu trebala bi da se čisti periodično kao se ne bi smanjio učinak hlađenja i kako bi se osigurala ušteda energije. Unutrašnjost zamrzivača treba redovno da se čisti kako bi se izbegli neprijatni mirisi.

Za čišćenje se predlažu meke krpe ili sunderi potopljeni u vodu i nekorozivni, neutralni deterdženti.

• Nemojte da upotrebljavate tvrde četke, metalne četke, žicu za čišćenje, abrazivna sredstva, organske rastvarače (kao što su alkohol, aceton, itd), ulje, ključalu vodu, kiseline ili bazna sredstva prilikom čišćenja zamrzivača, jer sve to može da ošteti površinu zamrzivača ili unutrašnjost.
• Nemojte ispirati vodom kako voda ne bi dospela do električnih instalacija. Upotrebljavajte suvu krpu pri čišćenju dugmeta termostata za kontrolu temperature i električnih komponenti.

Odmrzavanje

Zamrzivač mora periodično da se odmrzne "ručno".

Isključite zamrzivač i otvorite vrata, uklonite hranu i fioke pre odmrzavanja.

Otvorite rupu za odvod vode i postavite posudu koja će sakupljati vodu nastalu otapanjem leda.

Pošto se led otopi, obrišite ostatke vode suvom, mekom tkaninom.

Meaning of safety warning symbols

Prohibition symbols

The symbols indicate prohibited matters, and those behaviors are forbidden. Non-compliance with the instructions may result in product damages or endanger the personal safety of users.

Warning symbols

The symbols indicate matters that must be followed, and those behaviors must be strictly executed in line with the operation requirements. Non-compliance with the instructions may result in product damages or endanger the personal safety of users.

Note symbols

The symbols indicate matters to pay attention to, and these behaviors shall be specially noted. Due precautions are needed or minor or moderate injuries or damages of the product will be caused.

CAUTION:

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Unattended children are not allowed to clean or perform user maintenance.
• This type of refrigerator-freezer is widely used in places such as hotels, offices, student dormitories and rent or “village houses”. It is mostly suitable for refrigerating and preserving foods such as fruits and beverage.

Electricity related warnings

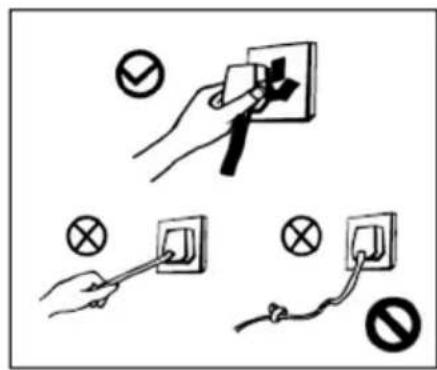

- Do not pull the power cord when disconnect the power plug from wall socket. Please firmly grasp the plug and pull out it from the socket directly.

- Never plug in/out the power plug with damp or wet hands in order to not expose the danger of electrical shock.

- Do not damage the power cord under any condition so as to ensure safety use, do not use when the power cord is damaged or the plug is worn.

- Worn or damaged power cord shall be replaced in manufacture-authorized maintenance stations.

- Please use a dedicated grounded power socket which is 10A or more and the power socket shall not be shared with other electrical appliances. Do not use extension cords or external timers.

- The power cord should be firmly contacted with the socket or else fires might be caused. Do not pull or band power cable.

• Please ensure that the grounding electrode of the power socket is equipped with a reliable grounding line.
• The refrigerator adopts 220-240V/50Hz AC power, voltage fluctuations over the range of 220-240 ±10%V will cause malfunction or even damage, so a 750W automatic voltage regulator must be installed in concert with the AC power.

Related warnings for Use

CAUTION Risk of fire!

- Refrigerator contains refrigerant R600a gas and Cyclopentane insulation. Gas type is indicated on the label inside the refrigerator. Gas is completely environmentally friendly, R600 is a natural gas and is completely harmless, but flammable. When transporting and installing the equipment, make sure that there is no damage of any parts (components) of a refrigerator or freezer. In case of damage, avoid open flame or exposure devices hot springs, and immediately ventilate the room where the device is located. Do not unplug the refrigerator and other electrical appliances considering that spark may cause a fire.

- To ensure safety, it is not recommended that to place regulators, rice cookers, microwave ovens and other appliances at the top of the refrigerator, those recommended by the manufacture are not included. Do not use electrical appliances in the food pantry.

• Unauthorized demolition or renovation of the refrigerator is not prohibited. It is forbidden to damage the refrigerant lines and the repair and maintenance of the refrigerator must be carried out by professionals.
• Damaged power cord must be replaced by the manufacturer, its maintenance department or related professionals in order to avoid danger.
• The surrounding of the appliances around or the embedded structure shall not be obstructed while good ventilation shall be maintained.

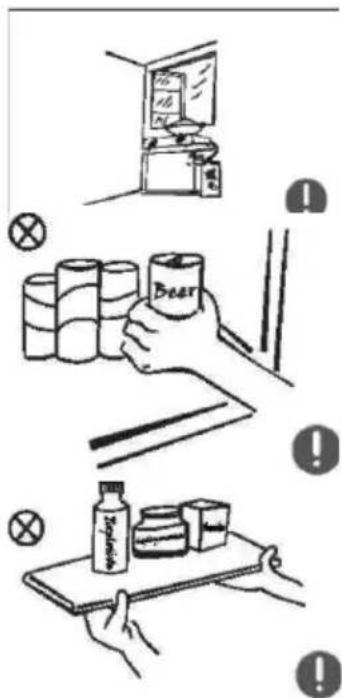

- The gaps between refrigerator doors and between doors and refrigerator body are small, be noted not to put your hand in these areas to prevent squeezing the finger. Please be gentle when switching off the refrigerator door to avoid falling articles.

- Do not pick foods or containers in the freezing chamber when the refrigerator is running, especially metal containers in order to avoid frostbite.

- Do not allow children to enter or climb the refrigerator to prevent that children are sealed in refrigerator and other electrical appliances considering the refrigerator or children are injured by the falling refrigerator.

- Do not spray or wash the refrigerator;

- Do not put the refrigerator in moist places easy to be splashed with water so as not to affect the electrical insulation properties of the refrigerator.

- Do not place heavy objects on the top of the refrigerator considering that objectives may fall when switching the door, and accidental injuries might be caused.

- Please pull of the plug in case of power failure or cleaning.

- Do not connect the freezer to power supply within five minutes to prevent damages to the compressor due to successive starts.

Warnings related to placing items

- Do not put flammable, explosive, volatile and highly corrosive items in the refrigerator to prevent damages to the product or fire accidents.

- Do not place flammable items near the refrigerator to avoid fires.

- This product is household refrigerators and shall be only suitable for the storage of foods. According to national standards, household refrigerators shall not be used for other purposes, such as storage of blood, drugs or biological products.

- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance

- Do not place items such as glass bottles or sealed container of fluid such as bottled beers and beverages in the freezer to prevent bursts and other losses.

- Do not eat ice, which have removed from the freezer.

- Do not touch frozen food with wet hands. Do not immediately eat frozen food.

WARNINGS

• WARNING Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• WARNING Do not damage the refrigerant circuit.
• WARNING Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer
• WARNING Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• WARNING The appliance has to be unplugged after use and before carrying out user maintenance on the appliance.
• WARNING If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• WARNING Please abandon the refrigerator-freezer according to local regulators for it use flammable blowing gas and refrigerant.
• WARNING Please according to local regulations regarding disposal of the appliance for its flammable refrigerant and blowing gas. Before you scrap the appliance, please take off the doors to prevent children trapped.

Placement

Before using the refrigerator, remove all packaging materials including bottom cushions and foam pads and tapes inside the refrigerator, tear off the protective film on the door and the refrigerator body (if exist).

Keep away all packaging from small children. Do not allow children to play with packaging.

Keep away from heat and avoid direct sunlight. Do not place the freezer in moist or watery places to prevent rust or reduction of insulating effect.

The refrigerator is placed in a well-ventilated indoor place; the ground shall be flat, and sturdy (rotate left or right to adjust the wheel for leveling if unstable).

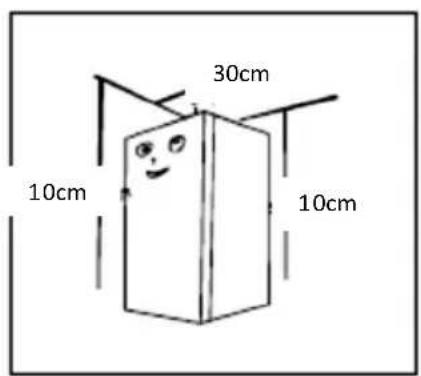

The top space of the refrigerator shall be greater than 30cm, and the distances from both sides and backside shall be more than 10 cm to facilitate the opening and closing and heat dissipation.

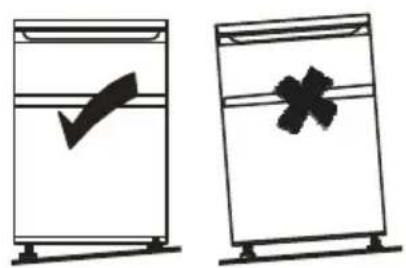

The unit must stand upright and in the plane of the floor. Use two adjustable feet to adjust the device.

IMPORTANT: refrigerator or freezer must be placed that all feet firmly lying on the ground.

Please leave enough space to ensure feasible opening and drawer removal.

Disposal of electrical and electronic equipment

To protect our environment and to recycle the raw materials used as completely as possible, the consumer is asked to return unserviceable equipment to the public collection system for electrical and electronic.

The symbol of the crossed out wheeled bin indicates that this product must be returned to

a collection point for electronic waste to feed it by recycling the best possible raw material recycling.
