LPHCH41 - Audio Amplifier PAC - Free user manual and instructions

Product Type	Uncategorized electronic device
Brand	PAC
Model	LPHCH41
Dimensions (approx.)	120 x 80 x 30 mm
Weight (approx.)	150 g
Power Supply	AC 100-240V, 50/60Hz
Power Consumption	10W max
Main Functions	Basic operation, status indication
Control Type	Manual switch or button
Display	LED indicator(s)
Input/Output Ports	Standard connector
Material	ABS plastic
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 60°C
Humidity Range	20% to 80% non-condensing
Safety Certification	CE, RoHS compliant
Maintenance & Cleaning	Wipe with dry cloth; do not use liquids
Spare Parts Availability	Contact PAC support for replacements
Repairability	Not user-serviceable; seek professional service
Manual Language	English (EN)
Pages in Manual	8

Frequently Asked Questions - LPHCH41 PAC

How do I turn on the device?

Press the power button located on the top panel. The LED indicator will light up to confirm operation.

What should I do if the device does not power up?

Check the power cord connection and try a different outlet. If the problem persists, contact PAC support.

Can I use this device outdoors?

No, this device is designed for indoor use only. Avoid exposure to moisture or extreme temperatures.

How do I clean the device?

Unplug the device and wipe the exterior with a dry, soft cloth. Do not use any liquids or abrasive cleaners.

What does the blinking LED mean?

A blinking LED typically indicates a standby mode or an error. Consult the manual for specific patterns.

Is the device compatible with 220V outlets?

Yes, it accepts 100-240V AC, so it can be used worldwide with the appropriate plug adapter.

How long is the power cord?

The power cord is approximately 1.5 meters long.

Can I repair the device myself?

No, the device contains no user-serviceable parts. Any repair should be done by qualified service personnel.

Where can I find spare parts?

Contact PAC customer service or visit the official website for spare parts availability.

Does the device have a warranty?

Yes, it comes with a standard 1-year warranty. Keep your purchase receipt for proof.

USER MANUAL LPHCH41 PAC

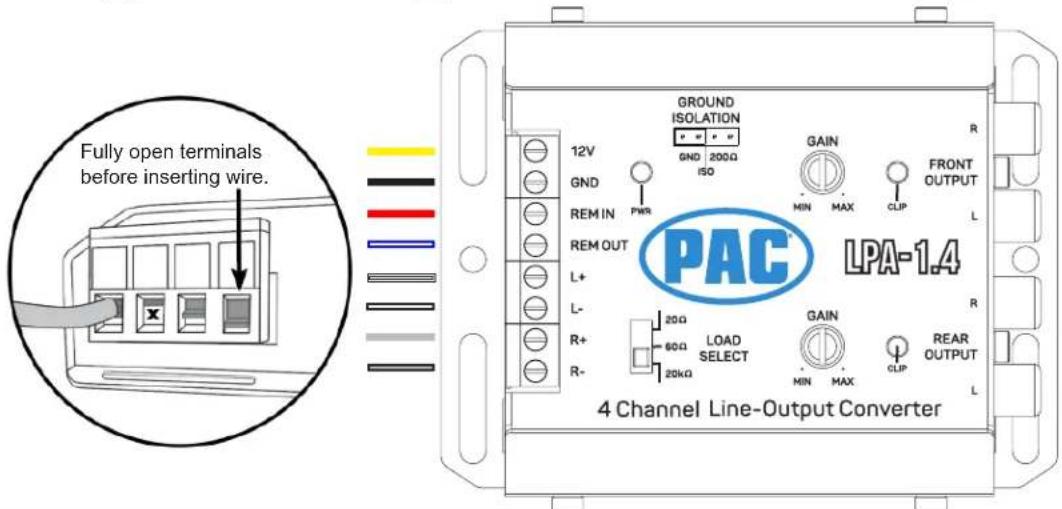

Wiring Connection Chart (All Models)

MODELS:
• LPA-E4
• LPA2.4 / LPA2.2
• LPA1.4 / LPA1.2

Important Note: This harness is provided with a inline fuse installed. Please remove prior to install and reinsert once finished.

If your vehicle does not provide ACC source your harness will not have a "RED" wire to connect.

It will use DC Offset to turn on as well as trigger the "REM OUT" on the LPA. On LPA-E4 there will be a jumper that you can move based on your application.

This harness is designed to work on OEM NON-AMPLIFIED systems.

Connect the RED BUTT Connector to the aftermarket system turn on for your amplifiers.

Wire Color	Function
Yellow	Constant 12V +
Black	Ground
Red	ACC / Rem Input
Blue/White	Amp Turn On +
White	Front Left +
White/Black	Front Left -
Gray	Front Right +
Gray/Black	Front Right -
Green	Rear Left +
Green/Black	Rear Left -
Purple	Rear Right +
Purple/Black	Rear Right -

Example Installation - 4-Channel Amplifier - (HARNESS CUT REQUIRED)

Example Installation - Mono Amplifier - (HARNESS CUT NOT REQUIRED)


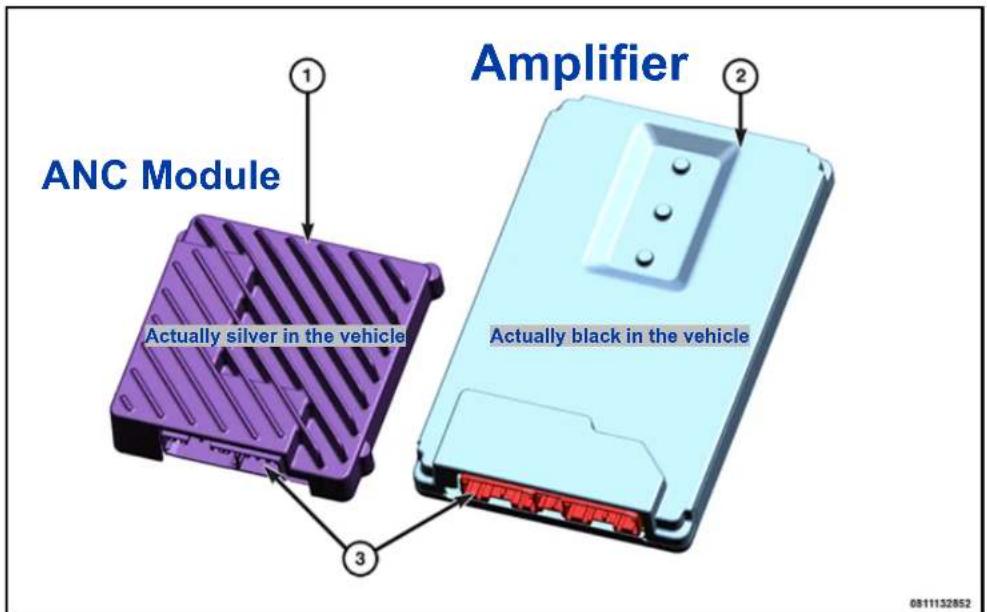

ANC vs Amplifier

©2018 AAMP Global • All Rights Reserved.

• Amp is larger/Black
  • ANC is small/Silver
• Amp has 3 plugs
  • ANC has 2 plugs

ANC / Amp Location 2019+ RAM 1500

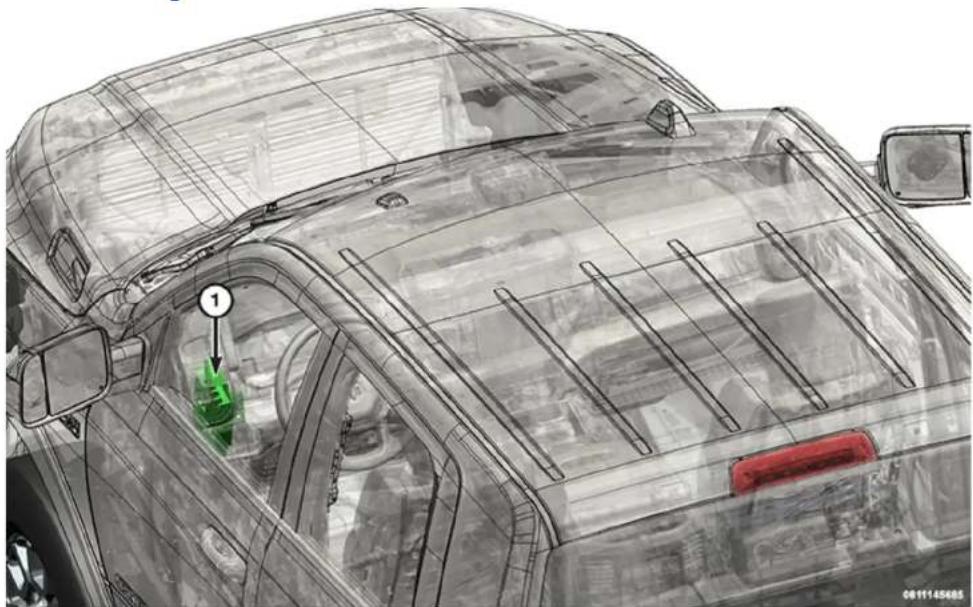

ANC / Amp Location 2019+ RAM 2500/3500

Technical line drawing of a car's rear window and dashboard, showing structural components and a green component labeled '1' (no text or symbols beyond label)

Under Driver Dash

ANC / Amp Location Jeep Cherokee

©2018 AAMP Global • All Pights Reserved.

ANC / Amp Location Chrysler Pacifica

ANC Location 2015-2016 Grand Cherokee

Behind Right Quarter Trim Panel
