ST36A - Uncategorized Mercury - Free user manual and instructions

Product Type	Outboard Motor
Brand	Mercury
Model	ST36A
Category	Uncategorized
Horsepower	3.6 HP
Engine Type	2-Stroke
Fuel Type	Unleaded Gasoline
Starting System	Manual Recoil
Weight	15 kg (33 lbs)
Overall Height	110 cm (43.3 in)
Shaft Length	35 cm (13.8 in)
Propeller Type	3-Blade Aluminum
Fuel Tank Capacity	1.5 L (0.4 gal)
Maximum RPM	6000 RPM
Cooling System	Water-Cooled
Lubrication	Fuel/Oil Mixture (50:1)
Maintenance Interval	Every 50 hours
Warranty	2 Years Limited
Safety Features	Emergency Stop Lanyard
Storage Instructions	Store upright in dry area
Cleaning Instructions	Flush with fresh water after use

Frequently Asked Questions - ST36A Mercury

How often should I change the gear oil in my Mercury ST36A?

Change the gear oil after the first 10 hours of use, then every 50 hours or annually. Use Mercury Premium Gear Oil.

What is the proper fuel mixture for the ST36A?

The ST36A requires a 50:1 fuel/oil ratio. Use unleaded gasoline with a minimum octane rating of 87 and Mercury 2-Stroke Outboard Oil.

How do I start a cold Mercury ST36A?

1. Attach the emergency stop lanyard. 2. Open the air vent on the fuel tank. 3. Squeeze the primer bulb until firm. 4. Set the throttle to 'Start' position. 5. Pull the recoil starter firmly.

What should I do if the engine overheats?

Stop the engine immediately. Check the water intake for debris. Ensure the cooling system is not blocked. If overheating persists, consult a certified Mercury technician.

How do I winterize my Mercury ST36A?

Run the engine in a tank of fresh water with antifreeze. Drain the fuel system or add stabilizer. Remove the propeller and lubricate the shaft. Store in a dry, ventilated area.

What type of spark plug does the ST36A use?

Use NGK BP6HS or equivalent spark plug. Set the gap to 0.6 mm (0.024 in). Replace annually.

My ST36A won't start. What are common causes?

Check the fuel supply, spark plug, and emergency stop lanyard. Ensure the fuel mixture is correct. If no spark, inspect the ignition system. Refer to the manual for detailed troubleshooting.

Can I use ethanol-blended fuel?

Yes, up to 10% ethanol (E10) is acceptable. Higher ethanol content can damage fuel system components. Use fuel stabilizer if stored for more than 30 days.

How do I replace the propeller?

Shift to neutral and remove the cotter pin and nut. Slide off the old propeller. Install the new propeller with the thrust washer, then tighten the nut to 25-30 Nm (18-22 ft-lb) and insert a new cotter pin.

What maintenance is required after each use?

Flush the cooling system with fresh water for 5 minutes. Wipe down the engine. Inspect the propeller for damage. Check fuel lines for leaks. Apply corrosion spray to exposed metal parts.

USER MANUAL ST36A Mercury

Exterior view of a cylindrical antenna with two antennas and a base (no text or symbols visible)

Amplified Indoor HDTV Aerial

Order ref: 120.635UK

User Manual

A mains powered indoor aerial with built-in high gain amplifier, compatible with Digital Terrestrial TV and DAB/FM radio signals. The unit features three adjustable antennas, a ring housed in a plastic arm which can be adjusted 90°, and two telescopic antennas which extend up to 381mm in length and are fully adjustable. There is also a socket to connect an outdoor antenna to use the amplifier to boost the signal.

Specification:

Frequency range	47-694MHz(5G)
Impedance	75Ω
Gain (UHF)	25 - 36dB
Gain (VHF)	18 - 21dB
Telescopic antenna	2 x 381mm
Lead length	1.2m
Power supply	230Vac @ 50Hz
Dimensions	465 x 180 x 140mm
Weight	650g

Features:

• Compatible with Digital Terrestrial TV and DAB/FM radio signals.
  • Built-in variable gain amplifier (36dB max) for areas with poor signal strength.
• Fully adjustable telescopic antennas extend to 381mm.
  • Integrated LTE signal filter avoids interference from 4G/5G mobile signals.
• On/Off and gain rotary control and LED indicators.

Connection and operation:

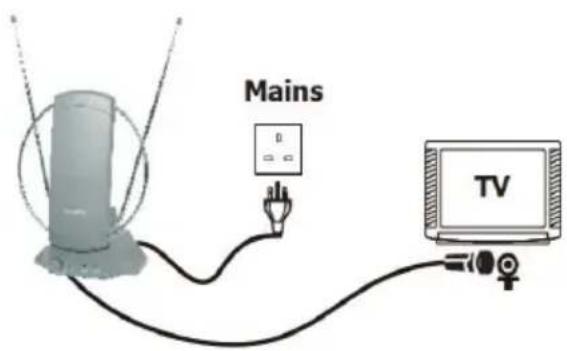

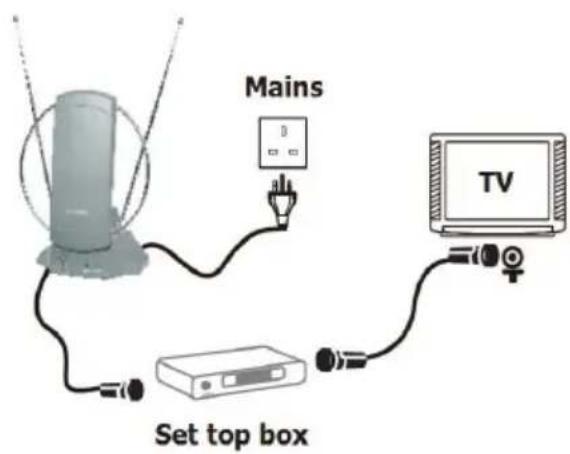

1. Connect the aerial's coaxial lead either directly to the back of your Digital TV, Terrestrial STB or DAB/FM radio receiver.

2. Next connect the attached mains plug to a nearby power socket and switch on.

3. Place the aerial in your desired location, for the best reception try and position as high as possible and away from large power consuming devices such as air-conditioning units, elevators, microwave ovens, hair dryers etc.

4. Turn the aerial on by rotating the Power/Gain knob on the unit, the Power LED also lights up red. Set the gain control knob to the central setting at this stage.

5. Finally run the channel scan operation on your device and once complete test the quality of the channels. It may be necessary to reposition the aerial and try again if the signal quality is low or you are receiving interference or missing channels.

6. You can also try tilting the loop antenna to improve the UHF TV signal.

7. For VHF and FM radio signals extend and adjust the 2 telescopic antennas on the unit.

8. Gain can also be increased or decreased by rotating the Power/Gain knob on the unit accordingly.

Safety warnings:

- Do not use this appliance if it is damaged in any way.

- Do not attempt to repair this appliance or take apart under any circumstances, as this will invalidate your warranty.

- Do not use this appliance for anything other than its intended purpose, and do not use outdoors.

- Use only a damp cloth to clean the surface of the appliance and never attempt to clean while it is on or still hot.

- Please ensure you have read these instructions thoroughly before first use and keep them for future reference.

This product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines.

Errors and omissions excepted

Copyright© 2021 AVSL Group Ltd, Unit 2 Bridgewater Park,

AVSL (Europe) Ltd, Unit 3D North Point House,

Taylor Road, Trafford Park, Manchester. M41 7JQ.

North Point Bus. Park, New Mallow Road, Cork, Ireland.
