Product Type	Wireless Temperature Regulator (Controller and Receiver)
Brand	Dimplex
Model	RF07T

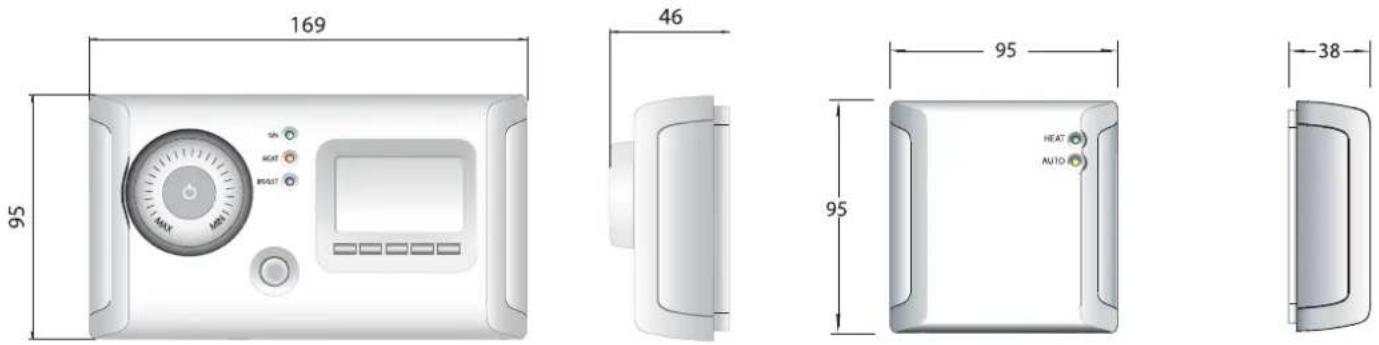

Dimensions (Controller)	Approx. 85 x 85 x 30 mm (wall-mounted)
Dimensions (Receiver)	Approx. 85 x 85 x 30 mm (wall-mounted)
Weight (each unit)	Approx. 150 g
Power Supply	230/240 V AC, 50 Hz
Maximum Load	2 kW (resistive load)
Ingress Protection	IP24 (splash proof, suitable for bathroom zones 2 & 3)
Communication	Wireless RF signal between Controller and Receiver
Thermostat Control	Adjustable knob (MIN to MAX)
Programming	7-day programmable timer with 4 ON/OFF periods per day (weekday/weekend blocks)
Operating Modes	Manual ON, Manual OFF, Auto (programmed), Boost
Boost Function	Overrides thermostat and timer for 30 minutes continuous heating
Advance Function	Advance to next programmed event by pressing ▲ button for 2 seconds
Key Lock	Enable/disable to prevent accidental operation
Fail-Safe Mode	Manual override on Receiver if RF link fails (HEAT light on, AUTO off)
Installation	Wall-mounted on single gang BS backing box (min 25mm depth)
Cleaning	Wipe with dry cloth; damp cloth for stains. No detergents or abrasives.
Recycling	Do not dispose with household waste; recycle at local facilities.

Frequently Asked Questions - RF07T DIMPLEX

What is the maximum load for the Dimplex RF07T?

The maximum load is 2 kW for resistive heating appliances. Do not exceed this rating.

Can the RF07T be used in a bathroom?

Yes, it is IP24 splash proof and suitable for bathroom zones 2 and 3 only, but not near baths, showers, or water connections.

How do I synchronize the Controller and Receiver?

Press the TRANSMIT button on the Receiver (AUTO and HEAT lights flash), then press TRANSMIT on the Controller (HEAT and BOOST lights flash). The Receiver will exit synchronize mode automatically when paired.

What is the Boost function and how do I use it?

Boost overrides the thermostat and timer for 30 minutes of continuous heating. Press the BOOST button to activate; press again to deactivate.

How do I set the time and day on the timer?

Press the PROG key once, use ▲▼ to set hours, press ENTER, then minutes, press ENTER, then select the day (Mon-Sun) and press ENTER.

How do I program the heating schedule?

Press PROG twice for Weekdays (Mon-Fri) or PROG twice then MODE once for Weekends (Sat-Sun). Set up to 4 ON/OFF pairs (P1-P4) using ▲▼ and ENTER.

What should I do if the AUTO light on the Receiver is flashing?

Flashing AUTO indicates a link failure between Controller and Receiver. Use the OVERRIDE button on the Receiver to operate manually, then re-pair the units.

How do I clean the RF07T controller?

Always put the controller in standby mode before cleaning. Use a dry cloth for dust and a damp cloth for stains. Avoid detergents or abrasive cleaners.

Can the RF07T control multiple heaters?

Yes, one Controller can control multiple Receivers (each Receiver wired to a separate heater). All Receivers must be synchronized to the same Controller.

What should I do if the keypad is locked?

To lock or unlock, press ENTER then MODE within 1 second. A key symbol appears when locked. If locked, pressing any button briefly lights the display but does not change settings.

USER MANUAL RF07T DIMPLEX

Please note that some of the contact details on this PDF document may not be current.

Please use the following details if you need to contact us:

Telephone: [phone] Email: [e-mail]

The customer support section of our website also features a wide range of information which may be of use to you and is available 24 hours a day. It includes:

• Operating and installation instructions
• Easy 'How to use' guides for storage heaters
  • Service and repairs
  • Where to buy our products
  • Literature downloads
  • Heating requirement calculator

Visit - www.dimplex.co.uk/support

RF Controller Unit: 7 Day Controller & Receiver
CE
RF7D234P01 Issue 1

Controller Receiver
Fig. 1
IMPORTANT : THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE

Important Safety Advice

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electrical shock, and injury to persons, including the following:

This product is splash proof to IP24 standard and may be used in bathrooms in Zones 2 & 3 only, however not in the immediate vicinity of baths, showers, water connections, wash basins or swimming pools.

This unit must only be used on an A.C Mains supply of 230/240V with products up to a maximum of 2kW.

Ensure that supply cables to the product are of adequate current carrying capacity.

This product is used to control separate heating appliances. Please note the safety guidelines of the controlled product must be adhered to at all times.

General

The RF Controller Unit is an electronic device which provides wireless room temperature control for use with heating appliances. The Unit can be used to control multiple heating appliances. Note: Each appliance requires a Receiver Unit.

The Unit can be used in conjunction with heating appliances with a maximum heating capacity of 2kW. The Controller Unit cannot be used with a Quartz Halogen heater without a suitable in-line contactor.

The RF Controller Unit consists of a Controller and a Receiver. Both the Controller and Receiver are wall mounted. The Controller provides wireless room temperature control. Control of the product is achieved via an RF signal from the Controller to Receiver which is wired direct to the heating appliance. This eases installation. To quickly heat a cold room the Controller incorporates a 'Boost' function which overrides the thermostatic control for a set period of time.

Installation

Before undertaking installation work, ensure the electricity supply is disconnected from any relevant fixed wiring.

• All wiring should be carried out by a qualified electrician in accordance with the current IEE wiring regulations.
• Both the Controller and Receiver units are designed to be fitted to a standard single BS backing box with a depth of at least 25mm. The backing box (not supplied) should already be recessed into the wall. Alternatively a surface mounted wall box may be used.
• Ensure the top and bottom lugs (if fitted) of metal backing boxes are removed prior to installation.
• The location of the Controller is important. The Controller is fitted with a room temperature sensing device and therefore will not function correctly if positioned too close to a heat source or draught area. Please ensure the Controller is not located above or within 500mm of a heat source or draught.

Controller

a) Remove screw 'x' from the underside of the Controller unit - see Fig. 2.
b) The front facia is held in place by clips at the top. It must be removed by lifting the top of the facia upwards and then outwards - see Fig. 2.
c) Connect the fixed wiring of the premises from the back box to the clearly marked terminals on the Controller - see Fig. 3.
d) Set the thermostat knob to 'MIN' position (fully counter clockwise) to allow access to the screw hole.
e) Secure the Controller to the backing box using the screws provided (located on rear moulding) - see Fig. 2.

Note: The Controller front facia should not be refitted until the unit has been programmed - see 'Unit Set-Up'.

Fig. 2

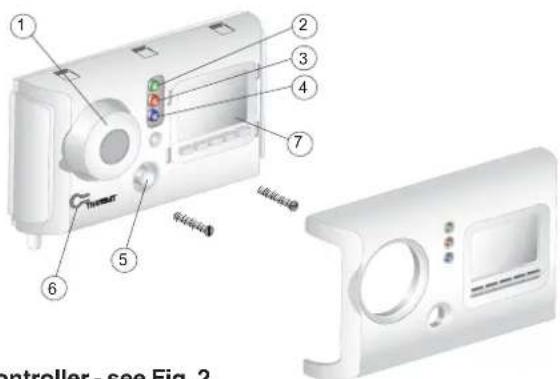

Controller - see Fig. 2

1. Standby button/thermostat control knob
2. 'ON' Indicator
3. 'HEAT' Indicator
4. 'BOOST' Indicator
5. 'BOOST' button
6. 'TRANSMIT' button
7. Timer unit & controls

Fig. 3

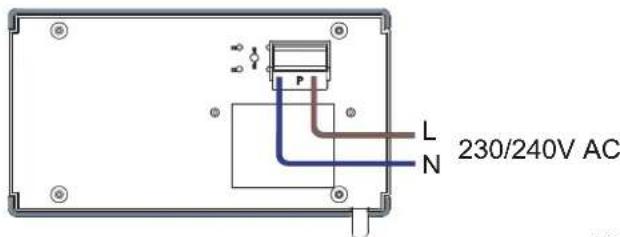

Controller Wiring - see Fig. 3

Receiver

a) If the heating appliance to be used in conjunction with the Controller is fitted with a plug, please remove the plug and strip the wires to the appropriate length.
b) Remove the front facia of the Receiver - see steps 'a' and 'b' in 'Controller' The cable clamp on the rear of the Receiver should then be removed.
c) The cable of the heating appliance is fed through an opening on the underside of the Receiver unit - see Fig. 5.
d) The cable from the heating appliance is then wired to the terminal block labelled (out). Please ensure the wires are connected in accordance with the marked terminals - see Fig. 5.
e) The cable from the heating appliance is then clamped to the rear of the Receiver unit using the cable clamp previously removed.
f) Connect the fixed wiring of the premises (via a local isolation switch or RCD) from the backing box to the clearly marked terminals on the Receiver unit (see Fig. 5). Please ensure that the unit is earthed to the backing box.
g) Secure the Receiver to the back box using the screws provided (located on rear moulding) - see Fig. 4.

Note: The Receiver front facia should not be refitted until the unit has been set up (see 'Unit Set-Up').

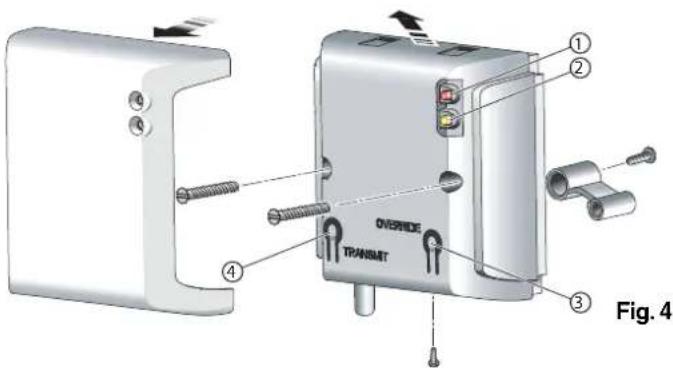

Receiver - see Fig. 4

1. 'HEAT' Indicator
2. 'AUTO' Indicator
3. 'OVERRIDE' button
4. 'TRANSMIT' button

Fig. 5

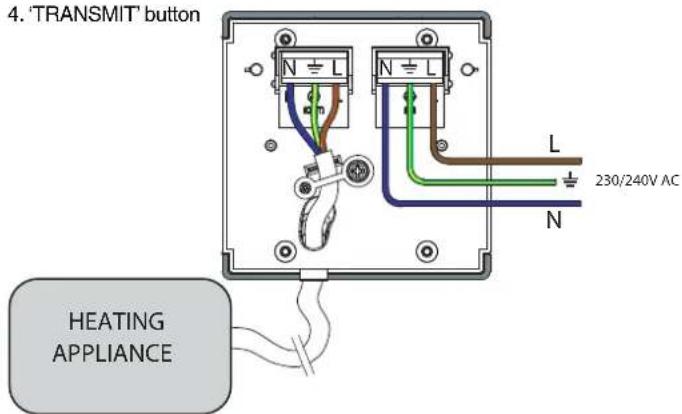

Receiver Wiring - see Fig. 5

Unit Set-Up

The Receiver must be synchronised to suit your individual Controller. Each Controller can be used to control multiple heating appliances.

1. Remove the front facias from both the Controller and Receiver units (see 'Installation').
2. Ensure both the Controller and Receiver(s) are powered up. To activate the Controller press the standby button see '1' in Fig. 2. When activated, the 'ON' (Green) light will illuminate.
3. Press the 'TRANSMIT' button on the Receiver. The Receiver goes into synchronise mode. This is indicated by both the 'AUTO' (yellow) and the 'HEAT' (Red) lights flashing. If more than one Receiver is to be controlled by a single Controller all Receivers must similarly be put into synchronise mode. Each Receiver will remain in synchronise mode for approximately one minute.
4. With the Receiver(s) in the synchronise mode the 'TRANSMIT' button on the Controller is then pressed. This puts the Controller in synchronise mode, this is indicated by the Controller 'HEAT' (red) and 'BOOST' (blue) lights flashing. The Controller will remain in synchronise mode for approximately ten seconds.
5. The Receiver will automatically go into auto mode once a signal has been received from the Controller. The Controller is ready once the 'AUTO' (yellow) light is lit on the Receiver.
6. The front facias should then be replaced on both the Controller and Receiver, ensuring the bottom screw is replaced.

Operating Instructions

The Unit controls the room temperature by interrupting the power supply to the appliance, therefore ensure that the appliance is always switched on and its thermostat (if any) is always set to its maximum position. If the Controller is in standby mode all three lights will be off.

Timer Mode Selection

There are three different operating modes. Press MODE to cycle through these:

MAN OFF - heating is permanently Off - see Fig. 1.

This is also the default screen.

Fig. 6

MAN ON - this mode overrides the timer and the heat may be permanently ON. The heater may be controlled manually See 'Manual Control' - see Fig. 7.

Fig. 7

AUTO - runs the programmed times - see Fig. 8.

Fig. 8

Set Time

Press the PROG key once (from default display) to set time.

The 📄 appears (see Fig. 7) on the screen and the hours can be set using the ▲▼ keys. Press ENTER when finished setting the hours.

Set minutes using the ▲▼ keys and press ENTER.

Then choose the day from Mon to Sun using the ▲▼ keys and press ENTER to exit. Time and Day are now set.

Fig. 7

Set Programme

The timer can only be programmed in 2 blocks i.e.

1st Block - Weekdays: Mon-Fri

Press PROG twice (see Fig. 8). The Weekday programs are now ready to be set (starting with P1 ON, where P1 ON is the first ON time setting) go to 'a)' below:

Fig. 8

2nd Block - Weekends: Sat & Sun

Press PROG twice and then press MODE once (see Fig. 9). The Weekend programs are now ready to be set (starting with P1 ON, where P1 ON is the first ON time setting), go to 'a)' below:

a) set P1 ON time:

Set the hours using ▲▼ and press ENTER. Then set the minutes using ▲▼ and press ENTER.

Fig. 9

Note: Time in minutes can only be set in 10 minute blocks.

Then set P1 OFF time:

Set the hours using ▲▼ and press ENTER.

Then set the minutes using ▲▼ and press ENTER. If only one program is required, press PROG now to return to default display OR

b) set P2 ON and OFF times: repeat procedure as 'a)' above.

c) set P3 ON and OFF times: repeat procedure as 'a').

d) set P4 ON and OFF times: repeat procedure as 'a').

After P4 Weekday OFF time has been set, the

User will be prompted to set P1 ON time for Weekends.

After P4 Weekend OFF time has been set the default Screen is displayed.

At any time while programming the timer, pressing the PROG button, this will exit to the default display. Timer must be in AUTO mode to run Set Programs.

NOTE: To cycle quickly from weekdays to weekends press the MODE button. There are 4 programs for weekdays and 4 for weekends.

Key Lock

To lock the keypad press ENTER and release, then press MODE within 1 second. The key symbol will appear on the screen when the keypad is locked - see

Fig. 10. To unlock the keypad repeat the action above. If any of the buttons on the keypad are pressed when it is locked, the light will automatically come on.

Fig. 10

The Advance Function

When in AUTO mode, if ▲ is pressed for longer than 2 seconds the program will advance to the next programmed setting. When the ADVANCE function is active ADVANCE will be displayed on the screen - see

Fig. 11.

To cancel ADVANCE press ▼ for longer than 2 seconds

Fig. 11

e.g. If present time is 14:00 and P1 ON is at 17:00 and P1 OFF is 19:00, if ▲ is held for 2 seconds then ADVANCE appears on the screen. The heater comes on and remains on until 19:00. ADVANCE disappears from the screen at 17:00 as set program is then running.

Manual Control

• Power up the Controller by pressing the standby button (control knob). The 'ON' (green) light on the Controller and the 'AUTO' (yellow) light on the Receiver should illuminate. The 'AUTO' light on the Receiver indicates that the controller is functioning automatically.
• Ensure thr timer is in 'Man On' mode. See - 'Mode Seletion'
• Adjust the temperature control knob between the 'MAX' and 'MIN' positions to the desired temperature.
• If the room temperature is below the set desired temperature the controller will switch the appliance 'ON'. When the appliance is 'ON' the 'HEAT' (red) light on the Controller and Receiver units will be illuminated.

Boost Mode

The Boost function will override the Controller and the timer and run the appliance constantly for 30 minutes. The Boost mode can be activated by pressing the 'BOOST' button. The Controller in Boost mode will be indicated by all three lights on the Controller being illuminated. Boost mode can be de-activated by pressing the 'BOOST' button again.

Note: If the 'AUTO' (yellow) light on the Receiver is flashing the control unit is in fail mode (a link failure has occurred between the Controller and Receiver). If this occurs the appliance can be operated in a manual mode. To activate manual mode the front cover of the Receiver must be removed (see 'Installation'). The 'OVERRIDE' button will put the Controller in manual mode and the appliance will be switched 'ON', this is indicated by the 'HEAT' (Red) light On and the 'AUTO' (yellow) light Off on the Controller.

If a link failure has occurred, the Controller and Receiver must be paired again (see 'Unit Set-Up'). If this is not successful please contact your service agent.

Cleaning

WARNING: ALWAYS PLACE THE CONTROLLER IN STAND BY MODE BEFORE CLEANING.

Do not use detergents, abrasive cleaning powders or polish of any kind on the controller.

Wipe with a dry cloth to remove dust and a damp cloth (not wet) to clean off stains. Be careful not to allow moisture into the heater.

Recycling

For electrical products sold within the European Community. At the end of the electrical products useful life it should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice in your country.
