Type of Product	PoE Injector
Brand	Tenda
Model	PoE15F
Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3af
Interfaces	1 x 10/100 Mbps RJ45 (Data/PoE), 1 x 10/100 Mbps RJ45 (Data)
Input Voltage	AC 100-240V, 50/60Hz
Output Voltage	DC 48V, 0.3A max
Max Power Consumption	15.4W
PoE Power per Port	15.4W (max)
PoE Type	Mid-span (pins 4,5+ and 7,8-)
Power Distance	Up to 100m (CAT5e or better)
Data Rate	10/100 Mbps, auto-negotiation
MDI/MDIX	Auto-flip
Protection	Over-voltage, over-current, overload
Plug and Play	Yes, no configuration required
Dimensions (W x D x H)	84.5 mm x 44 mm x 29.8 mm
Weight	Approx. 100 g
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Operating Humidity	10% to 90% non-condensing
Storage Humidity	5% to 90% non-condensing
Certifications	TCC, CE, RoHS
LED Indicators	Link/Act, PoE Status
Compatibility	IEEE 802.3af compliant PDs (wireless AP, IP camera, IP phone, etc.)

Frequently Asked Questions - PoE15F Tenda

What is the Tenda PoE15F?

The Tenda PoE15F is a Power over Ethernet (PoE) injector that delivers both data and power over a single Ethernet cable to compatible devices, simplifying network installation.

Is the PoE15F compatible with IEEE 802.3at (PoE+) devices?

No, the PoE15F supports IEEE 802.3af standard with up to 15.4W per port. It is not compliant with 802.3at (PoE+) which requires up to 30W.

What is the maximum distance for power and data transmission?

Using standard CAT5e or CAT6 Ethernet cable, the PoE15F can transmit power and data up to 100 meters (328 feet).

Does the PoE15F require any configuration?

No, it is a plug-and-play device. Simply connect the power cord, link your network switch to the Data input port, and connect your PoE device to the Data/PoE output port.

Can I use the PoE15F with a non-PoE device?

No, the PoE15F only provides power to devices that comply with IEEE 802.3af. Connecting a non-PoE device may damage it. Use a PoE splitter if needed.

What types of devices can I power with the PoE15F?

It can power wireless access points, IP cameras, IP phones, and other IEEE 802.3af compliant powered devices (PDs).

What is the input voltage requirement?

The PoE15F accepts AC 100-240V, 50/60Hz input. It has a built-in power supply, so no external adapter is needed.

What do the LED indicators mean?

There are two LEDs: Link/Act lights when a network link is established and blinks with activity; PoE Status lights when power is being delivered to the connected device.

What are the physical dimensions of the PoE15F?

The dimensions are 84.5 mm x 44 mm x 29.8 mm (W x D x H), and it weighs approximately 100 grams.

Does the PoE15F have any safety protections?

Yes, it includes over-voltage, over-current, and overload protection mechanisms to safeguard both the injector and connected devices.

USER MANUAL PoE15F Tenda

White cloud icon with Wi-Fi signal symbol on orange background (no text or numbers)

All for better networking.

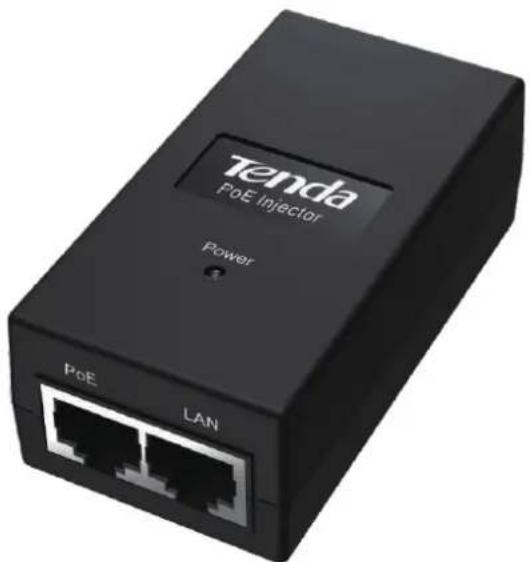

PoE15F

10/100Mbps PoE Injector

PoE15F

10/100Mbps PoE Injector

Products Description

The PoE injector PoE15F can realize synchronous delivery of device network data and power via one Ethernet cable (Cat.5 or better). The output power of per port is up to 15W, which can serve as an outlet for a PoE device (powering via RJ45 port). You can connect PSE15F to an IEEE 802.3af compliant PD, such as wireless AP, IP camera, IP phone, etc. In a sense, it is a good choice for you to reduce the installation cost and improve the network performance.

Key Feature

• Delivers power and data through one Ethernet cable for easy network extension
• Compatible with IEEE 802.3a ^4 /at compliant powered devices
  • PoE Port Delivers power up to 100 meters
• Plug and Play, no configuration required.
  • Supply Over-voltage, over-current and overload protection mechanism

Product Features

Power over Ethernet

Support IEEE802.3af/at standard, automatically detect and identify powered devices compliant with the standard and provide power supply, single-port power supply up to 15.4W.

Power Supply Distance Extension

The power supply distance of standard CAT 5E and CAT 6E cable is up to 100m. It can supply power for the PD remotely, which expands the range of PoE applications, improves wiring efficiency, and better for project installation works.

Extreme Speed Transmission

10/ 100Mbps self-adaptive RJ45 port, extreme speed and high edient data transmission, support link-speed forwarding and MDI / MDIX auto-flip function, plug and play

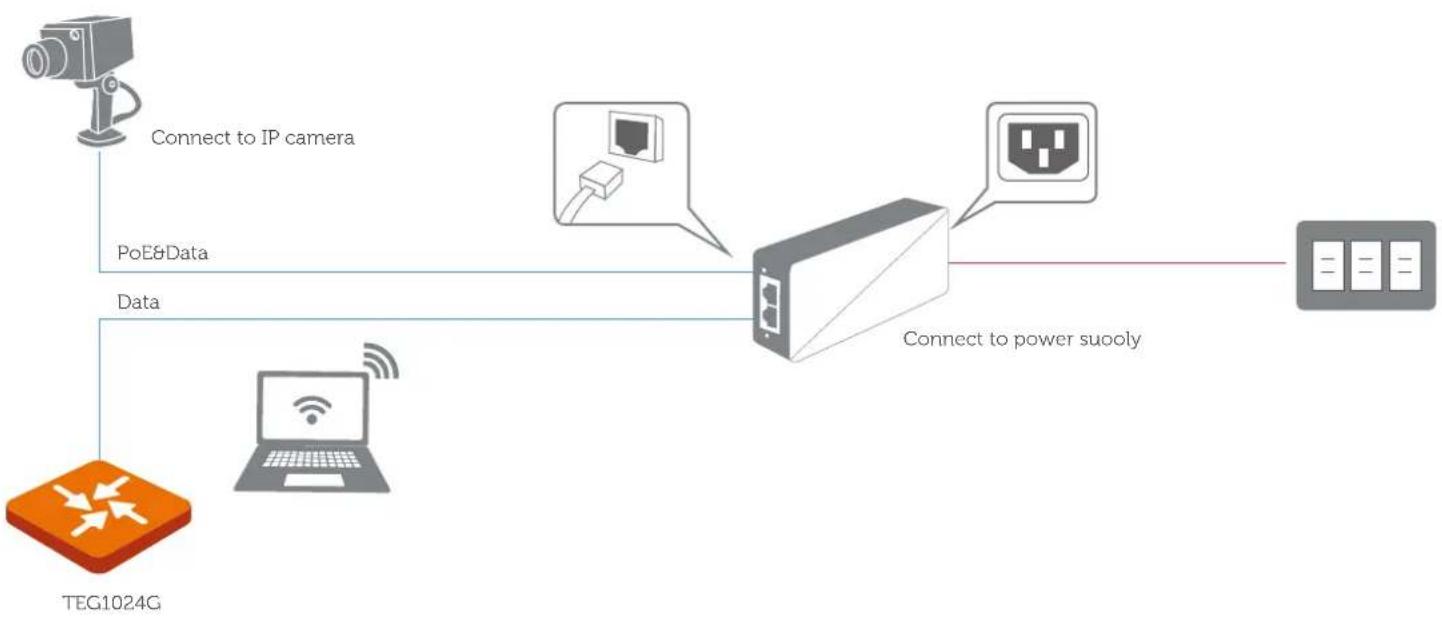

Application

Product Model PoE15F
Hardware Features
Standards&Protocols	IEEE802.3、IEEE802.3u、IEEE802.3af
Indicators Link/Act, PoE Status
Interfaces	1 10/100Mbps RJ45 Port(Data/PoE)1 10/100Mbps RJ45 Port(Data)
Input Voltage	AC: 100-240V~50/60Hz
Output Voltage	DC: 48V/0.3A(max)
Power consumption Power Supply: 15.4W (max)
PoE Supply	PoE Port supports power( maximum power for PoE port is 15.4W),PoE power type is mid-span( 45+, 78- line pair)
Dimensions (W x D x H)	84.5mm*44mm*29.8mm
Environment	Operating Temperature: 0°C~40°C (32°F~104°F)Storage Temperature: -40°C~70°C (-40°F~158°F)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing
Certification	TCC、CE、RoHS

www.tendacn.com/en/

SHENZHEN TENDA TECHNOLOGY CO.,LTD.

Tenda Technology Bldg.Int' IE-City,

1001 Zhong Shan Yuan Rd., Nanshan District, Shenzhen China.

E-mail: [e-mail]

Tel:[phone]

Fax:[phone]

PC:518055
