Product Type	Heater
Model	SH16330N
Brand	Swan
Heating Type	Fan Heater
Power Rating	2000 W
Voltage	220-240 V
Frequency	50/60 Hz
Heat Output	2 kW
Fan Speed Options	2 speeds: low and high
Thermostat	Adjustable thermostat
Timer	Not available
Safety Features	Overheat protection, tip-over switch
Body Material	Plastic
Dimensions (W x D x H)	25 x 20 x 15 cm
Weight	2 kg
Power Cord Length	1.5 m
Cleaning Instructions	Unplug and wipe with dry cloth; do not immerse
Maintenance	No user-serviceable parts; contact support
Repairability	Professional repair only

Frequently Asked Questions - SH16330N SWAN

How do I clean the Swan SH16330N heater?

Always unplug the heater before cleaning. Wipe the exterior with a dry or slightly damp cloth. Do not use abrasive cleaners or immerse the heater in water. Ensure the air vents are free of dust by gently vacuuming them.

What safety features does the SH16330N have?

The heater is equipped with overheat protection and a tip-over switch. If the unit overheats or is knocked over, it will automatically shut off for safety.

Can I leave the heater unattended?

It is not recommended to leave the heater unattended for long periods. Always ensure the heater is on a stable, flat surface and away from flammable materials. The safety features provide extra protection, but supervision is advised.

Why is my heater not heating properly?

Check that the thermostat is set to a higher temperature than the room temperature. Ensure the fan is on and the air vents are not blocked. If the problem persists, the heater may have a safety shut-off triggered; unplug it, let it cool, and try again.

What is the power consumption of the SH16330N?

The heater has a maximum power rating of 2000 Watts. At maximum setting, it consumes 2 kWh per hour. Lower heat settings will consume less.

Is the heater noisy?

The heater includes a fan, so it produces some noise, typical of fan heaters. It operates at a moderate noise level, not excessively loud, but may be noticeable in quiet environments.

Does the heater have a thermostat?

Yes, the SH16330N features an adjustable thermostat. You can set your desired temperature, and the heater will cycle on and off to maintain it.

Can I use the heater in a bathroom?

This heater is not designed for bathroom use unless it is specifically rated for damp locations. Check the manual for IP rating; typical fan heaters should not be used in wet areas. Keep away from water.

How do I store the heater when not in use?

Allow the heater to cool completely. Store it in a cool, dry place. Keep the cord neatly wrapped to avoid damage. Do not place heavy objects on top.

What should I do if the heater trips the circuit breaker?

Unplug the heater immediately. Check for any visible damage. Avoid using other high-power appliances on the same circuit. If the problem persists, the heater may be faulty; contact Swan customer support.

USER MANUAL SH16330N SWAN

Patio Heaters Assembly Photo Guide

Models: SH16310N, SH16320N, SH16330N

Please read in conjunction with the printed manual that came with the product

Help line: 0333 220 6050

v1.0

SH16310N - COLUMN PATIO HEATER

1. Lower body
2. Upper body
3. Base
4. Base cover
5. Cord grip
6. Screws for joint boards
7. Screws & washers for base
8. Joint boards
9. Allen key

You will also need a cross head screw driver. Assembly is much easier with two people and reduces the risk of damaging the product.

2

Swan

SH16310N - COLUMN PATIO HEATER

Thread the plug and cable from the upper body (2) through the channel in the lower body (1)

Make sure it goes all the way through.

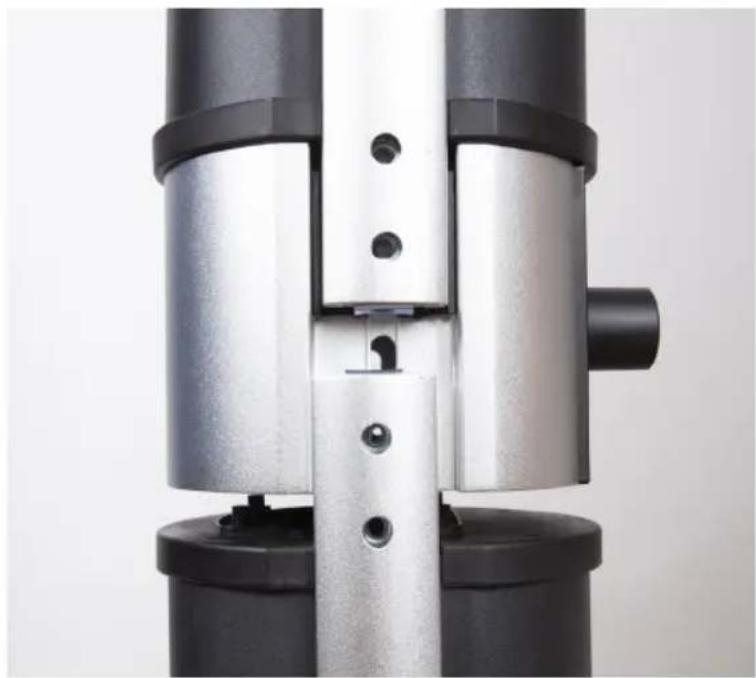

Slide the upper body (2) on to the lower body (1)

SH16310N - COLUMN PATIO HEATER

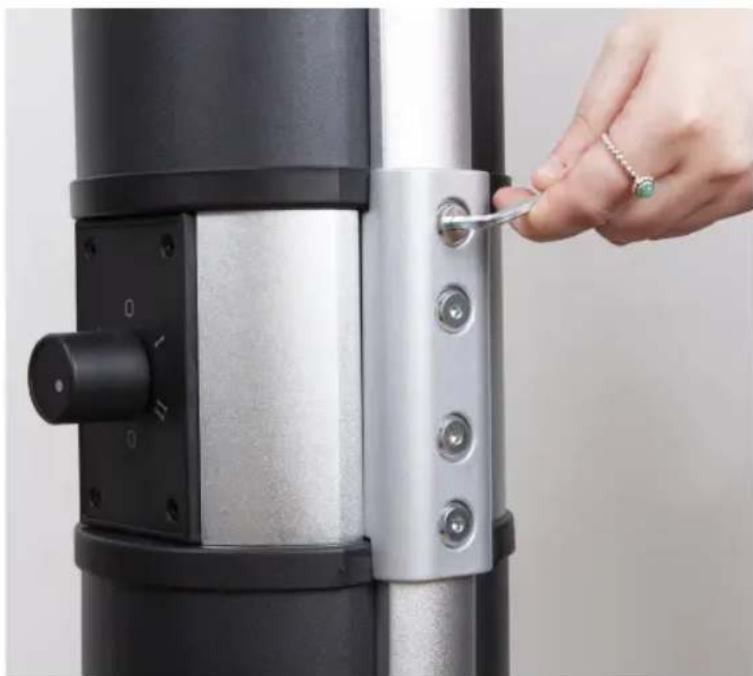

Fit the joint boards and secure with the screws (6) using the allen key provided (9)

Turn the unit upside down (put some cloth down to prevent scratches).

Put the base (3) inside the base cover (4) and thread the plug and cord through the hole in the middle

SH16310N - COLUMN PATIO HEATER

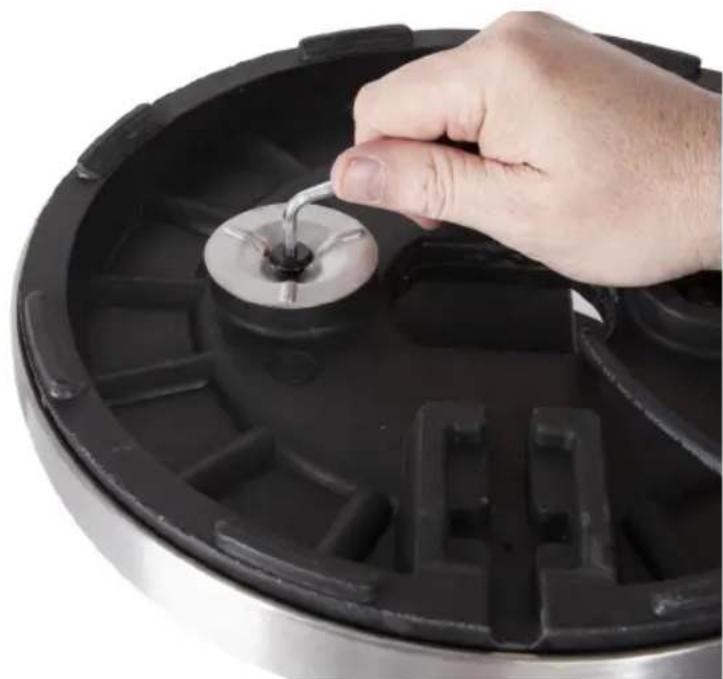

Fasten the base to the main unit using the screws & washers (7)

Fasten the cord grip (5). Make sure the lip faces upwards

Refer to the manual that came with the product for operation guide

SH16320N - BAR TABLE PATIO HEATER

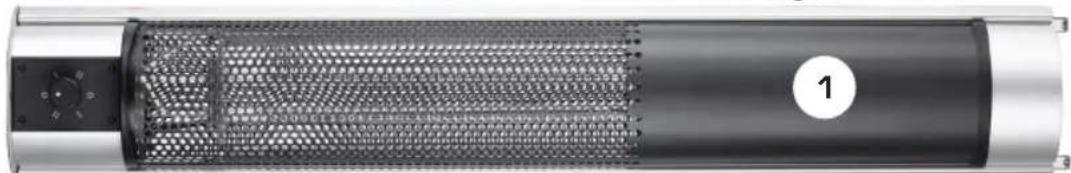

1. Main body
2. Base cover
3. Base
4. Table top
5. Foot bracket
6. Allen keys - 1 large + 1 small
7. Screws & washers for base
8. Long screws + steel tubes
9. Screws for table top

You will also need a cross head screw driver. Assembly is much easier with two people and reduces the risk of damaging the product.

6

Swan

SH16320N - BAR TABLE PATIO HEATER

Turn the main body (1) upside down (put a cloth down to prevent scratches)

Fit the base cover and thread the plug and cord through the hole in the middle.

Fit the base inside the base cover (2) and align the holes ready for the screws and washers.

7

Swan

SH16320N - BAR TABLE PATIO HEATER

Fit the screws and washers. Leave them slightly loose for the moment. This allows a little movement in the base for the next part...

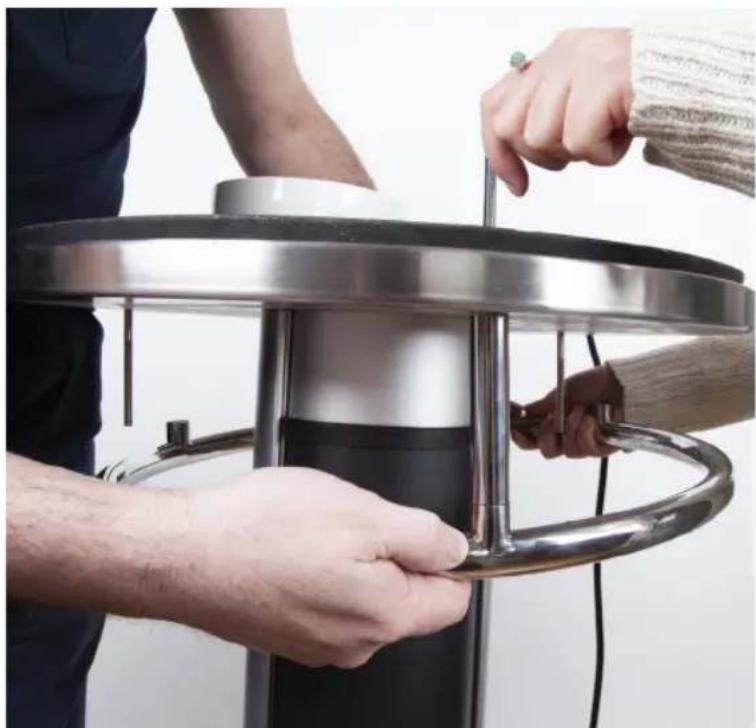

Get someone to hold the bar base (5) in position.

Thread the long screws though the holes in to the steel tubes (8) and into the threaded holes on the bar base.

Don't fully tighten them until all 3 are fitted

SH16320N - BAR TABLE PATIO HEATER

Once all 3 of the long screws are fitted, tighten them all (using the larger allen key)

Finally tighten the base screws as well (small allen key)

Fit the cable to the cable tie and fit the castors

SH16320N - BAR TABLE PATIO HEATER

Turn the unit the right way up again & offer up the table top.

The holes must line up as shown. The bump (2) must align with the hole (1)

This MUST be a 2 person task or you risk breaking the table top.

Fit the screws to secure the table top to the main unit.

Refer to the manual that came with the product for operation guide

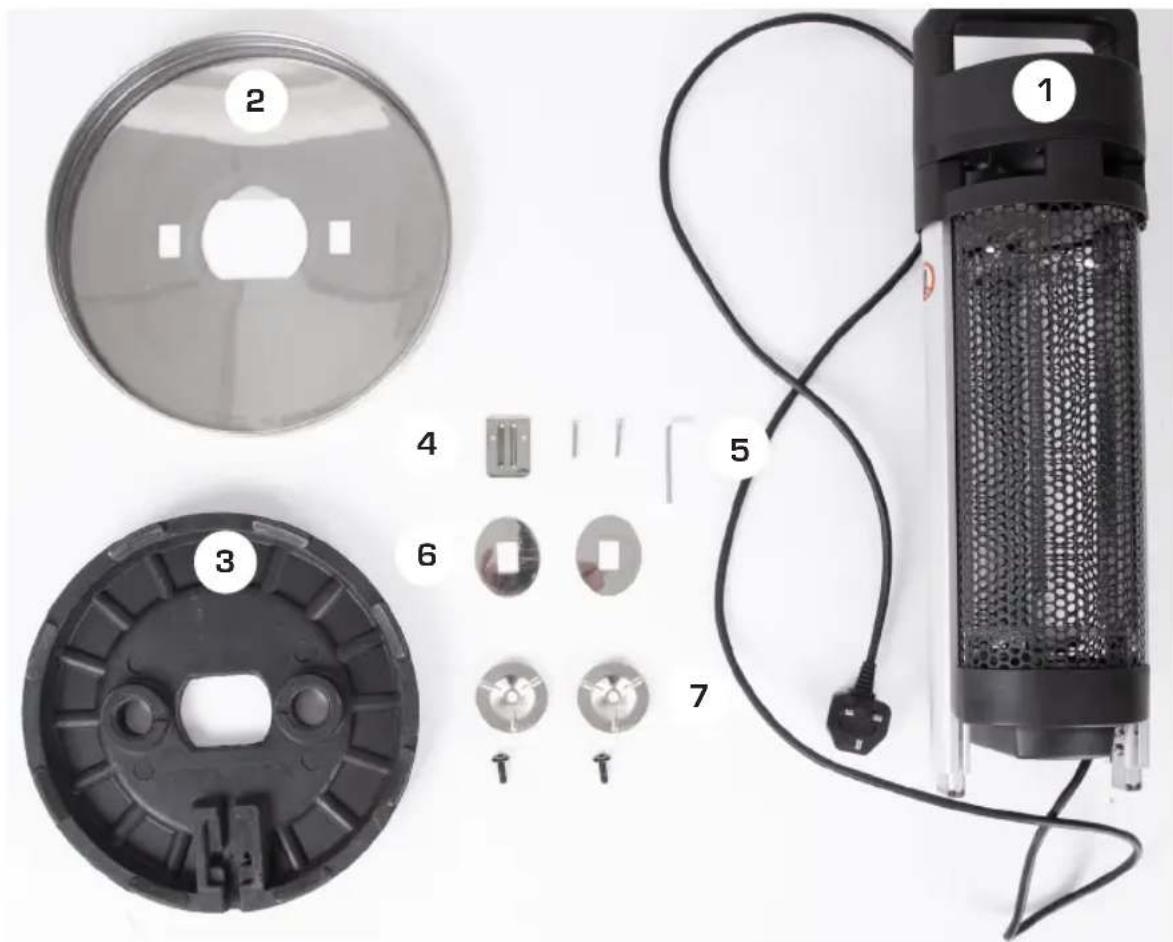

SH16330N - PORTABLE PATIO HEATER

1. Main body
2. Base cover
3. Base
4. Cord grip & screws
5. Allen key
6. Deco board
7. Base screws & washers

You will also need a cross head screw driver. Assembly is much easier with two people and reduces the risk of damaging the product.

11

Swan

SH16330N - PORTABLE PATIO HEATER

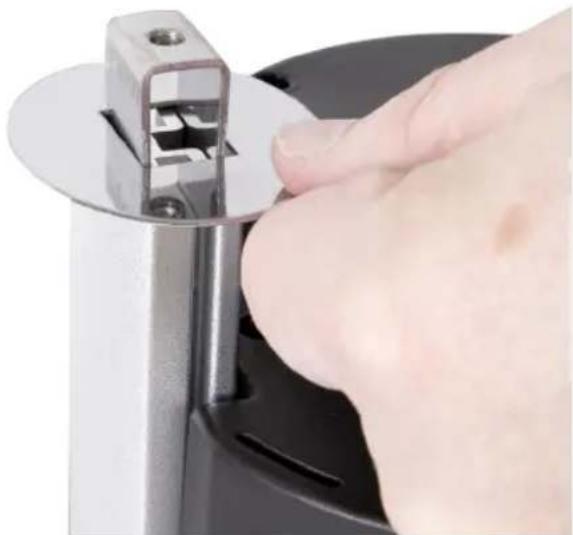

Fit the deco boards (6) as shown

Put the base (3) inside the base cover (2) and thread the plugs and cord through the hole in the middle.

Make sure the 2 mounting holes are aligned.

12

Swan

SH16330N - PORTABLE PATIO HEATER

Fit the base assem- bly to the main body

[1] and tighten the screws and washers [7] as shown.

Fit the cord grip (4) ensuring the lip faces upward.

Refer to the manual that came with the product for operation guide
