SI3080N - Heating SWAN - Free user manual and instructions

Product Type	Fan Heater
Brand	Swan
Model	SI3080N
Power Output	2000 W
Voltage	220-240 V ~ 50/60 Hz
Heating Element	Ceramic
Dimensions (W x D x H)	25 x 20 x 15 cm
Weight	1.5 kg
Heat Settings	2 (low/high) + fan only
Thermostat	Adjustable
Oscillation	Yes, 70°
Safety Features	Overheat protection, tip-over switch
Cleaning	Wipe with dry cloth; do not immerse
Spare Parts	Contact Swan customer service
Repairability	Professional repair only
Power Cord Length	1.5 m
Noise Level	≤ 45 dB
Room Coverage	Up to 25 m²
Energy Efficiency Class	Class A
Warranty	2 years

Frequently Asked Questions - SI3080N SWAN

How do I clean the Swan SI3080N heater?

Always unplug the heater and let it cool completely. Wipe the exterior with a soft, dry cloth. Do not use water or abrasive cleaners. For the grille, use a vacuum cleaner with a brush attachment to remove dust.

What safety features does the SI3080N have?

The heater is equipped with overheat protection and a tip-over switch. If it gets too hot or accidentally tips over, it will automatically shut off.

Can I use the heater in a bathroom?

No, the SI3080N is not designed for use in bathrooms or wet areas. It must be kept away from water and used in dry rooms only.

How many heat settings does it have?

It has two heat settings: low (1000W) and high (2000W), plus a fan-only mode for air circulation without heat.

Does the heater have a thermostat?

Yes, it features an adjustable thermostat that lets you set your desired room temperature. Once reached, the heater will cycle on and off to maintain it.

Is the Swan SI3080N energy efficient?

It is rated energy class A, meaning it offers good efficiency for its size. Using the lower heat setting can save energy.

What is the noise level of the heater?

The fan operates at a noise level up to 45 dB, similar to a quiet office environment. It is not silent but generally not disruptive.

Can I leave the heater on overnight?

While it has safety features, it is recommended to never leave the heater unattended for long periods. It is best to turn it off when sleeping or leaving the room.

What type of heating element does it use?

It uses a ceramic heating element, which heats up quickly and provides efficient, even heat.

Where can I find spare parts for the SI3080N?

Contact Swan customer service via their website or phone. Authorized service centers can provide replacement parts for professional repair.

USER MANUAL SI3080N SWAN

Important Safeguards

When using any electrical appliance, basic safety precautions should always be followed including the following:

1. Always ensure that the voltage on the rating label corresponds to the mains voltage in your home
2. Incorrect operation and improper use can damage the appliance and cause injury to the user.
3. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
4. Check the power cord and plug regularly for any damage. If the cord or the plug is damaged, it must be replaced by the manufacturer or qualified person in order to avoid an electrical hazard.
5. Do not use the appliance if it has been dropped or damaged in any way. In case of damage, take the unit in for examination and/or repair by an authorised service agent.
6. Never immerse the unit in water or any other liquid for cleaning purposes.
7. Remove the plug from the socket by gripping the plug. Do not pull on the cord to disconnect the appliance from the mains. Unplug the unit when not in use or before cleaning
8. The use of accessory attachments that are not recommended or supplied by the manufacturer may result in injuries, fire or electric shock.
9. Do not let the cord hang over the edge of a table or counter. Ensure that the cord is not in a position where it can be pulled on inadvertently.
10. Do not allow the cord to touch hot surfaces and do not place on or near a hot gas or electric burner or in a heated oven.
11. Do not use the appliance on a gas or electric cooking top or over or near an open flame.
12. Use of an extension cord with this appliance is not recommended. However, if it is necessary to use an extension lead, ensure that the lead is suited to the power consumption of the appliance to avoid overheating of extension cord, appliance or plug point. Do not place the extension cord in a position where it can be pulled on by children or animals or tripped over.
13. This appliance is not suitable for outdoor use. Do not use the appliance for anything other than its intended use.
14. Do not carry the appliance by the power cord.
15. Do not leave the appliance unattended during use.
16. Always operate the appliance on a smooth, even, stable surface. Do not place the unit on a hot surface.
17. The manufacture does not accept responsibility for any damage or injury caused by improper or incorrect use, or for repairs carried out by unauthorised personnel.
18. In case of technical problems, switch off the product and do not attempt to repair it yourself. Return the appliance to an authorised service facility for examination, adjustment or repair. Always insist on the use of original spare parts. Failure to comply with the above mentions precautions and instructions, could affect the safe operation of this product.
19. Your appliance must never be switched on through an external timer or any kind of separate remote control system

Swan

Helpline Number: 01733 404703 WWW.SWAN-BRAND.CO.UK

Parts

1. Steam shot button
2. Spray button
3. Thermostat
4. Soleplate
5. Filler cap
6. Steam control
7. Self clean button

Specification

Model No. SI30BON

220V-240V\~50/60Hz 2500W

Temperature Guide

Symbol	Fabric	Temperature	Variable steam	Steam shot	Spray
	Synthetic fibres/silk	*	X	X	√
	Wool	**	√	X	√
	Cotton Linen	***	√	√	√
	Do not iron

Helpline Number: 01733 404703 WWW.SWAN-BRAND.CO.UK

Swan

How to Use

Before first use

Remove any stickers, protective foil or storage cover from the soleplate.

Heat up the iron to maximum temperature and iron over a piece of damp cloth for several minutes for the purpose of removing any residue on the soleplate.

Note: It is normal for a strange odour to come from the unit during the first use. This is due to light oils used to preserve components during manufacture. The odour will disappear after first use.

Operation

Hold the iron in a tilted position, then add clean water into the water tank. For best results and longer product life, use bottled or purified water – especially if you live in a hard water area. Make sure not to exceed Max level on the tank.

Press down cover of water tank and you will hear a click if it is in the correct position.

Connect plug to outlet and turn temperature dial to your desired setting, which is determined by the type of fabric you intend to iron. The indicator light will illuminate.

Make sure steam control is on dry (0) position then place the iron vertically

Once soleplate temperature has reached the preset temperature, indicator light will turn off, then set steam dial to your desired steam output or dry position and begin ironing. WARNING: Not touch hot soleplate at any time during ironing. It will be very hot.

Press spray button a couple of times to moisten the laundry if necessary, before spraying make sure that there is enough water in water tank. A few presses might be required to pump the water through on first use

Steam shot function is best used at max temperature, as it helps remove stubborn creases.

The iron has an anti-drip function: if you are ironing dense garments for a long time, the soleplate temperature can drop. To prevent water coming from the soleplate, the iron will automatically reduce the steam output.

"Steam shot" can also be applied when holding the iron in a vertical position, so this is useful for removing creases from hung clothes, curtains, etc.

Helpline Number: 01733 404703 WWW.SWAN-BRAND.CO.UK

Ironing Tips

Always check first whether a label with ironing instructions is attached to the article.

The iron heats up quicker than it cools down, therefore, you should start ironing the articles requiring the lowest temperature such as those made of synthetic fibres.

If the fabric consists of various kinds of fibres, you must always select the lowest ironing temperature to iron the composition of those fibres.

Silk and other fabrics that are likely to become shiny should be ironed on the inner side.

To prevent staining do not spray water straight on silk or other delicate fabrics.

Velvet and other textures that rapidly become shiny should be ironed in one direction with light pressure applied. Always keep the iron moving at any given moment.

Pure woollen fabrics (100% wool) may be ironed with the iron set a steam position. Preferably set steam button to the maximum position and use a dry cloth as a mat.

Note: when ironing woolen fabrics, shining of the fabric may occur. So it is suggested that you should turn the article inside out and iron the reverse side.

Cleaning and Maintainance

Self cleaning:

Set the temperature control to the maximum position, press the self clean button for about 1 minute, steam will be emitted to clean the steam chamber. Use this function once every two weeks or so.

Anti-calc:

The Anti-calc function filters some minerals from the water to prevent limescale residue build up in the steam chamber. However if you live in a particularly hard water area, we recommend using bottled or distilled water. Warning: never pour vinegar or other liquid cleaners for eliminating calcium into water tank.

After ironing

Disconnect power supply and empty the water left in water tank. Reconnect the power supply and disconnect after indicator light goes off, this dries the soleplate.

Let the iron completely cool down, then wipe flakes and any other deposits soleplate with a damp cloth or a non-abrasive (liquid) cleaner. Clean the upper part of iron with a damp cloth. Always store the emptied iron horizontally on a stable surface with a cloth protecting the soleplate.

Helpline Number: 01733 404703 WWW.SWAN-BRAND.CO.UK

BS Plug Wiring

The wires in the mains lead are coloured in accordance with the following code:

BLUE NEUTRAL

As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings identifying the terminals on your plug, proceed as follows:

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red. The wire which is coloured GREEN/YELLOW must be connected to the terminal which is marked with the letter E or (earth symbol) and is coloured GREEN or GREEN/YELLOW.

WARNING: THIS APPLIANCE MUST BE EARTHED

WEEE Directive

Disposal of Unit

Disposal instructions for Swan items in accordance with the WEEE directive. Appliances bearing the symbol shown here may not be disposed of in domestic rubbish. You are required to dispose of old electrical and electronic appliances like this separately. Please visit www.recyclemore.co.uk, or www.recyclenow.co.uk for access to information about the recycling of electrical items. The WEEE directive, introduced in August 2006, states

that all electrical items must be recycled, rather than taken to landfill. Please arrange to take appliance to your local Civic Amenity site for recycling, once it has reached the end of its life.

Declaration of EC Conformity

Helpline Number: 01733 404703 WWW.SWAN-BRAND.CO.UK

Two Year Warranty

This product is guaranteed for 2 years from the date of original purchase. If any defect arises due to faulty materials of workmanship the faulty products must be returned to the place of purchase. Refunds or replacement is at the discretion of the store.

The following conditions apply:

The product must be returned to the retailer with proof of purchase. The product must be installed and used in accordance with the instructions contained in this instruction guide. It must be used only for domestic purposes. It does not cover wear and tear, damage, misuse or consumable parts. Swan Products Ltd has limited liability for incidental or consequential loss or damage. This guarantee is valid in the UK and Eire Only.

Swan Brand Heritage

Did you know...

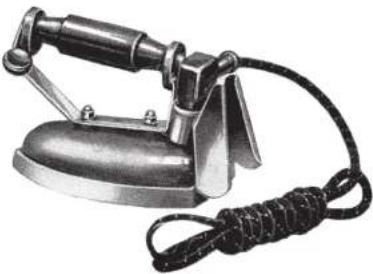

In 1933 most homes were heating their irons over the gas ring or still putting hot coal in them. This Swan iron was basically an element with a handle, which plugged straight into a light bulb socket. And at a mere 14 s billings (70p), it meant many households could own a prestigious Swan Product.
