USER MANUAL DMO392 Defy

Abstract geometric pattern with four empty circles and a diagonal gray line (no text or symbols)

Simple line drawing of a kitchen range hood (no text or symbols)

Simple line drawing of an oven with three handles (no text or symbols)

Blank white image with no visible text, symbols, or discernible features

Simple line drawing of a washing machine (no text or symbols)

Simple line drawing of a kitchen appliance outline (no text or symbols)

Customer Care Line
(after sales service)

086 100 3339

Microwave

Instruction manual

CONTENTS AND PAGE NUMBER

IMPORTANT SAFETY INSTRUCTIONS 3

SPECIFICATIONS 7

EXAMINING YOUR MICROWAVE OVEN AFTER UNPACKING 7

REDUCE THE RISK OF INJURY TO PERSONS 8

EARTHING INSTALLATION 8

RADIO INTERFERENCE 9

ARCING 9

UTENSIL AND COOKWARE GUIDE 9

OVEN PARTS AND ACCESSORIES 10

COUNTERTOP INSTALLATION 11

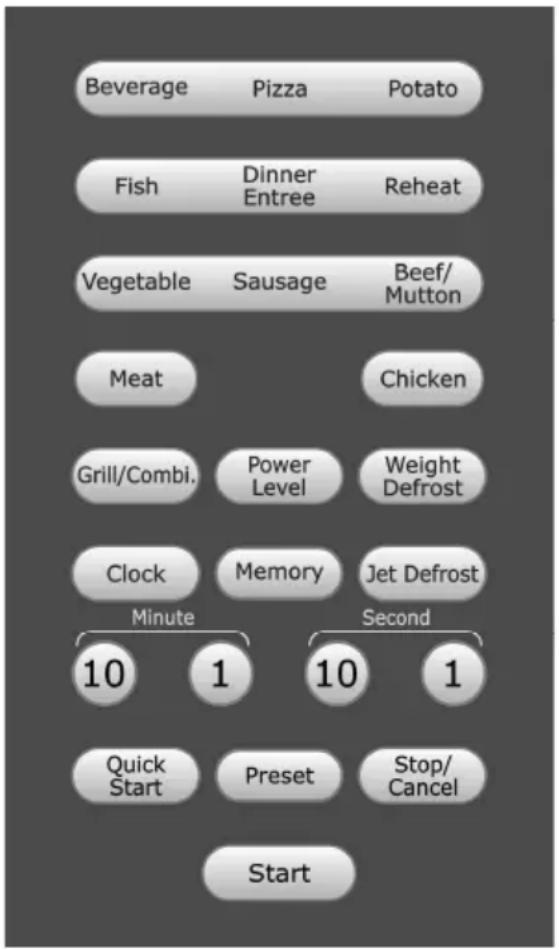

THE CONTROL PANEL 12

OPERATING INSTRUCTIONS 12

SETTING THE CLOCK 13

QUICK START 13

CLEANING AND CARE 17

GENERAL GUIDELINES 18

MICROWAVE RECIPES 19

FREQUENTLY ASKED QUESTIONS 21

BRANCHES 22

WARRANTY 23

IMPORTANT SAFETY INSTRUCTIONS

This appliance is classified as Group 2 Class B ISM. Defined as (Industrial, Scientific and Medical) equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and spark erosion equipment. Class B equipment is suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purpose.

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

• Use this appliance only for its intended use as described in this manual. This type of oven is specifically designed to heat, cook or defrost food. It is not designed for industrial or laboratory use.
• Do not use the oven for any reason other than food preparation, such as for drying clothes, paper, or any other non food items or for sterilizing purposes.
• Do not use the oven when empty, this could damage the oven.
• Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when it is not in use.
• Do not operate the oven without the metal turntable tray in place. Ensure it is properly seated on the rotating base. Do not use any other Turntable in the oven. Do not operate the oven without the turntable and rotating base properly in place.
• Ensure you remove caps or lids prior to cooking when you cook food sealed in containers. Liquid or other food must not be heated in sealed containers since these are liable to explode. Pierce foods with heavy skins such as potatoes, tomatoes, whole squashes, apples and chestnuts before cooking. Unless this is done, they may burst or explode.
• Do not cook any food surrounded by a membrane, such as egg yolks, potatoes, chicken livers, etc., without first piercing them several times with a fork. Eggs in their shell and whole hardboiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

- Do not put foreign material between the oven surface and door. It could result in excessive leakage of microwave energy.

- Do not use recycled paper products for cooking. They may contain impurities which could cause sparks and/or fires when used during cooking.

- Do not pop popcorn unless popped in a microwave approved popcorn popper or unless it has been commercially packaged and is recommended especially for microwave ovens. Microwave popped corn produces a lower yield than conventional popping; there will be a number of unpopped kernels. Do not use oil unless specified by the manufacturer.

- Do not pop popcorn longer than the manufacturer's directions. (popping time is generally below 3 minutes). Longer cooking does not yield more popped corn, and may result in scorching and fire. The cooking tray may also become too hot to handle or may break.

- If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

- Check the oven frequently when heating food in plastic or paper containers to avoid accidental ignition.

- The contents of feeding bottles and baby food jars must be stirred or shaken and the temperature checked before consumption in order to avoid burns.

- Always test the temperature of food or drink which has been heated in a microwave oven before you give it to somebody, especially to children or elderly people. This is important because things which have been heated in a microwave oven carry on getting hotter even though the microwave oven cooking has stopped.

- Wipe the oven interior with a soft damp cloth after each use. If you leave grease or fat anywhere in the cavity it may overheat, smoke or even catch fire when next using the oven.

- Never heat oil or fat for deep frying as you cannot control the temperature and doing so may lead to overheating and fire. Do not fry food in the oven. Hot oil can damage oven parts, utensils and can even result in skin burns.

- Read and follow the "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".

- Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.

To reduce the risk of injury to persons:

a) Do not overheat liquids.
b) Stir the liquid both before and halfway through heating it.
c) Do not use straight-sided containers with narrow necks.
d) After heating, allow the container to stand in the microwave oven for a short time before removing the container.
e) Use extreme care when inserting a spoon or other utensil into the container.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
• Children must be supervised to ensure that they do not play with the appliance.
• Only use utensils that are suitable for use in microwave ovens. Utensils should be checked to ensure that they are suitable for use in a microwave oven.
• During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.
• Do not use a steam cleaner in the oven.
• Remove wire twist-ties from paper or plastic bags before placing the bag in the oven.
• Cooking utensils may become hot because heat is transferred from the heated food. Potholders may be needed to handle the utensil.
• Do not operate this appliance if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
• Do not use corrosive chemicals or aerosols to clean this appliance.

• Do not operate the oven without the tray, the rotating base, and the shaft in their proper positions.

• Make sure that the power supply cord is undamaged and does not run under the oven or over any hot or sharp surface.

• The wall socket must be readily accessible so that the Microwaves plug can be easily unplugged in an emergency.
• Do not use the oven outdoors.
• Do not overcook food.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO MICROWAVE ENERGY

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

• Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to bypass or tamper with the safety interlocks.
• Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
• Do not operate the oven if it is damaged.

- WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person : It is particularly important that the oven door closes properly and that there is no damage to the:

Door (bent, skew or dented)

Hinges and latches (broken or loosened)

Door seals and sealing surfaces. (deformed or covered with dirt deposits)

- WARNING: It is hazardous for anyone other than a trained, competent person to carry out any service or repair operation which involves the removal of any cover which protects against exposure to microwave energy.

- WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.

SPECIFICATIONS

Model: DMO392
Rated Voltage: 230-240V~50Hz
Rated input (Microwave) 1500W
Rated input (Grill) 1300W
Rated Output Power (Microwave): 1000 W
Operating Frequency 2450MHz
External Dimensions: (H x W x D) 300mm(H)×539mm(W)×474mm(D)
Oven Cavity Dimensions: (H x W x D) 240mm(H)×376mm(W)×404mm(D)
Oven Capacity 34 Litres
Net Weight: Approx. 17.3 kg

EXAMINING YOUR MICROWAVE OVEN AFTER UNPACKING

Unpack the oven, remove all packing material, and examine the oven for any damage such as:

• A damaged, misaligned or bent door.
• Damaged door seals and sealing surfaces.
• Broken or loose door hinges and latches.
  • Dents inside the cavity or on the door.

Notify the dealer immediately if the oven is damaged. Do not install or operate the oven if it is damaged.

Intended use

This appliance is intended to be used in household and similar applications such as:

-staff kitchen areas in shops, offices and other working environments;

-by clients in hotels, motels and other residential type environments;

-farm houses;

-bed and breakfast type environments.

Where to place your microwave oven

Place the oven on a flat and stable surface.

Do not place the oven where heat, moisture, or high humidity are generated, or near any combustible materials.

Do not store or use this appliance outdoors.

Do not use this oven near water, in a wet basement or near a swimming pool.

The oven must have sufficient ventilation to operate correctly. See the counter installation diagram for space requirements around the microwave oven.

Do not remove the feet.

The microwave oven shall not be placed in a cabinet unless it has been tested in a cabinet.

Leave space behind and sides and upper of the oven. All air vents must have clearance. If all vents are covered during operation, the oven may overheat and, eventually, lead to oven failure.

Keep away from radio and TV sets. If the oven is located close to a TV, radio interference may result.

Keep away from heating appliances and water taps. Keep the oven away from hot air, steam or water when choosing a place to position it, or the insulation might be adversely affected and breakdowns occur.

WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.

REDUCE THE RISK OF INJURY TO PERSONS

DANGER

Electric Shock Hazard

Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

WARNING

Electric Shock Hazard

Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

EARTHING INSTALLATION

This appliance must be earthed. This oven is equipped with a power cord and earthed plug. It must be plugged into a wall socket that is properly installed and earthed. Refer to the rating plate for the appliance voltage and check that the voltage corresponds with the supply voltage in your home.

In the event of an electrical short circuit, earthing reduces risk of electric shock by providing an escape wire for the electric current. It is recommended that a separate circuit serving only the oven be provided. Using a high voltage power supply is dangerous and may result in a fire or other accident causing oven damage.

WARNING

Improper use of the earthed plug can result in a risk of electric shock. If the proper electrical connections are not made, the microwave oven may be damaged and possible injury may result.

Neither the manufacturer nor the dealer can accept any liability for damage to the oven or personal injury resulting from failure to observe the electrical connection procedures. If you have any doubts about the electrical installation or if earthing instructions are not completely understood please consult an electrician or qualified technician.

Electrical Connection

We recommend the use of good quality plugs and wall sockets that can be switched off when the machine is not in use.

Power supply

Check your local power source. The voltage used must be the same as specified on this oven. Using a higher voltage may result in a fire or other accident causing oven damage. Using low voltage will result in slow cooking. We are not responsible for damage resulting from use of this oven with a voltage or ampere fuse other than those specified.

If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

If it is necessary to use an extension cord, use only a 3-wire extension cord.

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
2. If a long cord set or extension cord is used:

1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.

2) The extension cord must be a grounding-type 3-wire cord.

3) The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

RADIO INTERFERENCE

Microwave ovens can cause radio and TV interference. This may be reduced or eliminated by taking the following measures:

1. Clean the door and sealing surfaces of the oven.
2. Reorient the receiving antenna of the radio or the television.
3. Relocate the microwave oven with respect to the receiver.
4. Move the microwave oven away from the receiver.
5. Plug the microwave oven into a different outlet so that the microwave oven and receiver are on different branch circuits.

ARCING

Arcing is the term used for sparks in the oven.

Arcing is caused by:

1. Metal foil touching the side of the oven.
2. If foil does not follow the shape of the food, upturned edges act like antennas.
3. Metal such as twist ties, poultry pins or gold rimmed dishes.
4. Recycled paper containing small particles of metal.

UTENSIL AND COOKWARE GUIDE

1. Glass or Pyrex dishes allow energy to pass through the utensil and heat the food.
2. Microwaves cannot penetrate metal, so don't use metal dishes or utensils. Neither use any dish which has metallic decorations or a gold-foiled pattern.
3. Do not use recycled paper products when microwave cooking as these may contain small metal fragments which may cause sparks and or fires.
4. Use round or oval dishes rather than square or oblong ones as food in corners tends to overcook.
5. Narrow strips of aluminum foil may be used to prevent overcooking of exposed areas. (on drum stick ends etc.) but keep a distance of at least 1 inch (2.54cm) between the foil and the cavity to prevent arcing.
6. Do not use metal twist ties. These may cause arcing and could cause a fire in the oven.

COOKWARE COMBINATION	MICROWAVE	GRILL
Heat resistant glass. Yes	Yes	Yes
Non heat resistant glass. No	No	No
Heat resistant ceramics. Yes	Yes	Yes
Microwave compatible plastic dishes. No	Yes	No
Paper toweling—with caution. No	Yes	No
Metal dishes or utensils. No	No	Yes
Metal trays or racks. No	No	Yes
Aluminium foil containers. No	No	Yes

Important: Read these instructions for use carefully so as to familiarize yourself with the appliance. Keep these instructions for future reference.

Remove the oven and all materials from the carton and oven cavity.

Your oven comes with the following accessories:

Glass tray x 1 - Turntable ring assembly x 1 - Instruction Manual x 1

1. Door Safety Lock System
2. Oven Window
3. Shaft
4. Roller Ring
5. Door Release Button
6. Control Panel
7. Wave Guide (Please do not remove the mica plate covering the wave guide)
8. Glass Tray
9. Grill Heater
10. Metal Rack

Turntable Installation

a. Never place the glass tray upside down. The glass tray should never be restricted.
b. Both glass tray and turntable ring assembly must always be used during cooking.
c. All food and containers of food are always placed on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

COUNTERTOP INSTALLATION

Remove all packing material and accessories.

Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged.

Cabinet: Remove any protective film found on the microwave oven cabinet surface.

Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.

Installation

1. Select a level surface that provides enough open space for the intake and/or outlet vents.

(1) The minimum installation height is 85cm.
(2) The rear surface of appliance shall be placed against a wall.

Leave a minimum clearance of 30cm above the oven, a minimum clearance of 20cm is required between the oven and any adjacent walls.

(3) Do not remove the feet from the bottom of the oven.
(4) Blocking the intake and / or outlet openings can damage the oven.
(5) Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception.

Plug your oven into a standard household outlet.

Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

	WARNING:Do not install oven over a range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty would be void.
	WARNING:Accessible surfaces may become hot during operation.

DISPLAY SCREEN

Cooking time, power, indicators and present time are displayed.

AUTO COOK MENUS

Press to set auto menu cooking program.

NUMBER PADS

10 Minutes (1000g); 1 Minute (100g)

10 Seconds (10g); 1 Second (1g)

Press to set clock, cooking time or enter food weight.

GRILL/COMBI.

Press to set a grill cooking program.

Press to set combination cooking program.

POWER LEVEL

Press to select microwave power level.

WEIGHT DEFROST

Press to set food weight or set speed defrost program.

CLOCK

Press to set clock time or set timer function.

MEMORY

Press to set memory function.

JET DEFROST

Press to set jet defrost program.

QUICK START

Press to start the oven quickly at full power.

PRESET

Preset control allows you to put food into the oven and program it to start cooking at a later time.

STOP/CANCEL

Press to stop cooking program or clear all previous settings before cooking starts.

START

Touch to start cooking or to add an extra minute to your cooking cycle for each touch.

OPERATING INSTRUCTIONS

• When the oven is first plugged in, the display will show "1:01" and " ℓ".
• During cooking, press the STOP/CANCEL pad once to pause the program, press the START pad to resume. By pressing the STOP/CANCEL pad twice, the program will be cancelled.
• After the cooking process has ended, the screen will display End and will emit a sound every two minutes until the STOP/ CANCEL pad is pressed once or if the door is opened.

Setting the Clock

This is a 12 and 24 hour clock. You can choose to set the clock time in 12 or 24 hour cycle by pressing the CLOCK button in standby mode.

1. Press the CLOCK pad once or twice to select 12 or 24 hour clock.
2. Press the number pad to enter the cooking time.
3. Press the CLOCK pad once to confirm.

NOTE: During cooking, you can check the current time of the clock by touching CLOCK pad.

Quick start

Use this feature to program the oven to start at 100% power efficiency. In standby mode, press the START pad repeatedly to enter the cooking time ((each time the pad is pressed the time increases by 30 seconds, and can go up to 99 minutes). The oven will start working automatically.

NOTE: During cooking, the current power level can be seen by pressing the POWER LEVEL pad.

Microwave Cooking

1. Press the POWER LEVEL pad repeatedly to select a power level.
2. Press the number pads to enter the cooking time. The longest time is 99 minutes and 99 seconds.
3. Press the START pad to confirm.

Press the POWER LEVEL pad to choose the cooking power level:

Press POWER LEVEL pad Cooking Power
Once 100%
Twice 80%
3 times 60%
4 times 40%
5 times 20%
6 times 0%

NOTE:

- During cooking, you can check the current power level by pressing POWER LEVEL pad.

Grill

1. Press the GRILL/COMBI. pad once.
2. Press the number pads to enter the cooking time. The longest time is 99 minutes and 99 seconds.
3. Press START pad to confirm.

Microwave + grill

Combination 1:

30% of time for microwave cooking, 55% time for grill cooking and 15% time the oven will stop working in one cycle. Use for fish, potatoes or au gratin.

Combination 2:

40% of time for microwave cooking, 15% time the oven will stop working and 45% for grill cooking in one cycle. Use for pudding, omelettes, baked potatoes and poultry and poultry.

1. Press GRILL/COMBI. pad twice or thrice to select "COMB1" or "COMB2".
2. Press the number pads to enter cooking time. The longest time is 99 minutes and 99 seconds.
3. Press the START pad to confirm.

Weight Defrost

1. Press the WEIGHT DEFROST pad repeatedly to select the food code.
2. Press the number pads to enter the required cooking time.
3. Press the number pads to enter the food weight.
4. Press the START pad to confirm.

The maximum allowable weight for each category is shown below.

DISPLAY FOOD TYPE MAXIMUM WEIGHT
d1 Meat 2300g
d2 Poultry 4000g
d3 Seafood 900g

NOTE: During the defrosting program, the system will pause to remind the user to turn food over, press the START pad to resume the defrosting.

Jet defrost

1. Press JET DEFROST pad once.
2. Press number pads to enter defrosting time. The longest defrosting time is 99 minutes and 99 seconds.
3. Press START pad to confirm.
4. NOTE: During the defrosting program, the oven will pause to remind user to turn the food over, press the START pad to resume.

Multistage Cooking

The oven can be programmed for up to 3 automatic cooking sequences. Jet defrost can only be set in the first sequence.

The following example is a guide on how to set a cooking program:

Microwave-cooking (with lower power level)

1. Open the door and place the food into the oven, close the door.
2. Input the jet defrost cooking program.
3. Touch the MEMORY pad once.
4. Input the second stage microwave cooking program.
5. Touch the MEMORY pad once.
6. Input the third stage microwave cooking program.
7. Press the START pad to confirm.

NOTE: The Auto cook menus cannot be set in the multistage cooking program.

Preset

The Preset function allows for the oven to start up at a later time.

1. Press the PRESET pad.
2. Use the number pads to enter the desired time.
3. Press the START pad to confirm.

NOTE: Quick start, jet defrost and weight defrost cannot be preset. The preset program can also be cancelled by pressing the STOP/CANCEL pad when the preset time is showing.

Child Lock

The lock prevents unsupervised operation of the microwave oven by children.

• To set the child proof lock: In standby mode, press and hold the STOP/CANCEL button for 3 seconds, then a beep will sound. The oven will auto enter the child lock mode and the lock indicator light will switch on. In the locked mode, all buttons are disabled.
• To cancel the child proof lock: Press and hold the STOP/CANCEL button for 3 seconds, then a beep will sound and the indicator light will switch off.

AUTO COOK

In this cooking mode, it is not necessary to program the duration and the cooking power. It is sufficient to indicate the type of food that you want to cook as well as the weight or portions of this food.

1. Press the corresponding menu pad once or repeatedly to select the weight or the portions of food to be cooked.
2. Press START to confirm.

Food Note
Beverage (200ml/cup)	When cooking Chicken, Beef/Mutton,Sausage, and Meat, the cooking program will pause during cooking to remind the user to turn the food over for uniform cooking.The result of auto cook depends on factors such as the shape and size of food, your personal preference as to the doneness of certain foods.How well the food is placed in the oven also has an effect on cooking outcomes. If you find that the cooking results are not satisfactory, please adjust the cooking time accordingly.
Dinner Entree (g)
Auto Reheat (g)
Potato (230g/portions)
Vegetable (g)
Pizza (g)
Chicken (g)
Fish (g)
Sausage (g)
Meat (g)
Beef/Mutton (g)

1. Place the food in a microwave approved cooking utensil and place it centrally on the glass tray. Placing a heavy load on the perimeter of the glass tray could cause the glass tray to dislodge from the rotating base. Arrange the food carefully. Place thickest areas towards outside of the cooking utensil.
2. Do not place food directly on the glass tray unless the food is self contained and will not spill. When cooking more than one item, arrange the food so that the items are evenly spaced.
3. Watch the cooking time. Cook for the minimum time indicated in the recipe and add more as needed. Food which is severely overcooked can smoke or ignite.
4. Cover foods while cooking to prevent spattering and to help the food cook evenly.
5. Turn foods over once during microwave cooking to speed up the cooking of foods such as chicken and burgers. Large items such as roasts must be turned over at least once.
6. Rearrange foods such as meatballs halfway through cooking both from the top to the bottom of the dish and from the center of the dish to the outside of the dish.
7. Do not operate the oven without the rotating base and tray in position.

TROUBLE SHOOTING

Normal occurrences. These are not a fault.
Microwave oven interfering with TV reception. Radio	and TV reception may be interfered with when microwave oven is operating. This is normal.
Dim oven light. In low power microwave cooking, the	oven light may become dim. This is normal.
Steam accumulating on the door, hot air out of vents.	In cooking, steam may emit from food. Most will escape from vents. However some may accumulate on cool areas like the oven door. This is normal.
Oven started accidentally with no food in it. Do not run	in the microwave without any food inside. It is very dangerous.

If the oven fails to operate, please check the following before calling for service:

Problem Possible cause	Remedy
Oven cannot be started.	1) Power cord not plugged in properly.	Unplug, then plug in again after 10 seconds.
	2) Fuse blown or circuit breaker has tripped.	Replace fuse or reset circuit breaker (repaired by professional personnel)
	3) Problem with power outlet.	Test power outlet with another electronic appliance.
Oven does not heat. 4) Door not properly closed. Close door properly.
Glass turntable is noisy when the microwave oven operates.	5) Dirty roller rest or dirty oven bottom.	Refer to “Maintenance of microwave” to clean dirty parts.

	CAUTION Personal Injury Hazard It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
	ADDENDUM If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

INSIDE THE OVEN

Turn off the oven and remove the power plug from the wall socket before cleaning. Keep the inside of the oven clean. For easy cleaning, wipe spills and spatters as they occur with a damp cloth or sponge with water and a mild detergent. Avoid the use of aerosols and other harsh cleaners as these may stain, streak or dull the door surface. Rinse the cavity of any cleaning residue with a clean damp or sponge after cleaning. Dry with a soft cloth. These areas can also cleaned by using plastic or nylon scouring pads. For hard to remove soil, use a mild non-abrasive cleaner. Use on the stainless steel areas, turntable and rotating base only. Remove odours from your oven by combining a cup of water with the juice and the skin of one lemon in a deep microwave proof bowl, microwave for 5 minutes. Wipe thoroughly and dry with a soft cloth.

Warning

Just as your traditional oven becomes hot also this oven will become hot during use of the functions.

Children should be supervised at all times when using the oven.

TURNTABLE AND ROTATING BASE

These two parts are easily removable for cleaning. The turntable should be cleaned frequently. If food spills are accumulated under the rotating base, the oven will not operate efficiently. Be sure to wipe up any spills as they occur in this area. Clean these parts as described in cleaning inside of the oven. Be sure to properly reinstall these parts into the cavity after cleaning.

When removing the rotating base from cavity floor for cleaning, be sure to replace it correctly.

DOOR

Wipe the door and window (both sides), the door seals and adjacent parts frequently with a damp cloth to remove any spills or spatters. Do not use any abrasive cleaners.

While the oven door is still warm, any spatters or food soils should be wiped off with a damp sudsy cloth or sponge. Rinse with water and wipe dry with a cloth. If steam accumulates inside or around the outside of the oven door, wipe it with a soft cloth. This may occur when the microwave oven is operated under high humidity conditions and is normal.

EXTERIOR

CONTROL PANEL

Exercise care when cleaning this area. Do not allow the control panel to become wet. Clean. When cleaning the control panel, leave the oven door open to prevent the oven from accidentally switching on. To clean, wipe the panel with a slightly dampened cloth, using only water. Wipe dry. Do not scrub this area or use any sort of chemical cleaner. Avoid use of excess water.

OUTSIDE SURFACE

The outside surfaces should be cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation slots.

Although your oven is provided with safety features, it is important to observe the following:

When opened, the door must not be subjected to strain, for example, a child hanging on an opened door or any load could cause the oven to fall forward to cause injury and also damage to the door. Do not operate the oven if it is damaged, until it has been repaired by a service technician. It is particularly important that the oven closes properly and that there is no damage to the:

1) Door (bent)
2) Hinge and latches (broken or loosened)
3) Door seals and sealing surface.
4) The oven should not be adjusted or repaired by anyone except a properly trained service technician.

If it becomes necessary to replace the oven lamp, consult a Defy Service Centre to have it replaced. Replacement lamps are not covered by the warranty. The oven should be cleaned regularly and any food deposits removed. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance. It could also constitute a fire risk.

Do not dispose this appliance at the local dump. It should be disposed of at a disposal center provided by the municipality.

GENERAL GUIDELINES

As microwave cooking differs from traditional cooking, the following guidelines should be considered whenever you use your microwave oven

If the food is undercooked. Check if:

• You have selected the correct power level.
• The selected time is sufficient. 'Selected times depend on initial temperature, weight and density of the food etc.

- The container is appropriate.

If the food is overcooked, i.e. dried out or burnt. Check:

• The power level was too high.

• The set time was too long. Selected times depend on initial temperature, weight and density of food etc.

Points to remember when defrosting

- The shape of the package alters the defrosting time. Shallow rectangular packets defrost more quickly than deep blocks. Separate pieces as they begin to defrost; thin slices defrost more easily.

- Shield areas of food with small pieces of foil if they start to become warm.

- When defrosting, it is better to under thaw the food slightly and allow the process to finish during the standing time.

The amount of food

The more food you want to prepare the longer it takes. A rule of thumb is that double the amount of food requires almost double the time. If one potato takes 4 minutes to cook, two potatoes will take approximately 7 minutes.

Starting temperature of food

The lower the temperature of the food which is being put into the microwave oven, the longer time it takes. Food at room temperature will be reheated more quickly than food at refrigerator temperature.

Composition of the food

Food with a lot of fat and sugar will be heated faster than food containing a lot of water. Fat and sugar will also reach a higher temperature than water in the cooking process. The more dense the food, the longer it takes to heat. "Very dense" food takes a longer time to reheat than lighter, more porous food.

Size and shape

Smaller pieces of food will cook more quickly than larger pieces and uniform pieces of food cook more evenly than irregularly shaped foods. With unevenly shaped food, the thinner parts will cook faster than the thicker areas. Place the thinner chicken wings and legs to the center of the dish.

Stirring, turning of foods

Stirring and turning of foods are techniques used in conventional and well as in microwave cooking to distribute the heat quickly to the center of the dish and avoid overcooking at the outer edges of the food. Covering food helps to reduce spattering, shorten cooking times and retain food moisture. All “microwavable” coverings are suitable.

Releasing pressure in foods

Several foods are tightly covered by a skin or membrane. These foods should be pricked with a fork or cocktail stick to release the pressure and to prevent bursting, as steam builds up within them during cooking. This applies to potatoes, chicken livers, sausages, egg yolks and some fruits.

Standing time

Always allow the food to stand for some time after using the oven. Standing time after defrosting, cooking/reheating improves the result as the temperature will be more evenly distributed through out the food. In a microwave oven foods continue to cook even when the microwave energy is turned off. They are no longer cooking by microwaves, but by the conduction of the high residual heat at the center of the food. The length of standing time depends on the volume and density of the food. Sometimes it can be as short as the time it takes you to remove the food from the oven and take it to the serving table. However, with larger, denser foods, the standing time may be as long as 10 minutes. During ‘standing’, the internal temperature of the food will rise by as much as 8°C and the food will finish cooking in this time.

Arranging food

This is done in several ways in microwave cooking to give more even cooking results. If you are cooking several items of the same food such as jacket potatoes, place them in a ring pattern for uniform cooking. When cooking foods of uneven shapes or thickness, place the smaller or thinner area of the food towards the center of the dish where it will be heated last. Uneven foods such as fish should be arranged in the oven with the tails to the center. If you are saving a meal in the refrigerator or 'plating' a meal for reheating, arrange the thicker, denser foods to the outside of the plate and the thinner or less dense foods in the middle. Place thin slices of meat on top of each other or interlace them. Thicker slices such as meat loaf and sausages have to be placed close to each other. Gravy or sauce should be reheated in a separate container. Use a tall, narrow container rather than a low and wide container. When reheating gravy, sauce or soup, do not fill the container more than 2/3. When cooking or reheating whole fish, score the skin. This prevents cracking. Shield the tail and head with small pieces of foil to prevent over-cooking but ensure the foil does not touch the sides of the oven.

MICROWAVE RECIPES

Apricot Chicken

Cooking Time: 22 minutes Serves: 4 people.

Ingredients:

Chicken breast fillets, quartered. 750 grams

Can apricot halves, drained (set juice aside). 410 grams

Large onion, chopped.1 large

Garlic, Crushed. 1 clove(s)

Butter or Margarine. 30 grams

(1 tbs) mild curry powder.15 ml

Cake Flour. 30 grams

Salt and pepper to taste

(1cup) Apricot Juice. 250 ml

Method:

1. Place chicken breast fillets and apricot halves in a casserole dish.
2. Place onion, garlic and butter in a dish, microwave on 100% (full power) for 2 minutes, stir once.
3. Add curry powder and flour, microwave on 100% (high) power for 30 to 40 seconds, stir once.
4. Gradually add juice plus drained syrup from apricots, stir frequently.
5. Microwave on 100% (high) power, three to four minutes or until thickened, stir frequently.
6. Add remaining ingredients and pour over chicken. Microwave covered on 70% (medium-high) power for 12 to 15 minutes or until done. Serves 4 to 6.

Courgette and carrot muffins

Cooking Time: 9 mins Serves: 15 people

These muffins are excellent lunch-box fillers and an ideal way of getting the kids to eat their veggies.

Ingredients:

Self-raising flour, sifted 500 ml

Bicarbonate of soda 2.5 ml

Ground cinnamon 2.5 ml

Ground mixed spice 5 ml

Soft brown sugar 125 ml

Finely grated carrots 250 ml

Finely grated courgettes 250 ml

Walnuts or pecan nuts, chopped 250 ml

Eggs, beaten. 2

Milk 250 ml

Oil 60 ml

Method:

1. Sift together flour, bicarbonate of soda and spices into a large mixing-bowl.
2. Stir in brown sugar, vegetables and nuts.
3. Beat together eggs, milk and oil, pour into flour mixture, mix well.
4. Spoon into microwave muffin pans, bake six at a time on 100% (high) power, two to three minutes.
5. If using your convection oven preheat oven at 200 degrees and bake for 25 to 30 minutes.
6. Serve warm, halved and buttered.

MICROWAVE RECIPES

Easy Whole wheat Loaf

Cooking Time: 17 minutes. An easy step by step method of making your own bread.

Helpful Hints:

Sunflower seeds may turn green if used untoasted. To toast, place in flat glass container, microwave on 100% (High) power, 10 minutes per 125ml of seeds or until brown, stirring frequently.

Ingredients:

Margarine for greasing

Sesame seeds or crushed wheat to sprinkle

Whole wheat flour. 750 ml

Crushed wheat (optional). 250 ml

Seedless raisins. 60 ml

Toasted sunflower seeds. 45 ml

Salt. 5 ml

Milk. 500 ml

Bicarbonate of soda. 10 ml

Cream of tartar. 15 ml

Method:

1. Lightly grease a 130mm x 230mm loaf dish with margarine, line base with paper toweling. Sprinkle sides with sesame seeds or crushed wheat. This gives the bread a lovely texture, you can toast the sesame seeds first to add colour.
2. Combine whole wheat flour, crushed wheat, digestive bran, seedless raisins, sunflower seeds and salt.
3. Mix a little of the milk with bicarbonate of soda, add to rest of milk. Add cream of tartar and honey, blend well.
4. Add milk mixture to flour mixture, stir well until blended.
5. Spoon dough into prepared loaf dish, sprinkle top with sesame and sunflower seeds. Place on an upturned saucer, microwave on 70% (medium-high) power, 17 minutes. Allow to stand 10 minutes. Should you use a different container you may need to adjust timing, so also if your microwave oven is a lower power output.

Baked Eggs

Cooking Time: 2 minutes.

Ingredients

Eggs

Method:

1. Break eggs into lightly greased ramekins, dessert bowls or shallow tartlet dishes. Pierce yolks with toothpick or skewer. Cover with clingwrap or a saucer. Microwave on 50% (medium) power, 30 to 60 seconds per egg.
2. Stir egg whites lightly with a fork
3. Microwave on 50% (medium) power, a further 30 to 60 seconds per egg, depending on how hard or soft you like your eggs.

FREQUENTLY ASKED QUESTIONS

Q : I accidentally ran my microwave oven without any food in it. Is it damaged?

A : Running the oven empty for a short time will not damage the oven. However, it is not recommended.

Q : Can the oven be used with the tray or tray rack removed?

A : No. Both the tray and roller guide must always be used in the oven before cooking.

Q : Can I open the door when the oven is operating?

A : The door can be opened anytime during the cooking operation. Then microwave energy will be instantly switched off and the time setting will maintain until the door is closed.

Q : Why do I have moisture in my microwave oven after cooking?

A: The moisture on the side of your microwave oven is normal. It is caused by steam from cooking food hitting the cool oven surface.

Q : Does microwave energy pass through the viewing screen in the door?

A: No. The metal screen bounces back the energy to the oven cavity. The holes are made to allow light to pass through. They do not let microwave energy pass through.

Q: Why do eggs sometimes pop?

A : When baking or poaching eggs, the yolk may pop due to steam build-up inside the yolk membrane. To prevent this, simply pierce the yolk with a toothpick before cooking. Never cook eggs without piercing their shells.

Q : Why this standing time recommended after the cooking operation has been completed?

A: Standing time is very important. With microwave cooking, the heat is in the food, not in the oven. Many foods build up enough internal heat to allow the cooking process to continue, even after the food is removed from the oven. Standing time for joints of meat, large vegetables and cakes is to allow the inside to cook completely, without overcooking the outside.

Q: What does "standing time" mean?

A: “Standing time” means that food should be removed from the oven and covered for additional time to allow it to finish cooking. This frees the oven for other cooking.

Q : Why does my oven not always cook as fast as the microwave cooking guide says?

A : Check your cooking guide again, to make sure you've followed directions exactly; and to see what might cause variations in cooking time. Cooking guide times and heat settings are suggestions, to help prevent over- cooking, the most common problem in getting used to a microwave oven.

Variations in the size, shape and weights and dimensions could require longer cooking time. Use your own judgment along with the cooking guide suggestions to check whether the food has been properly cooked just as you would do with a conventional cooker.

Q : Will the microwave oven be damaged if it operates while empty?

A: Yes. Never run it empty.

Q : Can I operate my microwave oven without the turntable or turn the turntable over to hold a large dish?

A : No. If you remove or turn over the turntable, you will get poor cooking results. Dishes used in your oven must fit on the turntable.

Q : Is it normal for the turntable to turn in either direction?

A : Yes. The turntable rotates clockwise or counterclockwise, depending on the rotation of the motor when the cooking cycle begins.

Q : Can I pop popcorn in my microwave oven? How do I get the best results?

A: Yes. Pop packaged microwave popcorn following manufacture's guidelines. Do not use regular paper bags. Use the "listening test" by stopping the oven as soon as the popping slows to a "pop" every 1 or 2 seconds. Do not repop unpopped kernels. Do not pop popcorn in glass cookware.

BRANCHES

If you have followed the instructions and still have a problem, contact the customer care line on 086 100 3339. They will be able to advise you on any aspect of the product or send a qualified technician to repair it.

South African Branches:

BLOEMFONTEIN

Unit Number 5

Monument Business Park

50 Monument Road

Oranjesig, Bloemfontein

[e-mail]

CAPE TOWN

5A Marconi Rd. Montague Gardens, 7441

[e-mail]

DURBAN

135 Teakwood Road, Jacobs,

Durban, 4052

[e-mail]

EAST LONDON

Robbie de Lange Road, Wilsonia,

East London, 5201

[e-mail]

GAUTENG, MIDRAND

127 15th Road, Cnr Pharmaceutical &15th Rd,

Midrand, Gauteng

[e-mail]

POLOKWANE

87 Nelson Mandela Drive, Superbia 0699

[e-mail]

PORT ELIZABETH

112 Patterson Road, North End, Port Elizabeth

6001

[e-mail]

Sub-Saharan Africa Branches:

ZAMBIA: SOUTHGATE INVESTMENTS LTD

Plot 1606, Sheki Sheki Road

P.O. Box 33681

Lusaka, 10101, Zambia

Tel: [phone]

Fax: [phone]

[e-mail]

NAMIBIA: ATLANTIC DISTRIBUTORS (PTY) LTD

10 Tienie Louw Street, Northern Industrial Area

P.O. Box 21158, Windhoek, Namibia

Tel: [phone]

Fax: [phone]

[e-mail]

ZIMBABWE: TRADECOMAFRICA

Trade Com Africa, 183 Loreley Crescent

Msasa, Harare, Zimbabwe

Tel: [phone]

Cell: [phone]

Cell: [phone]

BOTSWANA: RAY MORGAN AGENCIES

RMA Service Centre, Plot 48, East Gate

Gaborone International Commerce Park

Kgale View, Gaborone

Botswana

Tel: [phone]

Fax: [phone]

Cell: [phone]

[e-mail]; [e-mail]

SWAZILAND: LYNDS DISTRIBUTORS

P.O Box 716, Mbabane, Swaziland, H100

Tel: [phone]

Fax: [phone]

MOZAMBIQUE: COOL WORLD. LDA

1 This certificate is issued by DEFY APPLIANCES (PTY) LIMITED manufacturers of Defy and Ocean products, hereinafter the Company, to the original purchaser only, of the appliance described on the certificate and shall constitute the only warranty given in respect of this appliance.
2 The Company warrants to the original purchaser that for a period of TWO YEARS from date of purchase the appliance is free from defect under normal domestic use, both in workmanship and material, subject to the following conditions.
3 Repair or replacement of any part of this appliance, found by the Company to be defective, shall be at the election of the Company. The Company reserves the right to effect such service through any of its Service Divisions or Authorised Service Dealers.
4 Carry-in service. Microwave ovens are repaired in our service centres and are not collected from the customers home. Faulty units should be delivered to the purchasing dealer or to the nearest Company Service Centre for warranty repairs.
5 Rusted or corroded plates, vitreous enamelware, fuses and lamps are specifically excluded from these warranties. It is an express condition of these warranties that the purchaser takes due care and attention in the use and maintenance of the appliance. Abuse, misuse in conflict with operating instructions, connection to incorrect voltages and subjection to commercial use shall release the Company from its obligations.
6 This warranty shall become void and cease to operate if the appliance is dismantled by, or any repairs to the appliance are effected by any persons not duly authorised by the Company, or if substitute parts not approved by the Company are used in the appliance, or if the serial number of the appliance is removed.
7 The Company shall not be responsible for damages resulting from fire, flood, civil disturbances or any Act of God. The Company shall not, in terms of these warranties be responsible nor held liable for any consequential loss or damage of any kind caused by or due to the failure or malfunction of the appliance. The Company shall not be responsible for damages caused by insect and/or animal infestation.
8 The Company shall not be responsible for transportation or other costs other than those incurred within the provisions of Point 1 of this Certificate.
9 For warranties in the Republic of South Africa and Sub-Saharan Africa, please contact your nearest Defy office. Please refer to the previous page for respective South African branches and Sub-Saharan Africa branches.
10 Where service is requested under warranty and no fault or defect can be found by the Company, all costs incurred will be for the purchaser's account.
11 This Certificate as well as your invoice will serve as proof of purchase. For the purpose of warranty, it will be essential to produce this Certificate and invoice. Failure to do so, will render the purchaser liable for service costs.

KEEP THIS CERTIFICATE AND SALES INVOICE AS PROOF OF PURCHASE FOR WARRANTY PURPOSES.
