Product Type	Washing Machine
Brand	Milectric
Model	LV-730
Installation Type	Freestanding
Capacity (kg)	7
Maximum Spin Speed (rpm)	1200
Energy Class	A+++

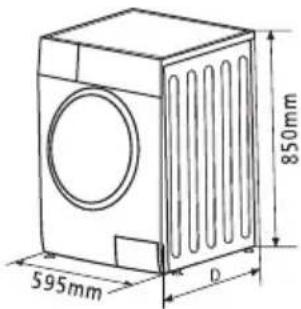

Dimensions (H x W x D mm)	850 x 600 x 540
Weight (kg)	65
Power Supply	220-240 V, 50 Hz
Water Connection	Cold water only
Wash Programs	Cotton, Synthetics, Delicates, Quick 15', Wool, Rinse & Spin
Display	LED with program status
Noise Level Wash (dB)	58
Noise Level Spin (dB)	76
Safety Features	Child lock, Overflow protection, Unbalanced load detection
Drum Material	Stainless steel
Door Hinge	180° opening
Self-Cleaning Feature	Yes, drum clean program
Lint Filter	Yes, accessible at bottom

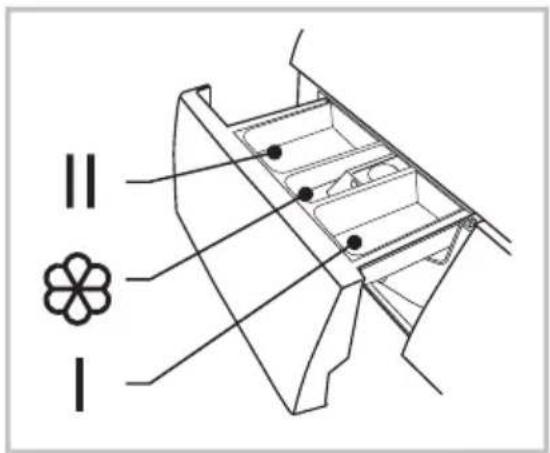

Detergent Drawer	3 compartments (main wash, pre-wash, softener)
Annual Water Consumption (approx)	9,000 L
Annual Energy Consumption (approx)	150 kWh
Warranty	2 years
Spare Parts Availability	10 years after purchase

Frequently Asked Questions - LV-730 Milectric

How do I start a wash cycle on the Milectric LV-730?

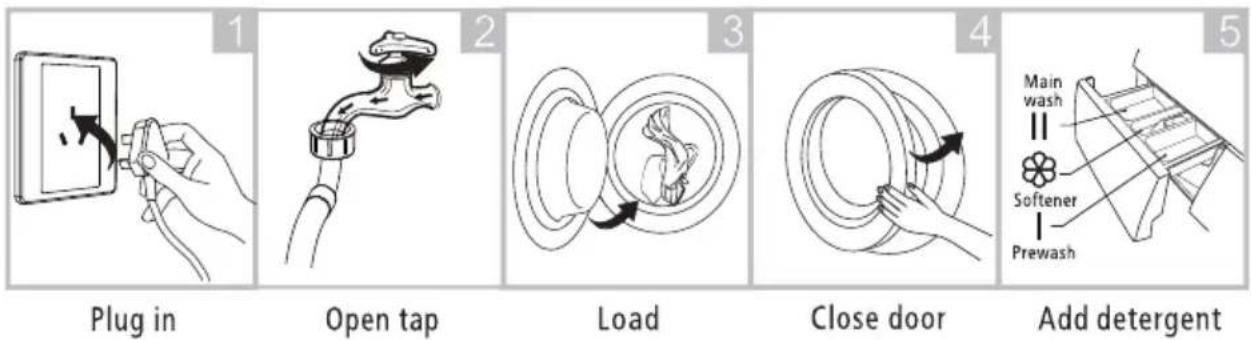

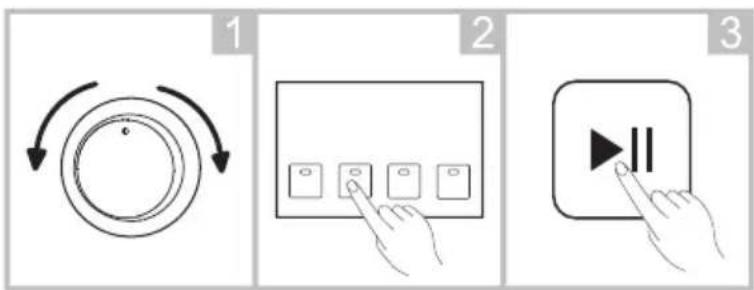

Press the Power button, turn the program dial to select a cycle (e.g., Cotton, Synthetics), adjust options if needed, then press Start/Pause.

What should I do if the machine displays an error code?

Refer to the user manual for the specific error code. Common codes like E01 indicate a door lock issue, E02 a drainage problem. Try restarting the machine or cleaning the filter.

How often should I clean the lint filter?

Clean the lint filter after every 10-15 cycles to prevent blockages and maintain drainage efficiency. Open the bottom cover, rotate the filter, and remove debris.

Can I use regular detergent in the LV-730?

Yes, use low-sudsing detergents suitable for automatic washers. Place powder or liquid in the main wash compartment, and fabric softener in the compartment marked with a flower symbol.

What is the maximum load capacity for a cotton cycle?

The maximum load for cotton is 7 kg. Overloading can reduce cleaning performance and cause excessive vibration. Use the drum capacity indicator as a guide.

How do I activate the child lock feature?

Press and hold the Child Lock button (usually marked with a padlock icon) for 3 seconds until the indicator lights up. Deactivate the same way.

What maintenance is required for the detergent drawer?

Remove the detergent drawer periodically by pressing the release catch. Wash it with warm water and a soft brush to remove residue buildup. Replace and push fully.

Why is the machine not draining water?

Check if the drain hose is kinked or blocked. Clean the lint filter and ensure the drain pump is not obstructed. If the problem persists, consult a technician.

Can I pause a cycle to add laundry?

Yes, press Start/Pause to pause. If the water level is safe and the drum door unlocks, you can add items. Press Start/Pause again to resume. Note: some cycles may lock the door for safety.

What should I do if the machine vibrates excessively during spin?

Ensure the machine is level by adjusting the feet. Check that transport bolts have been removed. Redistribute laundry evenly inside the drum to avoid imbalance.

USER MANUAL LV-730 Milectric

Use all instructions and explanations of the installation before use. Follow the instructions carefully. Keep the operation instructions handy for later use. If the application is sold or passed on then ensure that the new owner always receives those operation instructions.

Simple line drawing of a rectangular box with a central circular pattern and two X-shaped marks on the side (no text or symbols)

Diagram showing a box being inserted into a base with an inset circular view of a person standing on a platform (no text or symbols present)

Hand using a tool to adjust or install a washing machine casing (no text or symbols visible)

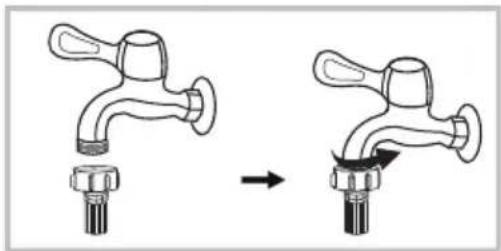

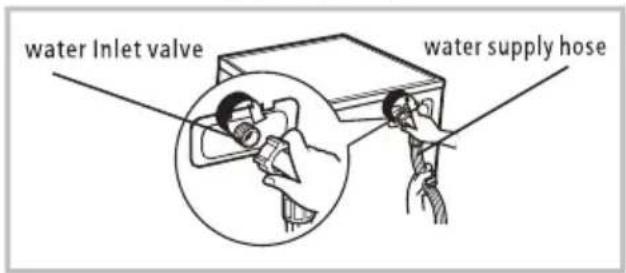

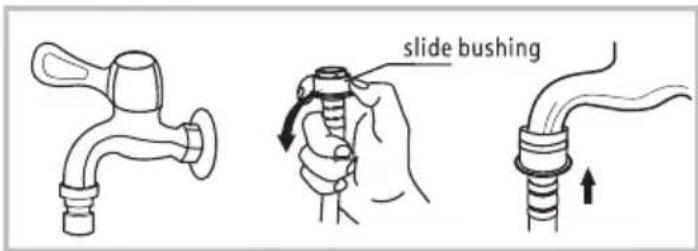

Conecte la manguera de suministro de agua

Advertencia!

Nota!

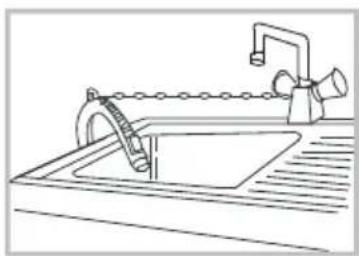

Line drawing of a kitchen sink with faucet and chain handle (no text or symbols)

Advertencia!

Simple line drawing of a sweater with a tag and patterned collar (no text or symbols)

Revisa la etiqueta

Line drawing of two fabric bags with circular designs and ribbon handles (no text or symbols)

Simple line drawing of a bag with a bag inside, containing small objects (no text or symbols)

Line drawing of a knitted sweater with pleated design (no text or symbols)

Simple line drawing of a box with an arrow indicating rotation or transformation (no text or symbols)

Line drawing of a hand washing a washing machine with a circular vent (no text or symbols)

Nota!

Line drawing of a hand gripping a curved object (no text or symbols)

Diagram of a mechanical valve or pump assembly with rotating arrows indicating flow direction (no text or symbols)

Line drawing of a hand holding a microphone with a tool inserted (no text or symbols)

Illustration of a hand holding a tool with a magnified inset showing the tool's handle (no text or symbols)

Simple line drawing of a tennis racket being inserted into a table (no text or symbols)

Nota!

Technical line drawing of a mechanical component with internal channels and a labeled section (no text or symbols)

Line drawing of a mechanical device with a lever and internal components (no text or symbols)

Line drawing of a hand using a tool to remove or remove a dark object inside a container (no text or symbols)

Technical line drawing of a mechanical component with internal compartments and a handle (no text or symbols)

Line drawing of a mechanical device with arrows indicating motion or force direction (no text or symbols)

Hand holding a rotary knob on a switch panel, no text or symbols visible

Diagram of a mechanical component with rotational arrows indicating motion (no text or symbols)

Parameter	Value		Parameter	Value
Rated capacity (°) (kg)	5.0		Dimensions in cm	Height	85
				Width	60
				Depth	40
EEI_W (°)	91.0		Energy efficiency class (°)	E
Washing efficiency index (°)	1 031.		Rinsing effectiveness (g/kg) (°)	5.0
Energy consumption in kWh per cycle, based on the eco 40-60 programme. Actual energy consumption will depend on how the appliance is used.	0.685		Water consumption in litre per cycle, based on the eco 40-60 programme. Actual water consumption will depend on how the appliance is used and on the hardness of the water.	41
Maximum temperature inside the treated textile (°) (°C)	Rated capacity	40	Remaining moisture content (°) (%)	Rated capacity	71.9
	Half	31		Half	71.9
	Quarter	23		Quarter	71.9
Spin speed (°) (rpm)	Rated capacity	800	Spin-drying efficiency class (°)	D
	Half	800
	Quarter	800
Programme duration (°) (h:min)	Rated capacity	3:08	Type	free-standing
	Half	2:30
	Quarter	2:30
Airborne acoustical noise emissions in the spinning phase (°) (dB(A) re 1 pW)	80		Airborne acoustical noise emission class (°) (spinning phase)	C
Off-mode (W)	0.50		Standby mode (W)	1.00
Delay start (W) (if applicable)	4.00		Networked standby (W) (ifapplicable)	N/A

Minimum duration of the guarantee offered by the supplier (b):

This product has been designed to release silver ions during the washing cycle

NO

Additional information:

Weblink to the supplier's website, where the information in point 9 of Annex II to Commission Regulation (EU) 2019/2023 (1) (b) is found:

(*) for the eco 40-60 programme.

(*) changes to these items shall not be considered relevant for the purposes of paragraph 4 of Article 4 of Regulation (EU) 2017/1369.

(*) if the product database automatically generates the definitive content of this cell the supplier shall not enter these data.

Supplier's name or trade mark:
Supplier's address ( ^b ):
Model identifier: LV-620
General product parameters:

Parameter	Value		Parameter	Value
Rated capacity (°) (kg)	6.0		Dimensions in cm	Height	85
				Width	60
				Depth	40
EEI_W (°)	91.0		Energy efficiency class (°)	E
Washing efficiency index (°)	1 031.		Rinsing effectiveness (g/kg) (°)	5.0
Energy consumption in kWh per cycle, based on the eco 40-60 programme. Actual energy consumption will depend on how the appliance is used.	0.737		Water consumption in litre per cycle, based on the eco 40-60 programme. Actual water consumption will depend on how the appliance is used and on the hardness of the water.	43
Maximum temperature inside the treated textile (°) (°C)	Rated capacity	41	Remaining moisture content (°) (%)	Rated capacity	62.9
	Half	33		Half	62.9
	Quarter	20		Quarter	62.9
Spin speed (°) (rpm)	Rated capacity	1000	Spin-drying efficiency class (°)	C
	Half	1000
	Quarter	1000
Programme duration (°) (h:min)	Rated capacity	3:18	Type	free-standing
	Half	2:36
	Quarter	2:36
Airborne acoustical noise emissions in the spinning phase (°) (dB(A) re 1 pW)	80		Airborne acoustical noise emission class (°) (spinning phase)	C
Off-mode (W)	0.50		Standby mode (W)	1.00
Delay start (W) (if applicable)	4.00		Networked standby (W) (ifapplicable)	N/A

Minimum duration of the guarantee offered by the supplier (b):

This product has been designed to release silver ions during the washing cycle

NO

Additional information:

Weblink to the supplier's website, where the information in point 9 of Annex II to Commission Regulation (EU) 2019/2023 (1) (b) is found:

(*) for the eco 40-60 programme.

(*) changes to these items shall not be considered relevant for the purposes of paragraph 4 of Article 4 of Regulation (EU) 2017/1369.

(*) if the product database automatically generates the definitive content of this cell the supplier shall not enter these data.

Supplier's name or trade mark:
Supplier's address (b):
Model identifier: LV-730
General product parameters:

Parameter	Value		Parameter	Value
Rated capacity (°) (kg)	7.0		Dimensions in cm	Height	85
				Width	60
				Depth	40
EEI_w (°)	80.0		Energy efficiency class (°)	D
Washing efficiency index (°)	1 031.		Rinsing effectiveness (g/kg) (°)	5.0
Energy consumption in kWh per cycle, based on the eco 40-60 programme. Actual energy consumption will depend on how the appliance is used.	0.690		Water consumption in litre per cycle, based on the eco 40-60 programme. Actual water consumption will depend on how the appliance is used and on the hardness of the water.	45
Maximum temperature inside the treated textile (°) (°C)	Rated capacity	39	Remaining moisture content (°) (%)	Rated capacity	62.9
	Half	35		Half	62.9
	Quarter	30		Quarter	62.9
Spin speed (°) (rpm)	Rated capacity	1200	Spin-drying efficiency class (°)	C
	Half	1200
	Quarter	1200
Programme duration (°) (h:min)	Rated capacity	3:28	Type	free-standing
	Half	2:42
	Quarter	2:42
Airborne acoustical noise emissions in the spinning phase (°) (dB(A) re 1 pW)	80		Airborne acoustical noise emission class (°) (spinning phase)	C
Off-mode (W)	0.50		Standby mode (W)	1.00
Delay start (W) (if applicable)	4.00		Networked standby (W) (ifapplicable)	N/A

Minimum duration of the guarantee offered by the supplier (b):

This product has been designed to release silver ions during the washing cycle

NO

Additional information:
Weblink to the supplier's website, where the information in point 9 of Annex II to Commission Regulation (EU) 2019/2023 (1) (b) is found:

(*) for the eco 40-60 programme.

^(b) changes to these items shall not be considered relevant for the purposes of paragraph 4 of Article 4 of Regulation (EU) 2017/1369.

(*) if the product database automatically generates the definitive content of this cell the supplier shall not enter these data.

Supplier's name or trade mark:
Supplier's address ( ^b ):
Model identifier: LV-814
General product parameters:

Parameter	Value		Parameter	Value
Rated capacity (°) (kg)	8.0		Dimensions in cm	Height	85
				Width	60
				Depth	57
EEI_w (°)	91.0		Energy efficiency class (°)	E
Washing efficiency index (°)	1.04		Rinsing effectiveness (g/kg) (°)	5.0
Energy consumption in kWh per cycle, based on the eco 40-60 programme. Actual energy consumption will depend on how the appliance is used.	0.827		Water consumption in litre per cycle, based on the eco 40-60 programme. Actual water consumption will depend on how the appliance is used and on the hardness of the water.	48
Maximum temperature inside the treated textile (°) (°C)	Rated capacity	38	Remaining moisture content (°) (%)	Rated capacity	53
	Half	33		Half	53
	Quarter	25		Quarter	53
Spin speed (°) (rpm)	Rated capacity	1400	Spin-drying efficiency class (°)	B
	Half	1400
	Quarter	1400
Programme duration (°) (h:min)	Rated capacity	3:38	Type	free-standing
	Half	2:48
	Quarter	2:48
Airborne acoustical noise emissions in the spinning phase (°) (dB(A) re 1 pW)	80		Airborne acoustical noise emission class (°) (spinning phase)	C
Off-mode (W)	0.50		Standby mode (W)	1.00
Delay start (W) (if applicable)	4.00		Networked standby (W) (ifapplicable)	N/A

Minimum duration of the guarantee offered by the supplier (b):

This product has been designed to release silver ions during the washing cycle

NO

Additional information:

Weblink to the supplier's website, where the information in point 9 of Annex II to Commission Regulation (EU) 2019/2023 (1) (b) is found:

(*) for the eco 40-60 programme.

(*) changes to these items shall not be considered relevant for the purposes of paragraph 4 of Article 4 of Regulation (EU) 2017/1369.

(*) if the product database automatically generates the definitive content of this cell the supplier shall not enter these data.

Nota!

Use all instructions and explanations of the installation before use. Follow the instructions carefully. Keep the operation instructions handy for later use. If the application is sold or passed on then ensure that the new owner always receives those operation instructions.

SAFETY INSTRUCTIONS

■ Safety Instructions ...... 2

INSTALLATION

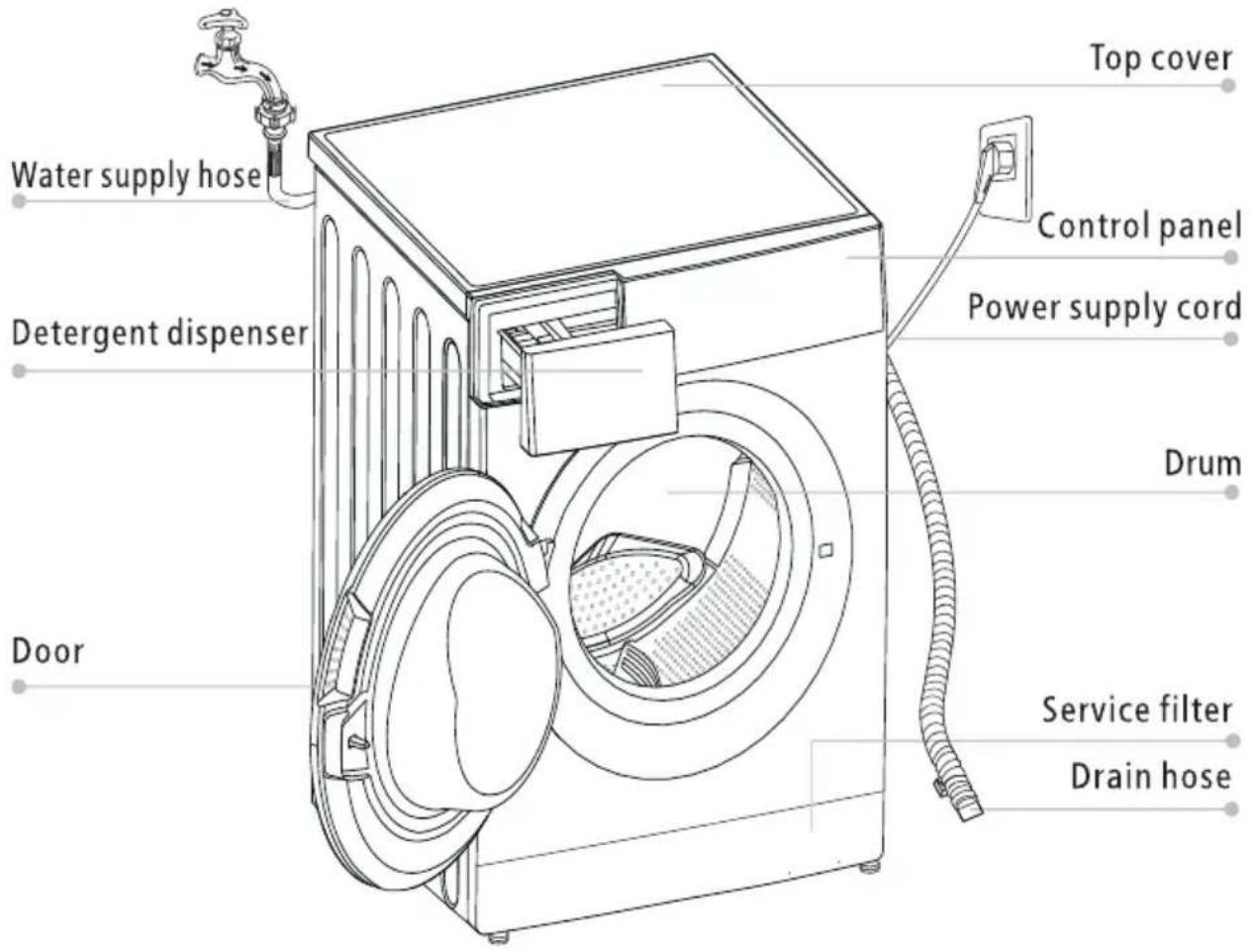

■ Product Description 7

■ Installation 8

OPERATIONS

■ Quick Start 11

■ Before Each Washing 12

■ Detergent Dispenser 13

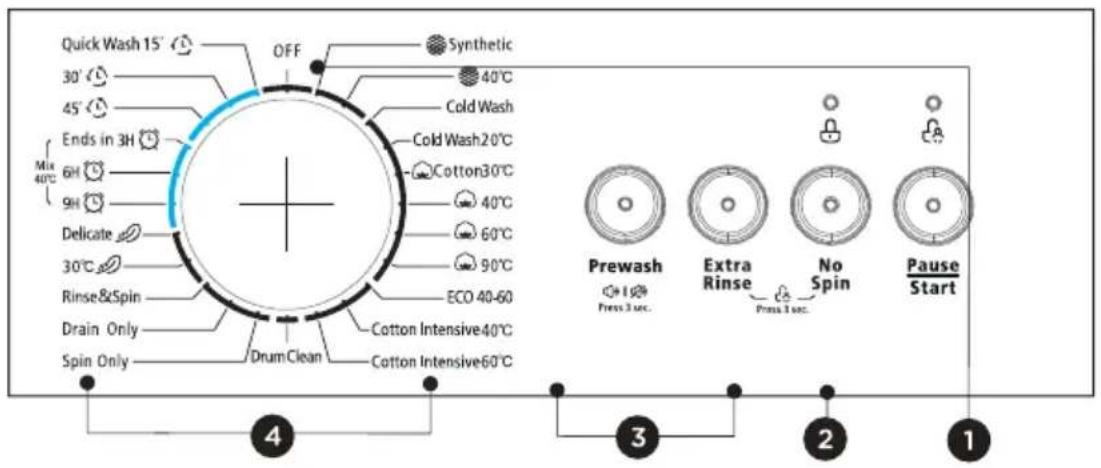

■ Control Panel 14

■ Option.... 15

■ Other Functions 16

■ Programmes.... 17

■ Washing Programmes Table 18

MAINTENANCES

■ Cleaning And Care 21

■ Trouble Shooting 24

■ Technical Specifications 25

■ Product Fiches 26

■ Safety Instructions

For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury or loss of life.

Explanation of the symbols:

Warning!

This combination of symbol and signal word indicates a potentially dangerous situation which may result in death or serious injuries unless it's avoided.

① Caution!

This combination of symbol and signal word indicates a potentially dangerous situation which may result in slight or minor injuries or damage to property and the environment.

Note!

This combination of symbol and signal word indicates a potentially dangerous situation which may result in slight or minor injuries.

Warning!

The electric shock!

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• The new hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused.
• Before any maintenance the device, unplug the appliance from the mains.
  • Always unplug the machine and turn off the water supply after use. The max. inlet water pressure, in pascals. The min. inlet water pressure, in pascals.
• To ensure your safety, power plug must be inserted into an earthed three-pole socket. Check carefully and make sure that your socket is properly and reliably earthed.
• Make sure that the water and electrical devices must be connected by a qualified technician in accordance with the manufacturer's instructions and local safety regulations.

Risk to children!

• EN countries: the appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
  • Children of less than 3 years should be supervised to ensure that they do not play with appliance.
  • Animals and children may climb into the machine. Check the machine before every operation.

• Kids should be supervised that they do not play with the appliance.

• Glass door may be very hot during the operation. Keep kids and pets far away from the machine during the operation very wet rooms as well as in the rooms with explosive or caustic gas.

• Remove all packages and transport bolts before using the appliance. Otherwise, serious damage may result.
• Plug must be accessible after installation.

Risk of explosion!

• Do not wash or dry articles that have been cleaned in, washed in, soaked in, or dabbed with combustible or explosive substances (such as wax, oil, paint, gasoline, degreasers, dry-cleaning solvents, kerosene, etc.) This may result in fire or explosion.
  • Before hand thoroughly rinse items of washing by hand.

! Caution!

Installing the product!

• This washing machine is for indoor use only.
• It isn't intended to be built-in using.
• The openings must not be obstructed by a carpet.
- Washing machine shall not be installed in bath room or very wet rooms as well as in the rooms with explosive or caustic gases.
- The washing machine with single inlet valve only can be connected to the cold water supply. The product with double inlet valves should be correctly connected to the hot water and cold water supply.
- Plug must be accessible after installation.

- Remove all packages and transport bolts before using the appliance. Otherwise, serious damage may result.

Risk of damaging appliance!

• Your product is only for home use and is only designed for the textiles suitable for machine washing.

• Do not climb up and sit on top cover of the machine.
  • Do not lean against machine door.
  • Cautions during Handling Machine:

• Transport bolts shall be reinstalled to the machine by a specialized person.

• The accumulated water shall be drained out of the machine.
• Handle the machine carefully. Never hold each protruded part on the machine while lifting. Machine door can not be used as the handle during the conveyance.
• This appliance is heavy. Transport with care.

- Please do not close the door with excessive forces. If it is found difficult to close the door, please check if the clothes are put in or distributed well.

• It is forbidden to wash carpets.

Operating the appliance!

• Before washing the clothes at first time, the product shall be operated in one round of the whole procedures without the clothes inside.
• Flammable and explosive or toxic solvents are forbidden. Gasoline and alcohol etc. Shall not be used as detergents. Please only select the detergents suitable for machine washing, especially for drum.

• Make sure that all pockets are emptied. Sharp and rigid items such as coin, brooch, nail, screw or stone etc. may cause serious damages to this machine.
- Please check whether the water inside the drum has been drained before opening its door. Please do not open the door if there is any water visible.
- Be careful of burning when the product drains hot washing water.
• Never refill the water by hand during washing.
• After the program is completed, Please wait for two minutes to open the door.

Packaging/Old appliance

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the collection systems or contact the retailer where the product was purchased. They return and can take this product for environmental safe recycling.

■ Product Description

Note!

- The product line chart is for reference only, please refer to real product as standard.

Accessories

Transport hole plug	Supply hose cold water	Supply hose hot water (optional)	Drain hose support (optional)	Owner's manual

■ Installation

Installation area

Warning!

• Stability is important to prevent the product from wandering!
• Make sure that the product should not stand on the power cord.

Before installing the machine, the location characterized as follows shall be selected:

1. Rigid, dry, and level surface
2. Avoid direct sunlight
3. Sufficient ventilation
   4.Room temperature is above 0°C
4. Keep far away from the heat resources such as coal or gas.

Unpacking the washing machine

Warning!

• Packaging material (e.g. Films, Styrofoam) can be dangerous for children.

• There is a risk of suffocation! Keep all packaging well away from children.

• Remove the cardboard box and styrofoam packing.

• Lift the washing machine and remove the base packing. Make sure the small triangle foam is removed with the bottom one together. If not, lay the unit down with side surface, then remove the small foam from the unit bottom manually.
• Remove the tape securing the power supply cord and drain hose.
• Remove the inlet hose from the drum.

Remove transport bolts

Warning!

• You must remove the transport bolts from the backside before using the product.
• You'll need the transport bolts again if you move the product, so make sure you keep them in a safe place.

Please take the following steps to remove the bolts:

1. Loosen 4 bolts with spanner and then remove them.
2. Stop the holes with transport hole plugs.
3. Keep the transport bolts properly for future use.

Simple line drawing of a box with a diagonal X mark on the side, no text or symbols present.

Simple line drawing of a box with an upward arrow and a circular inset showing a distant structure (no text or symbols)

Illustration of a hand using a tool to adjust or install a washing machine (no text or symbols visible)

Levelling the washing machine

⚠ Warning!

- The lock nuts on all four feet must be screwed tightly against the housing.

1. Check if the legs are closely attached to the cabinet. If not, please turn them to their original positions tighten the nuts.
2. Loosen the lock nut turn the feet until it closely contacts with the floor.
3. Adjust the legs and lock them with a spanner, make sure the machine is steady.

Line drawing of a front-loading washing machine with buttons and wheels (no text or symbols)

1

Raise
2

Lower

3

4

Connect Water Supply Hose

Warning!

• To prevent leakage or water damage, follow the instructions in this chapter!
- Do not kink, crush, modify or sever water inlet hose.
- For the model equips hot valve, connect it to hot water tap with hot water supply hose. Energy consumption will decrease automatically for some program.

Connect the inlet pipe as indicated, There are two ways to connect the inlet pipe.

1. Connection between ordinary tap and inlet hose.

Loosen clamp nut and four bolts

Diagram of a pipe fitting with a flanged base and coiled tube (no text or symbols)

Tighten clamp nut

Press slide bushing, insert inlet hose into connecting base

Diagram of a mechanical or fluidic device with a valve and directional arrow (no text or symbols)

Connection finished

2.Connection between screw tap and inlet hose.

Diagram showing a faucet being inserted into a tap, with no text or symbols present

Tap with threads and inlet hose

Special tap for washing machine

Connect the other end of inlet pipe to the inlet valve at the backside of product and fasten the pipe tightly clockwise.

Drain Hose

Warning!

• Do not kink or protract the drain hose.
• Position drain hose properly, otherwise damage might result of water leakage.

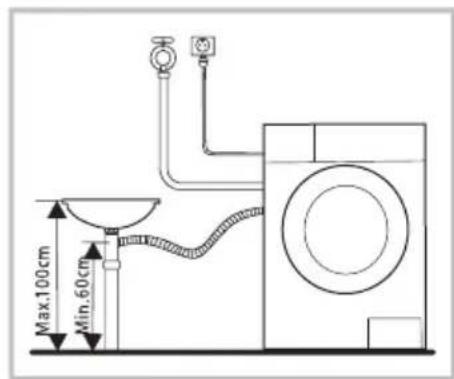

There are two ways to place the end of drain hose:

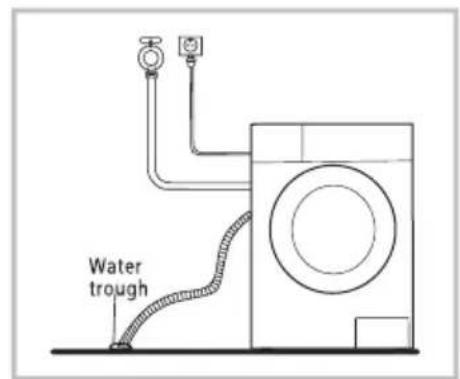

1. Put it into the water trough.

2. Connect it to the branch drain pipe of the trough.

Note!

- If the machine has drain hose support, please install it like the following.

Line drawing of a kitchen sink with faucet and chain handle (no text or symbols)

Warning!

• When installing drain hose, fix it properly with a rope.
• If drain hose is too long, do not force it into washing machine as it will cause abnormal noises.

■ Quick Start

① Caution!

• Before washing, please make sure it's installed properly.
• Before washing at first time, the washing machine shall be operated in one round of the whole procedures without clothes in as follows.

1. Before Washing

Note!

- Detergent need to be added in "case I" after selecting pre-washing for machines with this function.

2. Washing

Select Programme Select function or default
Start up

Note!

• If default is selected, step 2 can be skipped.
• 1. The function button line chart is for reference only, please refer to real product as standard.

3. After Washing

The door lock and the [Start / Pause] lights flash with the buzzer beeping or two small points flash on the digital screen.

■ Before Each Washing

• The working condition of the washer should be(0–40)°C. If used under 0°C, the inlet valve and draining system may be damaged. If the machine is placed under condition of 0°C or less, then it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose are not frozen before use.
• Please check the labels and the explanation of using detergent before wash. Use non-foaming or less-foaming detergent suitable for machine washing properly.

Simple line drawing of a sweater with a tag and tie (no text or symbols)

Check the label

Take out the items out of the pockets

Line drawing of two fabric pouches with bow and ribbon handles (no text or symbols)

Knot the long strips,zip or button

Simple line drawing of a bag with internal objects, no text or symbols present

Put small clothes into the pillow slip

Line drawing of a knitted sweater with pleated collar and shoulder strap (no text or symbols)

Turn easy-pilling and long-pile fabric inside out

Simple line drawing of a bag being folded into a basket (no text or symbols)

Separate clothes with different textures

Warning!

• When washing a single clothes, it may easily cause great eccentricity and give alarm due to great unbalance. Therefore it is suggested to add one or two more clothes to be washed together so that draining can be done smoothly.
• Don't washing the clothes touching with kerosene, gasoline, alcohol and other flammable materials.

■ Detergent Dispenser

I Prewash detergent

II Main wash detergent

Softener

Pull out the dispenser

① Caution!

• Detergent only need to be added in "case I" after selecting pre-washing for machines with this function.

Programme	I	II		Programme	I	II
Cotton 30 °C	○	●	○	Delicate 30 °C		●	○
Cotton 40 °C	○	●	○	Delicate		●	○
Cotton 60 °C	○	●	○	Ends in 9H		●	○
Cotton 90 °C	○	●	○	Ends in 6H		●	○
Synthetic	○	●	○	Ends in 3H		●	○
Synthetic 40 °C	○	●	○	Quick Wash 45'		●	○
Drum Clean				Quick Wash 30'		●	○
Cold Wash	○	●	○	Quick Wash 15'		●	○
Cold Wash 20 °C	○	●	○	ECO 40-60		●	○
Spin Only				Cotton Intensive 40 °C		●	○
Drain Only				Cotton Intensive 60 °C		●	○
Rinse&Spin			○

● Means must ○ Means optional

Note!

• As for the agglomerated or ropy detergent or additive, before they are poured into the detergent box, it is suggested to use some water for dilution to prevent the inlet of detergent box from being blocked and overflowing while filling water.
• Please choose suitable type of detergent for the various washing temperature to get the best washing performance with less water and energy consumption.

■ Control Panel

Note!

• The chart is for reference only, Please refer to real product as standard.

1 Off

Product is switched off.

3 Option

This allows you to select an additional function and will light when selected.

2 Start/Pause

Press the button to start or pause the washing cycle.

4 Programmes

Available according to the laundry type.

Note!

- When the program is finished, the Pause/Start and Door Lock lights flash.

Option

Prewash: The Prewash function can get an extra wash before main wash, it is suitable for washing the dust rises to surface of the clothes; You need to put detergent into the Case (I) when select it.

Extra Rinse: The laundry will undergo extra rinse once after you select it.

No Spin: It will not spin if you choose this function.

Programme	Option		Programme	Option
	Prewash	Extra Rinse		Prewash	Extra Rinse
Cotton 30 °C	○	○	Ends in 9H
Cotton 40 °C	○	○	Ends in 6H
Cotton 60 °C	○	○	Ends in 3H
Cotton 90 °C	○	○	Quick Wash 45'
Synthetic	○	○	Quick Wash 30'
Synthetic 40 °C	○	○	Quick Wash 15'
Drum Clean			Spin Only
Cotton Intensive 40°C			Cold Wash	○	○
Cotton Intensive 60°C			Cold Wash 20 °C	○	○
Drain Only			ECO 40-60
Rinse&Spin		○
Delicate 30 °C		○
Delicate		○

○ Means optional

■ Other Functions

Mute the buzzer

Choose the Programme Press the [Prewash]button for 3sec.the buzzer is mute.

To act the buzzer function, press the button again for 3 seconds. The setting will be kept until the next reset.

① Caution!

• After Muting the buzzer function, the sounds will not be activated any more.

Child Lock

To avoid mis operation by children.

Choose the Programme

Start

Press [Extra Rinse] and [No Spin] 3 sec. till buzzer beep.

① Caution!

• Only press and hold the two button can release "Child Lock", even power off, switch off and program end, the "Child Lock" will lock all buttons except power button and "Child Lock" button.
• Please release "Child Lock" before selecting program and starting washing.

Temp.

The temperature is: Cold, 20°C, 30°C, 40°C, 60°C, 90°C

Programmes

Programmes are available according to the laundry type.

Programmes
Synthetic	Wash synthetic articles, for example: shirts, coats, blending. While washing the knitting textiles, detergent quantity shall be reduced due to its loose string construction and easily forming bubbles.
Delicate	For delicate, washable textiles, e.g. made of silk, satin, synthetic fibres or blended fabrics.
Drum Clean	It applies 90 °C high temperature sterilization to make the clothes washing more green. When this procedure is performed, the clothes or other washing cannot be added. When proper amount of chlorine bleaching agent is put in, the barrel cleaning effect will be better. The customer can use this programme regularly according to the need.
Spin Only	Extra spin with selectable spin speed.
Rinse&Spin	Extra rinse with spin.
Drain Only	Drain off the water.
Quick Wash15'	It is suitable for washing few and not very dirty clothes quickly.
Cotton Intensive	To increase the washing effects, washing time is increased.
ECO 40-60	Default 40°C, not selectable, suitabale for laundry washing at about 40°C-60°C.
Cold Wash	Cold water to wash clothes.
Cotton	Hard-wearing textiles, heat-resistant textiles made of cotton or linen.
Ends in	The function can be set with this programme, the total time including washing time and delaying time is 3h, 6h or 9h.

■ Washing Programmes Table

Model:LV-590

Programme	Load(kg)	Temp.(°C)	Default Time	rpm
	5.0	Default	5.0
Synthetic	2.5	Cold	2:20	800
Synthetic 40°C	2.5	40	2:20	800
Cold Wash	5.0	Cold	1:00	800
Cold Wash 20°C	5.0	20	1:01	800
Cotton 30°C	5.0	30	2:40	800
Cotton 40°C	5.0	40	2:40	800
Cotton 60°C	5.0	60	2:45	800
Cotton 90°C	5.0	90	2:50	800
ECO 40-60	5.0	60	3:02	800
Cotton Intensive 40°C	5.0	40	3:58	800
Cotton Intensive 60°C	5.0	60	4:00	800
Drum Clean	-	90	1:18	400
Spin Only	5.0	-	0:12	800
Drain Only	-	-	0:01	0
Rinse&Spin	5.0	-	0:20	800
Delicate 30°C	2.5	30	0:50	600
Delicate	2.5	Cold	0:48	600
Ends in 9H	5.0	40	0:59	800
Ends in 6H	5.0	40	0:59	800
Ends in 3H	5.0	40	0:59	800
Quick Wash 45'	2.0	40	0:45	800
Quick Wash 30'	2.0	30	0:30	800
Quick Wash 15'	2.0	Cold	0:15	800

• The new EU energy efficiency class is E
Energy test program: ECO 40-60. Speed: the highest speed; Other as the default.
Half load for 5.0Kg machine:2.5Kg.
The old EU energy efficiency class is A+
Energy test program: Cotton Intensive 60°C/40°C. Speed: the highest speed; Other as the default.
Half load for 5.0Kg machine:2.5Kg.

Note!

- The parameters in this table are only for user's reference. The actual parameters may be different with the parameters in above mentioned table.

■ Washing Programmes Table

Model:LV-620

Programme	Load(kg)	Temp.(°C)	Default Time	rpm
	6.0	Default	6.0
Synthetic	3.0	Cold	2:20	1000
Synthetic 40°C	3.0	40	2:20	1000
Cold Wash	6.0	Cold	1:00	1000
Cold Wash 20°C	6.0	20	1:01	1000
Cotton 30°C	6.0	30	2:40	1000
Cotton 40°C	6.0	40	2:40	800
Cotton 60°C	6.0	60	2:45	800
Cotton 90°C	6.0	90	2:50	800
ECO 40-60	6.0	60	3:16	1000
Cotton Intensive 40°C	6.0	40	4:04	1000
Cotton Intensive 60°C	6.0	60	4:08	1000
Drum Clean	-	90	1:18	400
Spin Only	6.0	-	0:12	1000
Drain Only	-	-	0:01	0
Rinse&Spin	6.0	-	0:20	1000
Delicate 30°C	2.5	30	0:50	600
Delicate	2.5	Cold	0:48	600
Ends in 9H	6.0	40	0:59	1000
Ends in 6H	6.0	40	0:59	1000
Ends in 3H	6.0	40	0:59	1000
Quick Wash 45'	2.0	40	0:45	800
Quick Wash 30'	2.0	30	0:30	800
Quick Wash 15'	2.0	Cold	0:15	800

• The new EU energy efficiency class is E
Energy test program: ECO 40-60. Speed: the highest speed; Other as the default.
Half load for 6.0Kg machine:3.0Kg.
The old EU energy efficiency class is A+
Energy test program: Cotton Intensive 60°C/40°C. Speed: the highest speed; Other as the default.
Half load for 6.0Kg machine:3.0Kg.

Note!

- The parameters in this table are only for user's reference. The actual parameters may be different with the parameters in above mentioned table.

■ Washing Programmes Table

Model:LV-814

Programme	Load(kg)	Temp.(°C)	Default Time	rpm
	8.0	Default	8.0
Synthetic	4.0	Cold	2:20	1200
Synthetic 40°C	4.0	40	2:20	1200
Cold Wash	8.0	Cold	1:00	1200
Cold Wash 20°C	8.0	20	1:01	1200
Cotton 30°C	8.0	30	2:40	1400
Cotton 40°C	8.0	40	2:40	1400
Cotton 60°C	8.0	60	2:45	1400
Cotton 90°C	8.0	90	2:50	1400
ECO 40-60	8.0	60	3:29	1400
Cotton Intensive 40°C	8.0	40	3:49	1400
Cotton Intensive 60°C	8.0	60	3:52	1400
Drum Clean	-	90	1:18	400
Spin Only	8.0	-	0:12	1400
Drain Only	-	-	0:01	0
Rinse&Spin	8.0	-	0:20	1400
Delicate 30°C	2.5	30	0:50	600
Delicate	2.5	Cold	0:48	600
Ends in 9H	8.0	40	0:59	1400
Ends in 6H	8.0	40	0:59	1400
Ends in 3H	8.0	40	0:59	1400
Quick Wash 45'	2.0	40	0:45	800
Quick Wash 30'	2.0	30	0:30	800
Quick Wash 15'	2.0	Cold	0:15	800

• The new EU energy efficiency class is E
Energy test program: ECO 40-60. Speed: the highest speed; Other as the default.
Half load for 8.0Kg machine:4.0Kg.
The old EU energy efficiency class is A+++
Energy test program: Cotton Intensive 60°C/40°C. Speed: the highest speed; Other as the default.
Half load for 8.0Kg machine:4.0Kg.

Note!

- The parameters in this table are only for user's reference. The actual parameters may be different with the parameters in above mentioned table.

■ Cleaning And Care

Warning!

- Before your maintenance starts, please unplug the machine and close the tap.

Cleaning The Cabinet

Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. If there is any water overflow, use the wet cloth to wipe it off immediately. No sharp items are allowed.

Line drawing of a hand washing a washing machine (no text or symbols)

Note!

- Formic acid and its diluted solvents or equivalent are forbidden, such as alcohol, solvents or chemical products, etc.

Cleaning The Drum

The rusts left inside the drum by the metal articles shall be removed immediately with chlorine-free detergents. Never use steel wool.

Note!

- Don't put laundry in the washing machine during the drum cleaning.

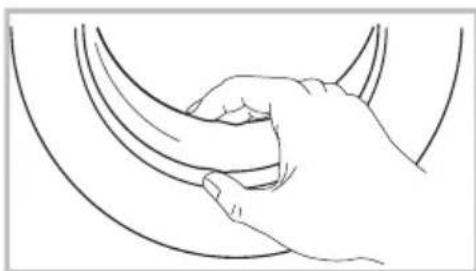

Cleaning The Door Seal And Glass

Wipe the glass and seal after each wash to remove lint and stains. If lint builds up it can cause leaks. Remove any coins, buttons and other objects from the seal after each wash.

Line drawing of a hand holding a curved object, possibly a tool or device (no text or symbols present)

Cleaning The Inlet Filter

Note!

- Inlet filter must be cleaned if there is less water.

Washing the filter in the tap

1. Close the tap.
2. Remove the water supply hose from the tap.
   3.clean the filter.
3. Reconnect the water supply hose.

Washing the filter in washing machine:

1. Screw off the inlet pipe from the backside of the machine.
2. Pull out the filter with long nose pliers and reinstall it back after being washed.
3. Use the brush to clean the filter.
4. Reconnect the inlet pipe.

Diagram of a mechanical valve or pump assembly with rotating arrows indicating flow direction (no text or symbols)

Line drawing of a hand holding a microphone with a tool inserted (no text or symbols)

Illustration of a hand using a tool to adjust or install a component, with no visible text or symbols.

Simple line drawing of a tennis racket being inserted into a table (no text or symbols)

Note!

• If the brush is not clean, you can pull out the filter washed separately;
• Reconnect, turn on the tap.

Clean The Detergent Dispenser

1. Press down the arrow location on softener cover inside the dispenser drawer.
2. Lift the clip up and take out softener cover and wash all grooves with water.
   3.Restore the softener cover and push the drawer into position.

Technical line drawing of a mechanical component with internal channels and a labeled section (no text or symbols)

Pull out the dispenser drawer with press the A

Line drawing of a mechanical device with a lever and internal components (no text or symbols)

Clean the dispenser drawer under water

Illustration of a hand using a tool to remove or remove a dark object inside a container (no text or symbols)

Clean inside the recess with an old toothbrush

Technical line drawing of a mechanical component with internal compartments and a lever (no text or symbols)

Insert the dispenser drawer

Note!

- Do not use alcohol, solvents or chemical products to clean the machine.

Cleaning The Drain Pump Filter

⚠ Warning!

• Be careful of the hot water!
• Allow detergent solution to cool down.
• Unplug the machine to avoid electrical shock before washing.
• Drain pump filter can filter the yarns and small foreign matters from the washing.
• Clean the filter periodically to ensure the normal operation of washing machine.

Line drawing of a hand using a tool to lift a curved object, with arrows indicating direction (no text or symbols)

Open the Service filter

Hand holding a rotary knob with directional arrows, no text or symbols present

Open the filter by turning to the counter clockwise

Remove extraneous matter

Diagram of a mechanical component with rotational arrows indicating motion (no text or symbols)

Close the lower cover cap

Caution!

• Make sure that valve cap and emergency drain hose are reinstalled properly, cap plates should be inserted aligning to hole plates otherwise water may leak;
• Some machines don't have emergency drain hose, rotate lower cover cap directly to make water run into basin.
• When the appliance is in use and depending on the programme selected there can be hot water in the pump. Never remove the pump cover during a wash cycle, always wait until the appliance has finished the cycle, and is empty. When replacing the cover, ensure it is securely re-tightened.

■ Trouble Shooting

The start of the appliance does not work or it stops during operation.

First try to find a solution to the problem, If not, contact the service centre.

Description	Reason	Solution
Washing machine cannot start up	Door is not closed properly	Restart after the door is closedCheck if the clothes is stuck
Door can’t be opened	Washer's safety protection design is working	Disconnect the power, restart the product
Water leakage	The connection between inlet pipe or outlet hose is not tight	Check and fasten water pipesClean up outlet hose
Detergent residues in the box	Detergent is dampened or agglomerated	Clean and wipe the detergent box
Indicator or display does not light	Disconnect the power PC board or harness has connection problem	Check if the power is shut down and the power plug is connected correctly
Abnormal noise		Check if the fixing (bolts) have been removedCheck it’s installed on a solid and level floor

Description						Reason	Solution
	PauseStart	No Spin	Extra Rinse	Prewash
	Flash	Off	Off	Door is not closed properly			Restart after the door is closedCheck if the clothes is stuck
	Off	Flash	Off	Water injecting problem while washing			Check if the water pressure is too lowStraighten the water pipeCheck if the inlet valve filter is blocked
	Off	Flash	Off	Overtime water draining			Check if the drain hose is blocked
	Off	Flash	Off	Water overflow			Restart the washer
				Others			Please try again first, call up service line if there are still troubles

Note!

- After the check, activate the appliance. If the problem occurs again, contact the service.

■ Technical Specifications

Power Supply	220-240V~,50Hz
MAX.Current	10A
Standard Water Pressure	0.05MPa~1MPa

Model	Washing Capacity	Dimension (W*D*Hmm)	Net Weight	Rated Power
LV-590	5.0kg	595*400*850	52kg	2050W
LV-620	6.0kg	595*400*850	52kg	2000W
LV-814	8.0kg	595*565*850	68kg	2000W

Product fiche concerning to Regulation (EU) No 1061/2010

Trade mark
Model identifier	LV-590
Rated capacity in kg of cotton laundry	5
Energy efficiency class on a scale from A+++ (most efficient) bis D (least efficient)	A+
Energy consumption 169 kWh per year, based on 220 standard washing cycles for the standard cotton programmes at 60 °C and 40 °C at full and partial load, and the consumption of the low-power modes. Actual energy consumption will depend on how the appliance is used.
Energy consumption of the standard 60°C cotton programme at full load	0.75kwh
Energy consumption of the standard 60°C cotton programme at partial load	0.73kwh
Energy consumption of the standard 40°C cotton programme at partial load	0.73kwh
Weighted power consumption of the off-mode	0.50W
Weighted power consumption of the left-on mode	1.00W
Water consumption 8360 litres per year, based on 220 standard washing cycles for the standard cotton programmes at 60 °C and 40 °C at full and partial load. Actual water consumption will depend on how the appliance is used.
spin-drying efficiency class B on a scale from G (least efficient) to A (most efficient)
maximum spin speed	800
Remaining moisture content	71%
'Intensive 60°C programme' and the 'Intensive 40°C programme' are the standard washing programmes to which the information in the label and the fiche relates, that these programmes are suitable to clean normally soiled cotton laundry and that they are the most efficient programmes in terms of combined energy and water consumption.
Programme time of the standard 60°C cotton programme at full load	270min
Programme time of the standard 60°C cotton programme at half load	265min
Programme time of the standard 40°C cotton programme at half load	265min
duration time of left-on mode	-
Airborne acoustical noise emissions during washing phase	64dB
Airborne acoustical noise emissions during spinning phase	79dB
'built-in' washing machine	no

Energy test program: Cotton Intensive 60/40°C. Speed: the highest speed; Other as the default.

Supplier's name or trade mark:
Supplier's address ( ^b ):
Model identifier: LV-590
General product parameters:

Parameter	Value		Parameter	Value
Rated capacity (°) (kg)	5.0		Dimensions in cm	Height	85
				Width	60
				Depth	40
EEI_W (°)	91.0		Energy efficiency class (°)	E
Washing efficiency index (°)	1.04		Rinsing effectiveness (g/kg) (°)	5.0
Energy consumption in kWh per cycle, based on the eco 40-60 programme. Actual energy consumption will depend on how the appliance is used.	0.685		Water consumption in litre per cycle, based on the eco 40-60 programme. Actual water consumption will depend on how the appliance is used and on the hardness of the water.	41
Maximum temperature inside the treated textile (°) (°C)	Rated capacity	40	Remaining moisture content (°) (%)	Rated capacity	68
	Half	31		Half	70
	Quarter	23		Quarter	79
Spin speed (°) (rpm)	Rated capacity	800	Spin-drying efficiency class (°)	D
	Half	800
	Quarter	800
Programme duration (°) (h:min)	Rated capacity	3:08	Type	free-standing
	Half	2:30
	Quarter	2:30
Airborne acoustical noise emissions in the spinning phase (°) (dB(A) re 1 pW)	80		Airborne acoustical noise emission class (°) (spinning phase)	C
Off-mode (W)	0.50		Standby mode (W)	1.00
Delay start (W) (if applicable)	4.00		Networked standby (W) (ifapplicable)	N/A

Minimum duration of the guarantee offered by the supplier (b):

This product has been designed to release silver ions during the washing cycle

NO

Additional information:

Weblink to the supplier's website, where the information in point 9 of Annex II to Commission Regulation (EU) 2019/2023 (1) (b) is found:

(*) for the eco 40-60 programme.

(*) changes to these items shall not be considered relevant for the purposes of paragraph 4 of Article 4 of Regulation (EU) 2017/1369.

(*) if the product database automatically generates the definitive content of this cell the supplier shall not enter these data.

Product fiche concerning to Regulation (EU) No 1061/2010

Trade mark
Model identifier	LV-620
Rated capacity in kg of cotton laundry	6
Energy efficiency class on a scale from A+++ (most efficient) bis D (least efficient)	A+
Energy consumption 196 kWh per year, based on 220 standard washing cycles for the standard cotton programmes at 60 °C and 40 °C at full and partial load, and the consumption of the low-power modes. Actual energy consumption will depend on how the appliance is used.
Energy consumption of the standard 60°C cotton programme at full load	0.93kwh
Energy consumption of the standard 60°C cotton programme at partial load	0.80kwh
Energy consumption of the standard 40°C cotton programme at partial load	0.83kwh
Weighted power consumption of the off-mode	0.50W
Weighted power consumption of the left-on mode	1.00W
Water consumption 9240 litres per year, based on 220 standard washing cycles for the standard cotton programmes at 60 °C and 40 °C at full and partial load. Actual water consumption will depend on how the appliance is used.
spin-drying efficiency class B on a scale from G (least efficient) to A (most efficient)
maximum spin speed	1000
Remaining moisture content	62%
'Intensive 60°C programme' and the 'Intensive 40°C programme' are the standard washing programmes to which the information in the label and the fiche relates, that these programmes are suitable to clean normally soiled cotton laundry and that they are the most efficient programmes in terms of combined energy and water consumption.
Programme time of the standard 60°C cotton programme at full load	260min
Programme time of the standard 60°C cotton programme at half load	260min
Programme time of the standard 40°C cotton programme at half load	245min
duration time of left-on mode	-
Airborne acoustical noise emissions during washing phase	64dB
Airborne acoustical noise emissions during spinning phase	79dB
'built-in' washing machine	no

Energy test program: Cotton Intensive 60/40°C. Speed: the highest speed; Other as the default.

Supplier's name or trade mark:
Supplier's address ( ^b ):
Model identifier: LV-620
General product parameters:

Parameter	Value		Parameter	Value
Rated capacity (°) (kg)	6.0		Dimensions in cm	Height	85
				Width	60
				Depth	40
EEI_W (°)	91.0		Energy efficiency class (°)	E
Washing efficiency index (°)	1.04		Rinsing effectiveness (g/kg) (°)	5.0
Energy consumption in kWh per cycle, based on the eco 40-60 programme. Actual energy consumption will depend on how the appliance is used.	0.737		Water consumption in litre per cycle, based on the eco 40-60 programme. Actual water consumption will depend on how the appliance is used and on the hardness of the water.	43
Maximum temperature inside the treated textile (°) (°C)	Rated capacity	41	Remaining moisture content (°) (%)	Rated capacity	62
	Half	33		Half	62
	Quarter	20		Quarter	62
Spin speed (°) (rpm)	Rated capacity	1000	Spin-drying efficiency class (°)	C
	Half	1000
	Quarter	1000
Programme duration (°) (h:min)	Rated capacity	3:18	Type	free-standing
	Half	2:36
	Quarter	2:36
Airborne acoustical noise emissions in the spinning phase (°) (dB(A) re 1 pW)	80		Airborne acoustical noise emission class (°) (spinning phase)	C
Off-mode (W)	0.50		Standby mode (W)	1.00
Delay start (W) (if applicable)	4.00		Networked standby (W) (ifapplicable)	N/A

Minimum duration of the guarantee offered by the supplier (b):

This product has been designed to release silver ions during the washing cycle

NO

Additional information:

Weblink to the supplier's website, where the information in point 9 of Annex II to Commission Regulation (EU) 2019/2023 (1) (b) is found:

(*) for the eco 40-60 programme.

(*) changes to these items shall not be considered relevant for the purposes of paragraph 4 of Article 4 of Regulation (EU) 2017/1369.

(*) if the product database automatically generates the definitive content of this cell the supplier shall not enter these data.

Product fiche concerning to Regulation (EU) No 1061/2010

Trade mark
Model identifier	LV-814
Rated capacity in kg of cotton laundry	8
Energy efficiency class on a scale from A+++ (most efficient) bis D (least efficient)	A+++
Energy consumption 196 kWh per year, based on 220 standard washing cycles for the standard cotton programmes at 60 °C and 40 °C at full and partial load, and the consumption of the low-power modes. Actual energy consumption will depend on how the appliance is used.
Energy consumption of the standard 60°C cotton programme at full load	0.90kwh
Energy consumption of the standard 60°C cotton programme at partial load	0.88kwh
Energy consumption of the standard 40°C cotton programme at partial load	0.79kwh
Weighted power consumption of the off-mode	0.50W
Weighted power consumption of the left-on mode	1.00W
Water consumption 11000 litres per year, based on 220 standard washing cycles for the standard cotton programmes at 60 °C and 40 °C at full and partial load. Actual water consumption will depend on how the appliance is used.
spin-drying efficiency class B on a scale from G (least efficient) to A (most efficient)
maximum spin speed	1400
Remaining moisture content	53%
'Intensive 60°C programme' and the 'Intensive 40°C programme' are the standard washing programmes to which the information in the label and the fiche relates, that these programmes are suitable to clean normally soiled cotton laundry and that they are the most efficient programmes in terms of combined energy and water consumption.
Programme time of the standard 60°C cotton programme at full load	245min
Programme time of the standard 60°C cotton programme at half load	240min
Programme time of the standard 40°C cotton programme at half load	230min
duration time of left-on mode	-
Airborne acoustical noise emissions during washing phase	62dB
Airborne acoustical noise emissions during spinning phase	79dB
'built-in' washing machine	no

Energy test program: Intensive 60/40°C. Speed: the highest speed; Other as the default.

Supplier's name or trade mark:
Supplier's address ( ^b ):
Model identifier: LV-814
General product parameters:

Parameter	Value		Parameter	Value
Rated capacity (°) (kg)	8.0		Dimensions in cm	Height	85
				Width	60
				Depth	57
EEI_w (°)	91.0		Energy efficiency class (°)	E
Washing efficiency index (°)	1.04		Rinsing effectiveness (g/kg) (°)	5.0
Energy consumption in kWh per cycle, based on the eco 40-60 programme. Actual energy consumption will depend on how the appliance is used.	0.827		Water consumption in litre per cycle, based on the eco 40-60 programme. Actual water consumption will depend on how the appliance is used and on the hardness of the water.	48
Maximum temperature inside the treated textile (°) (°C)	Rated capacity	38	Remaining moisture content (°) (%)	Rated capacity	53
	Half	33		Half	53
	Quarter	25		Quarter	53
Spin speed (°) (rpm)	Rated capacity	1400	Spin-drying efficiency class (°)	B
	Half	1400
	Quarter	1400
Programme duration (°) (h:min)	Rated capacity	3:38	Type	free-standing
	Half	2:48
	Quarter	2:48
Airborne acoustical noise emissions in the spinning phase (°) (dB(A) re 1 pW)	80		Airborne acoustical noise emission class (°) (spinning phase)	C
Off-mode (W)	0.50		Standby mode (W)	1.00
Delay start (W) (if applicable)	4.00		Networked standby (W) (ifapplicable)	N/A

Minimum duration of the guarantee offered by the supplier (b):

This product has been designed to release silver ions during the washing cycle

NO

Additional information:

Weblink to the supplier's website, where the information in point 9 of Annex II to Commission Regulation (EU) 2019/2023 (1) (b) is found:

(*) for the eco 40-60 programme.

(*) changes to these items shall not be considered relevant for the purposes of paragraph 4 of Article 4 of Regulation (EU) 2017/1369.

(*) if the product database automatically generates the definitive content of this cell the supplier shall not enter these data.

Note!

• Programme setting for testing in accordance with applicable standard En60456.
• When using the test programmes, wash the specified load using the maximum spin speed.
• The actual parameters will depend on how the applicance is used, and maybe different with the parameters in above mentioned table.

PROCEDURE IN CASE OF FAILURE OF A MILECTRIC PRODUCT

Dear customers, to request technical assistance or repair of your MILECTRIC product, you have our website, operating 24 hours a day, 7 days a week:

https://milelectric.com/asistencia-tecnica/

Alternatively, if they wish, they can request technical assistance via email:

• Gama Blanca: [e-mail]
• Gama Marrón: [e-mail]

To streamline all procedures, the following information should always be indicated:

• Name and surname
- Telephone 1
- Phone 2
- Full address
- Postal Code
- Population
- Brand
- Product model
- Serial number
- Product failure

You can request technical assistance through the number 902 676 518 or 958 087 169, available only for white range products (except for free-standing microwaves).
