Verb - Professional audio module 2hp - Free user manual and instructions

Product Type	Eurorack Reverb Module
Brand	2hp
Model	Verb
Width	2 HP
Height	3U (128.5 mm)
Depth	Approximately 40 mm
Weight	Approximately 30 g
Power Supply	+12V (50 mA), -12V (20 mA) via Eurorack bus
Main Function	Reverb effect processor
Control Parameters	Decay, Mix, Damp
Input Impedance	100 kΩ
Output Impedance	100 Ω
Audio Level	10 Vpp max
Construction	High-quality PCB, aluminum front panel
Included Accessories	Power ribbon cable, mounting screws
Maintenance	Clean with dry cloth, avoid liquids
Safety	Designed for Eurorack; reverse power protection
Spare Parts	Not available; non-user-serviceable
Warranty	2 years limited

Frequently Asked Questions - Verb 2hp

How do I install the 2hp Verb module in my Eurorack case?

Connect the power ribbon cable ensuring the red stripe aligns with -12V on both the module and your bus board. Secure with the provided screws. The module occupies 2 HP width.

What are the controls on the Verb module?

Decay controls reverb tail length, Mix blends dry and wet signal, and Damp adjusts high-frequency damping of the reverb.

Can I use the Verb as a send effect?

Yes, you can feed an external signal into the input and use the Mix control to blend. For 100% wet output, set Mix fully clockwise.

What power consumption does the Verb have?

It draws approximately 50 mA on +12V and 20 mA on -12V. Ensure your power supply can handle the total load.

Does the Verb have CV control?

No, the Verb is fully analog and does not feature CV inputs. All parameters are adjusted via front panel knobs.

What is the audio input/output level?

The module accepts and outputs Eurorack levels up to 10 Vpp. Input impedance is 100 kΩ, output impedance is 100 Ω.

How do I clean the module?

Unplug the module and wipe the front panel and knobs with a dry, lint-free cloth. Do not use liquids or cleaners.

Is there a user manual available?

Yes, you can download the manual for free from notice-facile.com or the manufacturer's website. It includes detailed specifications and usage tips.

What should I do if the module doesn't power on?

Check the power ribbon cable orientation and ensure the bus board is powered. Verify that your power supply has enough capacity. If the issue persists, contact support.

Can I mount the Verb in a skiff case?

Yes, the depth is approximately 40 mm, which fits most skiff cases. Ensure there is adequate clearance behind the module.

USER MANUAL Verb 2hp

Description

Verb is a lush stereo reverb with a full feature set and superior audio quality. A wide range of reverb times take your sound from small room to never-ending concert hall.

CV over mix allows dynamic movement between the dry and reverberated sound, and the dampening control lets you dial in the perfect timbre for the wet signal. Whether you need a traditional reverb for an FX send or an esoteric sound design tool, Verb can take you there. Get lost in space with Verb.

• Stereo reverb
• CV over mix
• Lush reverb quality
• Dampening control

Table of Contents

Installation/Specifications 4

Verb 5

General Functions Overview 6

Installation

To install, locate 2 HP of space in your Eurorack case and confirm the positive 12 volts and negative 12 volts sides of the power distribution lines. Plug the connector into the power distribution board of your case, keeping in mind that the red band corresponds to negative 12 volts. In most systems, the negative 12 volt supply line is at the bottom. The power cable should be connected to the Verb with the red band facing the front of the module.

Specifications

Format: 2 HP Eurorack module

Depth: 47mm (Skiff Friendly)

Max Current: +12V = 81mA

-12V = 28mA

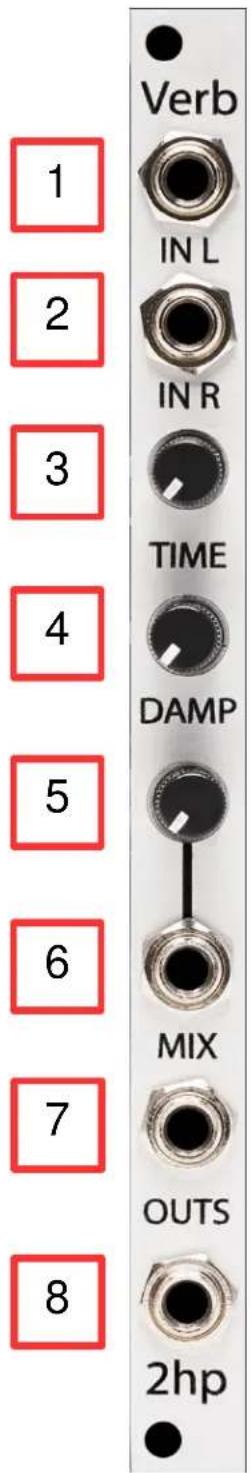

1. IN L

Audio input for left channel

The signal present at IN L will normal to OUT L and OUT R when there is no signal present at IN R

Range: 10Vpp

2. IN R:

Audio input for right channel

The signal present at IN R will emit from OUT R only

Range: 10Vpp

3. TIME:

Sets the length of the reverb

If the knob is far left, TIME will be as short as possible If the knob is far right, TIME will be as long as possible

4. DAMP:

Sets the amount of dampening of the reverb

If the knob is far left, dampening is fully applied and the reverb will have a darker tone If the knob is far right, no dampening is applied and the reverb will have a brighter tone

5. MIX:

Sets the ratio of dry signal to wet signal.

If the knob is far left, the signal will be fully dry If the knob is far right, the signal will be fully wet

6. MIX CV:

Control voltage input for MIX

Control voltage is added to the knob position

Range: 0V - 5V

7. OUT L:

Audio output for left channel

Range: 10Vpp

8. OUT R:

Audio output for right channel

Range: 10Vpp
