SH16320N - Heating SWAN - Free user manual and instructions

Product Type	Fan Heater
Dimensions (approx.)	20 x 15 x 10 cm
Weight (approx.)	1.2 kg
Power Output	2000W (High) / 1000W (Low)
Voltage / Frequency	220-240V ~ 50Hz
Heating Modes	High (2000W), Low (1000W), Fan Only
Temperature Control	Adjustable thermostat
Safety Features	Overheat protection, Tip-over switch
Material	Plastic housing
Color	White / Black
Power Cord Length	1.5 m
Noise Level (approx.)	45 dB
Oscillation	No
Energy Efficiency Class	Not rated
Warranty	2 years
Maintenance	Wipe with dry cloth, clean air filter monthly
Repairability	Spare parts available from manufacturer

Frequently Asked Questions - SH16320N SWAN

How do I adjust the thermostat?

Turn the thermostat dial clockwise to increase the desired temperature. The heater will automatically cycle on and off to maintain the set temperature.

What does the tip-over switch do?

If the heater is accidentally knocked over, the tip-over switch immediately cuts off power to prevent fire hazards. Make sure the heater is placed on a stable, level surface.

How often should I clean the air filter?

Clean the air filter at least once a month during heavy use. A clogged filter reduces heating efficiency and may cause overheating. Remove the filter and vacuum or wash it gently.

Can I use this heater in a bathroom?

No, this heater is not designed for damp environments. Do not use in bathrooms, near water, or with wet hands to avoid electric shock.

Why does the heater shut off unexpectedly?

The heater may have activated overheat protection. Check if the air intake or outlet is blocked. Allow the heater to cool down for a few minutes before restarting.

Can I leave the heater unattended overnight?

It is not recommended to leave the heater unattended while sleeping. Always turn off and unplug when not in use.

What is the maximum room size for this heater?

The 2000W setting is suitable for rooms up to approximately 20 m² (215 sq ft) with proper insulation. For larger rooms, additional heating may be needed.

How do I switch between heating modes?

Use the mode selector switch to choose between High (2000W), Low (1000W), or Fan Only (no heat). Ensure the thermostat is set above room temperature for heating.

Is the heater safe for use around pets?

Keep pets away from the heater to avoid burns or knocking it over. The tip-over switch helps, but supervision is recommended.

Where can I find replacement parts?

Contact Swan customer support or visit their official website to order spare parts like the heating element, fan motor, or filter.

USER MANUAL SH16320N SWAN

Patio Heaters Assembly Photo Guide

Models: SH16310N, SH16320N, SH16330N

Please read in conjunction with the printed manual that came with the product

Help line: 0333 220 6050

v1.0

SH16310N - COLUMN PATIO HEATER

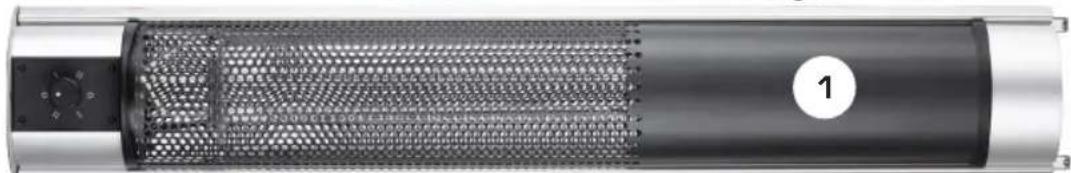

1. Lower body
2. Upper body
3. Base
4. Base cover
5. Cord grip
6. Screws for joint boards
7. Screws & washers for base
8. Joint boards
9. Allen key

You will also need a cross head screw driver. Assembly is much easier with two people and reduces the risk of damaging the product.

2

Swan

SH16310N - COLUMN PATIO HEATER

Thread the plug and cable from the upper body (2) through the channel in the lower body (1)

Make sure it goes all the way through.

Slide the upper body (2) on to the lower body (1)

SH16310N - COLUMN PATIO HEATER

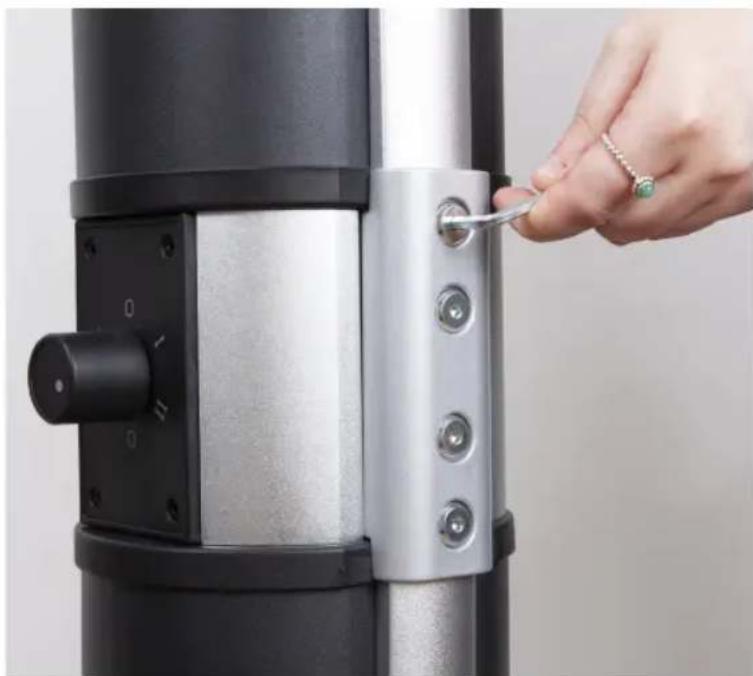

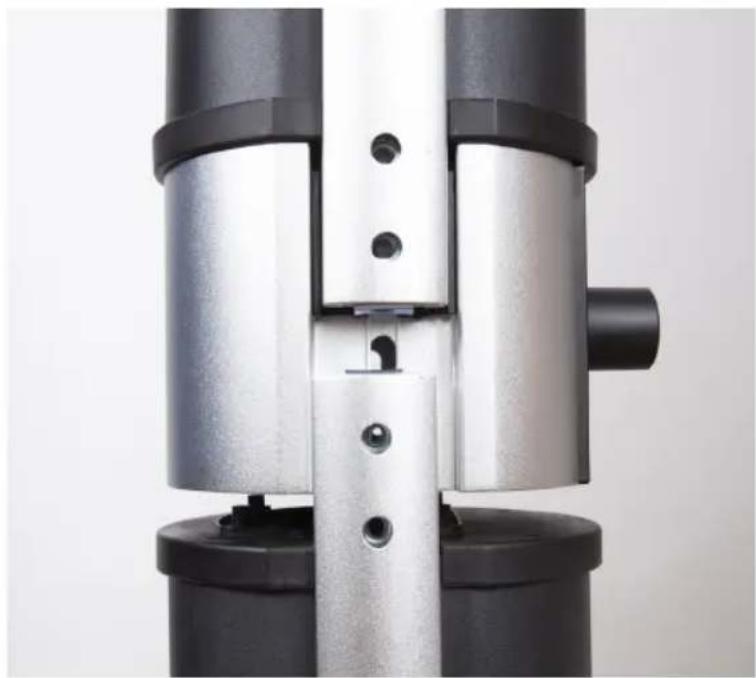

Fit the joint boards and secure with the screws (6) using the allen key provided (9)

Turn the unit upside down (put some cloth down to prevent scratches).

Put the base (3) inside the base cover (4) and thread the plug and cord through the hole in the middle

SH16310N - COLUMN PATIO HEATER

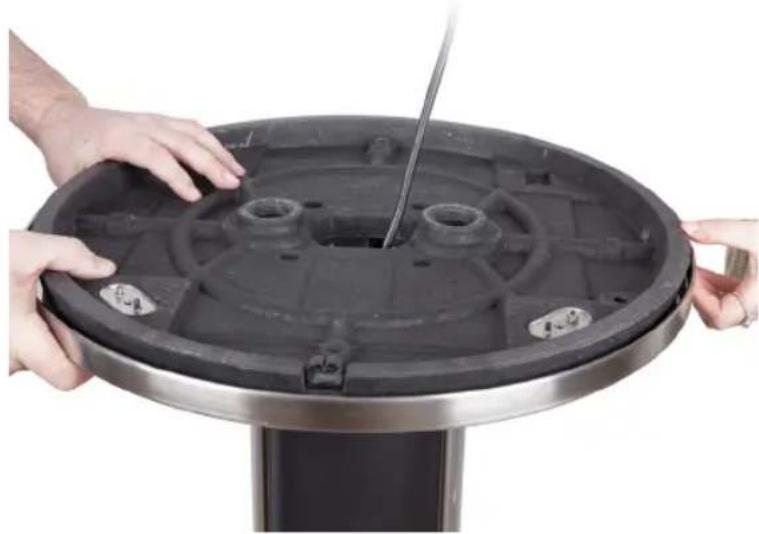

Fasten the base to the main unit using the screws & washers (7)

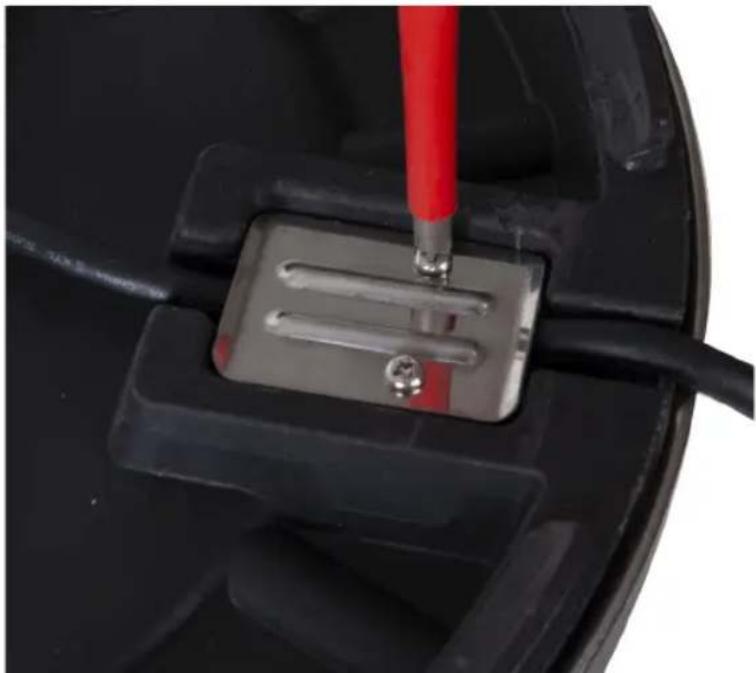

Fasten the cord grip (5). Make sure the lip faces upwards

Refer to the manual that came with the product for operation guide

wan

SH16320N - BAR TABLE PATIO HEATER

1. Main body
2. Base cover
3. Base
4. Table top
5. Foot bracket
6. Allen keys - 1 large + 1 small
7. Screws & washers for base
8. Long screws + steel tubes
9. Screws for table top

You will also need a cross head screw driver. Assembly is much easier with two people and reduces the risk of damaging the product.

6

Swan

SH16320N - BAR TABLE PATIO HEATER

Turn the main body (1) upside down (put a cloth down to prevent scratches)

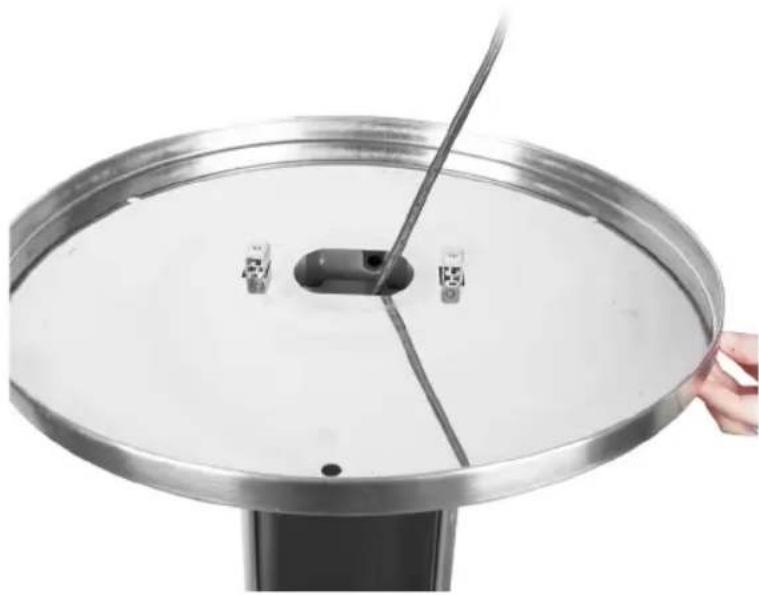

Fit the base cover and thread the plug and cord through the hole in the middle.

Fit the base inside the base cover (2) and align the holes ready for the screws and washers.

7

Swan

SH16320N - BAR TABLE PATIO HEATER

Fit the screws and washers. Leave them slightly loose for the moment. This allows a little movement in the base for the next part...

Get someone to hold the bar base (5) in position.

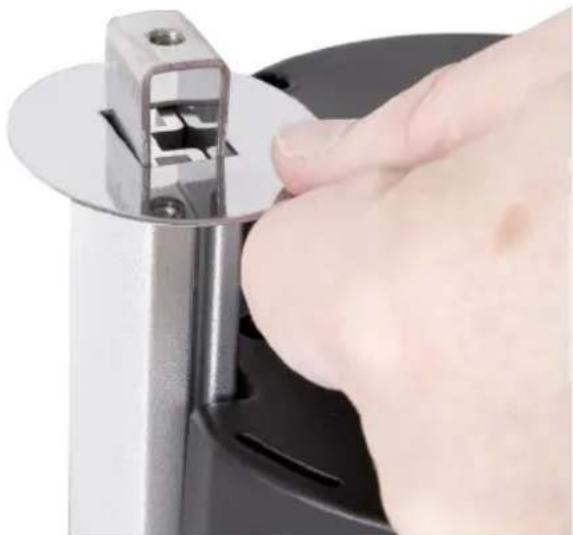

Thread the long screws though the holes in to the steel tubes (8) and into the threaded holes on the bar base.

Don't fully tighten them until all 3 are fitted

SH16320N - BAR TABLE PATIO HEATER

Once all 3 of the long screws are fitted, tighten them all (using the larger allen key)

Finally tighten the base screws as well (small allen key)

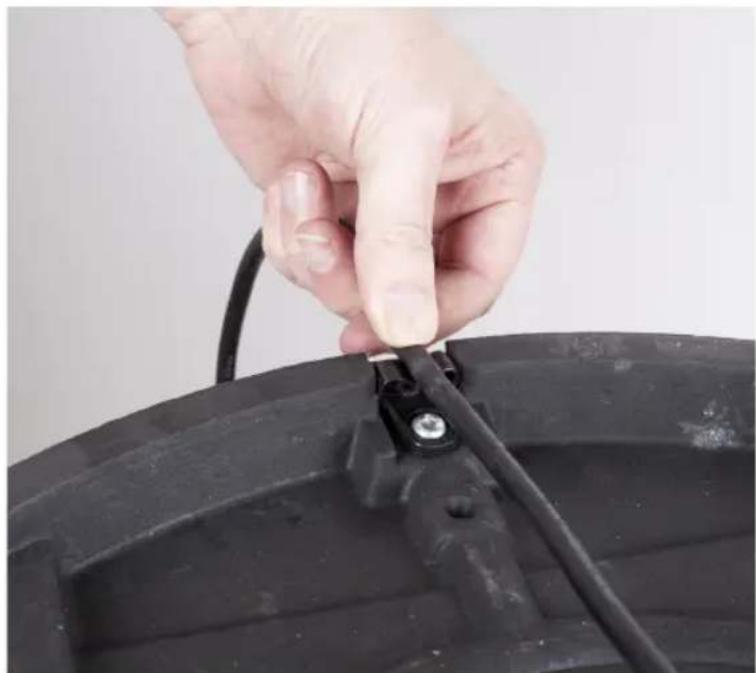

Fit the cable to the cable tie and fit the castors

SH16320N - BAR TABLE PATIO HEATER

Turn the unit the right way up again & offer up the table top.

The holes must line up as shown. The bump (2) must align with the hole (1)

This MUST be a 2 person task or you risk breaking the table top.

Fit the screws to secure the table top to the main unit.

Refer to the manual that came with the product for operation guide

SH16330N - PORTABLE PATIO HEATER

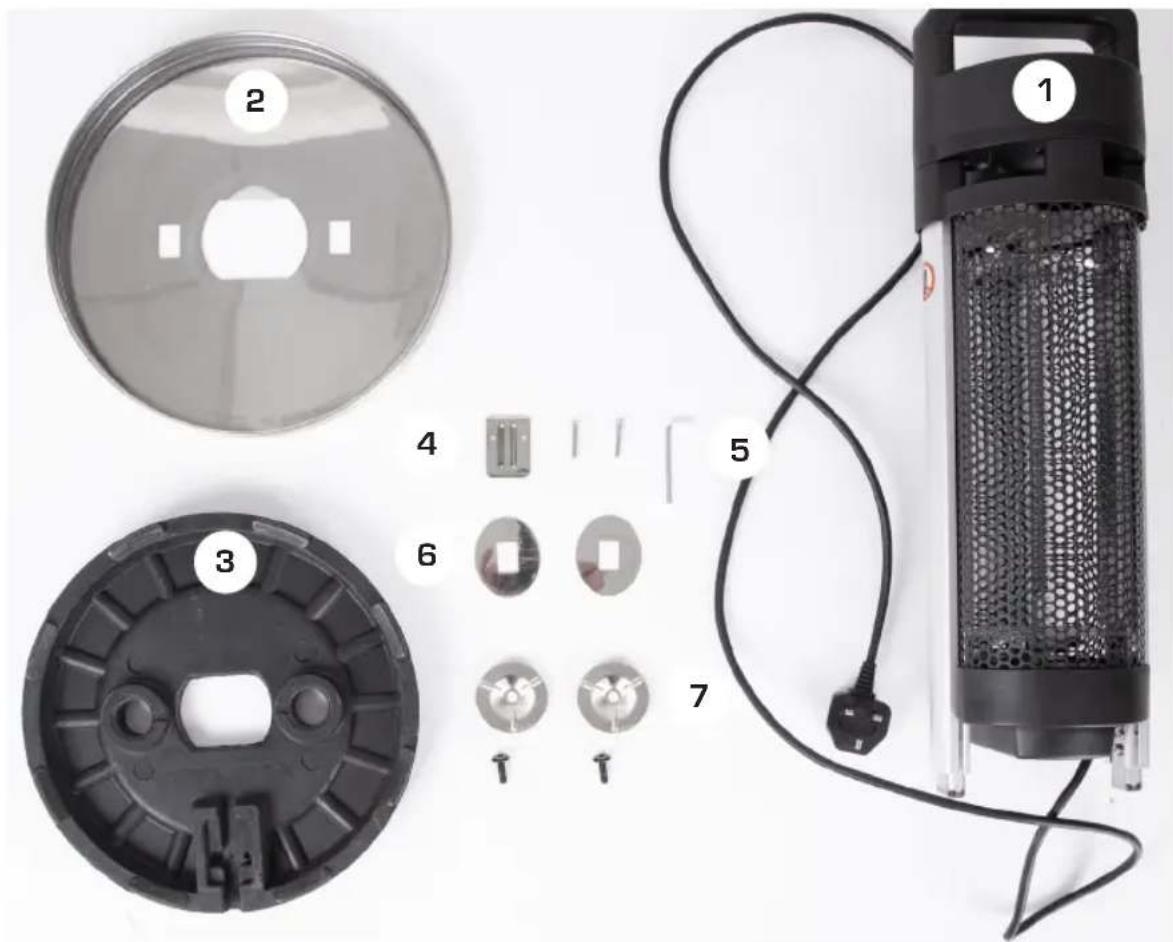

1. Main body
2. Base cover
3. Base
4. Cord grip & screws
5. Allen key
6. Deco board
7. Base screws & washers

You will also need a cross head screw driver. Assembly is much easier with two people and reduces the risk of damaging the product.

11

Swan

SH16330N - PORTABLE PATIO HEATER

Fit the deco boards (6) as shown

Put the base (3) inside the base cover (2) and thread the plugs and cord through the hole in the middle.

Make sure the 2 mounting holes are aligned.

12

Swan

SH16330N - PORTABLE PATIO HEATER

Fit the base assem- bly to the main body

[1] and tighten the screws and washers [7] as shown.

Fit the cord grip (4) ensuring the lip faces upward.

Refer to the manual that came with the product for operation guide
