Product Type	Built-in Ice Maker with Internal Pump
Model	IB450SSP
Color	Black Cabinet, Stainless Steel Door
Ice Storage Capacity	25 lbs (maximum)
Ice Production Capacity	50 lbs / day (depending on conditions)
Refrigerant	R134a, 3.88 oz
Voltage / Frequency	115 V ~ 60 Hz
Rated Current (Ice-Making / Harvest)	3.0 A / 3.6 A
Dimensions (W x D x H)	14 9/16" x 23 3/8" x 32 7/8"
Net Weight	84 lbs
Water Supply Pressure	15 – 80 psi (static), minimum 15 psi
Water Temperature Range	41°F – 90°F
Ambient Temperature Range	50°F – 100°F
Clearance Requirements	Rear ≥ 2", Top & Sides ≥ 1/4"

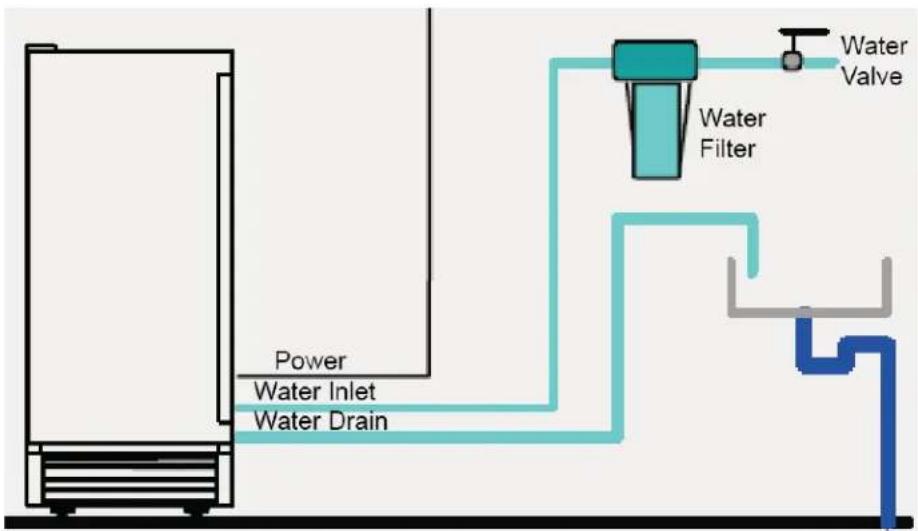

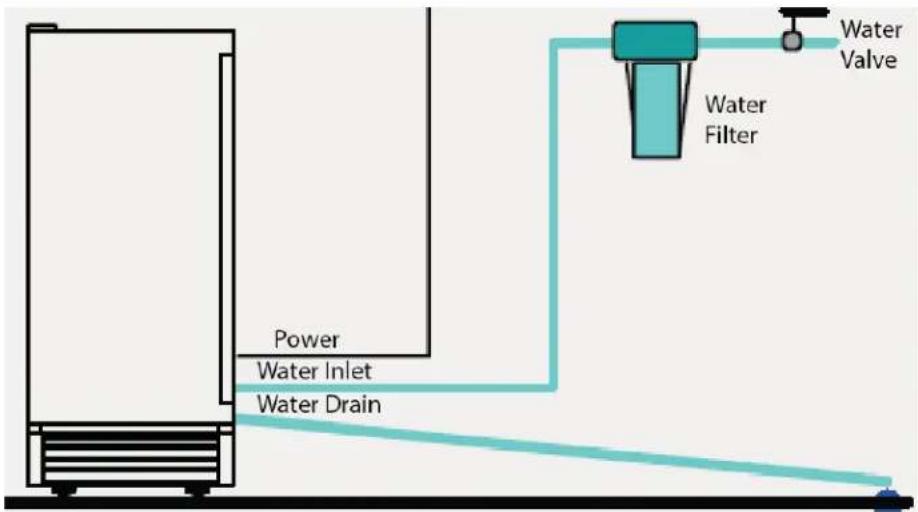

Drain Pump Vertical Lift	Up to 5 ft vertically or 5 ft horizontally

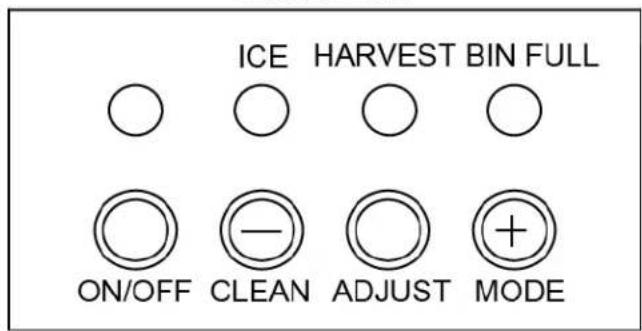

Control Panel Features	ON/OFF, Mode, Ice Size Adjust, Clean; LED indicators (Bin Full, Ice Making, Ice Harvest)
Ice Size Adjustment	User-adjustable (5 larger, 5 smaller from default)
Door Swing Reversible	Yes (requires tools, instructions provided)
Cleaning Interval (Condenser)	Every 6 months (or more often if dusty)
Cleaning Interval (Ice-Making System)	Every 6 months (for hard water 15-20 grains/gallon)
Safety Features	3-prong grounded plug, automatic shut-off when bin full, alarm for drain malfunction
Installation Requirements	Licensed plumber recommended; level surface; separate 15A circuit
Warranty	1 year parts and labor (residential); 90 days for commercial/rental

Frequently Asked Questions - IB450P EDGESTAR

How do I install the EdgeStar IB450P ice maker?

Installation must be done by a licensed plumber. Allow the unit to stand upright for 24 hours before plugging in. Place on a level surface with at least 2" clearance at the rear and 1/4" at top and sides. Connect to a grounded 115V outlet on a separate 15A circuit. Use only potable water with pressure between 15-80 psi. Connect the water supply line (9 ft hose included) and drain line (4.5 ft hose included). The drain pump can lift water up to 5 ft vertically.

How do I clean the ice maker?

Clean the exterior with mild detergent and warm water. Sanitize the ice bin and water trough occasionally. Clean the condenser every 6 months using a vacuum brush. For the ice-making system, use a nickel-safe ice maker cleaner (200g) in the water trough, run the automatic clean cycle (30 min), then rinse three times. Always discard the first batch of ice after cleaning.

Why is my ice maker not producing ice?

Check that the unit is plugged in, the breaker is not tripped, and the power switch is ON. Ensure the water supply tap is open and water pressure is above 15 psi. If the bin is full, remove some ice. Also verify the condenser is clean and there is no obstruction to airflow. The ambient temperature should be between 50°F and 100°F.

How do I adjust the ice size?

Press and hold the Ice Size Adjust button for 3 seconds to enter adjustment mode. Then press Clean to decrease ice size or Mode to increase. There are 5 larger and 5 smaller sizes from the default. The LEDs indicate the current size. Avoid unnecessary adjustments to prevent control damage.

What does the alarm buzzer mean?

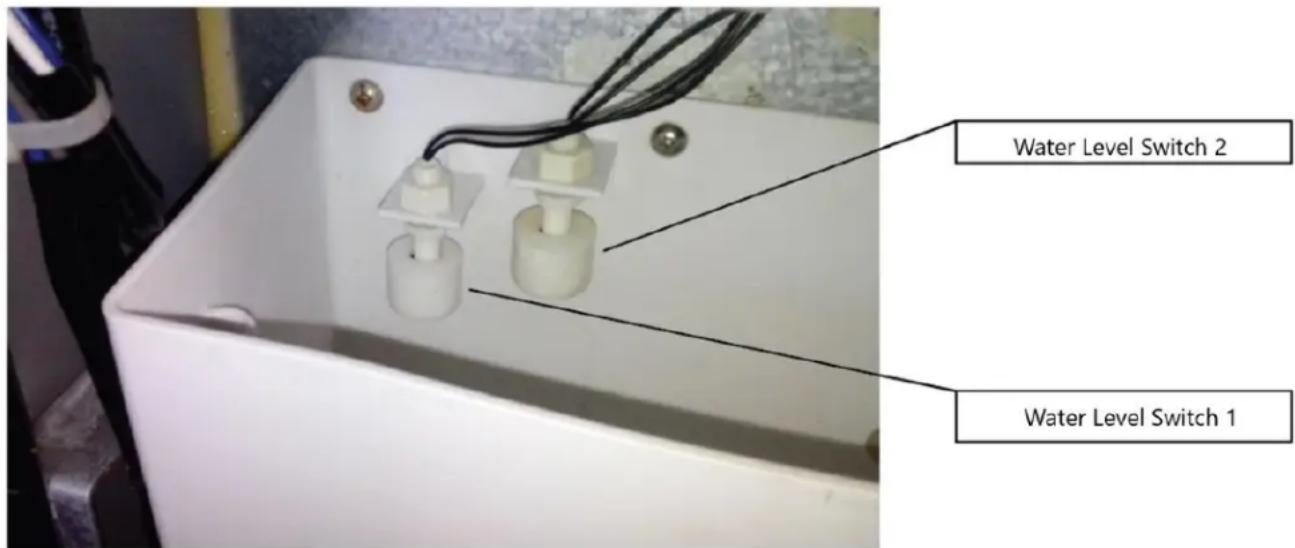

The alarm sounds when the water level switch 2 is closed, indicating a malfunction in the drain pump, water level switch, or drain tube. Turn off the unit and water supply, remove ice, and check for water in the trough. If no water, the pump may not be receiving power. Check connections and kinked lines. If the problem persists, contact EdgeStar customer service.

How do I prepare the ice maker for long-term storage?

Shut off the water supply and disconnect the line. Unplug the unit. Remove all ice from the bin and dry it. Drain the water trough by pulling off the drainage tube. Leave the door open to prevent mold. Keep the water and power lines disconnected until ready to reuse.

What are normal sounds during operation?

Normal sounds include: rattling from refrigerant flow or water line, pulsating from the compressor, splashing of water in the trough, gurgling at cycle ends, air being forced over the condenser, and ice cubes falling into the bin during harvest. Hard surfaces may amplify sounds.

How do I reverse the door swing?

Unplug the unit. Use a flathead screwdriver to separate the hinge axis from the top hinge. Remove the top hinge screws and plug buttons. Open the door 20°, lift it off the bottom hinge. Remove bottom hinge screws and plugs. Rotate the door 180° so the handle is opposite the hinges. Swap the hinges: original top hinge goes to bottom on opposite side, original bottom hinge goes to top. Reassemble and install plug buttons.

How does the drain pump work?

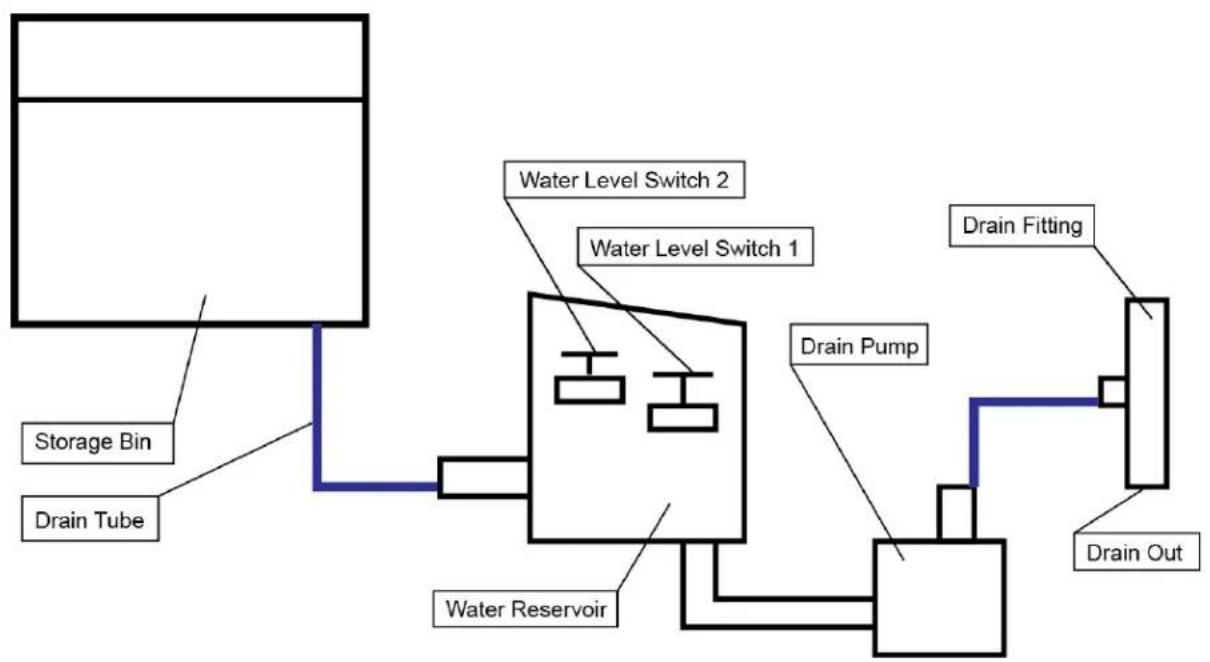

The drain pump collects water from melted ice and overflow in a reservoir. When water reaches the maximum level, water level switch 1 closes, activating the pump for 20 seconds to pump water out via the drain hose (up to 5 ft vertically or horizontally). If switch 2 closes, an alarm sounds indicating a malfunction.

What is the warranty for the EdgeStar IB450P ice maker?

EdgeStar offers a 1-year parts and labor warranty for residential use from the date of original purchase. For commercial or rental use, warranty is 90 days. The warranty covers defects in materials or workmanship but excludes installation, cosmetic damage, normal wear, and damage from misuse. Proof of purchase and serial number are required for service.

USER MANUAL IB450P EDGESTAR

Built-in Ice Maker with Internal Pump

Line drawing of a modern stainless steel refrigerator with a curved door and ventilation grilles (no text or symbols)

IB450SSP

Owner's Manual

For more information on other great EdgeStar products on the web, go to http://www.edgestar.com

To use the EdgeStar self-diagnostic tool, go to https://support.edgestar.com

Important Safety Information

Improper handling can cause serious damage to the EdgeStar ice maker and/or injury to the user. This ice maker is designed for domestic indoor use only. Do not use the unit for industrial or commercial use. Any other use may invalidate the warranty. Please review the ratings label located on the rear panel of the unit for electrical and other technical data related to this unit. The unit must be used in a properly grounded wall outlet. Please read and follow the safety information listed below to reduce the risk of fire, electric shock or injury. Installation should only be done by a licensed plumber.

Electrical Safety

• Do not exceed the power outlet ratings.
• It is recommended that the ice maker be connected on its own circuit.
• The unit must be installed in accordance with state and local electrical, water and drain codes.
• A standard electrical supply (115 V, 60Hz), that is properly grounded in accordance with the National Electrical Code and local codes and ordinances is required.
• Use outlets that cannot be turned off by a switch or pull chain.
  • Always turn the unit off and unplug it from the outlet when cleaning.
• Unplug the unit if it is not going to be used for an extended period of time.
• Do not operate the unit with a power plug missing the ground plug, a damaged cord or a loose socket.
• Be sure the ice maker is properly grounded.
• Never plug or unplug the unit with wet hands.
• Do not bypass, cut, or remove the grounding plug.
• Do not use extension cords or power strips with this unit. You may need to contact your electrician if it is necessary to use a longer cord or if you do not have a grounded outlet. Do not modify the power cord's length or share the outlet with other appliances.
• Do not start or stop the unit by switching the circuit's power on and off.
• If the power cord is damaged, it must be replaced by the manufacturer or a qualified technician.
• Never open the unit while it is plugged in.
• Immediately unplug the unit if it makes strange sounds, emits smells, or smoke comes out of it, and contact customer service.
• Do not remove any part of the casing unless instructed to do so by an authorized technician.
• You should never attempt to repair the unit yourself.
• Contact a customer service representative for service options if the unit needs service.

General Safety

• To prevent back and other types of injuries, use at least two people to move and install the ice maker.
- Install the ice maker in a well ventilated area where the ambient temperature is above 50^ F and below 100^ F.
- This unit is designed to be installed indoors, and protected from rain, sleet, snow, etc.
- This unit is not intended to be used by children.
- Children should be supervised to ensure that they do not play with this product.
- Never allow children to crawl inside the ice maker.
- Do not use this appliance near flammable gas or combustibles, such as gasoline, benzene, thinner, etc.
- Do not place the unit near heat sources such as ovens and grills.
- Only use in an upright position on a flat, level surface and provide proper ventilation.
- Do not pinch or kink the water or power supply lines between the unit and cabinet.
- Unit installation must be in accordance with local plumbing code requirements.
- Make sure that the water supply lines and pipes are not pinched or kinked.
- Check for leaks after installation.
- Discard the first batch of ice cubes produced by the ice maker.
- Never turn the water supply tap off while the ice maker is running.
- If the unit has not been used for an extended period, thoroughly clean it before using it.
- Do not leave any cleaning solutions in the unit.
- Do not use solvent-based cleaning agents or abrasive solutions on the interior as they may transmit taste to the ice cubes and damage the interior.
- Only connect a potable water supply.
- This appliance is not intended for use by persons, including children, with reduced physical, sensory, or mental capabilities, unless they have been given supervision or instruction concerning the use of the appliance by the person(s) responsible for their safety.

Note: This owner's manual is provided for reference use only. Specifications may change without prior notice. Refer to the product label on the back of your ice maker for the latest technical information.

Note: Installation should only be done by a licensed plumber.

Table of Contents

IMPORTANT SAFETY INFORMATION......II

TABLE OF CONTENTS...... IV

INTRODUCTION....1

PARTS IDENTIFICATION....2

BACK VIEW....2

FRONT VIEW....2

INSTALLING THE ICE MAKER....3

UNPACKING THE ICE MAKER....3

TYPES OF INSTALLATION....3

Freestanding installation: 3

Recessed installation: 3

Built-in installation: 3

INSTALLATION CLEARANCE REQUIREMENTS 4

ELECTRICAL REQUIREMENTS....5

Recommended Grounding Method 5

WATER SUPPLY AND DRAIN CONNECTIONS....7

Connecting the Water Supply Line....7

Connecting the Drain Line....7

HOW THE MACHINE MAKES ICE....12

Freeze....12

Harvest 12

HOW THE MACHINE USES THE WATER....12

CONTROL PANEL 13

NORMAL SOUNDS .... 14

PREPARING THE ICEMAKER FOR LONG STORAGE....14

CLEANING AND MAINTENANCE ....14

WHAT SHOULD BE KEPT CLEAN?......15

EXTERIOR CLEANING....15

ICE BIN AND WATER TROUGH CLEANING....15

CONDENSER CLEANING....16

WATER DISTRIBUTION TUBE CLEANING....16

ICE-MAKING SYSTEM CLEANING....17

TROUBLESHOOTING....18

SPECIFICATIONS....19

EDGESTAR LIMITED WARRANTY....20

Introduction

Thank you for purchasing this EdgeStar built in ice maker. We hope that this purchase will be the beginning of a lasting and rewarding relationship between you and EdgeStar. We will provide the customer support and exemplary products necessary to nurture that relationship.

This manual contains important information regarding the proper installation, use and maintenance of your ice maker. Following this manual will ensure that your product will work at its peak performance and efficiency.

Please save the original product packaging in case you need to safely transport your ice maker.

For Your Records:

Please write down the model number and serial number below for future reference. Both numbers are located on the ratings label on the back of your unit and are needed to obtain warranty service. You may also want to staple your receipt to this manual as it is the proof of your purchase, and is also needed for service under your warranty.

Model Number: ____

Serial Number: ____

Date of Purchase: ____

For a more efficient experience, please do the following before contacting customer service:

• If you received a damaged product, immediately contact the dealer that sold you the product.
• Read and follow this instruction manual carefully to help you install, use and maintain your ice maker.
• Read the troubleshooting section of this manual as it will help you diagnose and solve common issues.
• Visit us on the web at http://www.edgestar.com to register your product, download product guides, additional troubleshooting resources and up-to-date information. You can also find an interactive self-diagnostic tool at https://support.edgestar.com.
• If you need warranty service, customer service representatives are available via email at [e-mail].

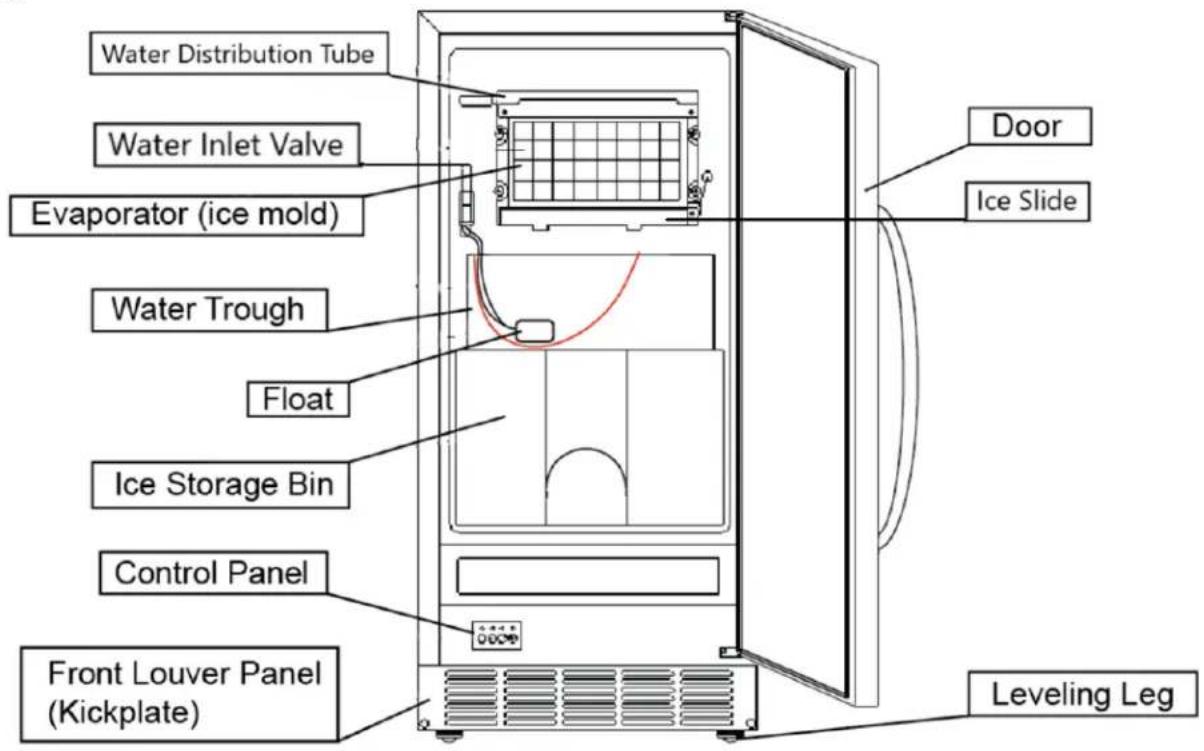

Parts Identification

Front View

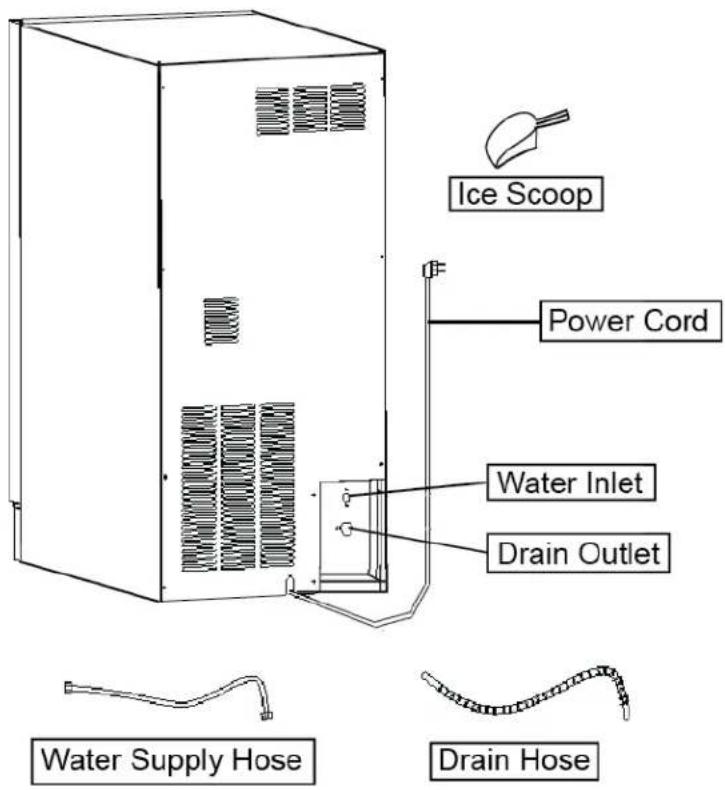

Back View

Installing the Ice Maker

Warning: Use two or more people to move and install the ice maker. Failure to do so can result in back or other injury.

The ice maker should be installed by a licensed plumber in accordance with local electrical and plumbing code requirements.

Before you plug the ice maker in, be sure to let it stand upright for at least 24 hours to allow the compressor's oils to settle.

Unpacking the Ice Maker

Important: Do not remove any safety, warning, or product information labels from your ice maker.

Carefully remove the packaging materials. Remove any shipping tape and glue from your ice maker before using. Do not use sharp instruments, rubbing alcohol, flammable fluids, or abrasive cleaners to remove tape or glue. These products can damage the surface of your icemaker.

Types of Installation

This ice maker has been designed for freestanding, recessed, or built-in installation. In each case, there must be adequate ventilation and access for service in a location where the ambient temperature is between 50^ and 100^ F. Do not install near heat sources.

Freestanding installation:

Freestanding installation will allow you to install the icemaker in any place with access to a water supply and a drain. You must follow the instructions for electrical requirements, water supply and drain, and leveling the icemaker.

Recessed installation:

Recessed installation will allow you to install the icemaker under a counter or in a kitchen cabinet provided the required clearance space around the ice maker is followed. This installation has the same requirements as a built-in installation.

Built-in installation:

It is necessary to allow adequate ventilation space around the unit (make sure there is at least some ventilation room for the back of the unit). The following additional items must be observed.

1. Place the ice maker in front of the installation location. Remove the feet and place the unit flat on the floor or on a platform depending on your installation requirements.
2. The water supply pipe must be plumbed before connecting to the ice maker. Install the drain line into your drain.
3. Turn on the main water supply and tap. Check for water supply connection leaks. Tighten any connections (including connections at the tie-in).
4. If the electrical outlet for the ice maker is behind the cabinet, plug in the ice maker.
5. Push the ice maker into position.
6. Seal all around the cabinet to the floor with an approved caulking compound.

Note: This icemaker should be installed by a licensed plumber only.

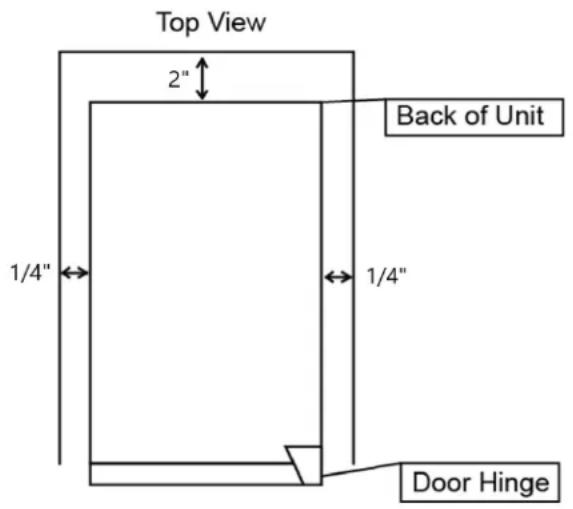

• To ensure proper service access and ventilation, allow more than 2" of clearance at the rear and 1/4 at the top and the sides. The installation should allow the icemaker to be pulled forward for servicing if necessary.
• When installing the ice maker under a counter, follow the recommended spacing dimensions shown. Place electrical and water supplies and drain fixtures in the recommended locations as shown.
• Choose a well ventilated area with temperatures above 50^ F and below 100^ F. This unit MUST be installed in an area protected from the elements, e.g., wind, rain, water spray, or drips.
• The icemaker should not be located next to ovens, grills, or other high heat sources.
• The ice maker requires a continuous water supply with a minimum pressure of 15 psi and a static pressure not to exceed 80 psi. The temperature of the water feeding into the ice maker should be between 41°F and 90°F for proper operation. The ambient operational temperature should be between 50°F and 100°F. Operation outside these temperatures may result in lowered production or other adverse effects.

• The unit should be located on a firm and level surface. It is important for the ice maker to be level in order to work properly. If needed, you can adjust the height of the ice maker by rotating the feet. See the “Leveling the Ice Maker” section.
• A standard electrical supply (115 VAC only, 60 Hz, 15 A), properly grounded in accordance with National Electrical Code and local codes and ordinances is required.

Important: Don't kink or pinch the power supply cord between the ice maker and the wall or cabinet.

! DANGER !

Electrical Shock Hazard

• Plug into a grounded 3-prong outlet.
• Never remove the grounding prong from the plug.
• Never use an adapter.
• Never use an extension cord.
• Failure to follow these instructions can result in fire, electrical shock, or death

Before you move your icemaker into its final location, it is important to make sure you have the proper electrical connection:

A standard electrical supply (115 V, 60Hz.), properly grounded in accordance with the National Electrical Code and local codes and ordinances, is required.

It is recommended that a separate circuit, serving only your icemaker, be provided. Use receptacles that cannot be turned off by a switch or pull chain.

The fuse (or circuit breaker) size should be 15 amps.

Recommended Grounding Method

For your personal safety, this appliance must be grounded. It is equipped with a power supply cord having a 3-prong grounding plug. To minimize possible shock hazard, the cord must be plugged into a mating 3-pronged and grounding-type wall receptacle, grounded in accordance with the National Electrical Code and local codes and ordinances. If a mating wall receptacle is not available, it is the personal responsibility of the customer to have a properly grounded, 3-prong wall receptacle installed by a qualified electrician.

Leveling the Ice Maker

It is important for the icemaker to be leveled in order to work properly. It can be raised or lowered by rotating the four feet on the bottom of the machine. If you find that the surface is not level, rotate the feet until the ice maker becomes level. You may need to make several adjustments to level it. We recommend using a carpenter's level to check the machine.

1. Place a carpenter's level on top of the icemaker to see if it is level from front to back and side to side.
2. Adjust the height of the feet as follows:

Turn the leveling feet to the right to lower that corner of the ice maker. Turn the leveling feet to the left to raise that corner of the icemaker.

Line drawing of a refrigerator with labeled 'Up' and 'Down' arrows indicating orientation (no text or symbols on the device itself)

Important: Once you are ready to install it in a cabinet or directly on the floor, you must adjust the feet to level the ice maker.

Reversing the Door Swing

Important: Before you begin, unplug the ice maker or disconnect the power.

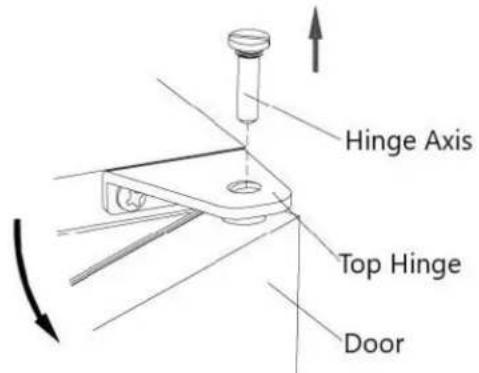

1. Using a flathead screwdriver, separate the hinge axis from top hinge.
2. Remove the three screws securing the top hinge to the cabinet. Remove the plug buttons opposite the top hinge. Place hinge, screws, plug buttons and hinge axis safely aside.
3. Open the door about 20 degrees, then lift the door off the bottom hinge 2 and set the door aside.
4. Remove the three screws securing the bottom hinge to the cabinet and the plugs opposite.
5. Rotate the door 180 degrees from its original position. The handle should be opposite the door hinges.
6. Replace the original top hinge on the opposite side at the bottom and the original bottom hinge on the opposite side at the top.
7. Install the hinge axis back through the bottom hinge. Gently place the door on the bottom hinge and open it approximately 20 degrees.
8. Install the top hinge axis and tighten firmly. Replace all plug buttons.

Water Supply and Drain Connections

The water supply should be ready at the point of installation. The water supply pressure should be a minimum of 15 psi with a static pressure of no more than 80 psi. A wall outlet directly behind the ice maker will make installation easier. When you connect the water supply hose and drain hose, pay attention to the label on the back that indicates the location of the water inlet and water outlet.

Important:

1. All installations must be in accordance with local plumbing code requirements.
2. Make certain that the pipes are not pinched or kinked or damaged during installation.
3. Check for leaks after connection.

Connecting the Water Supply Line

1. Turn off main water supply. Turn on the nearest faucet long enough to clear the line of water.
2. Find a 12 " to 34 " vertical cold water pipe near the installation location. The distance should be less than 9 feet. The water supply hose provided with the ice maker is about 9 feet long.
3. A shut-off valve must be installed to the main water supply. If the water pipe has a plain piece of copper tubing, attach a 14 " O.D. compression union to the tubing and remove the nut.
4. Connect nuts of the water supply hose to the tap and water inlet valve. Tighten firmly by hand, then tighten one-half turn with a 1/2 "open-end wrench.
5. Turn on the main water supply and tap. Check for water supply connection leaks. Tighten every connection (including connections at the water inlet).

Note: In general, it is always a good idea to filter the water. A water filter can remove taste and odors as well as particles. Where water is very hard, softened water may result in white, mushy cubes that stick together. Deionized water is not recommended.

Connecting the Drain Line

There are two choices for drain operation: one that drains by gravity and one that utilizes the internal drain pump. The unit can pump out water up to 5ft vertically or 5ft horizontally.

Note: There is a drain outlet on the ice maker. Please drain water through the drain hose provided with the ice maker.

1. Locate the floor drain near the ice maker. The distance should be less than 4.5 feet since the length of the long drain hose provided with the ice maker is about 4.5 feet.
2. Connect the drain hose to the back of the ice maker, then insert the other end of the hose into the floor drain.
3. All horizontal runs of drain lines must have a fall of 14 " per foot. An air gap will likely be required between the ice maker drain hose and the drain/waste receptacle. A stand pipe with a trap below it would be acceptable for the drain/waste receptacle. A floor drain would also be acceptable.
4. Pour 1 gallon of water into the ice storage bin to check for proper drainage.

How the drain pump operates

The components of the drain pump are the:

• Water reservoir
• Circuit Board
  • Water level switches 1 & 2
• Water Drain Pump

Operation

• All water coming from the overflow, and from the melted ice is collected inside the water reservoir.
• As soon as the water in the reservoir reaches the maximum level, the water level switch 1 will close, transmitting a low voltage current to the circuit board. The circuit board activates the water drain pump for 20 seconds, pumping out most of the water contained in the reservoir.

- If the water lever switch 2 closes, it will transmit a low voltage current to the circuit board. The circuit board activates the buzzer alarm, informing the user that the drain pump, water level switch or drain tube is malfunctioning. If this happens, power the unit off and back on. If the problem persists, contact customer service.

Vertical

Note: The water can be pumped out up to 5ft vertically or 5ft horizontally.

Horizontal

Note: The outlet of the drain hose must be raised higher than the water surface to prevent the drained water from flowing back into the reservoir.

Warning:

• If alarm buzzer sounds, turn off the ice maker and the water supply. Remove all ice from storage bin, and wipe up any water that may have overflowed.
• Check if there is any water in water trough at back of unit. If no water is present, the drainage pump may not be receiving the proper amount of power.
• Check power source. If the problem can be corrected, turn on the unit again. Also check that none of the water lines are kinked. If the problem remains, contact Customer Service.

System Schematic

Operation

Final Check List before Operation

1. Have all packing materials and tape been removed from the interior and exterior of the ice maker?
2. Did you clean the ice storage bin?
3. Have the installation instructions been followed, including connecting the machine to water and electricity? Does the unit have proper drainage?
4. Has the machine been leveled?
5. Is the ice maker in a site where the ambient temperature is between 50^ F and 100^ F and the water temperature is between 41^ F and 90^ F all year round?
6. Has the water supply pressure been checked to ensure a minimum of 15 psig with a static pressure not to exceed 80 psig?
7. Is there a clearance of at least 2" at the rear and 14 " at the top and sides for proper air circulation?
8. Has the power supply voltage been checked or tested against the nameplate rating? And has proper grounding been installed for the ice maker?
9. Is the ice maker plugged in?
10. Have you turned on the main water supply and the tap?
11. Have you checked for leaks at all water supply connections and at the drain?

Operating Method

1. Turn on the water tap, let the water trough fill, then find the control panel and press the ON/OFF button. When the unit is powered on, it will produce ice.
2. After three minutes, the machine will automatically go to the ice making stage, and the sound of flowing water will be heard.
3. When the batch of ice has been fully formed, ice will automatically be harvested to the ice storage bin.
4. When the ice storage bin is full, the sheet of cubes will not fall completely and will hold the ice slide down. The machine stops making ice automatically.
5. The unit will start making ice again after the ice cubes are removed. At that time, the ice slide will swing back to operating position.
6. Internal LED light: The internal LED light will be controlled by a magnetic reed switch that is installed on the inside of the door. It will turn On and Off automatically when the door opens and closes, respectively.
7. Water Pump Drain system: as soon as the melted ice water or other surplus water in the reservoir reaches the maximum level, the water level switch closes and transmits a low voltage current to the circuit board. The circuit board activates the water drain pump for 20 seconds, pumping out most of the water contained in the reservoir.

Important:

• Although the unit has been tested and cleaned at the factory, due to long-term transit and storage, the first batch of cubes must be discarded.
• Never turn the water supply tap off when the ice maker is working.
• Never touch the evaporator when the machine is running.
• Except to take ice from the unit, keep the door closed to reduce melting and ensure proper ice formation.

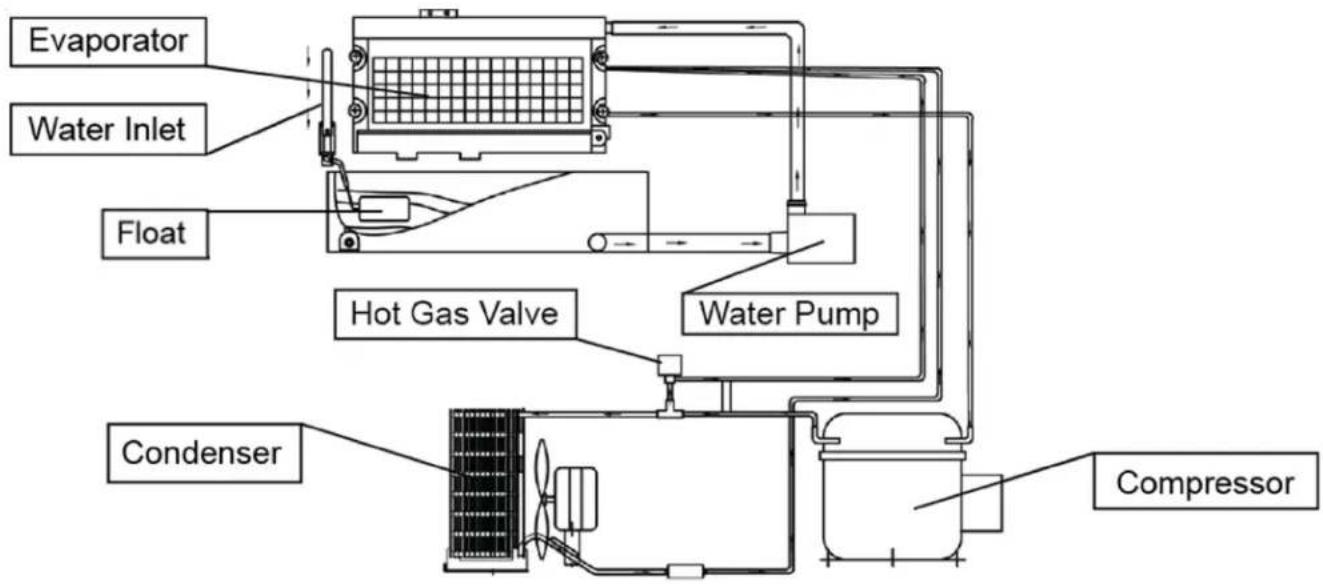

How the Machine Makes Ice

Turn the unit on by pressing the ON/OFF button on the control panel. The machine will automatically start the ice making stage. There are two distinct cycles: freeze and harvest. During the freeze cycle, water flows across the evaporator surface to form the ice. In the harvest cycle, the ice is released. A complete cycle can take 15 to 40 minutes, depending on temperature and operating conditions.

Freeze

During the freeze cycle the compressor is pumping refrigerant, the fan motor is blowing air, and the water pump is circulating water. When the batch of ice has been fully formed, the ice maker stops the freeze cycle and begins the harvest cycle.

Harvest

During the harvest cycle the compressor is still operating, but the water pump has stopped. The hot gas valve opens, diverting hot refrigerant gas into the evaporator. The gas warms the evaporator, causing the cubes to slide, as a unit, off the evaporator and into the storage bin. The freeze cycle will restart when all the cubes have been harvested.

How the Machine Uses the Water

The ice maker begins with a fixed charge of water that is contained in the water trough. During the ice-making process, fresh water enters the water trough continuously as the water from the trough freezes on the evaporator.

Control Panel

Control Panel

1. Bin Full (Red) LED: Bin Full indicator light.

When this LED is lit, the ice storage bin is full of ice or there is something obstructing the ice slide. The unit will stop producing ice. When ice cubes are removed from the ice storage bin, clearing the ice slide, the red LED will keep flashing for 3 minutes. Then the unit will restart and return to the ice making mode.

1. Ice Making (Green) LED: Ice Making indicator light.

When this LED is lit or flashing, the unit is working in the ice making mode.

1. Ice Harvest (Yellow) LED: Ice Harvest indicator light.

When this LED is lit, the unit is working in the Ice Harvest mode.

1. Mode button: Mainly for service.

When this button is pressed, the unit can change from Ice Making mode to Ice Harvest mode, or from Ice Harvest mode to Ice Making mode. The mode can be determined from the status of the green and yellow LEDs.

1. Ice Size Adjust button: When this is pressed and held for 3 seconds, the unit will enter the Ice Size Adjustment mode. Once in this mode, press 'Clean' to decrease the ice size, or press 'Mode' to increase the ice size. Please note that there are five larger ice sizes and five smaller ice sizes from the default. The current ice size can be determined from the status of the red, green, and yellow LEDs. The green, yellow, and red LEDs flashing synchronously indicates the default ice size. When decreasing the ice size with the 'Clean' button the green LED will flash once and the yellow LED will flash continuously. The green and yellow LEDs flashing synchronously indicates that the smallest ice size has been reached. When increasing the ice size with the 'Mode' button the red LED will flash once and the yellow LED will flash continuously. The red and yellow LEDs flashing synchronously indicates that the largest ice size has been reached.

Important:

- It's not recommended that the ice size be adjusted unnecessarily since this could damage the machine's controls.

- Do not let water contact the control panel.

Normal Sounds

Your new icemaker may make sounds that are not familiar to you. Most of the new sounds are normal. Hard surfaces like the floor and walls can make the sounds seem louder than they actually are. The following describes the kinds of sounds that might be new to you and what may be making them.

• Rattling noises may come from the flow of the refrigerant or the water line. Items stored on top of the icemaker can also make noises.
• The high efficiency compressor may make a pulsating or high-pitched sound.
• Water running from the evaporator to the water bin may make a splashing sound.
• As each cycle ends, you may hear a gurgling sound due to the refrigerant flowing in your icemaker.
• You may hear air being forced over the condenser by the condenser fan.
• During the harvest cycle, you may hear the sound of ice cubes falling into the ice storing bin.

Preparing the Icemaker for Long Storage

Important: Do not touch the power plug when your hands are wet. Never unplug the unit by pulling on the plug.

If the ice maker will not be used for a long time, or is to be moved to another place, it will be necessary to drain the system of water.

1. Shut off the water supply at the main water source.
2. Disconnect the water supply line from the water inlet.
3. Shut off the electric supply at the main electrical power source.
4. Take out the ice storage bin to remove ice and water. Dry it.
5. Pull off the drainage tube of the water trough to drain off all water. Dry out the trough.
6. Leave the door open to allow for circulation and to prevent mold and mildew.
7. Leave the water supply line and power cord disconnected until ready to reuse.

Cleaning and Maintenance

Caution: The icemaker must be thoroughly cleaned if it has been left unused for a long time. Carefully follow any instructions provided for cleaning or use of sanitizing solution. Do not leave any solution inside the icemaker after cleaning.

Periodic cleaning and proper maintenance will ensure efficiency, top performance, and long life. The maintenance intervals listed are based on normal conditions. You may want to shorten the intervals if you have pets, or there are other special considerations.

Note: Never keep anything in the ice storage bin that is not ice; objects like wine or beer bottles are not only unsanitary, but the labels may slip off and plug up the drain.

What Should be Kept Clean?

There are 5 things to keep clean:

1. The exterior
2. The ice bin and water trough
3. The condenser
4. The water distribution tube
5. The ice-making system

Warning: Before proceeding with cleaning and maintenance operations, make sure the power line of the unit is disconnected and the water line is shut off. (EXCEPTION: Cleaning of ice-making system)

Exterior Cleaning

The door and cabinet may be cleaned with a mild detergent and warm water solution such as 1 ounce of dishwashing liquid mixed with 2 gallons of warm water. Do not use solvent based or abrasive cleaners. Use a soft sponge and rinse with clean water. Wipe with a soft clean towel to prevent water spotting. If the door panel has a stainless finish, it can discolor when exposed to chlorine gas and moisture. Clean stainless finish with a cloth dampened with a mild detergent and warm water solution. Never use an abrasive cleaning agent.

Ice Bin and Water Trough Cleaning

The ice storage bin should be sanitized occasionally. Clean the water trough before the ice maker is used for the first time or reused after stopping for an extended period of time. It is usually convenient to sanitize the trough after the ice making system has been cleaned (see section Ice Making System Cleaning) and the ice storage bin is empty.

1. Disconnect power to the unit.
2. Open the door and take out the removable storage bin. With a clean cloth, wipe down the interior of the unit with a sanitizing solution made of a mild detergent and hot water (95°F to 115°F).
3. Rinse thoroughly with clean water.
4. Put the cleaned and empty ice storage bin back inside the unit.
5. Reconnect power to the unit.

The ice scoop should be washed regularly. Wash it just like any other utensil.

Warning: DO NOT use solvent-based cleaning agents or abrasives on the interior. These cleaners may transmit taste to the ice cubes, or damage or discolor the interior.

Condenser Cleaning

A dirty or clogged condenser prevents proper airflow, reduces ice making capacity, and causes higher than recommended operating temperatures that may lead to component failure. Have the condenser cleaned at least once every six months.

1. Unplug the ice maker or disconnect power.
2. Remove the 2 screws at the bottom of the front cover and gently pull it off.

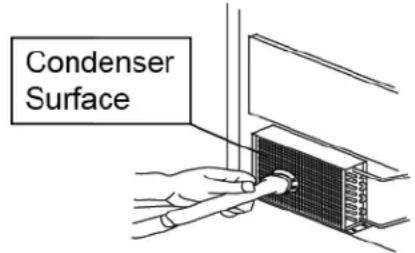

3. Locate the condenser directly behind the front cover.
4. Remove dirt and lint from condenser fans and the unit compartment with a brush attachment on a vacuum cleaner.

1. Reattach the front cover.
2. Plug in the icemaker or reconnect power.

Warning: DO NOT touch the condenser fins. They are sharp and can be damaged easily.

Water Distribution Tube Cleaning

When you find that the ice cubes are incompletely formed or the output of ice cubes is low, the water distribution tube may be blocked. Set the ICE/OFF/WASH switch to OFF, rotate the water distribution tube, and locate the holes in the distribution tube. Using a toothpick or similar tool, dredge the holes, then rotate the water distribution tube back to its original position. If the tube is badly blocked, clean it as follows:

1. Shut off the water supply.
2. Disconnect the water hose from the distribution tube by cutting the zip tie.
3. Remove the 2 Phillips screws from the splash guard and set the parts aside.
4. Lift the right side of the water distribution tube, then remove it.
5. Remove the inner tube from the outer tube.
6. With a brush, clean the tubes with a dilute solution of warm water and a mild detergent such as dishwashing liquid. After removing dirt and debris from the surface, rinse the tubes with clean water.
7. Replace the inner tube into the outer tube making sure it lines up correctly. The notch on the inner tube must lock into place. The inner tube should not rotate when inserted correctly. The water distribution tube will leak in not reassembled correctly.
8. Reconnect the water hose and replace the zip tie.
9. Replace the water distribution tube into the unit.
10. Replace the splash guard.
11. Turn on the water supply.

Ice-making System Cleaning

Caution:

• Many ice machine cleaners contain acids.
• DO NOT use or mix with any other solvent-based cleaner products.
• Use rubber gloves to protect your hands.
• Carefully read all safety instructions printed on the container of the ice machine cleaner.
• Discard the first batch of ice produced after cleaning

Minerals that are removed from water during the freezing cycle will eventually form a hard scaly deposit in the water system. Cleaning the system regularly helps remove the mineral scale buildup. How often you need to clean the system depends upon how hard your water is or how effective your filtration may be. With hard water of 15 to 20 grains/gallon (4 to 5 grains/liter), you may need to clean the system as often as every 6 months.

1. Make sure that all the ice is off of the evaporator. If ice is being made, wait for cycle completion, then press the machine's ON/OFF switch on the control panel.
2. Remove all ice from the storage bin.
3. Keep the ice maker connected to the water supply, Pour 200g of Nickel-Safe Ice Maker Cleaner Solution into the water trough. After about 5 minutes, press the ON/OFF button and the CLEAN button, initiating the wash cycle. The machine will run the Automatic Clean Mode.
4. Allow 30 minutes for proper cleaning. After cleaning, press the ON/OFF button again. Drain off the waste water to some container by drain pipe in the left of the water trough.
5. Repeat steps 3 and 4 (without Ice Maker Cleaning Solution) to rinse the ice making system 3 times.
6. Note: The use of the Ice Maker Cleaner Solution in the water bin during the rinse is not needed.
7. Prepare a sanitizing solution made of a mild detergent and hot water (95°F to 115°F). Wipe the entire bin inside and out.
8. Fill a spray bottle with the sanitizing solution and spray all corners and edges, making sure to cover all surfaces with the solution.
9. Allow the solution to be in contact for at least 3 minutes, then dry all surfaces.
10. Repeat step 5 to rinse the ice making system one more time.
11. Turn the unit on by pressing the ON/OFF button on the control panel. The machine will return to the regular ice making mode. Discard the first batch of ice.

Troubleshooting

Before Calling for Service

If the unit appears to be malfunctioning, read through the "Operation" section of this manual first. If the issue persists, check this Troubleshooting section.

Issue	Possible Cause	Solution
The machine won't operate.	The icemaker is unplugged.	Plug the icemaker in.
	The breaker is tripped.	Reset the breaker.
	The icemaker power switch is OFF.	Switch the icemaker power switch to ICE (ON).
	The ice storage bin is full of ice.	Take away some ice cubes and make sure the ice-full probe is free of ice.
The water doesn't feed in after the icemaker starts.	The water supply tap is turned off.	Turn on the water supply tap.
	The water supply pipe is not properly connected.	Reconnect the water supply pipe.
The machine makes ice, but the bin does not fill up with ice.	The condenser may be dirty.	Clean the condenser.
	The air flow to the ice maker may be obstructed.	Check the installation. See the “Installation” section.
	The ambient temperature and water temperature are high, or the unit is close to a heat source.	Check the installation. See “Installation” section of this manual.
Water is leaking out of the unit.	A few water droplets are on the door.	Under some conditions, humidity may condense on the door. Consider moving the unit or just be more careful when you open the door.
	The water supply connection is leaking.	Tighten the fitting. See the “Connecting the Water Line” section.
	The unit is not level.	Level the feet. See the “Leveling the Ice Maker” section.
The ice cubes are partially formed or are white at the bottom.	There is not enough water in the water bin.	Check if the water supply pressure is below 15 PSI.
		Check the water supply. The filter may be restricted.
		Check for a water leak in the water trough.
There is noise during operation	The unit is not level.	Level the feet. See the “Leveling the Ice Maker” section.
	Certain sounds are normal.	See the “Normal Sounds” section.
The icemaker stops suddenly while making ice.	The electricity is off.	Reconnect the power supply line.
	The room temperature is out of the stated range.	Make sure unit is installed with correct clearances and within the stated ambient temperature range. See “Installation” section of this manual.
The body of the ice maker is electrified.	The ground line isn't in the socket.	Use the correct plug and outlet.
Scale Builds up quickly inside the machine.	The calcium level in the water is too high.	Use a water filter installed in front of the water inlet valve.

Specifications

Note: Technical data and performance information are provided for reference only.

Description of product	Built-in Ice Maker
Model	IB450SSP
Voltage/Frequency	AC 115V~60Hz
Ice-Making / Ice-Harvest rated current	3.0A / 3.6A
Color	Black Cabinet, Stainless Steel Door
Ice Storage capacity	25 lbs. maximum
Ice-making capability	50 lbs. / day *
Refrigerant	R134a, 3.88 oz.
High / Low side pressure	350 psi / 130 psi
Dimensions (Width x Depth x Height)	14 9/16" x 23 3/8" x 32 7/8"
Net Weight	84 lbs.

Specifications are subject to change. Check the rating label on the ice maker for the most accurate information.

* The actual quantity of ice produced per day will vary with ambient room and water conditions.

Notes on Ice Storage: The ice maker will automatically shut off when the ice bin is full. The ice bin compartment is insulated, but not refrigerated and the ice in the bin will slowly melt and go out the drain. Once enough of the ice has melted, the ice maker will automatically start making more ice.

EdgeStar Limited Warranty

Full One-year Parts and Labor

This product is warranted by EdgeStar and is subject to any conditions set forth as follows:

WHAT IS COVERED:

For a period of ONE (1) YEAR from the date of original retail purchase, EdgeStar will repair or replace any part free of charge including labor that fails due to a defect in materials or workmanship. Labor will be performed free of charge at an authorized EdgeStar repair facility and EdgeStar will supply new, rebuilt, or refurbished parts free of charge. EdgeStar may request a defective part be returned in exchange for the replacement part. All replacement parts or products will be new, remanufactured, or refurbished. All products and parts replaced by EdgeStar under warranty service become the property of EdgeStar. After the 12 month period, EdgeStar will no longer be responsible for labor charges incurred or replacement parts. All defective products and parts covered by this warranty will be repaired or replaced on a mail-in basis to an EdgeStar authorized repair facility.

This warranty applies to the original purchaser only, and only covers defects in workmanship experienced during operation of the product under normal service, maintenance, and usage conditions. This warranty applies to the purchase and use of this product in residential settings within the contiguous United States of America.

Exceptions: Commercial or Rental Use Warranty

90 days labor and parts from date of original purchase. No other warranty applies.

WHAT IS NOT COVERED- The following limitations apply to the coverage of this warranty. This warranty does not cover:

-Labor charges for installation, setup, or training to use the product.

-Shipping damage, and any damage caused by improper packaging for shipment to an authorized service center, and any damaged caused by improper voltage or any other misuse, including abnormal service, handling, or usage.

-Cosmetic damage such as scratches and dents.

-Normal wear and tear on parts or replacement of parts designed to be replaced, e.g. filters, cartridges, batteries.

-Service trips to deliver, pick-up, or repair, install the product, or to instruct in proper usage of the product.

-Damages or operating problems resulting from misuse, abuse, operation outside environmental specifications, uses contrary to instructions provided in the owner's manual, accidents, acts of God, vermin, fire, flood, improper installation, unauthorized service, maintenance negligence, unauthorized installation or modification, or commercial use.

-Labor, service transportation, and shipping charges for the removal and replacement of defective parts, beyond the initial 12 month period.

-Products that have been modified to perform outside of specifications without the prior written permission of EdgeStar.

-Products lost in shipment, or theft.

-Products sold AS IS or from an unauthorized reseller.

-Products that have had their serial numbers removed, defaced, or with serial numbers that have been invalidated.

-Damage from other than normal household use.

-Replacement or repair of household fuses, circuit breakers, wiring or plumbing.

-Damage to personal property from use of product.

-Damage from service other than from an authorized EdgeStar repair facility.

-Hoses, knobs, lint trays and all attachments, accessories and disposable parts.

-Any service charges not specifically identified as normal such as normal service area or hours.

-Any special or consequential damages arising out of the use of the product.

OBTAINING WARRANTY SERVICE: If you believe your product is defective, contact EdgeStar Customer Support for troubleshooting assistance and warranty service at www.edgestar.com or call 1-866-319-5473. Before contacting Customer Support you are required to have your model number, serial number, and proof of purchase available upon request. Once an EdgeStar authorized representative has confirmed that your product is defective and eligible for warranty service, the product must be returned to an EdgeStar authorized repair facility. EdgeStar is not responsible for damage resulting from shipper mishandling or improper packaging. Do not return a defective product to the place of purchase. Products received without a return authorization number will be refused.

THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE EXTENT ANY IMPLIED WARRANTY IS REQUIRED BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESS WARRANTY PERIOD ABOVE. NEITHER THE MANUFACTURER NOR ITS DISTRIBUTORS SHALL BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY NATURE, INCLUDING WITHOUT LIMITATION, LOST REVENUES OR PROFITS, OR ANY OTHER DAMAGE WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE. IN NO EVENT AND UNDER NO CIRCUMSTANCE OF ANY TYPE OR KIND SHALL THE SELLER, MANUFACTURER AND/OR DISTRIBUTOR BE LIABLE FOR ANY REASON, UNDER ANY THEORY, FOR MORE THAN THE BASIC COST OF THE PRODUCT TO THE PURCHASER OR END USER. SOME STATES DO NOT ALLOW THE EXCLUSION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE EXCLUSION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.
