SKIP 2 - Stroller Redsbaby - Free user manual and instructions

Brand	Redsbaby
Model	SKIP 2
Product Type	Stroller
Dimensions (Open)	Approx. 100 x 60 x 110 cm
Dimensions (Folded)	Approx. 80 x 40 x 30 cm
Weight	Approx. 8.5 kg
Recommended Age	0 to 36 months
Maximum Child Weight	22 kg
Seat Recline	Multiple positions, including flat for newborns
Canopy	Large extendable canopy with UV protection
Harness	5-point adjustable harness
Brakes	Rear wheel foot brake
Suspension	All-wheel suspension for smooth ride
Wheels	4 x 8 inch (front) / 4 x 10 inch (rear) EVA foam tyres
Storage Basket	Large accessible basket under seat
Handlebar	Adjustable height handlebar
Folding Mechanism	One-hand compact fold with auto-lock
Power / Power Supply	Manual operation (no power required)
Main Features	Versatile travel system compatible, reversible seat, multi-position recline
Cleaning & Maintenance	Wipe frame with damp cloth; fabric seat pad hand wash cold; do not bleach
Safety Certifications	Complies with EN 1888:2012
Spare Parts Availability	Contact Redsbaby or authorized retailers for replacement parts

Frequently Asked Questions - SKIP 2 Redsbaby

How to fold the SKIP 2 stroller?

To fold, ensure the stroller is empty and the brakes are engaged. Pull the folding trigger (usually a lever or button) located on the handlebar or frame, then push the handlebar forward and down. The stroller will fold automatically into a compact shape. Secure the auto-lock if present.

What is the weight limit for the SKIP 2?

The maximum recommended weight for the child is 22 kg (approximately 48.5 lbs). The stroller is suitable from birth up to 36 months.

Can the seat be reversed to face the parent?

Yes, the SKIP 2 seat is reversible. You can switch between parent-facing and world-facing modes by releasing the seat attachment clips and rotating the seat.

How to clean the fabric parts?

The fabric seat pad can be removed and hand washed in cold water with mild detergent. Do not use bleach or machine wash. Let it air dry completely before reattaching. The frame can be wiped with a damp cloth.

Is the SKIP 2 compatible with a car seat?

Yes, the SKIP 2 is part of a travel system and is compatible with selected infant car seats (such as Redsbaby car seats or adapters). Use the appropriate adapters to attach the car seat onto the stroller frame.

How to adjust the handlebar height?

The handlebar has multiple height positions. To adjust, press the button or squeeze the lever located at the center of the handlebar, then slide it up or down to your desired height. Release to lock.

What type of tyres does the SKIP 2 have?

The tyres are EVA foam, which are puncture-proof and require no inflation. They provide good shock absorption and are low maintenance.

How to engage the brake?

The brake is located on the rear wheel axle. To engage, press down the brake lever with your foot. To release, lift the lever upward. Ensure the stroller is stationary before engaging.

Is the canopy large enough for sun protection?

Yes, the SKIP 2 features a large extendable canopy with UPF 50+ UV protection. It can be adjusted to cover your child adequately.

Where can I get spare parts?

Spare parts can be ordered directly from the Redsbaby website or through authorized retailers. You may need to provide the model name 'SKIP 2' and the specific part needed.

USER MANUAL SKIP 2 Redsbaby

Getting ready for more adventures.

Family life is all about creating memories that last a lifetime; and we're committed to celebrating life's beautiful moments, a philosophy that touches everything we do. We can't wait to join you on your journey and see your story unfold.

We're with you, for the journey.

Contents

General instructions 2

Warranty information 3

Product Care 6

Warnings and safety precautions 8

Features and components 13

Assembly instructions 14

Frame 14

Front and back wheels 14

Seat, canopy and basket 14

Brake component 14

Using your SKIP ^2 15

Unfolding 15

Folding 16

Lifting and carrying your SKIP ^2 safely 18

Using the tether strap 18

Engaging and releasing the brake 19

Locking the front swivel wheels 20

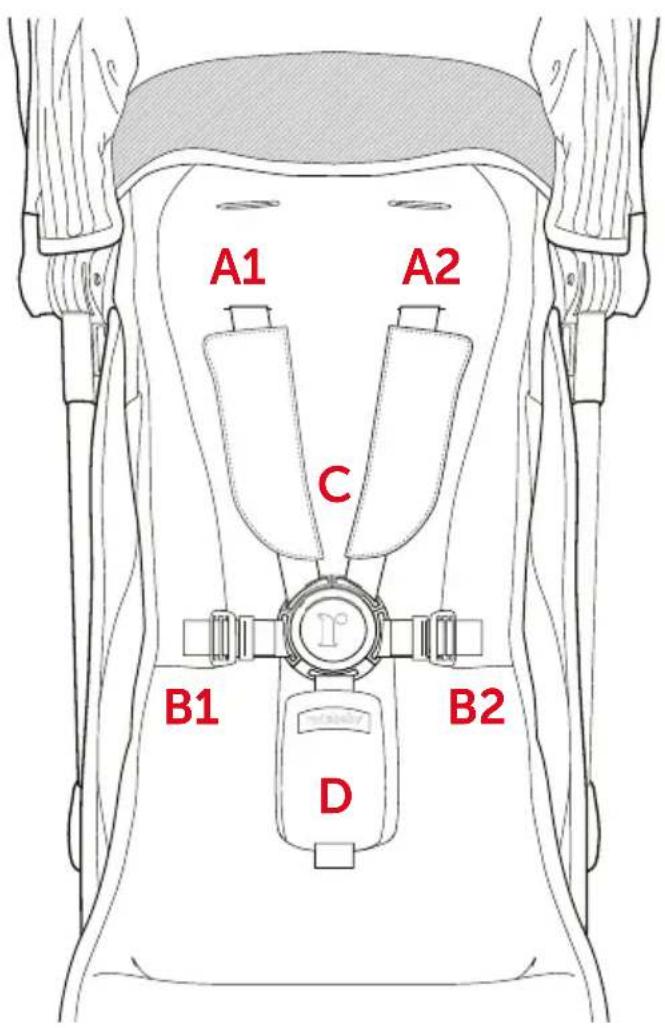

Using the 5-point safety harness 21

Adjusting the seat 23

Adjusting the footrest 24

General Instructions

This document contains important information and must be kept for future reference.

Please read thoroughly before commencing assembly, and use of your SKIP ^2 . Incorrect assembly, and use can be dangerous and result in serious injury or even death.

There may be slight variations in the design of your product to that shown in the images of this instruction manual.

TIP! You can also view our Assembly and How To videos here: www.redsbaby.com.au/videos/skip2-stroller/

Warranty information

24 Month Warranty

The SKIP ^2 and its accessories come with a 24 Month Warranty to cover against faults in materials and workmanship when your products are used under normal conditions, according to our user manuals and technical specifications.

To receive an additional 12 month warranty, in addition to the standard 24 month warranty, for a total of 3 years, simply register your pram or stroller online within 60 days of receiving it.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement, or refund, for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired, or replaced, if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

The 24 Month Warranty period starts from the date your product(s) are dispatched from our warehouse. This includes products that are purchased via pre-order. For a claim to be valid, it must be made within the claims period.

Your 24 Month Warranty covers manufacturing defects relating to your stroller/accessories as listed below:

• Frame, frame, wheels and adaptors;
- 5-point harness buckle, padding, strapping and assembly; and
- All soft good seams, bindings and zippers.

To the extent permitted by law, the following are not covered by warranty:

• Failure or defects resulting from improper care or use;
• Normal wear and tear including scratches to the stroller frame;
• Scuffs and tears to leatherette handles/bumpers;
• Products purchased second hand or from an unauthorised distributor;
• Fading or discolouration of fabrics and materials due to cleaning and/or excessive sun exposure;
• Faulty or incorrect assembly of the products by the customer;
• Installation of a part or accessory not compatible with the product and/or not manufactured by Redsbaby;
• Any modification or alteration not conducted or authorised by Redsbaby;
• Corrosion or rust on the wheels and frame due to extreme environmental conditions, including high humidity, salt spray, ice or snow or due to insufficient maintenance;
• Accidental or intentional damage, abuse or neglect;
• Damage to handle bar grips or fabrics as a result of normal handling and daily use;
• Airline/transport damage: check your Redsbaby product carefully after it has been handled by the airline (or other transporters) and if required, submit your claim directly to your travel insurer/airline;
• Consumer dissatisfaction with the product in terms of disliking the fit, weight, functionality, colour or style;
• If the batch number sticker has been damaged or removed; and
• When the product has not been used for normal use and in accordance with the manufacturer's instructions.

For more information on our 24 Month Warranty, please read our Terms and Conditions at www.redsbaby.com.au. Please ensure you follow the assembly instructions, which can be found in this instruction manual.

How to make a warranty claim

Visit the Support Centre page on our website, www.redsbaby.com.au and complete the 'Warranty Claim' form. Please ensure all fields are completed; the more detailed you are with your description of the defect, the more quickly we will be able to repair or replace your product. Once your form has been submitted, a member of our Customer Care team will contact you within seven (7) business days. Depending on the nature of the claim, we will provide a replacement part/product to resolve the issue or arrange a repair at one of our Australia-wide repair centres. If your pram is sent for repair, please take care to repack the product in secure and stable packaging to avoid any damage occurring in transit. We do not take responsibility of any damage that occurs in transit to and from our pram repairer.

Repairs and replacements provided within the claims period within Australia will be provided free of charge, including shipping costs. If you require replacement parts to be shipped internationally within the warranty claim period, Redsbaby will provide the parts free of charge, however the customer is responsible for covering the cost difference between international shipping and local shipping, based on the original order shipping address.

In order for your claim to be valid, you must stop using the product immediately once you become aware of a fault or defect, and contact Redsbaby following the process above to point out the defect.

You can also call our Customer Care team on 1300 344 964 for assistance with your warranty claim.

Product care

IMPORTANT:

Ensure you follow the regular maintenance and care instructions. Pay special attention to maintenance and care of the brakes.

General Maintenance

• Regularly inspect the locking devices, brakes, harness assembly, catches, seat adjusters, joints and fixings to ensure they are secure and in full working order.
• Do not store your SKIP^2 in your car for prolonged periods of time, especially when it is hot as this may lead to warping some of the plastics parts and reduce the life of your product.
• The brakes and wheels are subject to wear and should be replaced as and when necessary. Brakes are available through contacting our Customer Care team at [e-mail]
• Should any parts of the SKIP^2 become stiff or difficult to operate, ensure that dirt is not the cause. Use a light application of a silicone spray lubricant, ensuring the lubricant penetrates between the components. Use sparingly, as excessive application may encourage the accumulation of dirt. Regular light lubrication of moving parts will extend the life of your SKIP^2 and make operating, opening and folding much easier.
• Do not leave the SKIP^2 in sunlight for prolonged periods of time, as the colour of some fabrics may fade.
• Store the SKIP ^2 in a dry, well-ventilated and safe place.
• Do not use your SKIP ^2 if any screws are loose or missing or if any component is damaged.

Cleaning

Plastic and metal parts

• Sponge clean with warm water and a mild detergent and then air dry.
• Do not use any abrasive or corrosive cleaning products on your SKIP ^2 .
• Do not use products that contain alcohol, as they may cause stains, discolouring and damage to the leatherette parts on your SKIP ^2 . This includes applying hand sanitiser to your hands or directly on the product.

IMPORTANT:

Do not use products that contain alcohol, as they may cause erosion, stains, discolouring and damage to the leatherette parts on your SKIP ^2 . This includes applying hand sanitiser to your hands or directly on the product.

Fabrics

• May be cleaned by sponging lightly with warm water and a mild detergent. Then air dry.
• For more instructions, follow the care labels on each fabric item.

IMPORTANT:

Do not place any fabric or other component of your SKIP ^2 in the dryer. Allow all parts to dry thoroughly before storing.

Warnings and safety precautions

Please read the following warnings and safety precautions thoroughly before using your SKIP ^2 . Incorrect assembly and use can result in serious injury or death.

Always follow safety instructions for assembly, folding and use.

After unpacking, immediately discard any plastic wrapping and packaging materials, as these can lead to a choking hazard.

GENERAL WARNINGS:

• To avoid injury or death: Always apply the brakes whenever the Redsbaby SKIP ^2 is stationary.
• Do not leave children unattended.
• Secure the child in the harness at all times.
• Do not carry extra children or bags on the Redsbaby SKIP ^2 .
• Make sure children are clear of any moving parts if you adjust the Redsbaby SKIP ^2 , otherwise they may be injured.
• Ensure the frame fold locks are engaged correctly before placing a child in the Redsbaby SKIP ^2 .
• Follow the manufacturer's instructions.
• Put on all the brakes whenever you park the Redsbaby SKIP ^2 .
• Use the harness at all times.
• When not in use disconnect shoulder straps from the waist strap and/or buckle.
• The harness can form loops which may cause a strangulation hazard. Never leave a harness connected when not fitted to a child in the Redsbaby SKIP ^3 .

• Use the tether strap to stop the Redsbaby SKIP ^3 rolling away.

• Do not use the seat with any other models of stroller.

• Do not use any accessories that are not designed for or compatible with the Redsbaby SKIP ^2 .
  • Take care when using on stairs or escalators.
• We recommend you do not use the Redsbaby SKIP on stairs, as this may damage the frame and lead to breakage.
• Do not use or leave the Redsbaby SKIP ^2 near open fire or exposed flames.
• Brakes must always be applied when the Redsbaby SKIP is not moving.

GENERAL SAFETY PRECAUTIONS:

• When the vehicle is being folded and unfolded, there is potential for fingers or parts of the body to be injured and due care should be exercised.
• Overloading, incorrect folding or the use of non-approved accessories may cause injury or damage your Redsbaby SKIP ^2 .

• Ensure you follow the regular maintenance and care instructions included in this manual. Pay special attention to maintenance and care of the brakes.

• The Redsbaby SKIP^2 can be used for one (1) child only.

• Do not hang bags on the Redsbaby SKIP ^2 handles, as this can cause it to become unstable.
• Take care when changing terrains and when going over uneven surface levels (inclines/declines/curbs/obstacles) with your pram. Ensure you apply pressure to the handle to lift the front wheels over uneven surface levels or when meeting an incline or decline as required (also called ‘popping’ the front wheels). Failure to take care when changing terrains or surface levels, and when going over uneven surface levels, may cause your pram to become unstable.
• Do not lift or carry the Redsbaby SKIP^2 when a child is in it.
• Do not lift or carry the Redsbaby SKIP ^2 when fully assembled. Only lift and carry when folded.
• The Redsbaby SKIP ^2 is designed for use on flat or gentle sloping surfaces and may be unstable on higher sloping and uneven surfaces. The vehicle may tip over when used incorrectly on steep inclines/declines.
• Do not leave the rain cover on without the ventilation window on the front of the rain cover open.
• When using your Redsbaby SKIP ^2 on stairs or escalators, take care.

• Maximum weight for a child in the seat is 20kg (44.1 lbs).
• Maximum weight for items in the basket is 5kg (11lbs).

Features and components

1. Handle bar
2. Frame fold latches
3. Seat release mechanism
4. Frame
5. Seat unit
6. Carry strap
7. Axle bar
8. Brake
9. Rear wheels
10. Extension canopy
11. Adjustable foot rest
12. Fold lock
13. Basket
14. Front swivel wheels

Assembly instructions

Frame

The frame comes fully assembled on your SKIP ^2 .

Front and back wheels

The front and back wheels come fully assembled on your SKIP ^2 .

Seat, canopy and basket

The seat, canopy and basket come fully assembled on your SKIP ^2 .

Brake component

The brake comes permanently assembled on your stroller frame and is located in the middle of the frame and is red in colour.

Using your SKIP ^2

To unfold

1. Place the folded stroller on the ground with the handle bar facing upward and close to your body.

2. Unlatch the red frame fold lock on the side of the SKIP ^4 and push the frame away.

1. Place one hand on the handle bar and gently lift up. The SKIP ^2 will unfold as you lift up.

2. Ensure the frame components have clicked into place and the frame is sturdy before use.

3. Adjust the seat unit and foot rest as required.

To fold

1. Fold back the canopy.
2. Pull the latch located on the bottom of the seat in an upward direction until it touches the seat back.

1. With your hands on both left and right side of the frame, simultaneously slide the levers on each side towards you, using a trigger motion.

2. Pivot the handle bar forward and downward so that the canopy folds over the footrest.

3. Place your hands on the left and right hand size of the frame and squeeze together and push downward.

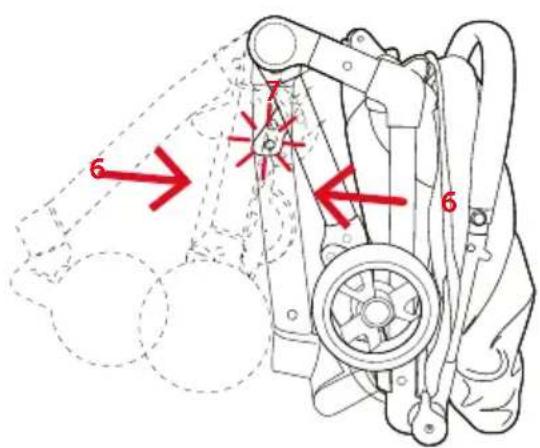

1. As the stroller begins to fold in, reach for the axle bar and pull up and against your body.

2. Ensure the fold lock is engaged.

IMPORTANT:

- Do not lift or carry the SKIP^2 when a child is in it.

- Only lift and carry when folded and frame lock is engaged.

• Always lift and carry the stroller using two hands, or by the carry strap.

Lifting and carrying your SKIP ^2 safely

1. Always lift and carry the frame using two hands, or by the carry strap.
2. Ensure the frame fold lock is engaged.

IMPORTANT:

• Do not lift or carry the SKIP^2 when a child is in it.
• Do not lift or carry the SKIP^2 when fully assembled.
• Only lift and carry when folded.

Using the tether strap

Attach the tether strap to your wrist at all times when using the SKIP ^2 .

The SKIP ^2 tether strap can be used to further secure the SKIP ^2 when in the folded position.

Simply fold the SKIP ^2 , then loop the tether strap around the axle bar and press the Velcro sides together.

Engaging and releasing the brake

The brake is located between the rear wheels of the SKIP ^2 . The brake is identified by its red colour.

1. To engage the brake, press downwards and backwards on the brake until you feel and hear a 'click'.
2. To release the brake, press your foot forwards on the brake in the opposite direction until the brake lock disengages. You can also flick the brake upwards to disengage if it is comfortable for you to do so.

Line drawing of a bicycle steering wheel with a red lock icon and arrow indicating rotation (no text or symbols)

IMPORTANT:

Ensure you have disengaged the brake completely before pushing your stroller.

Locking the front swivel wheels

1. Press downwards on the buttons located on the front of the front wheel housing until you hear and feel a 'click'.
2. To unlock, simply release the button in the opposite direction. When released successfully, you will hear and feel a 'click'.

Technical line drawing of a mechanical assembly with a magnified inset showing a component detail (no text or symbols)

Using the 5-Point Safety Harness

1. Insert the shoulder and waist strap tabs into the buckle individually, and click backwards to secure. You will feel and hear a firm 'click' when each strap is secured.

IMPORTANT:

For the safety of your child the 5-point safety harness must be properly fitted and adjusted.

1. To unlock the 5-point safety harness, simply press the button in the middle of the centre buckle (C) to release all straps at once.

Note: Padding has been provided for the shoulder straps (A1) and (A2) and crotch strap (D) for the comfort of your child.

1. Adjust the shoulder strap (A1) and (A2), waist straps (B1) and (B2) and crotch strap (D) to the desired fit.
2. Adjust the shoulder height by accessing the back of the seat and feeding the shoulder strap tab from the back to the front of the seat. Place the tab at your desired height and feed the excess tab into the back of the seat.

Note: The shoulder straps should sit in the position just above the shoulders of your child.

Adjusting the seat

1. To recline the seat, squeeze both sides of the release mechanism located at the back of the seat. Pull the mechanism along the straps, allowing the seat back to drop to the desired position.

2. To incline the seat, squeeze both sides of the release mechanism and push the mechanism along the straps, moving the seat upward to the desired position.

Adjusting the footrest

The footrest can be adjusted into four positions. Simply press the buttons on both sides of the footrest to adjust the footrest downwards into the desired position. To adjust into the upper positions, simply lift the footrest upwards and it will click into position and hold with downward pressure.

IMPORTANT:

The footrest will move freely in the upwards direction and doesn't lock into place. The footrest has been designed this way, to allow it to fold into the frame without resistance when folding the SKIP^2 .

Technical line drawing of a mechanical component with no visible text or symbols

Exciting times ahead.

We can't wait to join you on your journey and see your story unfold.

Share them with us on:

for the journey

'REDSBABY' is a registered

trademark of Redsbaby Pty Ltd

ABN 68 625 563 519

©Redsbaby Pty Ltd 2020
