USER MANUAL SC-15 Atlas Sound
TECHNICAL SPECIFICATIONS
Models: SC-15 (8-ohm)
SC-15-45 (45-ohm)
Power Rating: 15 watts
Freq. Resp. (8-ohm): 600-6,000 Hz (±5dB)
Sensitivity (SPL)
(8-ohm): 117dB at 15 watts (peak)
114dB at 15 watts/1 meter (avg) 600-6,000 Hz
103dB at 1 watt / 1 meter (avg) 600-6,000 Hz
Sensativity as a
Microphone: -19dB
Dispersion Angle: 95° (-6dB, 2 kHz octave band)

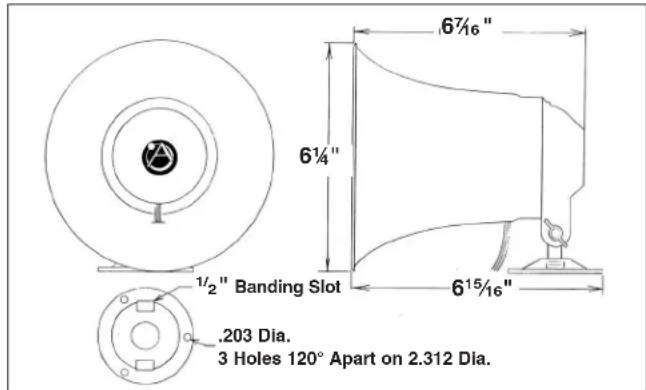

Dimensions: 6¼" Dia. x 6½" D (159mm x 176mm)
Weight: 2½ lbs. (1.13kgs)
Finish: Light beige epoxy
ARCHITECT AND ENGINEER SPECIFICATIONS
Loudspeaker shall be Atlas Sound ____ (Model SC-15 or SC-15-45) or approved equal. Continuous full range audio power rating shall be 15 watts at frequencies above horn cut-off. Frequency response shall be 600-6,000 Hz (±5dB). Sound pressure level shall be 114dB measured at rated power, 1 meter. Dispersion angle shall be 95°. Built-in compression driver shall have an impedance of ____ (8 or 45-ohms as specified). Finish shall be light beige epoxy. Weight is 2½ lbs. (1.13kgs).
ACCESSORIES:
T-10: 25/70.7V Line Matching Transformer
T-11: 25/70.7V Line Matching Transformer
in Outdoor Housing
FEATURES
- Value-priced, high efficiency, multi-function loudspeaker
- Precision-built 15 watt compression driver for optimum power and intelligibility
- Environment resistant construction for long term indoor/outdoor use
- Compact size and styling enhance application flexibility
APPLICATIONS
Atlas Sound SC Series are compact, environment-resistant loudspeakers for high-efficiency sound and signaling in intercom, sound and alarm systems. Value-priced units are ideal as extension loudspeakers and communication receivers. They are intended for indoor or outdoor installations in low to medium noise level environments when spot-coverage or directional sound projection is desired. Popular applications for these U.S.-crafted loudspeakers include retail service establishments, drive-in facilities, industrial and manufacturing areas, warehouses, social and recreational centers.
GENERAL DESCRIPTION
SC Series double re-entrant acoustic path loudspeakers are low-cost, weatherproof units which reproduce voice and signal communication with high intelligibility. Models include a built-in 15-watt compression driver with 8 or 45-ohm impedance. Model SC-15-45 is a 45-ohm unit for intercom uses and Model SC-15 is an 8 ohm version for multi-purpose installations. All SC Series loudspeakers are equipped with a high impact molded plastic bell, metal mounting bracket and will an accommodate optional 70.7/25-volt transformer. They also feature a swivel base with nut assembly for easy-to-adjust horizontal and vertical positioning. Termination is via a 12" connecting cable. Finish is light beige epoxy.
Specifications subject to change without notice
1601 JACK MCKAY BLVD. / ENNIS, TEXAS 75119 U.S.A.
TELEPHONE: (800) 876-3333 / FAX (800) 765-3435
AtlasSound.com

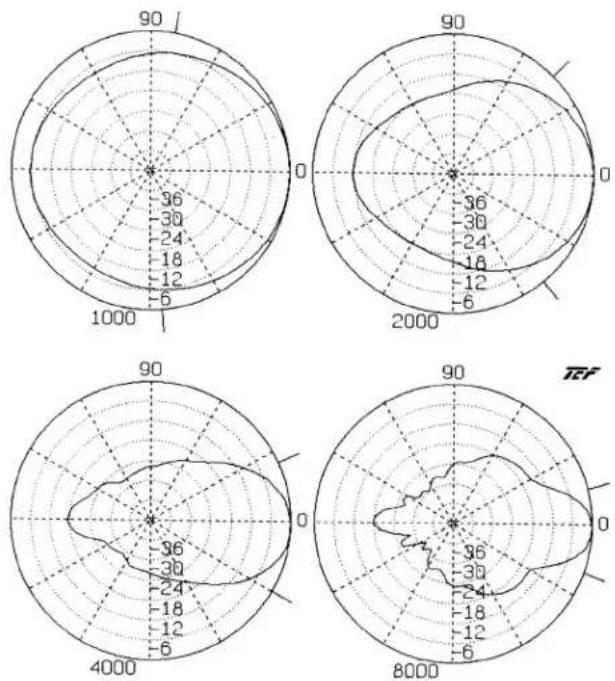

Horizontal Polars Are Normalized To Zero On Axis
| SC Series |
| Frequency (Hz) Q DI Beamwidth (degrees) |
| 1000 3 5 165 |
| 2000 7 9 95 |
| 4000 22 14 55 |
| 8000 37 16 35 |
DRIVER PROTECTION: The horn loudspeaker should not be operated at frequencies outside the horn cut-off. It is suggested that any program material be high-passed at 400 Hz with a minimum slope 6dB per octave. This can be done by a low level filter at the amplifier input or by a series capacitor at each loudspeaker. Non-polarized electrolytic capacitors may be used.
line

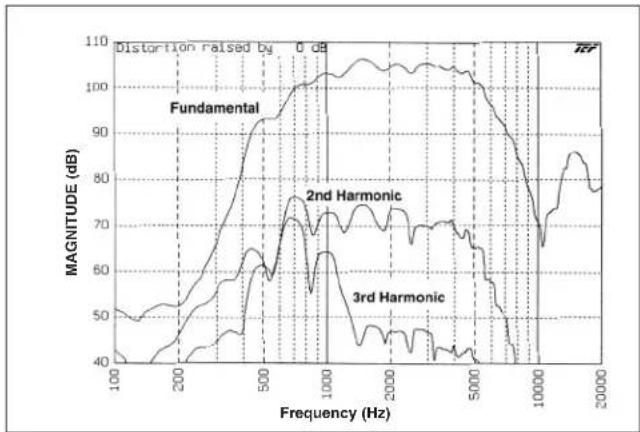

| Frequency (Hz) | Fundamental | 2nd Harmonic | 3rd Harmonic | | -------------- | ----------- | ------------ | ------------ | | 100 | 40 | 50 | 50 | | 200 | 60 | 55 | 45 | | 500 | 90 | 70 | 60 | | 1000 | 105 | 75 | 65 | | 2000 | 105 | 70 | 45 | | 5000 | 100 | 65 | 40 | | 10000 | 80 | 60 | 35 | | 20000 | 85 | 75 | 40 |SC-15 (8 Ohm Model) (Harmonic Distortion 1watt at 1 meter)
line

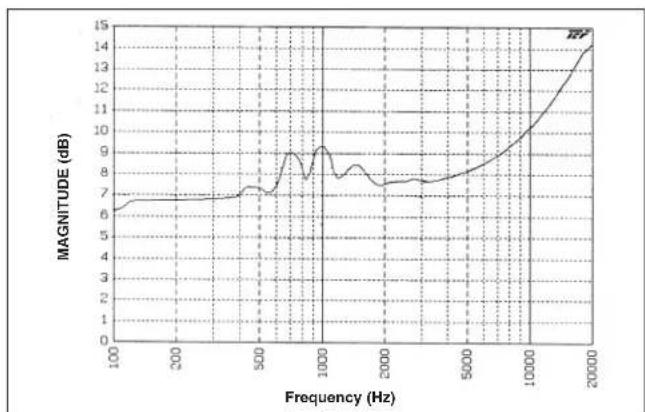

| Frequency (Hz) | Magnitude (dB) | | -------------- | -------------- | | 100 | 6.0 | | 200 | 6.5 | | 500 | 7.0 | | 1000 | 9.0 | | 2000 | 7.5 | | 5000 | 8.0 | | 10000 | 10.0 | | 20000 | 14.0 |SC-15 Frequency Response (8 Ohm Model)
line

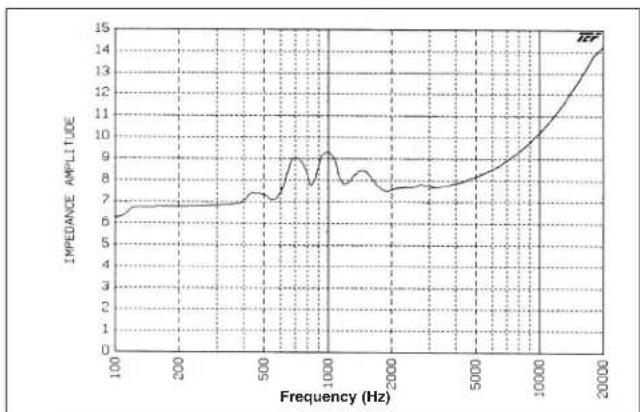

| Frequency (Hz) | Impedance Amplitude | | -------------- | ------------------- | | 100 | 6.5 | | 200 | 6.8 | | 500 | 7.0 | | 1000 | 9.0 | | 2000 | 7.5 | | 5000 | 8.5 | | 10000 | 10.5 | | 20000 | 14.0 |SC-15 Impedance (8 Ohm Model)
Atlas Sound products are designed and tested in our well-equipped research laboratory which contains a fully anechoic chamber, complete analog Bruel & Kjaer measurement equipment and Techron® TEF 20 ^® audio analyzer. Atlas Sound is proud to be a beta site for TEF software.
Specifications subject to change without notice
