| Product Type | Professional LCD Display |
| Model | TH-70SF2HU |
| Brand | Panasonic |
| Display Size (Diagonal) | 70 inches (177.8 cm) |
| Resolution | 1920 x 1080 (Full HD) |
| Aspect Ratio | 16:9 |
| Dimensions (W x H x D) | Approx. 1573 x 904 x 89 mm (without stand) |
| Weight | Approx. 40 kg (without stand) |
| Power Consumption (Typical) | 250 W |
| Power Supply | AC 100-240 V, 50/60 Hz |
| Panel Type | LCD (LED backlight) |
| Input Terminals | HDMI, DVI-D, VGA, BNC (composite), RS-232C |
| Built-in Speakers | Yes (2 x 10 W) |
| Mounting Interface | VESA 400 x 400 mm |
| Operating Temperature | 0°C to 40°C |
| Cleaning Instructions | Use dry soft cloth; avoid chemical cleaners |
| Safety Precautions | Do not expose to water or heat; ensure ventilation |
| Replaceable Parts | Backlight not user-serviceable; contact authorized service |
| Reparability Index | Not rated |
| General Information | Professional display for signage and presentations |
Frequently Asked Questions - TH-70SF2HU PANASONIC
User questions about TH-70SF2HU PANASONIC
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Screen in PDF format for free! Find your manual TH-70SF2HU - PANASONIC and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. TH-70SF2HU by PANASONIC.
USER MANUAL TH-70SF2HU PANASONIC
Operating Instructions
Basic Guide
FULL HD LCD Display For business use
English
Model No. TH-80SF2HU 80-inch model
TH-70SF2HU 70-inch model
TH-80SF2HW 80-inch model
TH-70SF2HW 70-inch model
For more detailed instructions, refer to the Operating Instructions on the CD-ROM.
Contents
Important Safety Instructions 2
FCC STATEMENT 3
Important Safety Notice 4
Safety Precautions 6
Precautions for use 9
Feature of This Unit....11
Accessories....11
Cautions when moving....12

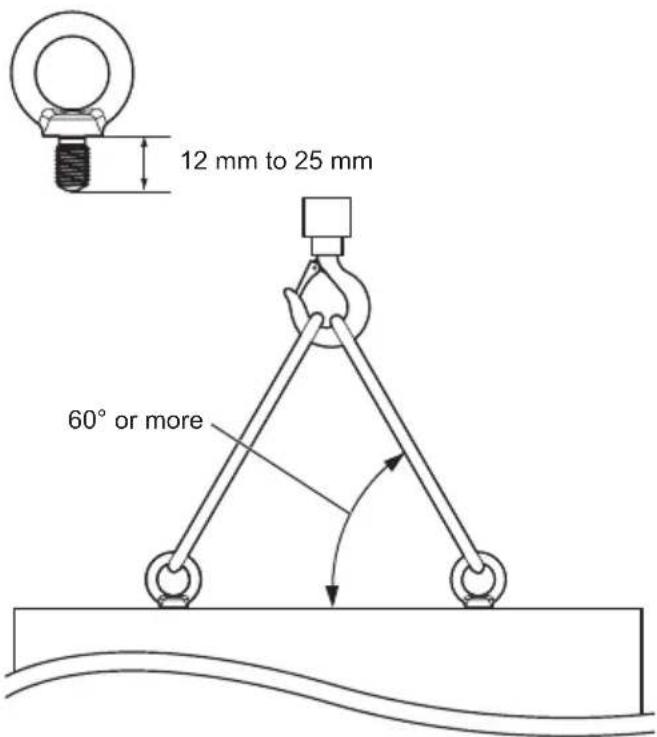

Eyebolt 80-inch model 13
Connections 14
Identifying Controls 17
Basic Controls....19
Specifications 21
Software License 23
Panasonic Professional Flat Panel Display
Limited Warranty 24
LIMITED WARRANTY STATEMENT……25
Customer Service 26
- Please read these instructions before operating your set and retain them for future reference.
- Illustrations and screens in this Operating Instructions are images for illustration purposes, and may be different from the actual ones.
- Descriptive illustrations in these Operating Instructions are created mainly based on the 70-inch model.
EU
LinkRay™
HDMI
DPQX1274ZA
WARNING
RISK OF ELECTRIC SHOCK DO NOT OPEN
WARNING: To reduce the risk of electric shock, do not remove cover or back.
No user-serviceable parts inside. Refer servicing to qualified service personnel.
The lightning flash with arrow-head within a triangle is intended to tell the user that parts inside the product are a risk of electric shock to persons.
The exclamation point within a triangle is intended to tell the user that important operating and servicing instructions are in the papers with the appliance.
WARNING:
To prevent damage which may result in fire or shock hazard, do not expose this apparatus to rain or moisture.
Do not place containers with water (flower vase, cups, cosmetics, etc.) above the set. (including on shelves above, etc.)
WARNING:
1) To prevent electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to qualified service personnel. 2) Do not remove the grounding pin on the power plug. This apparatus is equipped with a three pin grounding-type power plug. This plug will only fit a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact an electrician. Do not defeat the purpose of the grounding plug.
Important Safety Instructions
1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. 8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11) Only use attachments / accessories specified by the manufacturer. 12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart / apparatus combination to avoid injury from tip-over. 13) Unplug this apparatus during lightning storms or when unused for long periods of time. 14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 15) To prevent electric shock, ensure the grounding pin on the AC cord power plug is securely connected.
FCC STATEMENT
This equipment has been tested and found to comply with the limits for a class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
FCC CAUTION:
To assure continued compliance, follow the attached installation instructions and use only the provided power supply cord. Any changes or modifications not expressly approved by Panasonic Corp. of North America could void the user's authority to operate this device.
Declaration of Verification
Model No.
TH-80SF2HU, TH-70SF2HU
Responsible Party:
Panasonic Corporation of North America
Two Riverfront Plaza, Newark, New Jersey
07102-5490
Contact Source:
Panasonic System Communications Company of North America
1-877-655-2357
General Contact:
http://shop.panasonic.com/support
This device complies with Part 15 of the FCC Rules and all applicable IC RSS standards. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
CANADIAN NOTICE:
This Class A digital apparatus complies with Canadian ICES-003.
WARNING:
- Not for use in a computer room as defined in the Standard for the Protection of Electronic Computer/Data Processing Equipment, ANSI/NFPA 75.
- For permanently connected equipment, a readily accessible disconnect device shall be incorporated in the building installation wiring.
- For pluggable equipment, the socket-outlet shall be installed near the equipment and shall be easily accessible.
Note:
Image retention may occur. If you display a still picture for an extended period, the image might remain on the screen. However, it will disappear when a general moving picture is displayed for a while.
Trademark Credits
- Microsoft, Windows and Internet Explorer are the registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. • Macintosh, Mac, Mac OS, OS X and Safari are the trademarks of Apple Inc. registered in the United States and other countries.
- PJLink is a registered or pending trademark in Japan, the United States, and other countries and regions.
- HDMI, High-Definition Multimedia Interface and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
- JavaScript is a registered trademark or a trademark of Oracle Corporation and its subsidiary and associated companies in the United States and/or other countries.
- RoomView, Crestron RoomView and Fusion RV are registered trademarks of Crestron Electronics, Inc. Crestron Connected is the trademark of Crestron Electronics, Inc.
- LinkRay and LinkRay icon are trademarks of Panasonic Corporation.
Even if no special notation has been made of company or product trademarks, these trademarks have been fully respected.
Important Safety Notice
WARNING
1) To prevent damage which may result in fire or shock hazard, do not expose this appliance to dripping or splashing. Do not place containers with water (flower vase, cups, cosmetics, etc.) above the set. (including on shelves above, etc.) No naked flame sources, such as lighted candles, should be placed on / above the set.
2) To prevent electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to qualified service personnel. 3) Do not remove the earthing pin on the power plug. This apparatus is equipped with a three pin earthing-type power plug. This plug will only fit an earthing-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact an electrician. Do not defeat the purpose of the earthing plug. 4) To prevent electric shock, ensure the earthing pin on the AC cord power plug is securely connected.
CAUTION
This appliance is intended for use in environments which are relatively free of electromagnetic fields.
Using this appliance near sources of strong electromagnetic fields or where electrical noise may overlap with the input signals could cause the picture and sound to wobble or cause interference such as noise to appear.
To avoid the possibility of harm to this appliance, keep it away from sources of strong electromagnetic fields.
WARNING:
This equipment is compliant with Class A of CISPR32.
In a residential environment this equipment may cause radio interference.
IMPORTANT INFORMATION
If a display is not positioned in a sufficiently stable location, it can be potentially hazardous due to falling. Many injuries, particularly to children, can be avoided by taking simple precautions such as:
- Using cabinets or stands recommended by the manufacturer of the display.
- Only using furniture that can safely support the display.
- Ensuring the display is not overhanging the edge of the supporting furniture.
- Not placing the display on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the display to a suitable support.
- Not standing the displays on cloth or other materials placed between the display and supporting furniture. • Educating children about the dangers of climbing on furniture to reach the display or its controls.
IMPORTANT: THE MOULDED PLUG FOR YOUR SAFETY, PLEASE READ THE FOLLOWING TEXT CAREFULLY.
This display is supplied with a moulded three pin mains plug for your safety and convenience. A 10 amp fuse is fitted in this plug. Shall the fuse need to be replaced, please ensure that the replacement fuse has a rating of 10 amps and that it is approved by ASTA or BSI to BS1362.
Check for the ASTA mark or the BSI mark on the body of the fuse.
If the plug contains a removable fuse cover, you must ensure that it is refitted when the fuse is replaced.
If you lose the fuse cover the plug must not be used until a replacement cover is obtained.
A replacement fuse cover can be purchased from your local Panasonic dealer.
Do not cut off the mains plug.
Do not use any other type of mains lead except the one supplied with this display.
The supplied mains lead and moulded plug are designed to be used with this display to avoid interference and for your safety.
If the socket outlet in your home is not suitable, get it changed by a qualified electrician.
If the plug or mains lead becomes damaged, purchase a replacement from an authorized dealer.
WARNING: — THIS DISPLAY MUST BE EARTHED
How to replace the fuse.
Open the fuse compartment with a screwdriver and replace the fuse.
Safety Precautions
WARNING
Setup
This LCD Display is for use only with the following optional accessories.
Use with any other type of optional accessories may cause instability which could result in the possibility of injury.
Securely install the pedestal, an optional accessory. Ask an authorized dealer for installation.
The following number of people are required for installation.
80-inch model : 4
70-inch model : 2
- Pedestal TY-ST75PE9 • Digital Interface Box ET-YFB100G • DIGITAL LINK Switcher ET-YFB200G
- Early Warning Software (Basic license/3-year license): ET-SWA100 series*1 • Video Wall Manager TY-VUK10*2
*1: Suffix of the part number may differ depending on the license type.
*2: Supports Ver1.8 or later.
Note
- The part numbers of the optional accessories are subject to change without notice.
When installing the pedestal, read the operating instructions supplied with it carefully and install properly. Also, always use the overturn prevention accessories.
We are not responsible for any product damage, etc. caused by failures in the installation environment for the pedestal or wall-hanging bracket even during the warranty period.
Small parts can present a choking hazard if accidentally swallowed. Keep small parts away from young children. Discard unneeded small parts and other objects, including packaging materials and plastic bags/sheets, to prevent them from being played with by young children, creating the potential risk of suffocation.
Do not place the Display on sloped or unstable surfaces, and ensure that the Display does not hang over the edge of the base.
• The Display may fall off or tip over.
Install this unit at a location with minimal vibration and which can support the weight of the unit.
- Dropping or falling of the unit may cause injury or malfunction.
Caution - For use only with UL Listed Wall Mount Bracket with minimum weight/load 62.0 kg (135 lbs).
When installing the display vertically, be sure that the power indicator comes to the downside.
- If installed in different directions, heat is generated and it may cause fire or damage to the Display.
Cautions for Wall or Pedestal Installation
- The installation should be performed by an installation professional. Installing the Display incorrectly may lead to an accident that results in death or serious injury. Use the optional Pedestal. (see page 6)
- When installing on a wall, a wall hanging bracket that conforms to VESA standards must be used.
80-inch model: VESA 600 × 400. 70-inch model: VESA 400 × 400.
(see page 9)
- Before installation, be sure to check if the mounting location has enough strength to support the weight of the display and the wall hanging bracket for anti-drop.
- If you terminate the use of the product, ask a professional to remove it promptly.
- When mounting the Display on the wall, prevent the mounting screws and power cable from contacting metal objects inside the wall. An electric shock may occur if they contact metal objects inside the wall.
■ When using the LCD Display
The Display is designed to operate on 110 – 127 or 220 – 240 V AC, 50/60 Hz.
If problems or malfunction occur, stop using immediately.
If problems occur, unplug the power supply plug.
- Smoke or an abnormal odour come out from the unit.
- No picture appears or no sound is heard, occasionally.
- Liquid such as water or foreign objects got inside the unit. • The unit has deformed or broken parts.
If you continue to use the unit in this condition, it could result in fire or electric shock.
- Unplug the power supply plug from the wall outlet, and then contact the dealer for repairs.
- To cut off the power supply to this Display completely, you need to unplug the power supply plug from the wall outlet.
- Repairing the unit yourself is dangerous and should never be done.
- To be able to unplug the power supply plug immediately, use a wall outlet that you can reach easily.
Do not touch the unit directly with your hands when it is damaged.
• Electric shock could occur.
Do not stick any foreign objects into the Display.
- Do not insert any metal or flammable objects into the ventilation holes or drop them onto the Display, as doing so can cause fire or electric shock.
Do not remove the cover (cabinet) or modify it.
- High voltages that can cause fire or electric shocks are present inside the Display. For any inspection, adjustment, and repair work, please contact your local Panasonic dealer.
Ensure that the mains plug is easily accessible.
The mains plug shall be connected to a mains socket outlet with a protective earthing connection.
Do not use any power supply cord other than the one provided with this unit.
- Doing so may cause short-circuit, generate heat, etc., which could cause electric shock or fire.
Do not use the supplied power supply cord with any other devices.
- Doing so may cause short-circuit, generate heat, etc., which could cause electric shock or fire.
Clean the power supply plug regularly to prevent it from becoming dusty.
- If there is a build up of dust on the plug, the resultant humidity may cause short-circuit, which could cause electric shock or fire. Unplug the power supply plug from the wall outlet and wipe it with a dry cloth.
Do not handle the power supply plug with wet hands.
- Doing so may cause electric shocks.

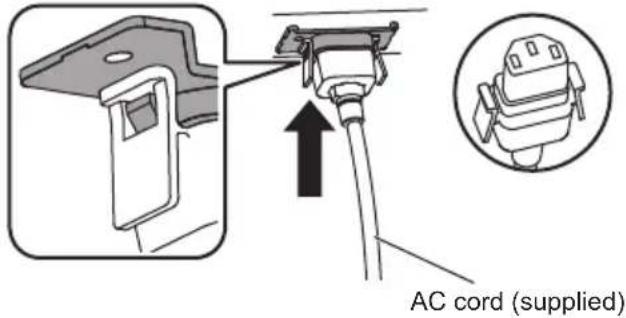

Securely insert the power supply plug (socket outlet side) and the power supply connector (main unit side) as far as it will go.
- If the plug is not fully inserted, heat may be generated which could cause fire. If the plug is damaged or the wall socket is loose, they shall not be used.
Do not do anything that may damage the power supply cord or the power supply plug.
- Do not damage the cable, make any modifications to it, place heavy objects on top of it, heat it, place it near any hot objects, twist it, bend it excessively or pull it. To do so may cause fire and electric shock. If the power cable is damaged, have it repaired at your local Panasonic dealer.
Do not touch the power supply cord or the plug directly by hand when they are damaged.
- Doing so may cause electric shock or fire due to short-circuit.
Keep the AAA/R03/LR03 batteries (supplied) out of reach of children. If accidentally swallowed, it will be harmful to the body.
- Please contact a doctor immediately in case you doubt that the child may have swallowed it.
To prevent the spread of fire, keep candles or other open flames away from this product at all times.
CAUTION
Do not place any objects on top of the Display.
Ventilation should not be impeded by covering the ventilation openings with items such as newspapers, table cloths and curtains.
- Doing so may cause the Display to overheat, which can cause fire or damage to the Display.
For sufficient ventilation, see page 9.
Do not place the display where it may be affected by salt or corrosive gas.
- Doing so may cause the display to fall due to corrosion, and it may result in injury. Also, the unit may malfunction.
The following number of people are required to carry or unpack this unit.
80-inch model : 4
70-inch model : 2
- If this is not observed, the unit may drop, resulting in injury.
When disconnecting the power supply cord, always pull on the plug (socket outlet side) / the connector (main unit side).
- Pulling the cord may damage the cord, and it may cause electric shock or fire due to short-circuit.
Be sure to disconnect all cables and overturn prevention accessories before moving the Display.
- If the Display is moved while some of the cables are still connected, the cables may become damaged, and fire or electric shock could result.
Disconnect the power supply plug from the wall socket as a safety precaution before carrying out any cleaning.
• Electric shocks can result if this is not done.
Do not step on, or hang from the display or the Pedestal.
• They might tip over, or might be broken and it may result in injury. Pay special attention to the children.
Do not reverse the polarity (+ and -) of the battery when inserting.
- Mishandling the battery may cause its explosion or leakage, resulting in fire, injury or damage to surrounding properties.
- Insert the battery correctly as instructed. (see page 12)
Do not use batteries with the outer cover peeling away or removed.
- Mishandling the batteries may cause the batteries to short circuit, resulting in fire, injury or damage to surrounding properties.
Remove the batteries from the remote control transmitter when not using for a long period of time.
- The battery may leak, heat, ignite or burst, resulting in fire or damage to surrounding properties.
Remove exhausted batteries from the remote control immediately.
• Leaving the batteries unattended in it may cause battery leakage, heat or burst.
Do not burn or breakup batteries.
- Batteries must not be exposed to excessive heat such as sunshine, fire or the like.
Do not turn the Display upside down.
Do not position the unit with its liquid crystal panel facing upright.
Precautions for use
Cautions when installing
Do not set up the Display outdoors.
• The Display is designed for indoor use.
Install this unit at a location which can support the weight of the unit.
- Dropping or falling of the unit may cause injury.
Environmental temperature to use this unit
- When using the unit where it is below 1 400 m (4 593 ft) above sea level: 0 °C to 40 °C (32 °F to 104 °F)
- When using the unit at high altitudes (1 400 m (4 593 ft) and higher and below 2 800 m (9 186 ft) above sea level): 0 °C to 35 °C (32 °F to 95 °F)
Do not install the unit where it is 2 800 m (9 186 ft) and higher above sea level.
- Failure to do so may shorten the life of the internal parts and result in malfunctions.
We are not responsible for any product damage, etc. caused by failures in the installation environment even during the warranty period.
Transport only in upright position!
- Transporting the unit with its liquid crystal panel facing upright or downward may cause damage to the internal circuitry.
Do not grab the liquid crystal panel.
- Do not forcibly press the liquid crystal panel, or push it with a pointed object. Applying a strong force to the liquid crystal panel will cause unevenness of the screen display, resulting in malfunction.
Do not install the product in a place where it is exposed to direct sunlight.
- If the unit is exposed to direct sunlight even indoors, the temperature rise of the liquid crystal panel may cause malfunction.
Required space for ventilation
- When using the pedestal, leave a space of 10 cm (3 15/16") or more at the top, left and right, and 5 cm (1 31/32") or more at the rear, and also keep the space between the bottom of the display and the table surface.
If using some other setting-up method (wall-hanging, etc.), follow the manual of it. (If there is no specific indication of installation dimension in the installation manual, leave a space of 10 cm (3 15/16") or more at the top, bottom, left and right, and 5 cm (1 31/32") or more at the rear.)
Minimum distance:
a: 10 cm (3 15/16") b: 5 cm (1 31/32")
- Operation of this unit is guaranteed up to an ambient temperature of 40 °C (104 °F). When installing the unit in a case or chassis, be sure to provide adequate ventilation with a cooling fan or ventilation hole so that the surrounding temperature (inside the case or chassis) including the temperature of the front surface of the liquid crystal panel can be kept at 40 °C (104 °F) or less.
About the screws used when using a wall hanging bracket that conforms to VESA standards
| Inch model | Screw pitch for installation | Depth of screw hole | Screw (quantity) |
| 80 60 | 0 mm × 400 mm 12 mm M6 (4) | ||
| 70 40 | 0 mm × 400 mm 12 mm M6 (4) |
When using
Be careful of the movable structure of the power indicator and remote control sensor.
- As factory default, the power indicator and remote control sensor are stored in the main unit. For normal use, pull out the remote control sensor from the edge side of the main unit by operating the lever on the rear panel. Depending on the setup condition such as when using the multi display, store the remote control sensor in the main unit. (see page 17)
Depending on the temperature or humidity conditions, uneven brightness may be observed. This is not a malfunction.
- This unevenness will disappear while applying current continuously. If not, consult the distributor.
If the Display is not going to be used for any prolonged length of time, unplug the power supply plug from the wall outlet.
Picture noise may occur if you connect or disconnect the cables connected to the input terminals you are currently not watching, or if you turn the power of the video equipment on or off, but it is not a malfunction.
Notes on Using Wired LAN
When setting up the Display at a place where electric static occurs often, take sufficient antistatic measures before starting use.
- When the Display is used at a location where static electricity occurs often, such as on a carpet, a wired LAN or DIGITAL LINK communication is disconnected more often. In that case, remove static electricity and the noise source that may cause problems with an antistatic mat, and re-connect the wired LAN or DIGITAL LINK.
- In rare cases, the LAN connection is disabled due to static electricity or noise. In that case, turn off the power of the Display and the connected devices once and then re-turn on the power.
The Display may not work properly due to strong radio waves from the broadcast station or the radio.
- If there is any facility or equipment that outputs strong radio waves near the installation location, set up the Display at a location sufficiently far from the source of the radio waves. Or, wrap the LAN cable connected to the DIGITAL LINK / LAN terminal by using a piece of metal foil or a metal pipe, which is grounded at both ends.
Request Regarding Security
When using this unit, take safety measures against the following incidents.
• Personal information being leaked via this unit - Unauthorized operation of this unit by a malicious third party - Interfering or stopping of this unit by a malicious third party
Take sufficient security measures.
- Set a password for the LAN control and restrict the users who can log in.
- Make your password difficult to guess as much as possible.
- Change your password periodically.
- Panasonic Corporation or its affiliate companies will never ask for your password directly. Do not divulge your password in case you receive such inquiries.
- The connecting network must be secured by a firewall, etc.
- When disposing the product, initialize the data before disposing. [Shipping]
LightID
- When using a laser barcode reader, prevent a barcode surface from being exposed to the screen light. The barcode reading may be impossible or incorrect.
- When shooting the screen using a security camera, etc., a striped pattern may appear on the shot image.
- In a location exposed to direct sunlight or surrounded by a bright light, the LightID may not be received or reception performance for the LightID may be degraded due to the influence of the surrounding light.
Cleaning and maintenance
First, remove the mains plug from the mains socket.
Gently wipe the surface of the liquid crystal panel or cabinet by using a soft cloth to remove dirt.
- To remove stubborn dirt or fingerprints on the surface of the liquid crystal panel, dampen a cloth with diluted neutral detergent (1 part detergent to 100 parts water), wring out the cloth firmly, and then wipe away the dirt. Finally, wipe away all the moisture with a dry cloth.
- If water droplets get inside the unit, operating problems may result.
Note
- The surface of the liquid crystal panel is specially treated. Do not use a hard cloth or rub the surface too hard, otherwise this may cause scratches on the surface.
Usage of a chemical cloth
- Do not use a chemical cloth for the liquid crystal panel surface.
- Follow the instructions for the chemical cloth to use it for the cabinet.
Avoid contact with volatile substances such as insect sprays, solvents and thinner.
- This may degrade surface quality or cause peeling of the paint. Furthermore, do not leave it in contact with a rubber or PVC substance for a long time.
Disposal
When disposing the product, ask your local authority or dealer about the correct methods of disposal.
Feature of This Unit
- This unit is equipped with a function transmitting LightID signals.
LightID is a kind of visible light transmission technology which enables to stably transmit information at high speed by flashing of light. Panasonic offers "LinkRay Service" for the following usage.
Receiving LightID signals transmitted from this unit by using the cameras of devices (smartphone / tablet) and the dedicated application software will obtain content associated with the LightID signals, and display it on the screens of such devices.
For detail of "LinkRay Service", see the Panasonic web site (https://panasonic.net/cns/LinkRay/).
Note
- A separate contract is required to use "LinkRay Service".
- Smartphone application software, "LinkRay - LightID Solution" is required. Search App Store or Google Play by "LinkRay" and download the software. For the latest information of devices for which normal operation has been confirmed, see the Panasonic web site (https://panasonic.net/cns/LinkRay/).
Accessories
Accessories Supply
Check that you have the accessories and items shown.
Operating Instructions (CD-ROM × 1)
Remote Control Transmitter × 1
- DPVF1615ZA
Batteries for the Remote
Control Transmitter × 2
(AAA/R03/LR03 type)
Clamper × 3
DPVF1056ZA
Power supply cord
(Approx. 2 m)
TH-80SF2HU
TH-70SF2HU
- 1JP155AF1U
TH-80SF2HW
TH-70SF2HW
1JP155AF1W
2JP155AF1W
3JP155AF1W
Attention
- Store small parts in an appropriate manner, and keep them away from young children.
- The part numbers of accessories are subject to change without notice. (The actual part number may differ from the ones shown above.)
- In case you lost accessories, please purchase them from your dealer. (Available from the customer service)
- Dispose the packaging materials appropriately after taking out the items.
Remote Control Batteries
Open the battery cover.
Insert batteries and close the battery cover.
(Insert starting from the side.)
AAA/R03/LR03 type
Note
- Incorrect installation of the batteries can cause battery leakage and corrosion that will damage the remote control.
- Disposal of batteries should be done in an environment-friendly manner.
Take the following precautions.
- Batteries shall always be replaced as a pair.
- Do not combine a used battery with a new one.
- Do not mix battery types (example; manganese dioxide battery and alkaline battery etc.).
- Do not attempt to charge, disassemble or burn used batteries.
- Do not burn or breakup batteries. Moreover, batteries must not be exposed to excessive heat such as sunshine, fire or the like.
Cautions when moving
The display has handles for carrying. Hold them when moving.
Note
- Do not hold parts other than the handles.
- The following number of people are required to carry this unit. 80-inch model : 4 70-inch model : 2 If this is not observed, the unit may drop, resulting in injury.
- When carrying the unit, keep the liquid crystal panel upright. Carrying the unit with the surface of the liquid crystal panel facing up or down may cause deformation of the panel, or internal damage.
- Do not hold the upper, lower, right and left frames or the corners of the unit. Do not hold the front surface of the liquid crystal panel. Also, do not hit such parts. Doing so may damage the liquid crystal panel. Also, the panel may crack, resulting in injury.
Eyebolt
80-inch model
The display has holes for attaching eyebolts (M10). When installing, use them to suspend the display. Use the eyebolt only for temporary suspension or movement for installation. This cannot be used for permanent hanging installation.
Note
- The 80-inch models have the holes for attaching eyebolts. 70-inch models don't.
Eyebolt (commercially available) mounting positions
Note
• Installation should be performed by an installation professional. - Do not suspend using only 1 eyebolt. - Use commercially sold M10 eyebolts with a shank length of 12 mm to 25 mm that satisfies the load condition of product quality. - Use ISO 3266 standard eyebolts. Also use ISO standard members (wire, etc.) for hanging. • The hanging angle should be 60° or more. - After installation, remove the eyebolts, and close the holes using the eyebolt caps removed when attaching the eyebolts.
Connections
AC cord connection and fixing / Cable fixing

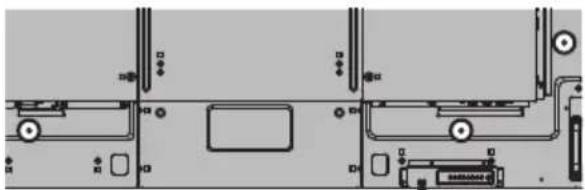

Back of the unit
AC cord fixing
Plug the connector into the display unit.
Plug the connector until it clicks.
Note
- Make sure that the connector is locked on both the left and right sides.
Unplug the AC cord
Unplug the connector pressing the two knobs.
Note
- Do not use an AC cord of which the knobs are damaged. If it is used with the knobs damaged, a bad connection may result between the AC cord connector and the AC IN terminal. For the repair of the AC cord, consult the dealer where you purchased the product.
- When disconnecting the AC cord, be absolutely sure to disconnect the AC cord plug at the socket outlet first.
- The supplied AC cord is for this unit exclusive use. Do not use this for other purposes.
Cable fixing
Note
- 3 clampers are supplied with this unit. Fix the cables at 3 locations using the holes for clampers as shown below.
If you need more clampers, purchase them from your dealer. (Available from the customer service)
80-inch model
70-inch model
- Attach the clamper
To remove from the unit:
snaps
Keep pushing both side snaps and pull out the clamper.
- Bundle the cables
Set the tip in the hooks and tighten.
To loosen:
Keep pushing the knob and pull out the tip.
Video equipment connection
1 IR IN, IR OUT: Infrared Signal Input / Output Terminal
Use this when operating more than one display with one remote control.
2 SERIAL IN, SERIAL OUT: SERIAL Input / Output Terminal Control the Display by connecting to PC.
3 AUDIO OUT: Analogue Audio Output Terminal
Connect to audio equipment with analogue audio input terminal.
4 AV IN: Composite Video / Audio Input Terminal
Connect to video equipment with Composite signal output.
Audio input is shared by AV IN, DVI-D IN and PC IN.
5 USB: USB Terminal
Connect the USB memory to use "USB media player" or "Memory viewer". Also, this can be used to supply power of up to 5V/1A to an external device when the picture is displayed.
6 DVI-D IN, DVI-D Input / Output Terminal
Connect to video equipment with DVI-D output. Also, when displaying the picture by daisy chaining multiple displays, connect to the other display (DVI-D OUT).
The DVI-D output function is enabled only for the DVI input.
Note this is not output if the HDMI or DIGITAL LINK input is selected.
7 AV IN HDMI Input Terminal
(HDMI 1, HDMI 2):
Connect to video equipment such as VCR or DVD player, etc.
8 DIGITAL LINK / DIGITAL LINK / LAN Terminal
Control the Display by connecting to Network. Alternatively, connect to a device that sends video and audio signals via the DIGITAL LINK terminal.
9 PC IN: PC Input Terminal
Connect to video terminal of PC, video equipment with "YPBPR / YCBCR" or "RGB" output.
Before connecting
- Before connecting cables, carefully read the operating instructions for the external device to be connected.
- Turn off the power of all devices before connecting cables.
- Take note of the following points before connecting the cables. Failure to do so may result in malfunctions.
- When connecting a cable to the unit or a device connected to the unit itself, touch any nearby metallic objects to eliminate static electricity from your body before performing work.
- Do not use unnecessarily long cables to connect a device to the unit or to the unit body. The longer the cable, the more susceptible to noise it becomes. Since using a cable while it is wound makes it act like an antenna, it is more susceptible to noise.
- When connecting cables, insert them straight into the connecting terminal of the connecting device so that the ground is connected first.
• Acquire any cable necessary to connect the external device to the system that is neither supplied with the device nor available as an option.
- If the outer shape of the plug of a connection cable is large, it may come in contact with the periphery such as a back cover or the plug of an adjacent connection cable. Use a connection cable with the suitable plug size for the terminal alignment.
- When connecting the LAN cable with plug cover, be aware that the cover may come in contact with the back cover and it may be difficult to disconnect.
- If video signals from video equipment contain too much jitter, the images on the screen may wobble. In this case, a time base corrector (TBC) must be connected.
- When the sync signals output from PC or video equipment are disturbed, for example, when changing settings of video output, the colour of the video may be disturbed temporarily.
- The unit accepts Composite video signals, YPBPR/YCBCR signals (PC IN), analogue RGB signals (PC IN) and digital signals.
• Some PC models are not compatible with the unit.
- Use cable compensator when you connect devices to the unit using long cables. Otherwise the image may not be displayed properly.
Identifying Controls

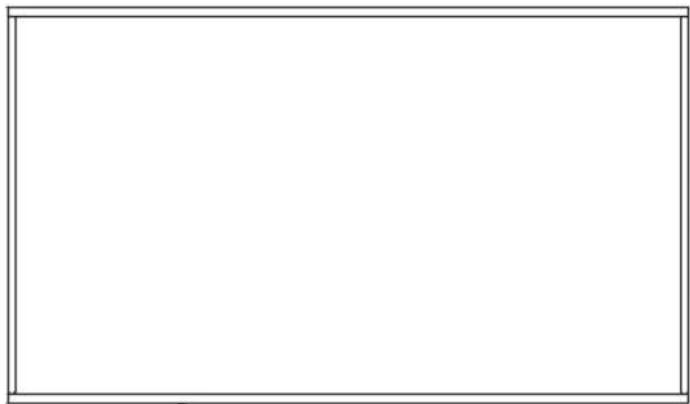

Display
- Slide the lever on the rear panel to eject the power indicator and remote control sensor.
To store them, slide the same lever, or directly push in the bottom surface of the remote control sensor.
Note
- For normal use, pull out the power indicator and remote control sensor from the edge side of the main unit by operating the lever on the rear panel. Depending on the setup condition such as when using the multi display, store them in the main unit.
1 Power Indicator / Remote control sensor
The Power Indicator will light.
When the power of the unit is ON (Main Power On / Off button: ON)
• Picture is displayed: Green • Power OFF (standby) with remote control: - When [Network control] is set to [Off]: Red - When [Network control] is set to [On]: Orange (Red/Green) - Power OFF with "Power management" function: Orange (Red/Green)
When the power of the unit is OFF (Main Power On / Off button: OFF): No light
Note
- Even if the unit is turned off with the power indicator off, some of the circuits are in power-on status.
- When the power indicator is orange, power consumption during standby is generally larger than that of when the power indicator is red.
1 External input / output terminal Connects to video equipment, PC, etc. (see page 15) 2 (○/|)
Turns the power On / Off.
3 Selects the connected device.
4
- When the power of the unit is on (Power Indicator - red or orange), press the (☐/☐), then the picture will be displayed. • Power Indicator: Green (Picture is displayed.)
To turn the power off
- When the power of the unit is on (Power Indicator - green), press the (☐/I), then the power will be turned off. • Power Indicator: Red (standby)
Note
- During operation of the "Power management" function, the power indicator turns orange in the power off state. • After the power plug is disconnected, the power indicator may remain lit for a while. This is not a malfunction.
- Press the (↓/|) on the unit to turn the unit off, when the power of the unit is turned on or in standby mode.
■ When the Unit is turned on for the first time
The following screen will be displayed.
1 Select the language with ▲ and press .
2 For vertical installation, select [Portrait] with ▲ and press .
Note
- Once the items are set, the screens won't be displayed when switching on the unit next time. Each item can be reset in the following menus.
[OSD language]
[Display orientation]
■ Power ON message
The following message may be displayed when turning the unit power ON:
No activity power off Precautions
'No activity power off' is enabled.
When [No activity power off] in the [Setup] menu is set to [Enable], a warning message is displayed every time the power is turned ON.
"Power management" information
Last turn off due to 'Power management'.
When "Power management" is functioned, an information message is displayed every time the power is turned ON.
These message displays can be set with the following menu:
- [Options] menu
Power on message(No activity power off) Power on message(Power management)
Specifications
Model No.
80-inch model : TH-80SF2HU
70-inch model : TH-70SF2HU
80-inch model : TH-80SF2HW
70-inch model : TH-70SF2HW
Power Consumption
80-inch model
380 W
70-inch model
235 W
Power off condition
0.3 W
Stand-by condition
0.5 W
LCD Display panel
80-inch model
80-inch VA panel (Edge LED backlight), 16:9 aspect ratio
70-inch model
70-inch VA panel (Edge LED backlight), 16:9 aspect ratio
Screen size
80-inch model
1 771 mm (W) × 996 mm (H) × 2 032 mm (diagonal) / 69.7" (W) × 39.2" (H) × 80.0" (diagonal)
70-inch model
1 538 mm (W) × 865 mm (H) × 1 765 mm (diagonal) / 60.5" (W) × 34.0" (H) × 69.5" (diagonal)
No. of pixels
2 073 600
(1 920 (Horizontal) × 1 080 (Vertical))
Dimensions (W × H × D)
80-inch model
1 835 mm × 1 060 mm × 82 mm / 72.3" × 41.8" × 3.3"
70-inch model
1 580 mm × 919 mm × 80 mm / 62.2" × 36.2" × 3.2"
Mass
80-inch model
Approx. 62.0 kg 135 lbs net
70-inch model
Approx. 45.0 kg 99 lbs net
Power source
TH-80SF2HW, TH-70SF2HW:
220 - 240 V ~ (220 - 240 V alternating current), 50/60 Hz
Operating condition
Temperature
0°C - 40°C (32°F - 104°F)*1
Humidity
20% - 80% (no condensation)
Storing condition
Temperature
-20°C - 60°C (-4°F - 140°F)
Humidity
20% - 80% (no condensation)
Connection terminals
HDMI 1
HDMI 2
TYPE A Connector *2 × 2
Audio signal:
Linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz)
DVI-D IN
DVI-D 24 Pin × 1:
Compliance with DVI Revision 1.0
Compatible with HDCP 1.1
DVI-D OUT
DVI-D 24 Pin × 1:
Compliance with DVI Revision 1.0
Compatible with HDCP 1.1
AV IN
Shared by AV IN, DVI-D IN and PC IN
PC IN
Mini D-sub 15 Pin (Compatible with DDC2B) × 1
Y/G:
1.0 Vp-p (75 Ω) (with sync signal)
0.7 Vp-p (75 Ω) (without sync signal)
Pb/Cb/B:
0.7 Vp-p (75 Ω) (without sync signal)
Pr/Cr/R:
0.7 Vp-p (75 Ω) (without sync signal)
HD/VD:
TTL (high impedance)
AUDIO OUT
For network connection, compatible with PJLink
Communication method:
RJ45, 100BASE-TX
IR IN
DC 5V / 1A (USB 3.0 is not supported.)
Sound
Speakers
80-inch model
1.5 cm × 2.5 cm × 1 / φ7 cm × 1
× 2 pieces
70-inch model
9.6 cm × 2.7 cm × 1
× 2 pieces
Audio Output
20 W [10 W + 10 W] (10 % THD)
Remote Control Transmitter
Power source
DC 3 V (battery (AAA/R03/LR03 type) × 2)
Operating range
Approx. 7 m (22.9 ft)
(when operated directly in front of remote control sensor)
Mass
Approx. 63 g / 2.22 oz (including batteries)
Dimensions (W × H × D)
48 mm × 134 mm × 20 mm / 1.89" × 5.28" × 0.76"
*1: Environmental temperature to use this unit at high altitudes (1 400 m (4 593 ft) and higher and below 2 800 m (9 186 ft) above sea level): 0 °C to 35 °C (32 °F to 95 °F)
*2: VIERA LINK is not supported.
Note
- Design and specifications are subject to change without notice. Mass and dimensions shown are approximate.
This product incorporates the following software:
(1) the software developed independently by or for Panasonic Corporation, (2) the software owned by third party and licensed to Panasonic Corporation, (3) the software licensed under the GNU General Public License, Version 2.0 (GPL V2.0), (4) the software licensed under the GNU LESSER General Public License, Version 2.1 (LGPL V2.1), and/or (5) open source software other than the software licensed under the GPL V2.0 and/or LGPL V2.1.
The software categorized as (3) - (5) are distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY, without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. For details, see the license conditions displayed by selecting [Software licenses], following the specified operation from the [Settings] menu of this product.
At least three (3) years from delivery of this product, Panasonic will give to any third party who contacts us at the contact information provided below, for a charge no more than our cost of physically performing source code distribution, a complete machine-readable copy of the corresponding source code covered under GPL V2.0, LGPL V2.1 or the other licenses with the obligation to do so, as well as the respective copyright notice thereof.
Contact Information:
oss-cd-request@gg.jp.panasonic.com
Notice about AVC/VC-1/MPEG-4
This product is licensed under the AVC Patent Portfolio License, VC-1 Patent Portfolio License and MPEG-4 Visual Patent Portfolio License for the personal use of a consumer or other uses in which it does not receive remuneration to (i) encode video in compliance with the AVC Standard, VC-1 Standard and MPEG-4 Visual Standard (“AVC/VC-1/MPEG-4 Video”) and/or (ii) decode AVC/VC-1/MPEG-4 Video that was encoded by a consumer engaged in a personal activity and/or was obtained from a video provider licensed to provide AVC/VC-1/MPEG-4 Video. No license is granted or shall be implied for any other use. Additional information may be obtained from MPEG LA, LLC. See http://www.mpegla.com.
(for the U.S.A and Puerto Rico)
Panasonic Solutions Company
Unit of Panasonic Corporation of
North America
Two Riverfront Plaza, Newark,
New Jersey 07102-5490
Panasonic Professional Flat Panel Display Limited Warranty
Panasonic Solutions Company. (referred to as “the Warrantor”) will repair this product and all included accessories with new or refurbished parts, free of charge in the USA or Puerto Rico, of the original purchase in the event of a defect in materials or workmanship as follows:
| Models or Parts | Part Warranty | Labor Warranty |
| Professional Flat Panel Display | 2 Years 2 Years |
On-site or carry-in service in the USA and Puerto Rico may be obtained during the warranty period by contacting Panasonic Solutions Company Service toll free at 1-877-655-2357.
This warranty is extended only to the original purchaser and is non transferable. A purchase receipt or other proof of date of original purchase will be required before warranty service is rendered.
This warranty only covers failures due to defects in materials or workmanship, which occur during normal use. The warranty does not cover damage which occur in shipment, or failures which are caused by products not supplied by the warrantor, or failures which result from improper installation, set-up adjustments, improper antenna, inadequate signal pickup, maladjustment of consumer controls, improper operation, power line surge, improper voltage supply, lighting damage, or service by anyone other than an authorized repair facility, or damage that is attributable to acts of God.
LIMITS AND EXCLUSIONS
There are no express warranties except as listed above.
THE WARRANTOR SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING, WITHOUT LIMITATION, DAMAGE TO DISCS) RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THE WARRANTY. ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR PARTICULAR PURPOSE, ARE LIMITED TO THE APPLICABLE WARRANTY PERIOD SET FORTH ABOVE.
Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the above exclusions or limitations may not apply to you. This warranty gives you specific legal rights and you may also have other rights, which vary from state to state.
If you have a problem with this product that is not handled to your satisfaction, then write to the Consumer Affairs Department at the Company address indicated above.
In the USA and Puerto Rico
FOR SERVICE
CALL TOLL FREE
1-877-655-2357
| Warranty ServiceIf the product needs to be shipped for service, carefully pack (preferably in or damage to the product while in transit).Amber Drive, Mississauga, Ontaro, L4Y 2T3. Shipping to the later location requires a rem Automation before shipment. No liability is assumed for or damage to the product while in transit.Ambier Drive, Mississauga, Ontaro, L4Y 2T3. Shipping to the later location requires a rem Automation before shipment. No liability is assumed for or damage to the product while in transit. |
| Dust, smoke, entangling environment and twenty-four/seven operation,darmatically decreases the interval between performances of routine preventive maintenance required to maintain this warranty coverage. |
| Item | Parts | Labour |
| WARRANTY COVERAGE PERIOD EXCEPTIONS | ||
| Video Tape | 30 days—Replacement only (content not covered)N/A | |
| Video Heads | 1 year or 2,000 hrs.Whichever comes first | |
| DS Video Heads | 1 year or 1,000 hrs.Whichever comes first | |
| Maintenance Items | 90 days | |
| Colour Camera CCD | 2 years | |
| All LCD Monitors | 2 years (burn-in not covered)2 years | |
| * DLPAI Prolectors | 3 years or 17,000 hrs.Whichever comes first | |
| * LCD Prolectors above | 3 years or 2,500 hrs.Whichever comes first | |
| * LCD Prolectors below | 3 years or 1,500 hrs.Whichever comes first | |
| Projector Lamps | 50% of the raised lamp life or 1 year.Whichever comes first | |
| All Plasma dimplies 2 years (burn-in not covered) 2 years | 3 years(Content not covered) | |
| Hard Drive Disk Unit | 1 year plus balance (if any) of limited Warranty. | |
| Hand Drive Disk Unit | 1 year plus balance (if any) of the original Manufacturers | |
LIMITED WARRANTY STATEMENT 5770 Amber Drive, Mississauga, Ontario Law 2T3 Panasonic Canada Inc.
Customer Service
Customer Service Directory
Obtain product information and operative assistance; localize the closest distributor or Service Center; buy spare parts and accessories through our web site for Latin America:
http://www.la
Also you may contact us directly through our Contact
| Panama | 800-PANA (800-7262) |
| Colombia | 01-8000-94PANA (01-8000-947262) |
| Ecuador | 1800-PANASONIC (1800-726276) |
| Costa Rica | 800-PANA737 (800-7262737) |
| El Salvador | 800-PANA (800-7262) |
| Guatemala | 1-801-811-PANA (1-801-811-7262) |
| Chile | 800-390-602From a cell phone: 797-5000 |
| Venezuela | 800-PANA-800 (800-7262-800) |
| Uruguay | 0-800-PANA (0-800-7262) |
| Peru | 0-800-00-PANA (0-800-00726) |
| Argentina | 0800-333-PANA (0800-333-7262)0810-321-PANA (0810-321-7262) |
| Paraguay | 800-11-PANA (800-11-7262) |
| Dominican Republic | 809-200-8000 |
Mexico Service
To obtain information in the Republic of Mexico, contact us at:
Or you may contact us at the following phone numbers:
01800-VIP-PANA (01800-847-7262) - Interior
(55) 5000-1200 - Mexico D.F. and Metropolitan Area
Disposal of Old Equipment and Batteries
Only for European Union and countries with recycling systems
These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries must not be mixed with general household waste.
For proper treatment, recovery, and recycling of old products and used batteries, please take them to applicable collection points in accordance with your national legislation.
By disposing of them correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment.
For more information about collection and recycling, please contact your local municipality.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.
Note for the battery symbol (bottom symbol)
This symbol might be used in combination with a chemical symbol. In this case, it complies with the requirement set by the Directive for the chemical involved.
Information on Disposal in other Countries outside the European Union
These symbols are only valid in the European Union.
If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.
Notice (U.S.A. only)
Disposal may be regulated in your community due to environmental considerations. For disposal or recycling information, please visit Panasonic website:
http://www.panasonic.com/environmental
or call 1-888-769-0149.
Customer's Record
The model number and serial number of this product may be found on its rear panel. You should note this serial number in the space provided below and retain this book, plus your purchase receipt, as a permanent record of your purchase to aid in identification in the event of theft or loss, and for Warranty Service purposes.
Model Number Serial Number
For TH-80SF2HU and TH-70SF2HU
Panasonic System Communications Company of North America
Unit of Panasonic Corporation of North America
Executive Office :
Two Riverfront Plaza, Newark, New Jersey 07102-5490
Panasonic Canada Inc.
5770 Ambler Drive
Mississauga, Ontario
L4W 2T3
For TH-80SF2HW and TH-70SF2HW
Panasonic Testing Centre
Panasonic Service Europe, a division of Panasonic Marketing Europe GmbH
Winsbergring 15, 22525 Hamburg, F.R. Germany
- OPERATING INSTRUCTIONS
- BASIC GUIDE
- CONTENTS
- WARNING
- IMPORTANT SAFETY INSTRUCTIONS
- FCC STATEMENT
- FCC CAUTION
- CANADIAN NOTICE
- NOTE
- TRADEMARK CREDITS
- IMPORTANT SAFETY NOTICE
- CAUTION
- IMPORTANT INFORMATION
- IMPORTANT: THE MOULDED PLUG FOR YOUR SAFETY, PLEASE READ THE FOLLOWING TEXT CAREFULLY
- WARNING: — THIS DISPLAY MUST BE EARTHED
- HOW TO REPLACE THE FUSE
- SAFETY PRECAUTIONS
- SETUP
- CAUTIONS FOR WALL OR PEDESTAL INSTALLATION
- WHEN USING THE LCD DISPLAY
- DO NOT TOUCH THE UNIT DIRECTLY WITH YOUR HANDS WHEN IT IS DAMAGED
- DO NOT STICK ANY FOREIGN OBJECTS INTO THE DISPLAY
- DO NOT REMOVE THE COVER (CABINET) OR MODIFY IT
- ENSURE THAT THE MAINS PLUG IS EASILY ACCESSIBLE
- THE MAINS PLUG SHALL BE CONNECTED TO A MAINS SOCKET OUTLET WITH A PROTECTIVE EARTHING CONNECTION
- DO NOT USE ANY POWER SUPPLY CORD OTHER THAN THE ONE PROVIDED WITH THIS UNIT
- DO NOT USE THE SUPPLIED POWER SUPPLY CORD WITH ANY OTHER DEVICES
- CLEAN THE POWER SUPPLY PLUG REGULARLY TO PREVENT IT FROM BECOMING DUSTY
- DO NOT HANDLE THE POWER SUPPLY PLUG WITH WET HANDS
- SECURELY INSERT THE POWER SUPPLY PLUG (SOCKET OUTLET SIDE) AND THE POWER SUPPLY CONNECTOR (MAIN UNIT SIDE) AS FAR AS IT WILL GO
- DO NOT DO ANYTHING THAT MAY DAMAGE THE POWER SUPPLY CORD OR THE POWER SUPPLY PLUG
- DO NOT TOUCH THE POWER SUPPLY CORD OR THE PLUG DIRECTLY BY HAND WHEN THEY ARE DAMAGED
- PRECAUTIONS FOR USE
- CAUTIONS WHEN INSTALLING
- DO NOT SET UP THE DISPLAY OUTDOORS
- ENVIRONMENTAL TEMPERATURE TO USE THIS UNIT
- TRANSPORT ONLY IN UPRIGHT POSITION
- DO NOT GRAB THE LIQUID CRYSTAL PANEL
- DO NOT INSTALL THE PRODUCT IN A PLACE WHERE IT IS EXPOSED TO DIRECT SUNLIGHT
- REQUIRED SPACE FOR VENTILATION
- ABOUT THE SCREWS USED WHEN USING A WALL HANGING BRACKET THAT CONFORMS TO VESA STANDARDS
- WHEN USING
- BE CAREFUL OF THE MOVABLE STRUCTURE OF THE POWER INDICATOR AND REMOTE CONTROL SENSOR
- DEPENDING ON THE TEMPERATURE OR HUMIDITY CONDITIONS, UNEVEN BRIGHTNESS MAY BE OBSERVED. THIS IS NOT A MALFUNCTION
- IF THE DISPLAY IS NOT GOING TO BE USED FOR ANY PROLONGED LENGTH OF TIME, UNPLUG THE POWER SUPPLY PLUG FROM THE WALL OUTLET
- NOTES ON USING WIRED LAN
- REQUEST REGARDING SECURITY
- LIGHTID
- CLEANING AND MAINTENANCE
- DISPOSAL
- FEATURE OF THIS UNIT
- ACCESSORIES
- ACCESSORIES SUPPLY
- POWER SUPPLY CORD
- ATTENTION
- REMOTE CONTROL BATTERIES
- TAKE THE FOLLOWING PRECAUTIONS
- CAUTIONS WHEN MOVING
- EYEBOLT
- CONNECTIONS
- AC CORD CONNECTION AND FIXING / CABLE FIXING
- PLUG THE CONNECTOR INTO THE DISPLAY UNIT
- CABLE FIXING
- IR IN, IR OUT: INFRARED SIGNAL INPUT / OUTPUT TERMINAL
- SERIAL IN, SERIAL OUT: SERIAL INPUT / OUTPUT TERMINAL CONTROL THE DISPLAY BY CONNECTING TO PC
- AUDIO OUT: ANALOGUE AUDIO OUTPUT TERMINAL
- AV IN: COMPOSITE VIDEO / AUDIO INPUT TERMINAL
- USB: USB TERMINAL
- DVI-D IN, DVI-D INPUT / OUTPUT TERMINAL
- AV IN HDMI INPUT TERMINAL
- DIGITAL LINK / DIGITAL LINK / LAN TERMINAL
- PC IN: PC INPUT TERMINAL
- BEFORE CONNECTING
- IDENTIFYING CONTROLS
- DISPLAY
- POWER INDICATOR / REMOTE CONTROL SENSOR
- WHEN THE POWER OF THE UNIT IS ON (MAIN POWER ON / OFF BUTTON: ON)
- WHEN THE POWER OF THE UNIT IS OFF (MAIN POWER ON / OFF BUTTON: OFF): NO LIGHT
- BUILT-IN SPEAKERS
- REMOTE CONTROL TRANSMITTER
- STANDBY (ON/OFF) BUTTON (∅/|)
- POSITION
- ENTER / CURSOR BUTTONS (▲▼)
- ZOOM
- DEFAULT
- MUTE
- ASPECT
- VOL + / VOL
- AUTO SETUP
- INPUT
- PICTURE
- SOUND
- RECALL
- RETURN
- FUNCTION
- OFF TIMER
- NUMERIC BUTTONS (1 - 6)
- SIGNAL EMISSION
- BASIC CONTROLS
- CONNECT THE AC CORD PLUG TO THE DISPLAY
- CONNECT THE PLUG TO THE SOCKET OUTLET
- PRESS THE (☐) ON THE UNIT TO TURN THE POWER OF THE UNIT ON
- TO TURN THE POWER ON/OFF WITH THE REMOTE CONTROL
- TO TURN THE POWER ON
- TO TURN THE POWER OFF
- WHEN THE UNIT IS TURNED ON FOR THE FIRST TIME
- SELECT THE LANGUAGE WITH ▲ AND PRESS
- FOR VERTICAL INSTALLATION, SELECT [PORTRAIT] WITH ▲ AND PRESS
- POWER ON MESSAGE
- NO ACTIVITY POWER OFF PRECAUTIONS
- NO ACTIVITY POWER OFF' IS ENABLED
- POWER MANAGEMENT" INFORMATION
- LAST TURN OFF DUE TO 'POWER MANAGEMENT
- SPECIFICATIONS
- MODEL NO
- POWER CONSUMPTION
- POWER OFF CONDITION
- STAND-BY CONDITION
- LCD DISPLAY PANEL
- SCREEN SIZE
- NO. OF PIXELS
- DIMENSIONS (W × H × D)
- MASS
- POWER SOURCE
- OPERATING CONDITION
- TEMPERATURE
- HUMIDITY
- STORING CONDITION
- CONNECTION TERMINALS
- HDMI
- DVI-D IN
- DVI-D OUT
- AV IN
- PC IN
- AUDIO OUT
- IR IN
- SPEAKERS
- AUDIO OUTPUT
- OPERATING RANGE
- NOTICE ABOUT AVC/VC-1/MPEG
- PANASONIC PROFESSIONAL FLAT PANEL DISPLAY LIMITED WARRANTY
- LIMITS AND EXCLUSIONS
- CUSTOMER SERVICE
- CUSTOMER SERVICE DIRECTORY
- DISPOSAL OF OLD EQUIPMENT AND BATTERIES
- ONLY FOR EUROPEAN UNION AND COUNTRIES WITH RECYCLING SYSTEMS
- NOTE FOR THE BATTERY SYMBOL (BOTTOM SYMBOL)
- INFORMATION ON DISPOSAL IN OTHER COUNTRIES OUTSIDE THE EUROPEAN UNION
- CUSTOMER'S RECORD
- FOR TH-80SF2HU AND TH-70SF2HU
- PANASONIC SYSTEM COMMUNICATIONS COMPANY OF NORTH AMERICA
- EXECUTIVE OFFICE
- PANASONIC CANADA INC
- FOR TH-80SF2HW AND TH-70SF2HW
Brand : PANASONIC
Model : TH-70SF2HU
Category : Screen
