Product Type	Premium Wooden Piano Bench
Brand	Auray
Model	PBS-DLX
Seat Material	Tufted leather
Frame Material	Genuine wood
Seat Dimensions (W x D)	23.6 x 15.8 inches (60 x 40 cm)
Adjustable Height Range	19.3 - 23 inches (49 - 58.5 cm)
Weight Capacity	Up to 360 lb (163 kg)
Product Weight	19.95 lb (9 kg)
Assembly Required	Yes (4 legs)
Height Adjustment Mechanism	Knobs on both sides
Included Hardware	Washers, lock washers, hex nuts, wrench
Warranty	1-year limited warranty
Care Instructions	Wipe with a damp cloth; avoid harsh chemicals
Safety Warnings	Do not exceed weight capacity; keep fingers clear when lowering seat
Recommended Use	Home, studio, stage performance
Color	Black
Number of Legs	4
Minimum Height	19.3 in (49 cm)
Maximum Height	23 in (58.5 cm)

Frequently Asked Questions - PBS-DLX Auray

How do I assemble the PBS-DLX piano bench?

Place the bench upside down on a flat surface. Align the threaded bolt of each leg with the hole in the corner bracket. Fit a washer, then a locking washer onto the bolt, screw on the hex nut, and tighten using the provided wrench. Repeat for all four legs, then turn the bench upright.

What is the weight capacity of the bench?

The bench can support up to 360 lb (163 kg). Do not exceed this limit to avoid damage.

How do I adjust the seat height?

Turn the height adjustment knobs located on both sides of the bench. Turn clockwise to lower, counterclockwise to raise. Keep fingers clear when lowering the seat.

What are the seat dimensions?

The seat measures 23.6 inches wide by 15.8 inches deep (60 x 40 cm).

How do I clean the bench?

Wipe the leather seat with a damp cloth. Avoid using harsh chemicals or abrasive cleaners to prevent damage.

What is covered by the warranty?

The one-year limited warranty covers defects in materials and workmanship under normal consumer use. It does not cover misuse, neglect, or improper installation.

How do I obtain warranty service?

Contact Auray Customer Service at 212-594-2353 or visit aurayaudio.com to obtain an RMA number. Return the defective product with proof of purchase and RMA number at your own expense.

What tools are needed for assembly?

The bench includes a wrench for tightening the hex nuts. No other tools are required.

Is the bench suitable for tall players?

Yes, the height adjusts from 19.3 to 23 inches, accommodating most players including tall individuals.

Can the bench be used with electronic keyboards?

Yes, the bench is designed for any keyboard or piano setup. It provides a comfortable, adjustable seat for home, studio, or stage use.

USER MANUAL PBS-DLX Auray

Premium Wooden Piano Bench with Adjustable Height

Owner's Manual

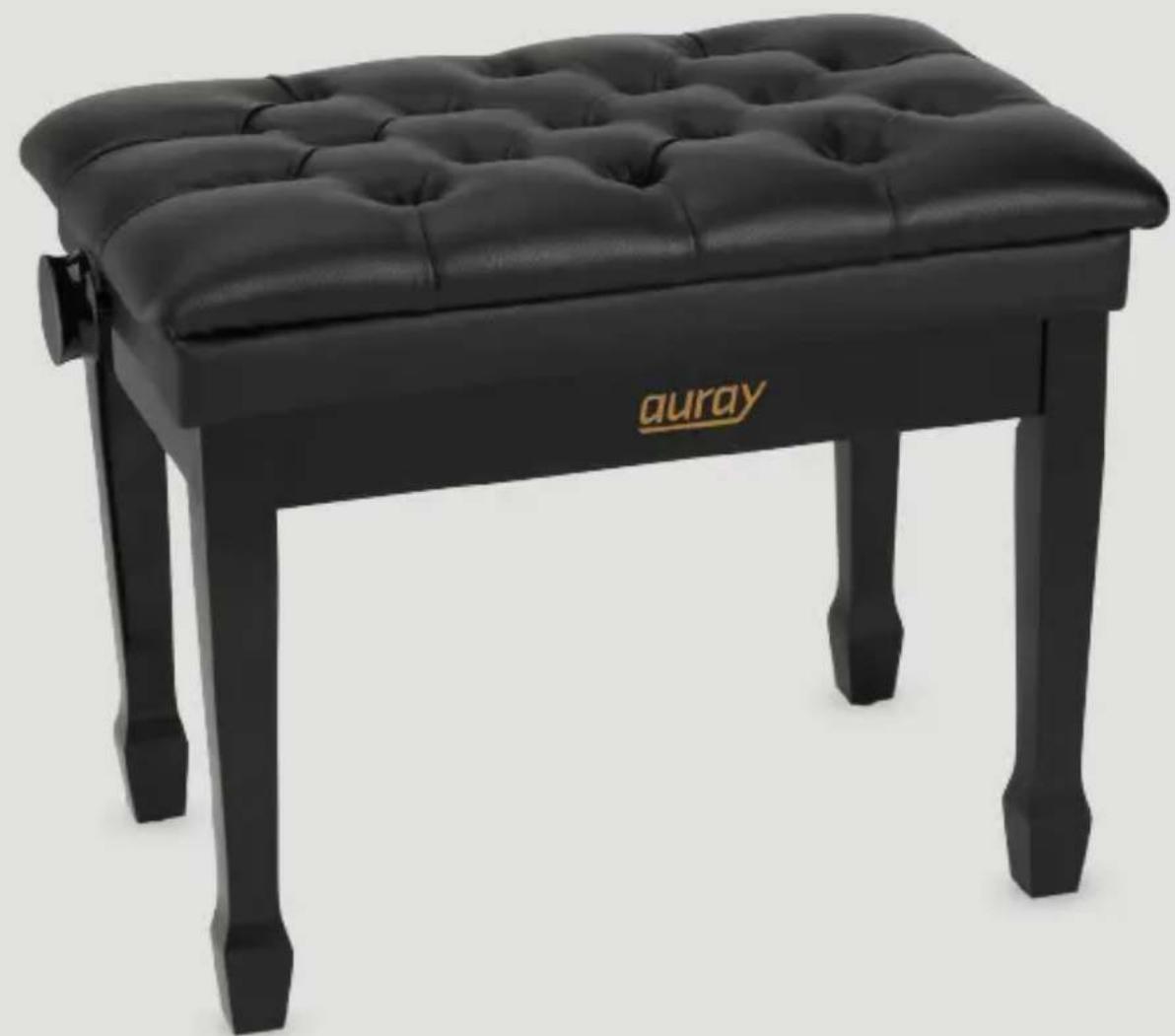

Black leather stool with a tufted seat and 'auray' branding on the side (no other text or symbols visible)

Thank you for choosing Auray.

This elegant, concert-style piano bench is ideal for stage performance, studio sessions, or home use. It features genuine wood construction and a tufted-style leather seat for comfort through many hours at the keyboard. The seat height is adjustable via knobs on both sides of the bench.

Warnings

• Please read and follow these instructions, and keep this manual in a safe place.
• Make sure this product is intact and that there are no missing parts.
• Make sure all parts are secure before use.
• All images are for illustrative purposes only.
• To avoid damage to this product, be careful not to overtighten or improperly thread any of the threaded fittings.
• Do not exceed the maximum load capacity.

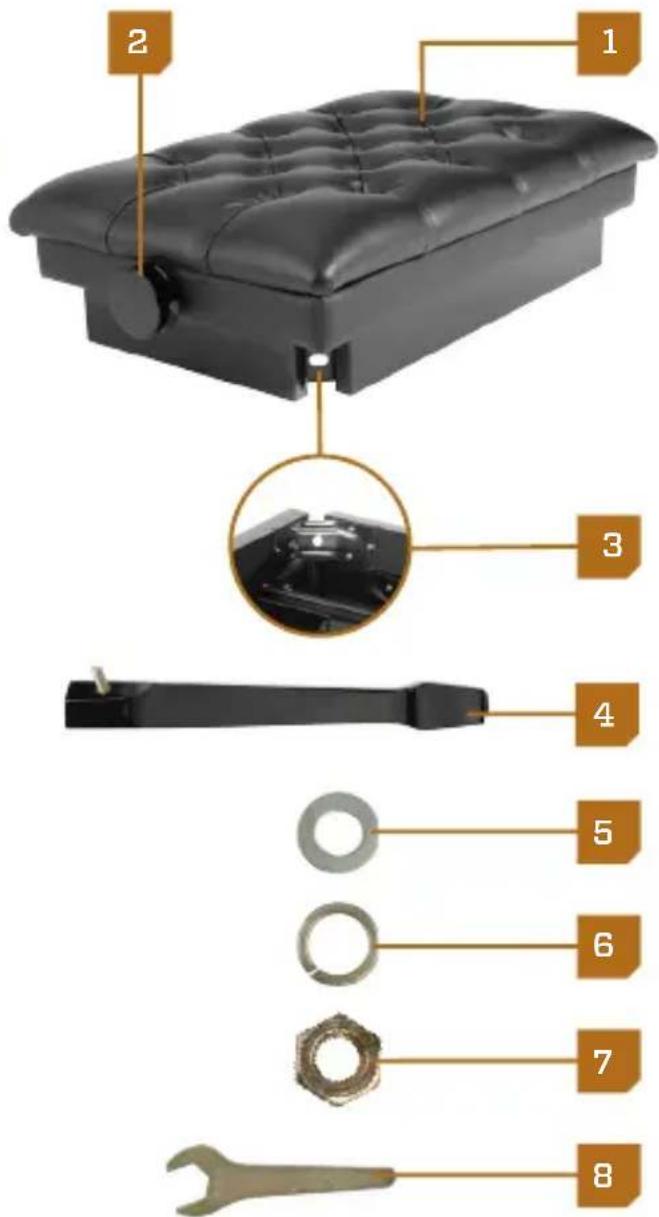

Overview

Seat 1

Height adjustment knob 2

Corner bracket 3

Bolted leg (4) 4

Washer (4) 5

Locking washer (4) 6

Hex nut (4) 7

Wrench 8

Instructions

Assembling the PBS-DLX

Follow these steps for all four legs:

1. Place the piano bench upside down on a stable, flat surface.
2. Align and insert the threaded bolt from the leg with the hole in the corner bracket. 1
3. Fit the washer onto the bolt, followed by the locking washer.

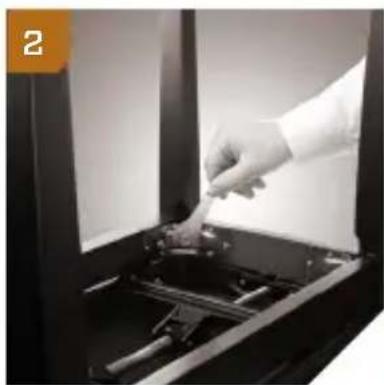

4. Screw the hex nut onto the threaded bolt, and use the wrench to tighten until secure. 2

After all of the legs are attached, stand the bench upright, and place it on a flat surface.

Adjusting the height

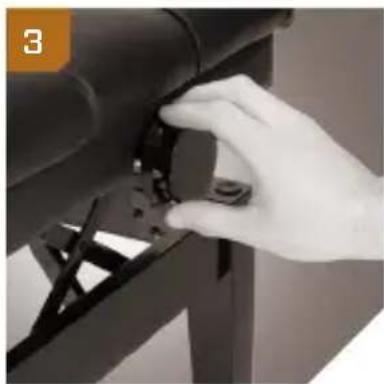

To adjust the height of the PBS-DLX, turn one or both of the height adjustment knobs located on the sides of the bench. 3

Warning: Keep your fingers clear when lowering the seat.

Close-up of a black mechanical component with a metallic bracket and mounting base (no visible text or symbols)

Person in lab coat handling a component inside a 3D printer (no visible text or symbols)

Close-up of a hand adjusting a black mechanical component (no visible text or symbols)

Specifications

Seat dimensions (W × D): 23.6" × 15.8" (60×40 cm)

Weight capacity: Up to 360 lb. (163 kg)

Height: 19.3" - 23" (49 - 58.5 cm)

Weight: 19.95 lb. (9 kg)

One-Year Limited Warranty

This AURAY product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. The warranty provider's responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at the provider's discretion, of any product that fails during normal use of this product in its intended manner and in its intended environment. Inoperability of the product or part(s) shall be determined by the warranty provider. If the product has been discontinued, the warranty provider reserves the right to replace it with a model of equivalent quality and function.

This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration, abuse, improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, THE WARRANTY PROVIDER MAKES NEITHER ANY EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. This warranty provides you with specific legal rights, and you may also have additional rights that vary from state to state.

To obtain warranty coverage, contact the Auray Customer Service Department to obtain a return merchandise authorization (“RMA”) number, and return the defective product to Auray along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser’s own risk and expense.

For more information or to arrange service, visit aurayaudio.com or call Customer Service at 212-594-2353.

Product warranty provided by the Gradus Group.

www.gradusgroup.com

AURAY is a registered trademark of the Gradus Group.

© 2016 Gradus Group LLC. All Rights Reserved.
