| Product Type | Closed-back Dynamic Gaming Headset |
| Brand | Audio-Technica |
| Model | ATH-AG1X |
| Driver Diameter | 53 mm |
| Frequency Response | 10 – 30,000 Hz |
| Maximum Input Power | 1,000 mW |
| Impedance | 65 ohms |
| Sensitivity | 99 dB/mW |
| Cable Length (Detachable) | 1.2 m (Y-type) + 2.0 m extension cable |
| Connector | 3.5 mm stereo mini plug (gold-plated) |
| Weight (without cable) | Approx. 340 g |
| Microphone Type | Gooseneck condenser microphone (unidirectional) |
| Microphone Frequency Response | 100 – 12,000 Hz |
| Power Supply | None (passive) |
| Compatibility | PC, Mac, PS4, Xbox One, Nintendo Switch, mobile devices |
| Cleaning | Wipe with a soft dry cloth; do not use solvents |
| Storage Conditions | Temperature: -10°C to 60°C, Humidity: ≤90% |
| Repairability | Detachable cable and replaceable earpads; professional repair recommended for drivers |
| Included Accessories | Detachable microphone, extension cable, carrying pouch |
Frequently Asked Questions - ATH-AG1X Audio-Technica
How do I connect the ATH-AG1X to my PC?
Use the provided Y-splitter cable to separate audio and microphone jacks. Plug the green connector into the headphone jack and the pink connector into the microphone jack. For single-jack devices, use the extension cable with combined plug.
Can I use the ATH-AG1X without the microphone?
Yes, the microphone is detachable. Remove it by gently pulling it out from the left earcup. The headphones work normally without it.
Is the ATH-AG1X compatible with Xbox One?
Yes, it is compatible with Xbox One via the 3.5 mm controller jack. For older controllers without a jack, a Microsoft adapter is required.
What is the warranty period for the ATH-AG1X?
Audio-Technica offers a 2-year limited warranty for manufacturing defects. Keep your proof of purchase.
How do I clean the earpads and headband?
Remove the earpads by gently twisting and pulling. Wipe with a damp cloth and mild soap, then air dry. The headband can be wiped with a soft dry cloth. Do not use alcohol or abrasive cleaners.
Can I replace the cable if it gets damaged?
Yes, the cable is detachable and replaceable. Use any 3.5 mm to 3.5 mm cable with the correct connector angles. Audio-Technica offers replacement cables.
Why is the microphone not working?
Ensure the microphone is fully inserted and the mute switch (if present) is off. Check that the correct input device is selected in your system settings. Test on another device to isolate the issue.
What audio settings should I use for gaming?
Set the audio output to 48 kHz, 16-bit. Enable Windows Sonic or Dolby Atmos for spatial sound. Adjust the equalizer to your preference – the ATH-AG1X has a neutral sound signature with slight bass emphasis.
Are the earpads replaceable?
Yes, the earpads are designed to be replaceable. They are held on by a plastic ring. You can purchase official replacement pads from Audio-Technica or third-party options.
How do I store the headphones to prevent damage?
Use the included carrying pouch. Store in a dry place at room temperature. Avoid putting heavy objects on top. Coil the cable loosely without sharp bends.
User questions about ATH-AG1X Audio-Technica
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Headphones in PDF format for free! Find your manual ATH-AG1X - Audio-Technica and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. ATH-AG1X by Audio-Technica.
USER MANUAL ATH-AG1X Audio-Technica
high-fidelity closed-back gaming headset
- Newly designed 53mm drivers deliver powerful audio for the ultimate gaming experience.
- Improved 3D Wing Support system offers hours of comfort and a secure fit.
- Audio-Technica's state-of-the-art microphone enables crystal clear in-game voice communication.
- Extremely soft earpads provide superior comfort for extended game play.
• Equipped with 1.2m attached cable and 2.0m extension cable. - Included microphone windscreen reduces unwanted wind and breath noise.
Specifications*:
| Driver: | Closed-back dynamic 53mm |
| Output Sound Pressure Level: 100dB/mW | |
| Frequency Response: 5 -35,000Hz | |
| Maximum Input Power: 1,000mW | |
| Impedance: | 50 ohms |
| Weight (without cable): 320g | |
| Cable Length: 1.2m | |
| Connector: 3.5mm gold-plated stereo mini plug | |
| Accessories: 2.0m extension cable (2 x 3.5mm plugs for audio and mic), windscreen | |
| Microphone Type: Condenser | |
| Microphone Polar Pattern: Supercardioid | |
| Microphone Frequency Response: 100-12,000Hz | |
| Microphone Sensitivity: -41 dB (0dB =1 VPa, 1kHz) | |
* Specifications are subject to change without notice.

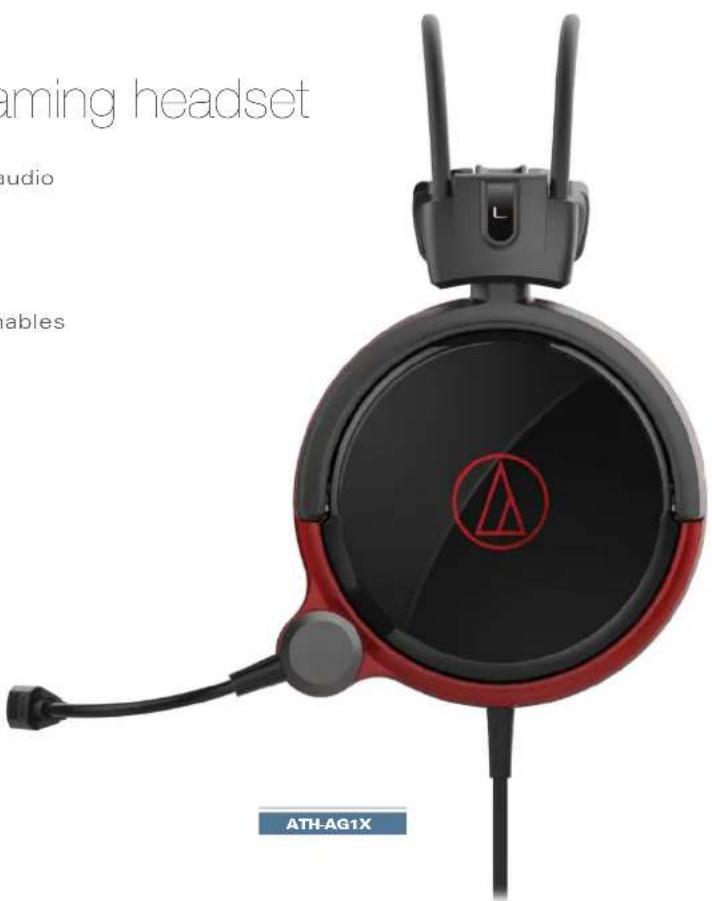

always listening
