Product Type	Portable CD Player
Brand	Memorex
Model	MD6460
Disc Support	CD, CD-R, CD-RW
Playback Modes	Program, Repeat, Shuffle
Anti-Skip Protection	Yes (approx. 40 seconds)
Output	Headphone jack (3.5mm)
Power Source	2x AA batteries (not included) or AC adapter (3V DC)
Battery Life	Up to 10 hours (depending on usage)
Dimensions (approx.)	130 mm x 140 mm x 25 mm
Weight (without batteries)	~200 g
Display	LCD with track/time indicators
Controls	Play/Pause, Stop, Skip, Volume, Mode
Accessories Included	User manual only
Maintenance	Clean lens with soft dry cloth; avoid liquids
Safety	Keep away from moisture; use only specified batteries
Spare Parts Availability	Contact Memorex support for replacement parts
Repairability	Professional repair recommended; do not disassemble

Frequently Asked Questions - MD6460 MEMOREX

How do I insert batteries into the MD6460?

Open the battery compartment on the bottom of the player. Insert two AA batteries with correct polarity as indicated. Close the cover.

Can I use rechargeable batteries?

Yes, you can use Ni-MH rechargeable AA batteries. Note that battery life may vary.

How do I play a CD?

Press the OPEN button to lift the lid, place a CD with label facing up, close the lid, then press PLAY/PAUSE.

The player won't read my CD. What should I do?

Ensure the disc is clean and free of scratches. Try a different CD. If the issue persists, clean the lens using a soft dry cloth or a lens cleaning disc.

How do I use the anti-skip function?

The anti-skip protection is activated automatically. For best performance, hold the player steady. It provides up to 40 seconds of skip-free playback.

Can I connect the player to speakers?

The MD6460 has a headphone jack only. You can connect it to powered speakers or an auxiliary input using a 3.5mm audio cable.

How do I set the programmable playback?

While stopped, press PROG, then the desired track numbers using the SKIP keys, then PROG again to confirm. Press PLAY to start.

What should I do if the headphones have no sound?

Check that headphones are fully inserted into the headphone jack and the volume is turned up. Also ensure the player is not in pause mode.

How do I clean the CD player?

Use a soft, dry cloth to wipe the exterior. Do not use any liquids or abrasive cleaners. The lens can be cleaned with a lens cleaning disc.

Is the MD6460 covered by a warranty?

Yes, Memorex typically offers a limited warranty. Check the included warranty card or contact Memorex support for details specific to your region.

USER MANUAL MD6460 MEMOREX

Line drawing of a circular mechanical device with internal components and ventilation slots (no text or symbols)

Before operating this product, please read these instructions completely.

SAFETY PRECAUTIONS

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

DANGEROUS VOLTAGE:

The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

ATTENTION:

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

DANGER:

This product utilizes a Class 1 laser to read Compact Discs. This laser Compact Disc Player is equipped with safety switches to avoid exposure when the CD door is open and the safety interlocks are defeated. Invisible and hazardous laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam. Please do not attempt to defeat or bypass the safety switches.

FCC WARNING:

This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

SURGE PROTECTORS:

It is recommended to use a surge protector for AC connection. Lightning and power surges ARE NOT covered under warranty for this product.

SAFETY PRECAUTIONS (CONTINUED)

INFORMATION:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

ATTENTION:

POUR ÉVITER LES CHOC ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISES ET POUSSER JUSQU'AU FOND.

• Do not open the CD compartment while the CD is rotating.
  • Always keep the CD compartment closed when not in use.
• Keep all foreign objects out of the CD compartment.
• Place the unit on a stable surface.

• Avoid installing the unit in locations described below:

• Places exposed to direct sunlight or close to heat radiating appliances such as electric heaters.

• On top of other stereo equipment that radiates too much heat.
• Places lacking ventilation or dusty places.
• Places subject to constant vibration.
  • Humid or moist places.

Dear Customer:

Selecting fine audio equipment such as the unit you've just purchased is only the start of your musical enjoyment. Now it's time to consider how you can maximize the fun and excitement your equipment offers. This manufacturer and the Electronic Industries Association's Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. One that lets the sound come through loud and clear without annoying blaring or distortion and, most importantly, without affecting your sensitive hearing.

Sound can be deceiving. Over time your hearing “comfort level” adapts to higher volumes of sound. So what sounds “normal” can actually be loud and harmful to your hearing. Guard against this by setting your equipment at a safe level BEFORE your hearing adapts.

To establish a safe level:

• Start your volume control at a low setting.
• Slowly increase the sound until you can hear it comfortably and clearly, and without distortion.

Once you have established a comfortable sound level:

- Set the dial and leave it there.

Taking a minute to do this now will help to prevent hearing damage or loss in the future. After all, we want you listening for a lifetime.

We Want You Listening For A Lifetime

Used wisely, your new sound equipment will provide a lifetime of fun and enjoyment. Since hearing damage from loud noise is often undetectable until it is too late, this manufacturer and the Electronic Industries Association's Consumer Electronics Group recommend you avoid prolonged exposure to excessive noise. This list of sound levels is included for your protection.

Decibel

Level Example

30 Quiet library, soft whispers
40 Living room, refrigerator, bedroom away from traffic
50 Light traffic, normal conversation, quiet office
60 Air conditioner at 20 feet, sewing machine
70 Vacuum cleaner, hair dryer, noisy restaurant
80 Average city traffic, garbage disposals, alarm clock at two feet

THE FOLLOWING NOISES CAN BE DANGEROUS UNDER CONSTANT EXPOSURE:

90 Subway, motorcycle, truck traffic, lawn mower
100 Garbage truck, chain saw, pneumatic drill
120 Rock band concert in front of speakers, thunderclap
140 Gunshot blast, jet engine
180 Rocket launching pad

Information courtesy of the Deafness Research Foundation.

LOCATION OF CONTROLS

1. DC 4.5V Jack

(Rear of Unit)

1. ESP Button
2. Display
3. PROG (Program) Button
4. PLAY/PAUSE ( ▶II)/POWER ON Button
5. HOLD (ON/OFF) Switch
6. Battery Compartment (Under CD Compartment)
7. MODE Button
8. CD Door OPEN Switch

9. CD Compartment

10. Skip/Search Button

11. STOP (■)/POWER OFF Button
12. Skip/Search ▶Button
13. DBBS (Bass Boost) Switch
14. VOLUME Control
15. Headphones Jack (Side of Unit)
16. LINE OUT Jack (Side of Unit)

POWER SOURCES

This CD player requires either two (2) "AA" cell batteries (not included) or an AC adapter (not included).

BATTERY INSTALLATION

The battery indicator (☐) will blink or appear in the CD display when the batteries need replacing.

1. Open the CD compartment, then open the battery compartment door by pressing in on the tab and then lifting it. To prevent the possibility of losing the cover, it cannot be removed.

2. Insert two (2) "AA" cell batteries (not included) according to the polarity diagram inside the battery compartment. Alkaline batteries are recommended for the longest playing time.

Simple line drawing of a battery pack with two cells and one cell, no text or symbols present

BATTERY PRECAUTIONS

Follow these precautions when using batteries in this device:

1. Use only the size and type of batteries specified.
2. Be sure to follow the correct polarity when installing the batteries as indicated next to the battery compartment. Reversed batteries may cause damage to the device.
3. Do not mix different types of batteries together (e.g. Alkaline, Carbon-zinc or Rechargeable) or old batteries with fresh ones.
4. If the device is not to be used for a long period of time, remove the batteries to prevent damage or injury from possible battery leakage.
5. Do not try to recharge batteries not intended to be recharged; they can overheat and rupture. (Follow battery manufacturer's directions.)

AC OPERATION

To operate the unit using AC power, connect an AC adapter (not included) to an AC outlet having 120V, 60Hz AC only. Plug the small end into the DC 4.5V jack on the unit and connect the other end into the AC outlet. The batteries are automatically disconnected when the AC adapter is used.

CAUTION: When not using AC power, disconnect the AC adapter from the wall outlet by pulling the plug (not the cord). Do not touch the AC adapter with wet hands. Fully insert the plug without exposing any part of the blade.

DC4.5V

OPERATION

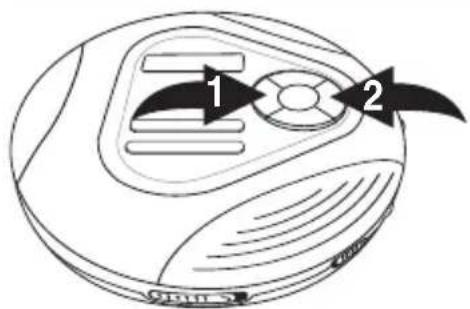

BASS BOOST TURNING POWER ON/OFF

1

Line drawing of a circular vacuum cleaner with control panel and scroll wheel (no text or symbols)

To emphasize the bass, slide the DBBS switch to the ON position. For normal bass, slide the DBBS switch to the OFF position.

1

To turn the unit on, press the PLAY/PAUSE (▶II)/POWER ON button ①.

To turn the unit off, Press the STOP (■)/POWER OFF button ② while in the Stop mode.

HOLD

1

Line drawing of a device with a circular button and arrow indicating direction (no text or symbols)

Slide to the ON position to disable the buttons; "Hold" will briefly appear in the display. When pressing the buttons on the CD compartment lid, "Hold" will briefly appear in the display. Slide to the OFF position to enable the buttons. For the HOLD function, only the buttons on the CD compartment lid will be disabled, not the other controls/switches.

AUTO POWER OFF

When the unit is stopped (Standby mode) for approximately one minute, the power will automatically turn off.

Radio Sound Through a Home Audio System

By using a home audio connection cable (not included), superb radio sound can be heard through your home audio system. Before making any connections, turn off the power to all equipment.

Plug a connection cable (not included) between the LINE OUT jack on the side of the CD player and the amplifier's AUX or CD input jack. (Do not connect it to the amplifier's PHONO jack.)

NOTE: If the radio interferes with TV reception, move the unit away from the TV or turn off the power to this unit.

CD OPERATION

TO PLAY A CD (Standard, CD-R and CD-RW)

1

Diagram of a robotic vacuum cleaner with a black arrow pointing to the blade (no text or symbols present)

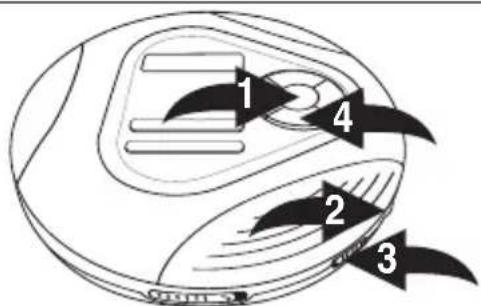

Open the CD compartment lid by sliding the CD OPEN switch to the right. Gently press a disc, label side up, onto the spindle until it locks in place. Close the CD compartment lid. Insert headphones into the PHONES jack.

2

Line drawing of a robotic device with a black arrow pointing to the button (no text or symbols)

Press the PLAY/PAUSE (▶II)/POWER ON button to start playback. To pause playback, press the PLAY/PAUSE (▶II)/POWER ON button again, the elapsed time will blink. Press once again to resume playback.

3

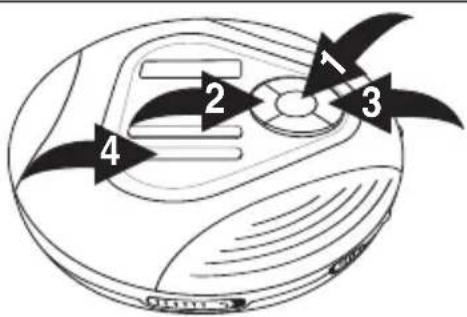

Adjust the VOLUME control ① and DBBS switch ② as desired. To skip forward or backward through the tracks on the disc, press the SKIP/SEARCH ③ or ④ button. To search forward or backward through the tracks on the disc, press and hold the SKIP/SEARCH ③ or ④ button.

4

Diagram of a circular device with internal components and a black arrow pointing to a button (no text or symbols)

When the disc is through playing, it will stop. Press the STOP (■)/POWER OFF button to stop the disc before it is finished; the total number of tracks will appear. Press the STOP (■)/POWER OFF button again while in the Stop mode to turn the unit off or wait approximately 60 seconds and the unit will automatically turn off.

NOTES:

• This unit is capable of playing standard CDs or 3" singles; no adapter is required.
• If a disc is inserted incorrectly, dirty, damaged or not present at all, the display will show "no disc".
• As each track is played, the track number and elapsed time are shown in the display.
• To remove the disc, open the CD compartment, hold the edge of the CD, gently press the center pivot and lift the CD.
• The maximum play time for a CD in this unit is 74 minutes.
• “----” will appear in the display when the CD door is open.

CD OPERATION (CONTINUED)

60 SECOND MOTION PROOF ELECTRONIC ANTI-SHOCK SYSTEM

This CD player has a built-in Anti-Shock System that cuts down on CD skipping, which is useful when using the CD player in the car or while jogging/walking. Follow the steps below to activate and understand the Anti-Shock System:

1

Line drawing of a circular robotic device with control panel and scroll wheel (no text or symbols)

2

Line drawing of a circular device with a knob and arrow pointing to the side (no text or symbols)

Open the CD compartment lid by sliding the CD OPEN switch to the right. Gently press a disc, label side up, onto the spindle until it locks in place. Close the CD compartment lid. Insert headphones into the PHONES jack.

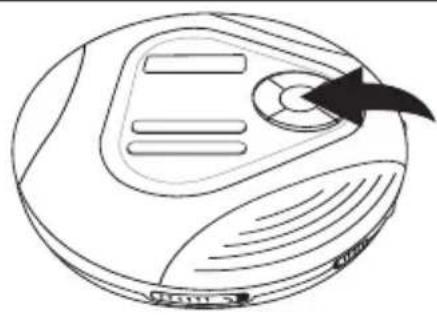

With a CD inserted, press the PLAY/PAUSE (▶II)/POWER ON button to turn the unit on.

3

4

The Anti-Shock System will start automatically, the sound will mute for a moment and the display will show the Anti-Shock indicator with no bars in it.

Within a few seconds, the Anti-Shock indicator will fill to indicate music signals are stored in memory.

CONTINUED ON THE NEXT PAGE

CD OPERATION (CONTINUED)

5

6

If the CD player is subject to vibration during playback, the bars will disappear one by one. During the vibration, the music should continue to play the signals stored in the memory until the CD player can read the music data properly from the disc. At this time, the indicator will probably show fewer bars indicating the music signals stored in memory are low.

If all the bars disappear and the CD player is subject to immediate vibration, the unit may skip.

7

8

Diagram of a circular device with internal components and an arrow indicating direction (no text or symbols)

If no more vibration occurs, the music signals are once again stored into the memory and the indicator returns to full. When the memory is full, the top bar will blink and the disc rotation speed will drop to save power consumption.

To turn the Anti-Shock System off, press the ESP button. To turn the Anti-Shock System on, press the ESP button again.

NOTES:

• When the CD player is used in a stable location, turn the Anti-Shock System off by pressing the ESP button. When the Anti-Shock System is off, battery consumption is less.
• The Anti-Shock System provides for continuous sound output when the unit is subject to vibration, but it will not correct errors, such as a defective or dirty CD.

CD OPERATION (CONTINUED)

TO REPEATEDLY PLAY BACK ONE TRACK

1

With a CD inserted, press the PLAY/PAUSE (▶II)/POWER ON button ① to turn the unit on, then select a track using the SKIP/SEARCH ◀◀ ② or ▶◀ ③ button. Press the MODE button ④ once; the Repeat 1 indicator ▶□ will appear in the display.

2

The unit will then play the same track over and over until the STOP (■)/POWER OFF button ① is pressed. Adjust the VOLUME control ② and DBBS switch ③ as desired.

TO REPEATEDLY PLAY BACK ALL TRACKS

1

With a CD inserted, press the PLAY/PAUSE (▶II)/POWER ON button ① to turn the unit on. Press the MODE button ② twice; the Repeat All indicator with appear in the display.

2

The unit will then play all the tracks on the CD over and over until the STOP (■)/POWER OFF button ① is pressed. Adjust the VOLUME control ② and DBBS switch ③ as desired.

TO CANCEL REPEAT PLAYBACK, press the MODE button four times if in Repeat 1 mode, or three times if in Repeat All mode. The unit will continue normal playback.

CD OPERATION (CONTINUED)

INTRO PLAY

1

With a CD inserted, press the PLAY/PAUSE (▶)POWER ON button ① to turn the unit on and press the STOP (■)/POWER OFF button ② to stop auto playback. Press the MODE button ③ three times; the INTRO indicator will appear in the display.

2

Press the PLAY/PAUSE (▶POWER ON button ① to begin playback. The unit will play the first 10 seconds of each track. Adjust the VOLUME control ② and DBBS switch ③ as desired. Press the STOP (■)/POWER OFF button ④ to stop Intro playback.

TO CANCEL Intro Play, press the Mode button twice.

TO RANDOMLY PLAY BACK A CD

1

With a CD inserted, press the PLAY/PAUSE (▶)/POWER ON button ① to turn the unit on and press the STOP (■)/POWER OFF button ② to stop auto playback. Press the MODE button ③ four times; the RAND indicator will appear in the display.

2

Press the PLAY/PAUSE (POWER ON button ① to begin playback. The unit will play all the tracks in random order. Adjust the VOLUME control ② and DBBS switch ③ as desired. When all the tracks have been played, the unit will stop. Press the STOP (■)/POWER OFF button ④ to stop Random playback.

TO CANCEL Random Play, press the MODE button once.

CD OPERATION (CONTINUED)

TO PROGRAM THE MEMORY (UP TO 24 TRACKS)

1

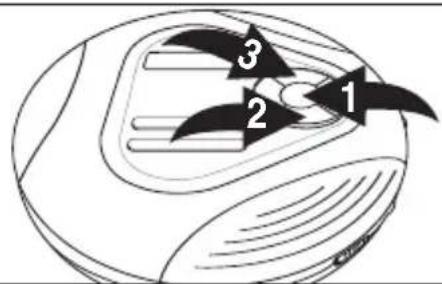

With a CD inserted, press the PLAY/PAUSE (▶II)/POWER ON button ① to turn the unit on and press the STOP (■)/POWER OFF button ② to stop auto playback. Press the PROG button ③; the Track (00), program number (P-01) and PROG indicator will appear in the CD display.

2

Select the first track to be played back using the SKIP/SEARCH ◀◀ ① or ▶▶ ② button, then press the PROG button ③ again. Repeat this step to program additional tracks up to a maximum of 24 tracks.

3

Press the PLAY/PAUSE (▶II)/POWER ON button ① to begin Programmed playback and adjust the VOLUME control ② and DBBS switch ③ as desired.

4

To skip forward or backward through the programs, press the SKIP/SEARCH 🔊① or 🔊② button. When the disc is through playing, it will stop.

NOTES:

• Press the STOP (■)/POWER OFF button to stop the disc before it is finished.
• As each program is played, the track number is shown in the display.
• To clear the memorized program, press and hold the PROG button while in the Stop mode until the PROG indicator disappears in the display.
• Programming is the ability to preselect the order in which a series of tracks will be played.
  • Each track may be stored in the program memory as many times as desired (up to 24 tracks).

CARE AND MAINTENANCE

Caring for Compact Discs

• Treat the compact disc carefully. Handle the compact disc only by its edges. Never allow your fingers to come in contact with the shiny, unprinted side of the compact disc.
• Do not attach adhesive tape, stickers, etc. to the compact disc label.

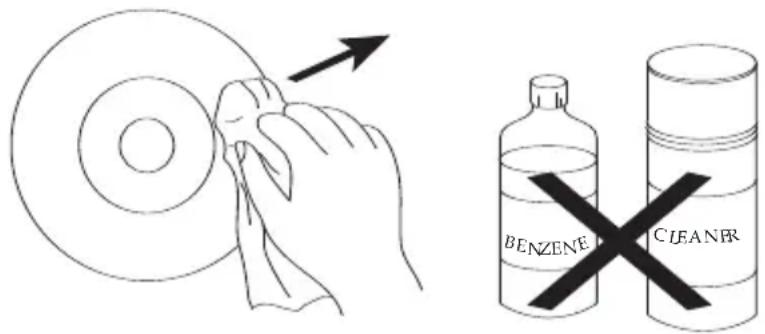

• Clean the compact disc periodically with a soft, lint-free, dry cloth. Never use detergents or abrasive cleaners to clean the compact disc. If necessary, use a CD cleaning kit.
• If a compact disc skips or gets stuck on a section of the disc, it is probably dirty or damaged (scratched).

Line drawing of two hands holding a circular object (no text or symbols)

• When cleaning the compact disc, wipe in straight lines from the center of the compact disc to the outer edge of the compact disc. Never wipe in circular motions.
• This unit is designed to play only compact discs bearing the identification logo as shown here. Other compact discs may not conform to the CD standard and may not play properly.
• Compact discs should be stored in their cases after each use to avoid damage.
• Do not expose compact discs to direct sunlight, high humidity, high temperatures or dust, etc. Prolonged exposure or extreme temperatures can warp the compact disc.
• Do not stick or write anything on either side of the compact disc. Sharp writing instruments, or the ink, may damage the surface.

Cleaning the Unit

• To prevent fire or shock hazard, disconnect your unit from the AC power source when cleaning.
• The finish on your unit may be cleaned with a dust cloth and cared for as other furniture. Use caution when cleaning and wiping the plastic parts.
• Mild soap and a damp cloth may be used on the front panel.

TROUBLESHOOTING GUIDE

If you experience a problem with this unit, check the chart below before calling for service.

SYMPTOM CAUSE SOLUTION
Unit will not Batteries inserted turn on. incorrectly. correctly.
		Weak or dead Replace batteries.batteries.
		AC adapter Check AC adapternot connected. connection.
Disc will not play. CD compartment Close CD compartment.not closed.
		Disc inserted Reinsert disc correctly. incorrectly.
		Dirty or defective Try another disc.
		Moisture Wipe disc with softcondensation cloth.on disc.
Erratic CD playback.	Dirty or defective Clean disc.	or replace disc.
No sound from Headphone headphones. plug not inserted Reinsert plug correctly.		headphone
		VOLUME control Increase volume.set to minimum.
		Weak batteries.	Replace batteries.
		Defective disc.	Try another disc.
ESP not working. ESP is not activated. Press the ESP button.

SPECIFICATIONS

Power requirements....2 x LR6 "AA" alkaline battery

DC In 4.5V adapter (center positive)

D/A conversion....1-bit DAC eight times oversampling

Frequency response 20\~20,000Hz (+1,-3 dB)

Anti-shock. 60 second buffer

Output level.....Line output: 0.6 Vms (47K ohms)

Headphone: 16mW (32 ohms)

FOR ADDITIONAL SET-UP OR OPERATING ASSISTANCE, PLEASE VISIT OUR WEBSITE AT

WWW.MEMOREXELECTRONICS.COM

OR CONTACT CUSTOMER SERVICE AT [phone].

PLEASE KEEP ALL PACKAGING MATERIAL FOR AT LEAST 90 DAYS IN CASE YOU NEED TO RETURN THIS PRODUCT TO YOUR PLACE OF PURCHASE OR MEMOREX.

FOR PARTS AND ACCESSORIES, CONTACT FOX INTERNATIONAL AT 1-800-321-6993.

Memcorp, Inc.

Weston, FL

Printed in Hong Kong

Visit our website at www.memorexelectronics.com

MD6460

Guía del Usuario

Line drawing of a circular mechanical device with internal components and ventilation slots (no text or symbols)

Black triangular warning sign with a lightning bolt symbol (no text)

CUIDADO

RIESGO DE DESCARGA ELÉCTRICA. NO ABRIR

Black triangular warning symbol with exclamation mark (no text or numbers)

Simple line drawing of a battery cell with two cells filled with positive charges and one open, no text or symbols present.

Line drawing of a circular vacuum cleaner with control panel and scroll wheel (no text or symbols)

Line drawing of a device with a circular button and arrow indicating direction (no text or symbols)

Line drawing of a robotic vacuum cleaner with a black arrow pointing to the blade (no text or symbols)

Line drawing of a computer mouse with an arrow pointing to the button (no text or symbols)

Diagram of a circular device with internal components and a black arrow pointing to a button (no text or symbols)

Line drawing of a circular mechanical device with internal components and a black arrow pointing to the side (no text or symbols)

Line drawing of a circular device with a knob and control panel, featuring a black arrow pointing to the knob (no text or symbols)

Line drawing of a robotic vacuum cleaner with control panel and directional arrow (no text or symbols)

Line drawing of a hand cleaning a circular object with an arrow indicating direction (no text or symbols)

Line drawing of two hands holding a circular object (no text or symbols)
