Product Type	DLP Video Projector
Brand	InFocus
Model	IN2102 / IN2104 / IN2106
Regulatory Model	W2100 / W2106
Power Input	100-240 VAC, 3.0 A, 50-60 Hz
Lamp Type	Replaceable lamp (mercury containing)
Video Inputs	Computer (VGA), S-Video, Composite Video
Audio Input	Mini-Plug to RCA Y-Cable (optional)
Remote Control	2x AA batteries
USB Port	For presentation control and firmware upgrade
Keystone Correction	Adjustable via buttons
Zoom & Focus	Manual
Projection Distance (minimum-maximum)	60" diagonal: 7'6" – 8'6" / 150" diagonal: 19'4" – 21'8"
Height Adjustment	Front release button
Ceiling Mount Support	Yes (flip image via Setup menu)
Status Indicators	Power/Standby, High Temperature, Replace Lamp, Service Required
Safety Certifications	FCC Class B, ICES-003, Low Voltage Directive 2006/95/EC
Environmental Compliance	Hg lamp; dispose per local laws
Warranty	Activate via registration at www.infocus.com/register
Customer Support	US: 800-799-9911, Mon-Fri 7am-5pm Pacific

Frequently Asked Questions - IN2102 INFOCUS

How do I turn on the projector?

Connect the power cord, remove the lens cap, and press the Power button on the projector or remote. The power light will blink green, then stay green when ready.

What should I do if there is no picture?

Ensure the power cord is connected, the video source is on, and the cables are secure. Press the Source button to select the correct input. If using a laptop, activate the external video port (e.g., Fn+F7 on Apple). Try Auto Image button.

How can I adjust the image size and focus?

Use the Zoom ring to adjust image size, then the Focus ring to sharpen the center. For height, hold the release button under the front and lift the projector.

What does the 'Replace Lamp' light mean?

It indicates the lamp needs replacement. Turn off the projector, wait a minute, and restart. If the light stays on, order a genuine InFocus lamp and follow the Reference Guide for replacement.

Can I use the projector for presentations?

Yes, connect a USB cable between the projector and computer to control slides using the projector's arrow buttons. For computer video, use a VGA cable.

How do I clean the projector?

Turn off and unplug the projector. Wipe the exterior with a soft, dry cloth. Do not use liquids. Clean the vents with a vacuum to avoid overheating.

What should I do if the 'High Temperature' light is on?

Turn off the projector immediately and remove any obstructions from the air vents. Let it cool for at least one minute before restarting. Continuous high temperature can reduce lamp life.

Why is the image displayed upside down?

If the projector is mounted on the ceiling, enable Ceiling Mount in the Setup menu to flip the image vertically.

How do I replace the remote control batteries?

Open the battery compartment, insert two AA batteries with correct polarity, and close the cover. Dispose of old batteries properly.

Where can I download the full Reference Guide?

Visit www.infocus.com/support to download the guide in multiple languages. It covers advanced setup, lamp replacement, and troubleshooting.

USER MANUAL IN2102 INFOCUS

IN2102 IN2104 IN2106

Quick Start Guide

Exterior view of a InFocus projector (no visible text or symbols on body)

Regulatory models W2100 and W2106

Please read the safety instructions booklet before setting up the projector.

1

Unpack the box

Here's what's included:

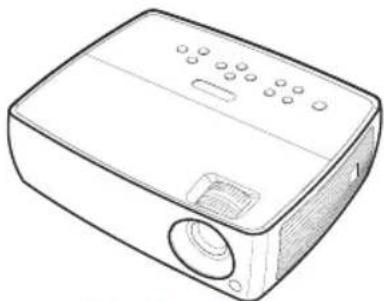

Line drawing of a rectangular projector with control panel and display (no text or symbols)

Projector

Remote

USB Cable

Computer Cable

Power Cable

Save the box and packing materials.

2

Put batteries in the remote

The remote uses 2 AA batteries.

1

Simple line drawing of a mechanical component with an arrow indicating upward motion (no text or symbols)

2

Simple line drawing of a remote control casing with two cylindrical batteries (no text or symbols)

3

Simple line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Please dispose of batteries in an environmentally proper manner.

Buy a Full-Featured Remote and Other Custom Accessories

www.infocus.com/store

Status Indicator Panel

The top of your projector includes a convenient indicator panel with symbols that light up to show important status.

For details, see Troubleshooting.

Power/Standby
Service Required

Four black rounded rectangular buttons with icons: power button, thermometer, light bulb, and wrench (no text or labels)

High Temperature Replace Lamp

3

Connect source

Color-coded connections make it easy.

You can connect more than one source if needed.

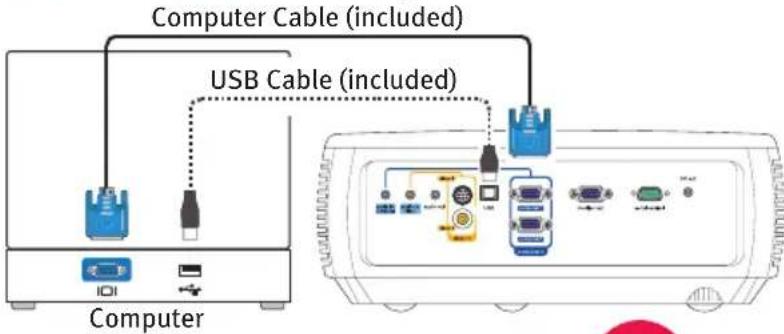

Connect to: Computer

Got an Apple computer?

You may need an adapter. For more information, see How-To Guides at www.infocus.com/support/howto

USB is optional

USB connection only needed for:

● Presentation control using projector remote
- Upgrading projector firmware

OR

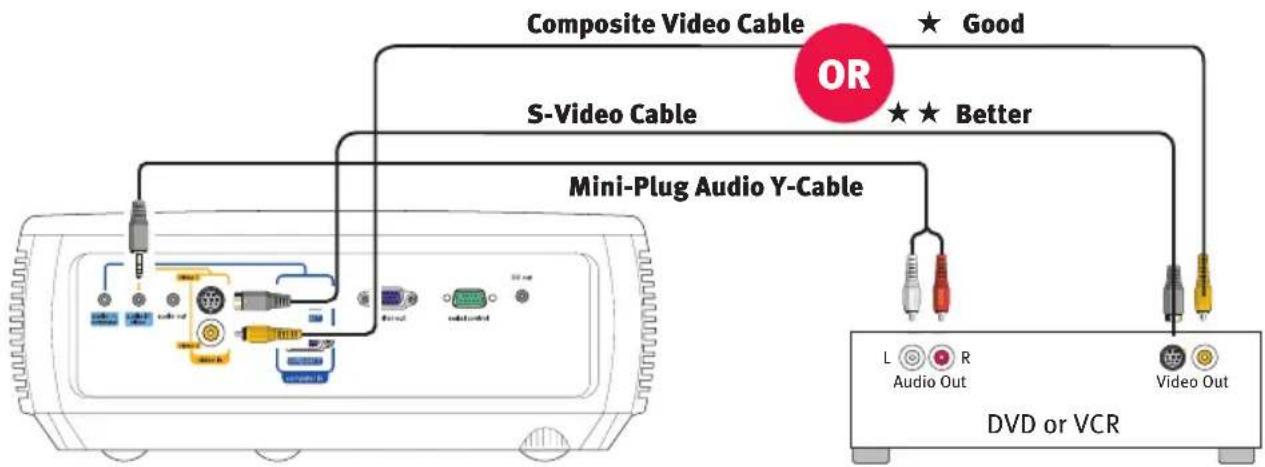

Connect to: DVD or VCR\* (using optional cables)

1 Connect video using either an S-Video or a Composite Video cable
www.infocus.com/store part no. SP-SVIDEO-10M or SP-CPSTVID-5M

2 Connect audio using a Mini-Plug to RCA Audio Y-Cable

Available from A/V dealer or retailer

*Also for game console or cable box.

Want better sound?

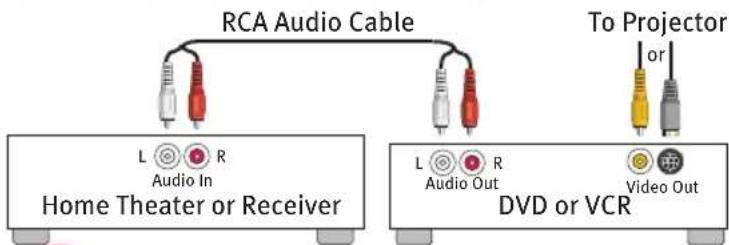

Connect the source's audio output to a receiver/amplifier or home theater system with separate speakers.

OR

Connect to: Other kinds of sources

How-To Guides are available at www.infocus.com/support/howto

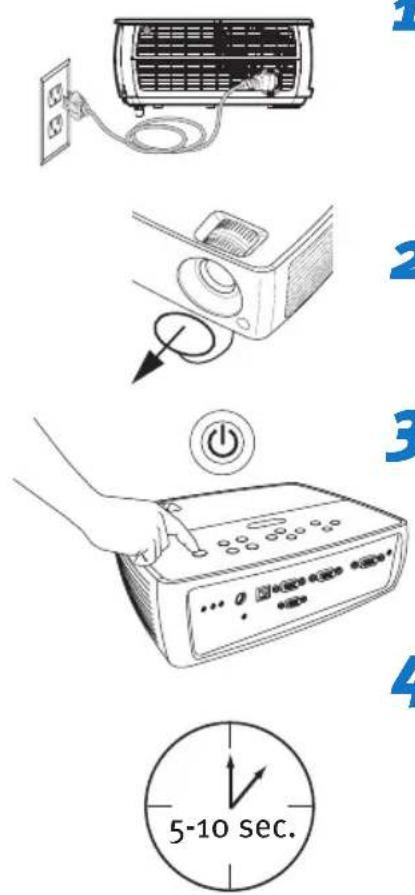

Turn on projector and source

1 Connect the power cord to the projector and to an electrical outlet

The power light ⏻ on the projector will light amber.

2 Remove the lens cap

3 Turn on the projector

Press power (on the projector or remote). The power light will start blinking green.

4 Wait for the lamp to warm up

After a few seconds, the power light will stop blinking and turn green. It can take a minute for the lamp to reach full brightness.

Warning: Do not look directly into the lens when the projector is turned on.

Line drawing of a hand inserting a card into a laptop (no text or symbols)

5 Turn on computer or other source

You may need to press a specific key combination to activate your laptop's external video port. On most laptops, hold down the FN key while pressing a key labeled CRT/LCD, LCD/VGA, a monitor icon □, or similar. Key combos for popular models:

Apple F7

Gateway Fn+F3 or Fn+F4

IBM ThinkPad Fn+F7

Dell Fn+F8

HP/Compaq Fn+F4 or Fn+F6

Toshiba Fn+F5

Fujitsu Fn+F10

Sony Fn+F7

Complete laptop activation chart at www.infocus.com/support

Important: If there is still no video, restart your computer (first make sure it's connected to the projector and the projector is turned on).

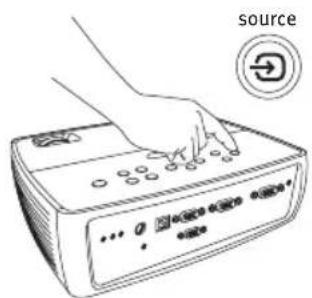

6 Change source if needed

If needed, press source (on the projector or remote) to view the source. You may have to press it more than once.

5

Adjust the picture

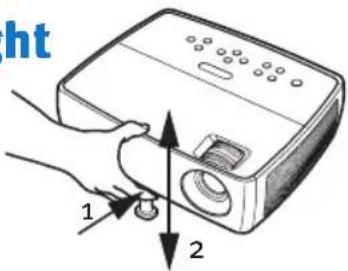

1 Height

1 Hold down the release button under the front of the projector.
2 Lift the front of the projector to the desired height.
3 Release the button.

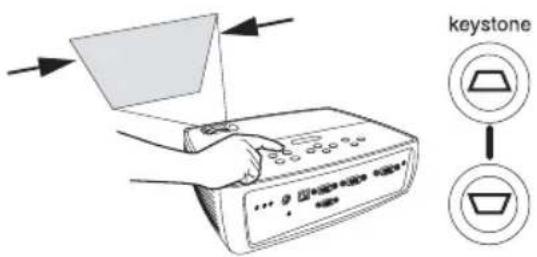

2 Keystone

Press the keystone buttons to make the picture square.

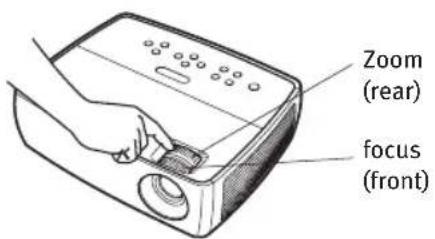

3 Zoom and focus

Adjust zoom first, then focus the center of the image.

Projector Location

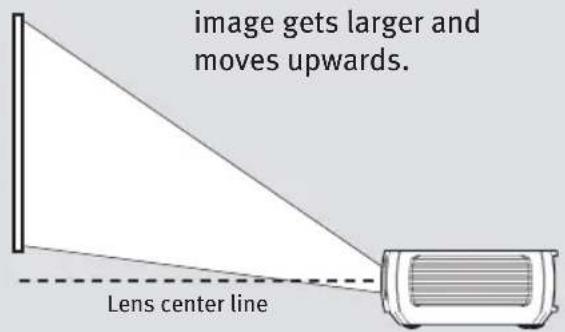

As distance increases, the image gets larger and moves upwards.

Diagonal

Screen Size

60" / 1.5m

80" / 2m

92" / 2.3m

150" / 3.8m

Distance to Screen

Minimum

7'6" / 2.3m

10'2" / 3.1m

11'10" / 3.6m

19'4" / 5.9m

Maximum

8'6" / 2.6m

11'6" / 3.5m

13'1" / 4.0m

21'8" / 6.6m

Interactive Screen Size and Distance Calculator

www.infocus.com/calculator

Buy a Screen and Other Custom Accessories

www.infocus.com/store

Ceiling mount?

To flip the image, turn on the Ceiling Mount setting in the Setup menu.

Using the menus

1 Press menu, then press √ or ∧ to review menus.
2 Press select to enter a menu, then press √ or ∧ to review settings.
3 Press select to change a setting. If this shows more choices, press √ or ∧ to update the setting, then press select or menu to save it.
4 Press menu to go back. Press it again to remove the menu.

Note: Most picture settings are disabled (gray) unless a source is being displayed.

Controlling your presentations

Connect the USB cable between the projector and your computer (see step 3), then press √ and ∧ to move through your presentation slides.

Turn off the projector

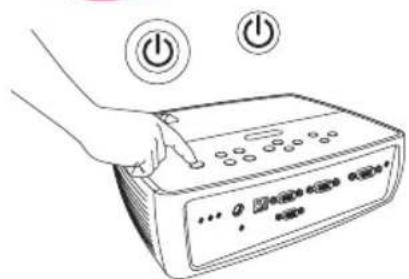

Press the power button

Line drawing of a hand pressing a button on a device with two power buttons above (no text or symbols)

The power light on the projector will blink while the fan cools the lamp. If you need to unplug the projector, wait until the fan stops and the power light stops blinking and stays on.

Note: While the power light is blinking, button presses on the projector and remote are ignored.

Register your product

Activate your warranty to ensure eligibility for service and support. Get special offers and notifications about free product updates.

1 Write down your projector's serial number

It's printed on the label on the back of the projector. You'll need it to register (and if you ever need to contact support).

Serial number:

2 Go to www.infocus.com/register

Optional: Read the Reference Guide

Download it at www.infocus.com/support

The Reference Guide is available in multiple languages. It covers advanced setup and operation, including lamp replacement instructions.

Troubleshooting

If there is no picture or the picture is blank

If the power light is off, make sure the power cord is connected and plugged into a live electrical outlet. If the power light is amber and not blinking, press the power button.

Check video source and cables. Make sure the video source (computer, DVD player, VCR, etc.) is turned on and cables are securely connected between the source and the projector.

Make sure your computer's video port is enabled. Press the key combination that activates your laptop's external video port (see step 4). If there is still no image, restart your laptop.

Press the Source button. You may need to press it several times to view the correct source.

auto image

Press the Auto Image button.

If "Signal out of range" is shown, or the picture looks bad

auto image

Press the Auto Image button. If that doesn't help (and the source is a computer), reduce your computer's display resolution or vertical refresh rate.

If the replace lamp light is on

Turn the projector off and wait at least one minute, then turn it on again. If the replace lamp light turns on again, the lamp needs to be replaced. For lamp replacement instructions, see the Reference Guide, which can be downloaded at www.infocus.com/support

Only InFocus genuine lamps are tested for use in this projector.

If the high temperature light is on

Turn the projector off and remove anything that may be blocking the air vents on its side. Leave the projector off for at least one minute to let it cool before turning it on again. IMPORTANT: Continuous operation at high temperature may reduce the lifetime of the lamp and/or projector.

If the service required light is on

Turn the projector off and wait at least one minute, then turn it on again. If the service required light turns on again, the projector needs to be serviced. See below for service contact information.

More troubleshooting options are in the Reference Guide

Download it at www.infocus.com/support

Warning: In the unlikely event of a lamp rupture, particles may be ejected from the projector. Keep out of the area under and around the projector when it is turned on. See the safety instructions booklet for more details.

Questions? We're here to help!

Visit us at:

www.infocus.com/support

We're here to support you with your new purchase. We can help you with...

• Determining screen sizes
- Documentation in other languages
- Connecting your sources (TV, DVD, Cable/Satellite, Game, etc.)
- Selecting optional accessories
• Product warranty protection plans

Customer Support Telephone [phone]

TOLL FREE: 800-799-9911

Mon-Fri, 7 am - 5 pm Pacific [e-mail]

Asia Pacific

Customer Support Telephone

Singapore: [phone]

China: 800.828.2268

Australia: 1300-725-295

Australia Direct Sales: 1800-885-841

Mon-Fri, 9 am - 5 pm SGT

[e-mail]

Europe, Middle East, Africa

Customer Support Telephone

[phone]

Mon-Fri, 08:30 - 18:00 CET

[e-mail]

Hg - Lamp contains mercury. Manage in accordance with local disposal laws.

See www.lamprecycle.org

Declaration of Conformity

Manufacturer: InFocus Corporation, 27500 SW Parkway Ave. Wilsonville, Oregon 97070-8238 USA

European Office: Louis Armstrongweg 110, 1311 RL Almere, The Netherlands

We declare under our sole responsibility that this projector conforms to the following directives and norms: EMC Directive 2004/108/EC, EMC: EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3, Low Voltage Directive 2006/95/EC, Safety: IEC 60950-1:1st Edition.

Trademarks

Apple, Macintosh, and PowerBook are trademarks or registered trademarks of Apple Computer, Inc. IBM is a trademark or registered trademark of International Business Machines, Inc. Microsoft, PowerPoint, and Windows are trademarks or registered trademarks of Microsoft Corporation. Adobe and Acrobat are trademarks or registered trademarks of Adobe Systems Incorporated. DLP® and the DLP logo are registered trademarks of Texas Instruments and BrilliantColor™ is a trademark of Texas Instruments. InFocus, In Focus, and INFOCUS (stylized) are either registered trademarks or trademarks of InFocus Corporation in the United States and other countries.

FCC Warning

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
— Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications to this equipment that are not expressly approved by InFocus Corp. may void the user's authority to operate the equipment.

Canada

This Class B digital apparatus complies with Canadian ICES-003.

Other specific Country Approvals may apply. Please see product certification label.

Input ratings: 100-240Vac, 3.0A, 50-60Hz

InFocus reserves the right to alter product offerings and specifications at any time without notice.
