Product Type	Bluetooth-enabled DVD/MP3/CD AM/FM Receiver with Motorized 7" Widescreen Touchscreen Digital TFT Monitor
Brand	BOSS Audio Systems
Model	BV9976B
Power Supply	12V DC (11V-15V), negative ground
Current Consumption	Less than 10A
Display	7-inch (178mm) widescreen touchscreen digital TFT monitor
Disc Compatibility	DVD, VCD, CD, MP3, JPEG, DivX
Radio Bands	FM1/FM2/FM3, AM1/AM2 (MW) – selectable USA or Europe frequency
FM Frequency Range (USA)	87.5 – 107.9 MHz
FM Frequency Range (Europe)	87.5 – 108 MHz
AM Frequency Range (USA)	530 – 1710 kHz
AM Frequency Range (Europe)	522 – 1620 kHz
Bluetooth Version	V1.2 Class 2
Bluetooth Profiles	Headset, Handsfree, A2DP, AVRCP
Audio Output	2-channel and 4-channel line out, subwoofer pre-out
Video Output	Composite video 1.0Vp-p 75Ω
USB Port	Front panel USB for playback of MP3/WMA/JPEG/MP4/DivX
SD Card Slot	Front panel SD card slot for playback of MP3/WMA/JPEG/MP4/DivX
AUX Input	3.5mm front AUX input and RCA rear AUX input
AV Input	RCA AV input for external video source
Rear View Camera Input	RCA input for rear view camera (auto-display when reversing)
Steering Wheel Control	Compatible with external steering wheel control interface (SWC)
Equalizer Presets	User, Jazz, Classic, Pop, Rock
RDS Functions	AF, TA, PTY, REG, PI Mute/Sound
Parental Control	Rating levels from Kid Safe to Adult, password-protected
Remote Control	IR remote control with lithium battery (CR2025)
Dimensions (approx)	Double-DIN size (approx. 178mm x 100mm x 160mm)
Weight (approx)	1.5 kg
Installation Angle	Up to 30° from horizontal for optimal performance
Operating Temperature	Not specified, but designed for car interior use
Safety Note	Video playback disabled while driving unless parking brake is engaged
Cleaning	Use a dry soft cloth; do not use solvents like benzine or alcohol
Warranty	Refer to dealer – not specified in manual

Frequently Asked Questions - BV9976B BOSS

How do I pair my phone via Bluetooth?

Enable Bluetooth on your phone and search for devices. Select 'Boss Audio' and enter the password 8888. The unit's Bluetooth indicator will stop flashing when paired.

Can I watch video while driving?

No, for safety reasons the video display is disabled when the parking brake is not engaged. A warning message 'ParkingBrake' appears. To view video, stop the vehicle and engage the parking brake.

How do I set the clock?

From the main menu, touch the SETUP icon, then select CLOCK SETUP. Use the arrows or number buttons to adjust hours and minutes. Choose 12H or 24H format.

What disc formats are supported?

This player supports DVD, VCD, CD, MP3, JPEG, and DivX discs. Discs must be 12 cm (5 inches). DVD-RAM, CDV, and CDG are not supported.

How do I connect a rear view camera?

Connect the camera's video output to the REAR CAMERA INPUT (yellow RCA) on the rear of the unit. When the vehicle is shifted into reverse, the display automatically shows the camera image.

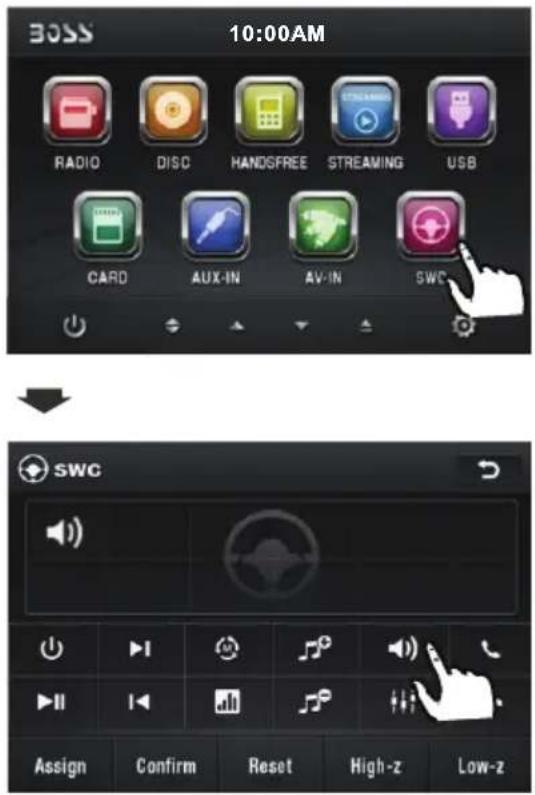

How do I use the steering wheel controls?

Touch the SWC icon in the main menu. Then select Assign, press a button on your steering wheel, choose a function from the list, and tap Confirm. Repeat for other buttons.

Why is there no sound?

Check that the unit is not muted (press MUTE button). Ensure volume is turned up. Verify speaker wiring connections are secure. If using an external device, check its volume.

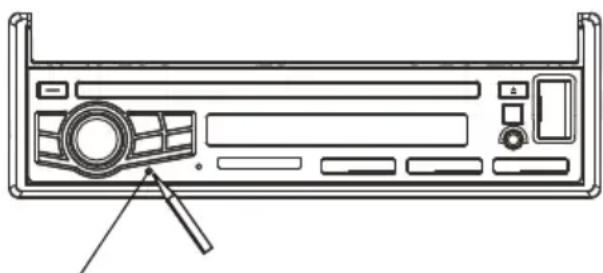

How do I reset the unit to factory settings?

Locate the RESET button on the front panel (small hole). Use a ballpoint pen or thin object to press it. This clears all settings and returns to factory defaults.

What is the region code of this DVD player?

The region code is not explicitly listed in the manual, but the device can play discs from most regions. If a disc shows 'REGION ERROR', the disc's region code does not match.

How do I adjust the monitor angle?

Press and hold the ▼/▲ button on the front panel (or remote) to tilt the monitor up or down in fine steps. Press the OPEN button to open or close the monitor automatically.

USER MANUAL BV9976B BOSS

www.bossaudio.com | 800.999.1236

tech support: www.bossaudio.com/support

1013

Food / Phone are trademarks of Apple, Inc. registered in the U.S. and other countries

BOS Audio Systems is not affiliated with Apple, Inc.

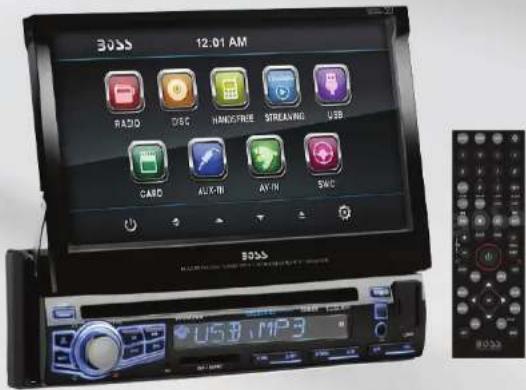

USER'S MANUAL

BV9976B

BLUETOOTH®-ENABLED

DVD/MP3/CD AM/FM RECEIVER

FEATURING MOTORIZED 7" (178mm) WIDESCREEN TOUCHSCREEN DIGITAL TFT MONITOR

BOSS®

AUDIO SYSTEMS

To ensure safety while driving

and to comply with laws,

drivers should not watch video or

operate the video device while driving.

Precaution......2

Safety Information....3

DiscNote......4

Installation....5

Electric Connection ....7

Remote Control 8

Basic Operation ....10

Loading/Ejecting a DISC 10

Open/Close Monitor and Angle Adjustment.... 10

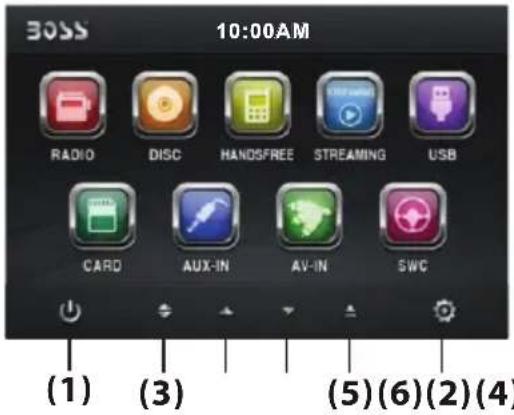

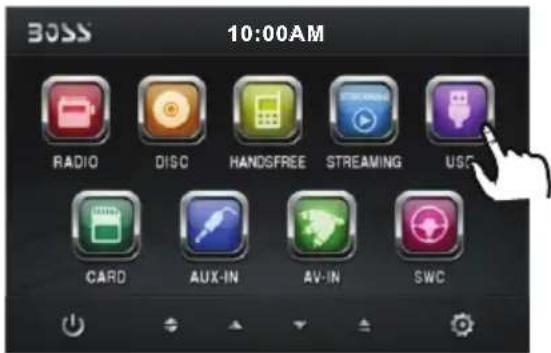

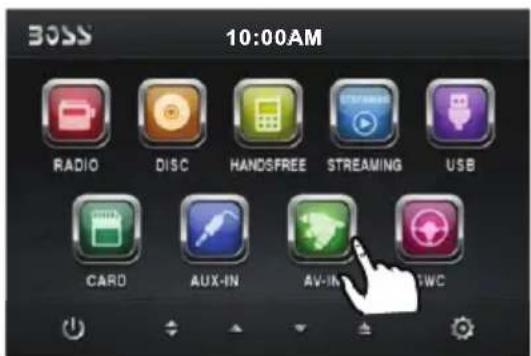

Main Menu Operation.... 11

Settinganimation.... 11

Settingdisc.... 12

Settingradio.... 12

Settingbluetooth.... 12

Setting wallpaper....12

Versionabout....12

Setting time.... 12

Setting audio mode.... 12

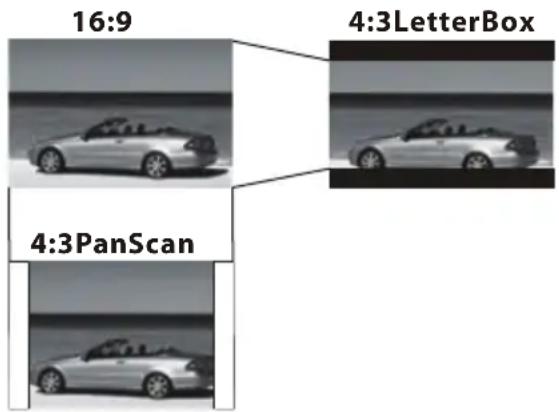

Setting video mode.... 13

Setting OSD language.... 13

Settingilluminationcolor.... 13

TFT display calibration. 13

Rear View Camera 13

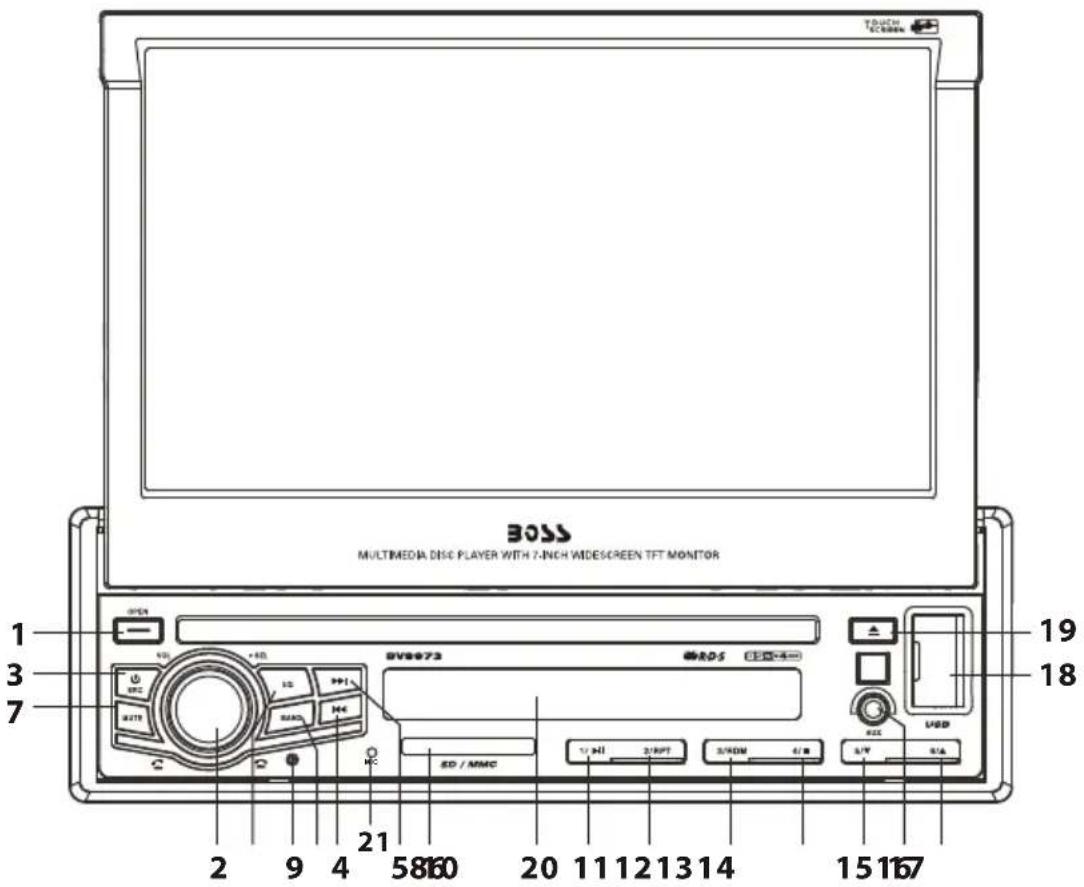

Control Panel 14

Unit keys ......14

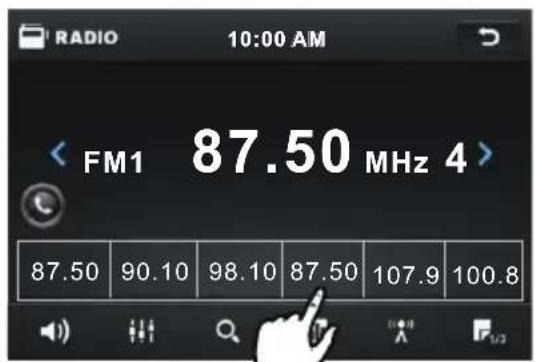

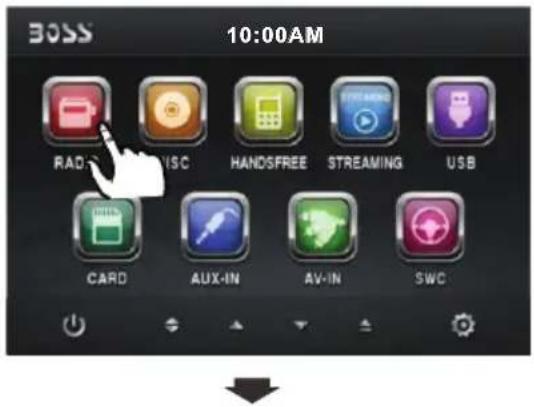

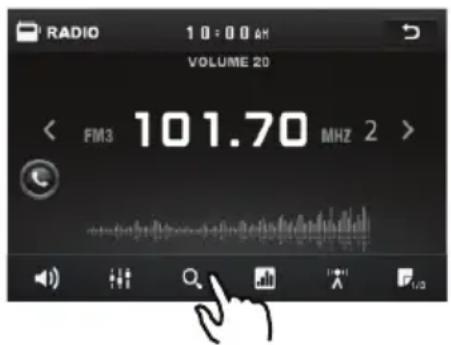

RadioOperation.... 17

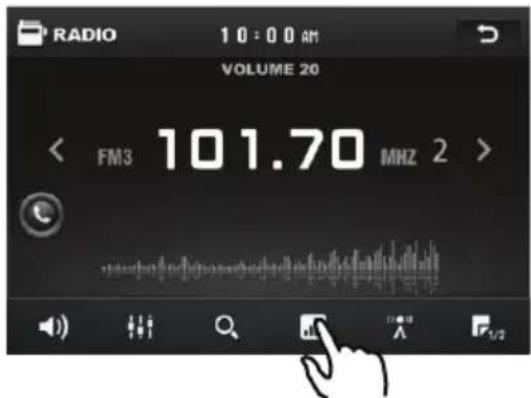

Listening to the radio 17

Storing and Listening to a memory station 17

Automatic Memory Storing & Program Scanning....18

RDSfunction....18

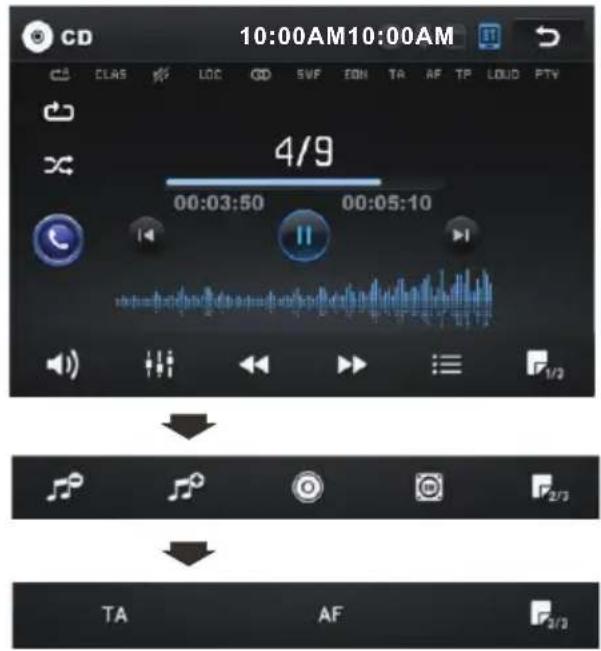

Media Operation....20

Basic Operation ......21

Selecting Play Mode ......21

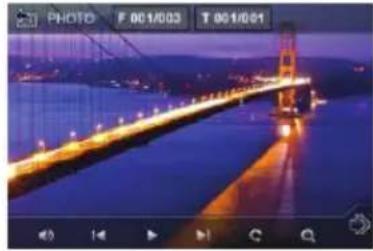

On-ScreenDisplay Function......22

Digital Video Special Function.....24

Multi-Subtitle Language function.....24

Multi-audio language Function......24

Multi-angleFunction....24

Title menu function ......24

A-B Repeat function....25

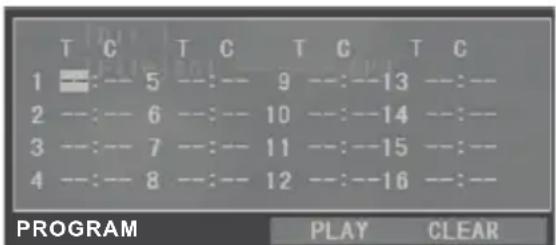

Programfunction....25

Stepfunction....25

Slow speed function....25

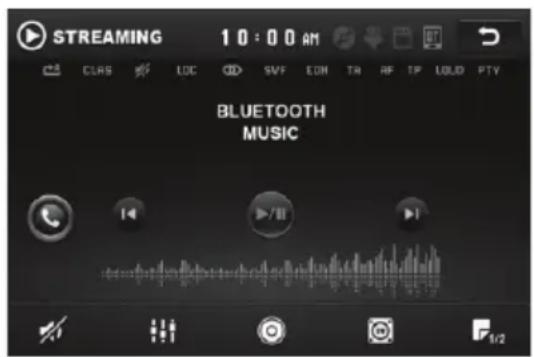

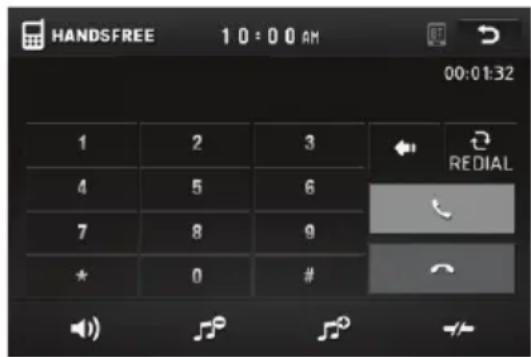

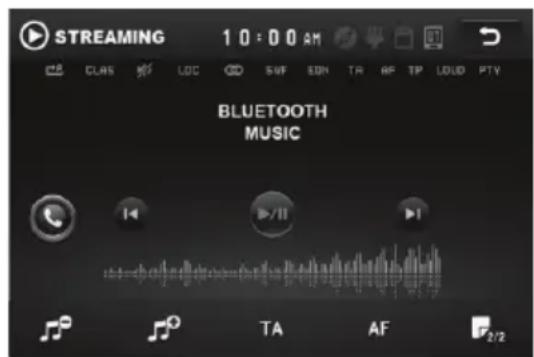

BluetoothOperation......26

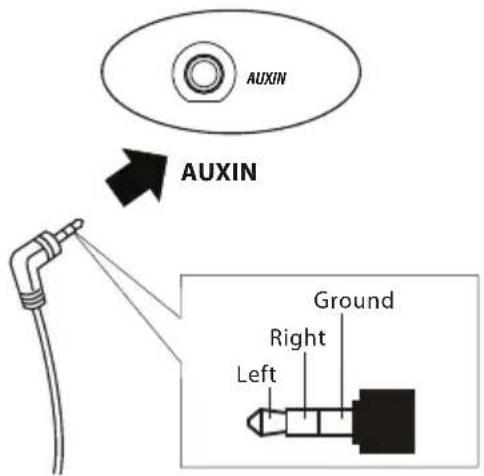

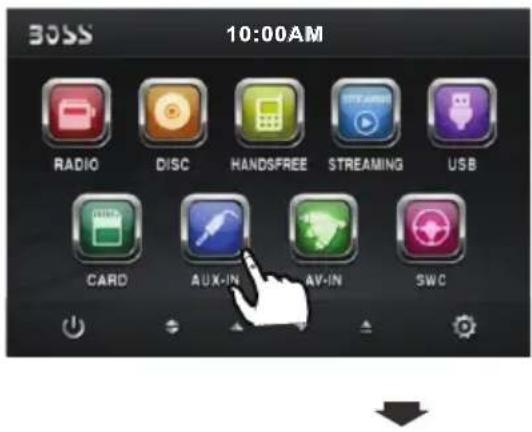

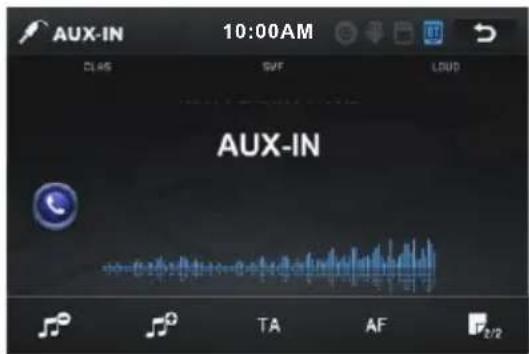

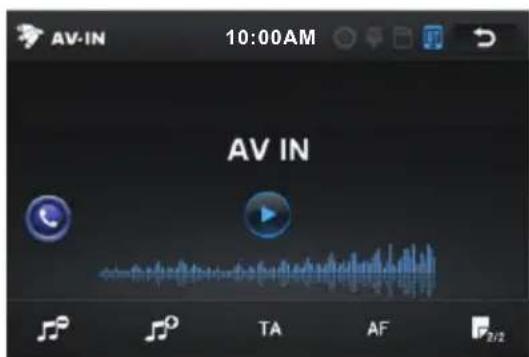

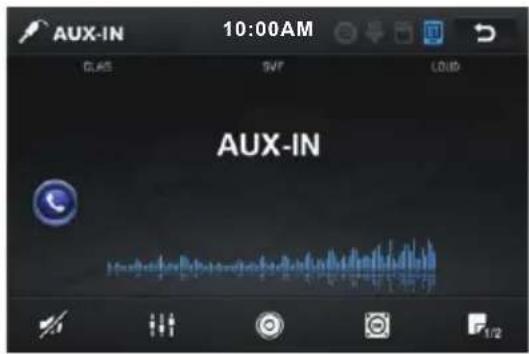

AUX Operation ......29

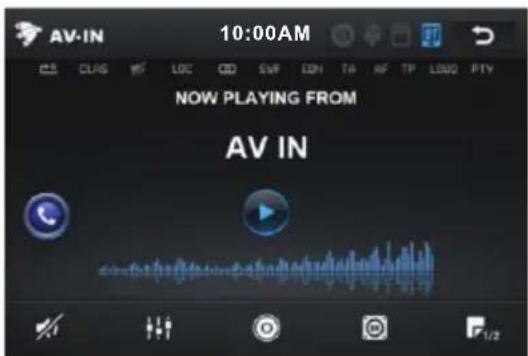

AVOperation....30

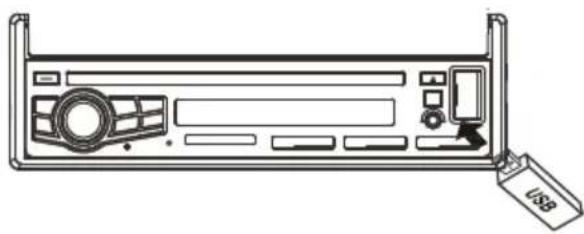

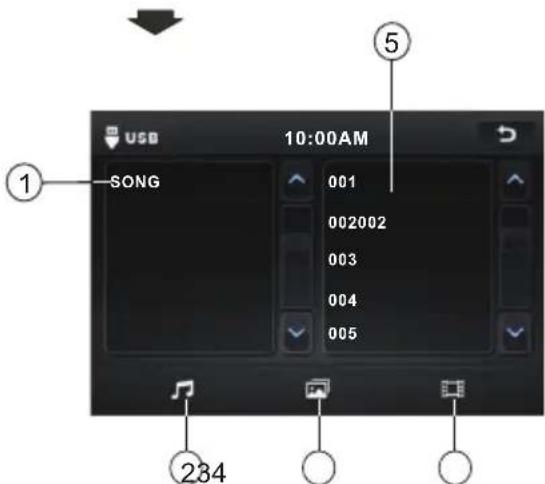

USB Operation 31

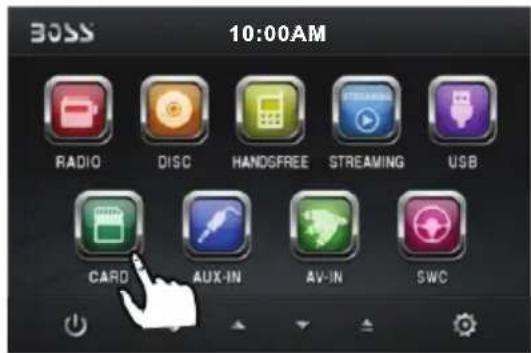

Card Operation ....31

SWCOperation....32

ParentalControl....33

RegionCode....34

Specification......35

Troubleshooting......36

THANK YOU FOR PURCHASING A BOSS AUDIO MULTIMEDIA PLAYER.

Before operating the unit, read this manual thoroughly and keep it handy for future reference.

To avoid injury or accident, read the following precautions before installing and operating the unit.

ONINSTALLATION

- DO NOT install any receiver in locations where;

- it may obstruct the steering wheel and gearshift lever operations, as this may result in a traffic accident.

- it may obstruct the operation of safety devices such as air bags, as this may result in a fatal accident.

- it may obstruct visibility.

- DO NOT operate any receiver while manipulating the steering wheel, as this may result in a traffic accident.

- The driver must not watch the monitor while driving.

- IF THE DRIVER watches the monitor while driving, it may lead to carelessness and cause an accident.

- IF YOU NEED to operate the receive while driving, be sure to look ahead carefully or you may be involved in a traffic accident.

- IF THE PARKING BRAKE is not engaged. "ParkingBrake" flashes on the monitor, and no playback picture will be shown.

- This warning appears only when the parking brake wire is connected to the parking brake system built in the car (refer to the electric connection)

ABOUT THE LIQUID CRYSTAL DISPLAY (LCD) PANEL

Do not press on the LCD panel on the unit as doing so can distort the picture or cause a malfunction. The picture may become unclear, or the LCD panel may be damaged.

NOTESONCLEANING

-Clean the LCD panel with a slightly damp soft cloth.

- Do not use solvents such as benzine, thinner, commercially available cleaners or antistatic spray.

- Do not use alcohol to clean the screen.

If your car was parked in a cold or hot place, the picture may not be clear.

The monitor is not damaged. The picture will become clear the temperature in your car becomes normal.

CAUTION:

THIS DIGITAL VIDEO PLAYER IS A CLASS I LASER PRODUCT. HOWEVER THIS DIGITAL VIDEO PLAYER USES A VISIBLE/INVISIBLE LASER BEAM WHICH COULD CAUSE.

HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE THE DIGITAL VIDEO PLAYER CORRECTLY AS INSTRUCTED. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, AND ANNOYING INTERFERENCE, USE ONLY THE RECOMMENDED ACCESSORIES.

THIS DEVICE IS INTENDED FOR CONTINUOUS OPERATION.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. Patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

REGION MANAGEMENT INFORMATION:

This Digital Video Player is designed and manufactured to respond to the Region Management Information that is recorded on a Digital Video disc. If the Region number described on the Digital Video disc does not correspond to the Region number of this Digital Video Player, this Digital Video Player cannot play this disc.

Disc formats supported by this player

Digital Video	Digital Video	Audio and VideoDisc size 12 cm
VCD	VCD	Audio and VideoDisc size 12 cm
CD	CD	AudioDisc size 12 cm
MP3	MP3	AudioDisc size 12 cm

Discs which cannot be played with this player

DigitalVideo-RAM
CDV
CDG

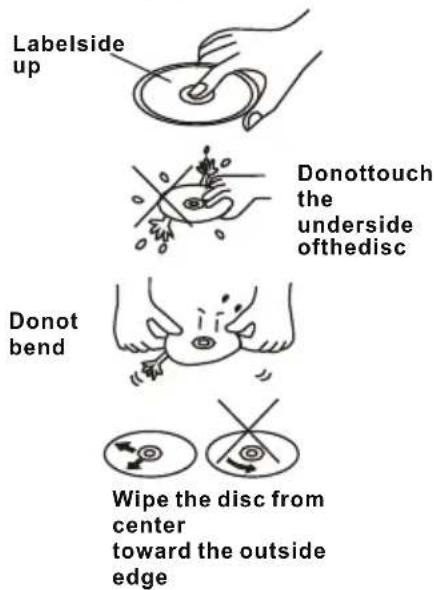

HandlingandCleaning

• Dirt, dust, scratches and warping disc will cause misoperation.
• Do not place stickers or make scratches on discs.
• Do not warp discs.

• A disc should always be kept in its case when not in use to prevent from damaging.
  Do not place discs in the following places:

• Directsunlight

• Dirty, dusty and damp areas

• Near car heaters

• On the seats or dashboard

DiscCleaning

Use a dry soft cloth to wipe the surface. If the disc is quite dirty, use a soft cloth slightly moistured with isopropyl (rubbing) alcohol. Never use solvents such as benzine, thinner or conventional record cleaners as they may mar the surface of thedisc.

Note:

A disc may become somewhat scratched (although not enough to make it

unusable) depending on your handle it and conditions in the usage environment. Note these scratches are not an indication of any problem with the player.

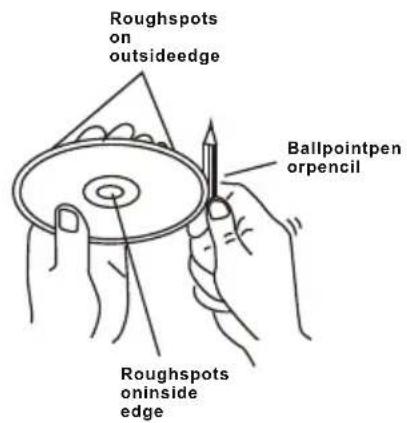

Preparing New Discs with Rough Spots

A new disc may have rough edges on its inside and outside edges. If a disc with rough edges is used, the proper setting will not be performed and the player will not play the disc. Therefore, remove the rough edges in advance by using a ball point pen or pencil as shown on the right. To remove the rough edges, press the side of the pen or pencil against the inside and outside edges of the disc.

NOTES:

Choose the mounting location where the unit will not interfere with the normal driving function of the driver.

Before finally installing the unit, connect the wiring temporarily and make sure it is all connected up properly and the unit and the system work properly.

Use only the parts included with the unit to ensure proper installation. The use of unauthorized parts can cause malfunctions.

Consult with your nearest dealer if installation requires the drilling of holes or other modifications of the vehicle.

Install the unit where it does not get in the driver's way and cannot injure the passenger if there is a sudden stop, like an emergency stop.

If installation angle exceeds 30 from horizontal, the unit might not give its optimum performance.

Avoid installing the unit where it would be subject to high temperature, such as from direct sunlight, or from hot air, from the heater, or where it would be subject to dust, dirt or excessive vibration.

DINFRONT/REAR-MOUNT

This unit can be properly installed either from "Front"(conventional DIN Front-mount) or "Rear"(DIN Rear-mount installation, utilizing threaded screw holes at the sides of the unit chassis). For details, refer to the following illustrated installation methods.

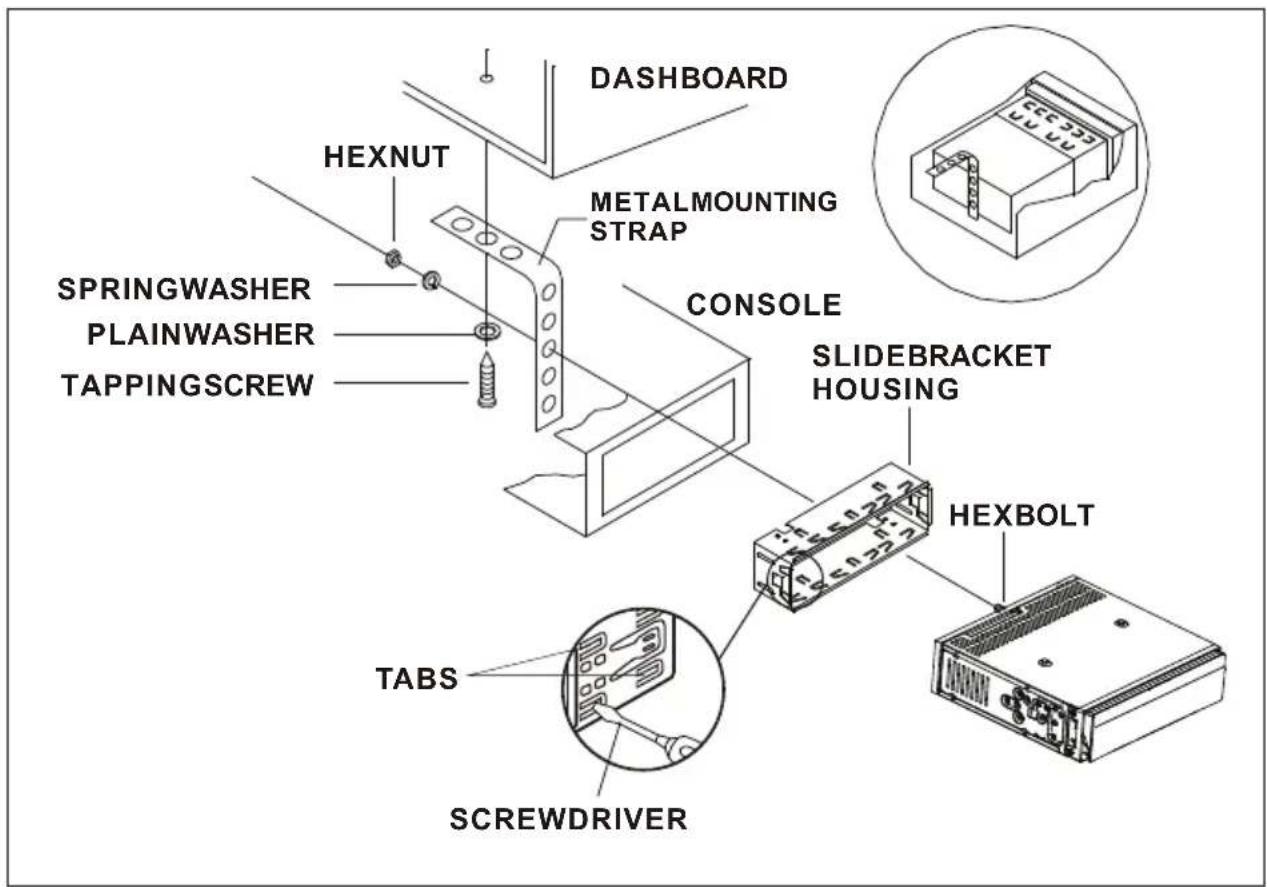

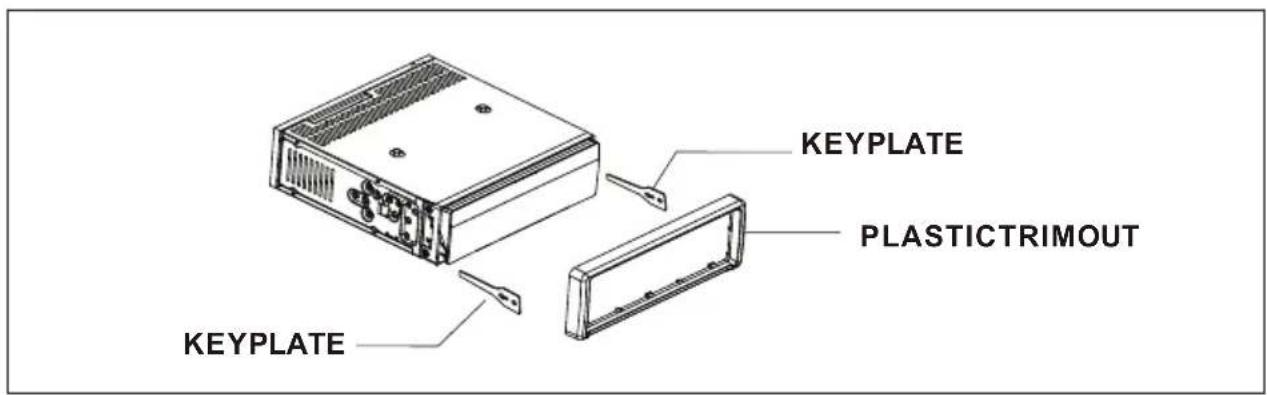

Installingtheunit

If you want tot a k e t h e C H A S S I S o u t o f t h e S L I D E B R A C K E T H O U S I N G , first remove the P L A S T I C C O V E R o n b o t h s i d e s , then i n s e r t t h e t w o K E Y P L A T E S i n t o t h e l e f t a n d t h e r i g h t s i d e s o f t h e c h a s s i s a s i l l u s t r a t e d a b o v e .

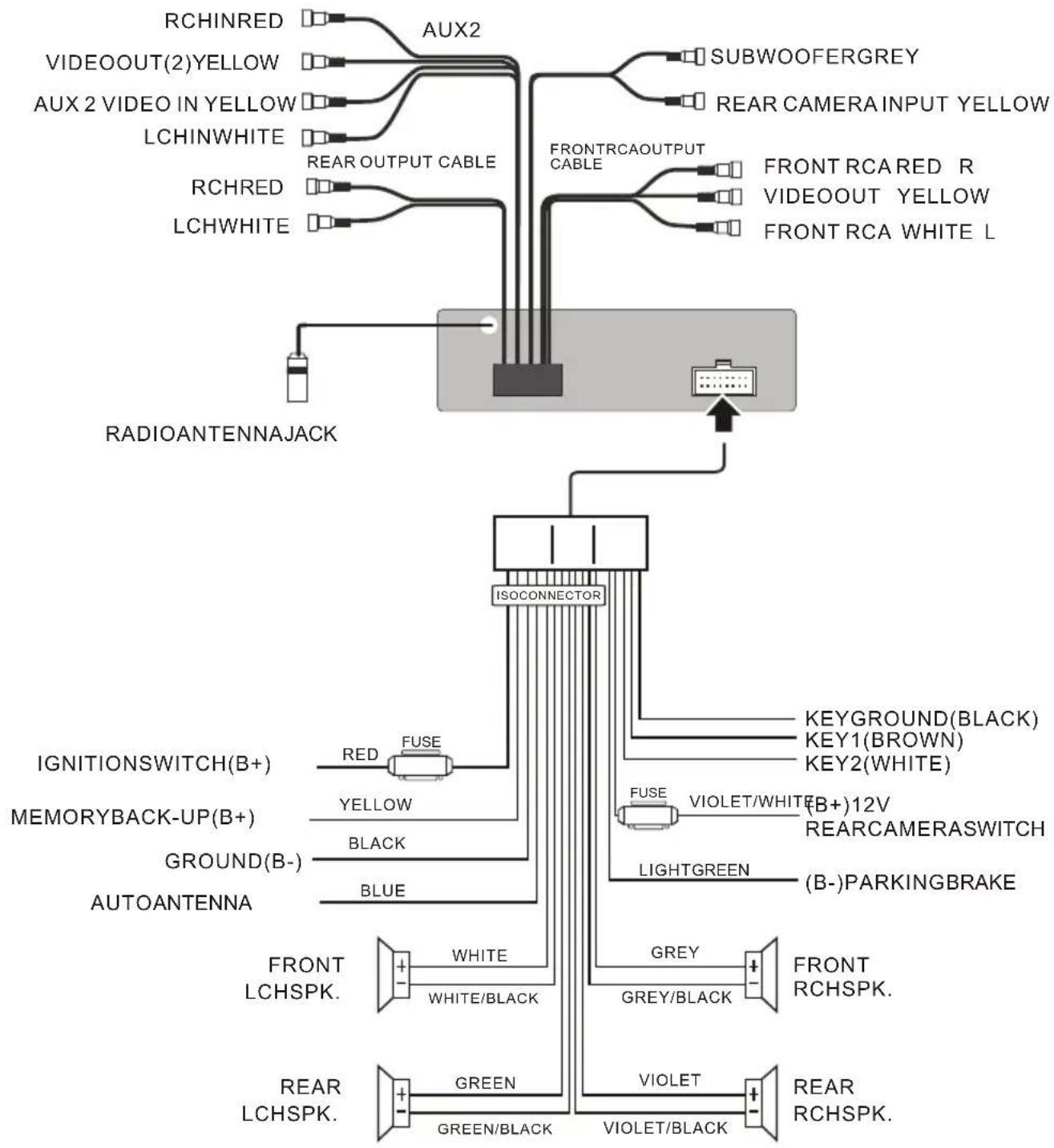

WIRING CONNECTION

Note:

the ground connection cable (parking brake B-) must be connected in order for pictures to be played back to the monitor. If the cable has not been correctly connected, warning message appears on the monitor.

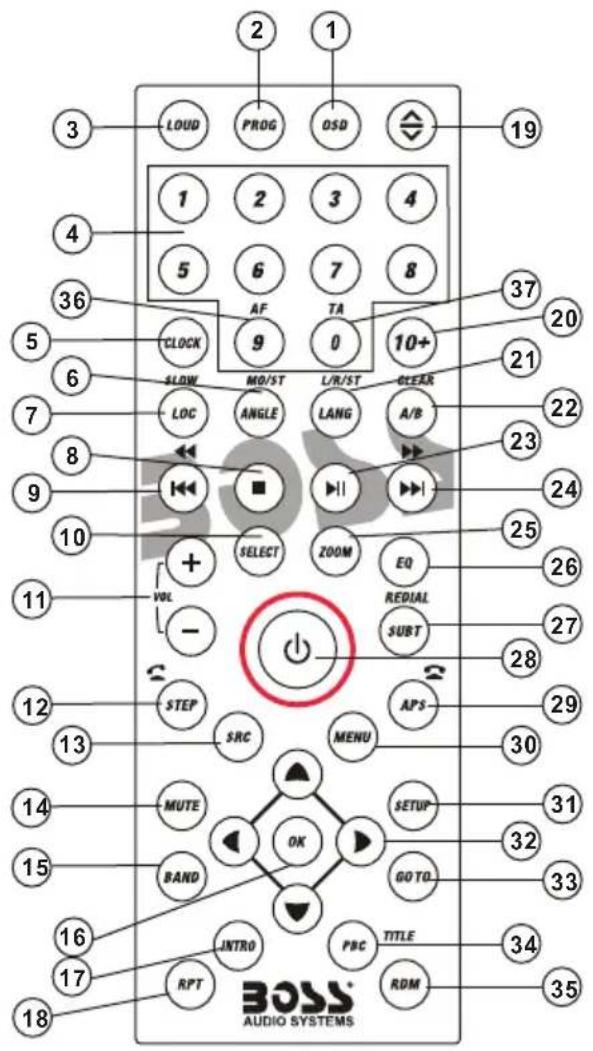

18.RPTBUTTON

19.ANGBUTTON

20.10+BUTTON

1. LANG/L/R/STBUTTON

22.A-B/CLEARBUTTON

23.>IIBUTTON

24.>>IBUTTON

25.ZOOMBUTTON

26.EQBUTTON

27.SUBT/REDIALBUTTON

1.OSDBUTTON
2.PROGBUTTON
3.LOUDBUTTON
4. NUMBER(0\~)BUTTONS
5. LOCKBUTTON
6.ANGLE/MO/STBUTTON
7.LOC/SLOWBUTTON
8.STOPBUTTON
9.1<<BUTTON
10. SELECTBUTTON
11.VOLUME+/-BUTTONS
12.STEP/TELBUTTON
13.SRCBUTTON
14. MUTEBUTTON
15. BAND BTTON
16.OK BUTTON
17. INTBUTTON
28. POWERBUTTON
29.APS/BlamgOp
30.MENUBUTTON
31. SETUPBUTTON
32. ◀/▼/▶/▲ BUTTON
33.GOTOBUTTON
34.PBC/TITLEBUTTON
35.RDM BUTTON
36.AFBUTTON
37. TABUTTON

Preparing the Remote Control

Inserting the Battery

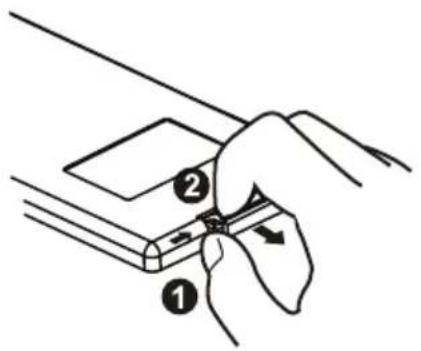

1. First push to inside as the direction indicated by the arrow (See ①) And then Remove the battery holder as the direction indicated by the arrow (See ②).

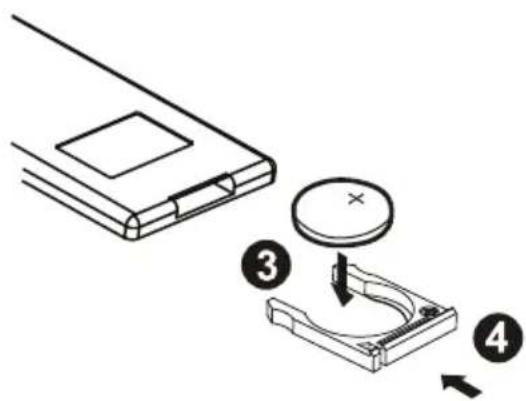

2. Replace the battery Set a new battery property with (+)side up as illustrated (See ③).
3. Insert the battery holder. Push in the holder to the original position(See 4).

Using the Remote Control

Face the remote control towards the player front face IR mark (remote control signal receiver).

Operation angle: About ± 30 degree in each the direction of the front of the IR mark.

Note:

The lithium cell in the battery compartment of remote control has been secured for transport with a plastic. Before initial use please remove this plastic so that the remote control is ready for operation.

POWERON/OFF

Touch the "OFF" ICON on screen to turn the unit off. Press the "💡" onthe front panel to turn It on, press it again to turn off.

LOADING/EJECTINGADISC

LoadingaDisc

1. Press the POWER (⏻) button on the front panel to turn the device on.
2. Insert the disc with printed side facing up into the disc slot (1).
3. The player starts playback the disc automatically.

EjectingaDisc

In disc mode, Press the ▲ (2) button on the front panel to eject the disc.

OPEN/CLOSEMONITORAND ANGLEADJUSTMENT

- Press OPEN button on front panel, the monitor will draw out automatically.

Line drawing of a hand using a tool to lift a rectangular air vent (no text or symbols)

OPEN/CLOSEbutton
FIG.1

When the monitor draws out to a certain location, it will turn upward automatically and stop at vertical position.

Simple line drawing of a mechanical component with an arrow indicating rotational motion (no text or symbols)

FIG.2

- Adjusting the viewing angle. When the monitor does not move, you long press button on the panel to turn the monitor upward or downward at fine steps to get a desired viewing angle; short press that button ( ) on remote is screen move back or out.

Diagram of a mechanical assembly with multiple cylindrical components and a base, no text or symbols present

FIG.3

Do not rotate the monitor forcibly to avoid mechanical damage.

Diagram showing a curved arrow inside a rectangular frame, with no text or symbols present.

FIG.4

- Return the monitor to the central viewing position, then press OPEN button on the front panel, the monitor will turn downward automatically.

Simple line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

FIG.5

- When the monitor turns downward to a certain angle, it will draw in.

Simple line drawing of a folded paper or document holder with a black arrow indicating the fold (no text or symbols)

FIG.6

MainMenuOperation

In many modes, touch the icon or In DVD/VCD mode, touch the range to enter the main menu, the message like following as below.

1. POWER icon

In any modes, touch the POWERicon to switch the unit off. The monitor will draw in automatically.

1. UPicon

Touch this icon to adjust the angle of the monitor upward until your desired angle.

1. CLOSE icon

Touch this icon to Close the monitor.

1. DOWN icon

Touch this icon to adjust the angle of monitor downward until your desired angle.

5.EJECTicon

Touch to allow for inserting or ejecting disc.

1. SETUP icon

Touch to enter the SETTING mode, the message will display as follow :

Setupinterface1

Setupinterface2

Touch the “ 🔍 ” section on the setting menu, touch the “ ◀ / ▶ ” ranges to select the adjustment item, Touch the “ ➤ ” icon to return to the previous playback.

General setup interface1

General setup interface2

ADJUSTABLEITEMS:

ANIMATION

In RADIO mode, you can change the playing time of animation among of "OFF, 10S, 30S, 1M,90S, 2M, 3M and 4M".

Note:

Please set the playing time of the animation to "10S" for the first, when you turn the unit on.

KEY BEEP : ON or OFF.

Disc setup as follow:

FORMAT

This player is capable of playing discs recorded in either PAL or NTSC formats. Make the selection based on whether you are connecting the unit to a PAL TV or an NTSC TV. You can also set the unit to AUTO (auto select). The disadvantage to autoselect is that each time you turn the unit on it checks to see what kind of monitor is connected, which causes a small delay and some flickering of the display image which you may find unpleasant.

TVTYPE

This is to select the appropriate TV aspect (4:3 or 16:9) according to the connectedTVset.

Normal/PS (For 4:3 TV)

Played back in the PAN & SCAN style. (If connected to wide-screen TV, the left and right edges are cut off.)

Normal/LB (For 4:3 TV)

Played back in LETTER BOX style. (If connected to wide-screen TV, black bands appear at top and bottom of the screen.)

Wide (For 16:9 TV)

Select when a wide-screen TV set is connected.

RATING

Select to turn Parental Control on or off.

The factory default password is 0000.

(The password must be used to make

changes to the Parental Control menubelow.)

Key in "0000" and then turn to rating then you can setting as follow:

$$ \text { KID SAFE } \rightarrow \text { G } \rightarrow \text { PG } \rightarrow \text { PG - 13 } $$

$$ - > \text { PGR } - > \text { R } - > \text { NC - 17 } - > \text { ADULT } $$

RADIO

ST/MONO: touch to select stereo or mono.

LOCAL: touch to select local or distant.

REGION: touch to select radio frequency as USA or EUROPE.

BLUETOOTH

Touch to select BT function on or off.

WALLPAPER

Touch to select wallpaper.

ABOUT

Touch to show the version information.

CLOCKSETUP

Touch the CLOCK to adjust the time and timeformat.

clock setup interface

AUDIOSETUP

Touch the audio to turn to audio quality adjustment.

audio setup interface1

audio setup interface2

TREBLE: -7 to +7

Adjust treble level.

BASS: -7 to +7

Adjust bass level.

SUBWOOFER: touch to adjust subwoofer volume and frequency.

EQ: touch to select audio mode as follow:

USER -> JAZZ -> CLASSIC -> POP -> ROCK

LOUDNESS: touch to select loudness effect as :OFF -> LOW -> MID -> HIGH

FADER/BALANCE:

BALANCE: R 0-10 to L 0-10

Adjust sound balance between left and right speakers.

FADE: F 0-10 to R 0-10

Adjust sound balance between front and rear speakers.

VIDEOSETUP

Video setup interface

COLOR:0to32

Adjust the color for the picture-lighter ordarker.

BRIGHTNESS:0to32

Adjust if the picture is too bright or toodark.

CONTRAST:0to32

Adjust the contrast of the bright and darkportion.

TINT:0to32

Adjust the tint if the human skin color is unnatural.

-Adjustable when "NTSC" is selected for "NTSC/PAL".

LANGUAGE

Touch to select OSD language.

ILLUMINATIONCOLOR

Touch to select the backlight for all buttons. Tap auto icon the backlight change automatically.

CALIBRATION

Touch the arrow as show to calibration the display.

ResetFactorySettings

RESET button is placed on the housing and must be activated with either a ballpoint pen or thin metal object.

Line drawing of a computer monitor front panel with control buttons and a pointer (no text or symbols)

RESET

The RESET button is to be activated for the following reasons:

A. Initial installation of the unit when all wiring is completed.
B. All the function buttons do not operate.
C. Error symbol on the display.

RearViewCamera

When connecting the rear view camera the mirror image of the rear view is automatically displayed on the monitor when you change the gear to the back position.

(Note: additional monitor can not display the image.)

UNITKEYS

1. OPENBUTTON

To slide the monitor out and stand it up or into the monitor slot, press this button; To adjust the angle of the monitor, press the 5/▼ or 6/▲ to change the angle for the TFT display.

2. SEL BUTTON and VOLKNOB

In normal mode, the VOL knob is used to increase or decrease the volume.

Press the SEL(except radio mode) to switch between BASS, TREBLE, BALANCE, FADE, COLOR, RIGHTNESS, CONTRAST, TINT, BT, REG (in radio mode), PI(in radio mode), TA(in radio mode), AF(in radio mode), LOUD, SWF, EQ, TIME 12H/24H, CLOCK, BEEP, EUR/USA FREQ, ANIMATION.

After switching on the desired mode above, rotate VOL knob or press VOL+/VOL- buttons to set it.

In radio mode, press the SEL to select MANUAL/AUTO mode, in radio manual mode to scan the frequency by rotate the VOL knob, select radio auto mode to cancel the scan function.

In BT mode, press the SEL to receive a call, during talking, press the SEL to transfer audio between the Car Audio System and phone; press and hold the SEL to reject a call.

3. ⏻ (POWER On/Off) / MODE

Press it to turn on the unit, Press and hold for two seconds to switch the device off. In playback mode, Press it repeatedly to select RADIO, DISC, USB, CARD, BT, AUX and AV mode.

4/5. >>| and |<< BUTTONS

In radio mode, long pressing |<< or >>| button can automatically search down or up for an available station beginning from the current frequency; Briefly pressing |<< or >>| button can manually search down or up for a your desired station beginning from the currentfrequency.

In media mode, pressing |<< or >>| button can play the previous or next track; continuously and long pressing |<< or >>| button can fast backwards or forwards at the following multiple of normal speed: x2, x4, x8, x20.

6.EQBUTTON

In any modes, touch the "EQ" range to select one of the preset sound modes: USER/JAZZ/CLASSIC/POP/ROCK.

The information will display in the monitor as follow :

7. MUTEBUTTON

Press it button to switch of the loudspeakers for a short period. The word MUTE flashes in the display. Press it again to cancel the mute function. This function can also be cancelled by rotating the VOL multifunction button.

8.BNDBUTTON

In Radio mode, press it repeatedly to select the desired radio band: FM1, FM2, FM3, AM1(MW1), AM2(MW2).

9. RESETBUTTON

Press this button to return to factory settings.

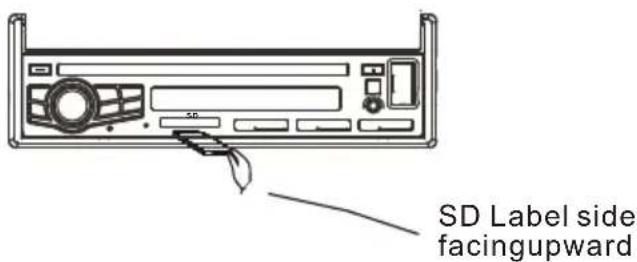

10.SDCARDSLOT

11-16. PRESET STATION MEMORY AND >II, INT, RPT, RDM BUTTON

A) In RADIO mode

Go to any preset station by pressing one of the 6preset station(1-6), if one of these buttons is pressed for more than 2 seconds, the stations currently being listened to will be memorized into the selected preset button.

B) In DISC/USB/SD mode

During playing, press 1/>II button to pause the current playback, press again to continue play;

During playing, press 2/RPT button to select repeat function;

During playing, press 3/RDM button to select random function;

During DVD/VCD/CD disc playing, press 4/STOP button to stop playing and turn to home mode, during MP3/USB/SD mode, press this button to turn to previous mode, press again to turn to home mode;

17. AUXILIARY INPUT JACK

Insert an external device to this AUX jack in order to have audio output of the device through the unit.

18.USBPORT

For information about connecting a USB device, please see USB operation.

19 ▲ (EJECT) BUTTON

Insert the disc, label side facing up, until the mechanism senses its presence and draws the disc in. Press it to eject the disc.

20. LCD Display window

21. MICROPHONE

TouchScreenOperation

RADIOOPERATION

ListeningtoRadio

Touch the RADIO ICON in home menu to enter the RADIO mode:

Selecting The Frequency Band Touch the screen of “BAND” section repeatedly to select the band, the message will show in turn:

When an FM stereo broadcast is hard to receive

Press ST/MO button on the remote control to select the MONO or STEREO mode.

Start Searching For a Station ManualSearch

During Radio mode, briefly touch “>” to increase frequency by one step of channelspacing.

Briefly touch “◀” to decrease frequency by one step of channel spacing.

AutomaticSearch

During Radio mode, touch and hold (for more than 2 seconds) either “◀/▶” ICONS to start search for a radio station automatically.

To tune in strong-signal FM Station only (LO/DX function)

In radio mode, Press LOC button on the remote control or tap 📁 icon to select selectLOC/DX mode of Local and Long-distance traffic news.

Storing and Listening to a MemoryStation

SettingMemory

With this system, a total of 30 stations can be stored in the memory of six buttons. Each band stores up to six preset stations. The stations might be FM1, FM2, FM3, AM1(MW1), and AM2(MW2)band.

The operation is as below :

-StoreinMemory

Select the frequency band
Select the station
Press and the station until it show the frequency band your select.

- Retrieve a preset station

Touch the 1-6 ranges briefly to retrieve a station which had been stored in the memory in advance the chose number is shown on display.

Automatic Memory Storing & ProgramScanning

Automatic Preset Setup

In Radio Mode, touch and keep (for more than 2'S) the screen of " 🔒 " range to active automatic station storage.

The radio searches within the current frequency band, e.g. Fm3, for the stronger signal level until the search cycle has finished. The six strongest stations are then allocated to the corresponding storagelocations.

Then the station of the first storage location is set.

ScanFunction

In Radio mode, briefly touch the “Q” section on the touch screen, the radio briefly plays all the preset stations of the frequencyband.

RDSFUNCTION

In home menu, then touch the "ICON to enter the set mode, the message in the display :

ADJUSTABLEITEMS:

REGIONSET

Touch to switch the REGION function ON and OFF.

REGFUNCTION

at certain times some stations divide up their programs into regional programs with varying content.

REG ON : the message "REG ON" will appears in the display for a few seconds.

Note:

-thedisplay capacity is limited. It is possible that in the double display mode some segments of the display are deleted. - the function REG ON prevents the radio from switching to alternative frequency which have a different regional program content.

REG OFF : the program identification(PI) of the regional program is ignored during the search for an alternative frequency (AF) or a program identification (PI).

Select RDS REGIONAL to turn RDS function on or off.

PISET

Touch to change between PI MUTE and PI SOUND.

PI MUTE / PI SOUND

(only for radio operation)

If you are in an area where two program identifications (PI) overlap, you can select the option PI SOUND and

PI MUTE for playback of the sound.

Alternate switching of the program identification should be avoided.

PI SOUND :

If switching nevertheless occurs the sound of another station is heard for less than one second.

PIMUTE:

the sound of another stationis suppressed.

TATrafficAnnouncement

(Priority For Traffic Information)

In Radio mode, touch the cursor button to switch the TA function ON and OFF. When the TA function is activated, the TA symbol appears in the display. During radio operation in one FM frequency band the search for a traffic announcement station is started automatically (TA SEEK). If an FM station is being received which transmits the latest traffic announcements from time to time, the TP display lightsup.

When the TA function is switched on, the FM traffic automatically interrupt CD operation (the word TRAFFIC appears in the display).

The volume level is increased to the minimum value for the transmission of trafficannouncements. After the traffic announcements has finished, the program that was previously running is resumed.

Interruption of the TA Function:

If you would like to interrupt the current traffic announcement, touch the TA section on screen briefly. This does switch off the TA mode.

AFFUNCTION

(AlternativeFrequencies)

In Radio mode, touch the cursor button to switch the AF function ON and OFF.

AF is a function that works with the help of RDS (Radio Data System) and can only be used with FM stations. The radio searches in the background for the best frequency reception of the station that has been tuned into.

Touch the AF section on touch screen or swing and keep the SEL knob in the TA/AF direction for about 2 seconds, the AF function is activated. The AF symbol appears in the display.

When the AF function has been switched on, the radio continuously teststhe signal strength of the AF frequency. The test interval for each AF frequency depends on the signal strength of the current station and varies from a few minutes in the case of weak signals. Whenever the new AF frequency is stronger than the station that is currently tuned in, the radio switched to this frequency for a short time for a short time and the message "NEW FREQUENCY" is displayed for one or two seconds.

PTYFUNCTION

In Radio mode, touch screen of "PTY" range to select the Program type.

PTY Selection of the program type besides the stations name, some FM stations also transmit information on the type of program. This information can be displayed by your car radio.

Examples of such types of program are : SPORT NEWS POP WEATHER .....

With PTY function you can specifically select stations transmitting a particular type of program. Touch the PTY on screen repeatedly to call up the PTY selection menu. The message “PTY SEEK” then appears briefly in the display. When PTY has been selected the radio start searching for corresponding PTY information and stops when the PTY information has been found, “NO PTY” appears in the display. If the PTY information being searched for no longer exists, the PTY function automatically switches to normal mode.

MediaOperation

In audio play mode, the message will display as below :

(When Parking Brake is applied.)

Mutefunction

To select the Equalizer mode

Fastforward

Fastbackward

IntroFunction

To decrease the volume level

To increase the volume level

LoudnessFunction

SubwooferFunction

TA Turning pre-switching for traffic announcements on and off

AF Switching on and off an Alternativefrequency

Play/Pausetheplaying

To skip the next track

To skip the previous track

RepeatFunction

RandomFunction

Previousmenu

Tap to turn to BT PHONE mode. (after pairing and connecting a mobile phone with bluetooth function).

The icons for other mode

(The same icon have the same function in each mode)

In PHOTO playing, tap to change the photo direction.

ZOOM IN and OUT.

For page turning.

For page turning.

For page turning.

For page turning.

For page turning.

TouchScreenOperation

BASICOPERATION

StoppingPlay

Touch the ■ button on remote to stop the unit playback. press the ▶ button to start play.

Pause (still picture)

Touch the “▶” section on touch screen during playback will stop play temporary, touch it again to return the normal playback.

Rapid Forward/Rapid Reverse

During DISC playback, touch the screen of “▶ / ◀” range the speed of rapid forward/reverse changes according to the disc as follow:

DigitalVideo/VCD/CD/MP3:

SkippingTrack

During DISC playback, Touch the ▶/◀ section on the touch screen to skip to next/back one track.

Note:

For some VCD2.0 disc (PBC-playback control), above these buttons may be unavailable.

ZoomFunction

Touch the button repeatedly, the displayshow as "zoom2, zoom 3, zoom 4, zoom 1/2 , zoom 1/3, zoom 1/4, zoom off."

Use the direction keys (▲ / ▼ / ◀ / ▶ on remote control to move the enlarged picture.

Note:

when the JPEG disc playback, in normal mode, you can use the cursor buttons to rotate the picture.

Press UP to invert an image.

Press DOWN to mirror an image.

Press LEFT to rotate an image to left .

Press RIGHT to rotate an image to right.

SELECTING PLAY MODES

During the Disc playback, select the "RPT, RDM, INT" to select your favour playmode.

1). REPEAT FUNCTION

FOR Digital Video :

Tap the 📄 icon or press the RPT button on the remote control to select REPEAT mode as follows :

FOR VCD/CD:

Tap the 📄 icon or press the RPT button on the remote control to select REPEAT mode as follows :

FORMP3:

Tap the 📄 icon or press the RPT button on the remote control) to select REPEAT mode as follows :

2). INTRO FUNCTION

FORCD:

Tap the 📄 icon or press the INT button on the remote control to play the previous 10 seconds part of each track/chapter ondisc.

(Touch it again to cancel this mode)

TouchScreenOperation

FORVCD:

Press the INT button on the remote control. It displays will following menu as below:

Note: when select the INTRO Mode, this player to start to play the previous 15 seconds part of each track/chapter on disc. (Touch it again to cancel this mode.)

FOR Digital Video/MP3 :

For Digital Video/MP3, press the INT button is not available.

3).RDM(RANDOM)FUNCTION

During DISC playback, touch screen of “ ✗” section ( press the

RDM button on the remote control to play in random. Each play mode the order is different. (Depend on the disc used for VCD).

Touch it again to cancel this function.

Note : in random mode, the ⏻ button is not available.

ON-SCREENDISPLAYFUNCTION

During playback, touch the screen or press the OSD on the remote control, it will display the following as below:

Note: touch the screen or press the OSD on the remote control again to cancel the OSD information.

1. Digital Video, when it is on, it will display the information such as:

1. Example for VCD/SVCD, when it is on, it will display the information such as:

1. Example for Movie or PHOTO. When it is on, it will display the information such as:

Nighttime photo of a suspension bridge over a river, captured in an outdoor setting with no visible text or symbols.

DISC Search (GOTO)

FOR Digital Video :

Touch the screen as show or press the GOTO button on remote control;

the screen will display the following message:

Touch the <1> to select the your adjustment item, then select the item your favour by touching the numeric buttons, then touch the OK button to confirm.

FOR VCD (With PBC OFF):

Touch the screen as show or press the GOTO button on remote control;

the screen will display the following message:

Touch the <|>|> to select the your adjustment item, then select the item your favour by touching the numeric buttons, then touch the OK button to confirm.

ForMovie/Photo:

Touch the screen as show or press the GOTO button on remote control;

the screen will display the following message:

Touch the <1> to select the your adjustment item, then select the item your favour by touching the numeric buttons, then touch the OK button to confirm.

Digital Video Special Function

1. Multi-subtitle Language Function (for Digital Video Only)

During Digital Videoplayback. Touch the OFF icon on touch screen(or press the SUBT on the remote).

Each time the button is pressed or touch, number of the subtitle language changes in sequential order.

Notes:

• The language number is different according to the disc.
• Some discs only contain one subtitle language.
• When no different subtitle language are recorded, "INVALID KEY" will be displayed at screen left top corner.

2. Multi-Audio Language Function

ForDigitalVideo: During Digital Video playback, touch the 1/2 icon on touch screen (or press the LANG

on the remote.) Each time the button is pressed or touch, number of the audio soundtrack language changes on sequential order.

Notes:

• The language number is different according to the disc.
• Some disc only contain one language soundtrack
• When no different language soundtrack are recorded "INVALIDKEY" will be display at screen left top corner.

ForVCD/CD:

during playback, touch the AUDIO section of the touch screen or Press AUDIO on the remote. It is possible to switch the sound between monaural and stereosound.

3. Multi-Angle Function (for Digital Video Only)

During Digital Video playback, touch the icon on the touch screen. ANG OFF Each time the button is pressed, the number of the angel changes insequential order.

Notes:

• The angle number is different according to the disc.
• The function only work for disc having scenes recorded at different angles.
• When no different angle are recorded, "INVALIDKEY" will be displayed at screen left top corner.

4. Title Menu Function

For Digital Video:

If the Digital Video has multiple titles recorded on the disc. It can select preferred title from the title menu to start playback.

- During Digital Video playback, press TITLE button on the remote. The title menu is display.

- Select preferred title by thecursor button and confirmed by press the ENTER button.

ForVCD:

Press TITLE/PBC button on the remote control while the disc is playing, you can switch between "PBC ON" and "PBC off" mode.

5.A-BRepeat (for Digital Video and VCD)

Press the A-B button if you want to repeat a specific segment on a disc that you define:

1. Press the A-B button at a point (A) where you want it to be the start point of the repeat segment. Press the A-B button again at a point (B) where you want it to be the terminal point of the repeat segment. Then it will play the segment repeatedly.
2. To cancel the A-B repeat mode and resume normal playback, press the A-B button for the third time.

Note:

During DVD playback, points A and B can be selected from different chapters.

6. ProgramPlayback (for Digital Video and VCD)

It allows you to enter the order in which you want some chapters/tracks in DVD/VCDtoplay.

1 During playback, press the PROG button to enter a program interface as follows:

Program interface for DVD

2 Use the direction buttons to move cursor onto the desired place for inputting the sequence number.

3 Use the number button to input desired sequence number of title/chapter/track with desired sequence.
4 After input your favour, press >ll on remote or use the direction buttons to select play and then press OK on remote to play the programmed titles/chapters/tracks in programmed order.

* Tap the display or press stop button to exit the PROG.

* During VCD playback, if it is in PBC ON mode, at the same time of entering the state of program playback, it turns off PBC mode.

7. Display still frame step by step (for Digital Video and VCD)

If the unit is currently playing video, press the STEP button consecutively to display still frame step by step.

Press the PLAY button to resume normal playback.

8.Playback with Slow Speed

During video playback, press the LOC/SLOW button to execute the Slow Forward function.

Press the PLAY button to resume normal playback.

BluetoothOperation

1. Pairing and Connecting

Prior to using the bluetooth device named Boss Audio as a hands-free system for a bluetooth-enabled mobile phone for the first time, you must pair and connect them as follows:

* Prior to pairing and connecting, when displaying No Video interface of radio, CD, AUX IN or bluetooth music, the logo BT flashes in the touch screen.
* During operation of the device named Boss Audio as a hands-free system for a bluetooth-enabled mobile phone, place the bluetooth-enabled mobile phone no more than 3 meters from the head unit;

Switch on the bluetooth mode of your mobile phone; then select the item to find a bluetooth device and enter it; When it finds the bluetooth device of the car A/V system, the name Boss Audio will be displayed, select it and enter it; then it will show an interface that asks you to input a password, input 8888 and enter it; then it will pair and connect with the bluetooth device Boss Audio of the car A/V system, Confirm it, then the frame of the BT logo will light all the time.

* When finishing pairing and connecting, the audio of the mobile phone transfers to the car audio system whenever a call is made or received or the mobile phone playsmusic.

2.BLUETOOTHPHONE

1) Makeacall

(1) Dial with mobile phone directly;
(2) Dial with BT Phone, remote control, or on touch screen;

a. Touch the HAMDS-FREE icon in home menu or touch the 📄 icon during playing to turn to BT PHONE interface as follows:

: Same as MUTE button.

& : Same as VOL+ and VOL- or VOL knob.

: Tap to do disconnection.

b. Use the number icons or buttons to input your desired phone number;

* When inputting a wrong digit, use 🏠️ icon or < button to delete it.

c. After finishing inputting, touch 📋 icon or press Ⓧ button on control panel to dial out.

2) Redial last dialed phone number

Touch 📄️ icon or long press redial button on remote control to dial out the last dialed phone number.

3) Answeracall

During an incoming call, the incoming telephone number displays in the BT PHONE interface. If you want to receive it, touch 📊 icon or press 📋 button on remote control; if you want to reject it, touch 📌 icon or press 📉 button on remote control.

4) Endingacall

When ending a call, touch 📤 icon or use 🔒 button.

5) Switch the audio between the unit and your device

During phone talking using the bluetooth hands-free system of the car A/Vsystem, touch 📋 icon or press ⚙ button on remote control to switch the audio between the unit and your device.

6) Adjusting the volume during a call

During phone talking, use 📞 and 🎯 icon or VOL knob or VOL+ and VOL-;usbuttons to adjust volume level 🖼️ icon or MUTE button to mute sound.

* * / # icons and buttons

they perform as * / # buttons on mobile phone.

3BLUETOOTHMUSIC

1) Touch STREAMING in home menu or pressing SOURCE button can pop up BT MUSICinterface as follows:

Mutefunction

To select the Equalizer mode

To decrease the volume level

To increase the volume level

LoudnessFunction

SubwooferFunction

Turning pre-switching for traffic announcements on and off

Switching on and off an Alternative frequency

Play/Pausetheplaying

To skip the next track

To skip the previous track

Tap to turn to BT PHONE mode.(after pairing and connecting a mobile phone with bluetooth function).

2) When using your mobile phone with the bluetooth function to play audio/video, if it is paired and connected to the unit, the audio of the mobile phone will change into. thecar A/Vsystem

The Boss Audio supports A2DP, which enables the user to stream audio from their device.

3) The bluetooth device of the car A/V system supports AVRCP, so these icons on the BT Music interface except BT Music and their corresponding buttons on control panel or on remote control are available for audio/video playback of your mobile phone during playback. But no fast forward/backward functions for /icon and /buttons, and the function of resume playback after pausing or stopping is available only for some mobile phone.

* If you don't want to use the bluetooth function of the car A/V system, long press SEL button to display BT, then use VOL knob or VOL+ and VOL- buttons to switch BLUETOOT off.

AUXOperation

On the front panel of this unit, there is an AUX IN jack, follow the diagram below to connect analogue replay devices(only for the Audio connect, if you want to connect the Video, please plug the RCA

1). Please connect the external device with stereo jack (3.5mm) plug the Aux in socket.

AUX IN JACK FRONT PANEL

2). In radio mode, touch the screen of “☐” ICON to enter the main menu, touch the “AUX” ICON to enter the AUX IN mode.

AUXINTERFACE1

AUXINTERFACE2

3). You now hear the sound from the external device played back through the loudspeakers.

The function of the icons as follow:

Tap to mute the sound.

Tap to select EQ as the same on the remotecontrol.

Tap to turn LOUD on or off.

Tap to select subwoofer frequency.

Tap to adjust audio volume.

Turning pre-switching for traffic announcements on and off

Switching on and off an

Alternativefrequency

Tap to turn to BT PHONE mode. (after pairing and connecting a mobile phone with bluetooth function).

TouchScreenOperation

AVOperation

Please plug the RCA

Touch the AV IN icon to enter the AV IN mode.

AVINTERFACE1

AVINTERFACE2

As the interface show, here is only the audio output, now tap the icon, the picture of the auxiliary input video show on the display and tap the display again to turn to audio mode.

Now you can watch the video from your External video equipment such as Digital Video players, computers, etc.

The function of the icons as follow:

Tap to mute the sound.

Tap to select EQ as the same on the remote control.

Tap to turn LOUD on oroff.

Tap to select subwoofer frequency.

Tap to adjust audio volume.

Tap to turn to BT PHONE mode. (after pairing and connecting a mobile phone with bluetooth function).

Note: To ensure safety while driving and to comply with lows, drivers should not watch video or operate the video device while driving.

TouchScreenOperation

USBOPERATION

Following the diagram below, connect your USB device to the front panel USB port. If it is properly connected, the device will be mounted and start playing automatically.

Line drawing of a computer monitor rear panel with ports and buttons, no text or symbols present

CardOPERATION

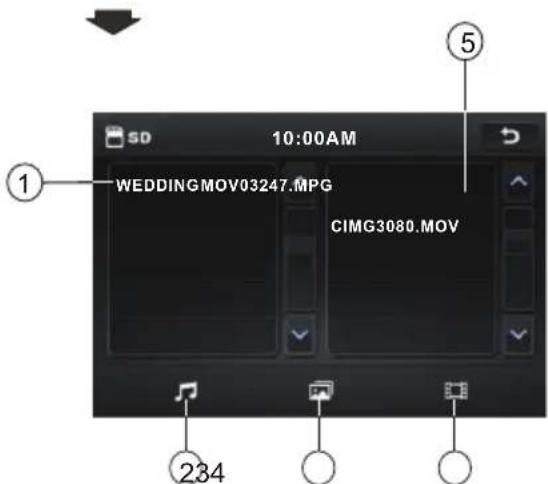

The unit can support playback MP3/WMA/JPEG/MP4 and Divx format which are stored on SD memory cards. Please read the following instructions before you start using a memory card. Inserting the card as follow:

1 Current type (highlighted bar).
2 Audio play mode select.
3 Picture play mode select.
4 Movie play mode select,
5 Current play track .

1 Current type (highlighted bar).
2 Audio play modeselect.
3 Picture play mode select.
4 Movie play mode select,
5 Current play track.

TouchScreenOperation

STEERINGWHEELCONTROL

Touch the SWC icon as follow to turn to steering wheel control.

During setting, touch the 📋 icon to turn to home menu.

There are 2 KEY for total 12 buttons to save, first, tap Assign to open function save, then select button 1 in KEY 1 on steering wheel and tap the 📋 icon, the icon show in button 1 position then touch Confirm, final turn the unit on again, the 📋 function will save in button 1 of KEY1.

The function of the icons as follow:

Assign

Touch to begin function save.

Confirm

After selection touch to confirm

operation.

Reset

Touch this icon to cancel the

input and resume load.

When electric resistance is too low, touch this icon to increase.

When electric resistance is too high, touch this icon to reduce.

\*ParentalControl

Q: After inserting a Digital Video disc into the disc slot, if a dialogue box pops up? and asks you to input a password, what should you do

A: The playing disc is locked by a rating level of parental control. If the current rating level of parental control of the Digital Video player is lower than the one of current disc, you must input the correct password of parental control to unlock the parental control and enter a rating level equal to or higher than one of the current disc in order to play the disc.

* For factory preset password of parental control of DigitaVideoplayer, please seethe part of Media Setup Menu

Appendix: Parental Control

Parental Control function of a Digital Video player can control playback of movie ratings on a disc. You can set the Digital Video player to be a certain rating level of parental control using the Media Setup Menu. If the rating level of parental control of a disc is higher than the one of the Digital Video player, the Digital Video player cannot play the disc.

The Digital Video movie can be designed so that the Digital Video player can play different versions of content of a particular movie according to the different rating levels of parental control. Depending on the DfeatureVideo, the scenes that are not suitable for children will be cleared or replaced by suitable scenesautomatically.

The rating levels of Parental Control are as follows:

Unlock

1KidSafe

2G

3PG

4PG13

5PGR

6R

7NC17

8Adult

\*RegionCode

If you insert a disc into the disc slot and REGION ERROR is displayed, the car multi-media system can not play the disc. The reason is that the region codes of the car multi-media system and the used disc do not match each other.

Appendix: Region code of DigitalVideo

Motion Picture Association of America (MPAA) divided the world into 6 regions, and gave every region a region code for locking and unlocking DigitalVideo playback.

Basically, a coded DigitalVideo player can play only the discs if its region code is the same as the code of theDigital Videoplayer. Otherwise, it cannot play the disc.

Please note that only the DigitalVideo digital videoD players produced by the 8 biggest film-making companies of America impose this restriction. The Digital Video digital video and D players not produced by the 8 biggest film making companies of America are not restricted by the rule of region code. Generally, they are called Free Region Code or Full Region Code.

The problems caused by area code inconsistency has motivated the production of unlocked version DigitalVideoDigitalVideo and recodableDplayers.

Region codes and the countries or areas represented by region codes are as follows:

Region 1: America, Canada, East-Pacific Inlands;
Region 2: Japan, West Europe, North Europe, Egypt, South Africa, Middle East;
Region 3: South-east Asian countries include Taiwan, Hong Kong, South Korea, Thailand, Indonesia, etc.;
Region 4: Australia, New Zealand, Central South America, South Pacific Inlands;
Region 5: Russia, Mongolia, Indian Peninsula, Middle Asia, East Europe, North Korea, North Africa, North-west Asia etc.;
Region 6: China mainland.

The 8 biggest film-making companies of America are as follows:

1. WarnerBros;
2. Columbia;
   3.20th Century FOX;
3. Paramount;
4. Universal;
   6.UA(UnitedArtist);
5. MGM(MetroDogwynMayer);
6. WaltDisney

General:

Supply Voltage:	12V DC (11V-15V)
Current Consumption:	Less than 10 A
Signal System:	Composite video 1.0Vp-p 75Ω
Discs Played:	(1) DIGITAL-VIDEODisc
	5"(12 cm) single-sided, single-layer
	5"(12 cm) single-sided, double-layer
	(2) Compact Disc (CD-DA, VIDEO CD)
	5"(12cm)disc

Audio Signal Output: 2ch&4ch line out

Characteristics: (1) Frequency Response 20 Hz - 20 KHz

(2)S/N Ratio 90 dB (JIS)

(3)Wow and Flutter Below measurable limits

RADIO Section:

	For 2 Bands(Europe)	For2Bands(U.S.A.)
	FM	FM
Frequency Coverage:	87.5 to108 Mhz	87.5 to107.9 Mhz
IF:	10.7 MHz	10.7MHz
Sensitivity (S/N = 30 dB):	15 dBu	15dBu
	MWAM
Frequency Coverage:	522 to1620 KHz	530 to1710 KHz
IF:	450 KHz	450 KHz
Sensitivity (S/N = 20 dB):	40 dBu	40dBu

TFTMonitor:

Monitor Screen Size:	7 Inch Wide
Color System:	NTSC/PAL

BLUETOOTH:

Bluetooth specification:	V1.2 Class 2
Bluetooth profile supported:	Headset, Handsfree and A2DP & AVRCP profiles
Range of frequency:	2.4GHz Spectrum

NOTE:

Specifications and design are subject to modification, without notice, due to improvements in technology.

Before going through the check list, check wiring connection. If any of the problems persist after check list has been made, consult your nearest service dealer.

SYMPTOM	CAUSE	SOLUTION
Nopower	The car ignition switch is noton	If the power supply is properly connected to the car accessory terminal,switch the ignition key to"ACC"
	The fuse is blown	Replacethefuse
Disc can not be loadedorejected	Presence of disc inside the player.	Removethe disc in the player, then put a new one
	Inserting the disc in reverse direction	Insert the compact disc with the label facing upward
	The disc is extremely dirty ordefective	Clean the disc or try to play a newone
	Temperature inside the car istoohigh	Cool off or until the ambient temperature return to normal
Video/image appears black-white	The color system is setincorrectly	Please switch to correct color systemfrommenu
Novideo/image appears	The unit is not connected to the parking brake detectionswitch	Makeproperconnection accordingto"wireconnection "
	The parking brake is not engaged	For safety reasons no video/images are displayed while the vehicleismoving. Engaging the parking brake will cause images to be displayed.
No color in picture	The disc format is not according to the TV-set used(PAL/NTSC)	Please choose a proper color system.
JPEGdisccan notbeplayed back	No JPEG files are recorded onthedisc.	Changethedisc
	JPEG files are not recorded inacompliantformat	Change the disc Record JPEG files using a compliant application
The operation keys donotwork	Thebuilt-inmicrocomputer is notoperatingproperly duetonoise	Press the RESET button. Front panel is not properly fixed intoitsplace
The radio does not work	The antenna cable is not connected	Insert the antenna cable firmly
	The signals are too weak	Selectastationmanually
