Product Type	Vocal Microphone
Brand	Electro-Voice
Model	HM2
Category	Microphone
Transducer Type	Dynamic
Polar Pattern	Cardioid
Frequency Response	50 Hz – 15,000 Hz
Impedance	150 ohms (low impedance)
Output Connector	XLR 3-pin
Dimensions (Length x Diameter)	7.0 in x 2.0 in (178 mm x 51 mm)
Weight	10.6 oz (300 g)
Material	Metal body with steel grille
Color	Black
Included Accessories	Stand adapter, storage pouch
Handling Noise	Low (internal shock mount)
Warranty	2 years limited
Usage	Live vocals, PA systems
Sensitivity	-54 dBV/Pa (1.9 mV)
Power Requirement	Passive (no phantom power needed)

Frequently Asked Questions - HM2 ELECTRO-VOICE

How do I connect the HM2 microphone to a mixer or amplifier?

Use a standard XLR cable to connect the microphone's XLR output to a mixer or amplifier with a compatible input. No phantom power is required as the HM2 is a dynamic microphone.

What is the best polar pattern for live vocals?

The HM2 features a cardioid polar pattern, which captures sound primarily from the front and rejects noise from the sides and rear. This is ideal for live vocals to minimize feedback.

Can I use the HM2 microphone for recording instruments?

While designed for vocals, the HM2 can be used for recording amplified instruments like guitar amps or percussion due to its dynamic nature and durable build.

How do I reduce plosive sounds when using the microphone?

Use an external pop filter or speak slightly off-axis to the microphone. The HM2's built-in windscreen also helps reduce plosives.

Is the HM2 compatible with wireless systems?

Yes, the HM2 can be used with wireless systems by connecting it to a compatible transmitter via an XLR adapter. Ensure the transmitter matches the microphone's impedance.

What maintenance does the HM2 require?

Regularly wipe the grille with a damp cloth to remove debris. For deeper cleaning, unscrew the grille and wash it with mild soap and water. Allow to dry completely before reattaching.

Can I replace the grille if it gets damaged?

Yes, the grille is replaceable. Contact Electro-Voice or authorized dealers for genuine replacement parts.

What is the frequency response of the HM2?

The frequency response is 50 Hz to 15,000 Hz, optimized for vocal clarity with a slight presence boost.

How close should I be to the microphone for optimal sound?

For best results, maintain a distance of 2 to 6 inches from the microphone. Proximity effect will boost bass when closer.

Does the HM2 require phantom power?

No, the HM2 is a dynamic microphone and does not require phantom power. It works with standard XLR inputs that provide no voltage.

USER MANUAL HM2 ELECTRO-VOICE

• Lightweight – just 0.9 ounces (25 grams), less cable
  • Behind-the-head headband is comfortable and stays in place
  • Cardioid pickup pattern ensures good gain before feedback
  • Frequency response and proximity effect similar to handheld vocal mics

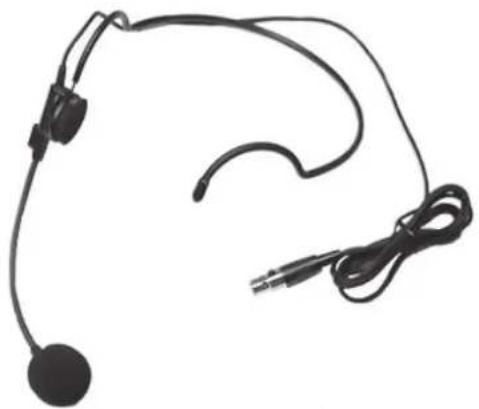

Black headset with earbuds and cable, no visible text or symbols

The Electro-Voice HM2 headworn microphone is the ideal microphone for anyone who requires high-quality vocals in a hands-free application. The HM2 is perfect for use by lead vocalists, singing instrumentalists, dancers, aerobic instructors and other presenters.

The HM2 has a miniature electret condenser element designed with a cardioid polar pattern, which attenuates background noises such as sound from nearby floor monitors, on-stage musical instruments and crowd noise. The furnished open-pore windscreen slips over the microphone element to reduce wind noise and minimize P-popping – the excessive explosive breath noise caused by overemphasized "p" and "t" sounds.

The Electro-Voice HM2 headworn microphone employs a comfortable and inconspicuous behind-the-head headband and flexible boom arm in an attractive Nonreflective black matte finish. The flexible boom, which descends from the right of the headband, is enclosed with protective shrink tubing to shield the boom arm from deterioration and to prevent the flexible tube from catching on facial hair. The facial features of the performer or speaker will not be obstructed due to the HM2's unobtrusive design. The headband and microphone boom adjust to fit any performer or speaker.

The HM2 is designed to have a frequency response similar to a handheld vocal microphone. The HM2 headset exhibits bass-boost (proximity-effect) warmth that many vocalists prefer. The amount of proximity effect can be adjusted by moving the microphone element closer or farther away from the mouth. The HM2 is permanently connected to a 1.2-m (4 ft) shielded cable terminated with a miniature Switchcraft TA3F connector.

Technical Specifications: General Description:

tnemelEgnitareneG
esnopse: (re)perF:)ecnatd.ni-2/1(	00Hz31-03
Sensitivity (open circuit voltage 00Ω ta	4 mV/Pascal (680Ω load)
Polar Pattern:	Cardioid
Maximum SPL, 1% Distortion:	120 dB
Power Requirements:	1 to 10 V dc
Operating Current at 9 V dc:	500 μA max
Finish:	Nonreflective black
:elbaCtuptuO	1.2 m (4 ft) long, 2.5 mmerutainin:temajdi01.0lnenae:pelbacoiduaenohpo:dehca:rotcennocdna
rotcennoCtuptuO	Switchcraft TA4F (pin 1 shield,nip3,oidua/s482nipNJC
Accessories Furnished:	Black windscreen
Optional Accessories:	VEned:tnemecalpeR551978.omap
:dnabdael	140 mm (5.5 in.) nominal at svidepoint: 160 mm (6 in.)mmb
:enohpo	29 mm (1.14 in.) long, 18 mm(0.5 h)side, 16.8 mm (0.66pe)di
Net Weight (less cable andrptcennoc	)zo9.0(smarg52

Microphone Placement:

The headband can be worn in several different ways: Over the top of the head. (Some aerobics instructors prefer this because they wear their sweatband perpendicular to the headband.) Behind the back of the neck. (This lets you hide the headset in your hair very easily.) The flexible boom allows adjustment relative to the right corner of your mouth. To find the optimum location of the microphone, perform the following steps during the sound check:

1. Center the microphone element in front of your mouth by bending the flexible boom up or down.
2. If P-popping is detected, bend the flexible boom and move the microphone element further away from you mouth.
3. If the sound is thin and weak, move the microphone element closer to your mouth and try raising or lowering the microphone element.

Experiments indicate that the best control of P-popping is to position the microphone element off to the side of the mouth, away from the center.

If distortion or flawed audio is heard, check the overload LED on the transmitter. If the LED is flashing with voice peaks, adjust the transmitter's attenuation control until the overload stops. Also, check the condition of the transmitter's battery and replace if necessary.

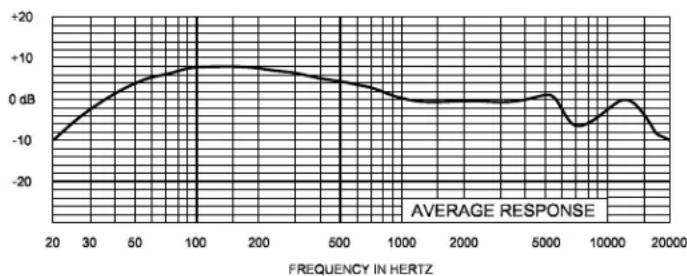

Frequency Response (at 1/2-inch):

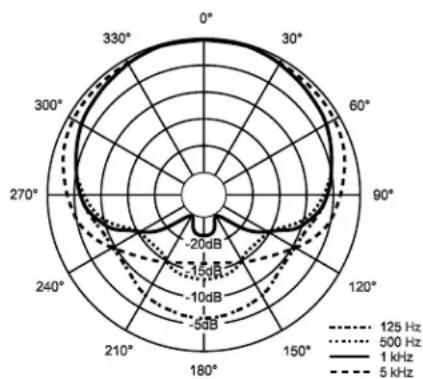

Polar Response:

Warranty (Limited):

Electro-Voice products are guaranteed against malfunction due to defects in materials or workmanship for a specified period, as noted in the individual product-line statement(s) below, or in the individual product data sheet or owner's manual, beginning with the date of original purchase. If such malfunction occurs during the specified period, the product will be repaired or replaced (at our option) without charge. The product will be returned to the customer prepaid. Exclusions and Limitations: The Limited Warranty does not apply to: (a) exterior finish or appearance; (b) certain specific items described in the individual product-line statement(s) below, or in the individual product data sheet or owner's manual; (c) malfunction resulting from use or operation of the product other than as specified in the product data sheet or owner's manual; (d) malfunction resulting from misuse or abuse of the product; or (e) malfunction occurring at any time after repairs have been made to the product by anyone other than Electro-Voice or any of its authorized service representatives. Obtaining Warranty Service: To obtain warranty service, a customer must deliver the product, prepaid, to Electro-Voice or any of its authorized service representatives together with proof of purchase of the product in the form of a bill of sale or receipted invoice. A list of authorized service representatives is available from Electro-Voice at 8601 E. Comhusker Hwy., Lincoln, NE 68507 (402/467-5321 or 800/553-5992 or Fax [phone]) and/or Electro-Voice West, at 8234 Doe Avenue, Visalia, CA 93291 (209/651-7777 or 800/825-1242). Incidental and Consequential Damages Excluded: Product repair or replacement and return to the customer are the only remedies provided to the customer. Electro-Voice shall not be liable for any incidental or consequential damages including, without limitation, injury to persons or property or loss of use. Some states do not allow the exclusion or limitation of incidental or consequential damages so the above limitation or exclusion may not apply to you. Other Rights: This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Electro-Voice Wireless Systems are guaranteed against malfunction due to defects in materials or workmanship for a period of one (1) year from the date of original purchase. The Limited Warranty does not extend to cables or cable connectors. Additional details are included in the Uniform Limited Warranty Statement.

Service and repair address for this product: Electro-Voice, Inc., 8601 E. Cornhusker Hwy., Lincoln, NE 68507 (402/467-5321 or 800/553-5992 or Fax [phone]).

Specifications subject to change without notice.
