Product Type	2-way bi-amplified active PA speaker
Frequency Response	42 Hz - 20 kHz (-6 dB)
Maximum SPL (cont./peak)	129 dB / 132 dB
Dispersion (H x V)	80° x 50° rotatable
Low Frequency Driver	2 x 15" woofer, 2.5" voice coil
High Frequency Driver	1" throat, 1.4" voice coil compression driver
Amplifier Power (LF)	1600 W peak, Class D
Amplifier Power (HF)	200 W peak, Class AB
AC Power Requirement	600 VA
Input Impedance	22 kOhm
Input Connectors	XLR with loop, 6.3 mm stereo jack, stereo RCA
DSP Presets	4 presets
Enclosure Material	Plywood with anti-scratch coating
Grille	Steel with powder coat black paint
Net Dimensions (W x H x D)	17.20 x 46.25 x 17.32 inches (437 x 1175 x 440 mm)
Shipping Dimensions (W x H x D)	22.44 x 48.81 x 21.65 inches (570 x 1240 x 550 mm)
Net Weight	69.44 lbs (31.5 kg)
Rigging Points	6 x M10
Handles	2 aluminium handles
Accessories (optional)	XP-C215 nylon cover
Maintenance	Clean with dry cloth; avoid moisture and solvents
Safety	Ensure proper ventilation; do not exceed rated power
Spare Parts & Repairability	Contact FBT authorized service center

Frequently Asked Questions - X-Pro 215A FBT

What is the power rating of the FBT X-Pro 215A?

The FBT X-Pro 215A features a 1600W peak low-frequency amplifier (Class D) and a 200W peak high-frequency amplifier (Class AB).

How do I connect the speaker to a mixer?

Use the XLR input for balanced audio, or the 6.3mm stereo jack and RCA inputs for unbalanced sources. Adjust the volume controls for each input on the rear panel.

Can I hang the speaker from a ceiling?

Yes, the cabinet has 6 M10 rigging points for suspension via cables. Ensure proper hardware and load ratings are used.

What is the optimal placement for the speaker?

Place the speaker on a stable surface or mount it at ear level. For best coverage, rotate the 80° x 50° horn to match venue shape.

How do I change the DSP preset?

Use the DSP preset selector on the rear panel to choose from 4 presets optimized for different applications (e.g., music, speech).

What does the PRT/LMT LED indicator mean?

The PRT (protection) LED indicates thermal or overcurrent protection activated; LMT (limiter) signals excessive input level. Reduce volume if lit.

Can I use the X-Pro 215A without a subwoofer?

Yes, it operates as a full-range speaker with a frequency response down to 42 Hz. For extended low end, add a dedicated subwoofer from the X series.

How to clean and maintain the speaker?

Wipe the cabinet with a dry, soft cloth. Do not use water or abrasive cleaners. Protect from extreme temperatures and moisture.

What is the total weight of the speaker?

The net weight is 69.44 lbs (31.5 kg). Use the two aluminium handles for lifting.

Does it have a warranty?

Warranty details are provided by the manufacturer. Contact FBT or your dealer for information on coverage and service.

USER MANUAL X-Pro 215A FBT

• Live sound P.A. system
• School & corporate audio visual sound reinforcement
- Background music
• Restaurants, Pubs
• Transportation terminals
• Auditorium, Theatres
• Gyms, Houses of worship

KEY FEATURES

• 2-way bi-amplified system
- Plywood cabinet with anti-scratch coating
- 2 x 15" LF woofer / 2,5" voice coil
- 1" throat / 1,4" voice coil HF compression driver
• 1600W amplifier in Class D for LF
• 200W in Class AB for HF
- 80^ × 50^ constant directivity rotatable horn
• M10 rigging points
- 4 DSP presets

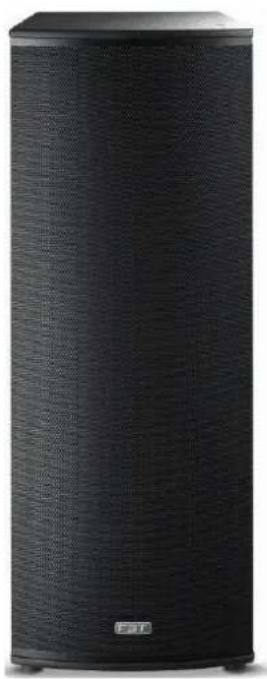

Black cylindrical speaker with textured grille and 'CFT' logo at bottom (no visible text or symbols on body)

Blue abstract logo design with stylized X and 'PRO' text (no additional symbols or text)

215A
PROCESSED ACTIVE SPEAKER

PRODUCT DESCRIPTION

The FBT X-PRO 215A speaker with integrated mixer feature lightweight, yet rugged plywood cabinet with anti-scratch coating and internal ply reinforcement construction. Available in black finish the FBT X-PRO 215A series speakers modern cabinet appearance it is designed to be used in multiple ways, from fixed installation to live use. The FBT X-PRO 215A is two way design incorporating 2 x15" low frequency woofer and 1" HF compression driver coupled to a 80°H x 50°V constant directivity rotatable horn. With a frequency range of 42Hz - 20kHz the FBT X-PRO 215A speakers provide high fidelity sound for both speech and music applications with a maximum SPL of 132dB. The bi-amplified FBT X-PRO 215A active speaker feature a 1600W low frequency amp and a 200W high frequency amp. The control panel features XLR input and link out, 6,3mm jack stereo input with volume, stereo RCA input with volume, XLR output selector coupled with stereo/mono, HP filter, mic/line, DSP preset selector, prt/lmt led indicator. 6 x M10 rigging points built into the cabinet for suspension via cables and two aluminium handles. To extend the low frequency response, dedicated subwoofers from the same "X" series should be used.

ELECTRONIC SPECIFICATIONS PHYSICAL SPECIFICATIONS

System Type	2 Way
Internal amplifiers max. peak LF/HF*	1600W / 200W
Input Impedance	22 kOhm
Frequency Response	42Hz - 20kHz (@-6dB)
Maximum SPL cont / peak**	129 / 132dB
Dispersion	80° H x 50°V rotatable
AC Power Requirement	600VA

ACCESSORIES

XP-C215 Nylon cover

Low Frequency Woofer		2 x 15" / 2,5" coil
High Frequency Driver		1" / 1,4" coil
Input Connectors	XLR with loop/Jack st./RCA st.
Net Dimensions (WxHxD) inch mm		17,20 x 46,25 x 17,32 437 x 1175 x 440
Shipping Dimensions (WxHxD) inch mm		22,44 x 48,81 x 21,65 570 x 1240 x 550
Net Weight		69,44 lbs
Enclosure Material		plywood
Grille	Steel with powder coat black paint finish
Power Cord 16,4ft / 5mt

* Max. Peak: based on max peak output voltage and nominal speaker impedance
**Cont. SPL: free space, based on power amp rating and LF transducer average sensitivity data, 125mS time average Peak SPL: free space, based on max. peak power amp rating and system peak sensitivity, 10mS time average

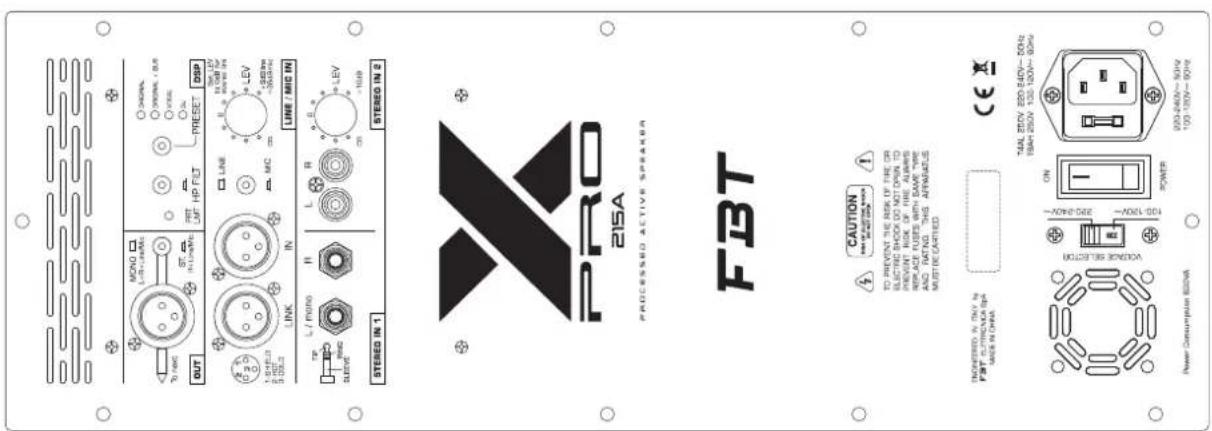

CONTROL PANEL

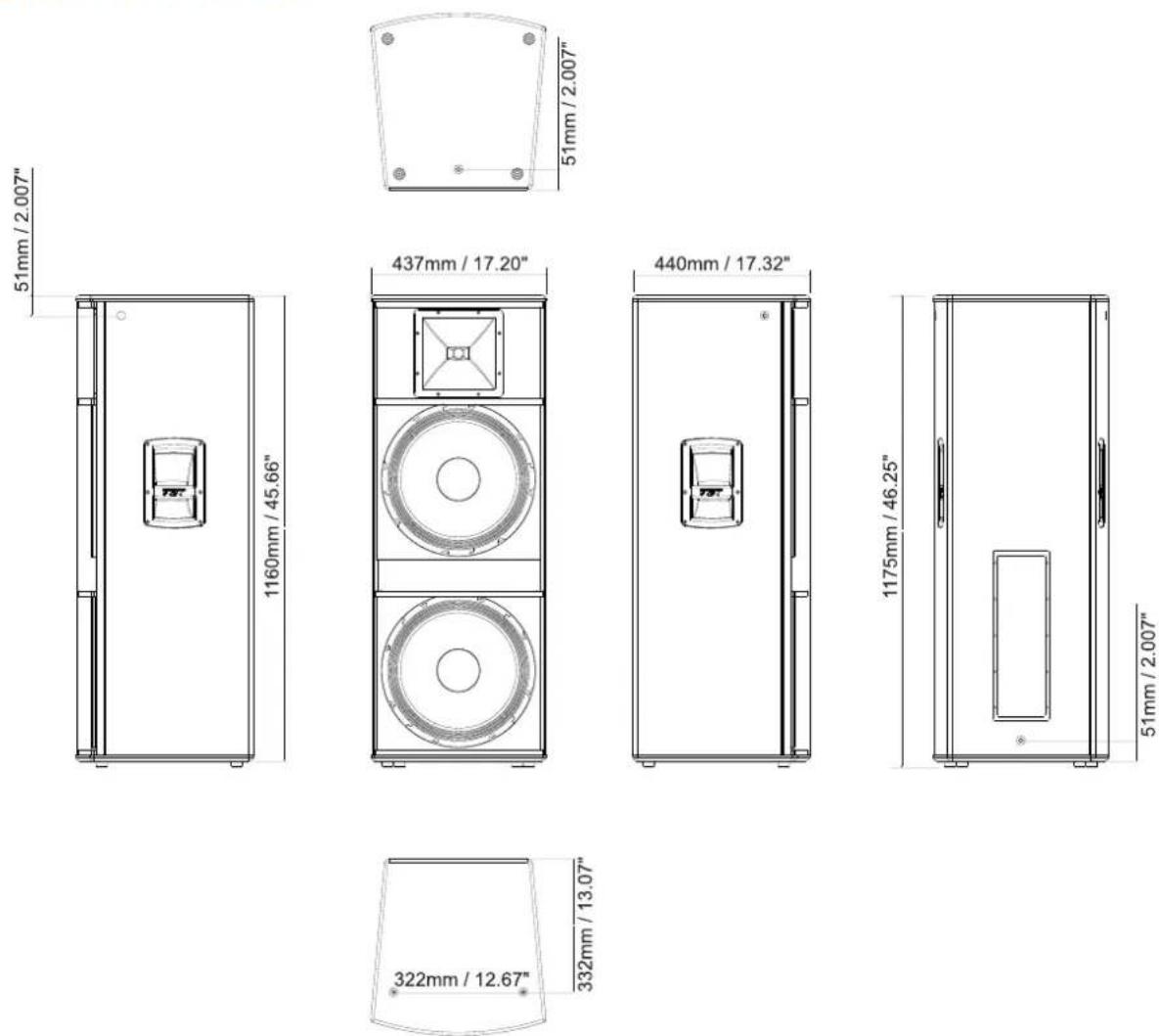

DIMENSIONAL DRAWINGS
