Product Type	Replacement Power Supply
Brand	Behringer
Model	PSU5-JP
Input Voltage	100 V AC (Japan specification)
Output Voltage	15 V AC
Output Current	1.2 A
Compatible Models	UB1202, XENYX 1202, Q1202USB
Warranty	3-Year Warranty Program
Design	Conceived and designed by BEHRINGER Germany
Region	Japan only (100 V)
Dimensions (approx.)	3.5 x 2.0 x 1.5 inches
Weight (approx.)	0.5 lbs
Connector Type	Standard barrel connector (likely 2.1mm x 5.5mm)
Safety Certifications	CE, RoHS compliant
Included Accessories	Power cord (Japan type)
Manufacturing	Made in MUSIC Group factory
Support Contact	See manual for regional support numbers
Repairability	Not user-serviceable; contact support for replacement

Frequently Asked Questions - PSU5-JP BEHRINGER

What is the input voltage of the Behringer PSU5-JP?

The PSU5-JP is designed for 100 V AC input, specifically for use in Japan.

Which mixers are compatible with the PSU5-JP?

It is a replacement power supply for UB1202, XENYX 1202, and Q1202USB mixers.

What is the output voltage and current?

The output is 15 V AC at 1.2 A.

Does the PSU5-JP come with a warranty?

Yes, Behringer offers a 3-Year Warranty on this power supply.

Can I use this power supply in other countries?

No, it is specifically designed for 100 V systems in Japan. Using it elsewhere may damage the unit.

Is the PSU5-JP the same as the original power supply that came with my mixer?

Yes, it is an identical replacement for the original power supply included with the compatible mixers.

What is the connector size?

It uses a standard 2.1mm x 5.5mm barrel connector, but verify with your device.

How do I contact support for this product?

Contact information is provided in the manual. For Japan, call [phone] or email [e-mail].

Can I repair the PSU5-JP myself?

It is not user-serviceable. If defective, contact support for a replacement under warranty.

Where is the PSU5-JP manufactured?

It is made in MUSIC Group's own factory using advanced automation and quality assurance.

USER MANUAL PSU5-JP BEHRINGER

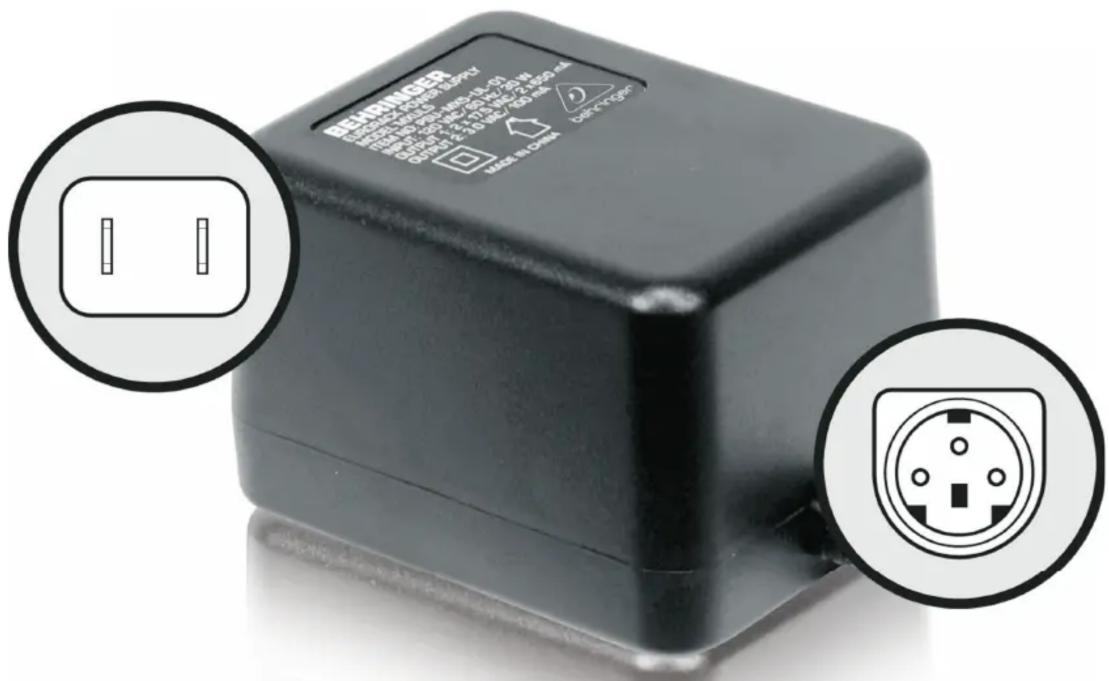

100 V JP Replacement Power Supply for UB1202, XENYX 1202 and Q1202USB

Replacement Power Supply for UB1202, XENYX 1202, Q1202USB
3-Year Warranty Program*
Conceived and designed by BEHRINGER Germany

The PSU5-JP power supply is identical to the one that came with the products listed above, and is required for proper operation in your part of the world. We offer a wide range of region-specific Replacement Power Supplies designed specifically for your BEHRINGER device.

Exterior view of a black BEVX Q508 audio workstation (no visible text or labels)

You Are Covered

We always strive to provide the best possible Customer Experience. Our products are made in our own MUSIC Group factory using state-of-the-art automation, enhanced production workflows and quality assurance labs with the most sophisticated test equipment available in the world. As a result, we have one of the lowest product failure rates in the industry, and we confidently back it up with a generous 3-Year Warranty program.

PSU5-JP

100 V JP Replacement Power Supply for UB1202, XENYX 1202 and Q1202USB

For service, support or more information contact the BEHRINGER location nearest you:

Europe

MUSIC Group Services UK

Tel: [phone]

Email: [e-mail]

USA/Canada

MUSIC Group Services NV Inc.

Tel: [phone]

Email: [e-mail]

Japan

MUSIC Group Services JP K.K.

Tel.: [phone]

Email: [e-mail]
