LK1500CR - Faucet Elkay - Free user manual and instructions

Product Type	Single-Hole Bathroom Faucet
Brand	Elkay
Model	LK1500CR
Installation Type	Deck Mount
Number of Handles	1 Handle
Handle Type	Lever
Finish	Chrome
Material	Solid Brass
Spout Height	4.5 in (11.4 cm)
Spout Reach	4.75 in (12.1 cm)
Flow Rate	1.5 GPM (5.7 L/min) at 60 psi
Number of Holes	1 Hole Required
Valve Type	Ceramic Disc
Drain Assembly Included	Yes
Warranty	Lifetime Limited Warranty
Compliance	ADA Compliant
Certifications	cUPC, NSF 61-9
Weight	2.5 lb (1.13 kg)
Package Dimensions	8 x 6 x 3 in (20.3 x 15.2 x 7.6 cm)
Recommended Cleaning	Wipe with a soft damp cloth; avoid abrasive cleaners

Frequently Asked Questions - LK1500CR Elkay

What is the installation type for the Elkay LK1500CR faucet?

The Elkay LK1500CR is a deck mount faucet designed for single-hole installation on a sink or countertop.

Does the LK1500CR faucet come with a drain assembly?

Yes, the faucet includes a matching pop-up drain assembly for complete installation.

What is the flow rate of the LK1500CR?

The flow rate is 1.5 gallons per minute (GPM) at 60 psi, meeting water efficiency standards.

Is the Elkay LK1500CR ADA compliant?

Yes, the single lever handle design meets ADA requirements for accessibility.

What type of valve does the LK1500CR use?

It uses a ceramic disc valve for drip-free performance and long life.

How do I clean the LK1500CR faucet?

Clean with a soft damp cloth and mild soap. Avoid abrasive cleaners or scouring pads to preserve the finish.

What is the warranty on the Elkay LK1500CR?

Elkay offers a Lifetime Limited Warranty against defects in material and workmanship.

Can the LK1500CR be installed on a 3-hole sink?

This model is designed for 1-hole installations, but it can be used on a 3-hole sink with a deck plate (sold separately).

What is the spout height and reach?

The spout height is 4.5 inches and the reach is 4.75 inches from the center of the base.

Is the LK1500CR lead-free and safe for drinking water?

Yes, it is certified to NSF 61-9 for lead-free compliance and safe for potable water.

USER MANUAL LK1500CR Elkay

You choose the flow rate!

This faucet ships with an eco-friendly 1.5GPM flow regulator installed.

If you desire higher flow rate, a 2.2GPM flow regulator has also been included in the box.

Switching the flow regulator is simple! See the "Flow Regulator Replacement" section for details.

Line drawing of a double faucet with handle and base (no text or symbols)

LK1501

Line drawing of a faucet with handle and base, labeled LK1500 (no other text or symbols)

INCLUDES:

Line drawing of a kitchen faucet with multiple washers and a handle, plus additional rings (no text or symbols)

Line drawing of a faucet with multiple circular components (no text or symbols)

OPTIONAL 2.2GPM AERATOR

RECOMMENDED TOOLS:

Groove joint pliers

Wrench

(2) 1/2 in Supply Lines

Screwdriver

Sealant Tape

Plumber's Putty

WARNING: Please carefully read and properly follow the instructions for installation found in this manual.

STEPS:

1

Line drawing of a hand holding a mechanical component with a circular base and textured top (no text or symbols)

Shut off water supply at angle stop. Clean sink surface in preparation for new faucet.
If your model has a spray, proceed to step 2. If your model does not have a spray skip to step 4.

2

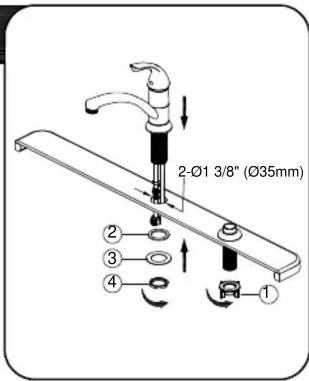

For models with spray: Insert spray support through far right hole on sink. Screw hold - down nut (1) onto shank and hand tighten. Place faucet in position on sink. Install rubber washer (2) and metal washer (3) onto the threaded mounting shank. Thread nut (4) onto mounting shank. Do not overtighten.

3

Diagram of a kitchen sink with faucet and tubing (no text or labels)

For models with spray: Insert spray hose down through the support and sink. Attach the spray hose to the connection beneath the faucet by aligning the tabs on quick connector. Push quick connector housing firmly upward and snap onto receiving tube tab. Pull down moderately to ensure connection has been made. If it is necessary to remove the quick connector, squeeze tabs on hose between index finger and thumb, then pull down to disconnect.

4

Diagram of a kitchen sink with a valve and mechanical components (no text or labels)

Place faucet in position on sink. From underneath sink, install rubber washer (1) and metal washer (2) onto the threaded mounting shank. Thread nut (3) onto mounting shank. Do not overtighten.

5

Make connections to water lines. Use 1/2" I.P.S. faucet connections (1) or use coupling nuts (3) with 3/8" O.D.ball-nose riser(2). Use wrenches to tighten connections. Do not overtighten.

6

Line drawing of a kitchen faucet with a drain and handle, no text or symbols present

Important: After installation is completed, remove aerator assembly. Turn on hot and cold water supplies. Turn handle to full open position for one minute. Check for leaks. Replace aerator.

1

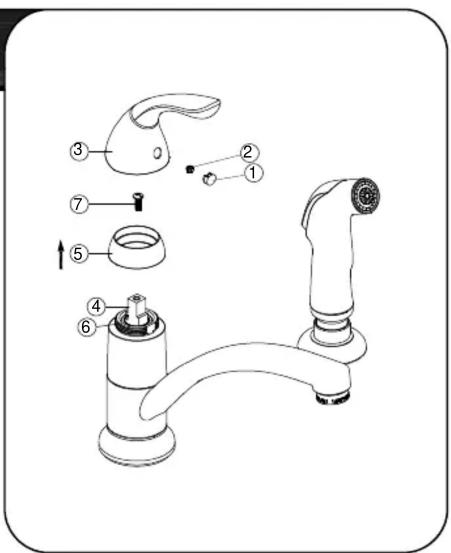

Shut off water supply. Remove set screw plug (1). With valves in "closed" position, unscrew set screw (2) and remove handle (3) from valve stem (4). Loosen the screw (7) from valve stem (4). Loosen the cap (5) from the sleeve (6).

2

Loosen sleeve (1) by turning it counter-clockwise and lift out the cartridge (2). Remove the old cartridge and replace with the new cartridge. Replace sleeve and tighten. Reinstall the handle.

FLOW REGULATOR REPLACEMENT

This faucet ships with a 1.5GPM aerator installed. An optional 2.2GPM aerator is also included in the box.

To switch the flow rate of the faucet:

1. Disassemble aerator assembly by separating the aerator shell (1), aerator (2) and washer (3). Remove

existing aerator (2) and install the new aerator.

(2.2GPM=Red, 1.5GPM=Green)

1. Reinstall the aerator assembly.

CARE AND CLEANING INSTRUCTIONS

Congratulations on your purchase of an Elkay product. Although your product is extremely durable, attention should be given to the care, cleaning and maintenance of this product. Cleaning agents and abrasives may cause damage, which may result in oxidation and discoloration.

By following these simple guidelines for proper care and cleaning, it will give you years of enjoyment:

TO CLEAN: Simply wipe gently with a damp cloth and blot dry with a soft towel. A common rule of thumb is: when you dry off, dry off your product.

• Avoid build-up of soap, toothpaste or mineral deposits, as these tend to have an adverse effect on the appearance of the product.
• NEVER use cleaning products of any kind on this product - especially those containing ammonia, bleach or alcohol - or those with any form of abrasive.

FOR CARE AND MAINTENANCE:

• The water in certain areas of the world can be very caustic - standing water around the product can cause damage. Be sure to remove standing water with a dry, soft cloth as soon as possible.
• For polished brass finishes, as often as once a week, you can apply a paste wax or special, non-abrasive, brass coating (DO NOT APPLY POLISH).
• Before applying a protective coating, gently brush the entire fixture using a soft tooth brush. This will remove any dirt or deposit build-up.
• These simple steps will add temporary protective coating to your faucet and extend the life of the finish.

Failure to follow care and cleaning will void your warranty. For additional information, please visit elkayusa.com.

WARRANTY

ELKAY LIMITED LIFETIME WARRANTY

ELKAY LIMITED LIFETIME WARRANTY

Elkay warrants that all parts and finishes of the Elkay Residential brand faucets are free from defects in materials and workmanship for the life of the product, if purchased after 1996. This warranty covers the original consumer purchaser of the product only.

If the product should leak or drip during normal use, Elkay will provide, free of charge, a replacement cartridge. For other defects in material or workmanship, Elkay will, at its option, supply replacement parts (or if no longer available a comparable product). Elkay reserves the right to examine product in question and its installation prior to replacement.

What is not covered:

1. Damage caused by accident, negligence, misuse, abuse, improper installation or operation or failure to follow care or installation instructions enclosed with your product.

2. Damage occurring during shipment of the product (claims must be presented to the carrier).

3. Normal wear and tear.

4. Labor charges, costs of removal and reinstallation, and any damages to other property.
5. All industrial, commercial and business use whose purchasers are hereby extended a limited lifetime on mechanical parts and 5 years on finish.

What you must do to obtain warranty service:

Either write to Elkay, attention Customer Care, 2222 Camden Court, Oak Brook, IL 60523 or call 1-800-223-5529. Please provide date of purchase and installation, description of nature of the defect, and model number or description of model and/or component part.

THIS LIMITED WARRANTY IS EXPRESSLY IN LIEU OF ANY OTHER WARRANTIES, EXPRESSED IMPLIED, ARISING BY LAW OR OTHERWISE, INCLUDING WITHOUT LIMITATION, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. THIS LIMITED WARRANTY MAY NOT BE ALTERED, VARIED, OR EXTENDED, EXCEPT BY A WRITTEN INSTRUMENT EXECUTED BY ELKAY. THE REMEDY OF REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS LIMITED WARRANTY IS EXCLUSIVE. IN NO EVENT SHALL THE MANUFACTURER BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES TO ANY PERSON, WHETHER OR NOT OCCASIONED BY NEGLIGENCE OF ELKAY, INCLUDING WITHOUT LIMITATION DAMAGES FOR LOSS OF USE, COSTS PROPERTY DAMAGE OR OTHER MONETARY LOSS.

Some states do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply. This warranty gives you specific legal rights and you may also have other rights which vary from state to state.

This warranty covers product installed in the United States and Canada.

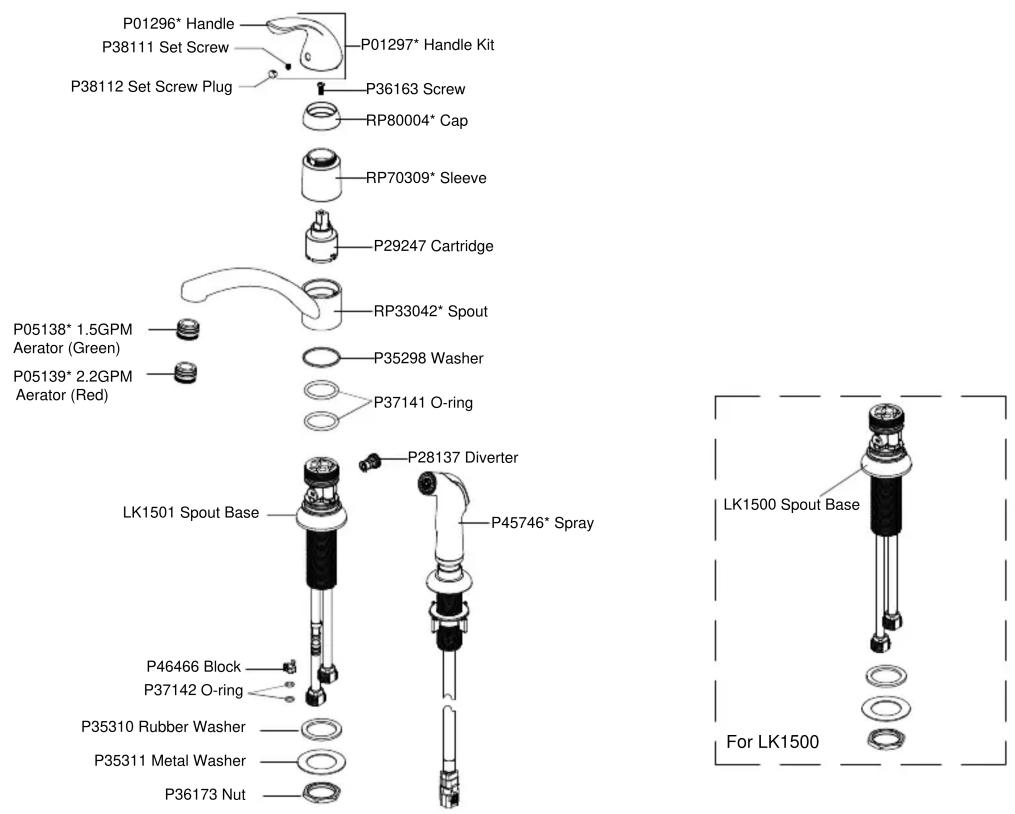

REPLACEMENT PARTS
