KC3610 - Screwdriver BLACK & DECKER - Free user manual and instructions

Product Type	Cordless Screwdriver
Brand	Black & Decker
Model	KC3610
Voltage	3.6 V
Battery Type	Nickel-Cadmium (Ni-Cd)
Battery Capacity	1.2 Ah
Charging Time	3 – 5 hours
No-Load Speed	0 – 180 rpm
Maximum Torque	2.5 Nm
Chuck Type	1/4 inch hex
Bit Storage	In-built bit holder
Forward/Reverse	Yes
Variable Speed Trigger	Yes
LED Light	Yes (work light)
Weight	0.3 kg
Dimensions	200 x 50 x 50 mm
Included Accessories	Charger, screwdriver bits
Cleaning	Wipe with a dry cloth
Safety Features	Ergonomic handle, lock-off button
Intended Use	Light-duty screwdriving

Frequently Asked Questions - KC3610 BLACK & DECKER

How do I charge the battery?

Connect the charger to the screwdriver's charging port and plug into a mains outlet. The charging time is approximately 3-5 hours. Do not overcharge.

What is the battery voltage?

The Black & Decker KC3610 uses a 3.6V nickel-cadmium (Ni-Cd) battery.

Can I use the screwdriver while charging?

No, the tool cannot be operated while connected to the charger.

What type of bits does it accept?

It accepts 1/4-inch hex bits. Standard screwdriver bits with a hex shank are compatible.

How do I change the direction of rotation?

Use the forward/reverse switch located above the trigger. Push it left for reverse, right for forward.

Is the battery replaceable?

The battery is built-in and not user-replaceable. For battery issues, contact Black & Decker service.

Why does the LED light not turn on?

Ensure the battery is charged. The LED lights up automatically when the trigger is pressed. If still off, the bulb may need service.

What maintenance is required?

Keep the tool clean and dry. Wipe with a dry cloth after use. Do not use solvents. Periodically check the chuck for debris.

Can I use the screwdriver for drilling?

No, this tool is designed for screwdriving only. It does not have sufficient torque or a drilling mode.

Where can I find replacement parts?

Replacement bits and chargers are available from Black & Decker retailers or online. For internal parts, contact authorized service centers.

USER MANUAL KC3610 BLACK & DECKER

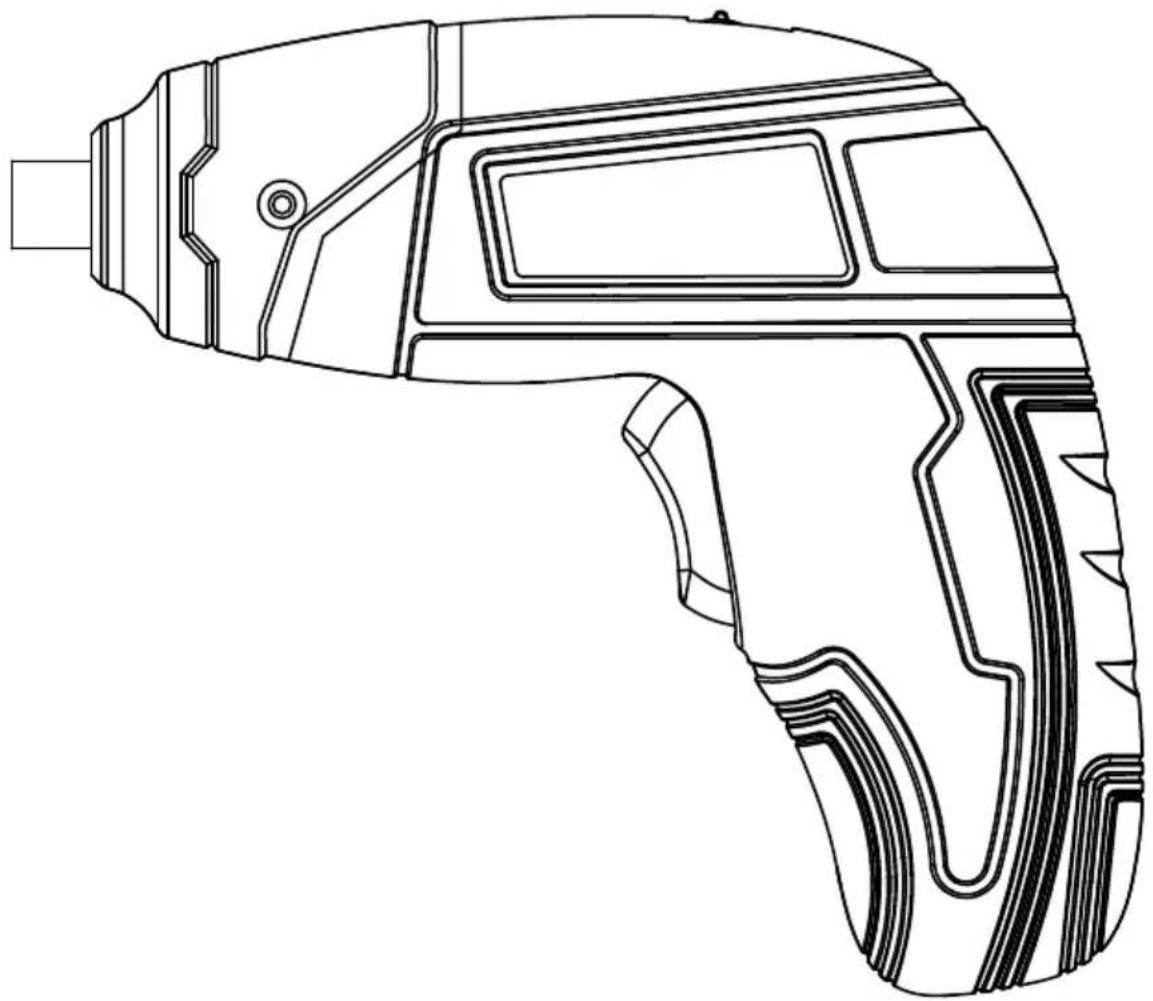

Line drawing of a handheld electric shaver tool (no text or symbols)

A

Technical line drawing of a handheld electric drill with attached electrical connector (no text or symbols)

B

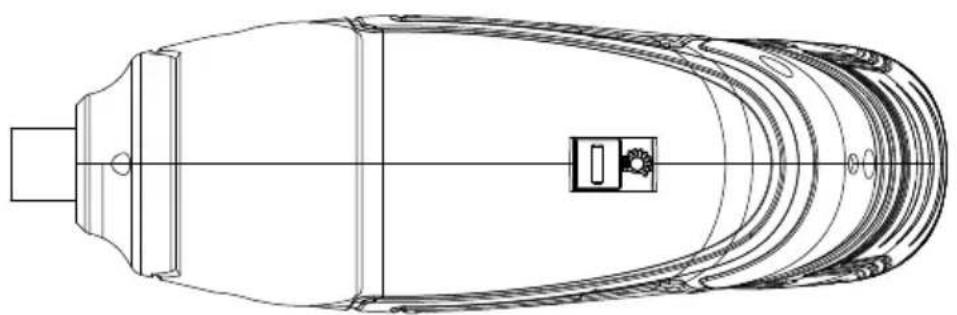

Technical line drawing of a cylindrical mechanical component with internal curved sections and a central control panel (no text or symbols)

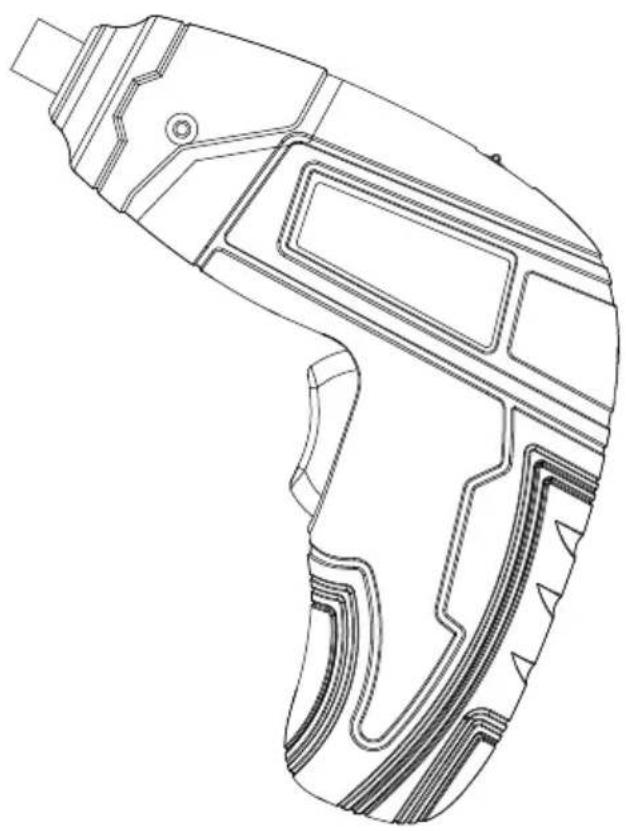

Line drawing of a handheld electric shaver tool (no text or symbols)

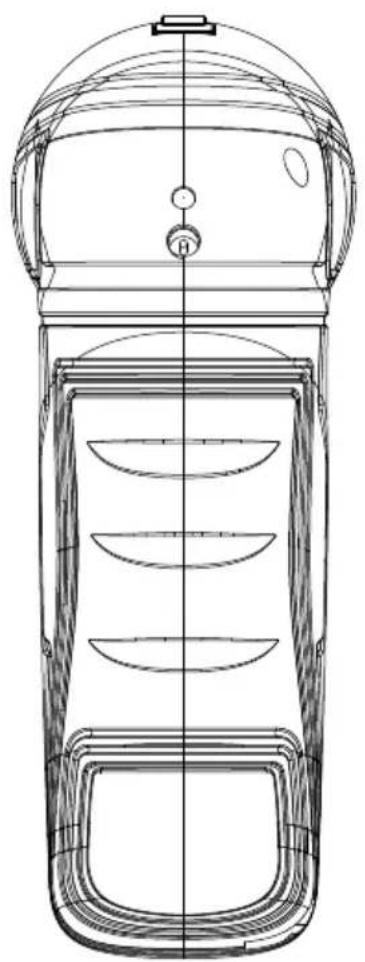

Technical line drawing of a mechanical device with multiple curved components and a dome-shaped top (no text or symbols)

Intended use

Your BLACK+DECKER screwdriver KC3610 has been designed for screwdriving applications. This tool is intended for consumer use only.

Safety instructions

General power tool safety warnings

Warning! Read all safety warnings and all instructions. Failure to follow the warnings and instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in all of the warnings listed below refers to your mains operated (corded) power tool or battery operated (cordless) power tool.

1. Work area safety

a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool.

Distractions can cause you to lose control.

2. Electrical safety

a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators.

There is an increased risk of electric shock if your body is earthed or grounded.

3. Personal safety

c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

1. Power tool use and care

a. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c. Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f. Keep cutting tools sharp and clean. Properly maintained cutting tools with

sharp cutting edges are less likely to bind and are easier to control.

g. Use the power tool, accessories and tool bits etc., in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

1. Battery tool use and care

a. Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

b. Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

c. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws, or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

d. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

1. Service

a. Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Special Safety Advice for Screwdriver

Hold power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring. Fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

Only plug the Battery Charger in 230V mains. Recharge the Battery only with the provided charger. Before starting any work on walls, floors or similar, make sure that all power lines in the work area are switched off at the main switchboard. Use a suitable device such as a metal or electricity line detecting device. If in doubt contact a qualified electrician or your utility provider. Both tools and work-pieces can heat up considerably during the drilling operation. Allow a sufficient period of cooling before handling. Wear appropriate gloves.

Safety Advice for Charger

Important! Danger! There are 3 pcs 1.2V Ni-cd battery in screwdriver, Never short-circuit the battery or expose it to moisture. Do not store it together with any metal parts which could short-circuit the contacts. the machine could overheat, start burning or explode.

Warning!

1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

2. Do not recharge non-rechargeable batteries

Vibration

The declared vibration emission values stated in the technical data and the declaration of conformity have been measured in accordance with a standard test method provided by EN 60745 and may be used for comparing one tool with another. The declared vibration emission value may also be used in a preliminary assessment of exposure.

Warning! The vibration emission value during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used. The vibration level may increase above the level stated.

When assessing vibration exposure to determine safety measures required by

2002/44/EC to protect persons regularly using power tools in employment, an estimation of vibration exposure should consider, the actual conditions of use and the way the tool is used, including taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time.

Labels on tool

The following pictograms are shown on the tool; along with the date code

Warning! To reduce the risk of injury, the user must read the instruction manual.

The charger is intended for indoor use only.

Read this entire manual carefully before using the appliance.

Position of date barcode

The Date Code, which also includes the year of manufacture, is printed into the housing. Example:

2014 XX JN

Year of manufacturing

Electrical safety

Your charger is double insulated; therefore no earth wire is required. Always check that the mains voltage

corresponds to the voltage on the rating plate. Never attempt to replace the charger unit with a regular mains plug.

- If the supply cord is damaged, it must be replaced by the manufacturer or an authorised BLACK+DECKER Service Centre in order to avoid a hazard.

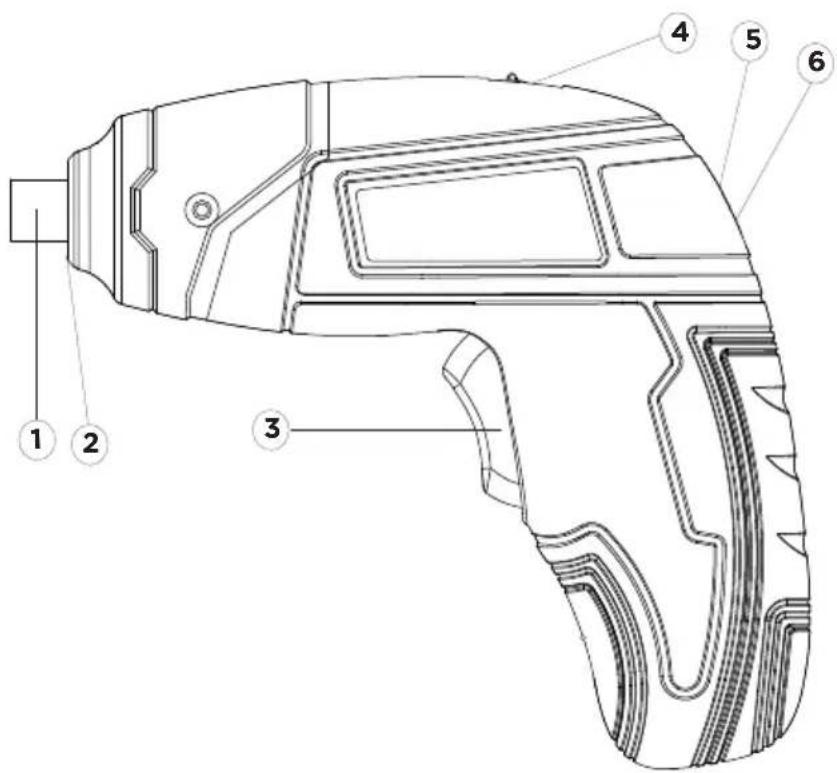

Product Features

1. Tool Holder

2. LED light

3. Switch

4. LED switch

5. Charging indicator

6. Charging hole

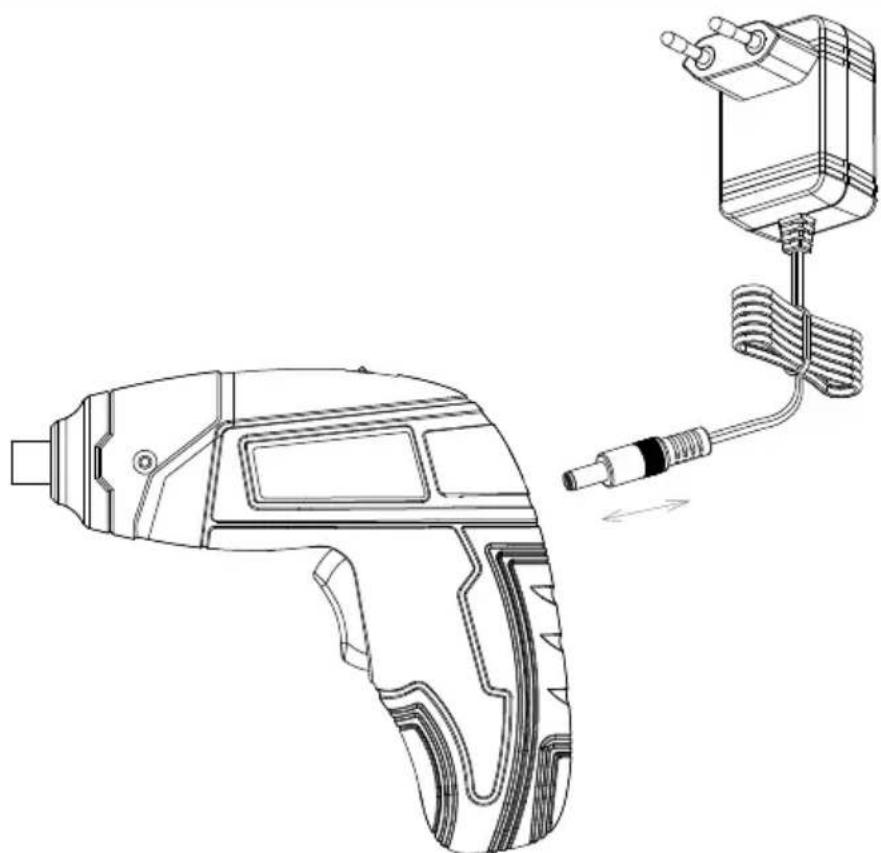

Charging the Battery

Charging as shown, Must turn off the screwdriver. Only Red lights up on the power indicator when you charging. Charging time: 1-3 Hours.

Inserting Tool Bits

Important! Always Turn off the machine before you change the screw bit to avoid unintentional starting of the machine. On/Off Trigger.

On/Off Trigger

Use the On/Off trigger to start the machine and keep holding it for continuous operation.

Operation for working

1. Using the Screwdriver as a Screw-driver

Before using the machine check whether the screw-bit is inserted correctly. Avoid over-tightening screws, otherwise the screw head may be damaged or stripping of the threads may occur.

2. Screw Insertion

Set the direction of rotation of the screwdriver to the clockwise direction. Insert the screw-bit into the slot in the head of the screw. Hold the screw bit perpendicular to the head of the screw, otherwise the screw or the screw head may be damaged. Press the screw bit against the screw with a constant pressure while driving in the screw. When the screw is completely screwed in, hold the machine firmly and release the On/Off trigger, otherwise the screw or the screw head may be damaged. If the On/Off trigger is not released immediately a high torque could also damage the screwdriver bit or the screwdriver.

3. Screw Removal

Set the direction of rotation of the screwdriver to the anticlockwise direction. Insert the screw-bit into the slot in the head of the screw. Hold the screw-bit perpendicular to the head of the screw, otherwise the screw or the screw head may be damaged. Press the screw bit against the screw with a constant pressure while removing the screw.

Maintenance and Cleaning

Attention! Always remove the battery before carrying out any work on the machine.

To clean, always use a dry or moist, but not wet, towel. Many cleaning agents contain chemical substances which may cause damage to the plastic parts of the machine. Therefore do not use any strong or inflammable cleaners such as petrol, paint thinner, turpentine or similar cleaning agents.

Always keep air ventilation holes free of dust deposits to prevent overheating.

Batteries

BLACK+DECKER batteries can be recharged many times. At the end of their useful life, discard batteries with due care for our environment:

• Run the battery down completely, then remove it from the tool.
• NiCd, NiMH and Li-Ion batteries are recyclable. Take them to any authorised repair agent or a local recycling station.

Technical data

KC3610

Rated Voltage V 3.6

No load speed min ^-1 200

Weight kg 0.26

Battery cell V 1.2 Ni-cd 600 mAh

Charger HY-06

Rated Voltage V 220-240

Output Voltage DC6V, 200 mA

Charging Time 1-3 hour

Charger HY06 Type2 /HY06 Type1

Input Voltage V_AC 230

Output Voltage V_DC 6

Output Current (DC) mA 300

Level of sound pressure according to EN 60745:

Sound pressure ( L_pA ) 56.5 dB(A), uncertainty (K) 3 dB(A)

Acoustic power ( L_WA ) 67.5 dB(A), uncertainty (K) 3 dB(A)

Vibration total values (triax vector sum) according to EN 60745:

ah 0.319 m/s ^4

K = 1.5m / s^2

EC declaration of conformity

MACHINERY DIRECTIVE

Screwdriver-KC3610

BLACK+DECKER declares that these products described under "technical data" are in compliance with: 2006/42/EC EN 60745-1:2009 + A11:2010, EN 60745-2-2:2010

These products also comply with Directive 2004/108/EC (until 19/04/2016) 2014/30/EU (from 20/04/2016), 2011/65/EU.

For more information, please contact BLACK+DECKER at the following address or refer to the back of the manual.

The undersigned is responsible for compilation of the technical file and makes this declaration on behalf of BLACK+DECKER.

Kevin Hewitt

Vice-President Global Engineering BLACK+DECKER Europe, 210 Bath Road, Slough, Berkshire, SL1 3YD United Kingdom 08/2015

Protecting the environment

Separate collection. This product must not be disposed of with normal household waste.

Should you find one day that your BLACK+DECKER product needs replacement, or if it is of no further use to you, do not dispose of it with household waste. Make this product available for separate collection.

Separate collection of used products and packaging allows materials to be recycled and used again. Reuse of led materials helps prevent environmen- lution and reduces the demand for materials.

Local regulations may provide for separate collection of electrical products from the household, at municipal waste sites or by the retailer when you purchase a new product.

BLACK+DECKER provides a facility for the collection and recycling of BLACK+DECKER products once they have reached the end of their working life. To take advantage of this service please return your product to any authorised repair agent who will collect them on our behalf.

You can check the location of your nearest authorised repair agent by contacting your local BLACK+DECKER office at the address indicated in this manual. Alternatively, a list of authorised BLACK+DECKER repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com.

Guarantee

Black + Decker is confident of the quality of its products and offers an outstanding guarantee. This guarantee statement is in addition to and in no way prejudices your statutory rights.

If a Black + Decker product becomes defective due to faulty materials, workmanship or lack of conformity, within 24 months from the date of purchase, BLACK+DECKER guarantees to replace defective parts, repair products subjected to fair wear and tear or replace such products to make sure of the minimum inconvenience to the customer unless:

• The product has been used for trade, professional or hire purposes.
• The product has been subjected to misuse or neglect.
• The product has sustained damage through foreign objects, substances or accidents.
• Repairs have been attempted by persons other than authorised repair agents or Black + Decker service staff.

To claim on the guarantee, you will need to submit proof of purchase to the seller or an authorised repair agent. You can check the location of your nearest authorised repair agent by contacting your local BLACK+DECKER office at the address indicated in this manual. Alternatively, a list of authorised BLACK+DECKER repair agents and full details of our aftersales service and contacts are available on the Internet at: www.2helpU.com
