TMP 500 - Photo/Video Accessories Glide Gear - Free user manual and instructions

Product Type	Teleprompter
Brand	Glide Gear
Model	TMP 500
Dimensions (L x W x H)	15 x 10 x 2 inches (approx.)
Weight	3 lbs (approx.)
Power Source	None (passive device)
Compatible Devices	Tablets and smartphones up to 12.9 inches
Primary Function	Reflects script text onto clear glass for eye-level reading
Material	Aluminum frame, plastic components, optical glass
Included Accessories	Beamsplitter glass, mounting hardware, carrying case
Adjustability	Tilt and height adjustment for camera lens
Mounting Thread	Standard 1/4-20 tripod mount
Maximum Device Thickness	0.5 inches
Glass Size	8 x 10 inches (approx.)
Intended Use	Video production, live streaming, public speaking
Cleaning Instructions	Use microfiber cloth and glass cleaner; avoid abrasive materials
Warranty	1 year limited warranty

Frequently Asked Questions - TMP 500 Glide Gear

What devices are compatible with the Glide Gear TMP 500?

The TMP 500 is designed to hold most tablets and smartphones up to 12.9 inches in size, including iPads, Android tablets, and large phones. The device should be less than 0.5 inches thick.

How do I set up the teleprompter?

Mount the TMP 500 on a tripod using the 1/4-20 thread. Insert your tablet or smartphone into the holder. Adjust the glass angle and camera height so the lens sees through the glass. Use a prompter app to display your script.

Can I use any teleprompter app?

Yes, the TMP 500 works with any teleprompter app available for iOS or Android. Popular apps include PromptSmart Pro, Teleprompter Pro, and EasyPrompter.

How do I clean the glass?

Use a soft microfiber cloth and a gentle glass cleaner. Spray the cleaner on the cloth, not directly on the glass, to avoid streaks. Never use paper towels or abrasive materials.

Does the TMP 500 include a case?

Yes, the TMP 500 comes with a padded carrying case for storage and transport, along with all necessary mounting hardware.

What is the weight limit for the device holder?

The holder can support up to 2.5 lbs (approx.), which accommodates most tablets and large phones securely.

Can I mount a camera directly on the teleprompter?

The TMP 500 has a mounting plate with a 1/4-20 thread for attaching a camera. The camera lens should align with the center of the glass for best results.

Is the glass removable?

Yes, the beamsplitter glass can be removed for cleaning or replacement. It is held in place by clips and can be slid out gently.

What is the warranty period?

The Glide Gear TMP 500 comes with a 1-year limited warranty against manufacturing defects. Contact Glide Gear support for warranty claims.

Can I use the teleprompter outdoors?

Yes, but be aware that bright sunlight may reduce readability of the script on the glass. Use a screen hood or increase brightness on your device for outdoor use.

USER MANUAL TMP 500 Glide Gear

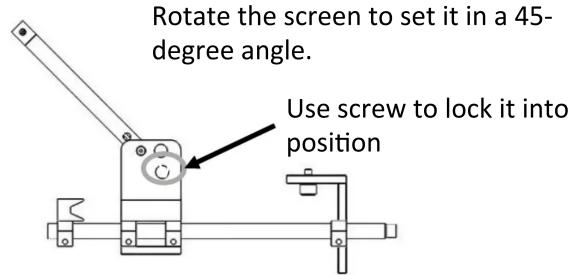

① To use the TMP 500, first unlock the screen from its horizontal position.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Lock the screen back when putting away the TMP 500.

②

③

Technical line drawing of a mechanical device with lever and base components (no text or symbols)

Use the 2 clamps to position your tablet or cellphone.

④

Glide Gear

Teleprompter – TMP 500

The TMP 500 can be used with:

• Most cellphones and tablets as a monitor.

• Most cameras:

• Most DSLR's (depending on the lens)

• Any cellphone
• GoPro's (set in narrow angle)

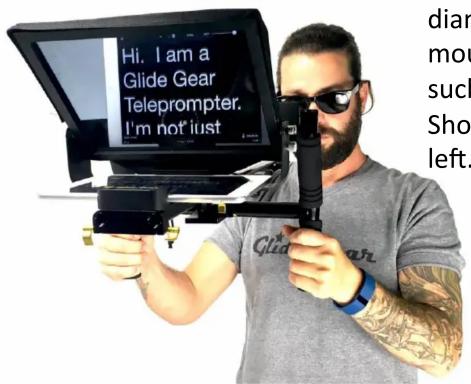

The TMP 500 comes with 15mm diameter rods and can be mounted to most shoulder rigs such as the Glide Gear Horn Shoulder rigs as pictured on the left.

Technical line drawing of a mechanical assembly with mounting brackets and a circular annotation (no text or symbols)

The TMP 500 features 14 -20 and 3/8-16 mounting holes for tripods.

For more information, please visit www.glidegear.net
